| Model NO. | DS-LD2513 |

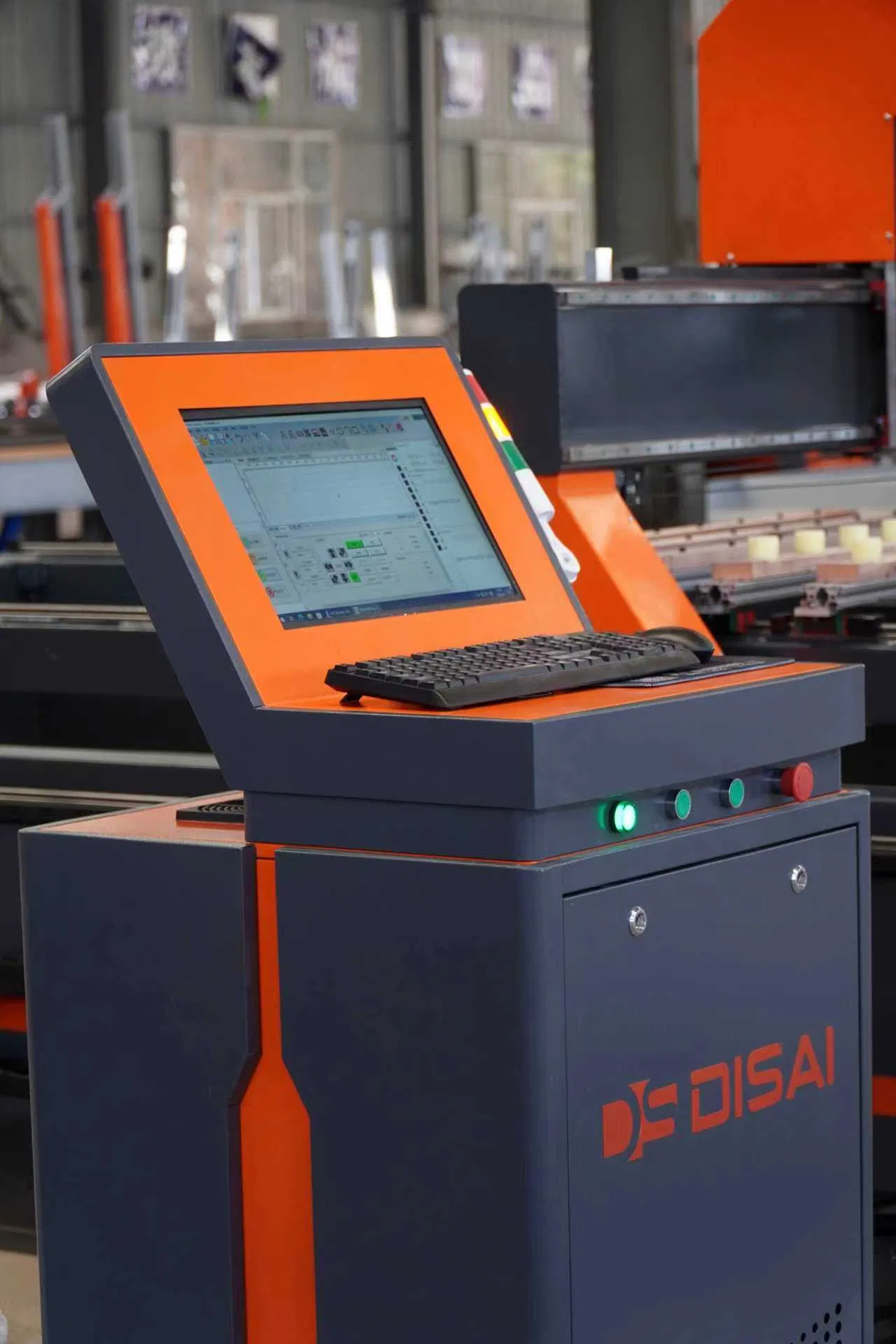

| Machine Type | Glass Laser Drilling and Etching Machine |
| Functions | Drilling, Sanding, Etching, Marking, Film/Paint Removal |
| Method | Laser |
| Applicable Material | Glass Sheet |
| Supported Glass | Mirrors, Clear Glass, Low-E Glass |
| Max Size of Glass | 2500mm X 1300mm |
| Laser Power | 120W Mopa |
| Drilling Speed | 15s for 40mm Hole in 5mm Glass |
| Cooling System | Water Cooling |
| Production Capacity | 120 sets/Year |

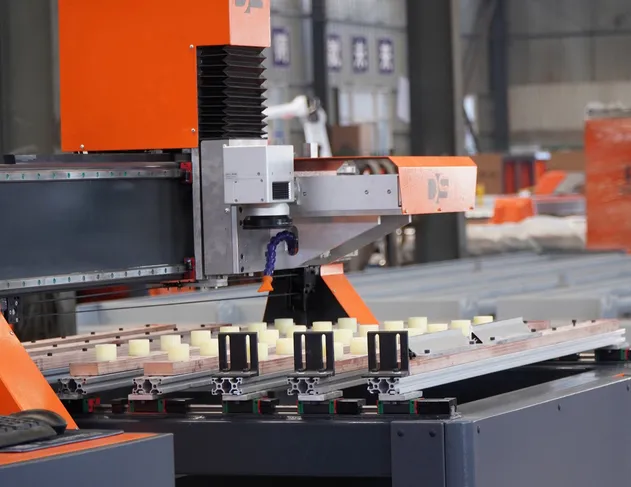

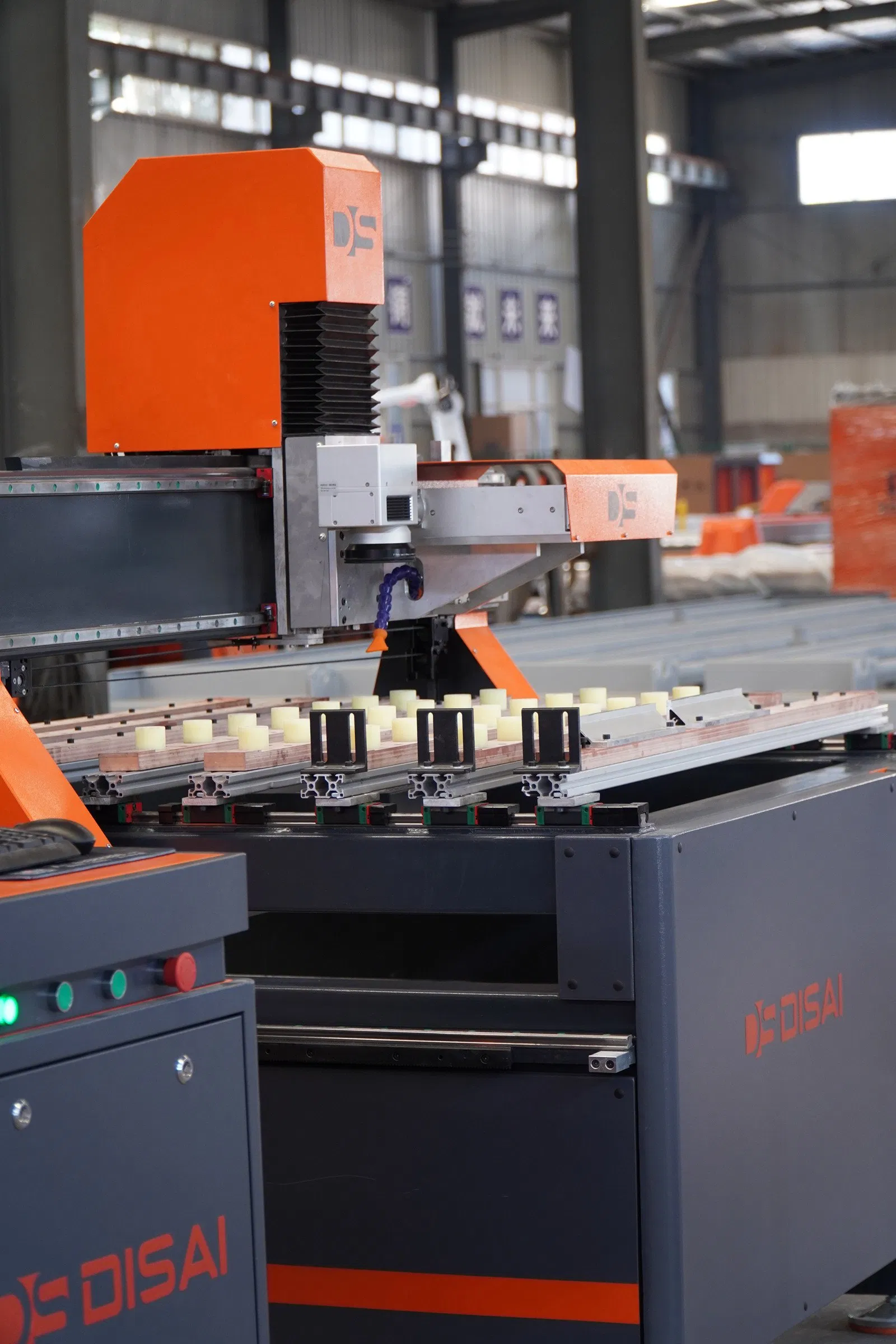

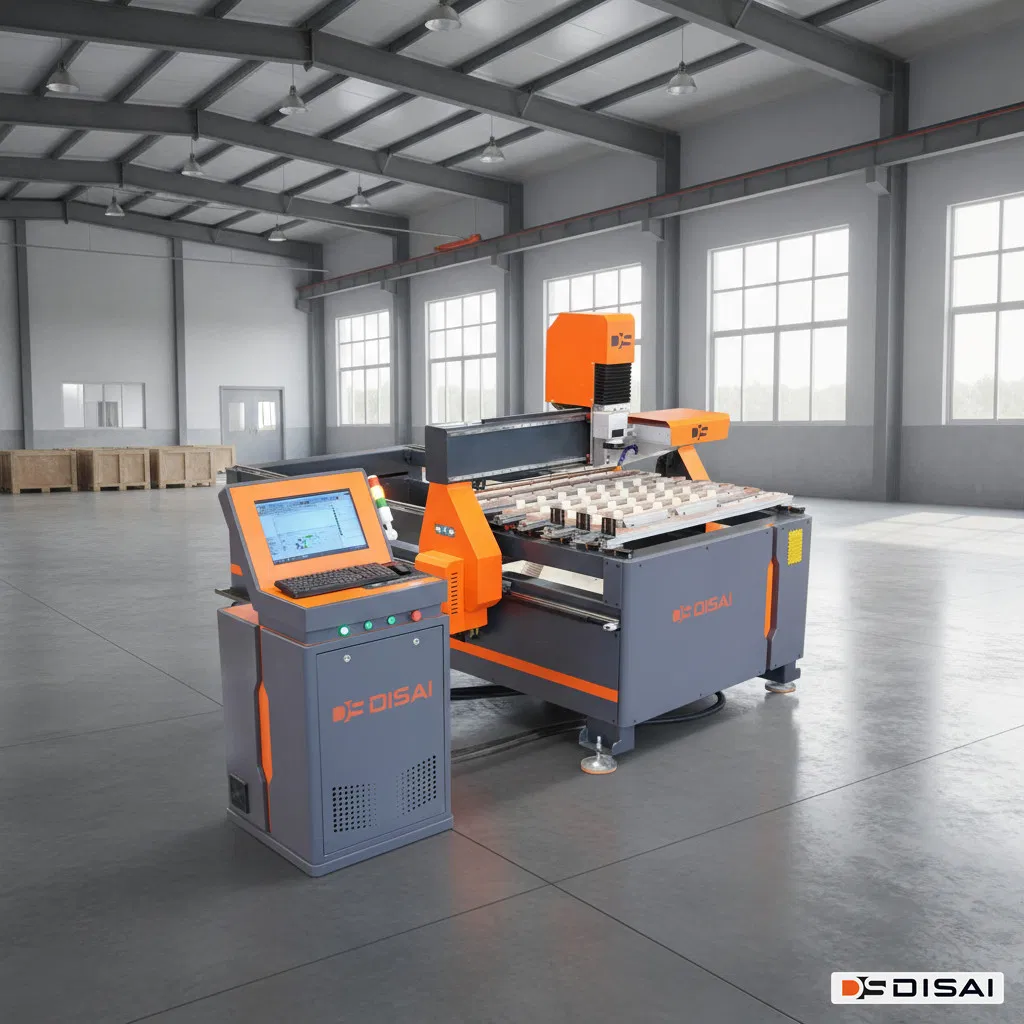

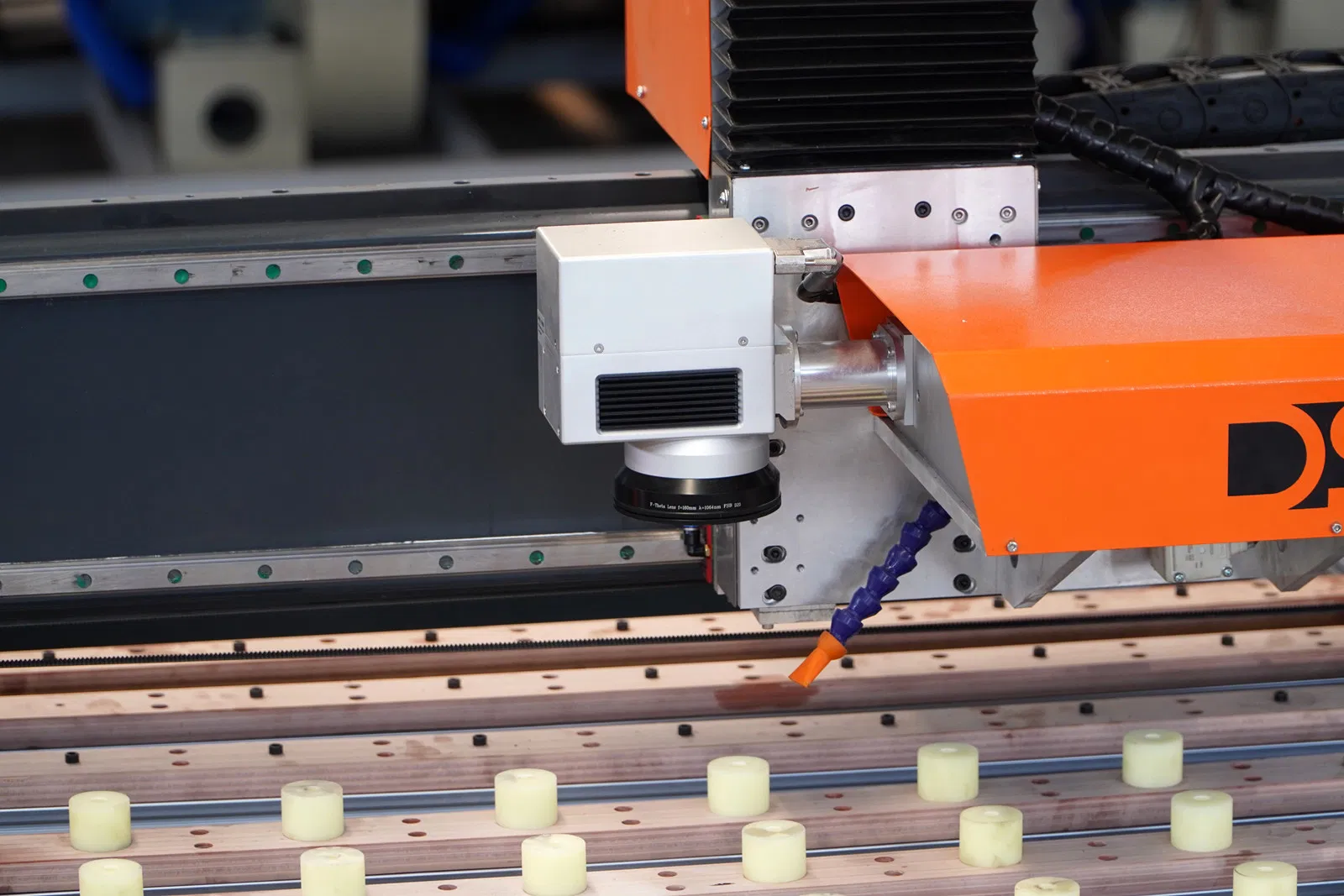

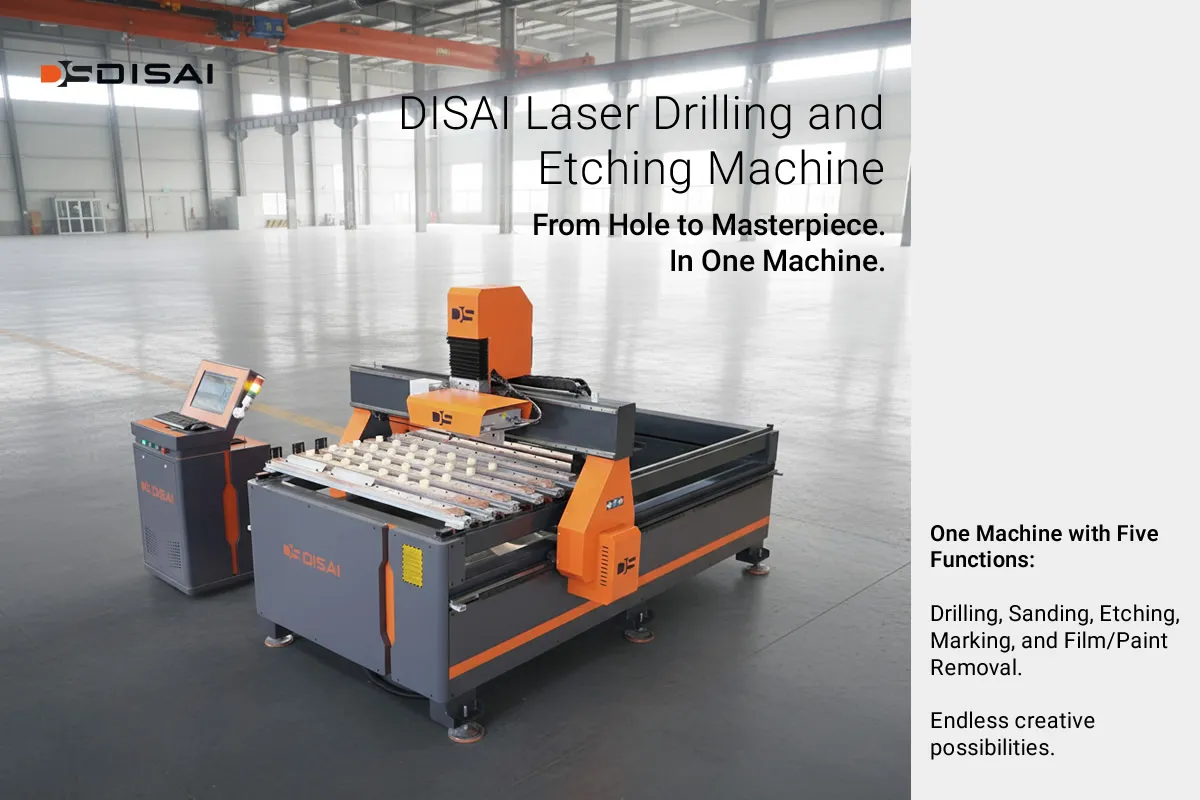

Experience a paradigm shift in glass processing with a fully integrated 5-in-1 laser workstation. This revolutionary machine consolidates drilling, sanding, etching, marking, and film/paint removal into a single, automated platform. Designed for processing mirrors, clear glass, and Low-E glass, it gives you precise control over laser energy and focus to meet the most diverse processing requirements.
• High-Speed Shape Drilling: Process holes of any custom shape. A complex butterfly-shaped hole can be drilled in just 13 seconds without micro-cracks.

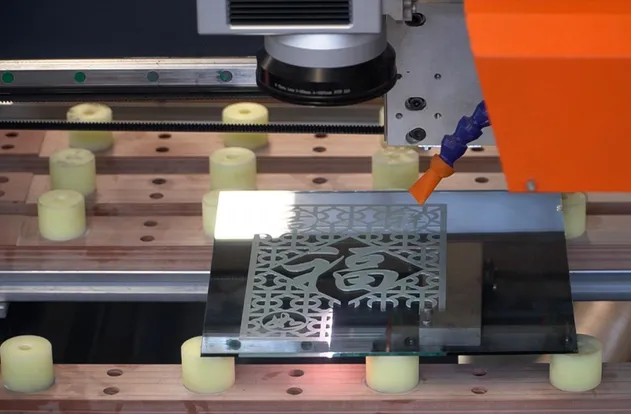

• Precision Surface Treatment: Control depth and position for intricate etching or film stripping, essential for high-end smart mirrors.
• Integrated Edge Sanding: Seamlessly combines drilling with automated sanding to create smooth, safe edges (2-19mm range).
• Industrial Standard: Handles large glass panels up to 2500x1300mm with a powerful 120W laser.
| Models | Max. Glass Size | Drilling Thickness | Sandblasting Thickness | Drilling Precision | Laser Type |
|---|---|---|---|---|---|
| DS-LD1810-IN | 1800×1000mm | 2 - 19mm | 2 - 12mm | ± 0.5mm | 120W MOPA |
| DS-LD2513-IN | 2500×1300mm | 2 - 19mm | 2 - 12mm | ± 0.5mm | 120W MOPA |
| DS-LD3020-IN | 3000×2000mm | 2 - 19mm | 2 - 12mm | ± 0.5mm | 120W MOPA |
World-Class Components
Integration of premium brands like Delta Tau (USA), Panasonic (Japan), and Siemens (Germany).

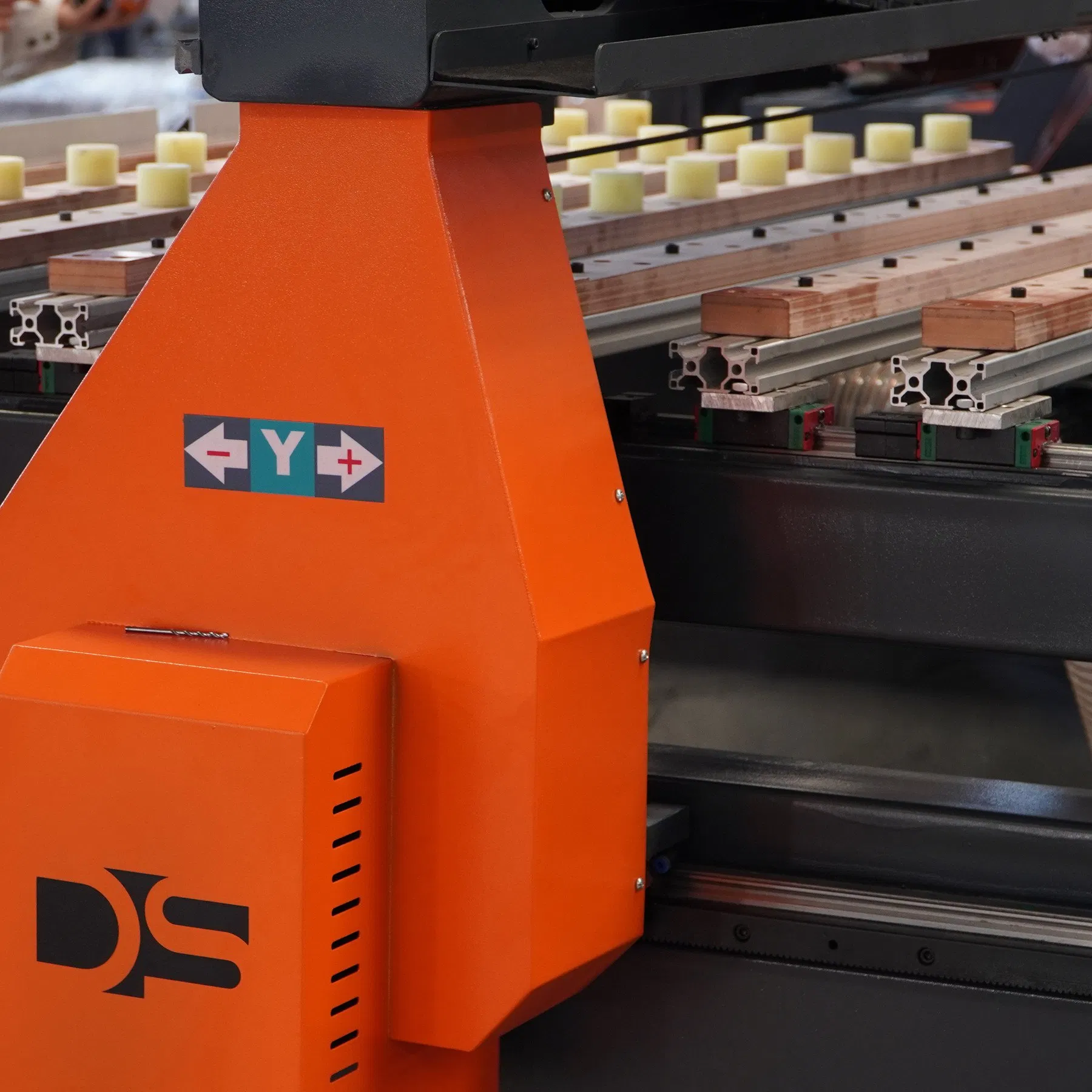

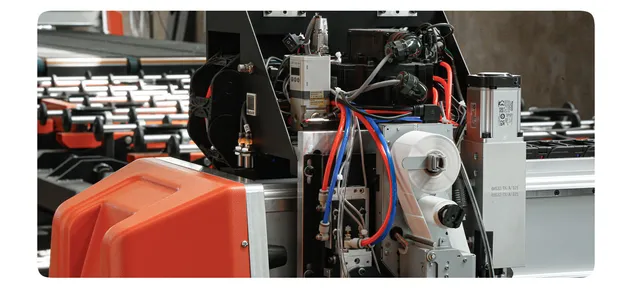

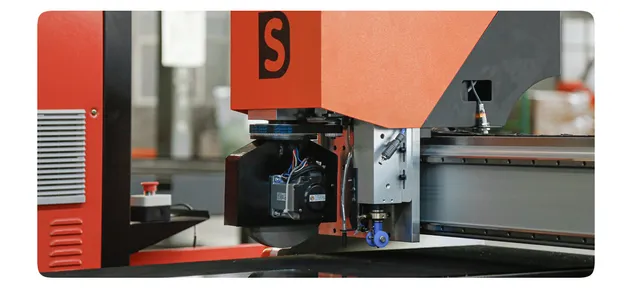

Direct-Drive System
Linear rail and direct-drive motor replace traditional belts for high speed and precision.
Optimization Software
Equipped with industry-leading software to generate efficient layouts and reduce waste.
Our equipment operates reliably in over 80 countries, trusted by more than 2,000 glass processing companies worldwide. Every machine is embedded with extensive experience in overcoming global industrial challenges.
All products have officially obtained the CE Machinery Directive (2006/42/EC) Attestation of Conformity, ensuring world-class safety and quality standards.
Architectural & Facade Glass
Photovoltaic & Technical Glass
Automotive Glazing
