Basic Information
Model NO.HZDM633
TankStainless Steel
WheelMade in Italy
Transport PackageStandard Exporting Packing
SpecificationCE
OriginChina
HS Code84642010
Production Capacity100/Year
Product Description & Features
- The base, beams, uprights and motor carriages are made of enhanced high-quality cast iron for rigid and reliable processing.
- The transmission system utilizes a mechanical stepless reducer, double spiral speed reducer, and sleeve-type chain automatic gear.
- Lead screw driving is used for front beam and grinding spindle movement, supported by sliders for precise positioning.
- Front and rear pressure pads are crafted from high-intensity plastic material.
- Rack construction features aluminum spacers for durability.

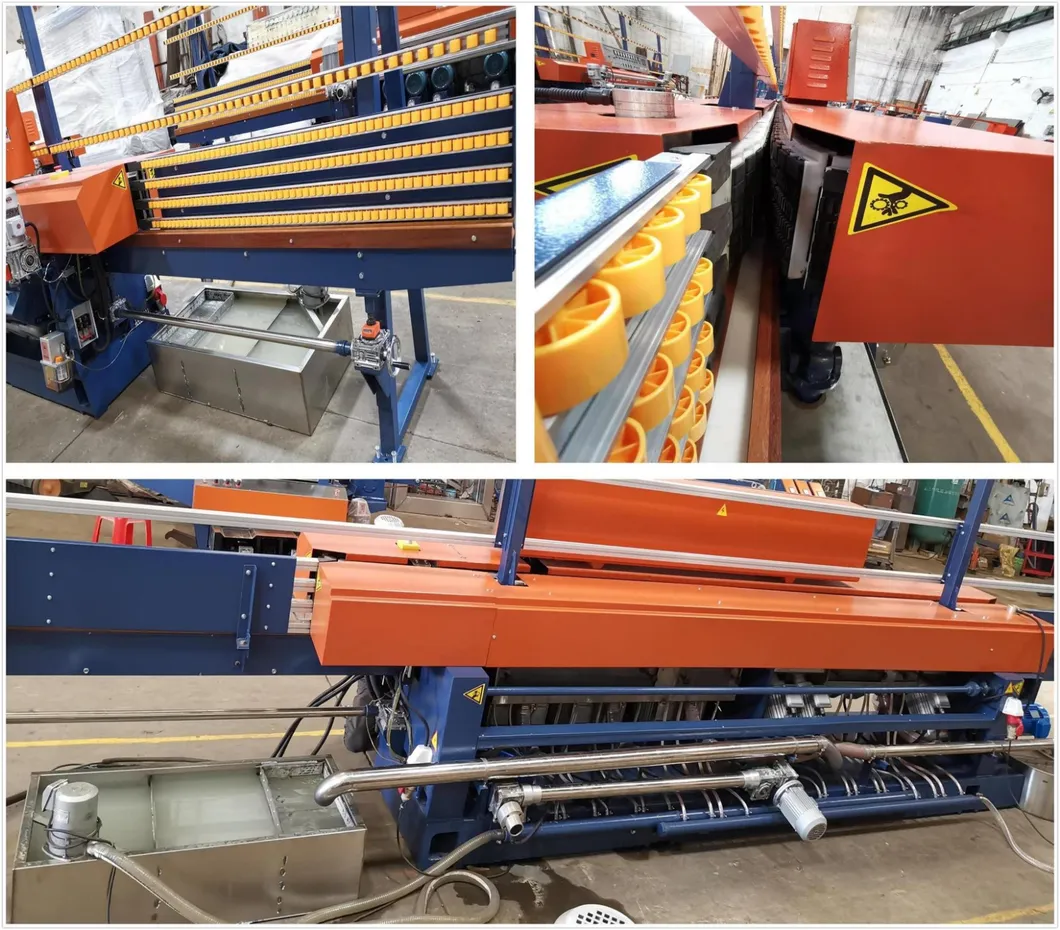

- Inlet conveyor is equipped with an adjustable device for height control.
- Input and output conveyors adopt timing belts to significantly improve transmission precision.
- Equipped with a stainless steel water tank and polishing tank with an electrical agitator.
- Automatic lubricating oil pump provides consistent lubrication to all beam and slider parts.
Technical Specifications
| Maximum Grinding | 3mm |
| Grinding Speed | 500~2500m/min |
| Chamfer Angle | 0° ~ 45° |
| Thickness of Processed Glass | 3 ~ 25mm |
| Size of Processed Glass | Max: 3000 x 3000mm | Min: 100 x 100mm |
| Total Power | 26KW |
| Weight | 4000 KG |
| Machine Dimension | 7700(L) x 1200(W) x 2500(H)mm |

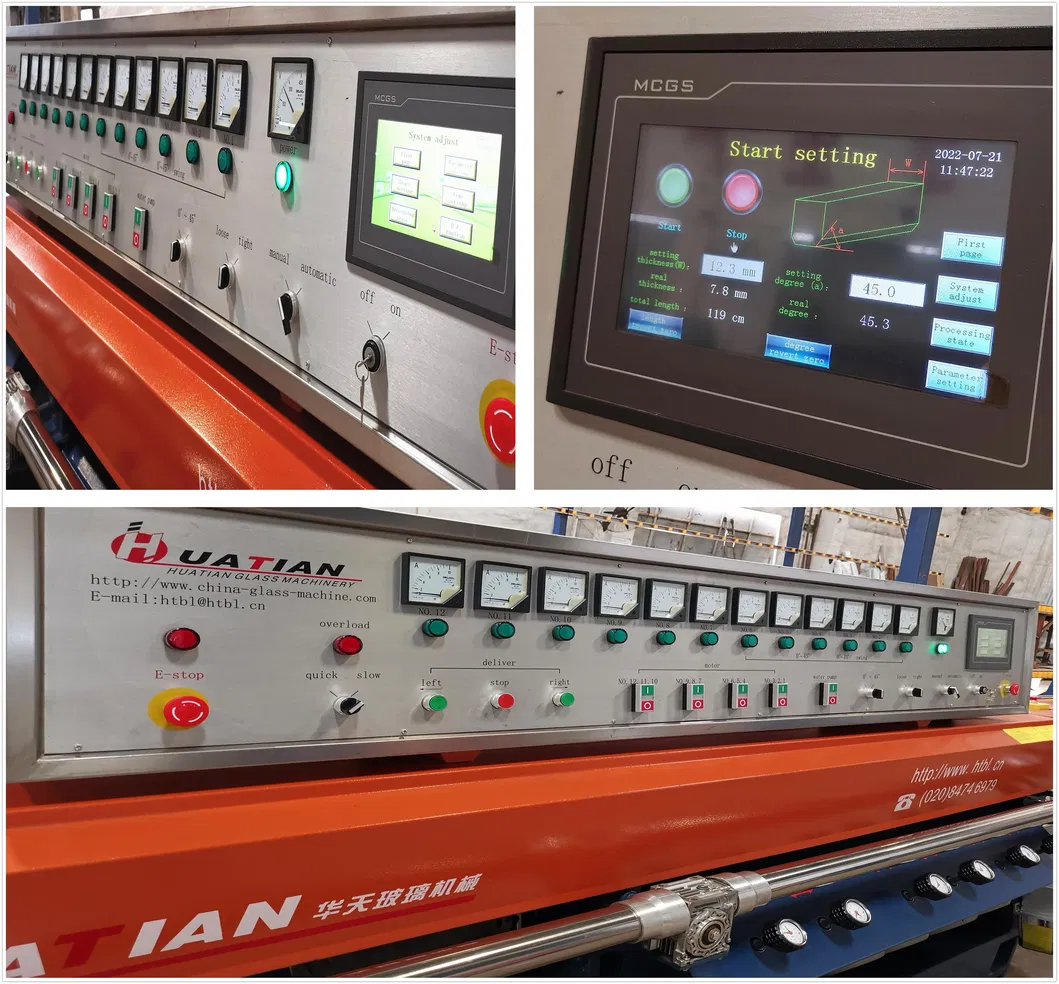

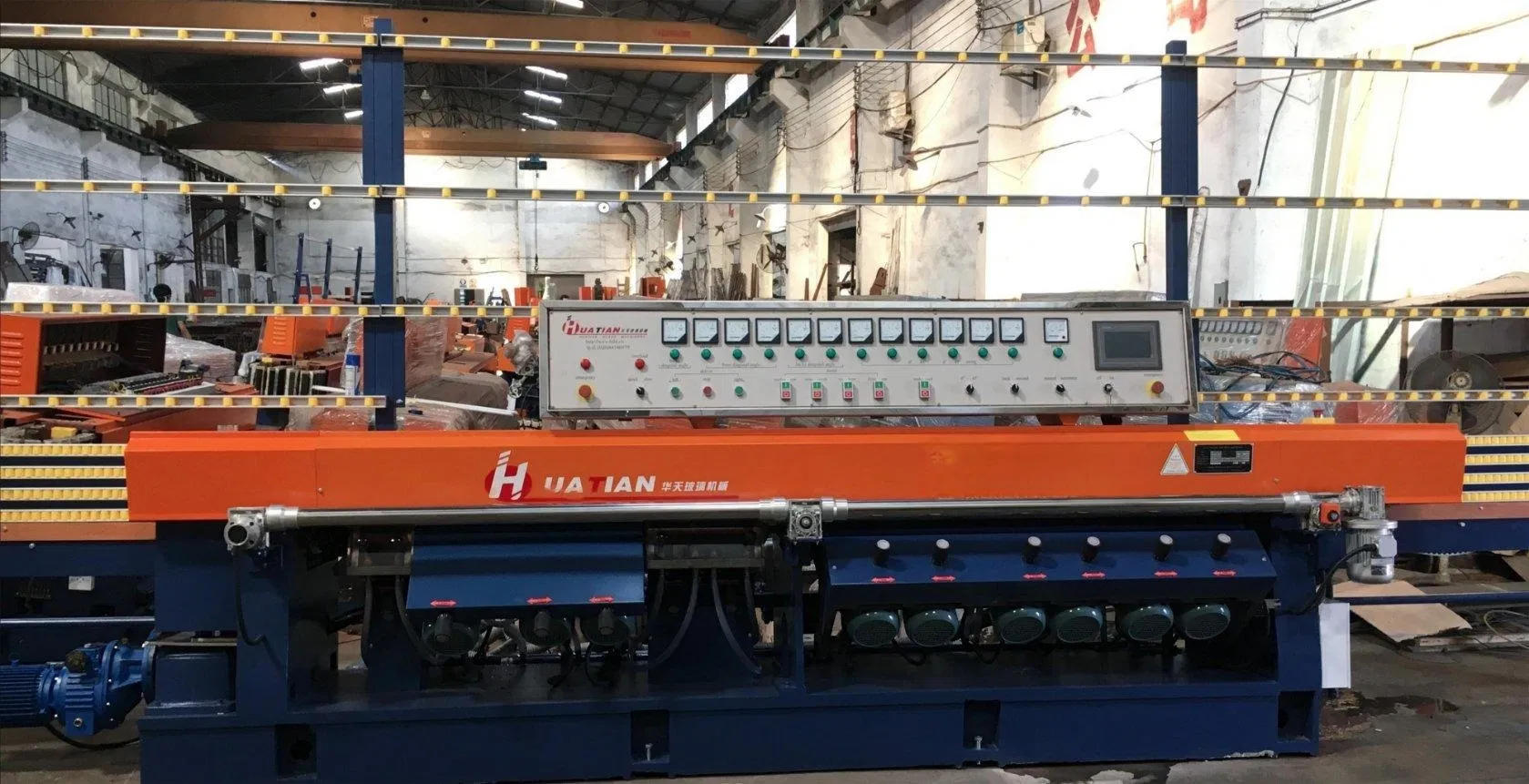

Delta PLC with touch screen control system. The screen displays glass thickness, length, angle, and other parameters, supporting both manual and automatic modes.

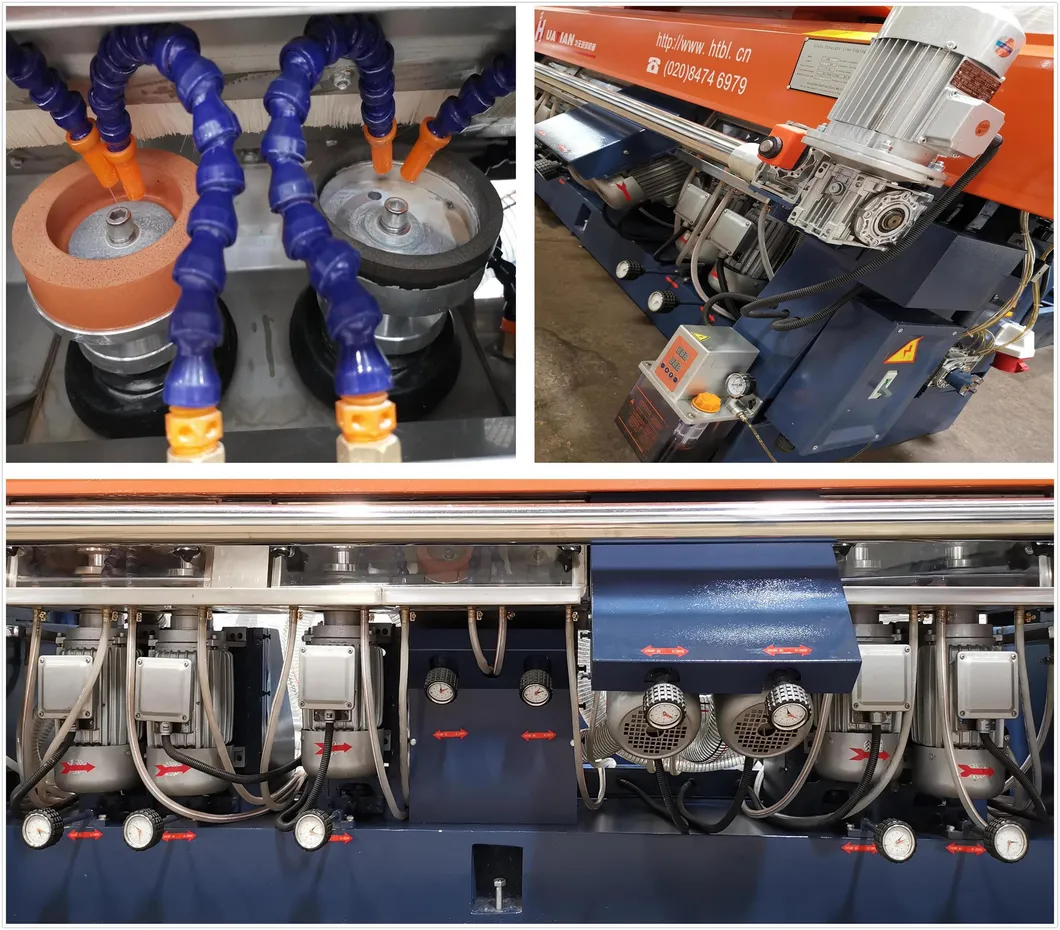

High precision low vibration motors combined with Italian grinding wheels ensure superior edging quality. Automatic lubrication pumps protect the conveyor system.

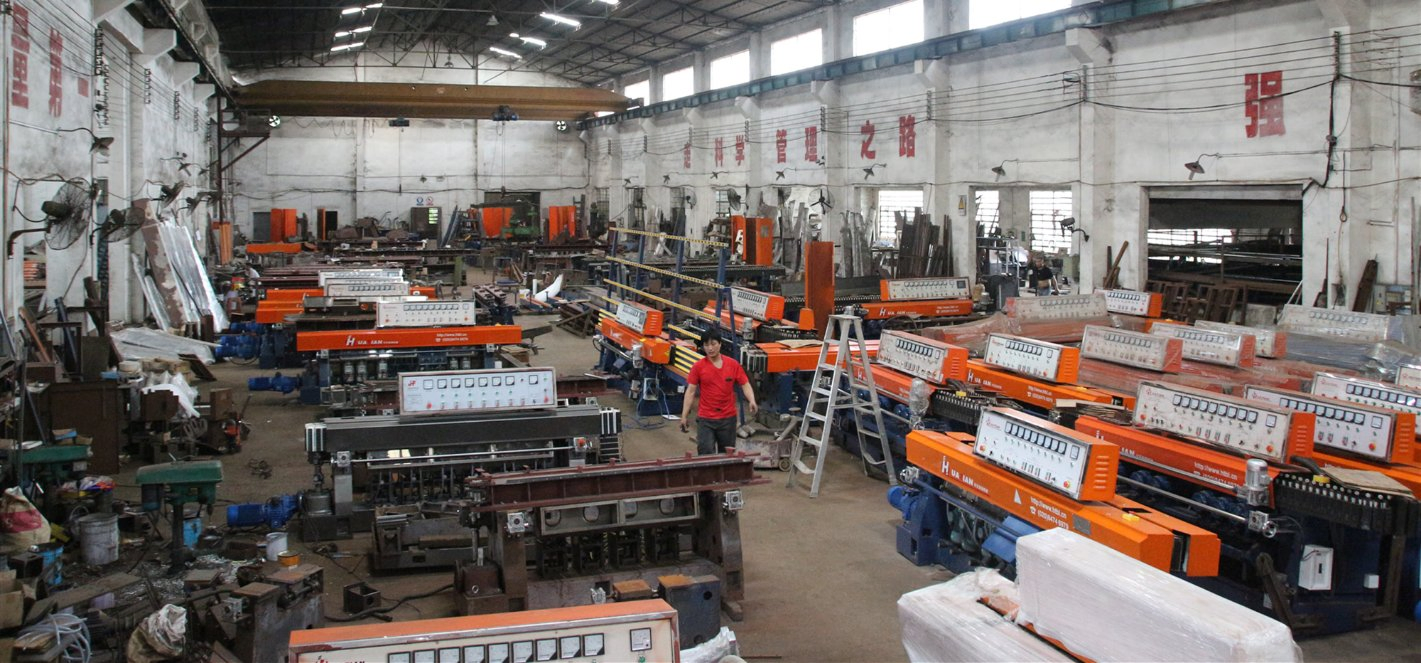

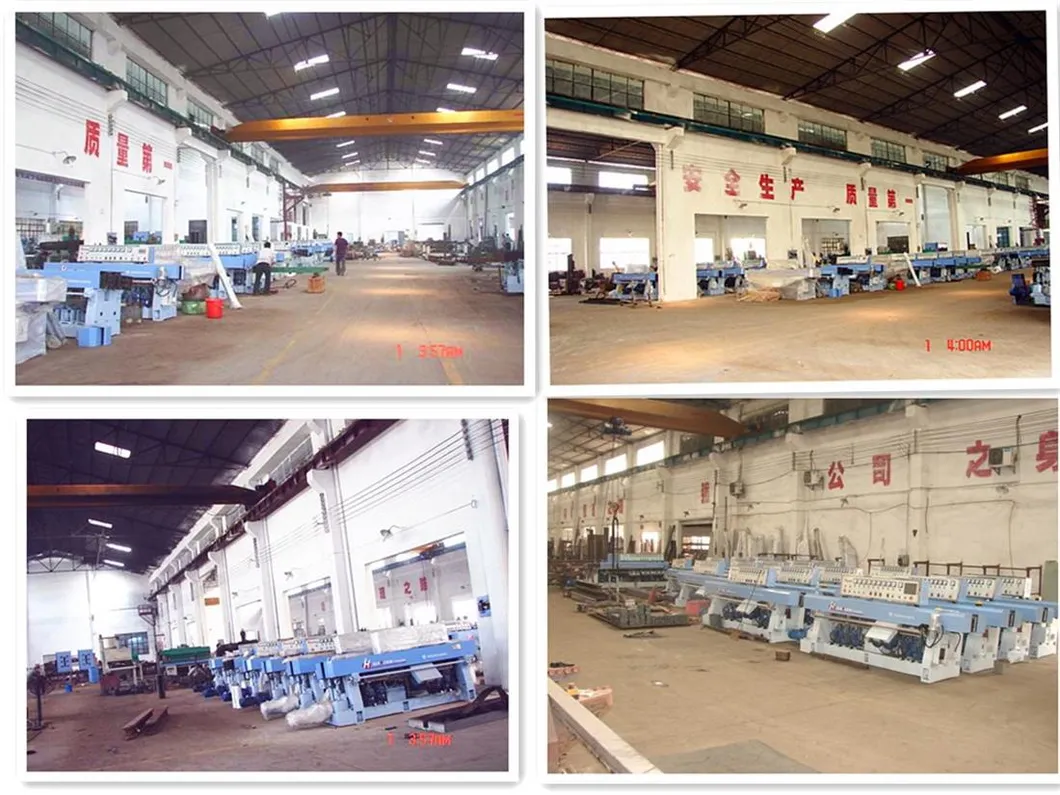

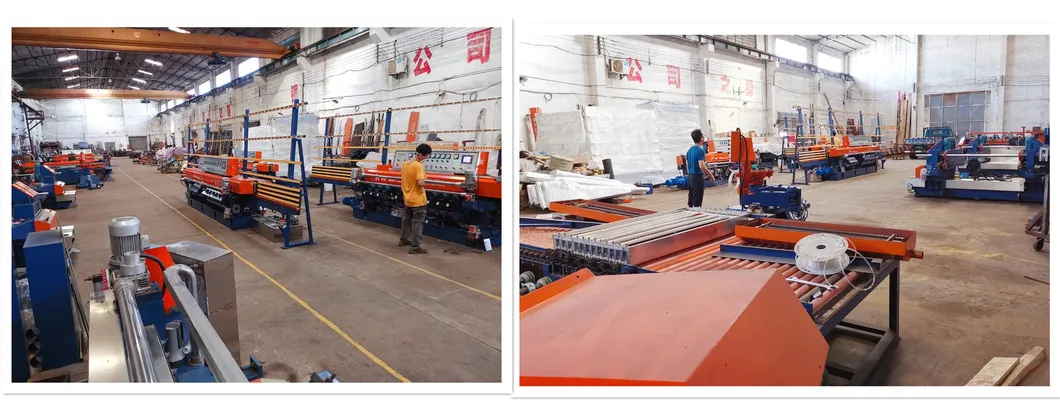

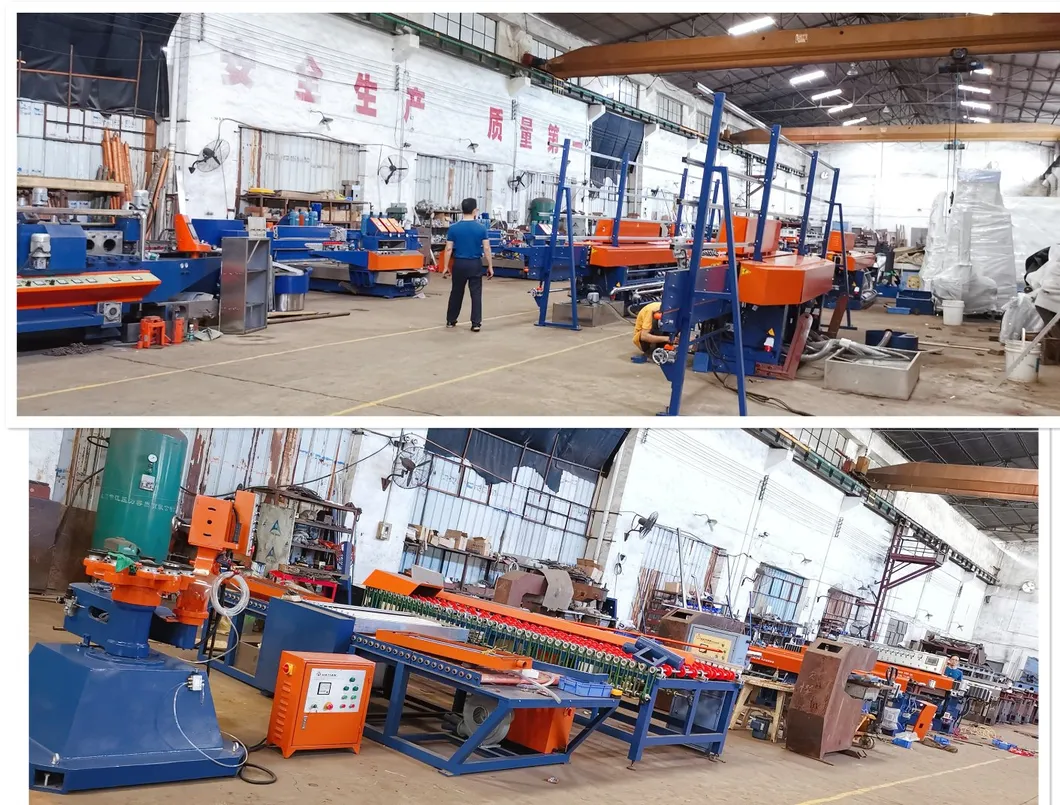

Certifications & Workplace
Frequently Asked Questions
What is the range of glass thickness this machine can process?
The HZDM633 is designed to process glass thicknesses ranging from 3mm to 25mm.
What is the maximum glass size for processing?
The machine can handle a maximum glass size of 3000 x 3000mm, with a minimum size of 100 x 100mm.
What kind of control system does the machine use?
It uses a Delta PLC control system equipped with a touch screen that supports both manual and automatic operation modes.
Are the grinding wheels of high quality?
Yes, some of the key grinding wheels are made in Italy to ensure high precision and a superior finish.
Does the machine require manual lubrication?
No, the machine is equipped with an automatic lubricating oil pump that services the conveyor system, beams, and sliders.
Is the machine certified for international standards?
Yes, the machine comes with CE certification, meeting the necessary safety and quality requirements for export.
