Advanced Technology Automatic Insulating Glass Flat - Pressing Production Line

1 / 5

Advanced Technology Automatic Insulating Glass Flat - Pressing Production Line

Customization:	Available
Certification:	CE, ISO, SGS
Control System:	PLC Control

Send Inquiry

Product Description

📋

Basic Information

Model NO.:KLVS2540

Glass Thickness:6-30 mm

Input Voltage:380V

Total Power:34kw

Total Weight:7500kg

Dimension:29000*1800*3600mm

Transport Package:PVC Film Packing

Production Capacity:5000 set/Piece

⚙️

Product Description

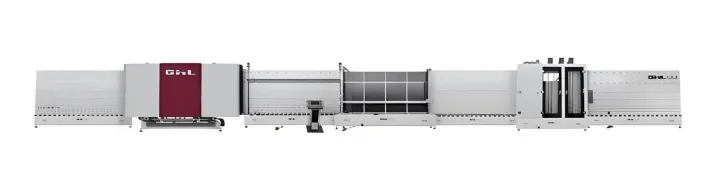

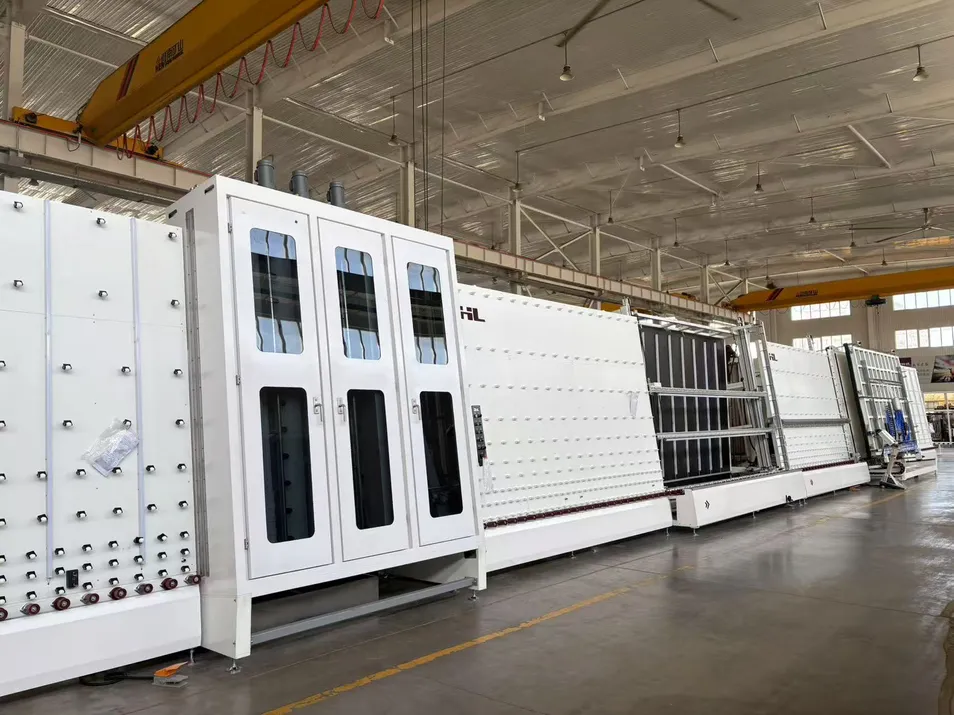

Insulating Glass Production Line Overview

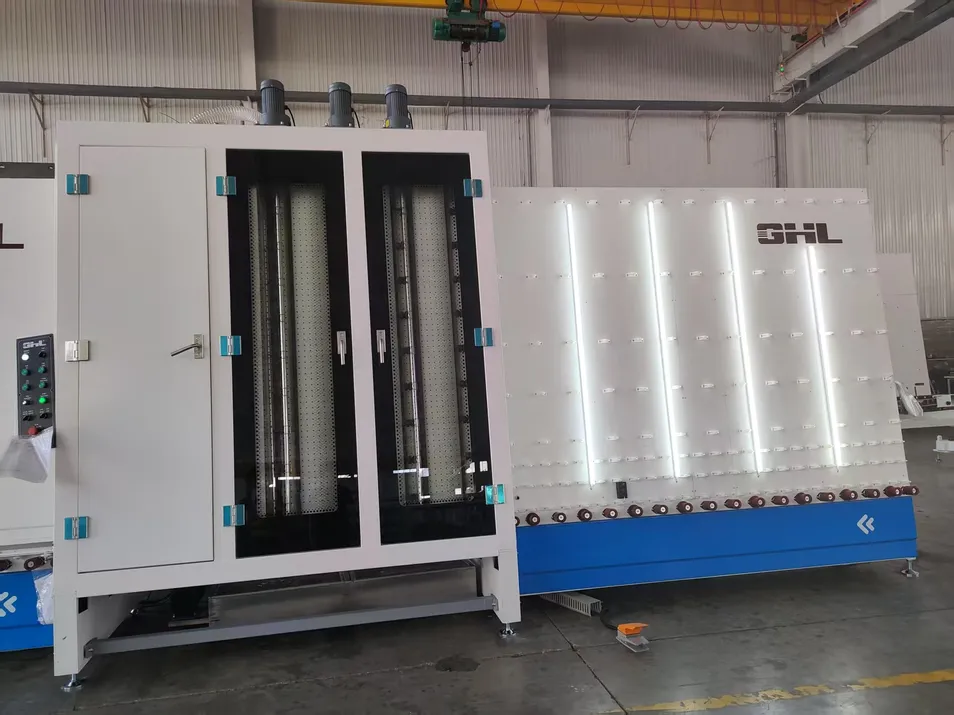

Washing and Drying Section

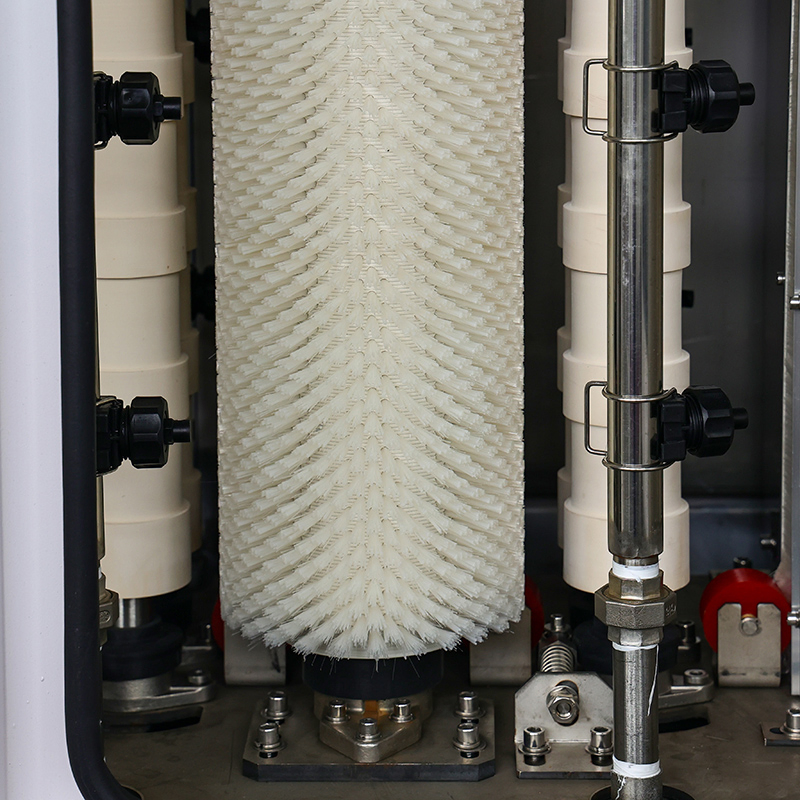

Equipped with 7 motors and 3 pairs of brushes; each brush is controlled by a separate motor.
Washing section constructed from thick stainless steel with a double hollow base design.
Bearings feature waterproof covers to prevent water and glass dust ingress.
Universal and fan-shaped spray nozzles ensure thorough cleaning.
High-power blower with sound-absorbing devices to minimize noise pollution.

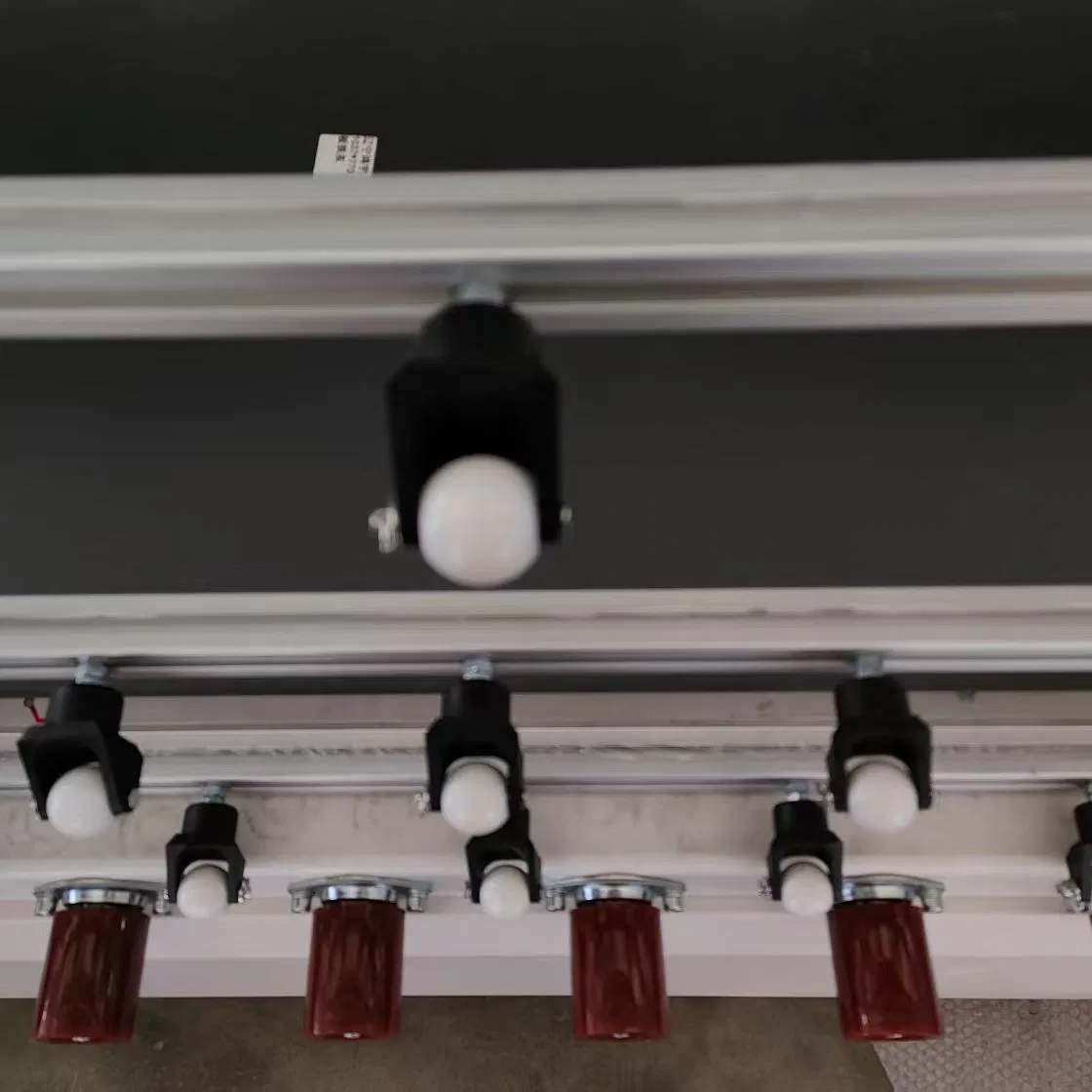

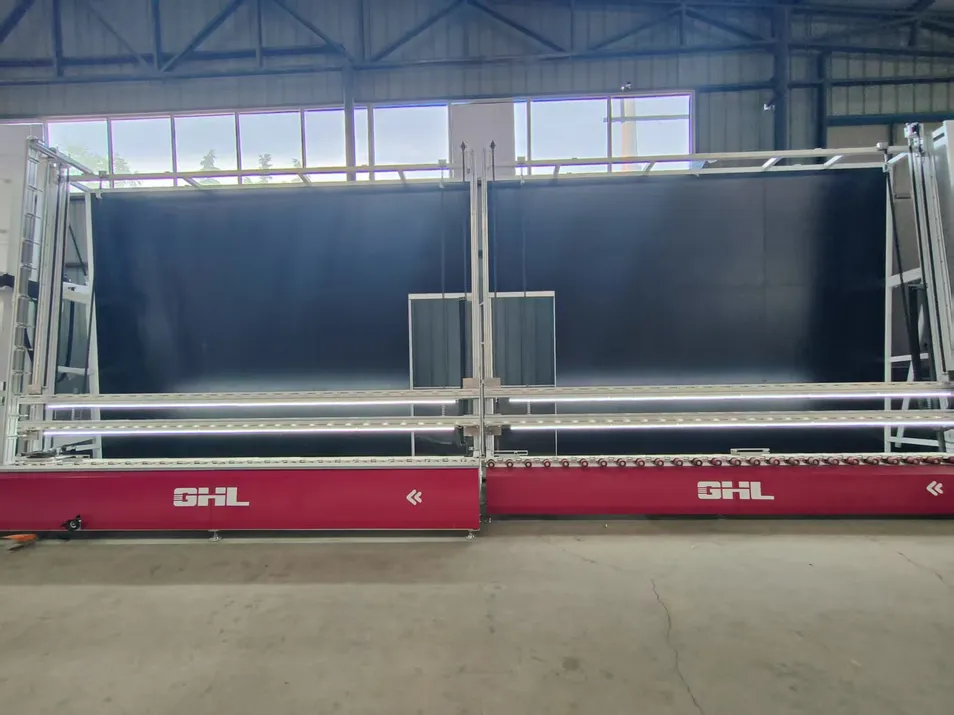

Conveyor & Aluminum Spacer Section

Equipped with speed-up sensors to enhance production efficiency.
Utilizes air float or double beam transfer to eliminate wheel marks on glass.
Advanced sensors detect glass height to adjust beam movement automatically.
Hand-operated aluminum spacer positioning for easy and accurate adjustment.

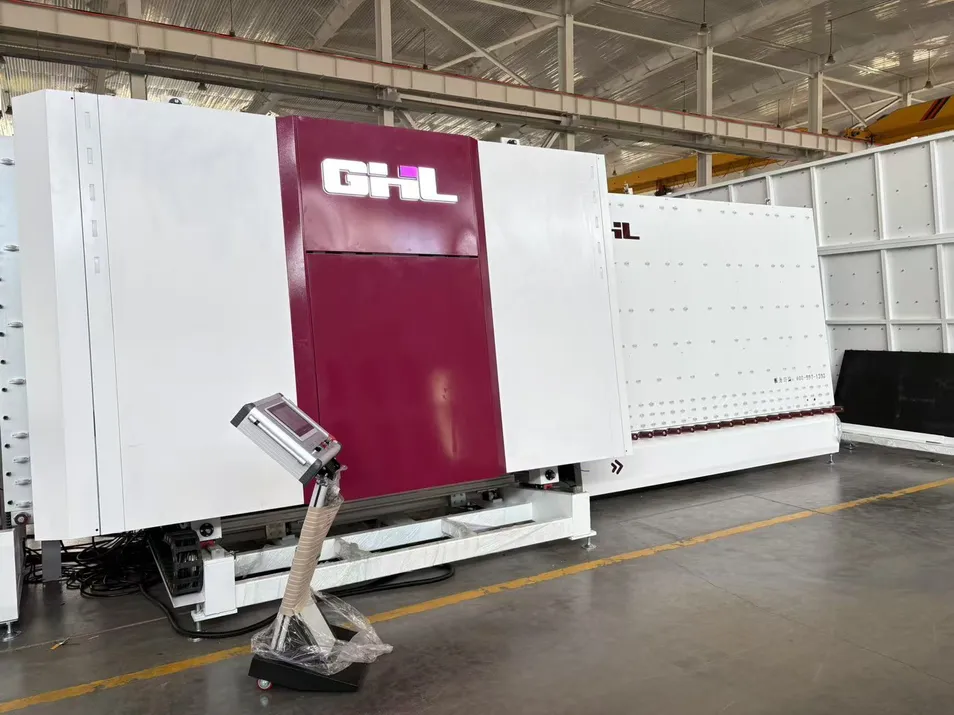

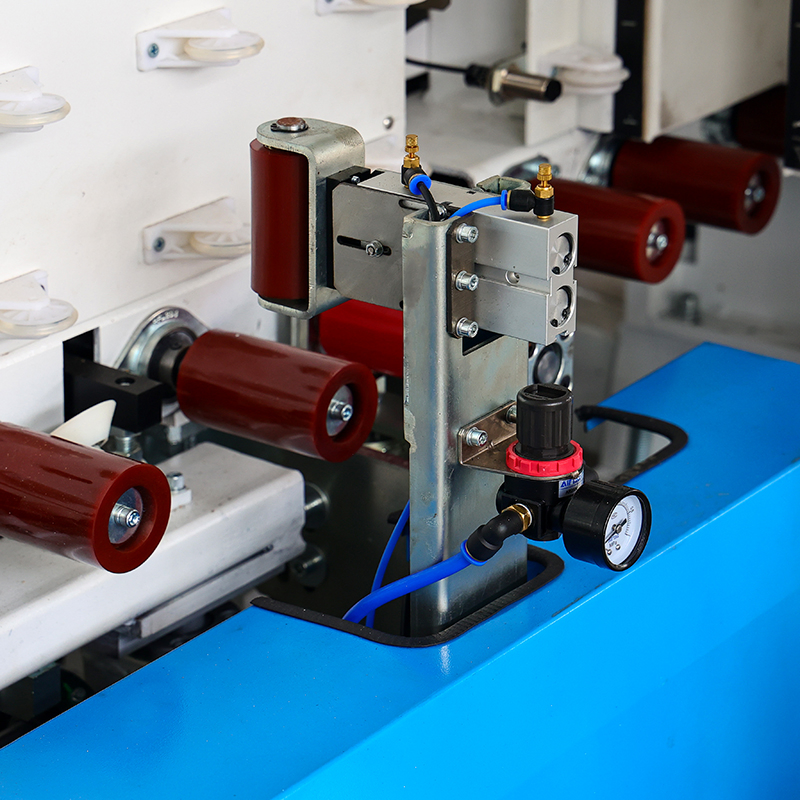

Pressing and Gas Filling Section

Suitable for triple glazing assembly with advanced beam sensing.
Cylinder extrusion device prevents glass malposition during processing.
Large stroke panel opening for easy maintenance access.
Uniform pressure distribution to avoid glass breakage and ensure even sealing.
Gas concentration reaches 90%, exceeding international standards.

📊

Technical Specification

Model	KLVS2540
Total Power	36Kw
Input Voltage	380V 50Hz
Max. Glass Size	2500 * 4000mm
Min. Glass Size	300 * 500mm
Working Speed	8 - 45m/min
Glass Thickness	3 - 12mm
Total Weight	7500kg
Dimension	29000 * 1800 * 3600mm

📦

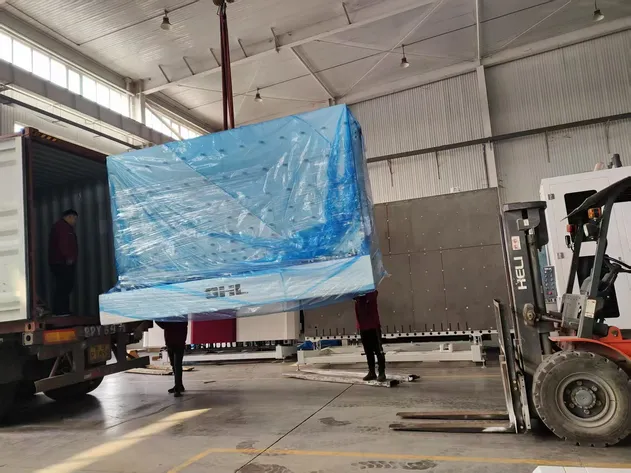

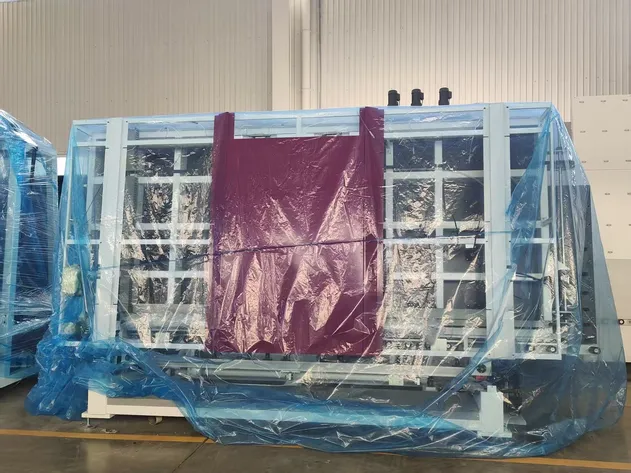

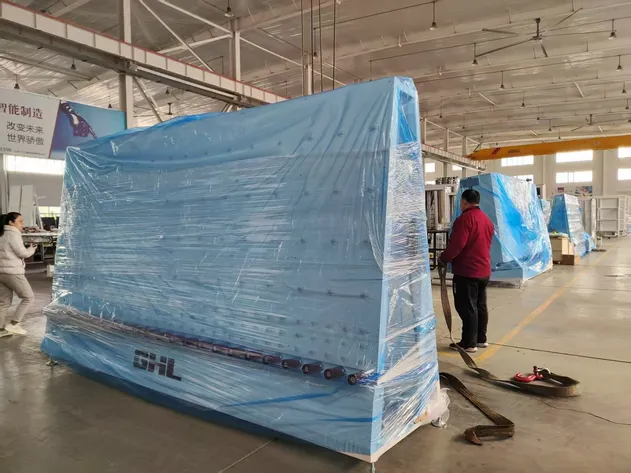

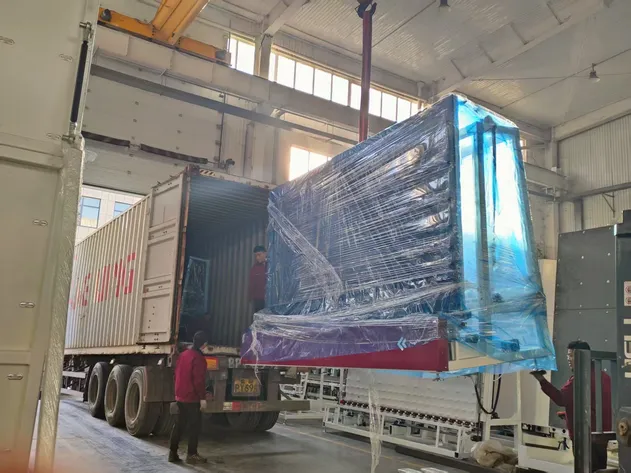

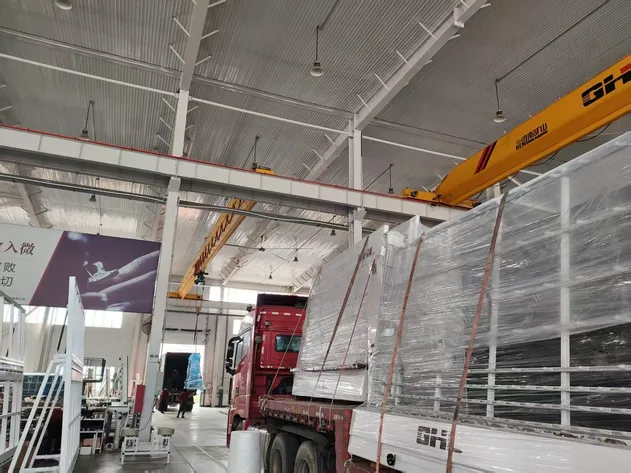

Packing & Delivery

🏢

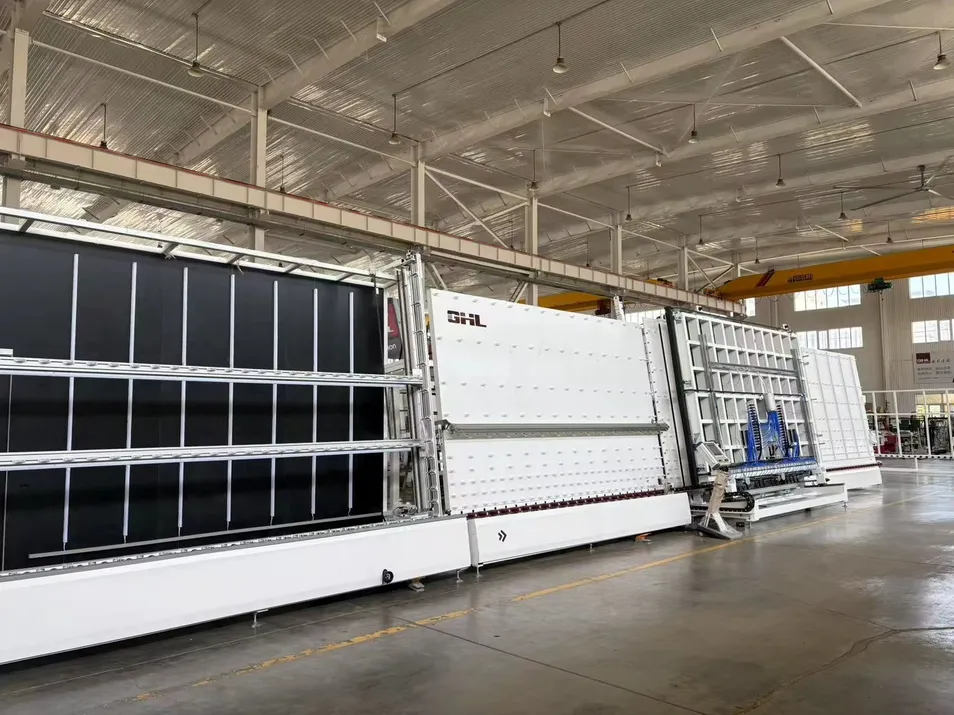

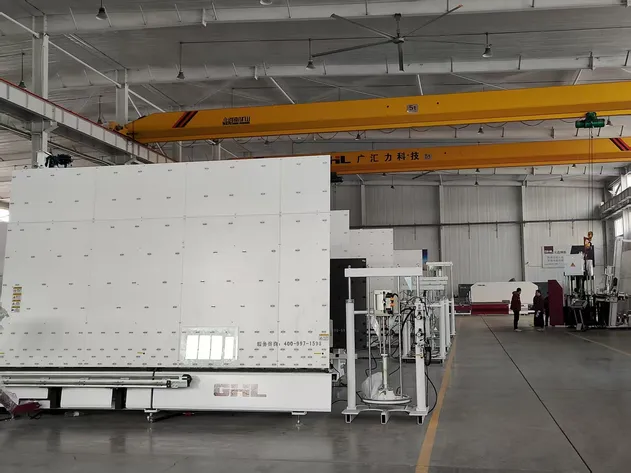

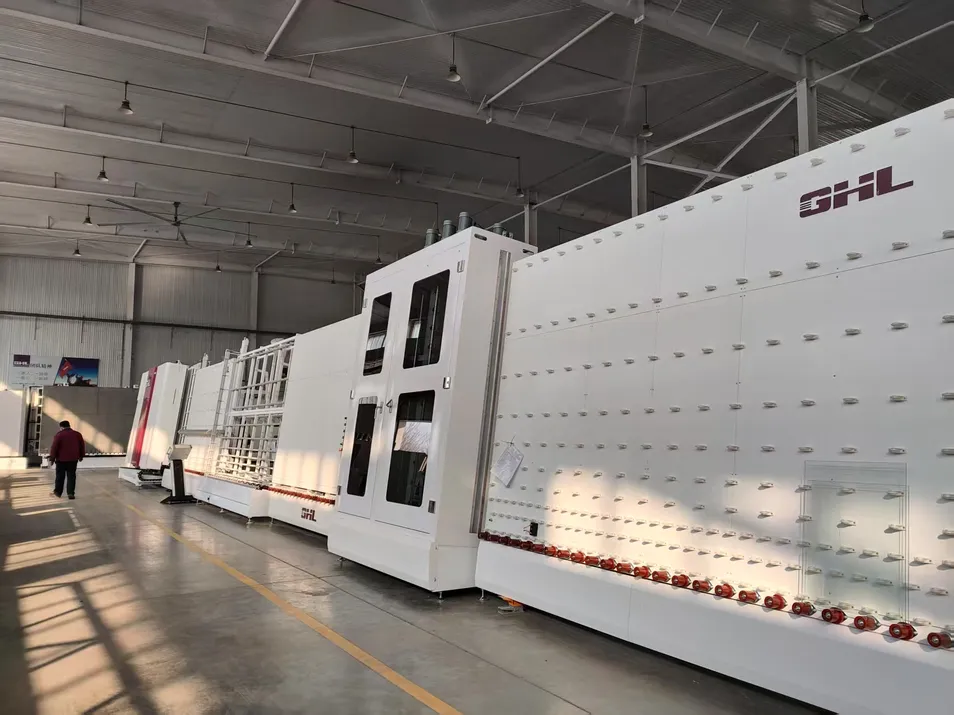

Production Environment

Frequently Asked Questions

What types of glass machinery do you specialize in?

We specialize in Insulating Glass Production Lines, Butyl Sealant Coating Machines, Sealing Robots, Two-Component Sealant Extruders, and Aluminum Spacer Bending Machines.

Why should we choose your production lines over other suppliers?

With 20 years of experience in extruder systems and machinery production, we are a high-tech enterprise focused on quality, automatic robotics, and solar photovoltaic machinery integration.

What are the accepted delivery and payment terms?

We accept FOB, CIF, and EXW delivery terms. Payments can be made via T/T or L/C in multiple currencies including USD, EUR, JPY, CAD, AUD, and CNY.

How efficient is the gas filling section?

Our gas filling section achieves a concentration of 90%, which is significantly higher than standard international requirements, ensuring superior insulation quality.

Can your machines handle triple glazing?

Yes, our outside assemble section is specifically designed to be suitable for triple glazing production with high accuracy.

What languages does your support team speak?

Our global team provides services in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, and Hindi.
