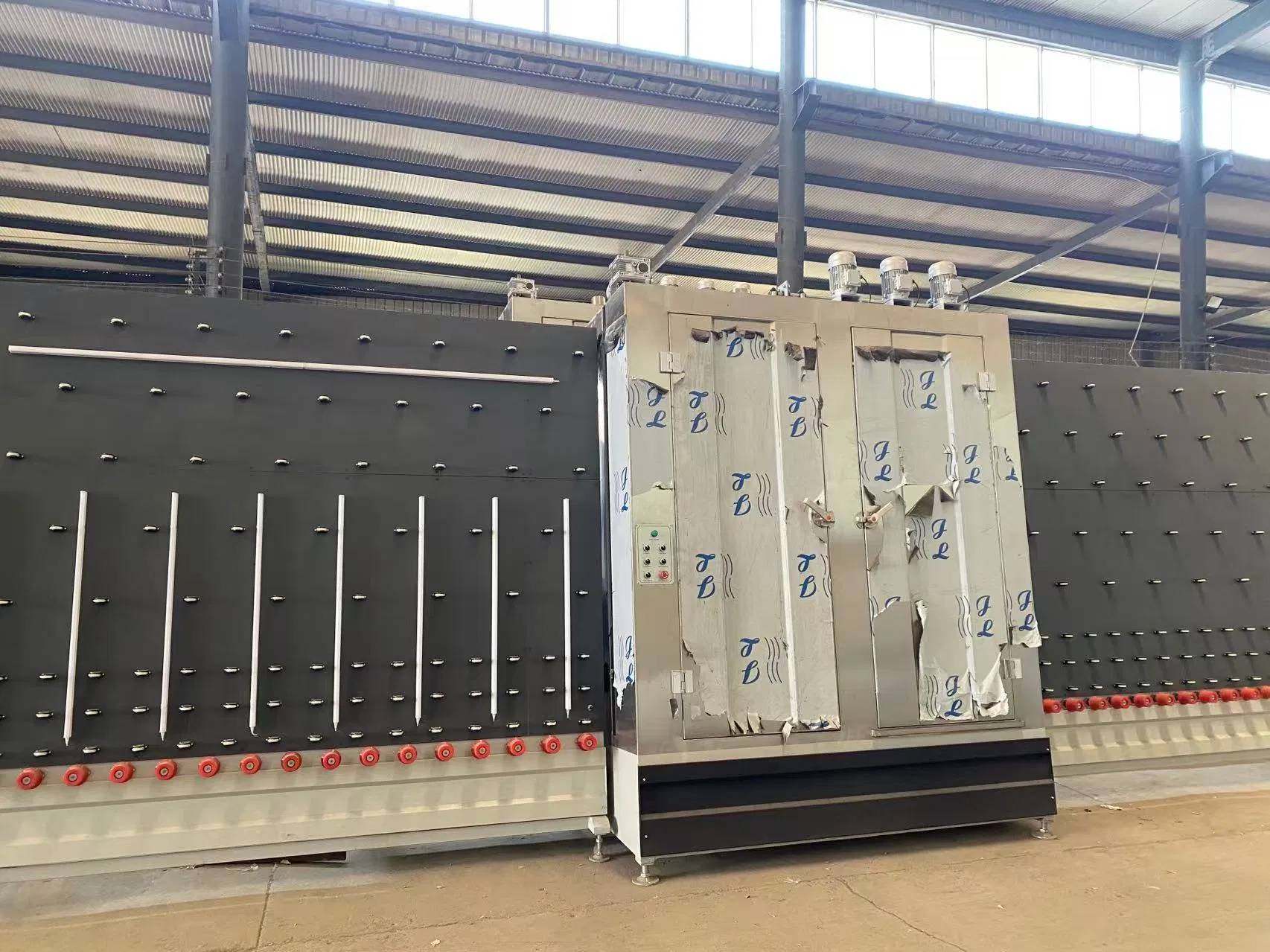

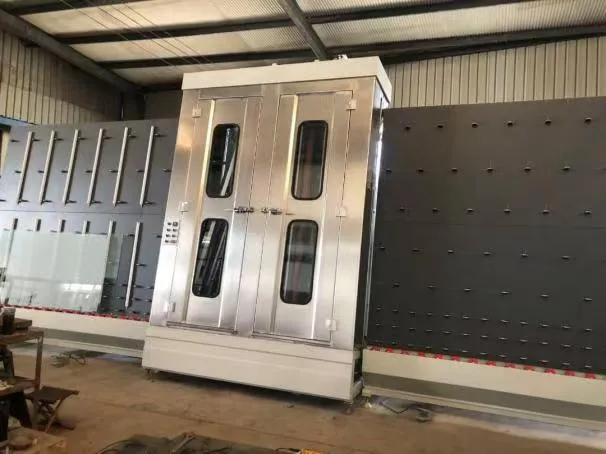

Vertical insulating glass washing machine 2000
| Maximum glass size | 2000*3000mm | Minimum glass size | 280*450mm |
| Single glass thickness | 3-12mm | Cleaning speed | 2-10m/min |
| Equipment voltage | 4P 380V 50HZ | Total power | 22kw |
| Air pressure | 0.6-0.8Mpa | Overall dimensions | 7800*1200*3100 |
1. Engineered with high-density composite board, ensuring strength and durability, combined with traceless backrest wheels to minimize wheel marks.
2. Features a wear-resistant transmission wheel with a spring device to reduce friction between glass panels, enhancing durability.

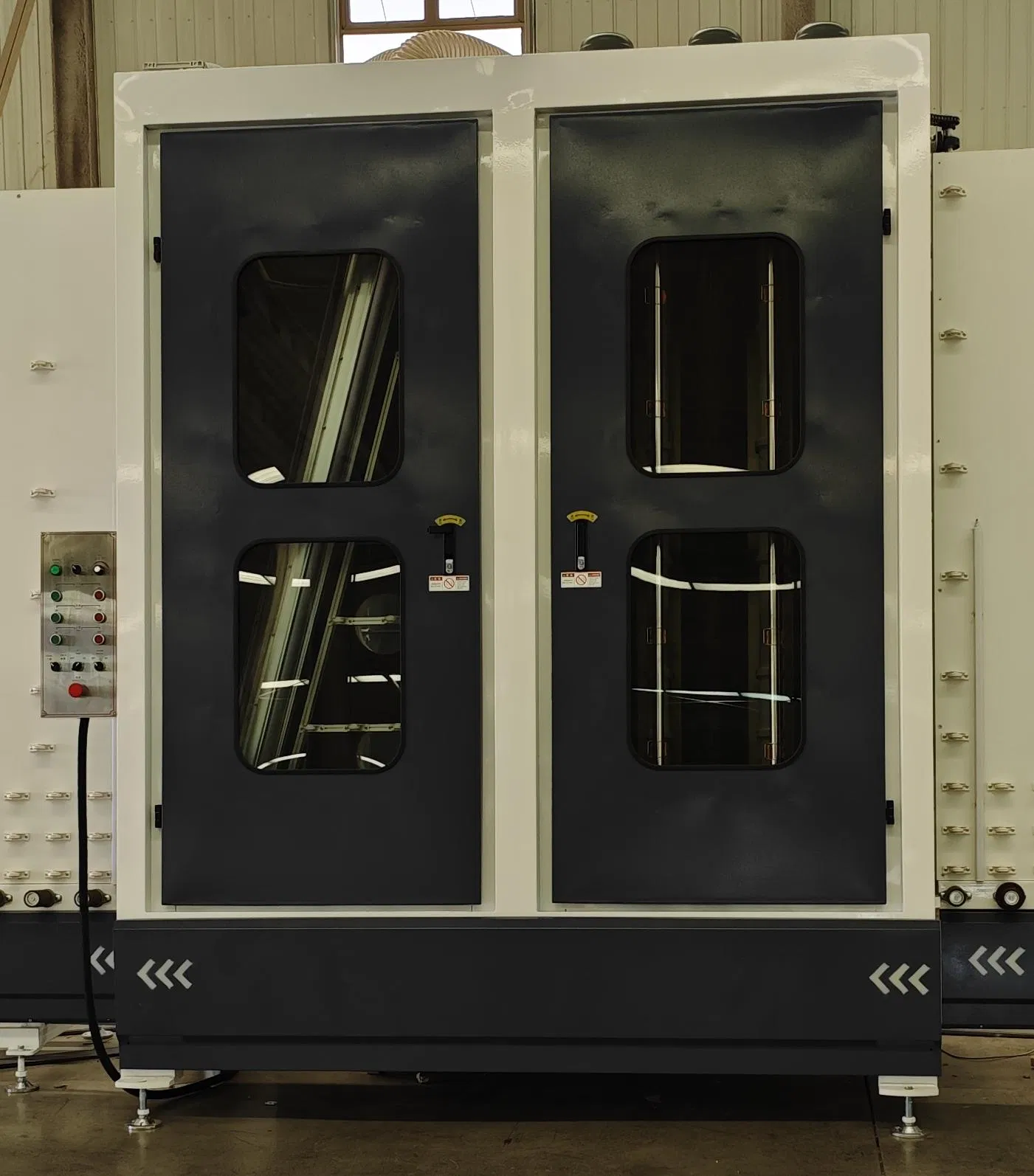

1. This section boasts a robust, thickened stainless steel box, built for long-lasting durability.

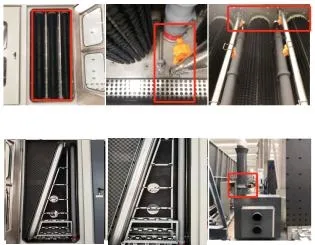

2. The cleaning section is equipped with three pairs of alternating soft and hard brushes, capable of cleaning low-e glass. Universal nozzles ensure thorough cleaning without missed spots, complemented by water heating for winter use.
3. A double hollow bottom design in the cleaning box prevents water accumulation, extending the bearing's lifespan.
4. Stainless steel spray and intake pipes effectively prevent aging.
5. Triple-sealed bearings (oil seals and waterproof covers) prevent water and dust infiltration.
6. Drying section utilizes an aluminum profile air knife for uniform, dense airflow ensuring thorough drying.
7. Powerful 15 kW fan with sound absorption technology delivers high efficiency with low noise.

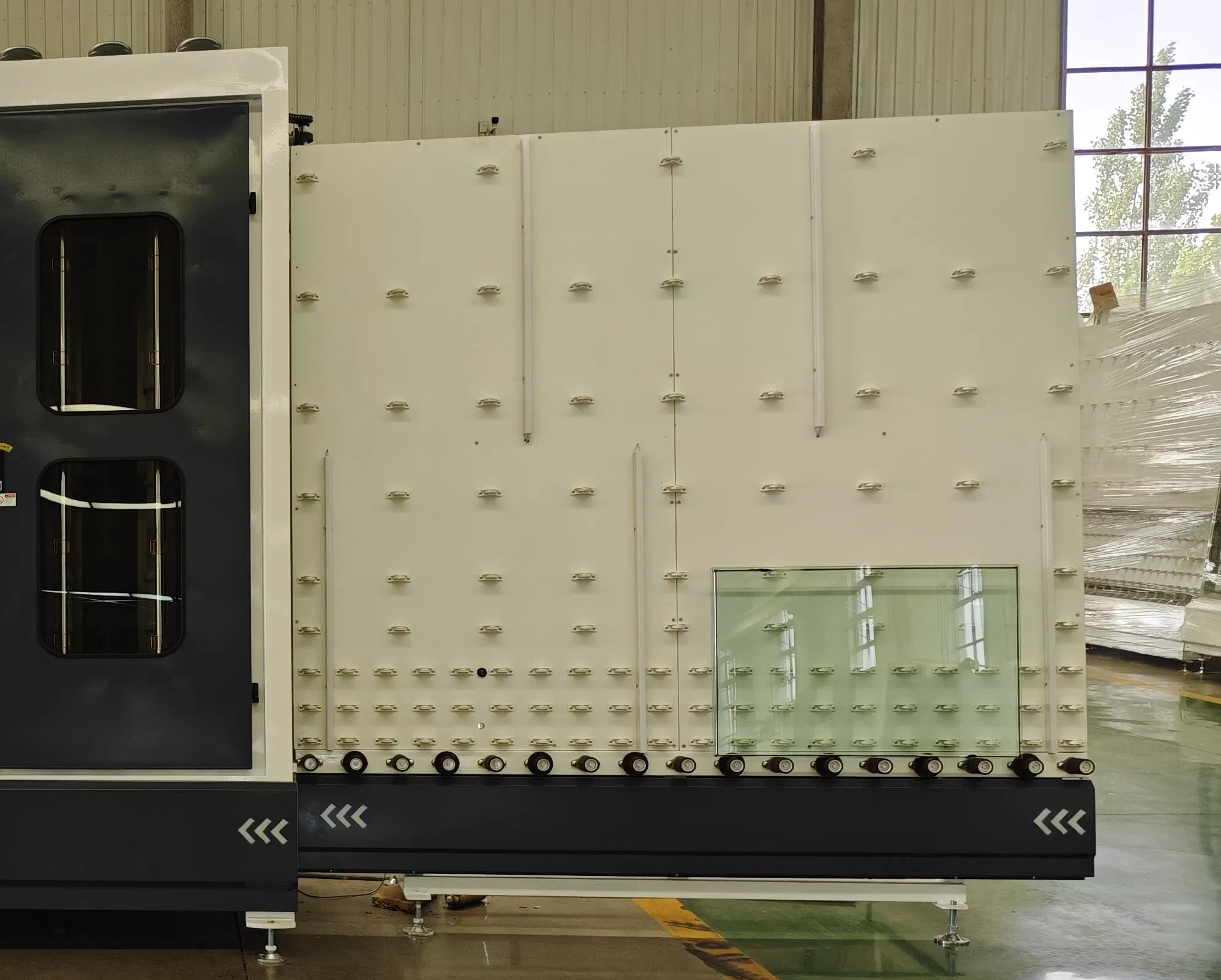

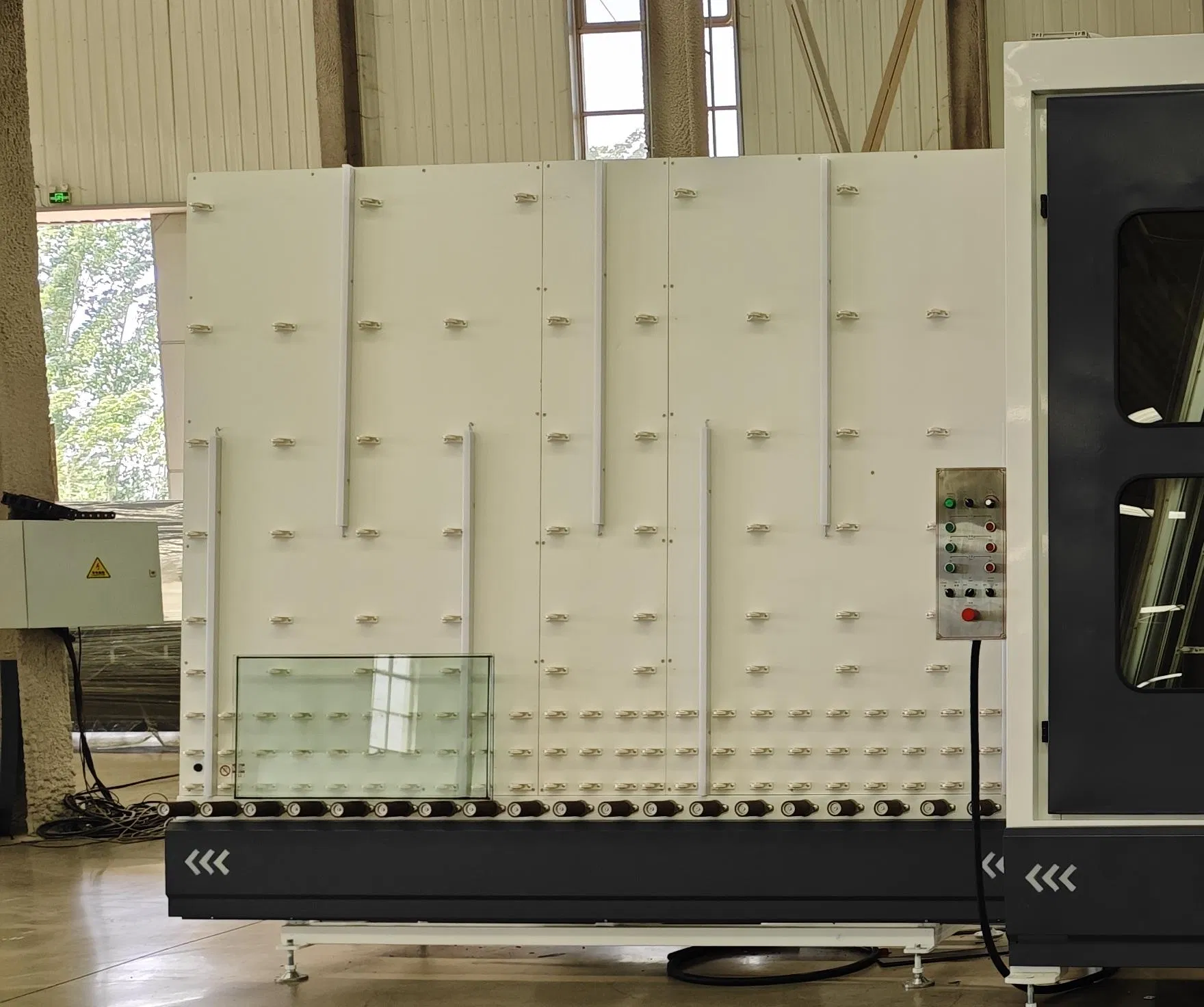

1. High-density composite board construction for strength, paired with traceless backrest wheels.
2. Wear-resistant transmission wheels with spring devices to minimize friction and protect glass surface.
