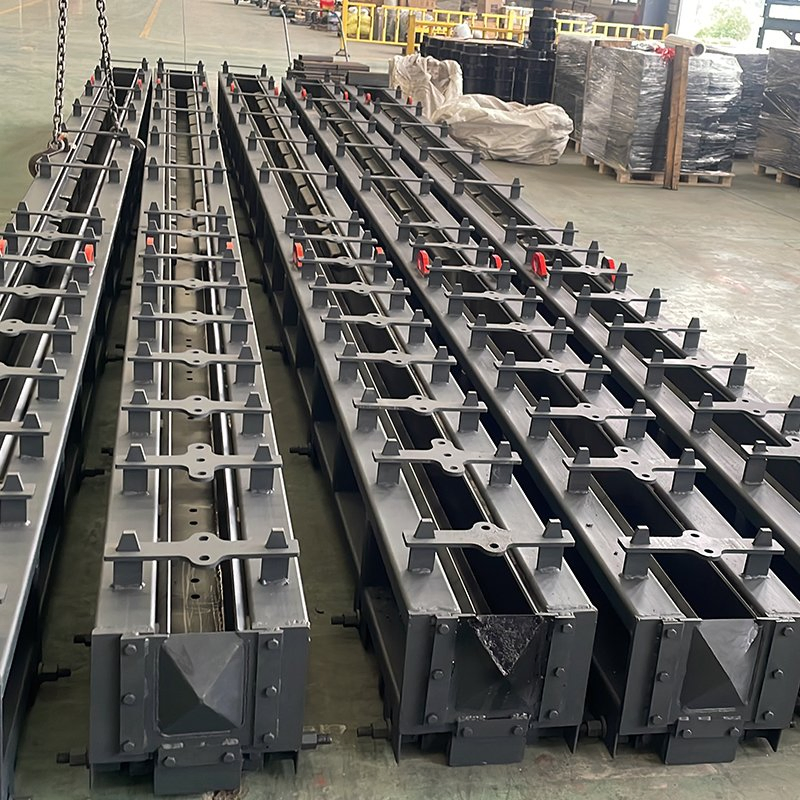

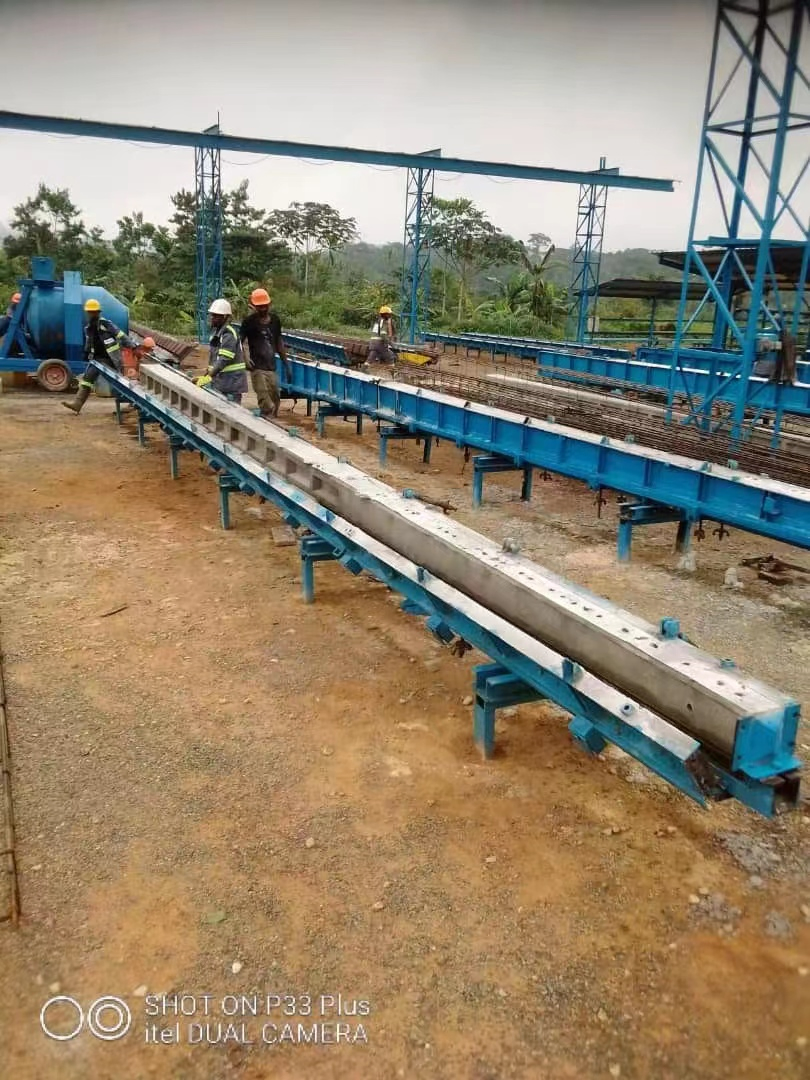

African Standard Concrete Power Pole Moulds and Auxiliary Equipment

Customization: Available
After-sales Service: Turn-Key Service
Warranty: 2 Years

Product Description

ℹ️
Basic Information
Pipe Material
Iron
Condition
New
Customized
Customized
Theory
Inverter
Application
Industry
Type
Pipe Production Line
Size
Customize or National Standard
Certification
ISO 9001
Color
Customize
Sharp
Circular or Square
Layout
Provided
Transport Package
Container
Specification
5m-32m
Origin
China
HS Code
847480
Production Capacity
10000/Year
🏗️
Product Description
Standard Concrete Power Pole Moulds
Standard Concrete Power Pole Moulds
Process Line

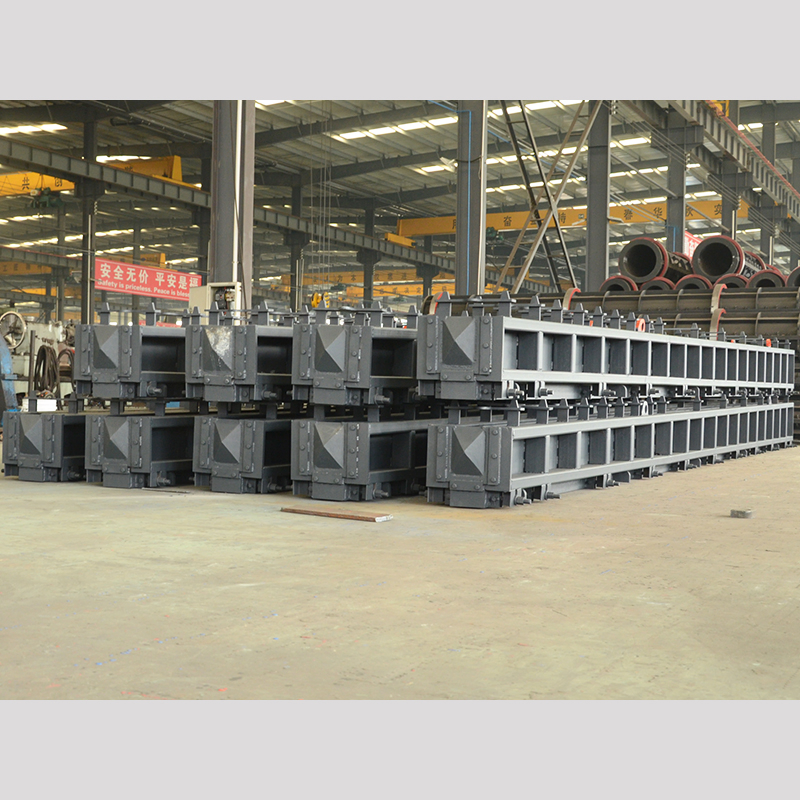

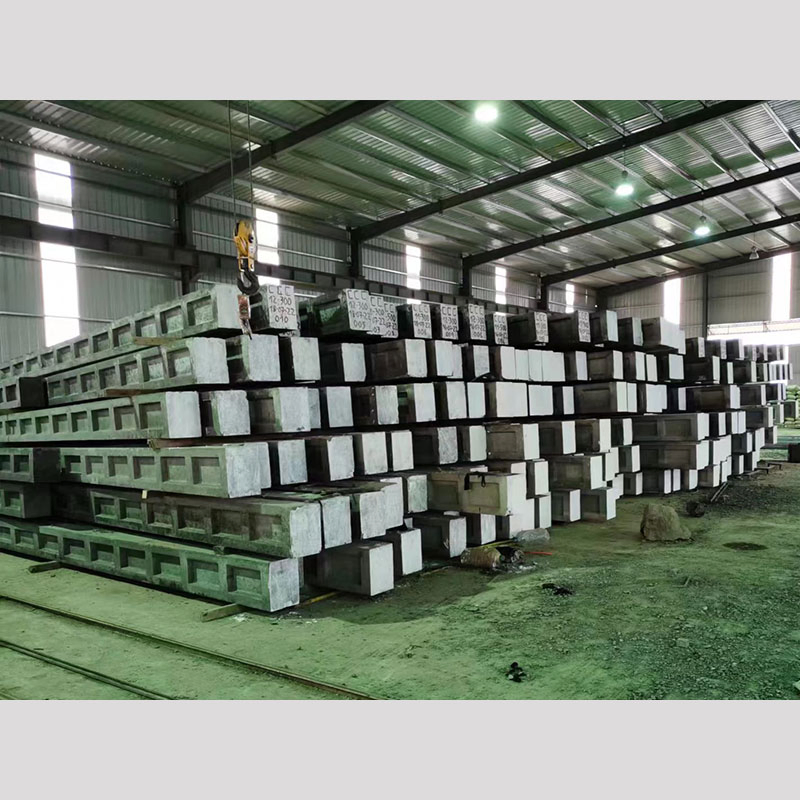

🔹 H-shaped reinforced concrete pole mould

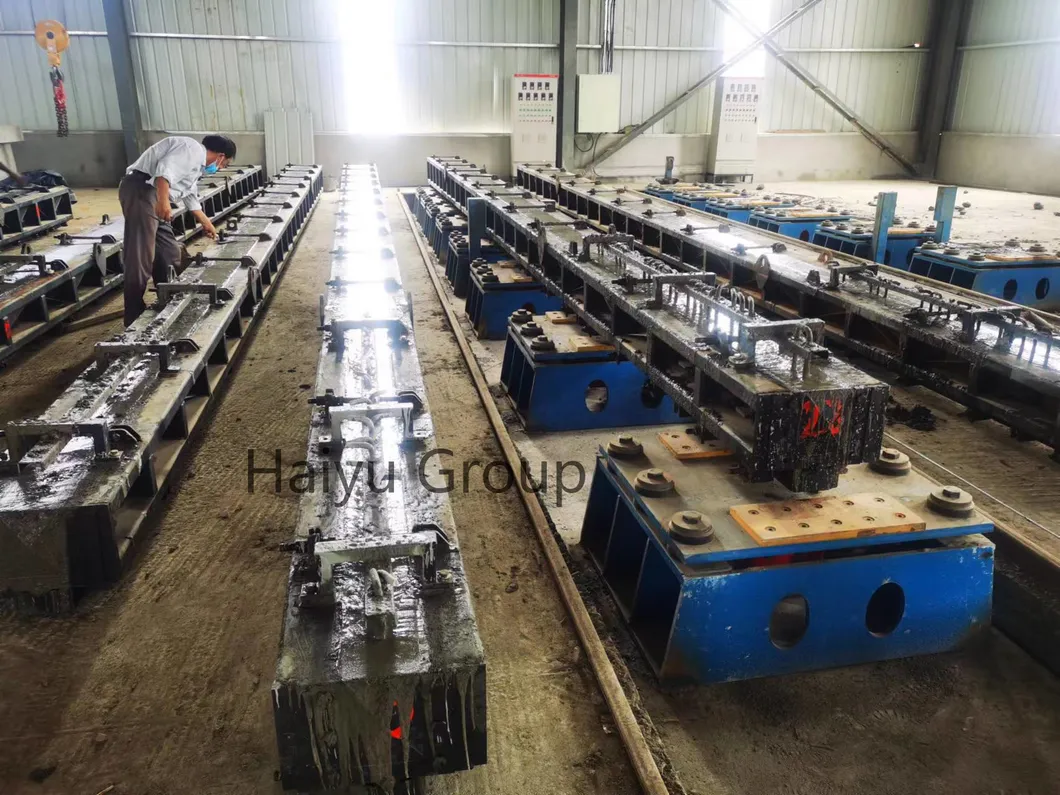

H-shaped mould 1

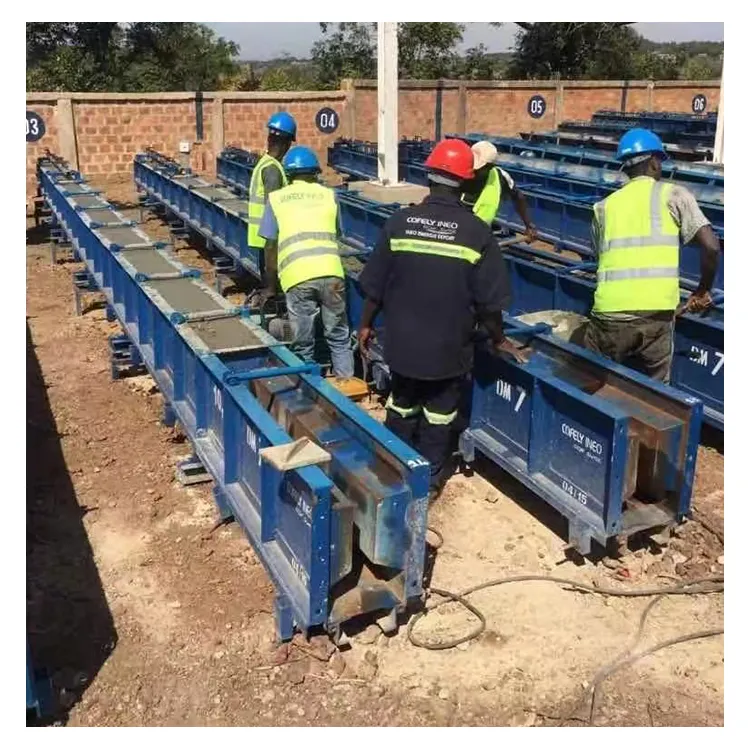

H-shaped mould 2
Model Top size(mm) Bottom size(mm) Model Top size(mm) Bottom size(mm)
9-300150*200230*32012-1000190*280310*550
9-500150*200230*32013-800190*280320*580
9-1500210*320320*50014-800190*280340*600
11-300150*200250*34014-1500210*320380*600
11-500150*200250*34015-800190*280340*620
11-1500210*320350*54015-1000190*280340*620
🔹 Centrifugal type square/rectangle concrete pole mould & Machine

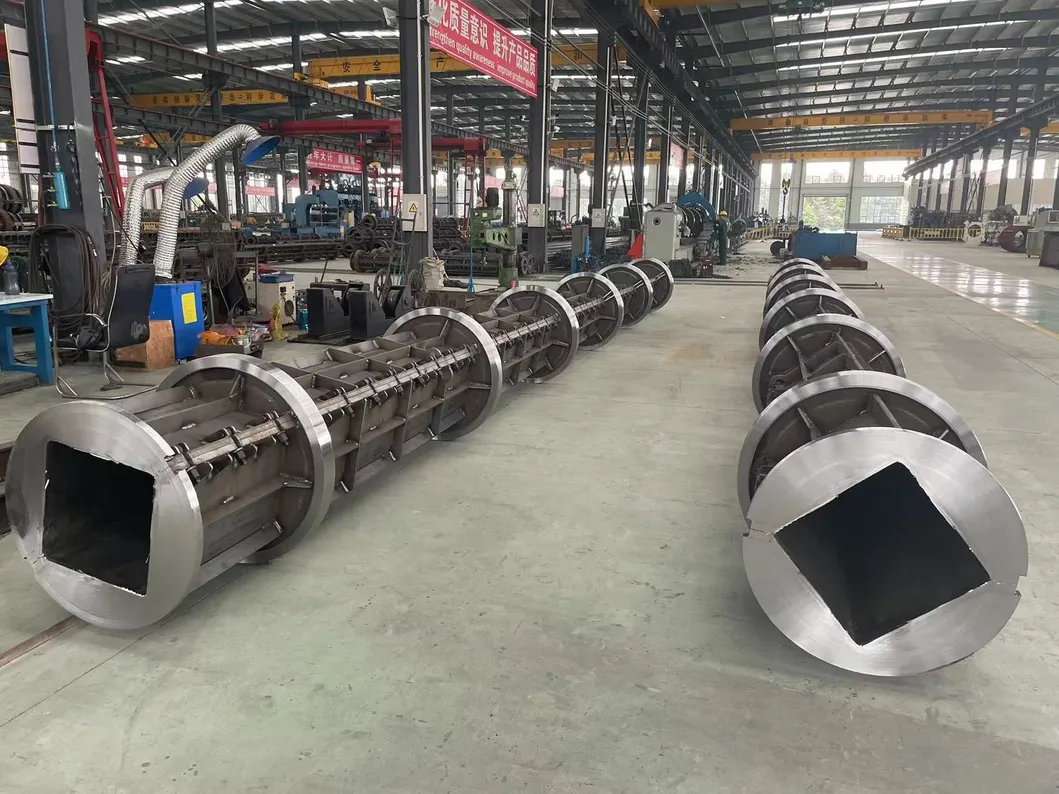

Centrifugal Machine 1

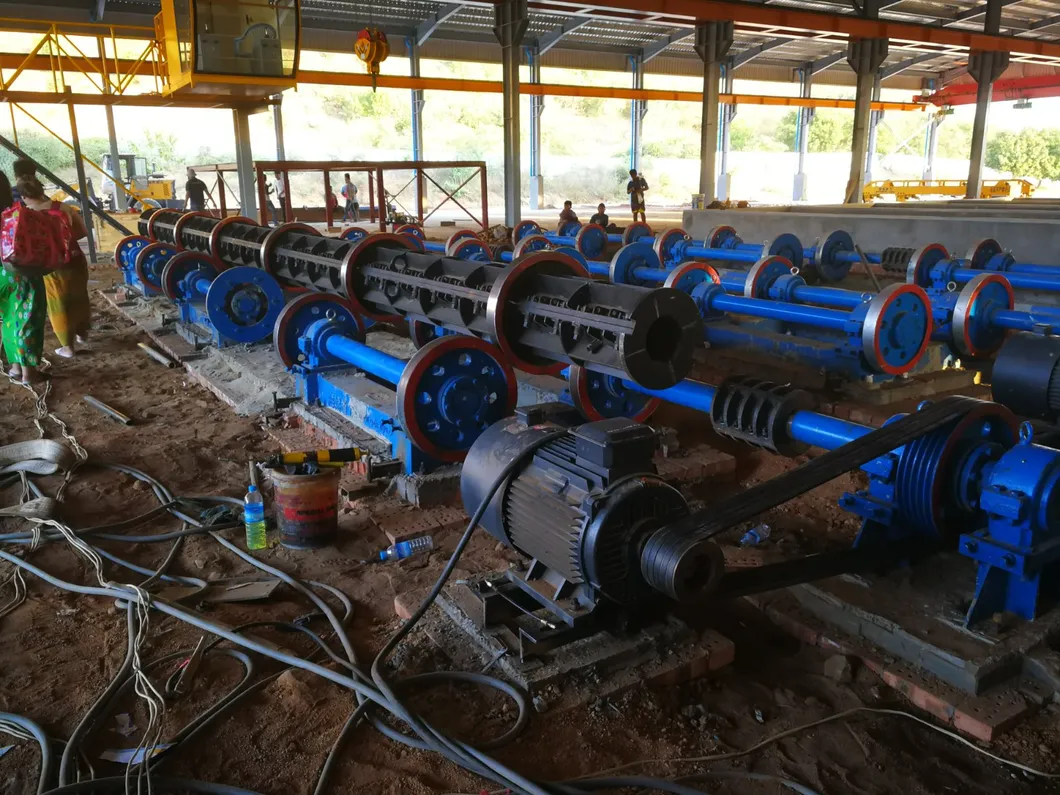

Centrifugal Machine 2
📊 Specification for square/rectangle concrete pole
Model Top size(mm) Bottom size(mm)
CC400-9170*170350*350
CC400-11170*170390*390
CC400-12170*170410*410
CC630-9200*200389*389
CC630-11200*200431*431
CC620-12200*200452*452
CC1000-11220*220495*495
CC1000-12220*220526*526
RC250-9125*160192*317
RC250-11125*160207*352
RC250-12125*160215*370
Production Line Support

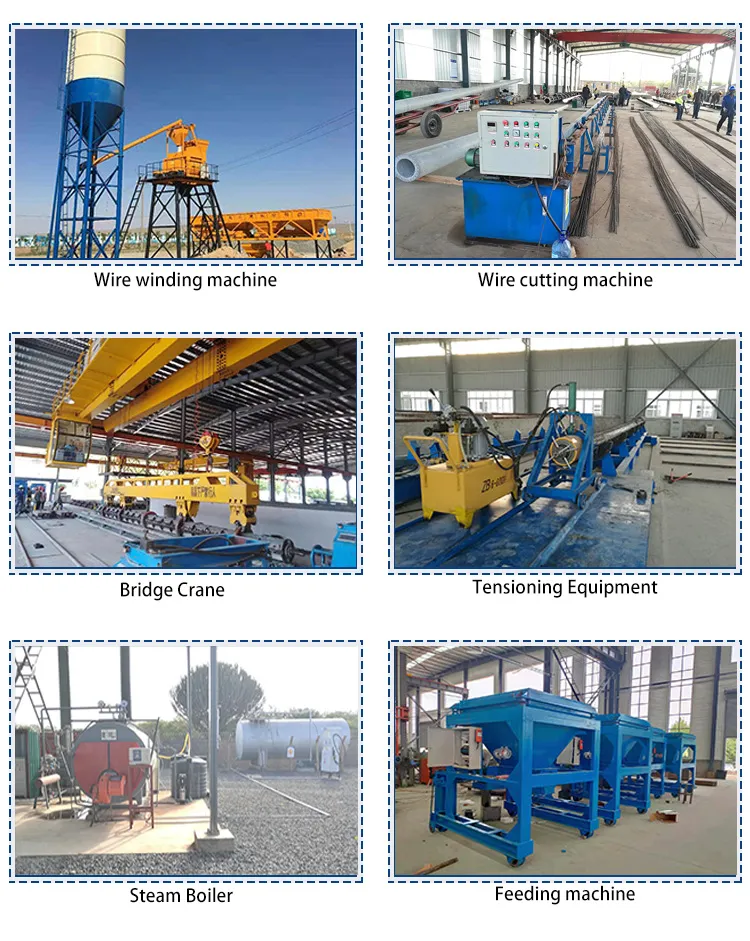

⚙️ Concrete pole production line supporting machine
Supporting Machine Full View
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Detail 9
Detail 10
Frequently Asked Questions
What materials are used for the pole moulds?
The moulds are primarily constructed from high-quality Iron to ensure durability and longevity in industrial production environments.
Can the concrete pole sizes be customized?
Yes, we provide customization for pole sizes ranging from 5m to 32m, and we can also manufacture according to specific national standards.
What shapes of concrete poles can this production line produce?
Our equipment is versatile and can produce circular, square, rectangular, and H-shaped reinforced concrete poles.
What is the production capacity of the line?
The production line is designed for high efficiency with a capacity of up to 10,000 units per year.
Is technical support for the factory layout provided?
Yes, a full professional layout for the production line is provided to ensure optimal workflow and machine placement.
What certifications does the production equipment hold?
Our production lines and processes are ISO 9001 certified, ensuring international quality management standards are met.
