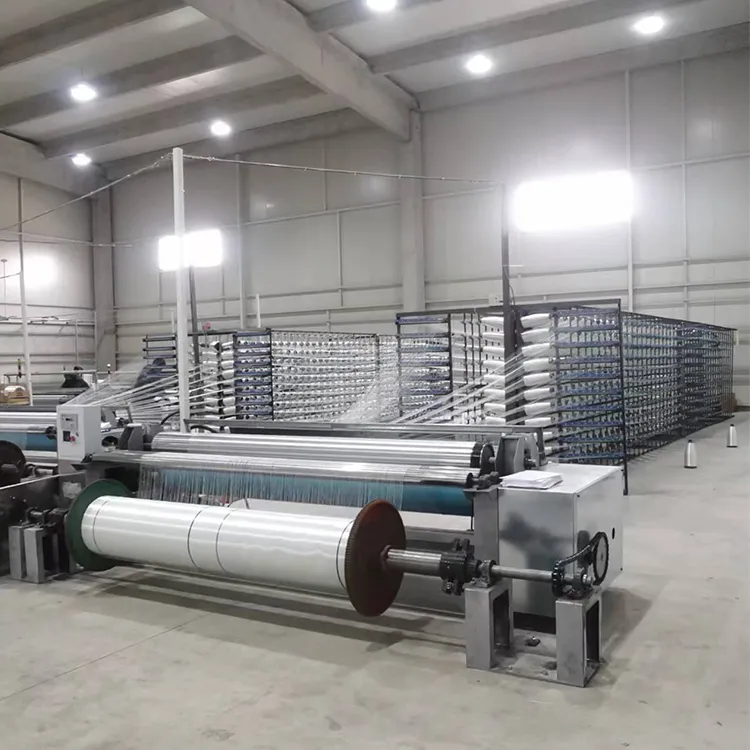

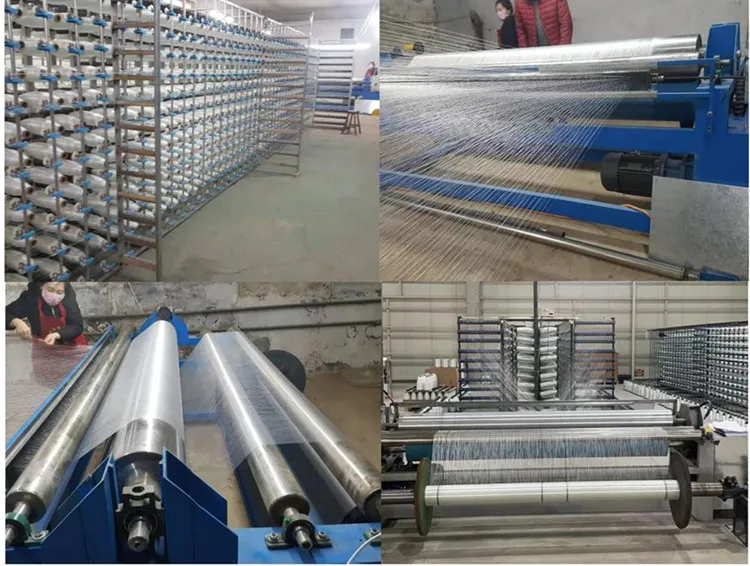

Through this machine, the fiberglass line yarn on the pay off will be rolled on a roller, which will save workshop space. Every pay off is equipped with a tension-er to control the fiberglass winding tension accurately.
| Width | 1000mm / 2000mm / 2400mm |
| Length | 0-10000m |
| Speed | 1000-1300m/hour |
| Motor Power | 4.0KW |
| Weight | 1.8 Tons (2.4m width) |

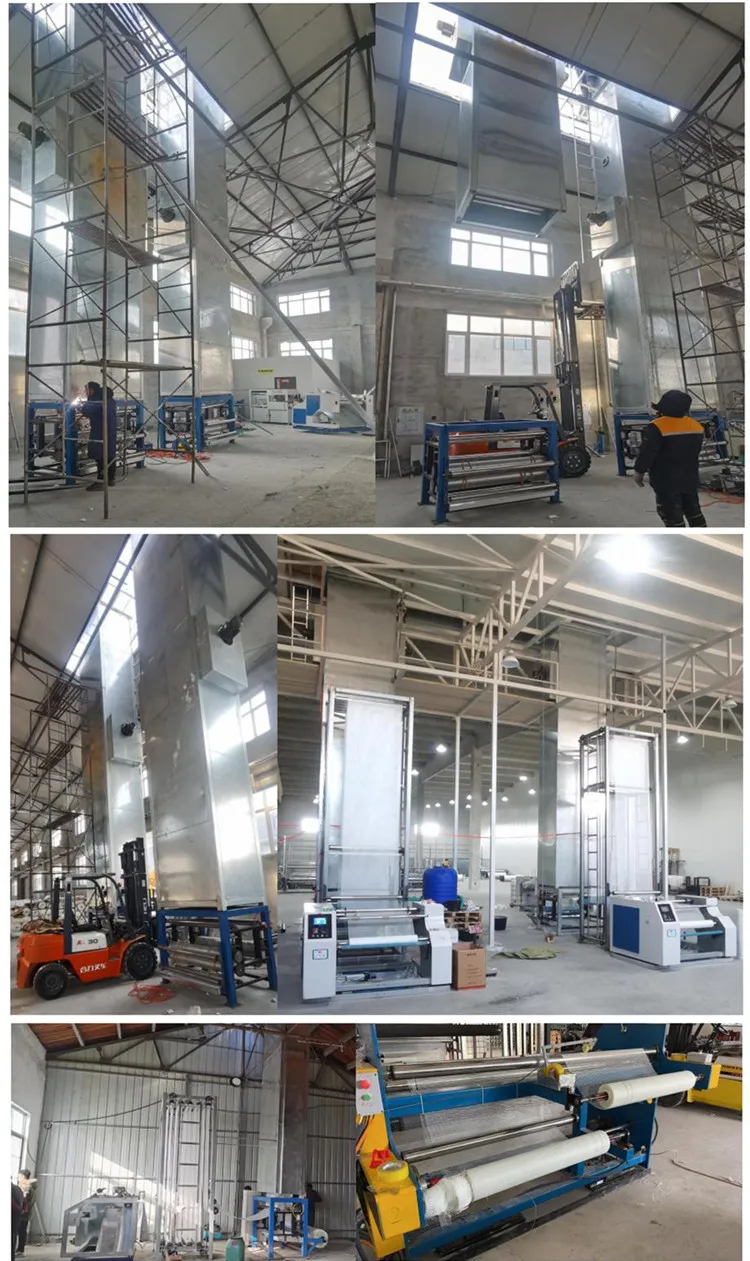

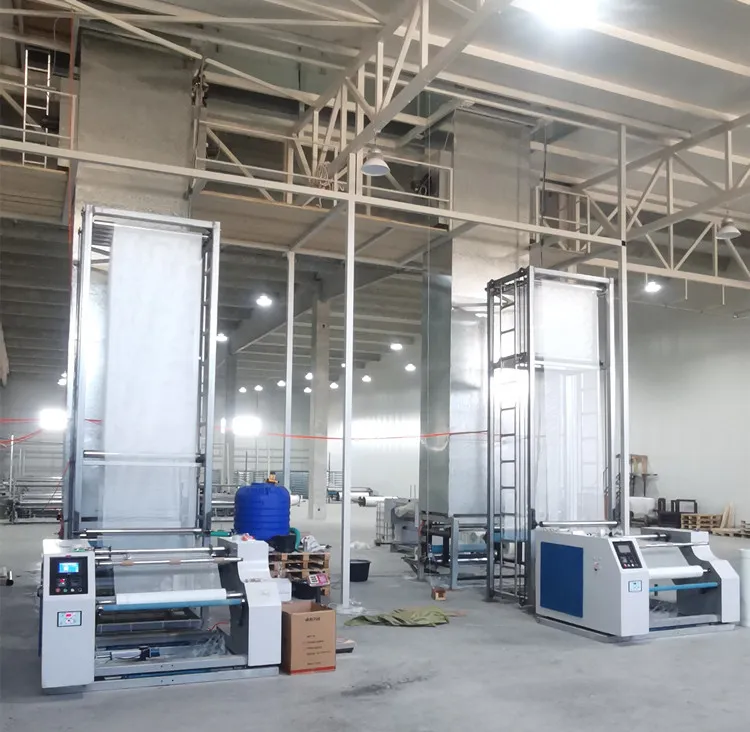

The coating line adopts a vertical type to avoid mesh hang-down. The structure utilizes air pressure for uniform coating and glue saving. The drying baker heats in a circle to avoid burning the mesh while reducing power consumption.
| Width | 1000mm / 1200mm / 2000mm or customized |
| Speed | 1300-1500m/hour (1.0m width) |
| Total Power | 10.0KW (1.0m width) |
| Energy Consumption | About 10.0cbm (1.0m width) |
| Weight | 9.8 Tons (1.0m width) |

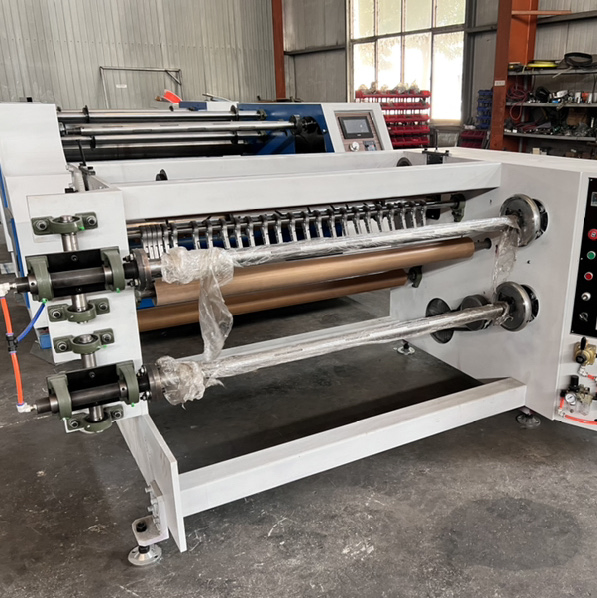

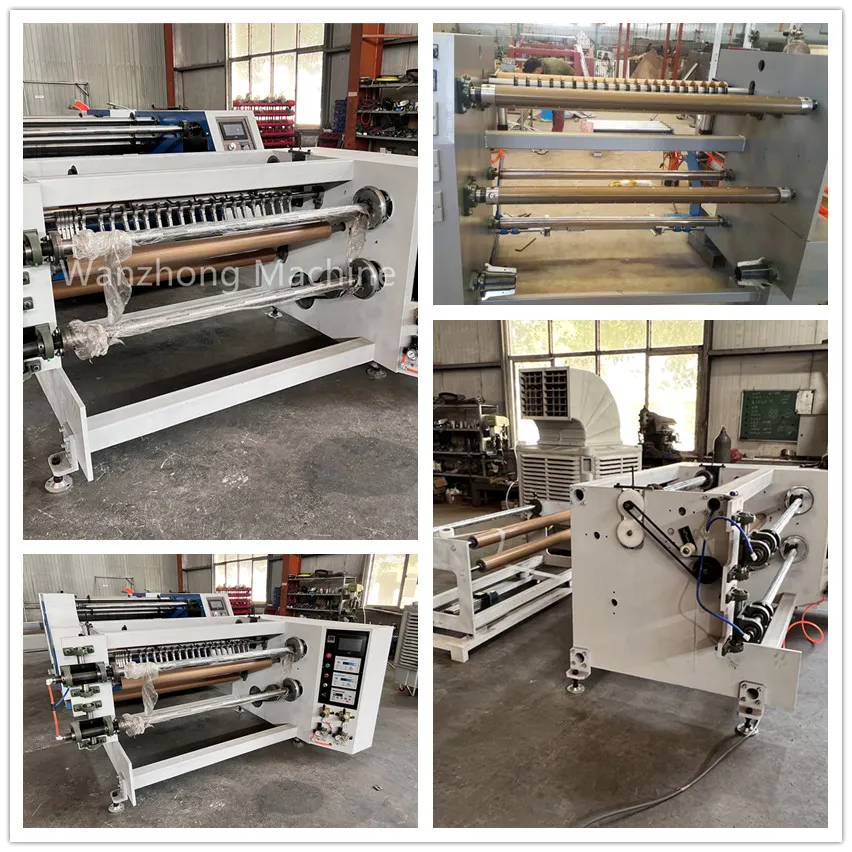

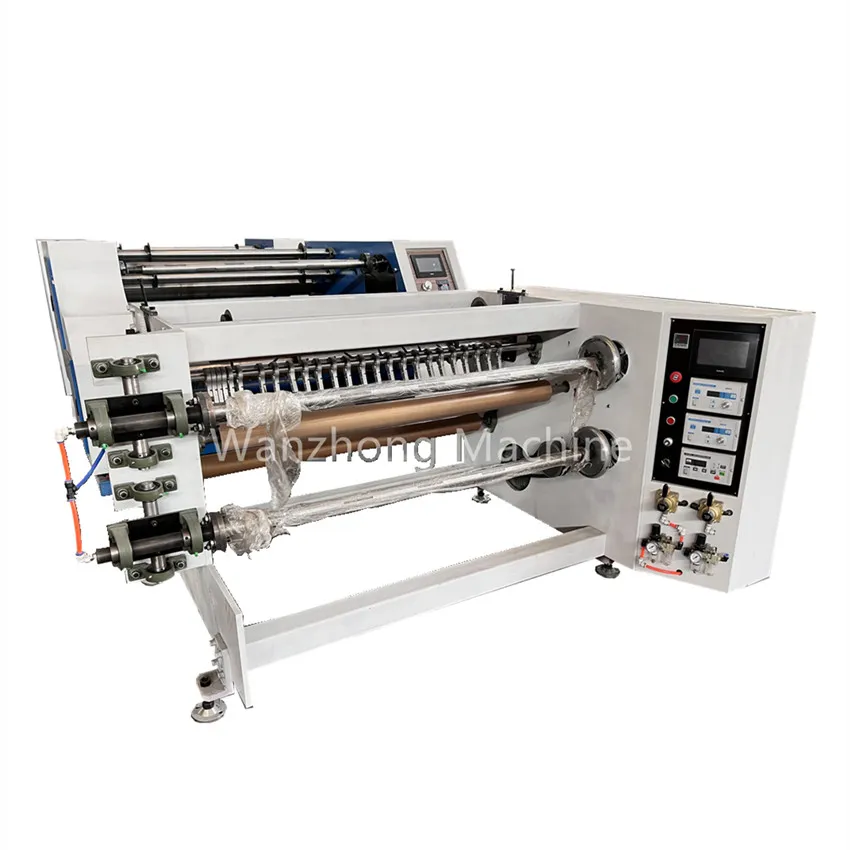

High-precision slitting equipment featuring inflatable bearings for efficient material feeding and receiving. Characterized by accurate slitting, high speed, and ease of maintenance.
| Max Slitting Length | 1000mm * 150m |
| Motor Power | 4.2KW |
| Speed | 0-50m/min |
| Weight | About 760kgs |
Warping Machine

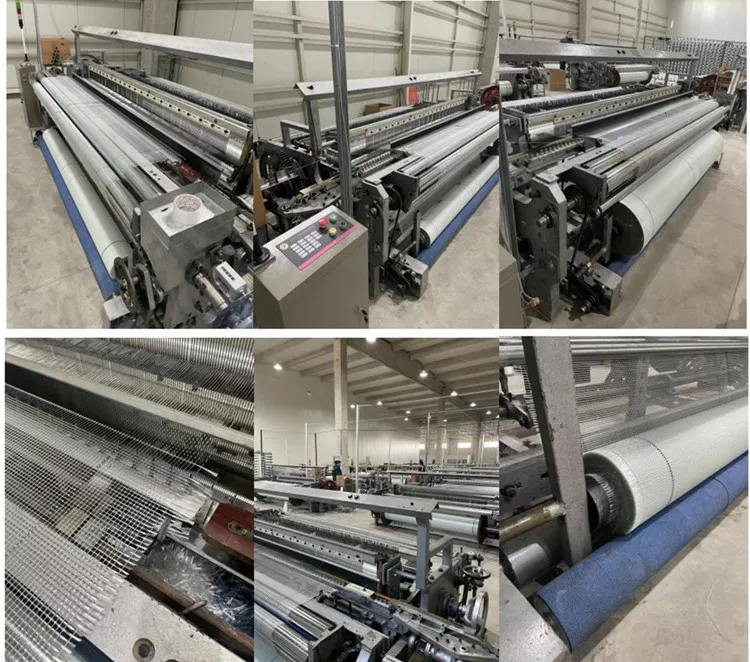

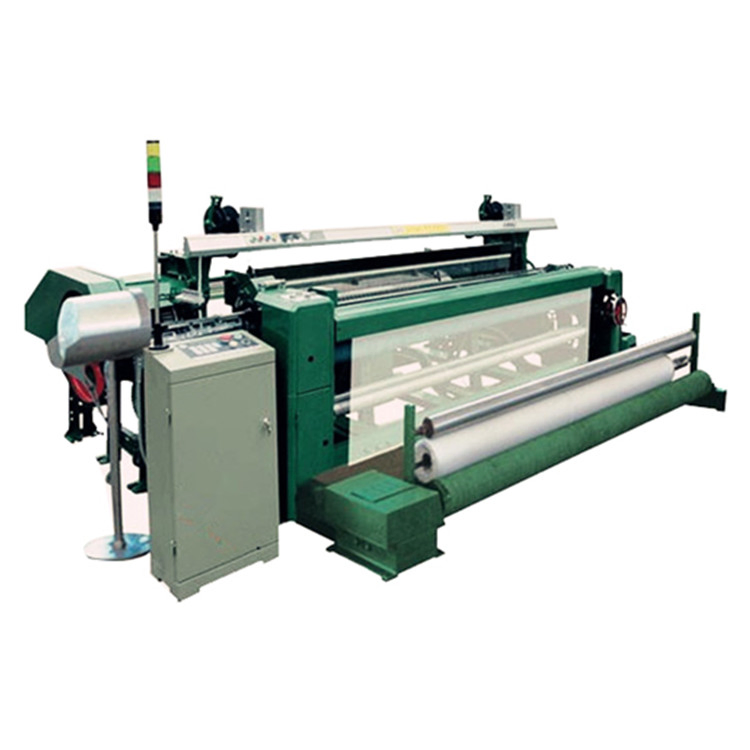

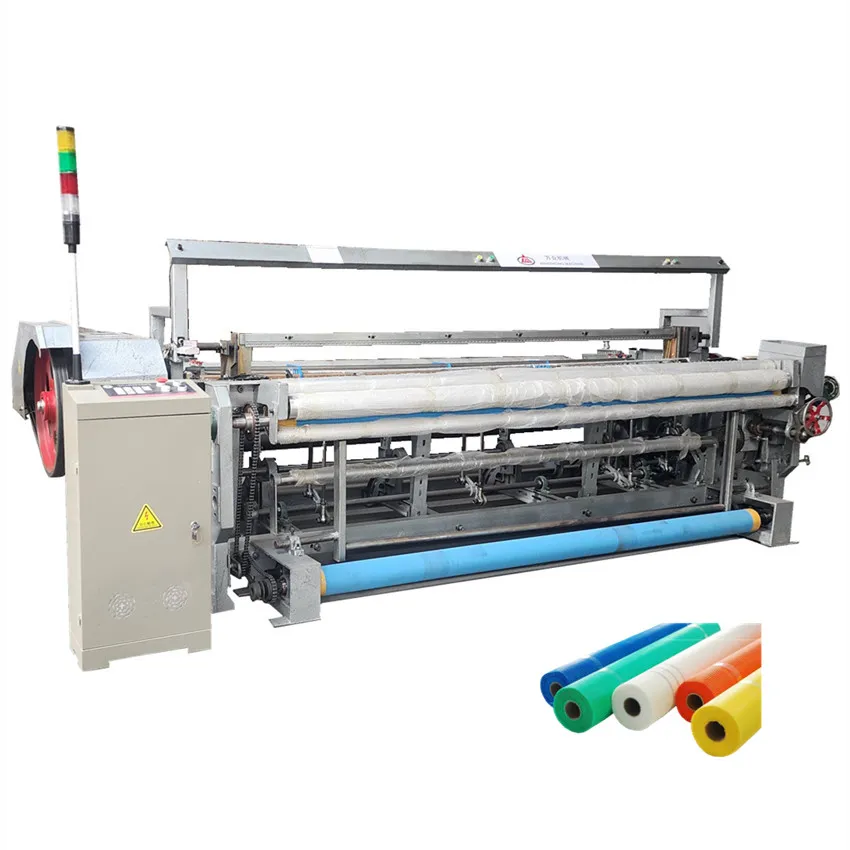

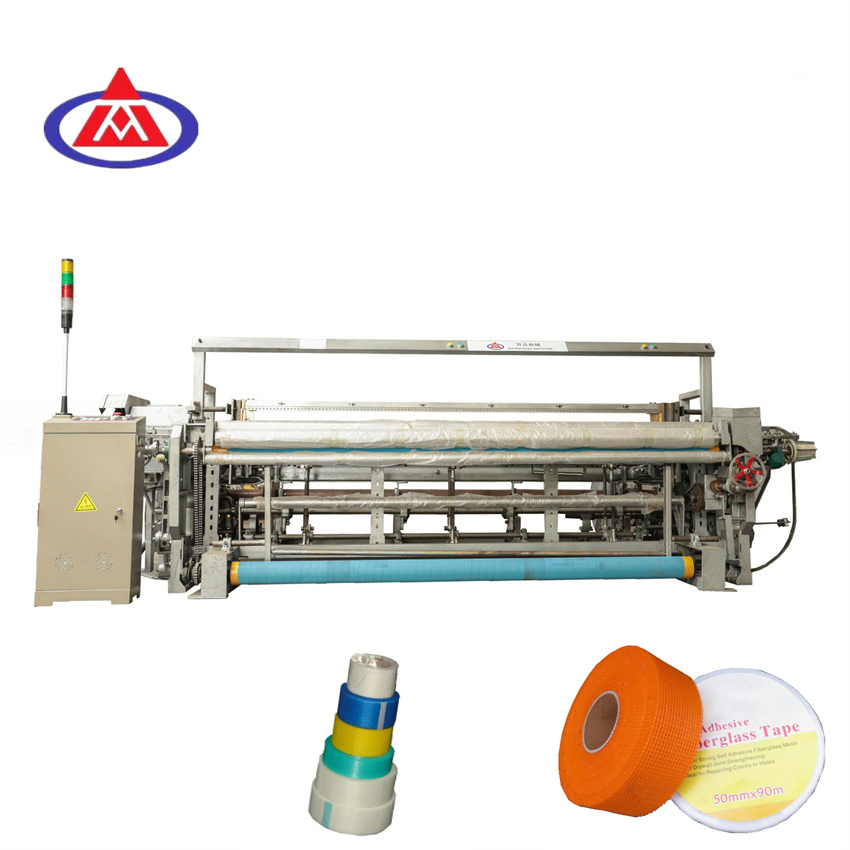

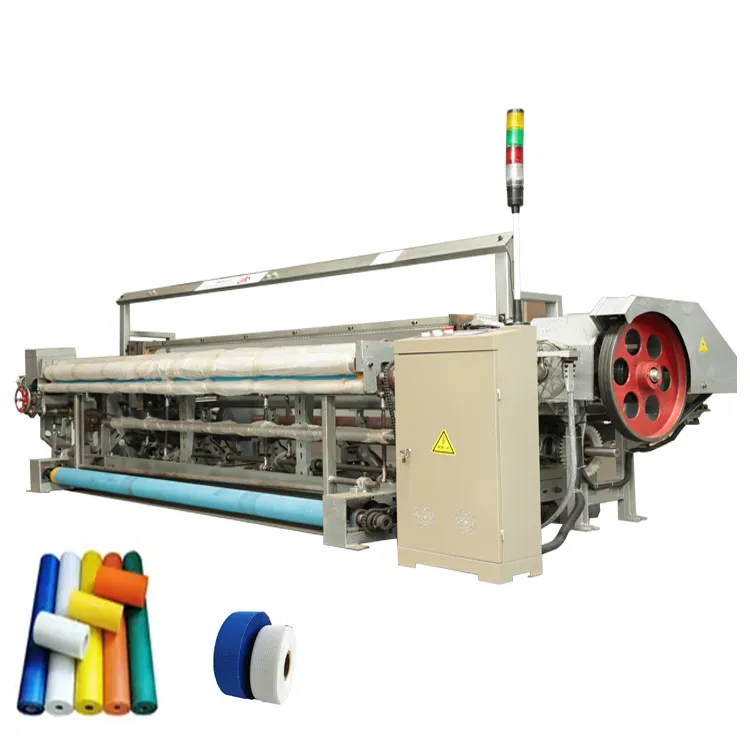

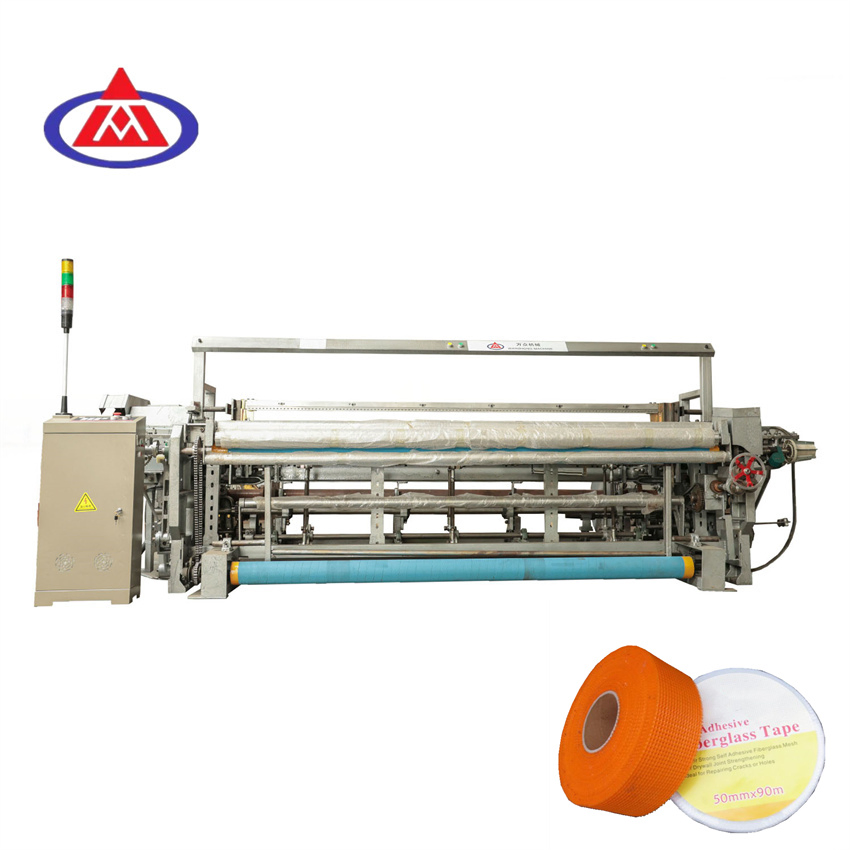

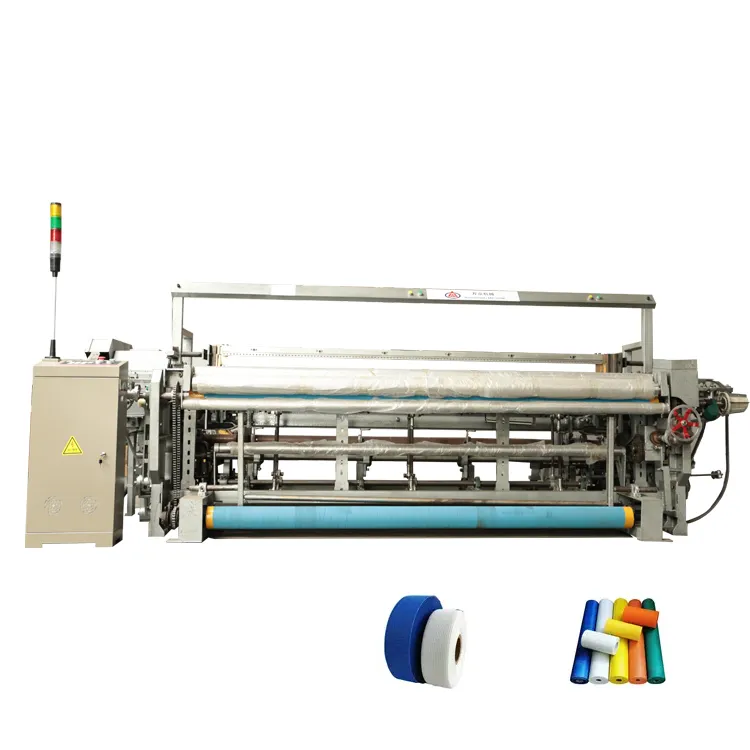

Fiberglass Mesh Weaving Machine
Glued and Coating Machine
Splitting Machine
