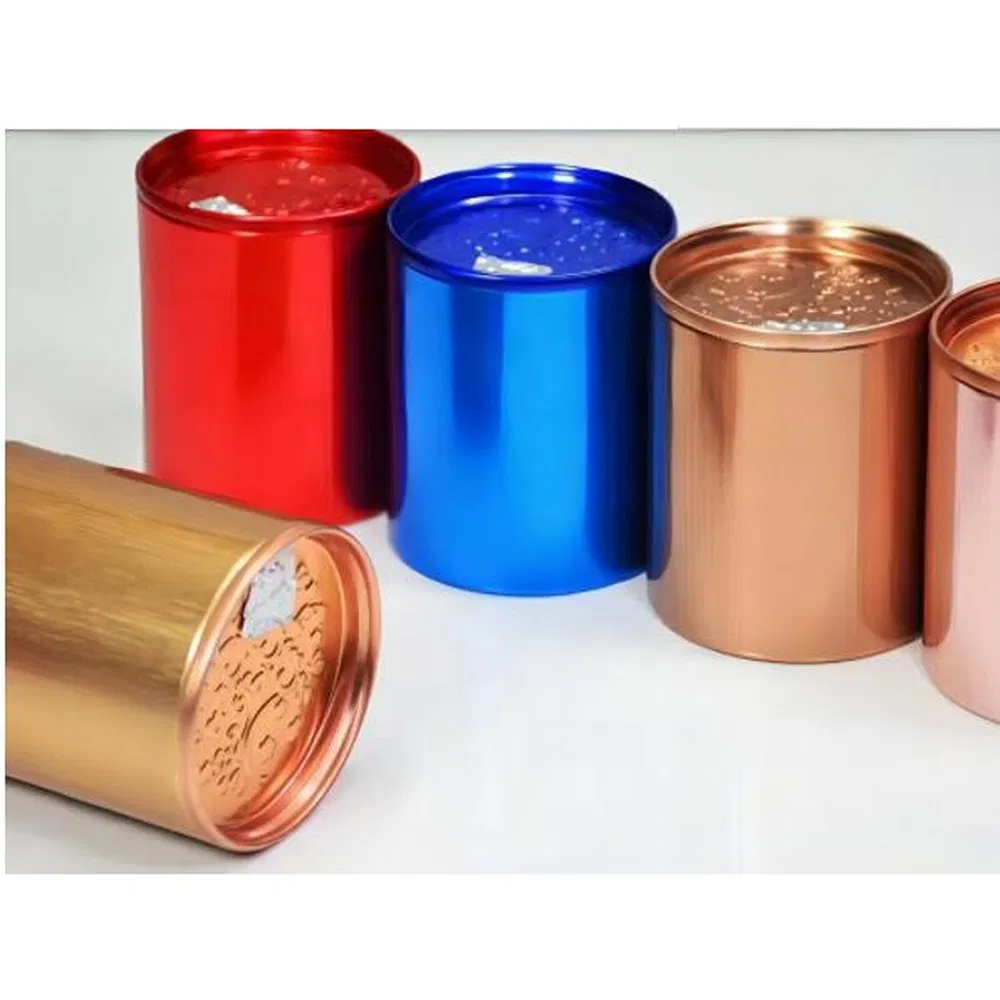

Fully automatic production of metal cans and can LIDS
High Precision Power Press Main Performance and Characteristics:
The high-rigidity body is designed, the high-quality steel plate is used for welding, and the stability and reliability of the precision of the whole machine are high by relieving the internal stress.
| Specification | APA-25 | APA-35 | APA-45 | APA-60 | APA-80 | APA-110 | APA-160 | APA-200 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 25 | 35 | 45 | 60 | 80 | 110 | 160 | 200 |
| Rate tonnage point | 3.2 | 3.2 | 3.2 | 4 | 4 | 6 | 6 | 6 |
| Speed changing | 60-140 | 40-120 | 40-100 | 35-90 | 35-80 | 30-60 | 20-50 | 20-50 |
| Stroke | 70 | 70 | 80 | 120 | 150 | 180 | 200 | 200 |
| Die height | 195 | 220 | 250 | 310 | 340 | 360 | 460 | 460 |
| Slide adjustment | 50 | 55 | 60 | 75 | 80 | 80 | 100 | 110 |
| Presses weight (T) | 2.1 | 3 | 3.8 | 5.6 | 6.5 | 9.6 | 16 | 23 |

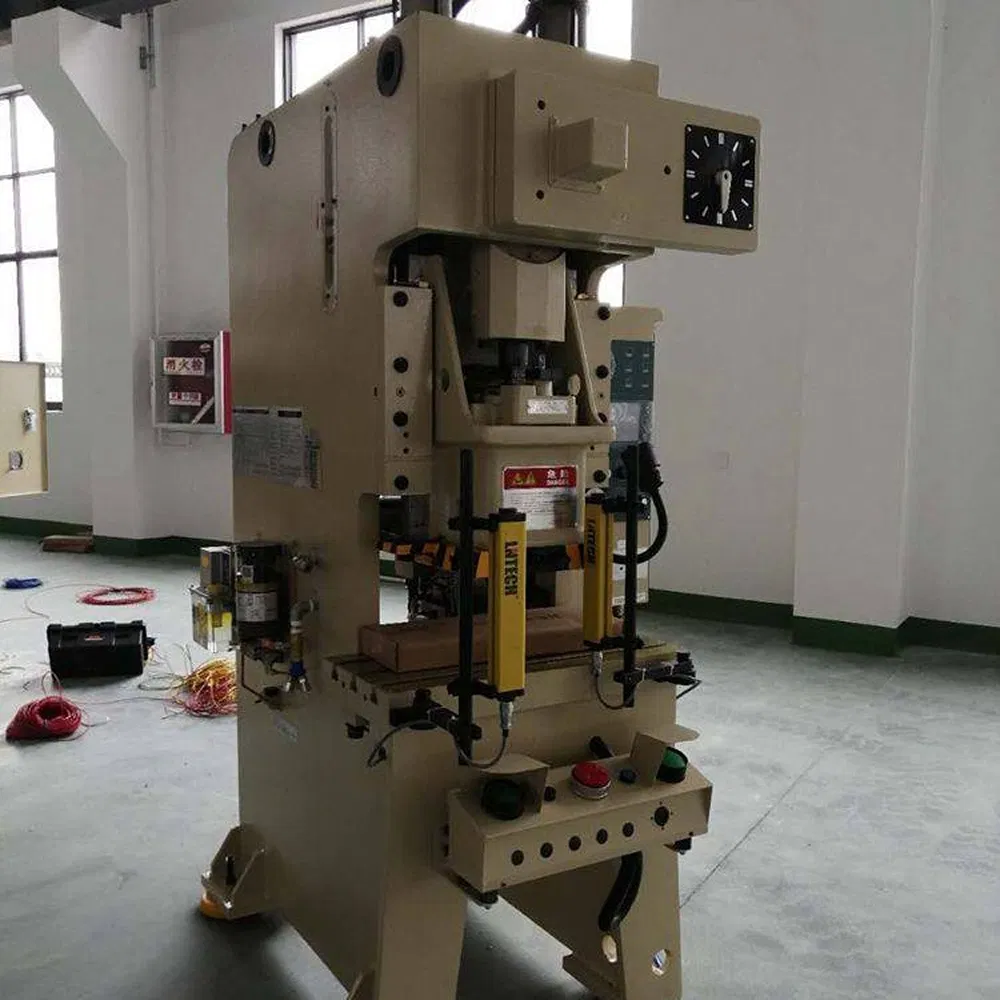

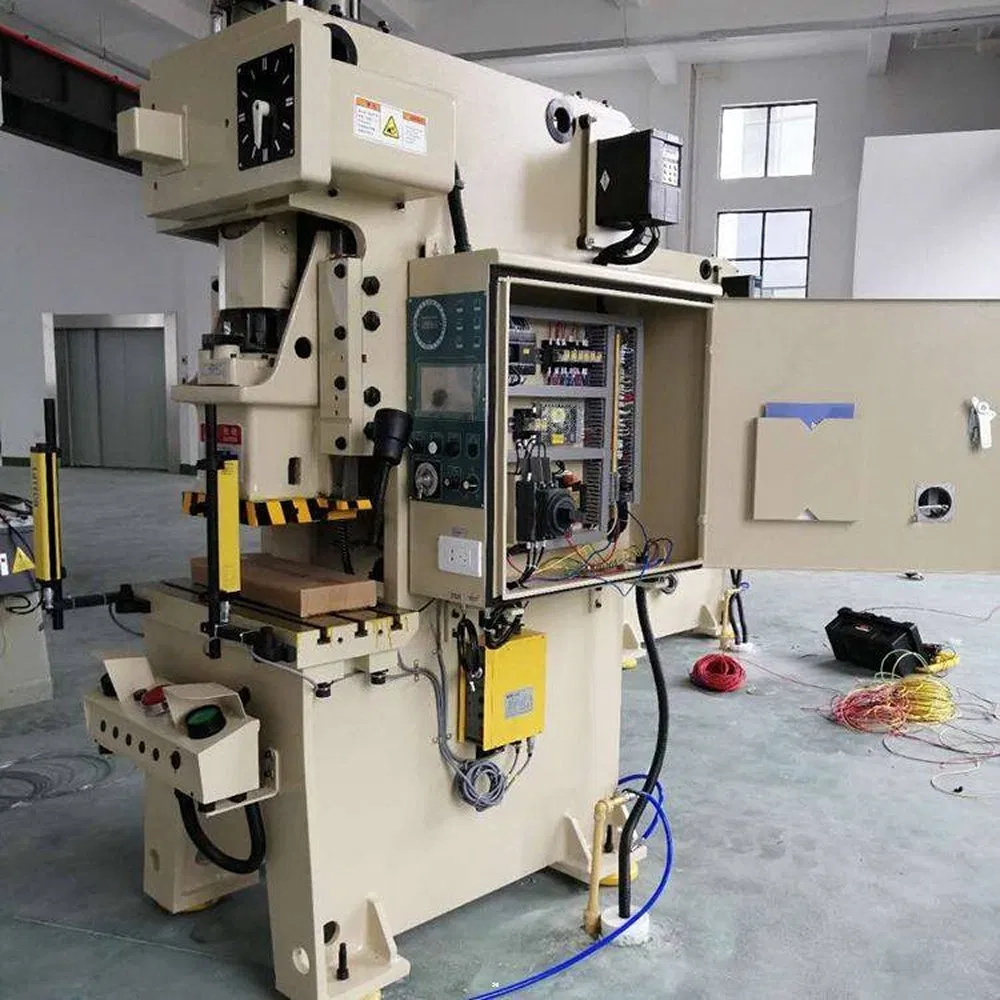

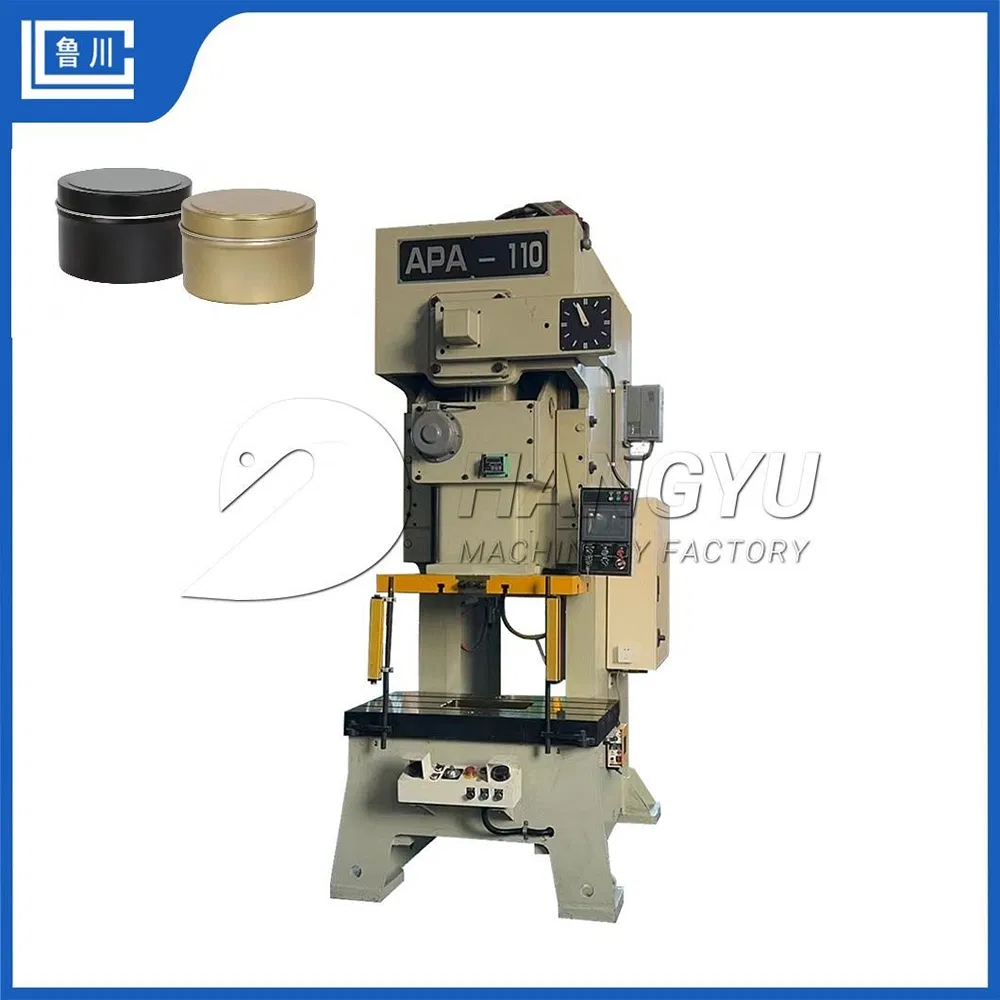

The APA series power press is a high precision punching machine, offering superior precision and efficiency compared to traditional models.

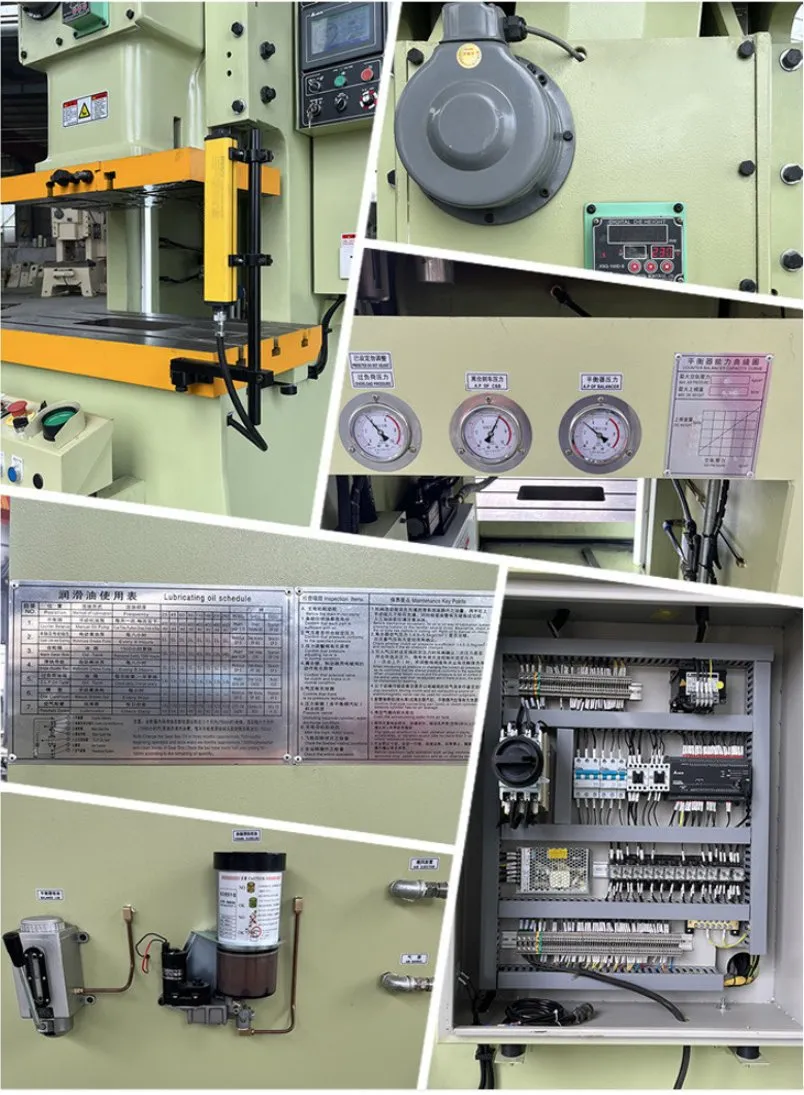

Pneumatic Clutch: Higher performance, safer, and more energy-efficient than mechanical clutches.
Frequency Converter: Adjusts punching speed for better performance and lower power dissipation.
Pneumatic System: Includes gas storage tanks with safety valves. Important parts such as clutch, brake, and balance cylinder feature oil misters.
Security Control Section: Features safety warning lights, pressure protection switches, lubrication fault checks, flywheel brake release switches, and emergency stop buttons.
We are professionals in the metal processing machine industry, specializing in manufacturing mechanical power presses, pneumatic power presses, hydraulic presses, press brakes, shearing machines, and plate bending machines. With 18 years of experience, our machines are exported worldwide with excellent customer feedback.
