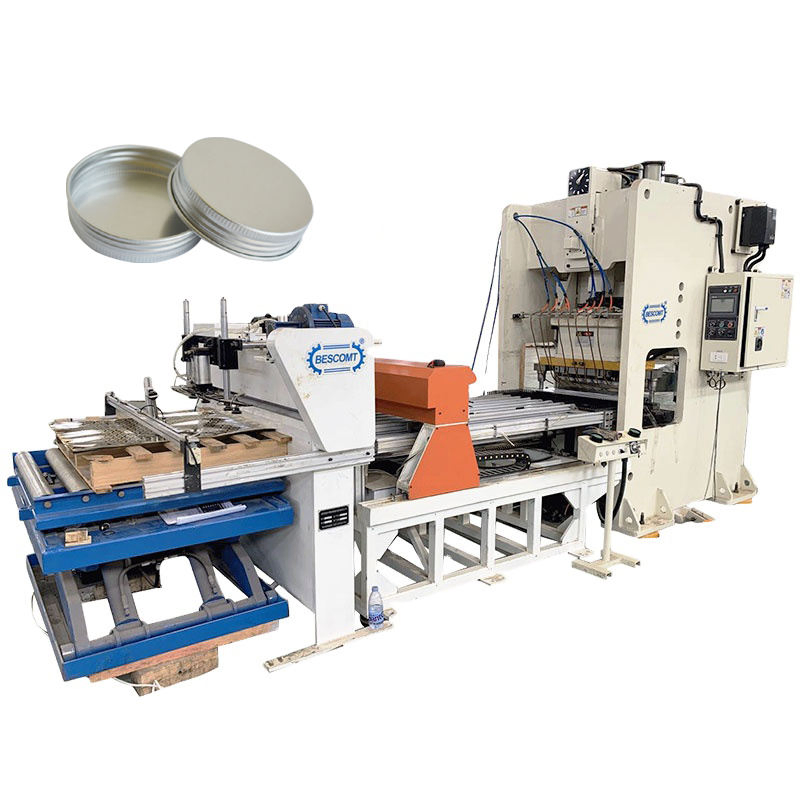

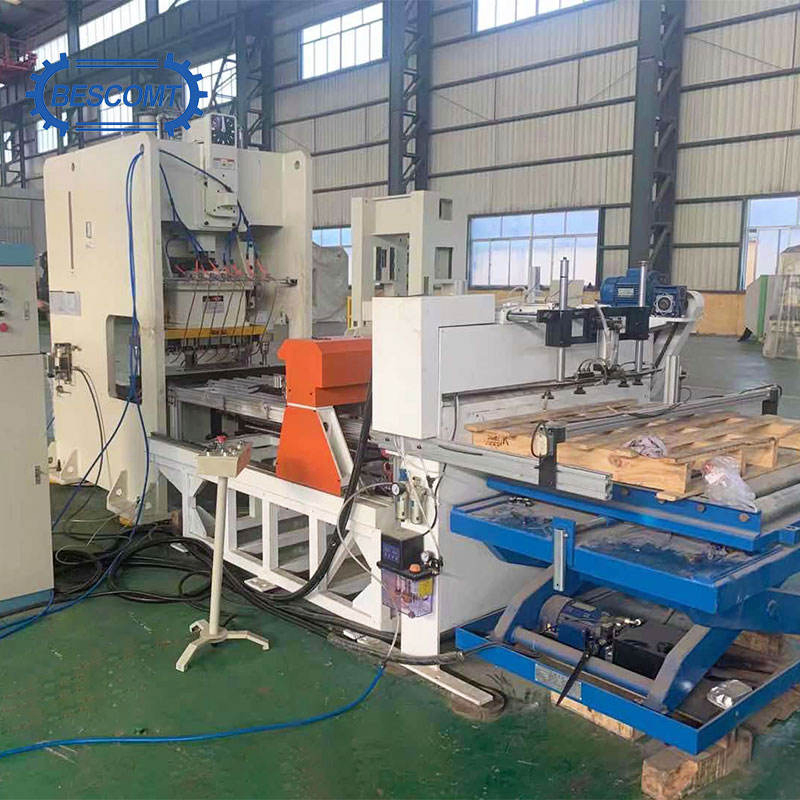

Full automatic aluminum screw cap production line designed for high-efficiency manufacturing.
| Machine Type | Functional Description |
|---|---|
| Deep Throat Punching Machine | Equipped with CNC control panel; supports large area sheet processing with high feeding precision. |

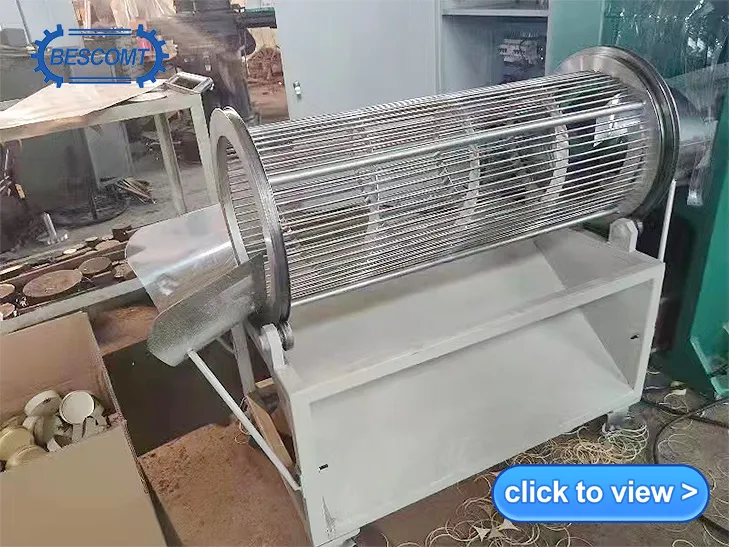

| Screw Machine | Automated system for the separation of waste material and finished caps. |

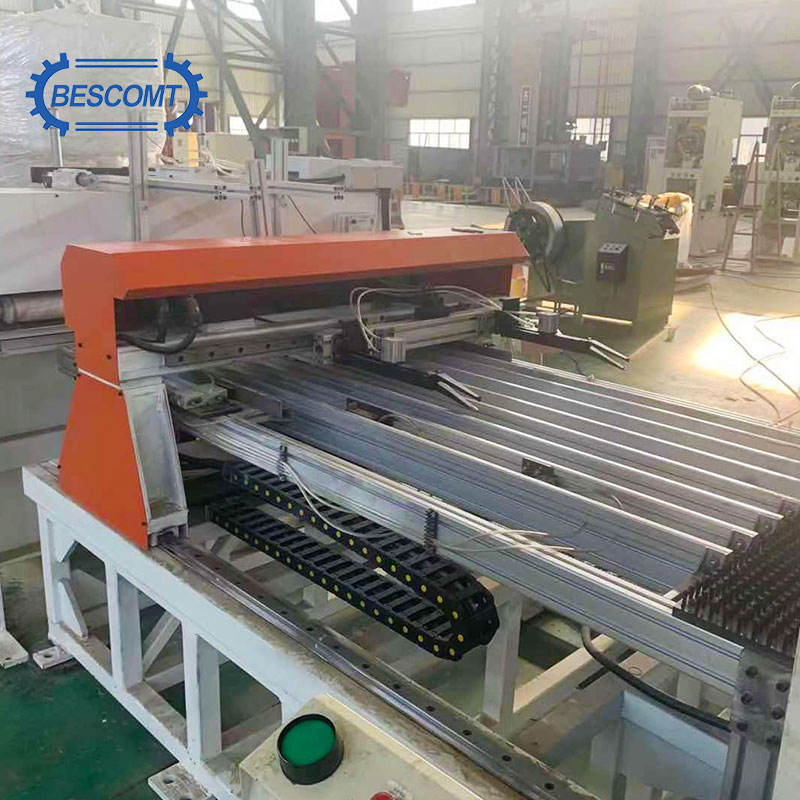

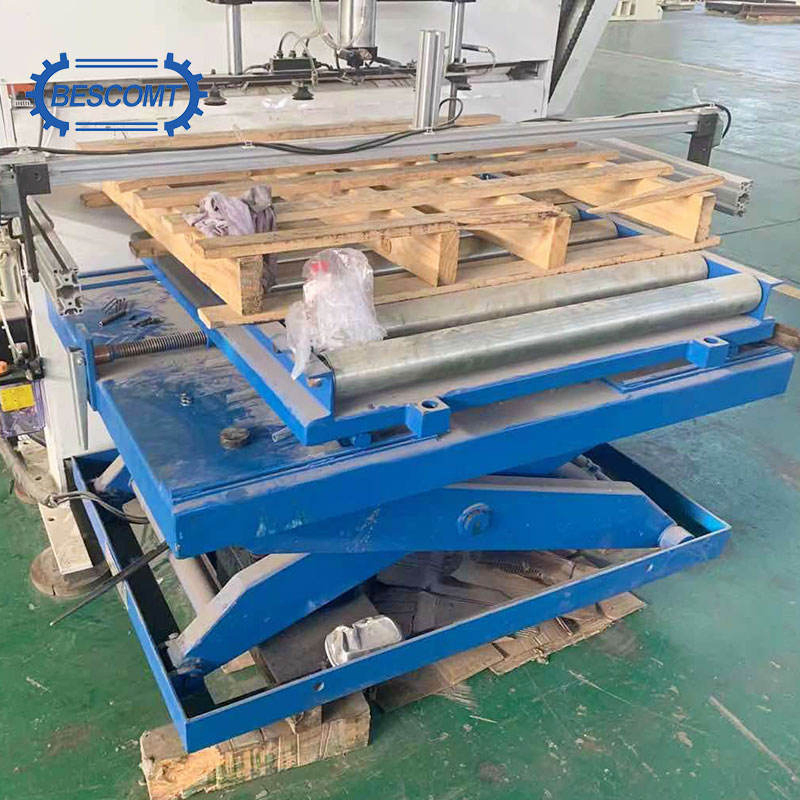

| Sheet Feeding Machine | Microcomputer controlled with two-coordinate linkage for accurate material delivery. |

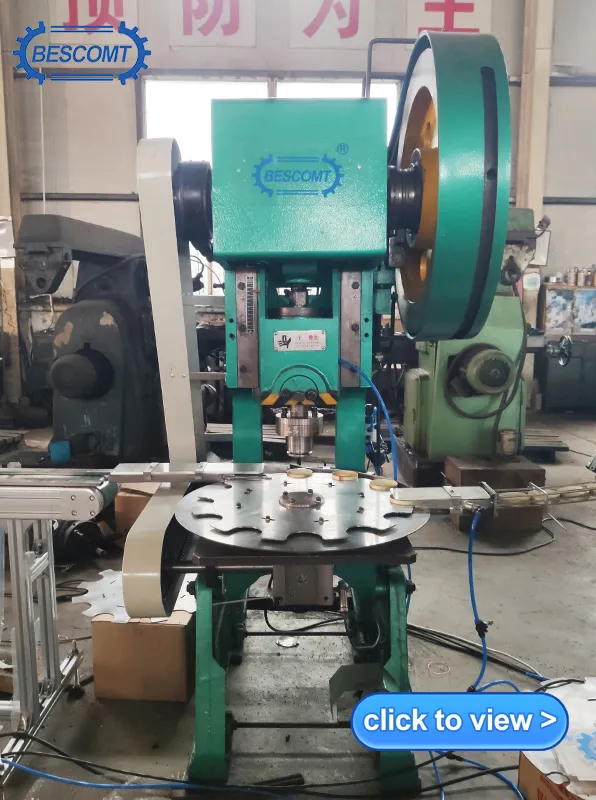

| Curling Machine | Rolls the edge of the bottle cap to ensure safety and smoothness. |

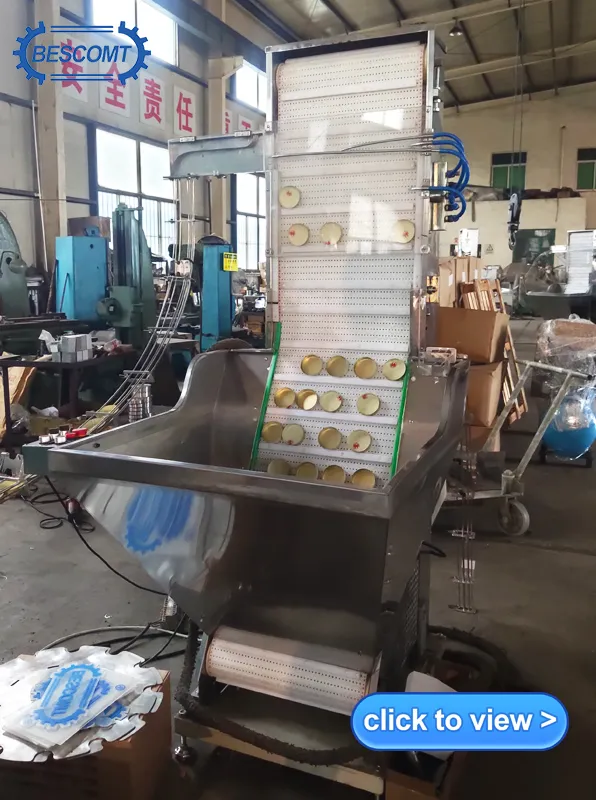

| Knurling Machine | Automatically applies roll patterns to the cap surface. |
| Pad Adding Machine | Inserts gaskets at the top of the cap to enhance sealing performance. |
| Stamping Mold | High-grade SKD11 and P20 die steel construction with integrated blowing devices. |
| Item | Parameter |
|---|---|
| Processing plate size | 800*900mm (Adjustable) |
| Loading table load | 2 tons |
| Feed accuracy | ±0.08mm |
| Feeding speed | 48m/min |
| Refueling time | 1-2 seconds |
| Dimensions | 3460*2210*1765mm |
| Total weight | 2000kg |

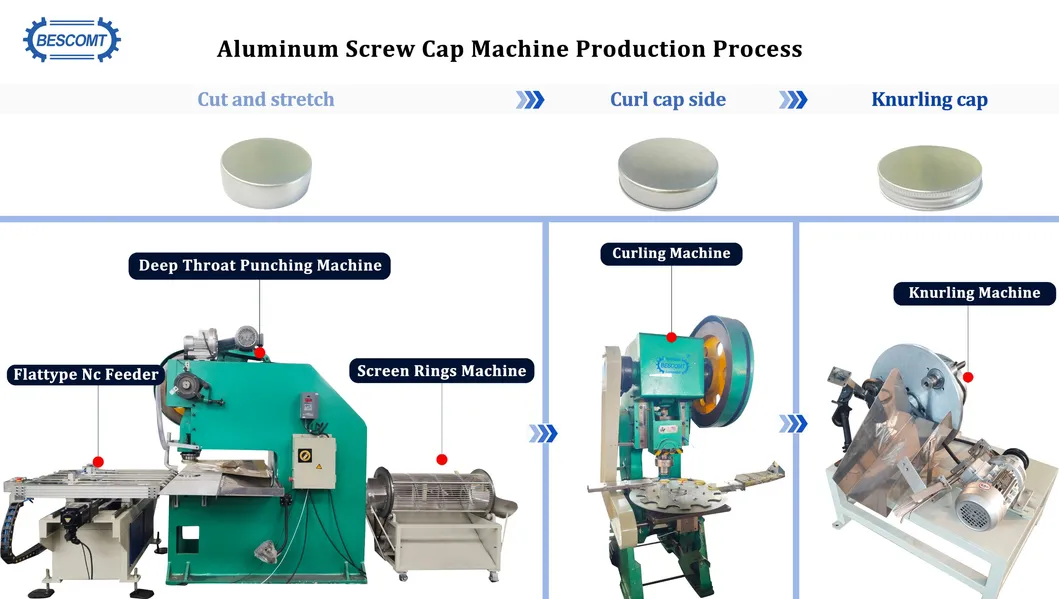

How To Make Aluminum Screw Caps?

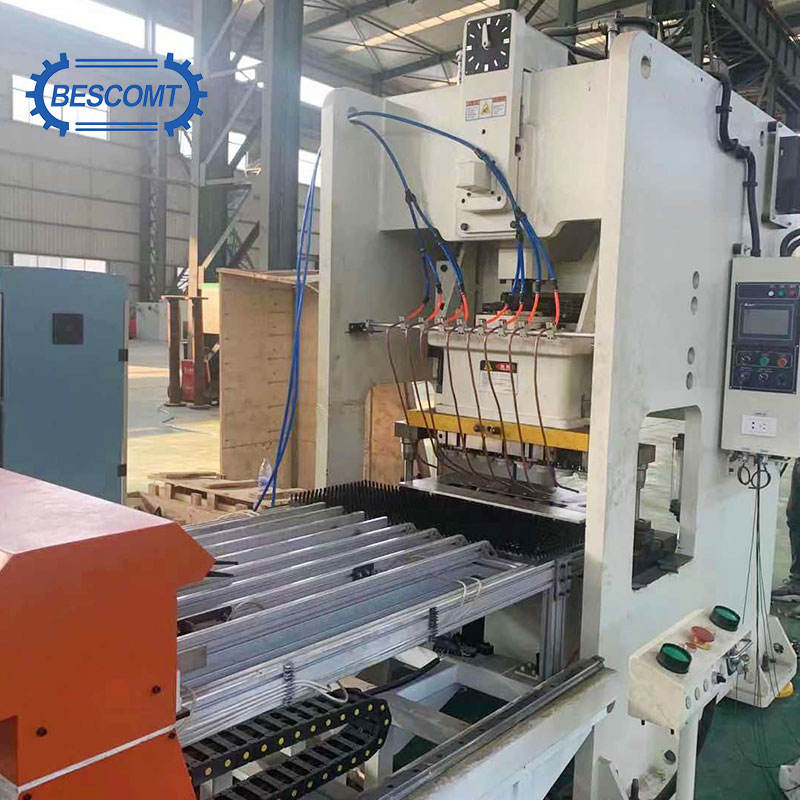

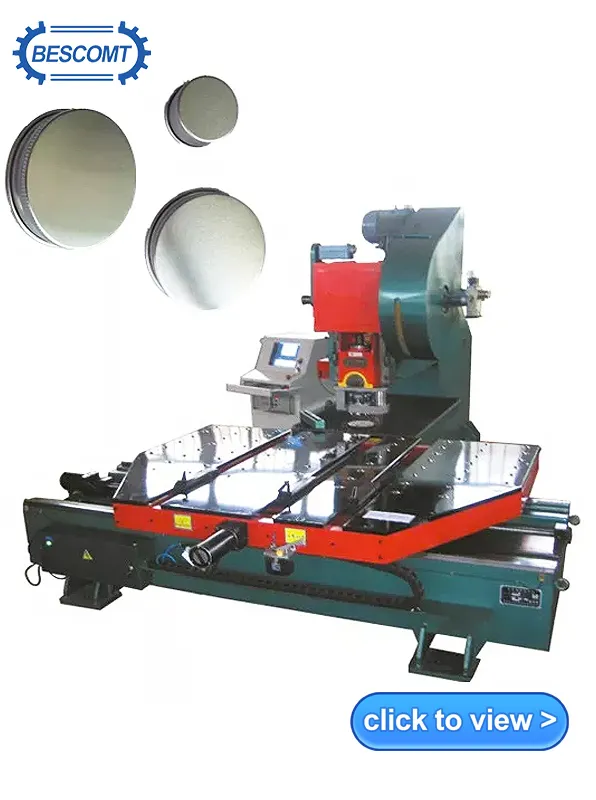

35-ton deep throat punching machine with air clutch. Features a stable beam structure and integrated carriage design to prevent dynamic bias on X and Y axes during high-speed feeding.

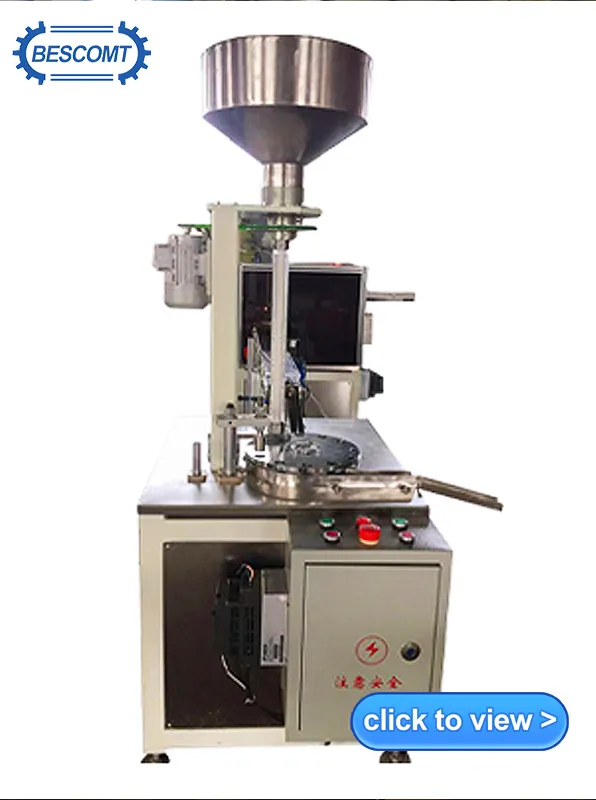

Used to automatically insert liners into caps to ensure a perfect seal. Production capacity ranges from 100-150 pieces per minute.
Rigid design ensures minimum deflection and accurate alignment. Features a heavy cross-section steel construction for long-term durability.
Our production of specialized equipment began in 1997, focusing on machine development and stability. We prioritize quality and technical updates to maintain a leading position in the industry.
