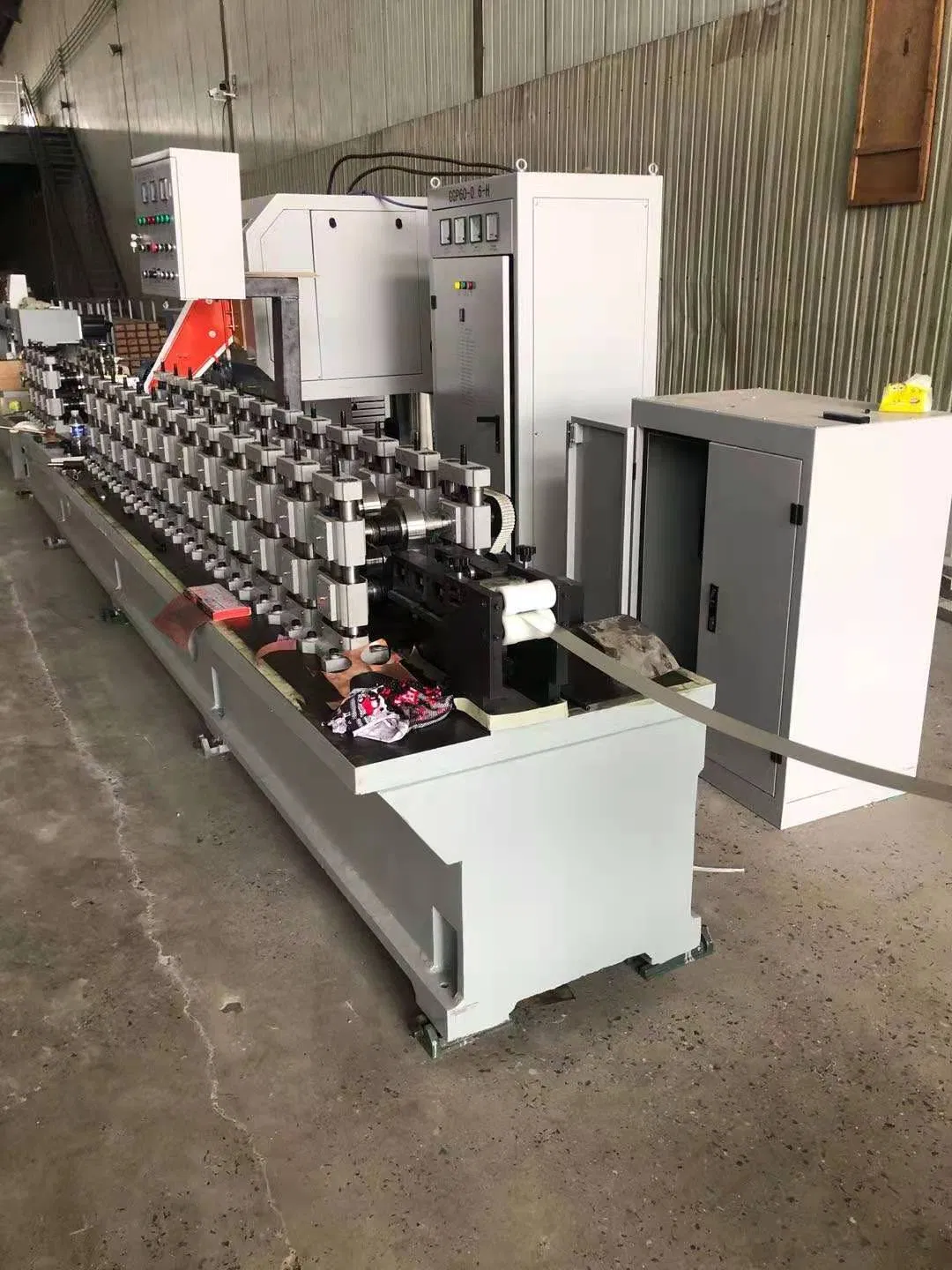

Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window
1 / 5
Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window
Production Line for Aluminum Spacer Bar for Insulation Glass Window

Production Line for Aluminum Spacer Bar for Insulation Glass Window

Customization: Available
After-sales Service: Good Service
Type: Float Glass
Send Inquiry

Product Description

📊 Basic Information
Model NO.
16A
Shape
Flat
Structure
Hollow
Glass Thickness
12mm
Air Cavity Depth
9mm
Moh's Hardness
8
Energy Transfer
Conduction
Processing Depth
Hollow Glass
Usage
Furniture, Door, Building, Window
Transport Package
Carton Paper
Origin
Made in China
Production Capacity
5000000
⚙️ Production Line Components
Warm edge spacer production line & aluminum spacer bar production line equipment.
  • Cast iron platform (6m length)
  • Level of frame (17pcs)
  • Feeder (1pcs)
  • Geering (1 set)
  • Belt (1set)
  • Belt sheave (1 set)
  • Mould (3pcs)
  • Mould cover and mat (1 pcs)
  • Welding frame (1 set)
  • Scraper (1 pcs)
  • Straightening machine (1set)
🖼️ Product Gallery

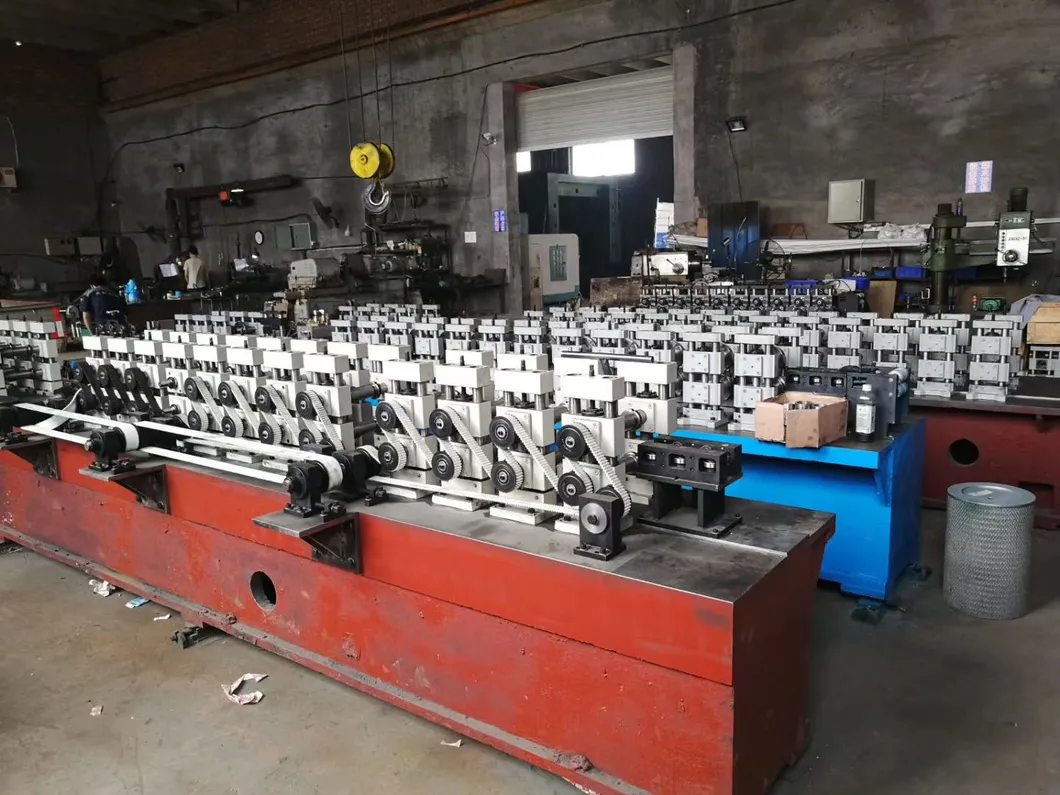

Aluminum Spacer Bar Production Line
CNC Angle Iron Punch Line
Hydraulic System
Cold Roll Forming Machine
🛠️ Technical Parameters

1. Process Flow

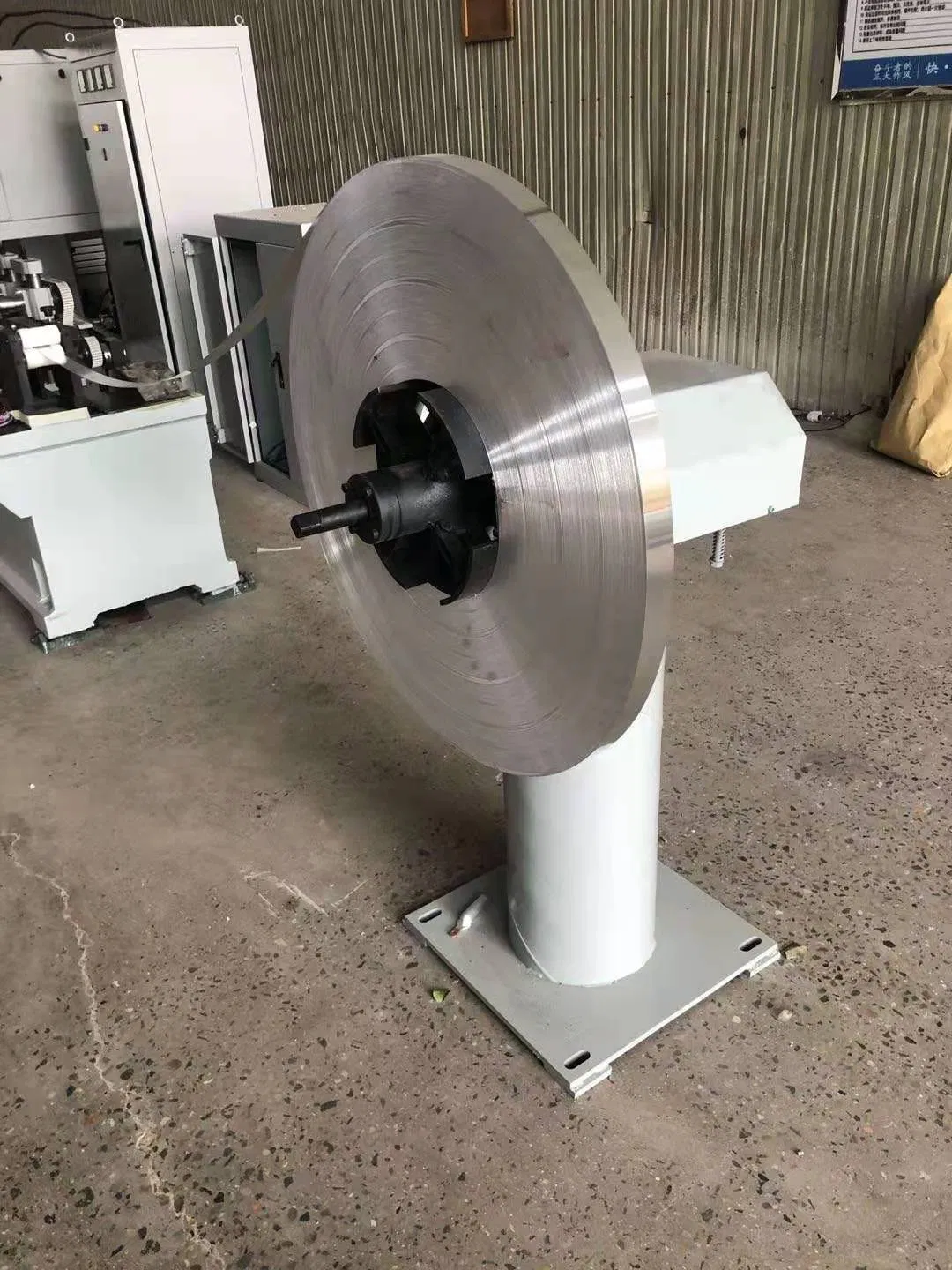

Decoiling ➔ Active Feeding ➔ Forming ➔ Measuring Length ➔ Punching ➔ Cutting ➔ Product Stand

2. Main Machine Specifications

Profile Thickness 0.23mm -- 0.35mm
Coil Diameter Inner: 450mm -- 700mm | Max Width: 1250mm
Loading Capacity Max weight: 5000kg
Main Motor Power 5.5kw (Voltage: 380v, 50hz)
Forming Speed 8 -- 10m/min
Roller Station 15 Stations
Hydraulic System Advanced Taiwan system, Power: 3kw
Blade Material Cr12 steel with quenched treated 60-62°
📝 Order Terms & Support
  • Delivery: Available in stock
  • Package: Export standard for container
  • Payment: 30% TT advance, 70% after inspection
  • Warranty: 12 months with life-time technical support
  • Certificates: CE & ISO certified
❓ Frequently Asked Questions
What is the production speed of the aluminum spacer bar line?
The forming speed of the machine is approximately 8 to 10 meters per minute.
What thickness of materials can this machine process?
The production line is designed to handle profile thicknesses ranging from 0.23mm to 0.35mm.
What kind of warranty is provided with the equipment?
We provide a 12-month product warranty along with technical support for the entire lifespan of the equipment.
What spare parts are included with the machine?
Standard spare parts include 2 conks, 4 fuse-links, 1 rubber mat, and 1 bolt spanner.
Does the machine meet international quality standards?
Yes, the production line comes with CE and ISO certificates, ensuring reliable quality and professional standards.
What is the power requirement for the main motor?
The main motor power is 5.5kw, operating on a voltage of 380v at 50hz.
