Aluminum Spacer Production Line

Customization:	Available
Type:	Float Glass
Shape:	Flat

Send Inquiry

Product Description

Basic Information

Model NO.

16A

Structure

Hollow

Glass Thickness

12mm

Air Cavity Depth

9mm

Moh's Hardness

Energy Transfer

Conduction

Deep Processing

Hollow Glass

Color

Black Sliver

Usage

Furniture, Door, Building, Window

Transport Package

Carton Paper

Specification

A10

Origin

Made in China

HS Code

84790000

Production Capacity

5,000,000 Units

Product Description

Warm edge spacer production line and aluminum spacer bar production equipment. The system features high precision forming and reliable structural integrity for industrial glass processing.

Line Components

Cast iron platform: 6 meters length
Level frame: 17 pieces
Feeder and Gearing system (1 set)
Belt and Belt sheave set

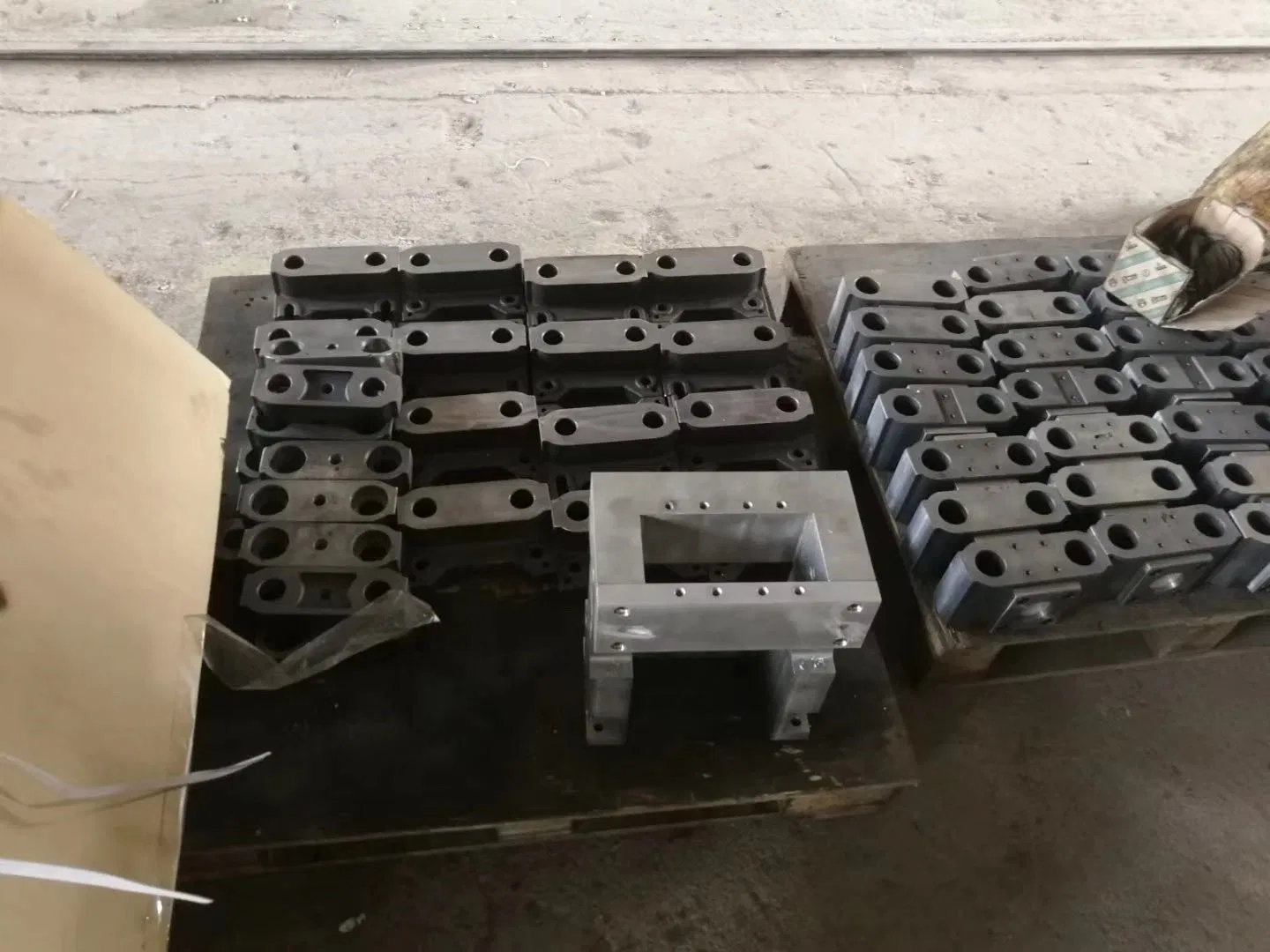

Mould set: 3 pieces with cover and mat
Welding frame and Scraper
Straightening machine system

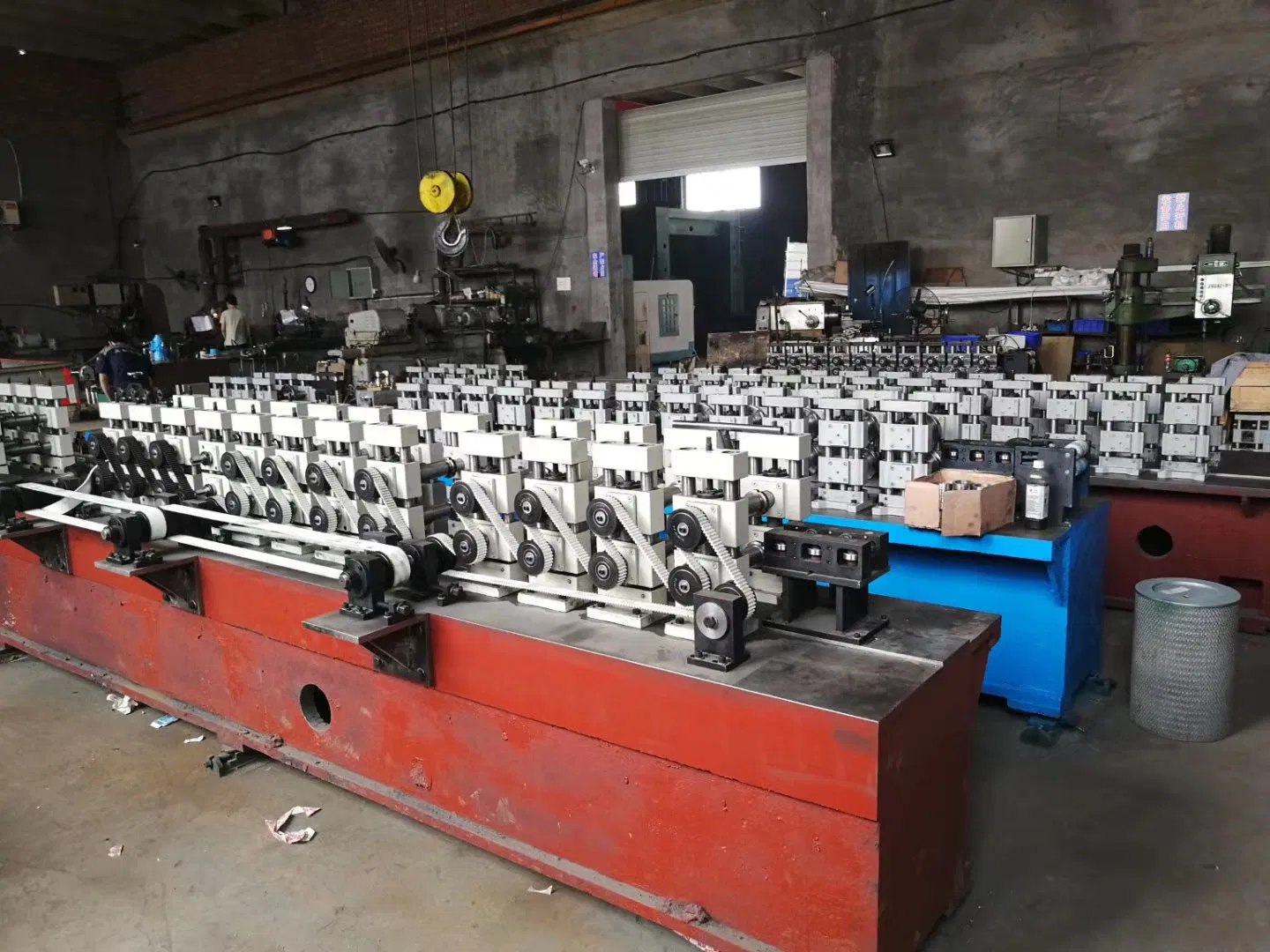

Aluminum Spacer Production Line Overview

Technical Parameters

Process Flow

Decoiling ➔ Active Feeding ➔ Forming ➔ Length Measuring ➔ Punching ➔ Cutting ➔ Product Stand

Main Equipment Specifications

Profile Thickness:	0.23 - 0.35mm
Coil Inner Diameter:	450mm - 700mm
Max Width of Coiling:	1250mm
Max Loading Weight:	5000kg
Main Motor Power:	5.5kw
Forming Speed:	8 - 10m/min
Roller Stations:	15 Stations
Hydraulic System:	Taiwan technology, 3kw Power
Blade Material:	Cr12 steel with quenched treated 60-62°

Service & Terms

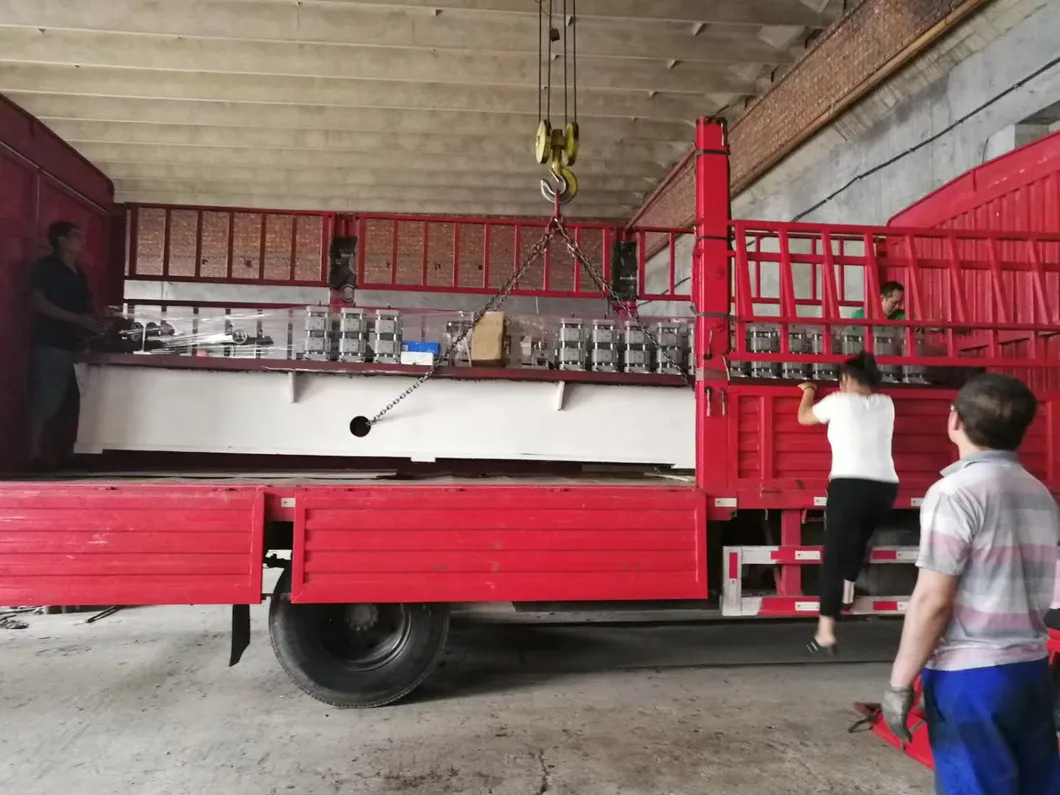

Package: Export standard package for container shipping
Delivery: In stock, standard delivery within 30 working days
Certification: CE & ISO Certificates
Warranty: 12 months with lifelong technical support

Frequently Asked Questions

What is the production speed of the aluminum spacer line?

The forming speed of the machine is approximately 8 to 10 meters per minute.

What thicknesses of material can this equipment handle?

The line is designed to process profiles with a thickness ranging from 0.23mm to 0.35mm.

Is the cutting system automatic?

Yes, it features an advanced hydraulic drive system that provides automatic cutting after the forming process.

What kind of certificates does the equipment have?

The production line is fully compliant with CE and ISO standards for quality and safety.

What are the spare parts included?

Standard spare parts include 2 conks, 4 fuse-links, 1 rubber mat, and 1 bolt spanner for maintenance.

What is the warranty period for this machine?

We provide a 12-month warranty along with lifelong technical support for all our equipment.
