| Model NO. | LBP2500Q | Control System | PLC Control / Touch Screen |
|---|---|---|---|
| Glass Thickness | 3 mm - 19 mm | Max Processing Size | 3600*2500mm |

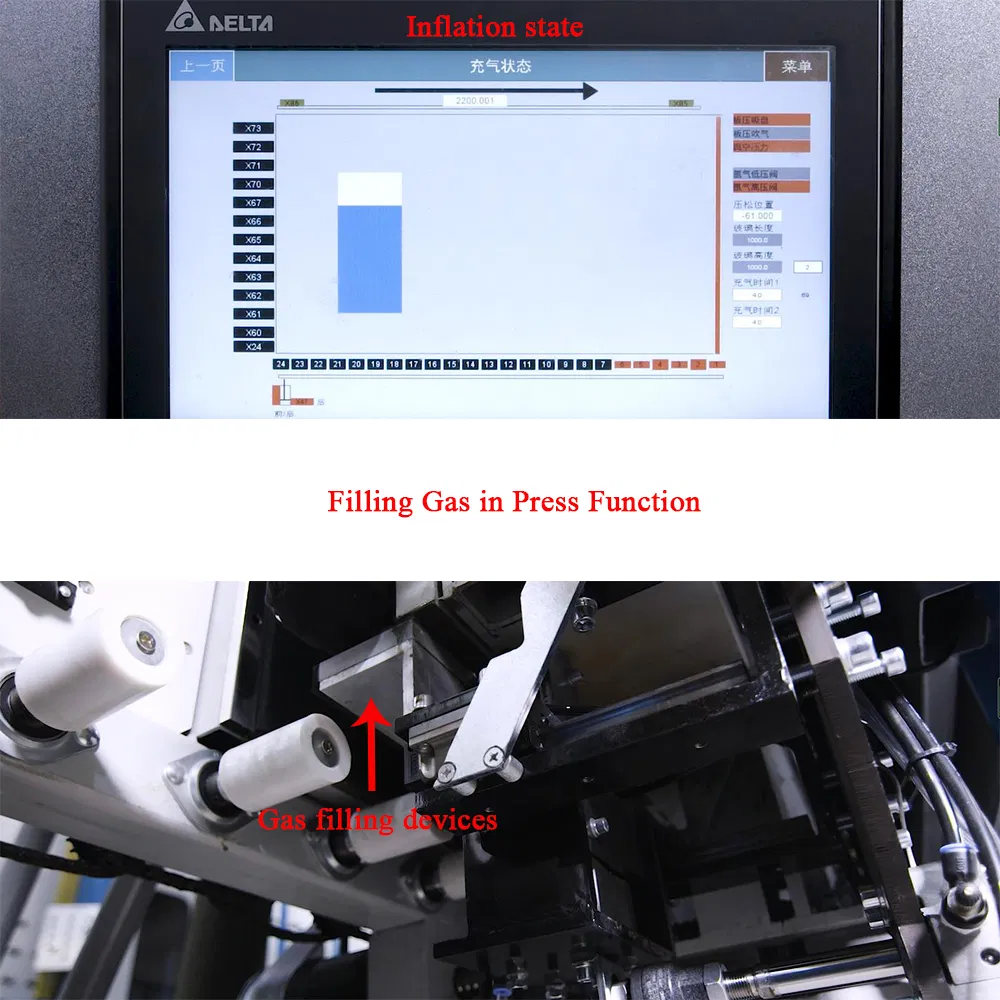

| Inert Gas Type | Argon, Nitrogen, etc. | Gas Concentration | >85% - 92% |
| Washing Speed | 3-10m/Min | Running Speed | 15-45m/Min |
| Total Power | 44.85kw | Production Capacity | 800 Square Meter / Day |

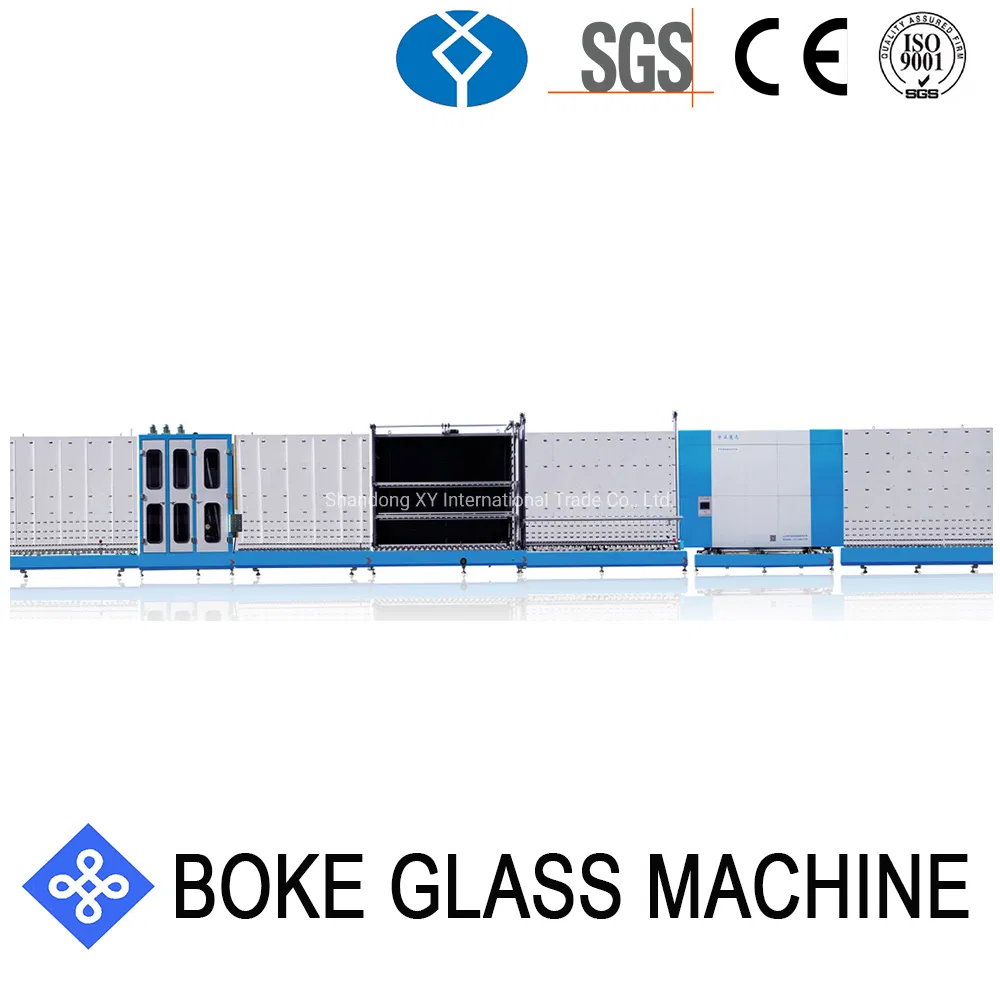

Brief Introduction of LBP2500Q IGU Line

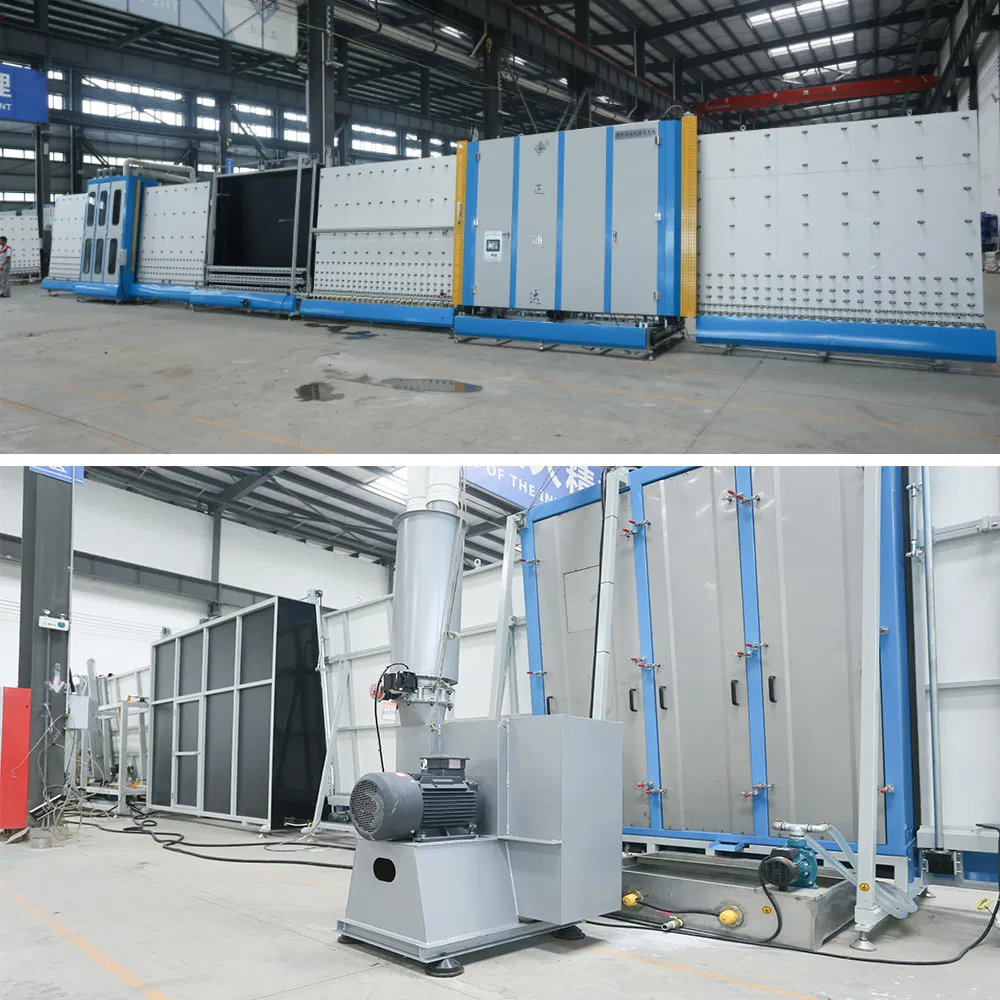

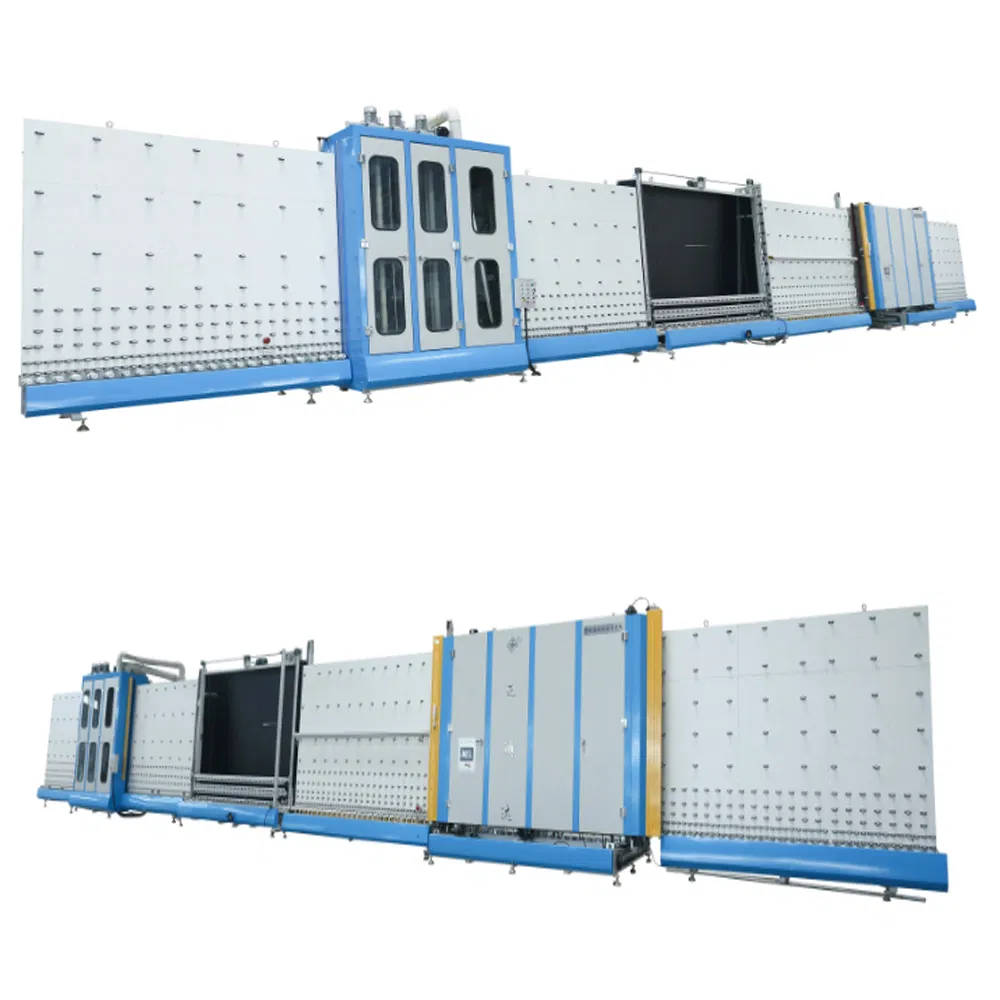

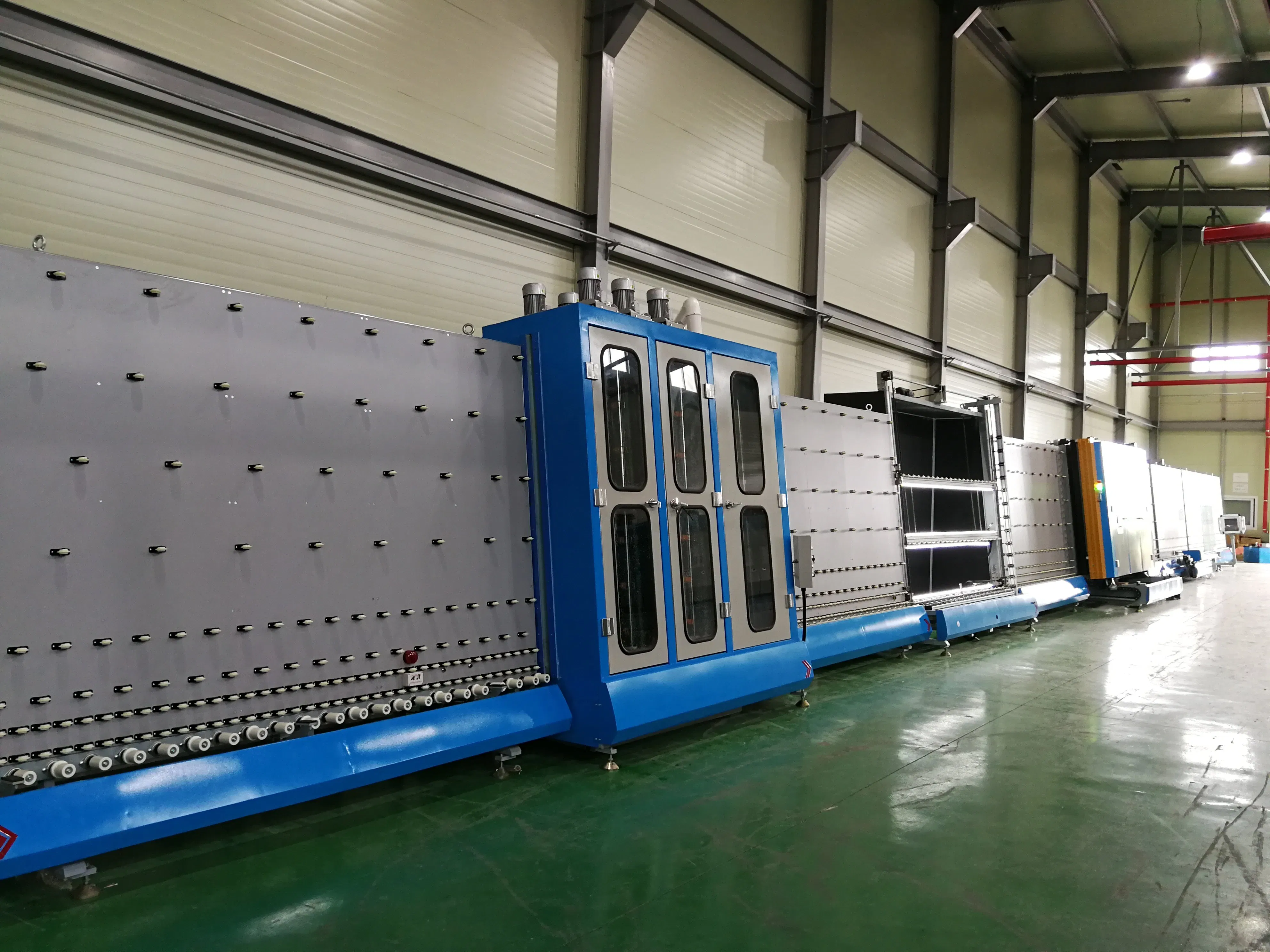

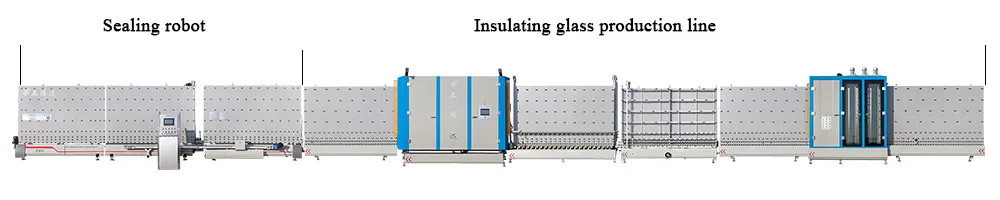

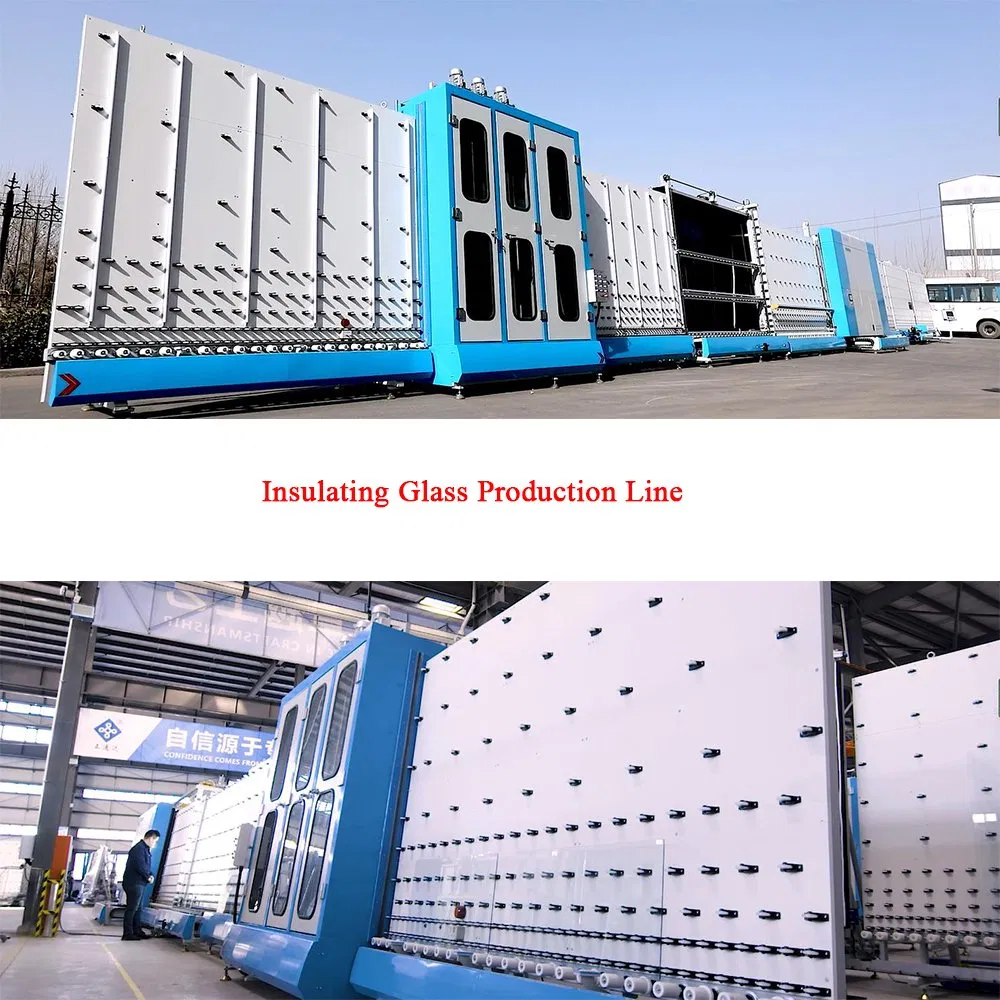

Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units production. This model applies for glass processing companies and windows & doors fabricators.
| Specification Details | |
|---|---|
| Min. processing glass size | 450*200 mm |
| Max. Insulating glass thickness | 52 mm |
| Capacity | 110 pc/h |
| Power supply | 3P, 380V, 50Hz |
| Total Weight | 10500 Kg |
| Outline dimension | 24600*2500*3680 mm |
Energy Saving & Efficiency: Saves 30% of energy by automatically stopping when no glass is on the loading table.

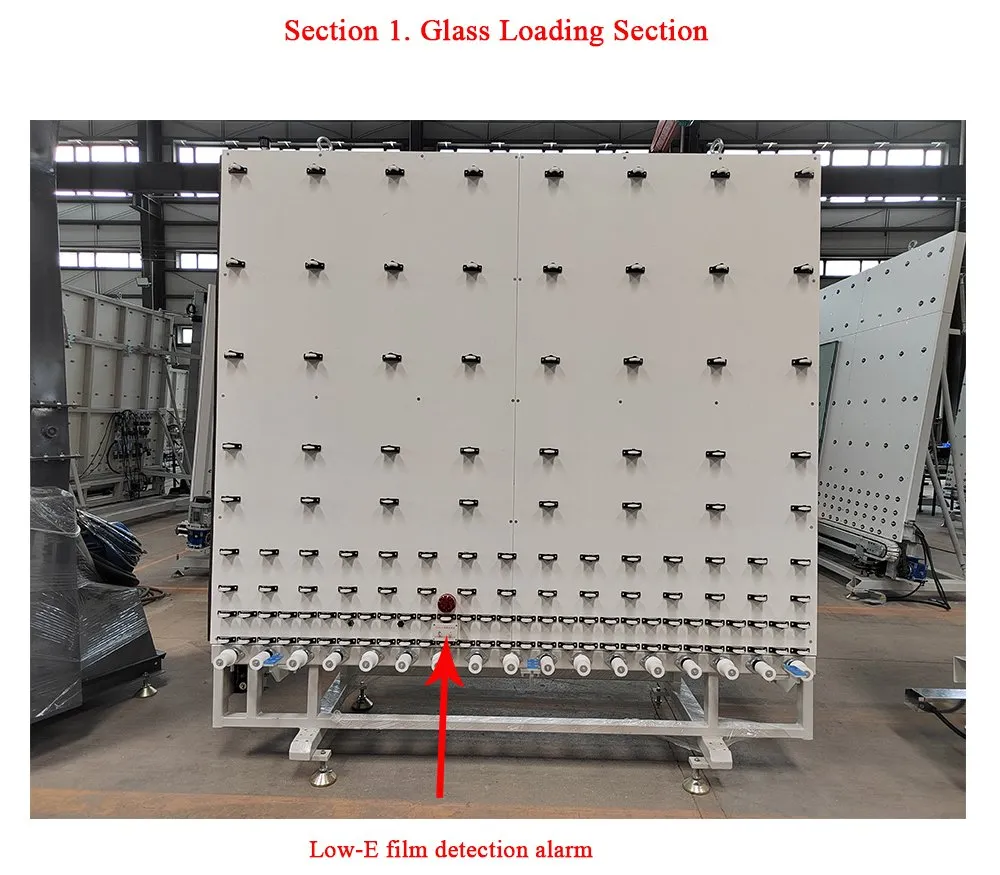

Low-E Protection: Automatically distinguishes the coating side of Low-E glass with alarm notification.

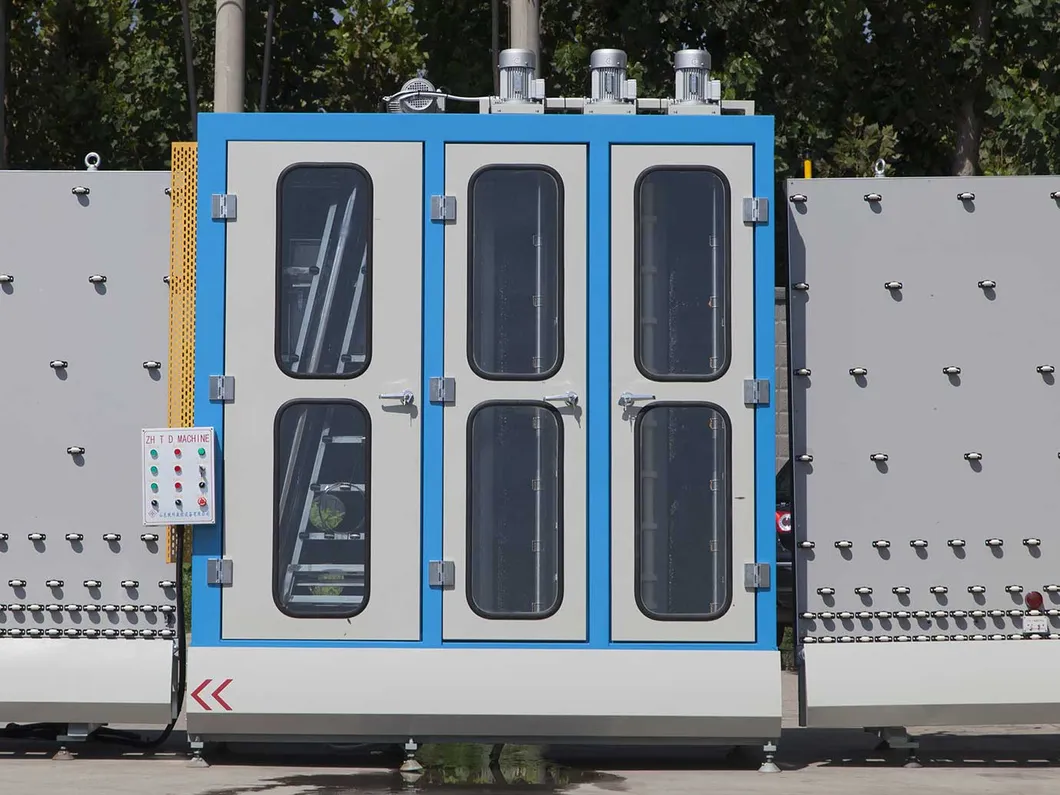

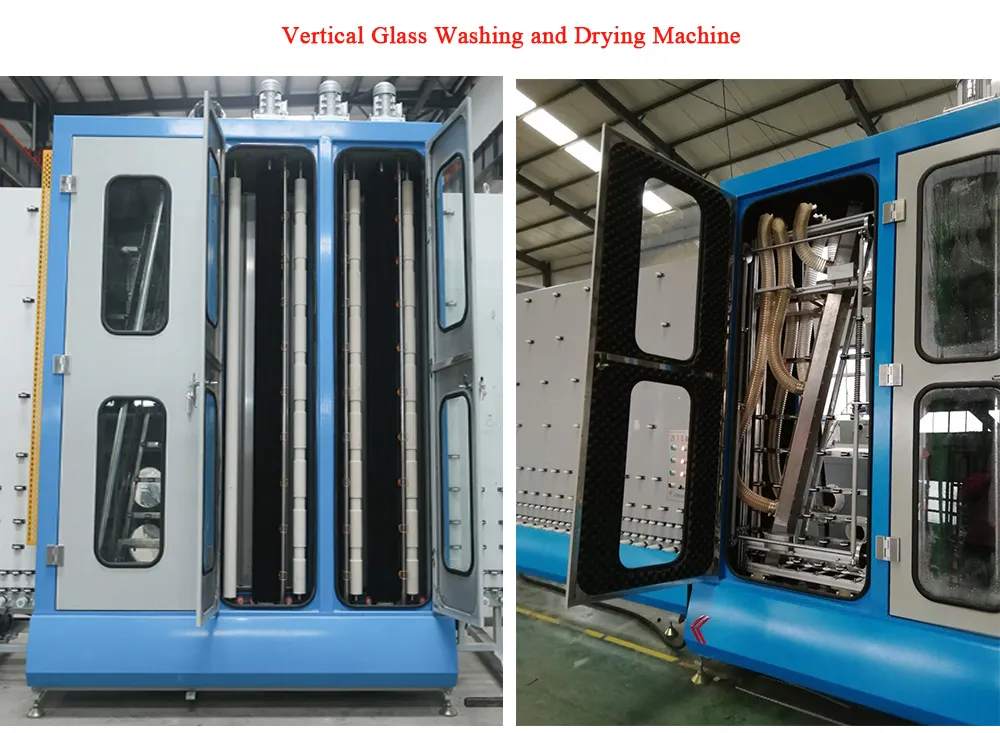

Premium Washing: Stainless steel material with DuPont brand bristles to avoid scratches on film surfaces.

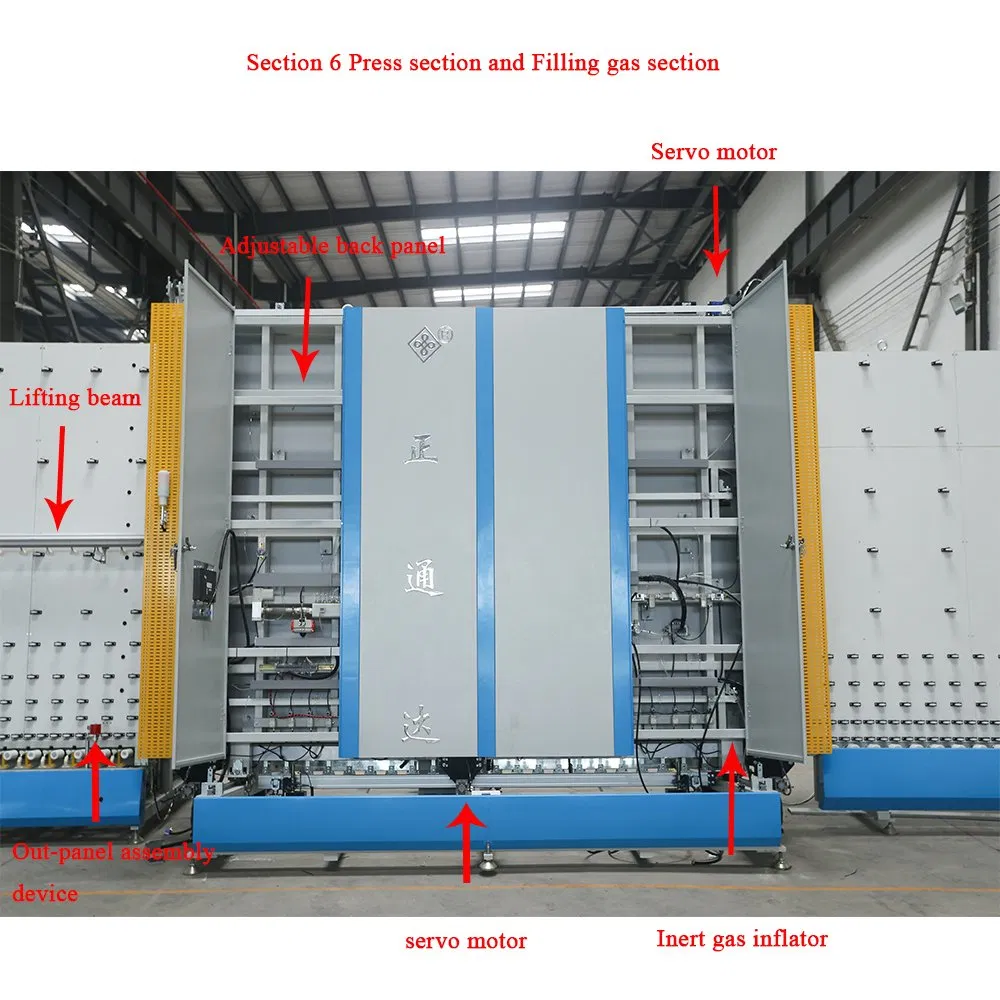

Precision Press: Servo control ensures accuracy and prevents glass deformation or breakage.

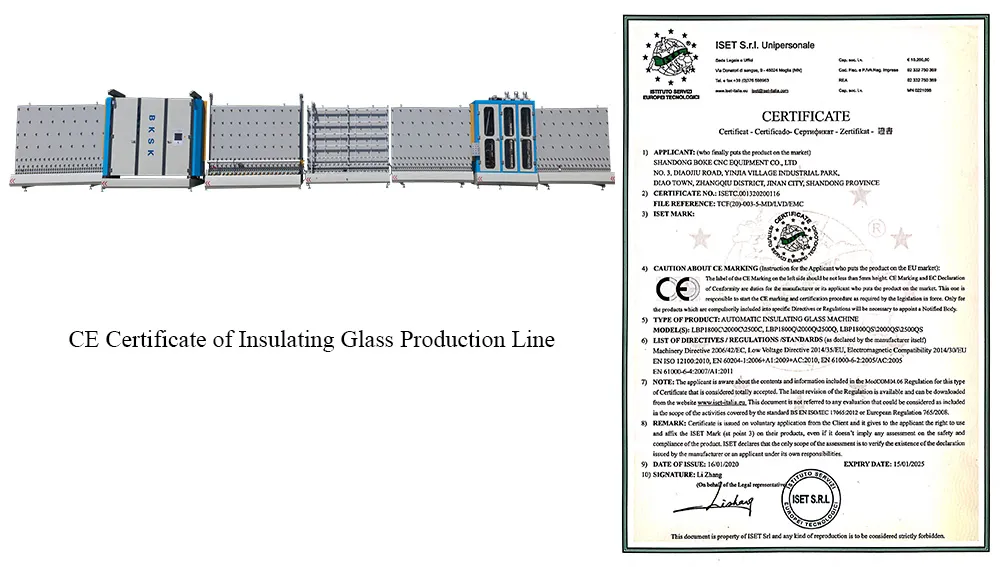

Our production lines are fully compliant with international standards, ensuring safety and high performance.
