ℹ Basic Information
Type
Auto Secondary Sealant Sealing Machine
Dosing System
Two Dosing System Option
Function
Insulating Glass Sealing Robot
Production Capacity
300sets/Year
★ Certifications & Standards
⚙ Product Description & Application

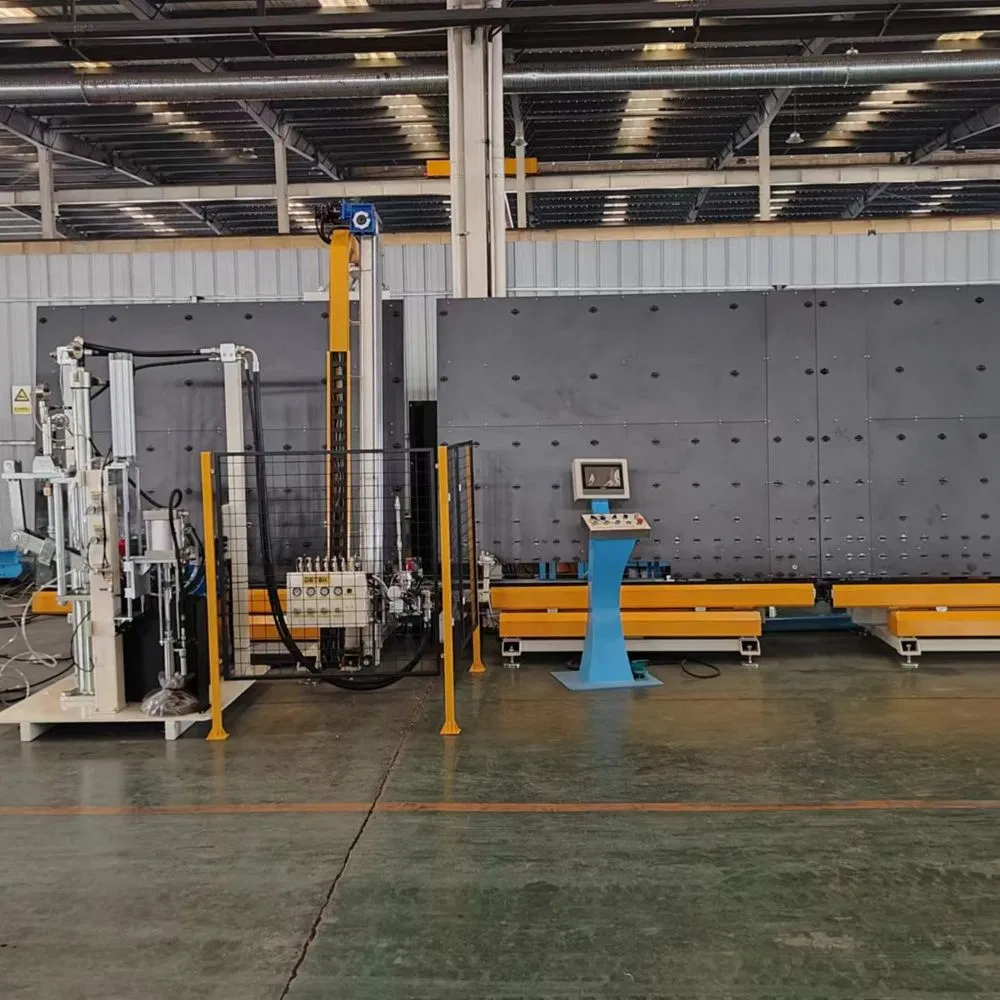

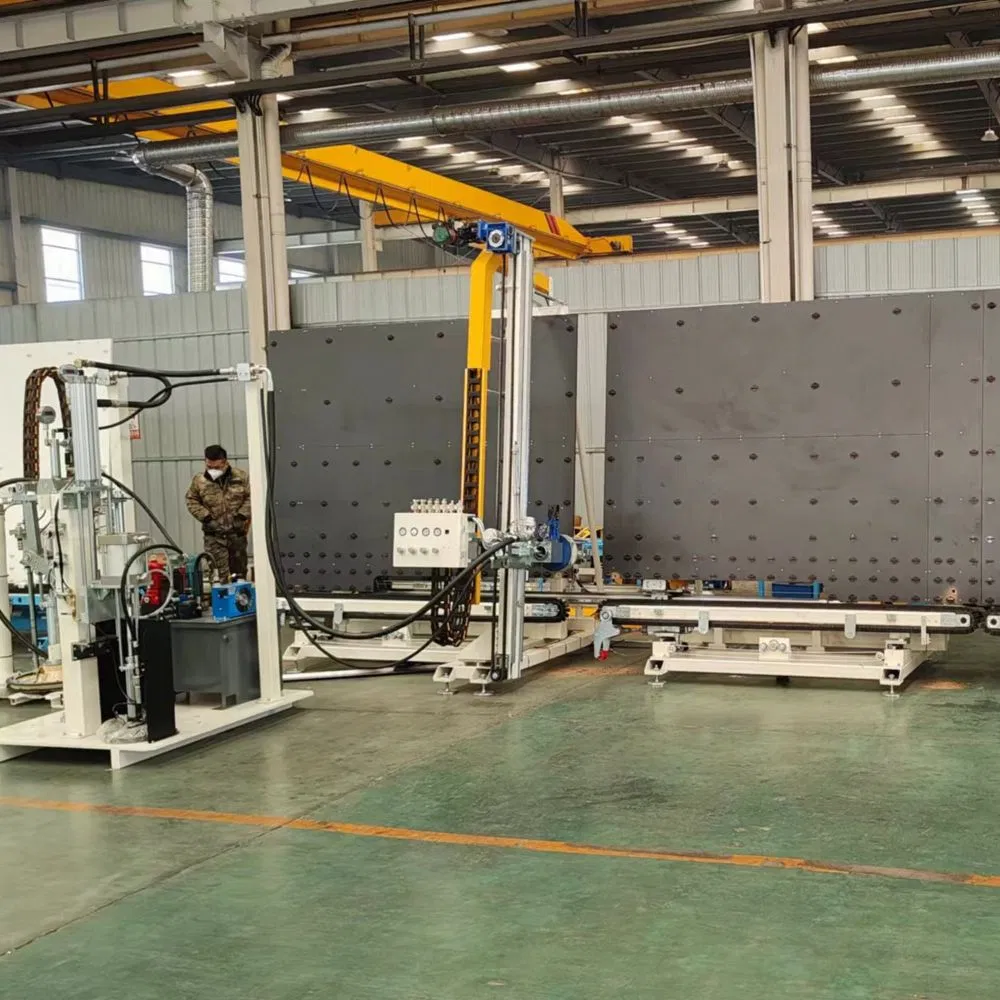

The secondary sealant sealing in Insulating Glass Units, ASR2540 is highly automatic silicone or polysulfide sealant sealing robot. Auto sealing robot guarantees the high quality of IGU for glass processing companies.
✔ Key Features

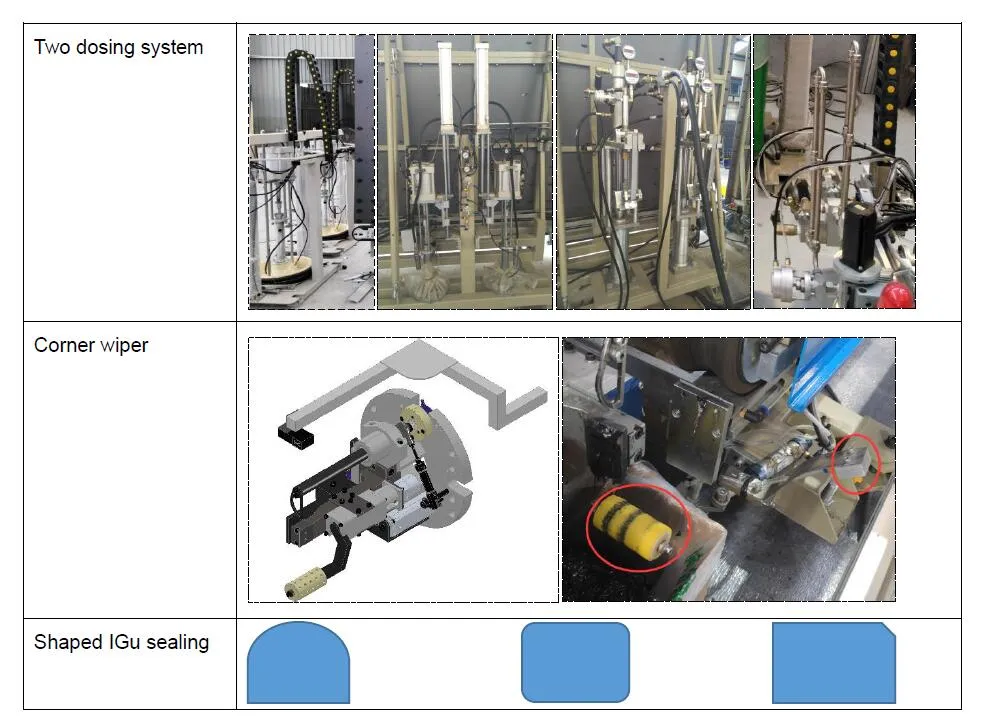

- Two separate dosing system, one key switch system (Option).

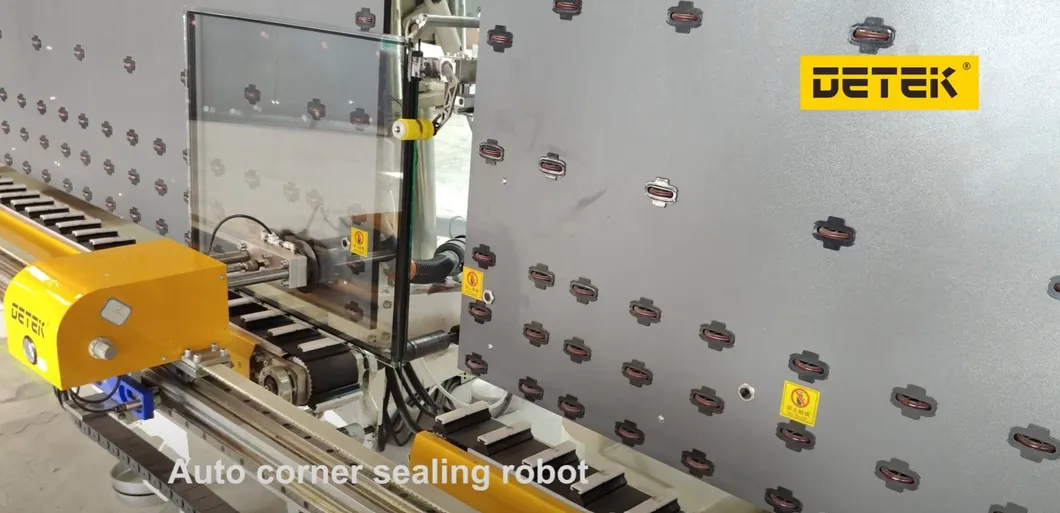

- Automatic corner wiper (Option).
- Economical and practical, used for glass deep processing company.
- Fully intelligent and friendly touching screen adopt Ethernet communication, with memory function and easy operation.
- High sealing performance, high automation, reduce labor cost, improve production efficiency.
- Best sealing quality without air bubbles, smooth surface, save time for corner correction.

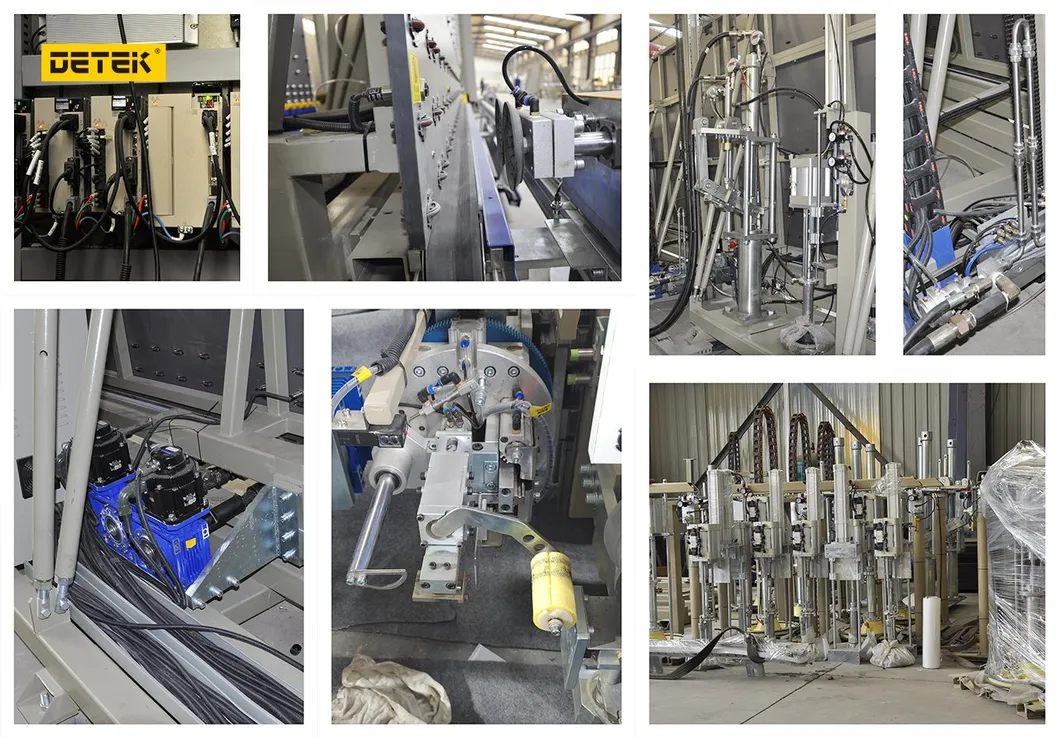

- Equipped with anti-blocking device in the mixer, easy to clean.
- Servo control system adopts world famous brand (Japan YASKAWA), performance is stable, and counting speed is fast.
- Special V type transmission belt to avoid sealant sticking on the belt, ensure the glass edge clean.

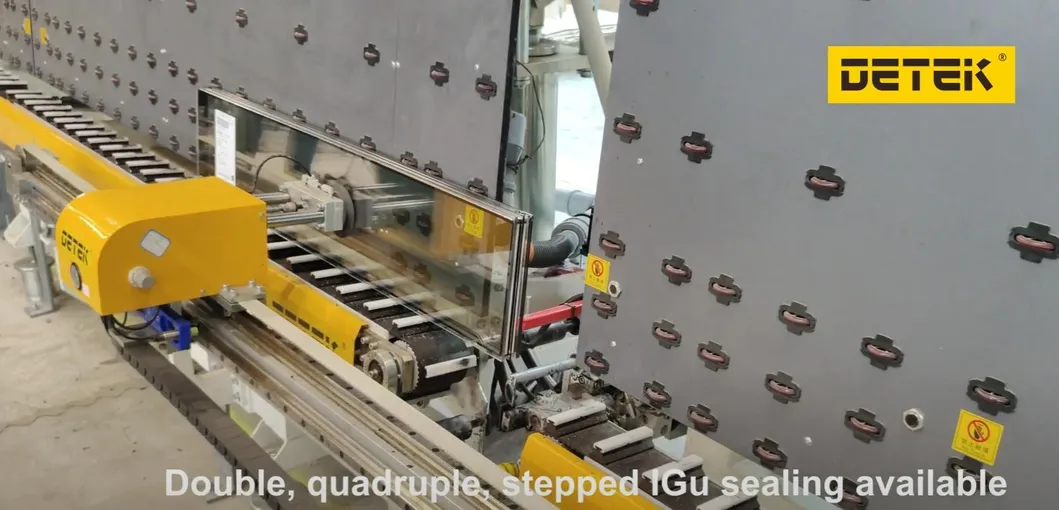

- Suitable for triple IGU, stepped IGU and shaped IGU (Option).
- Equipped with high speed positioning function, glass can be located accurately.
📊 Technical Parameters
| Item Description |
Specification Details |
| Max. IGU size | 2000×3000mm |
| Min. IGU size | 180×300mm |
| IGU thickness | 12-56mm |
| Power supply | 3P 380V 50HZ 13KW |
| Air pressure | 0.6-0.8Mpa |
| Max. squeeze pressure | 32Mpa |
| Sealing speed | 5-40m/min |
| Dimension | 9680×1400×2900mm |
🏆 Brand Component List
| Component Name |
Brand |
Origin |
| PLC | Yaskawa | Japan |
| Servo Driver & Motor | Yaskawa | Japan |
| Touching Screen | WEINVIEW | Taiwan |
| Inverter | TECO | Taiwan |
| Breaker / Contactor / Relay | Schneider | France |
| Sensor / Proximity Switch | AUTONICS | S. Korea |
| Reduction Motor | YOUSHENG | Shanghai |
| Solenoid / Air Cylinder | Airtag | Taiwan |
| Proportional Valve / Regulator | SMC | Japan |

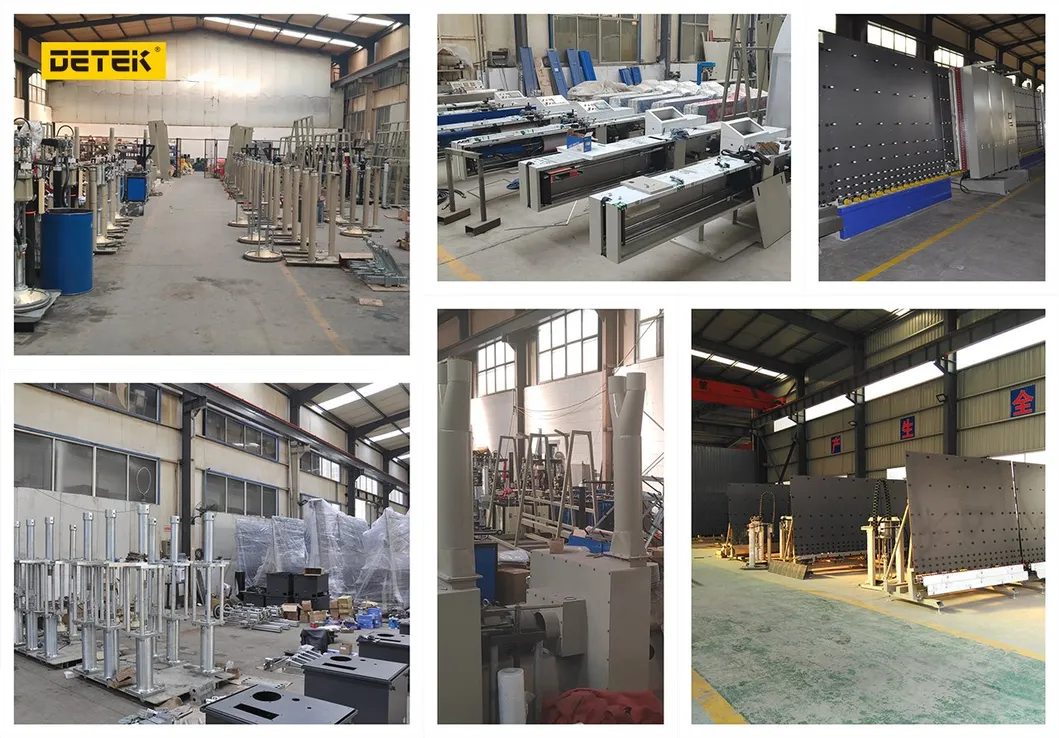

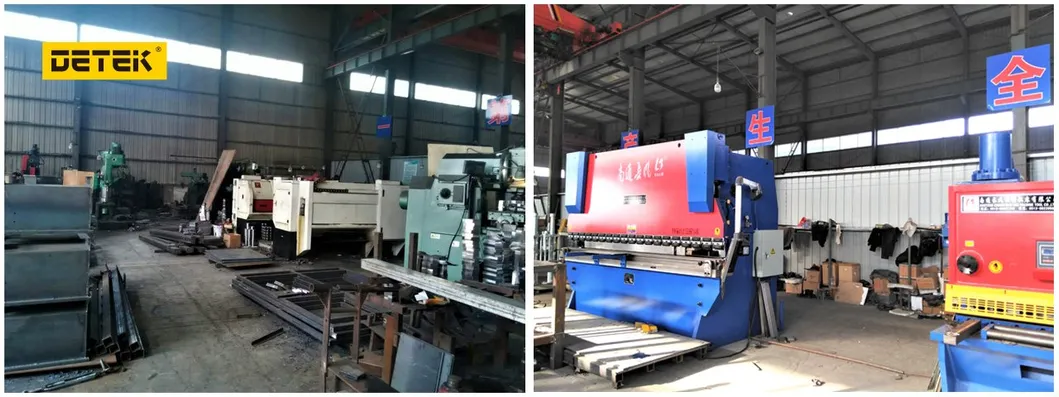

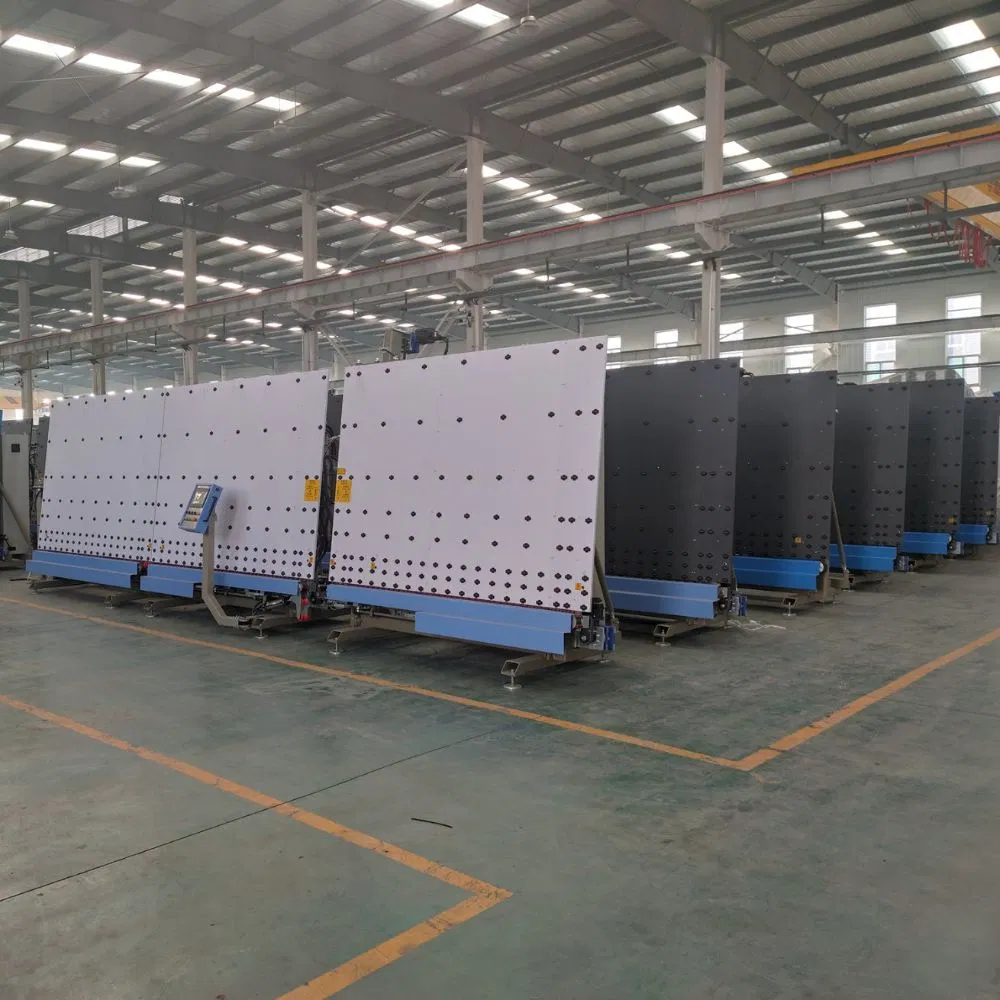

🏭 Workshop & Production

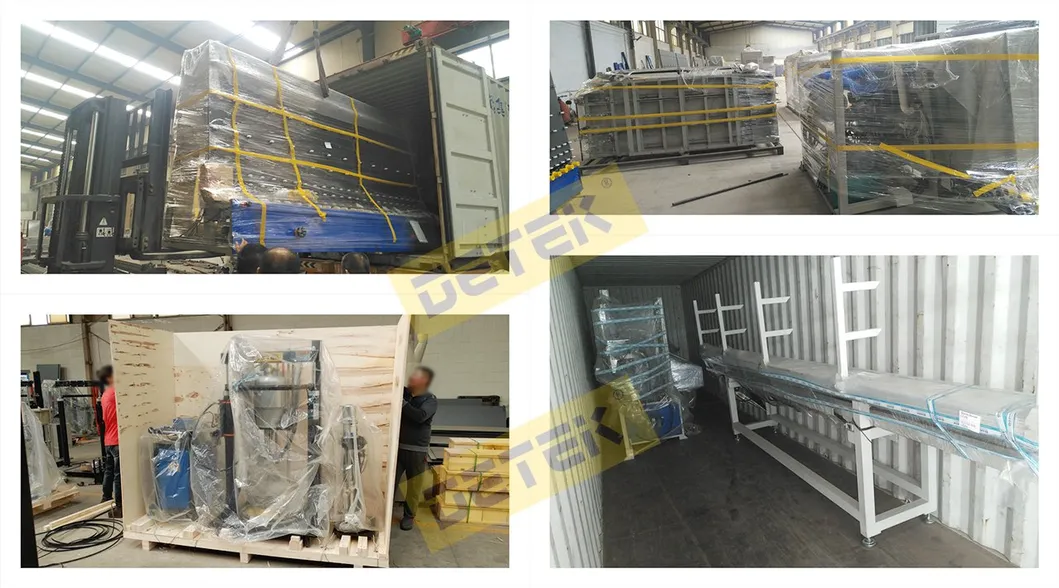

📦 Packing & Shipping

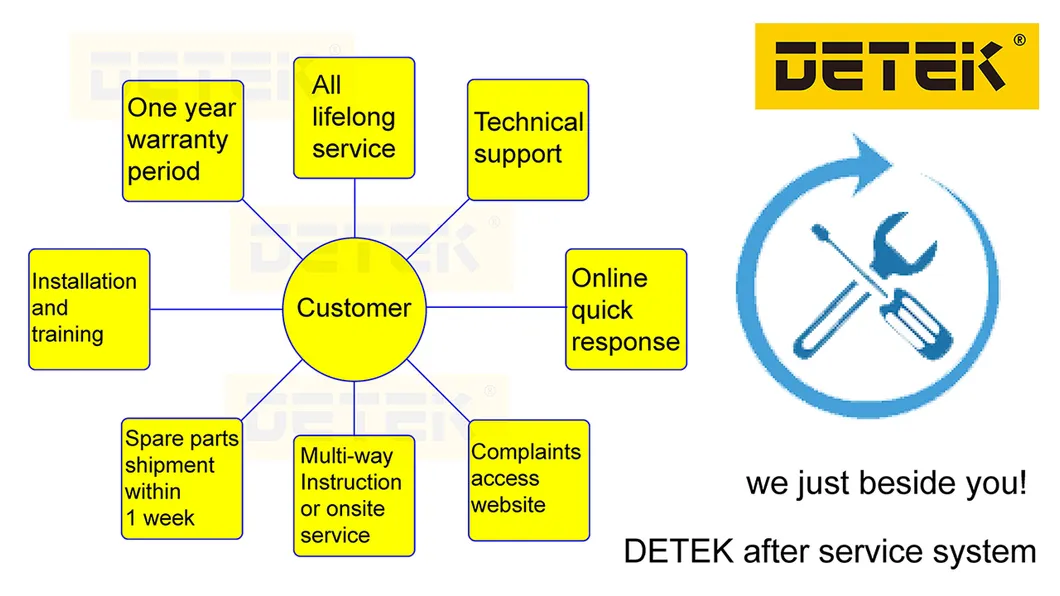

🛠 Professional After-Sales Service
Frequently Asked Questions
What is your typical lead time for delivery?
The lead time is approximately 60 days for a whole production line and 30 days for a single machine. For special requirements, please consult with our sales team.
How is the machine shipment arranged?
All machines are designed to fit into standard GP containers to save on sea freight costs. We use seaworthy packaging and professional workshop container loading to ensure safe arrival.
What kind of guarantee do you provide?
We offer a one-year guarantee (excluding wearing parts) and lifelong service. Technical engineers can be dispatched for on-site service upon request.
How does the installation process work?
Installation service is included. Customers are responsible for the engineer's round-trip airfare, local transportation, and accommodation. Installation typically finishes within 15 days at a daily rate per engineer.
What after-sales support do you offer?
Spare parts can be provided within 72 hours. Our experienced technical sales and service engineers are ready for on-site instructions and to resolve any operational questions.
Can the machine handle shaped or triple IGU?
Yes, our sealing robot is suitable for triple IGU, stepped IGU, and shaped IGU as an optional configuration.
