Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
1 / 5
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine
Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine

Automated Insulating Glass Line Ig Line Double Glazing Production Line Insulated Glass Processing Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Technical Specifications

Model NO.
WLBZ2030
Max. Glass Size
3000*2000mm
Min. Glass Size
400*200mm
Low-E Glass
Available
Glass Washing Speed
2-10m/Min
Water/Air Heating
Available
Panel Press
Servo Control
Convey Speed
2-50m/Min
Type
Insulating Glass Production Line
Structure
Vertical
Warranty
1 Year
HS Code
84752990
★

Product Description

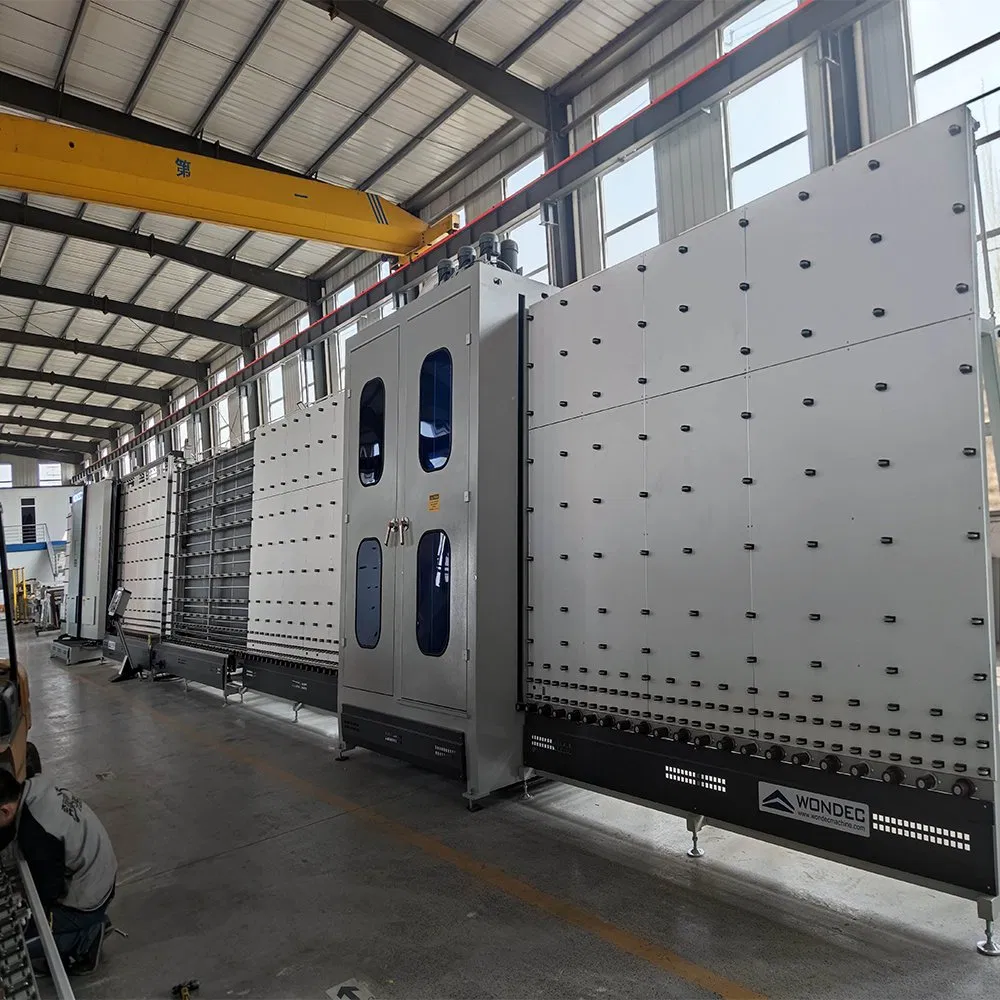

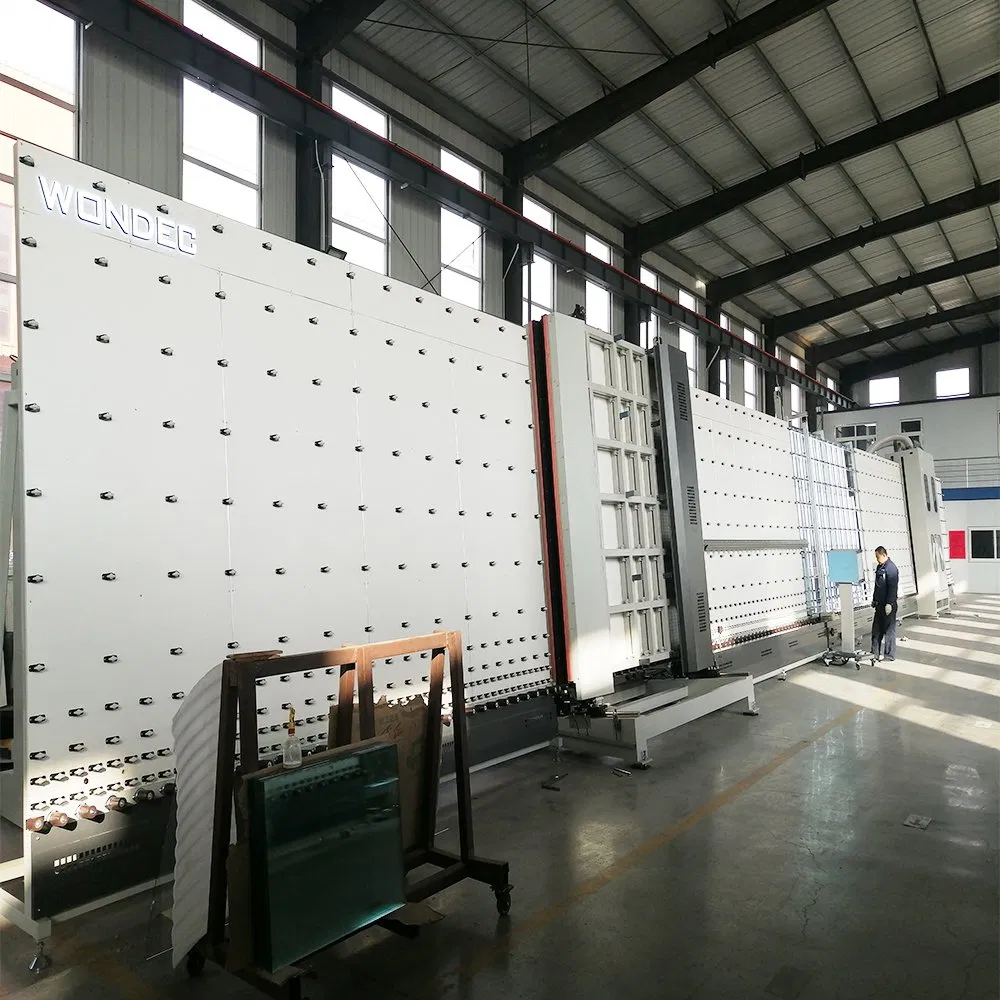

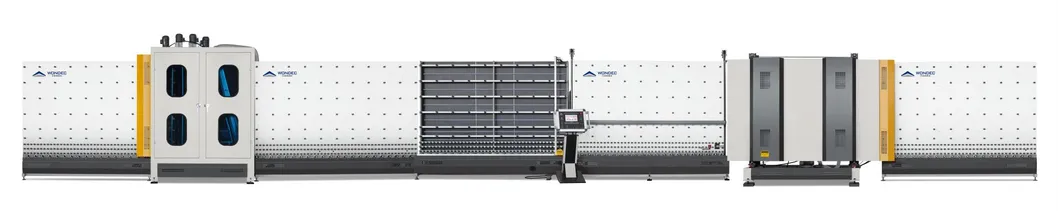

WLBZ2030 Automated Vertical Insulated Glass Production Line

Automated Insulating Glass Line

Optional Items:

  • Layout Design: Custom CAD factory layout designs to fit your specific workspace requirements.
  • Custom Color: Machines can be customized with your specific color code to match your branding.
  • Input Voltage: Tailored power solutions to ensure ready-to-use installation globally.
  • Multi-Language Support: Interface supports English, Spanish, Portuguese, Russian, Korean, Japanese, and more.
⚙

Key Functions & Features

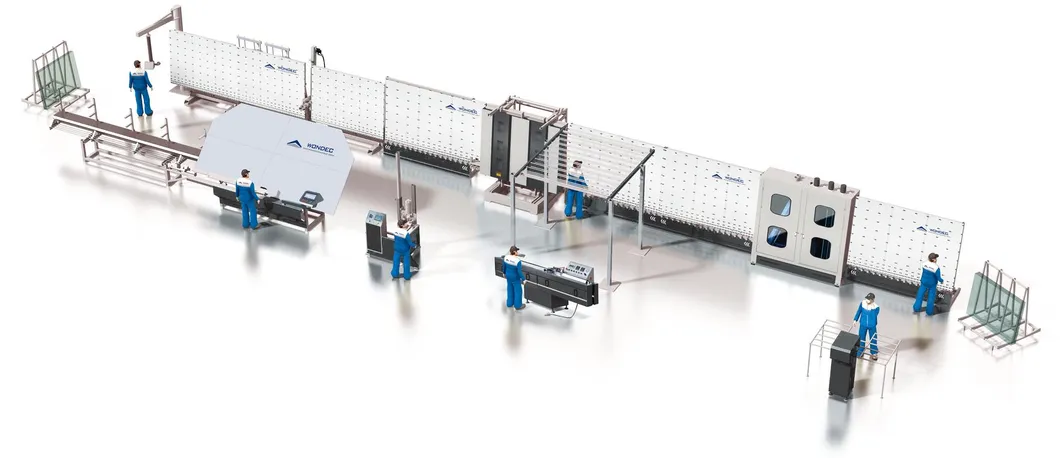

Production Line Detail
  • Outside assembly for efficient workflow.
  • Advanced Low-E glass detection system.
  • Independent water and air heating for washing/drying.

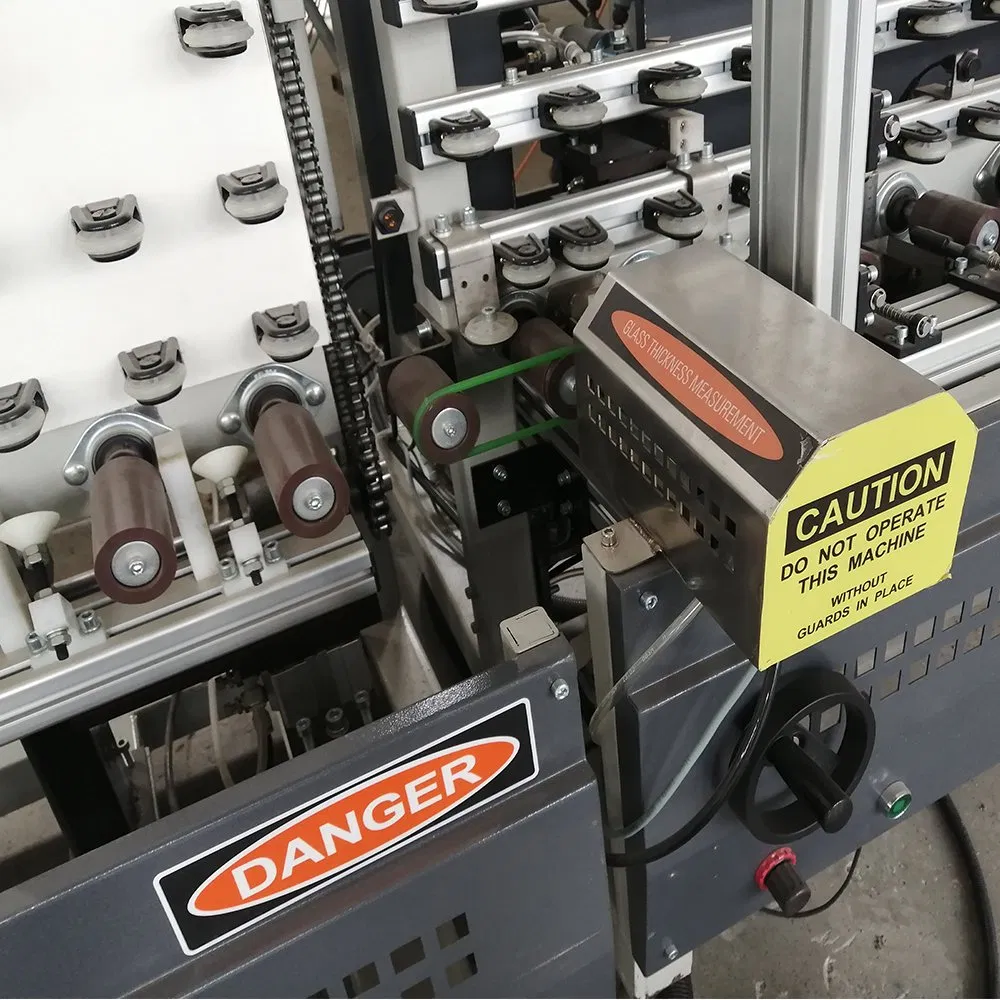

  • Precision glass thickness detection.
  • Accurate aluminum spacer frame positioning.
  • Panel press controlled by high-precision servo system.
  • Compatible with automated sealing robots.
📷

Machine Gallery

Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Gallery 7
?

Frequently Asked Questions

What is the maximum glass size this line can process?
The WLBZ2030 model supports a maximum glass size of 3000*2000mm.
Does the machine support Low-E glass washing?
Yes, the line includes a dedicated Low-E glass detection system and high-quality brushes suitable for Low-E glass surfaces.
Can the control system be set to languages other than English?
Yes, the system supports multiple languages including Spanish, Portuguese, Russian, Korean, and Japanese with one-click switching.
What is the speed range for glass washing and conveying?
Glass washing speed is adjustable from 2-10m/min, and the conveying speed ranges from 2-50m/min.
How is the glass panel pressed?
The pressing section is controlled by a high-precision servo system to ensure even pressure and high-quality assembly of the insulating glass units.
What type of warranty is provided?
We provide a standard 1-year warranty along with available after-sales and installation services.
