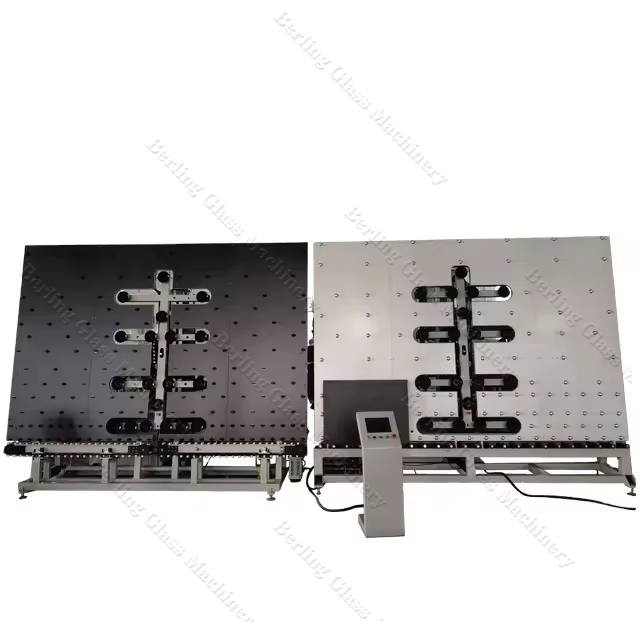

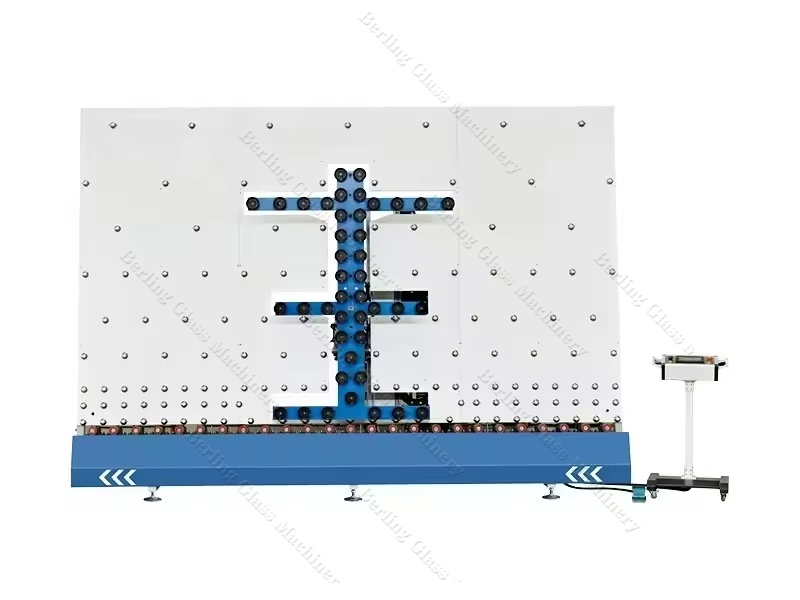

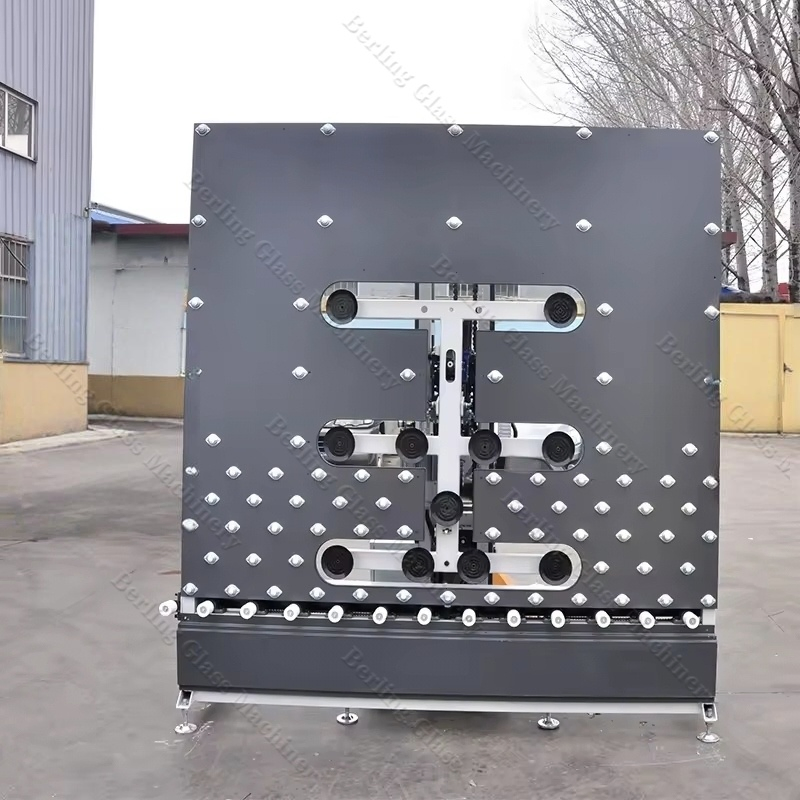

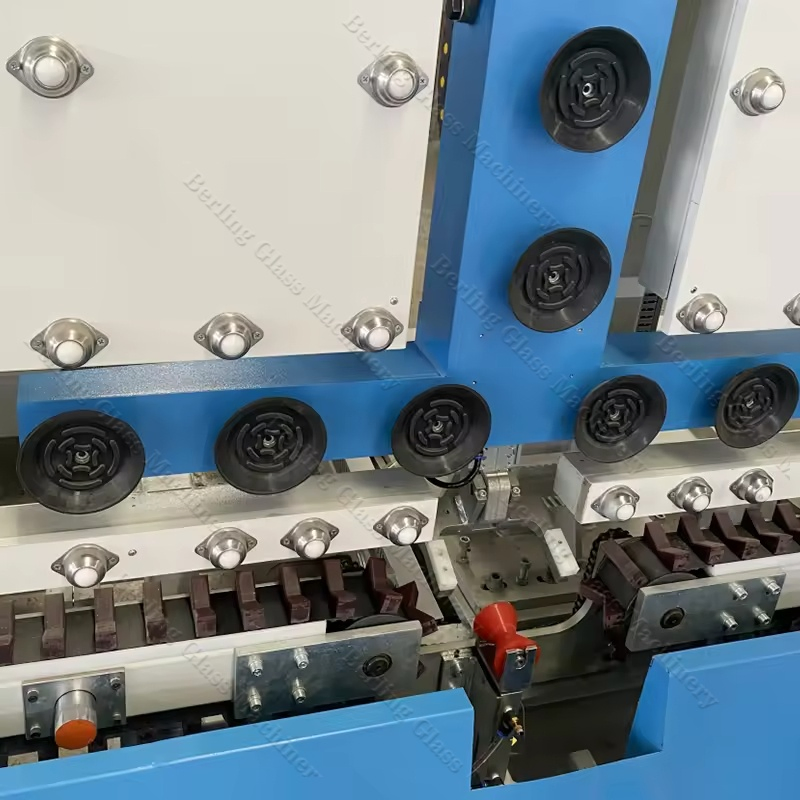

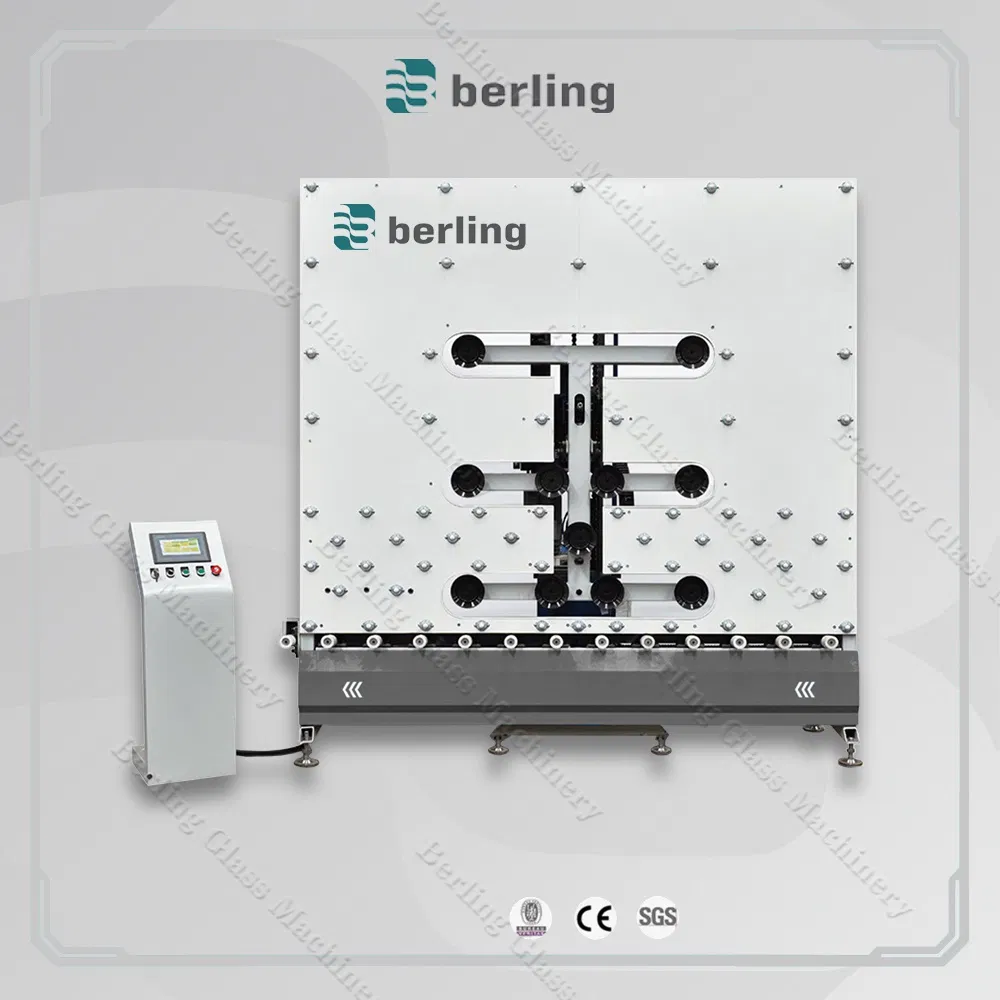

Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
1 / 5
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units
Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units

Servo Drive Vertical Glass Loading Unloading Equipment for Double Glazing Units

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Information
Model NO.
BLBG2030
Customized
Customized
Max Glass Size
2000*3000mm
Min Glass Size
200*300mm
Glass Thickness
3~12mm
IG Unit Thickness
12~80mm
Working Speed
2-40m/Min
Total Power
36kw
Voltage
380V/50Hz
Core Components
Motor, PLC, Pump
Product Description

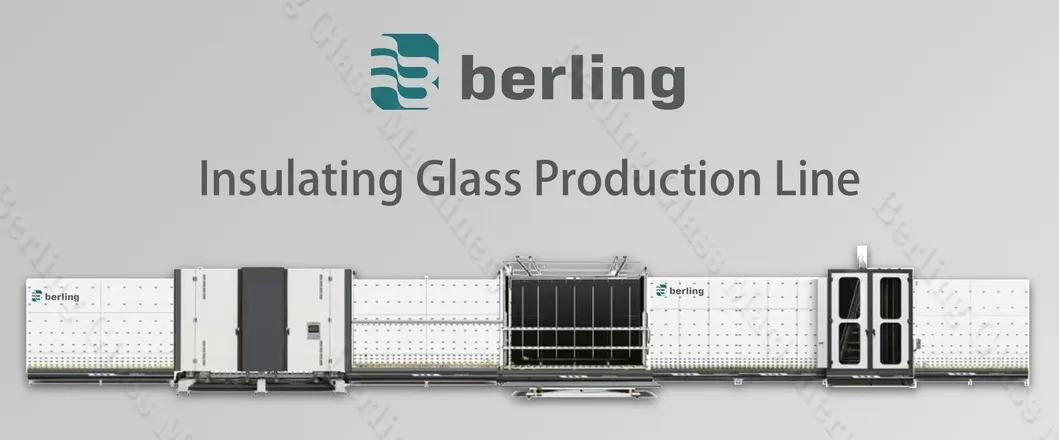

Vertical Glass Loading Unloading Equipment

We provide high-performance vertical insulating glass production lines for manufacturing double, triple, and structural glass units. Our systems feature PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient IGU processing.

  • PLC Touchscreen Control - Easy operation and real-time monitoring.
  • Low-E Glass Detection - Omron sensors automatically identify coated glass.
  • Independent Brush Motors - Each brush is motor-driven for better cleaning.
  • Argon Gas Filling System - Servo-controlled, pressurized gas injection.
  • Flexible Assembly Modes - Supports both inner and outer press options.
  • Durable Stainless Steel Build - Corrosion-resistant for industrial environments.

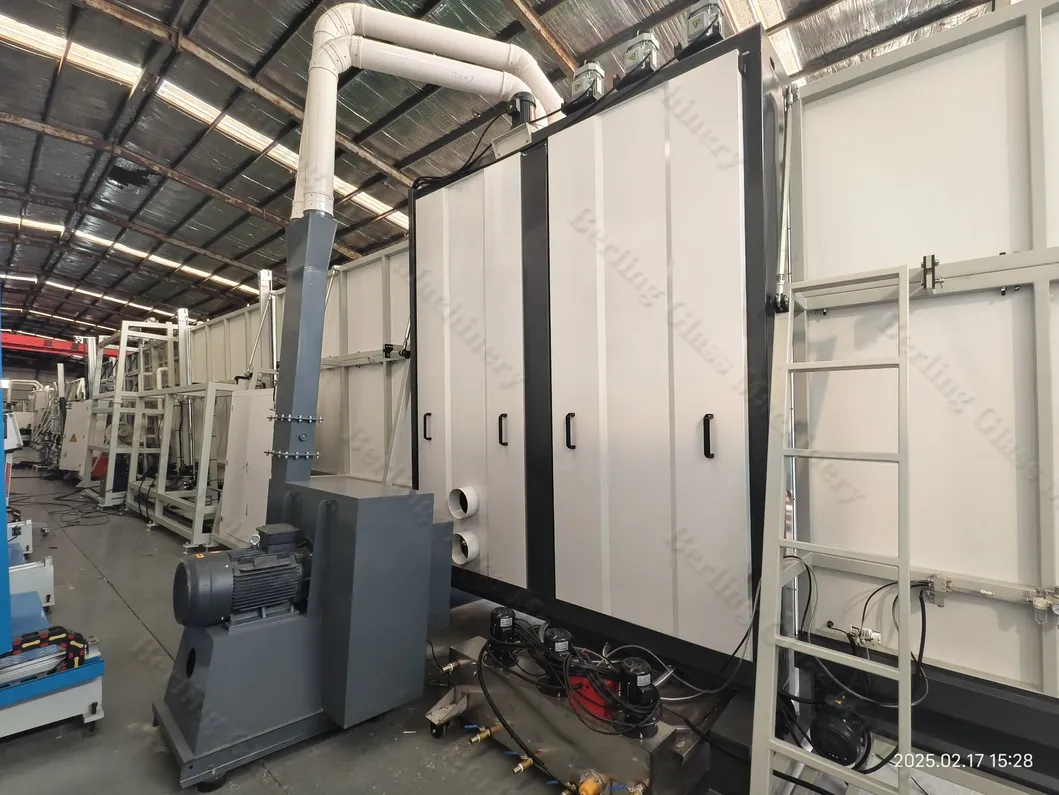

Glass Processing Feature

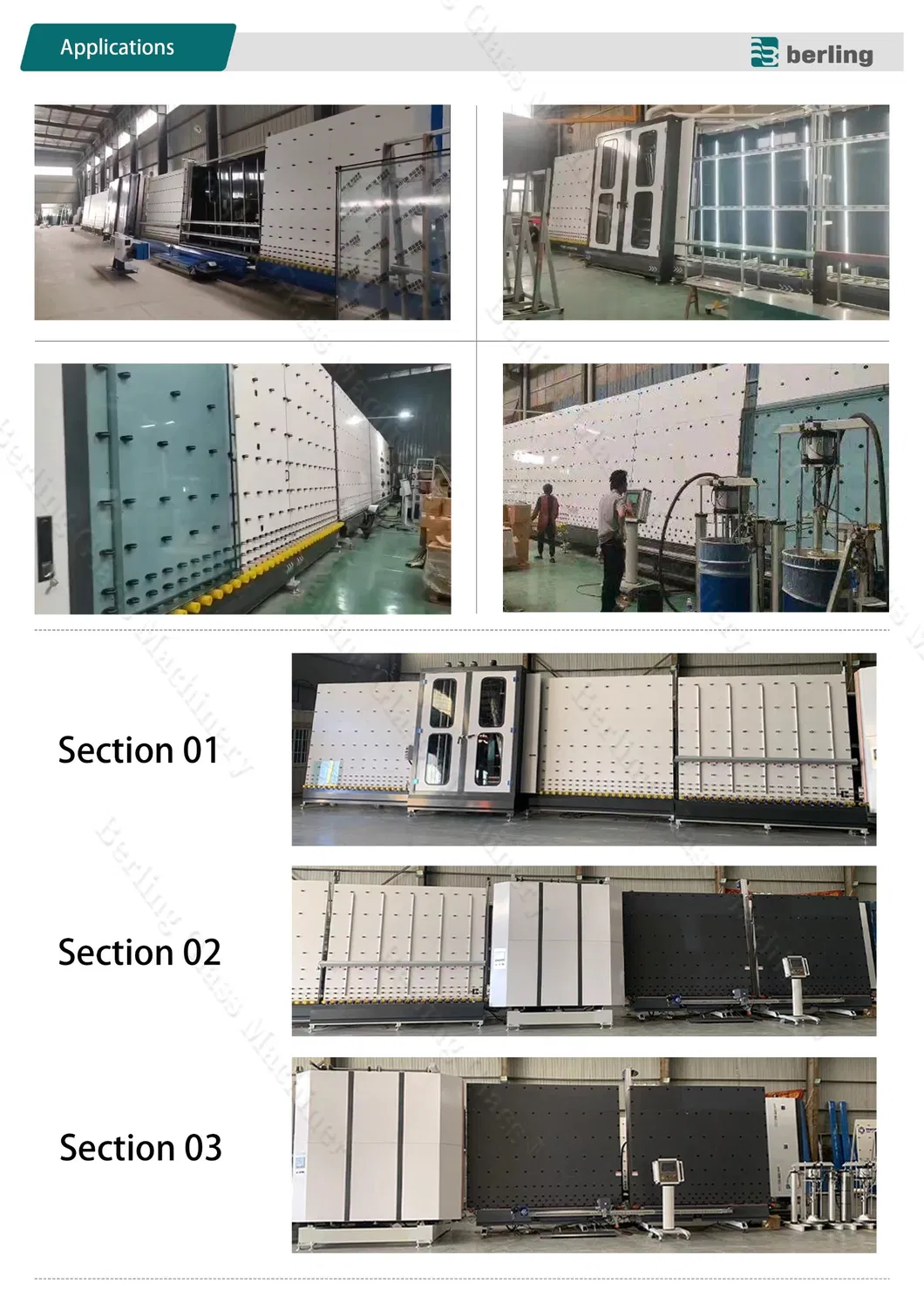

Production Line View
Product Parameters
Item BLBG-3060 BLBG-2850 BLBG-2540 BLBG-2030
Total power90KW70KW46KW36KW
Max glass size3000*6000mm2800*5000mm2500*4000mm2000*3000mm
Min glass size280*450mm280*450mm280*450mm280*450mm
Panel glass thickness3~30mm3~12mm3~12mm3~12mm
Max IG unit thickness12~80mm12~80mm12~40mm12~40mm
Washing speed2-12m/min2-12m/min2-12m/min2-12m/min
Working Speed2-45m/min2-45m/min2-45m/min2-40m/min

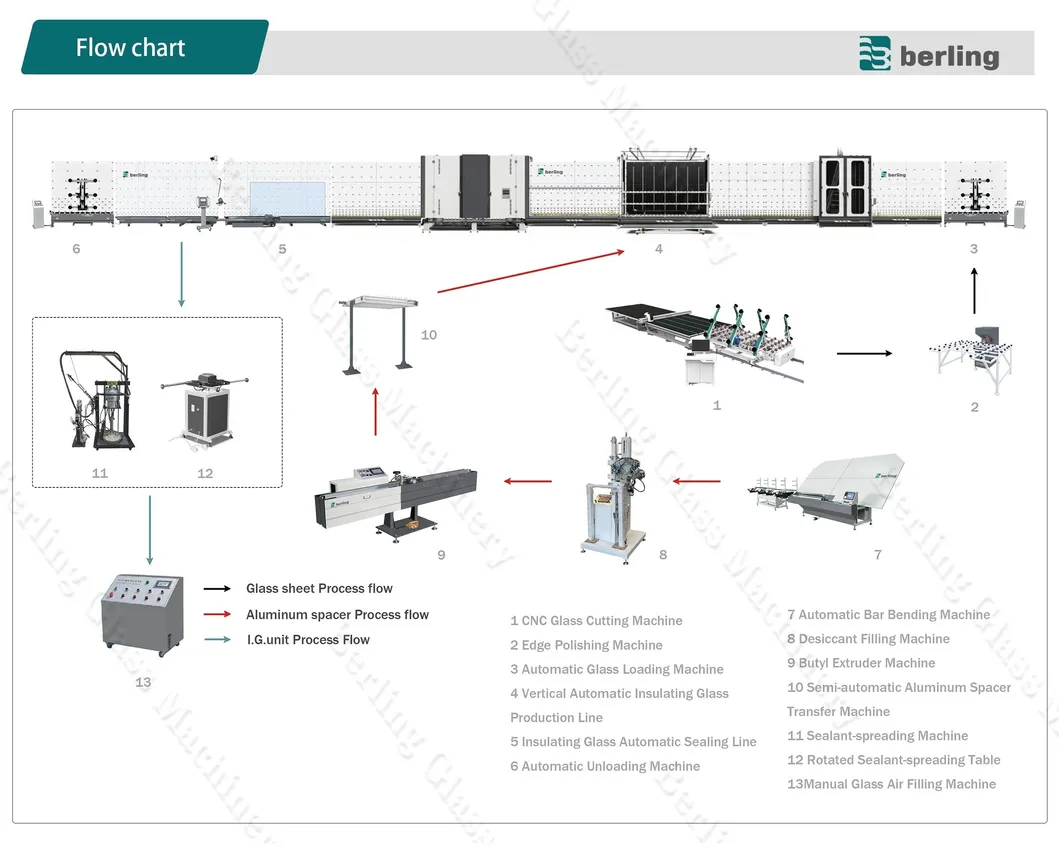

Technical Specifications
Application Areas
  • Residential & commercial window IGU manufacturing
  • Curtain wall insulating glass unit production
  • Low-E energy-saving glass processing
  • Structural glass façade panel fabrication
  • Glass panel assembly and sealing in building industry

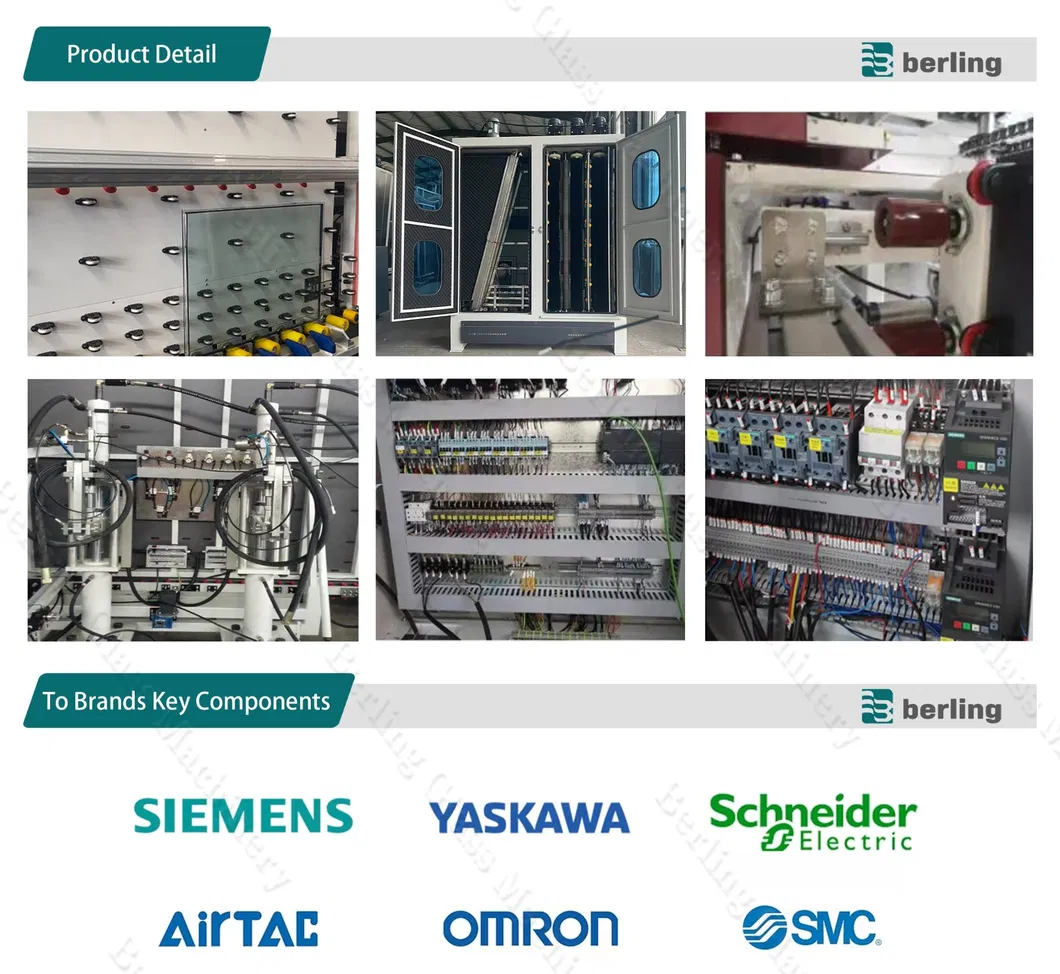

Application 1
Application 2
Certifications & Shipping
Certifications
Certificates
Packaging & Shipping
Packaging
Production & Service
Production Facility
Service Team
After Sales
Frequently Asked Questions
What glass machinery products do you supply?
We provide a comprehensive range of equipment including Insulated Glass Production Lines, Glass Cutting Machines, Glass Washing Machines, Edging Machines, Tempering Furnaces, and Laminated Glass Lines.
How do you ensure the quality of your machines?
Quality is guaranteed through a rigorous process: we always provide a pre-production sample before bulk manufacturing and conduct a final inspection of every machine before shipment.
What is your experience in the glass machinery industry?
We have over 20 years of production experience, supported by an excellent engineering team and professional after-sales service. Our products are exported globally to many countries and regions.
What are the accepted delivery and payment terms?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made in USD, EUR, or CNY via T/T, L/C, Credit Card, or PayPal.
In which languages can you communicate?
Our team is multi-lingual and can support customers in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
Why should I choose your production lines over other suppliers?
Our machines stand out due to their stable product quality, high-performance servo-driven components, and the back-up of two decades of technical expertise and professional maintenance support.
