LBP2500Q IGU Line Brief Introduction:
This vertical automatic insulating glass flat press production line is designed for high-efficiency Insulating Glass Units (double glazing) production. Ideal for glass processing companies and window/door fabricators.
Fully automatic operation includes glass transportation, washing, drying, assembly, and pressing with optional online gas filling.

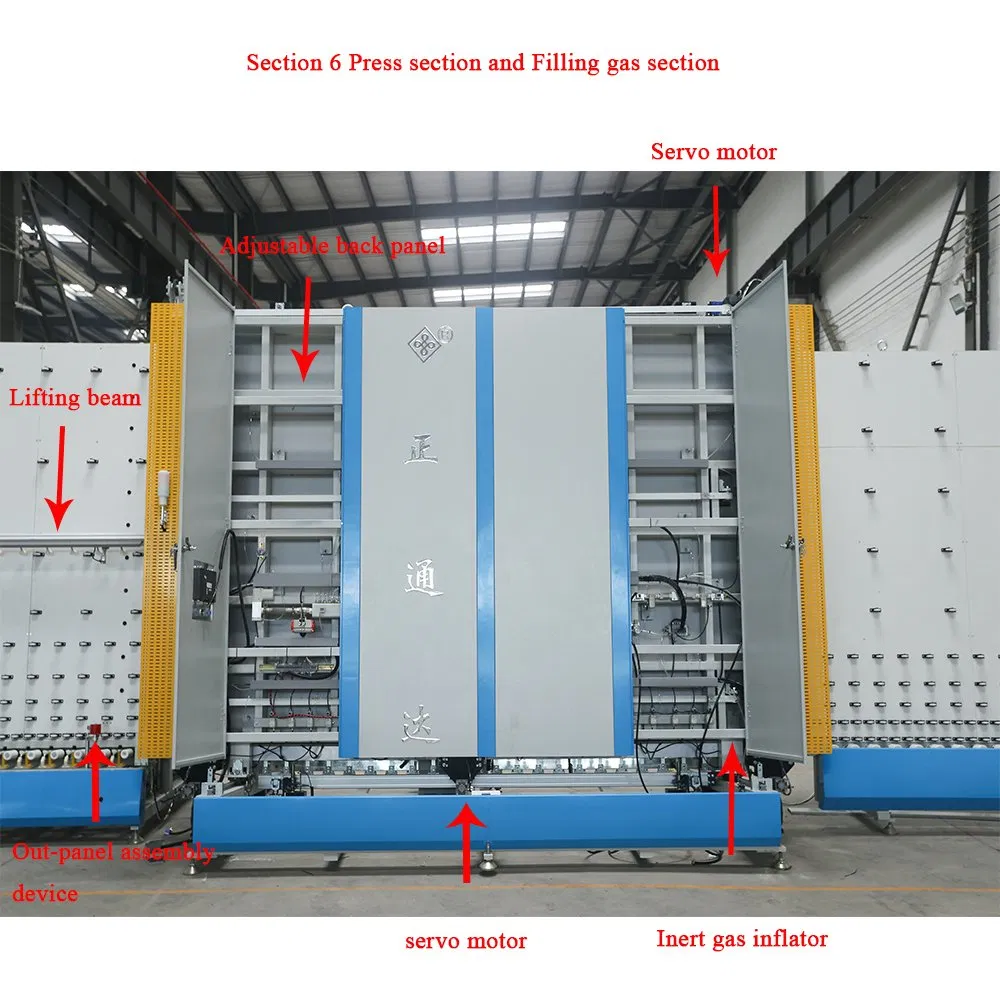

1) Loading Section; 2) Washing & Drying; 3) Conveyor/Storage; 4) Light Inspection; 5) Out-panel Assembly; 6) Large Stroke Press & Online Gas Filling; 7) Storage & Unloading.
| Parameter | Specification |
|---|---|
| Max. processing glass size | 3600*2500 mm |
| Min. processing glass size | 450*200 mm |
| Single glass thickness | 3-15 mm |
| Max. Insulating glass thickness | 52 mm |
| Washing speed | 3-10 m/min |
| Work speed | 15-45 m/min |
| Power supply | 3P, 380V, 50Hz |
| Gas concentration | More than 90% |
| Total Weight | 10500 Kg |
Energy Saving & Safety: Automatic stop function saves 30% energy; static loading ensures worker safety.
Stainless Steel Washer: 5mm thickness corrosion-resistant material with 3 pairs of soft brushes for Low-E glass.
High Pressure Fan: 18.5KW fan with hot air circulation for excellent drying and noise reduction (<75 dB).
Efficiency: Dual transfer motors for simultaneous small glass handling and height detection sensors.
Precision Location: Automatic thickness measurement and high-accuracy aluminum frame mounting.
Multi-layer Assembly: Supports double and triple layer IG units with servo motor distance control.
Stable Pressing: 60 suction cups with integrated vacuum generator ensures no glass deformation.
Gas Filling: Direct inflation system achieving >92% concentration with minimal leakage.
