Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
1 / 5
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel
Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel

Full Automatic Aluminium Door Window Double Glass Making Machine with Glass Press Panel

Customization: Available
Certification: CE, CE, ISO
Condition: New, New
Send Inquiry

Product Description

Basic Specifications
Model NO.
LBP2500Q
Control System
Automatic, CNC, PLC, Touch Screen
Glass Thickness
3-60mm
Type
Insulating Glass Production Line
Max Processing Size
3600*2500mm
Min Processing Size
450*200mm
Washing Speed
3-10m/Min
Running Speed
15-45m/Min
Total Power
44.85kw
Inert Gas Type
Argon, Nitrogen, etc
Gas Concentration
>85%
Production Capacity
800 m²/Day
Packaging & Delivery
Package Size
2460.00cm * 250.00cm * 369.00cm
Gross Weight
10500.000kg
Product Description

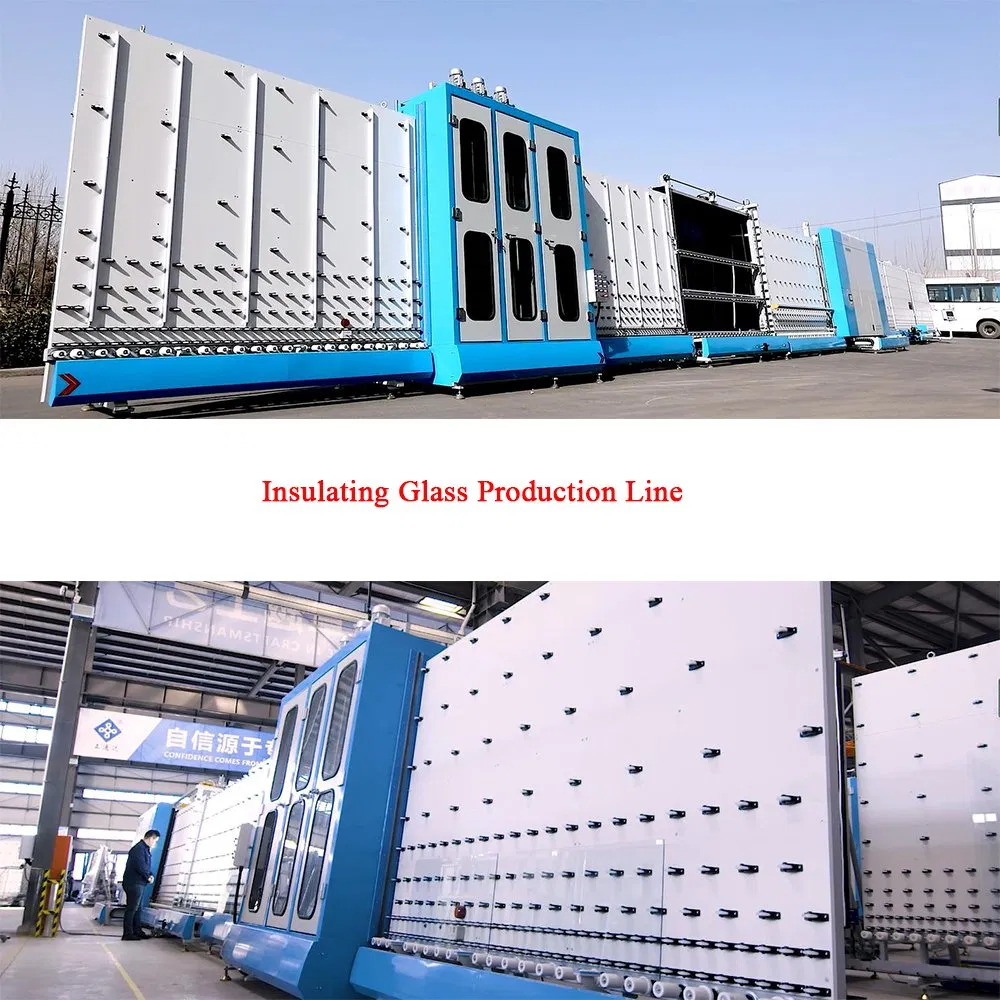

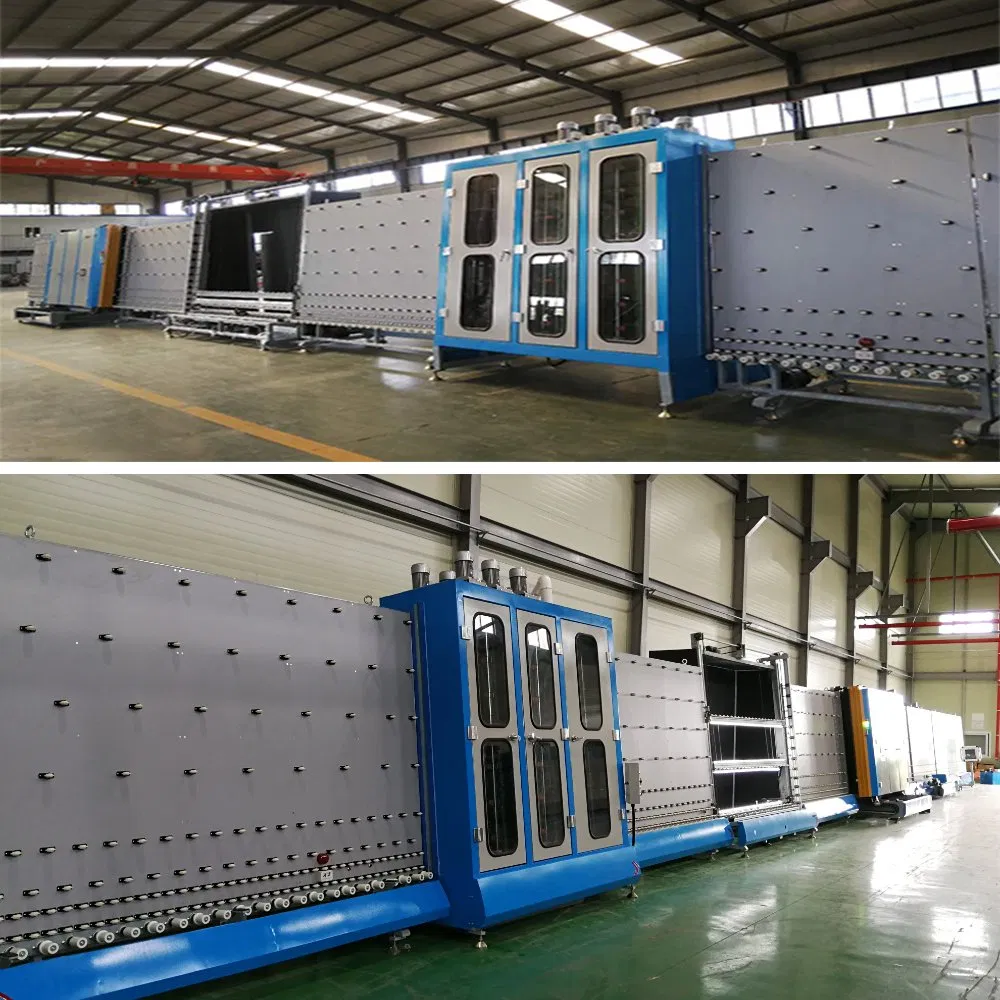

IGU Line Overview

Brief Introduction of LBP2500Q IGU Line

The vertical automatic insulating glass flat press production line is primarily used for manufacturing Insulating Glass Units (double glazing). This model is ideal for glass processing companies and window/door fabricators.

  • Loading and washing sections
  • Automatic drying and conveyor system
  • Light inspection and spacer frame location
  • Large stroke press with online gas filling
  • Fully automatic glass sheet transportation
Technical Parameters
Parameter Item Specifications (LBP2500Q)
Max. Processing Glass Size3600*2500 mm
Min. Processing Glass Size450*200 mm
Single Glass Thickness3-15 mm
Max. Insulating Glass Thickness52 mm
Production Capacity110 pc/h
Power Supply3P, 380V, 50Hz
Total Weight10500 Kg
Outline Dimension24600*2500*3680 mm
Main Features
Energy Saving Feature

Energy Saving: Stops automatically when no glass is detected to save 30% energy.

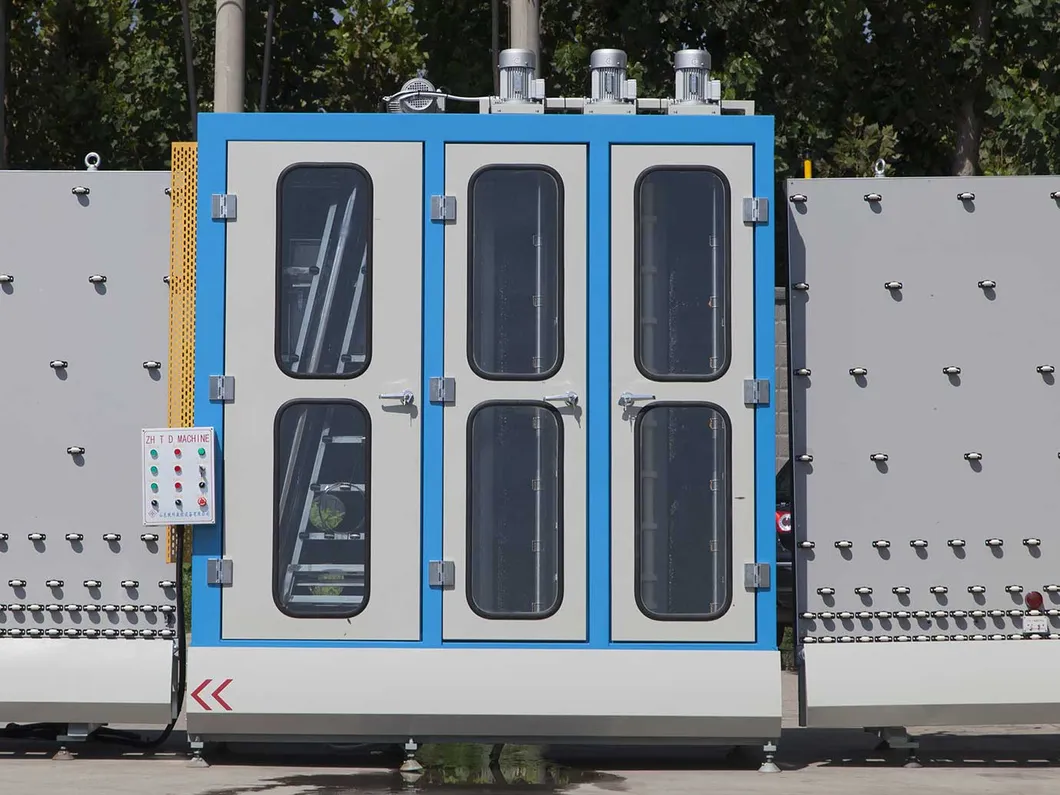

Stainless Steel Washing

Stainless Steel Material: 5mm thick stainless steel for washing, ensuring long life.

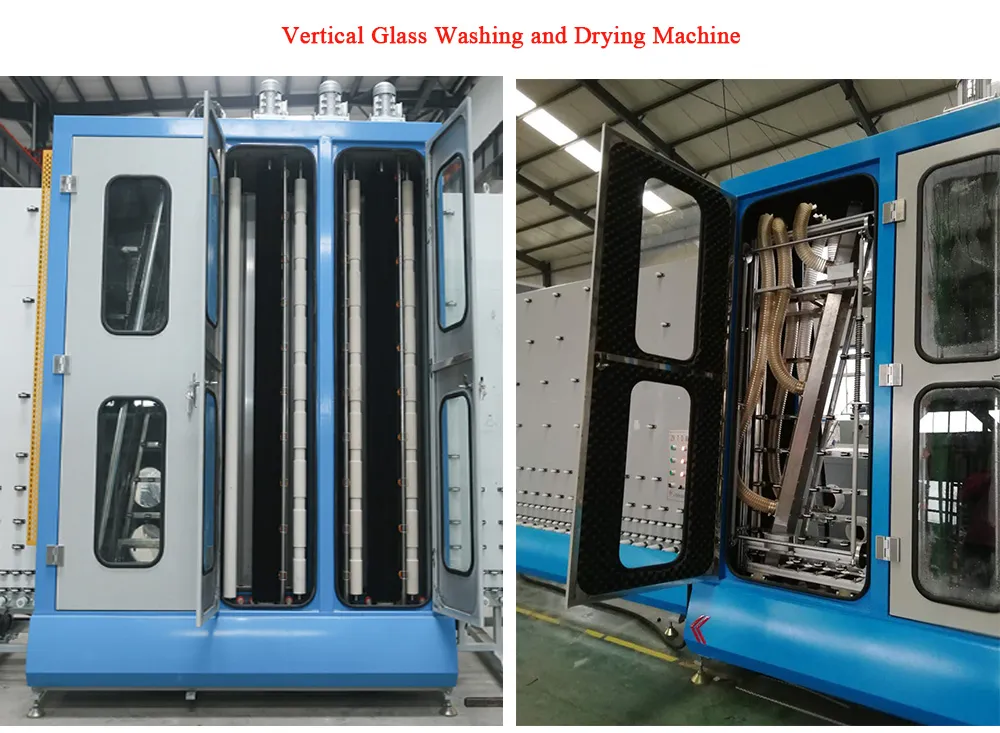

Drying System

Hot Air Circulation: High-pressure fan (18.5KW) with noise reduction silencer.

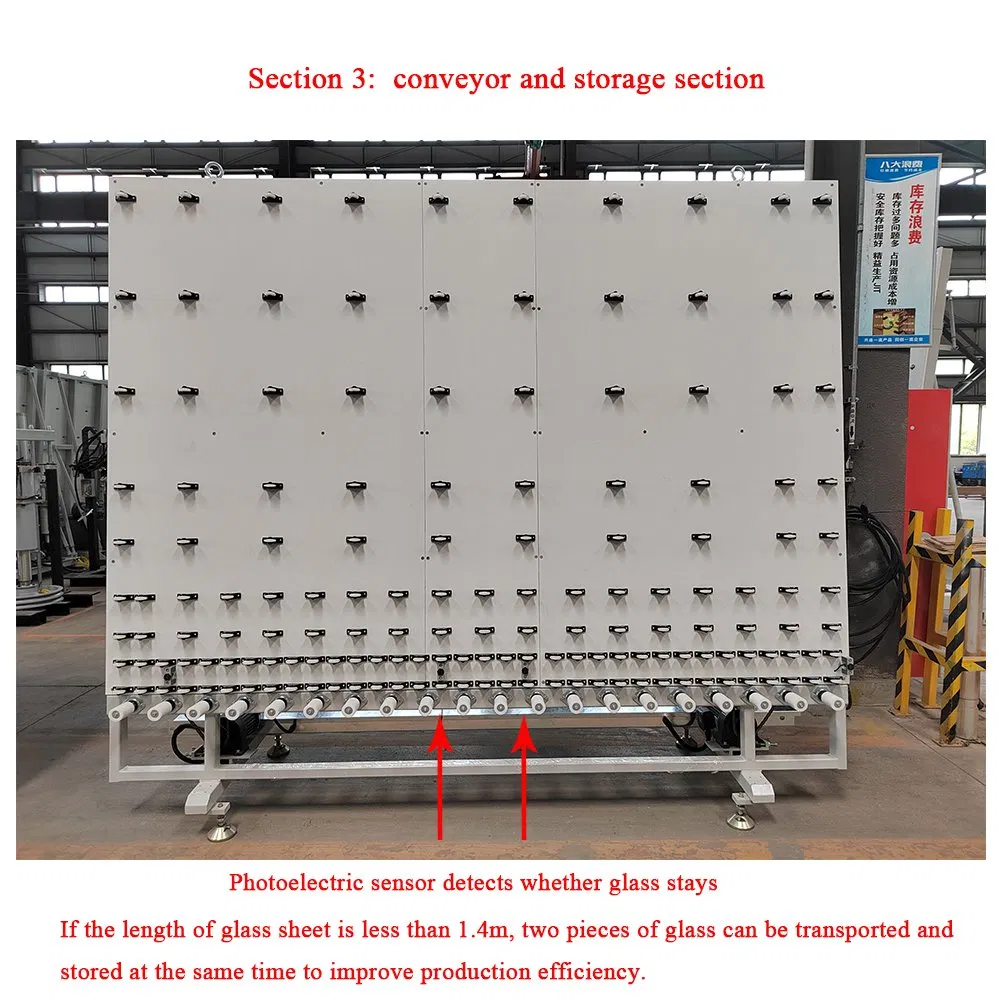

High Efficiency

Dual Transfer Motors: Can store and transfer two pieces of small glass simultaneously.

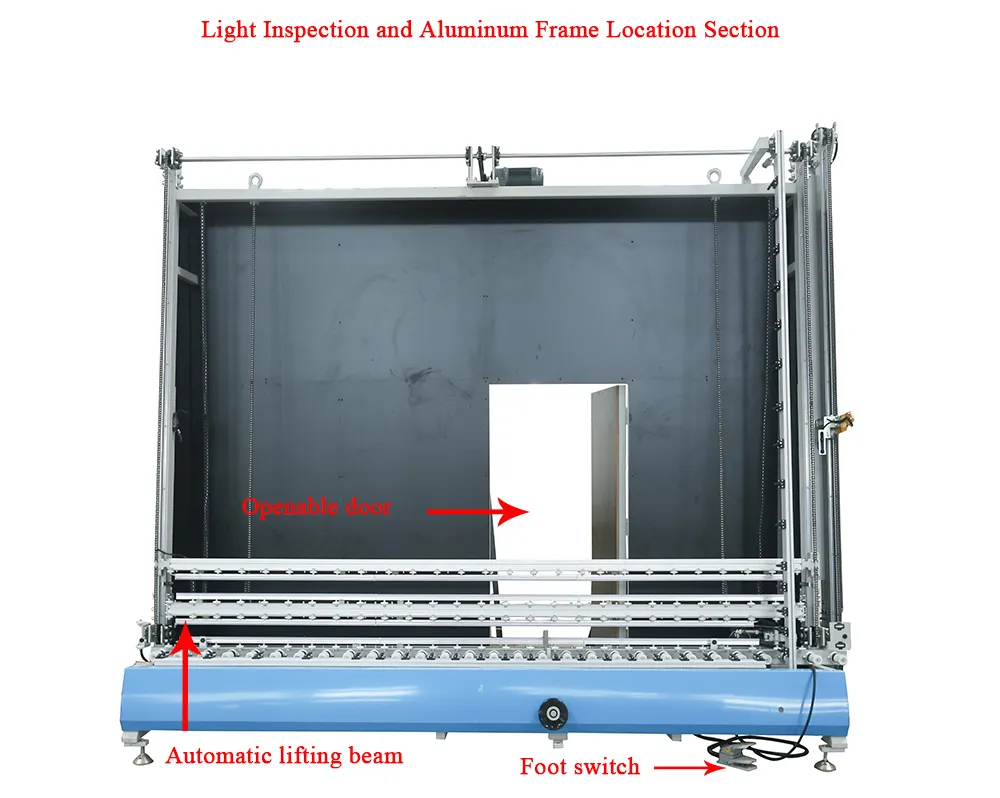

Automatic Thickness Measurement

Auto Location: Automatic thickness measurement and glass positioning.

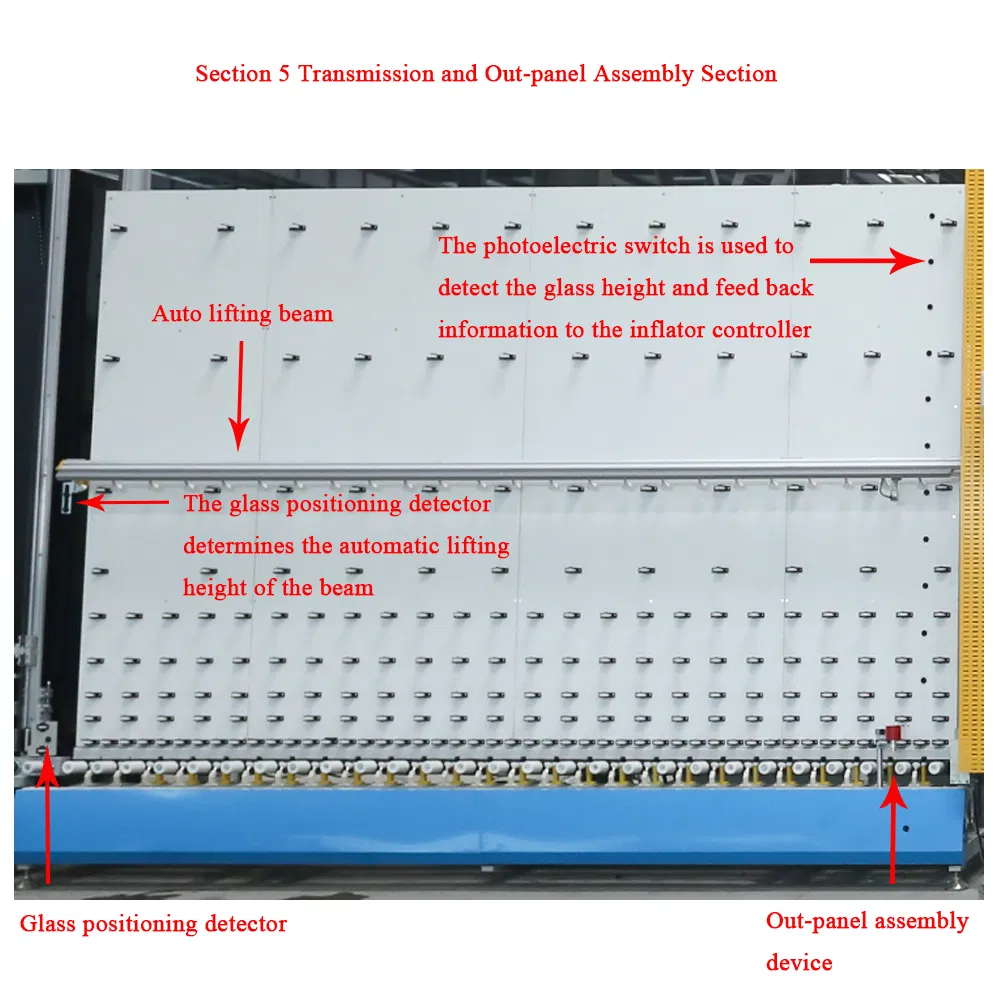

Servo Control

Servo Accuracy: Servo motors control moving distances for triple layer IG units.

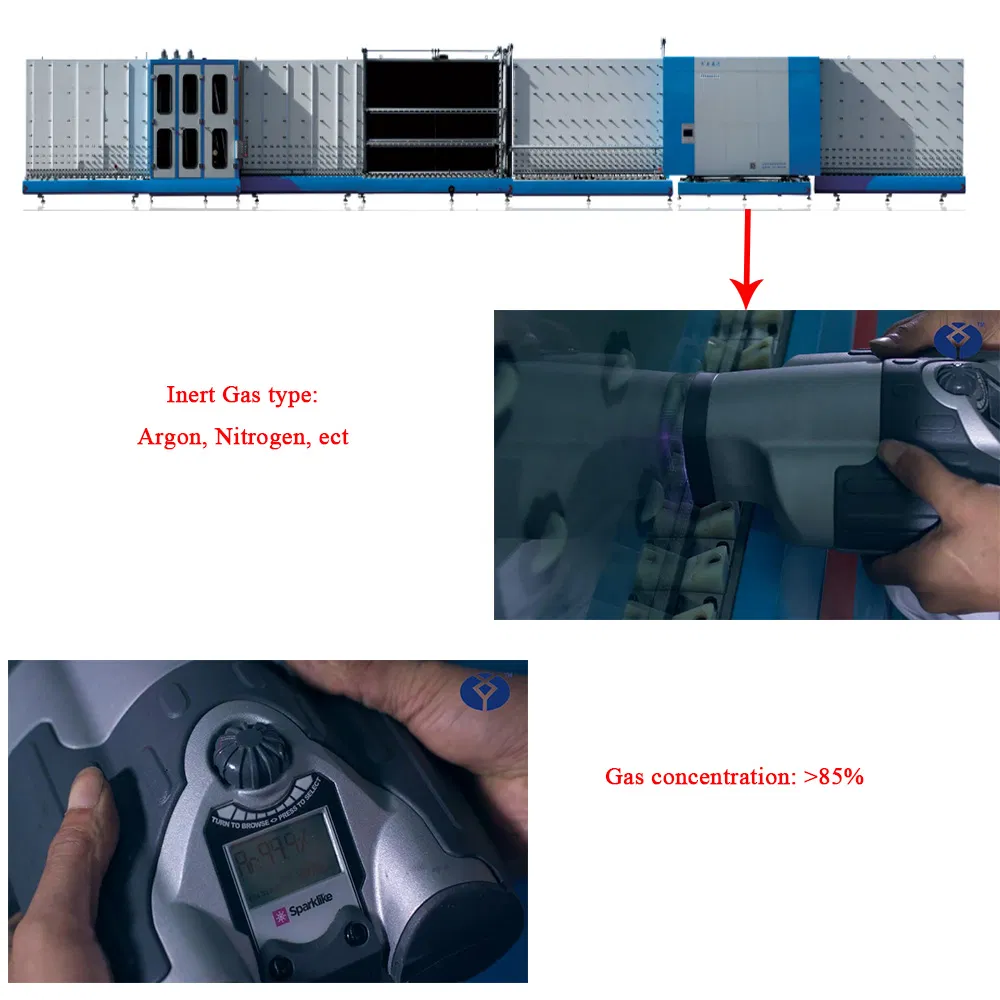

High Efficiency Gas Filling
  • Gas Saving: 23 valves triggered by 17 sensors based on glass length.
  • Fast Speed: Direct inflation structure located directly below the glass.
  • Concentration: Exceeds 92% concentration for better thermal performance.
  • Retention: Maintains >85% concentration after 48 hours due to superior sealing.

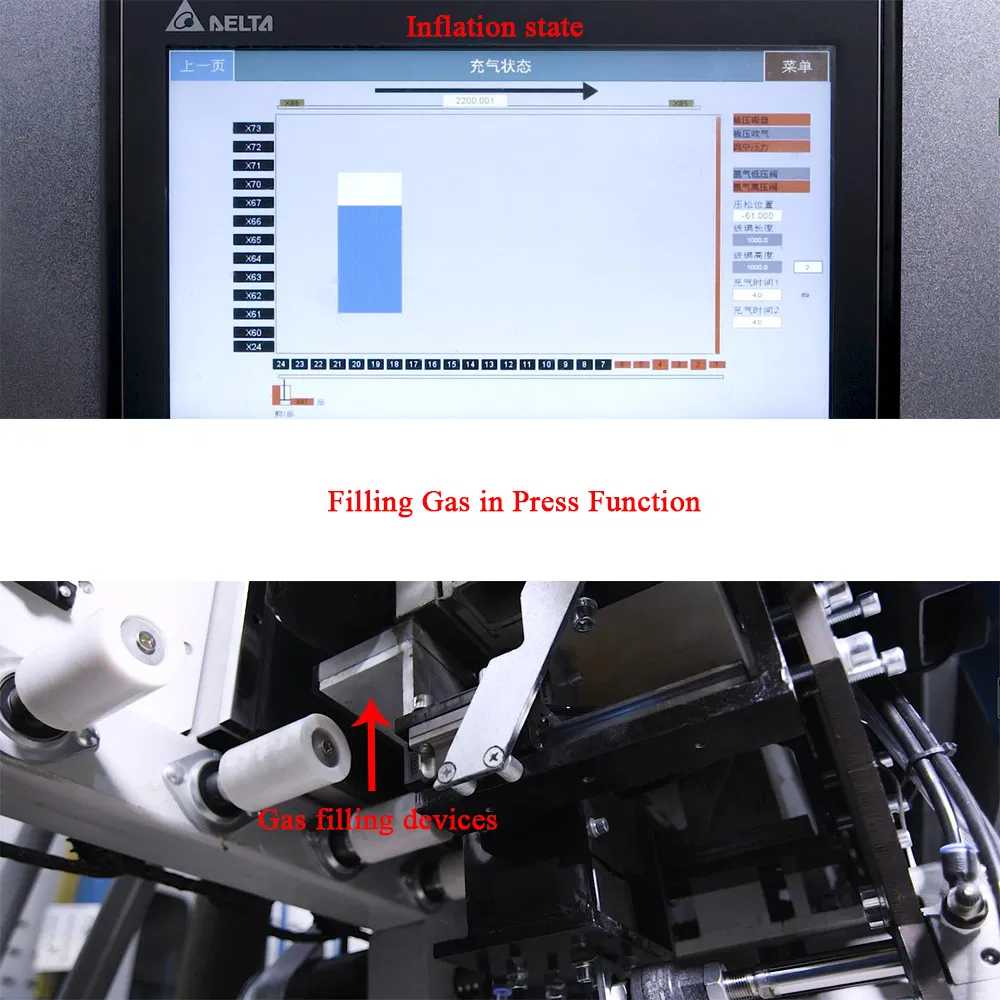

Gas Filling Function

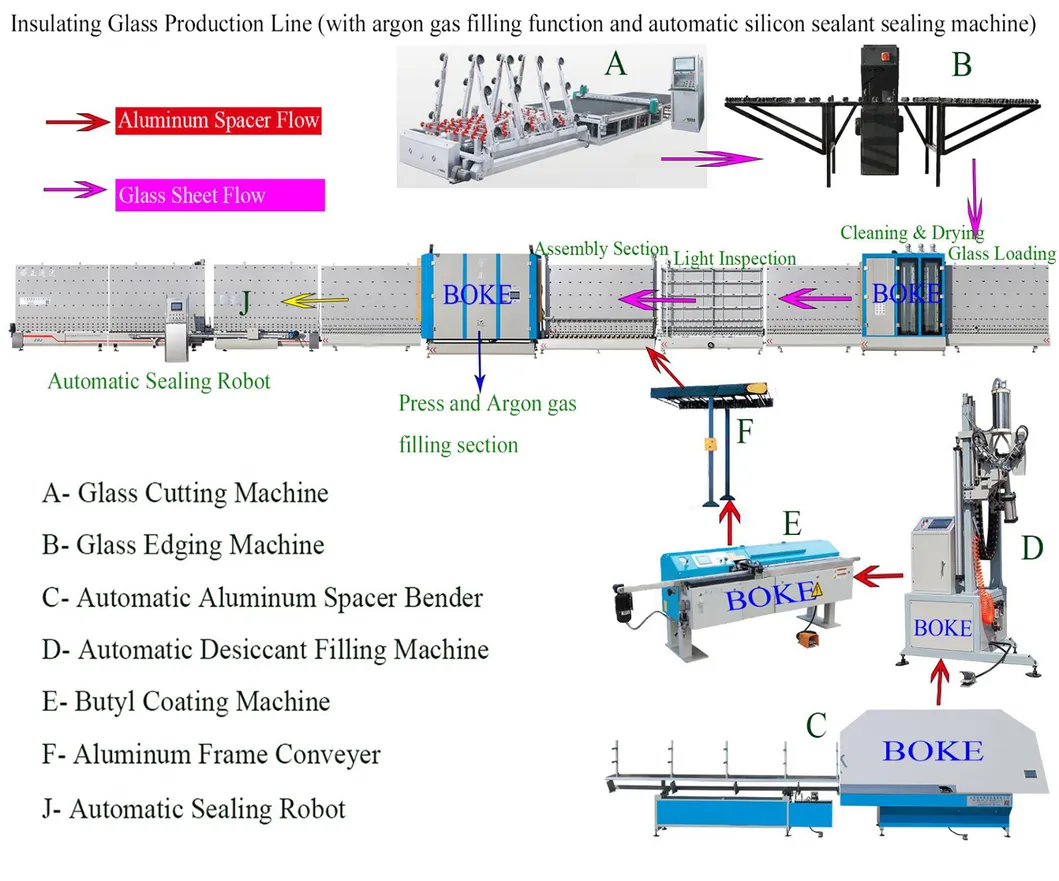

Full Line Integration
Certifications

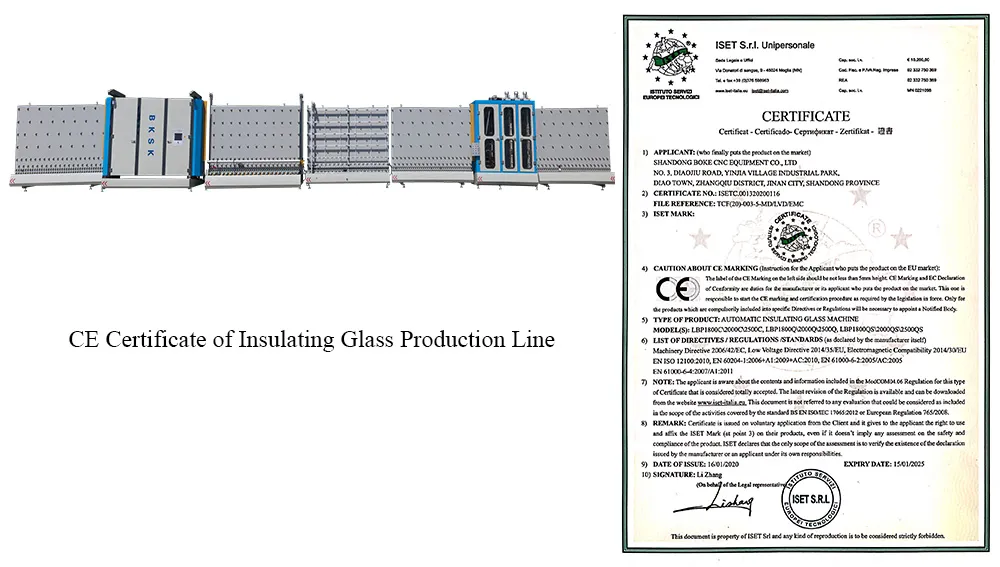

CE Certificate
Why Choose Us

Founded in 2000, we are a high-tech enterprise specializing in the development and production of high-grade insulating glass processing equipment. With over 20 years of focus, our products are sold nationwide and exported globally.

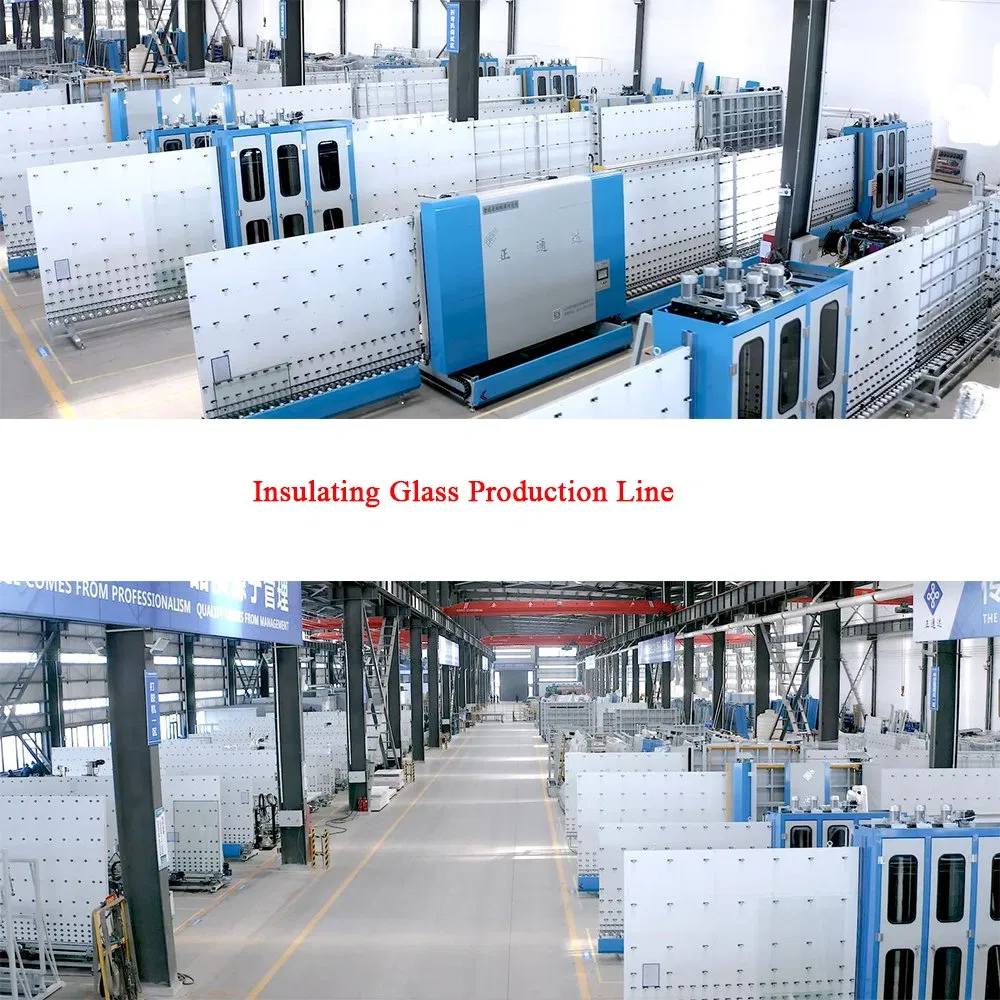

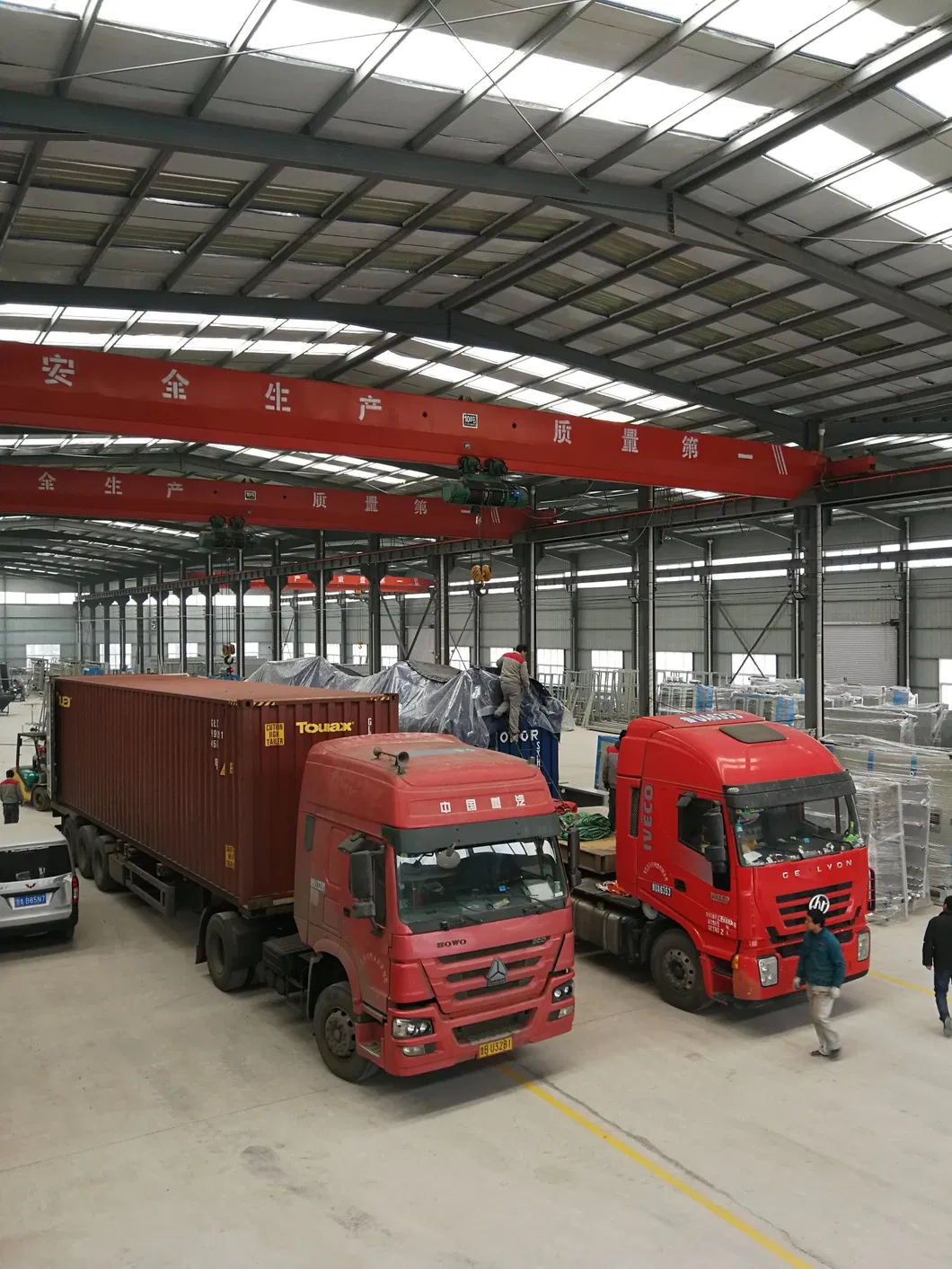

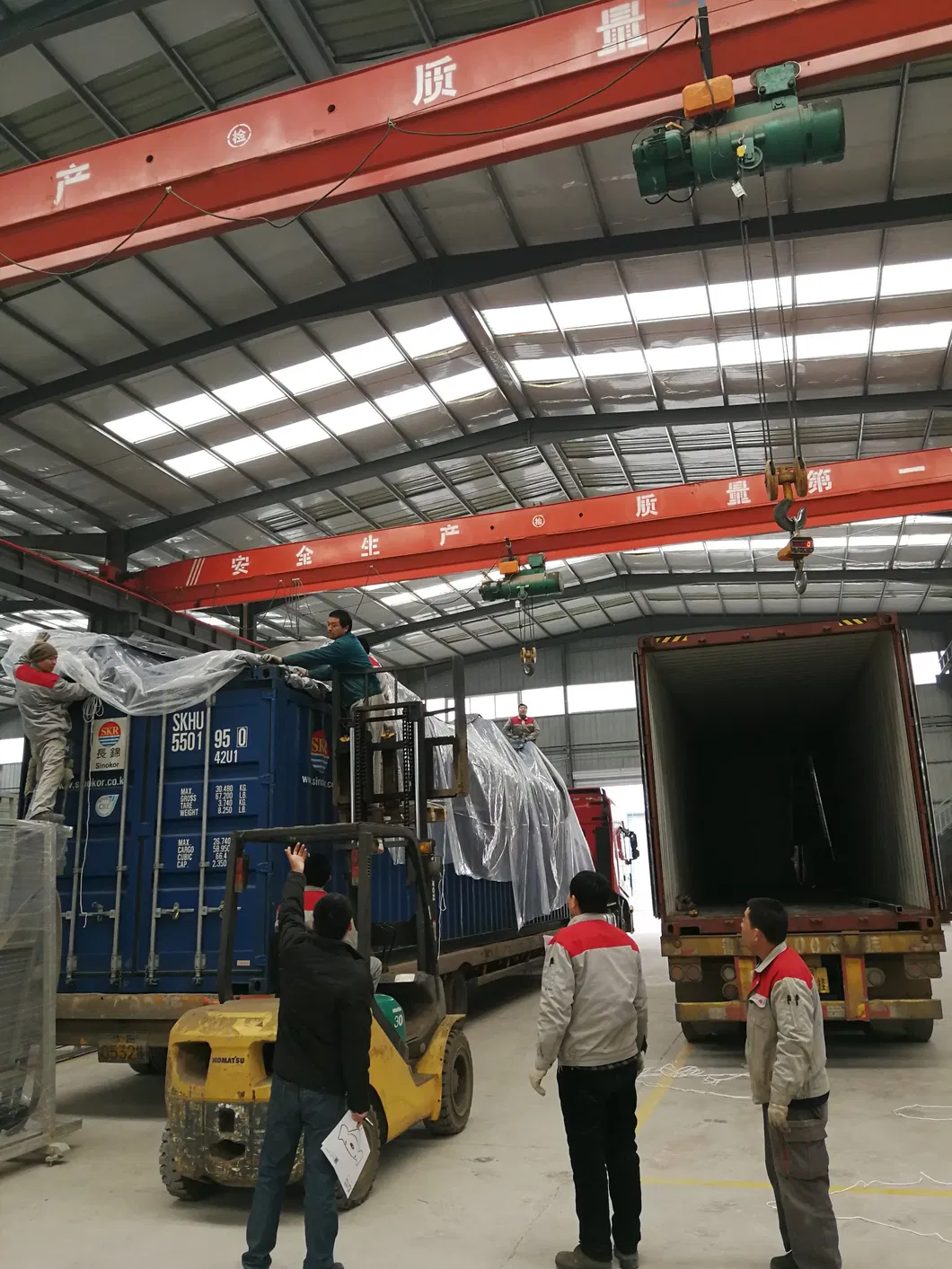

Factory Workshop Production Facility
  • Leading manufacturer in China with 20 years of experience.
  • Over 5,000 production lines supplied worldwide.
  • Proprietary patent rights and ISO9001:2008 quality management.
  • Dedicated overseas after-sales service team.
  • Strong market reputation with over 20% domestic market share.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a factory-based enterprise with over 21 years of focus on insulating glass processing and curtain wall equipment.
What is the standard delivery time for orders?
The delivery time is typically 45 working days for a whole production line and 30 working days for a single machine.
What kind of warranty do you provide?
We offer a 12-month guarantee (excluding wearing parts) and provide life-long technical service, including on-site engineer support.

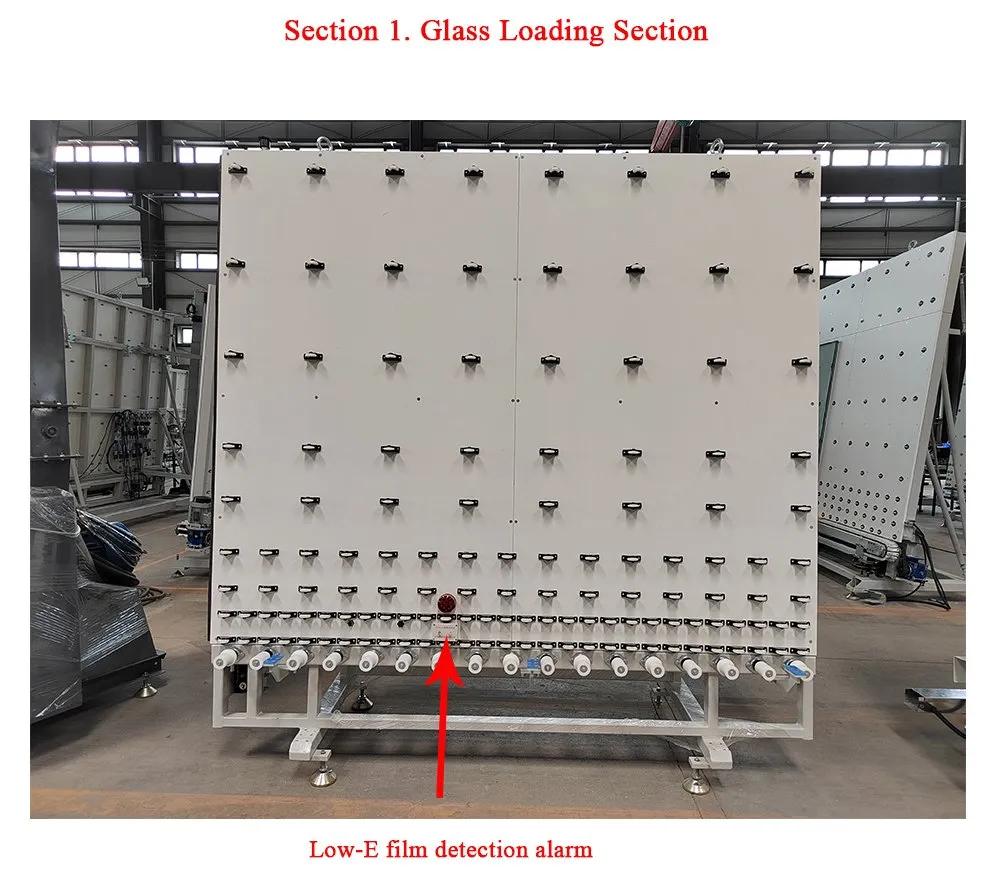

Does the machine support Low-E glass processing?
Yes, the machine features an automatic detection system that distinguishes the coating side of Low-E glass and triggers an alarm if placed incorrectly.
What is the gas filling efficiency of the production line?
The online gas filling system achieves a concentration of more than 92%, exceeding international standards, with high retention rates over 48 hours.
Can the machine produce triple or shaped IG units?
Yes, the system is designed to handle double IG units, triple IG units, and stepped IG units as optional features.
