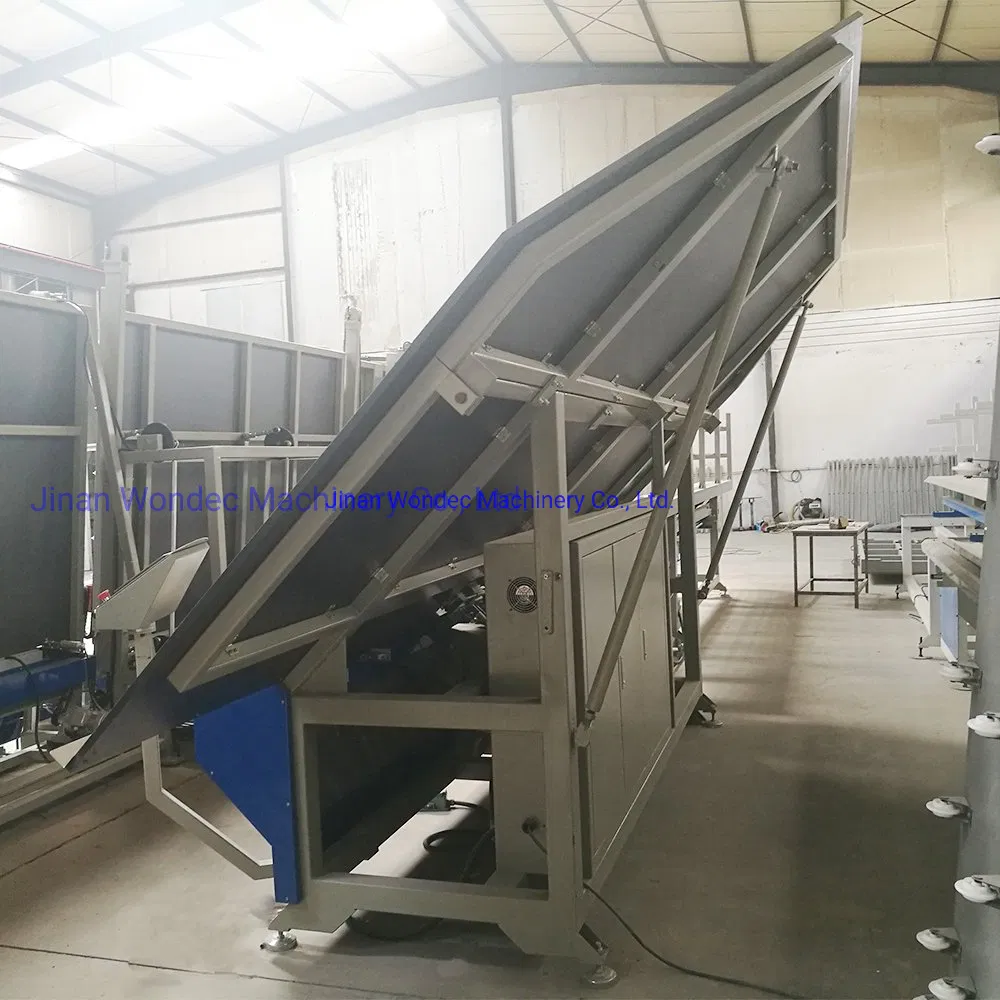

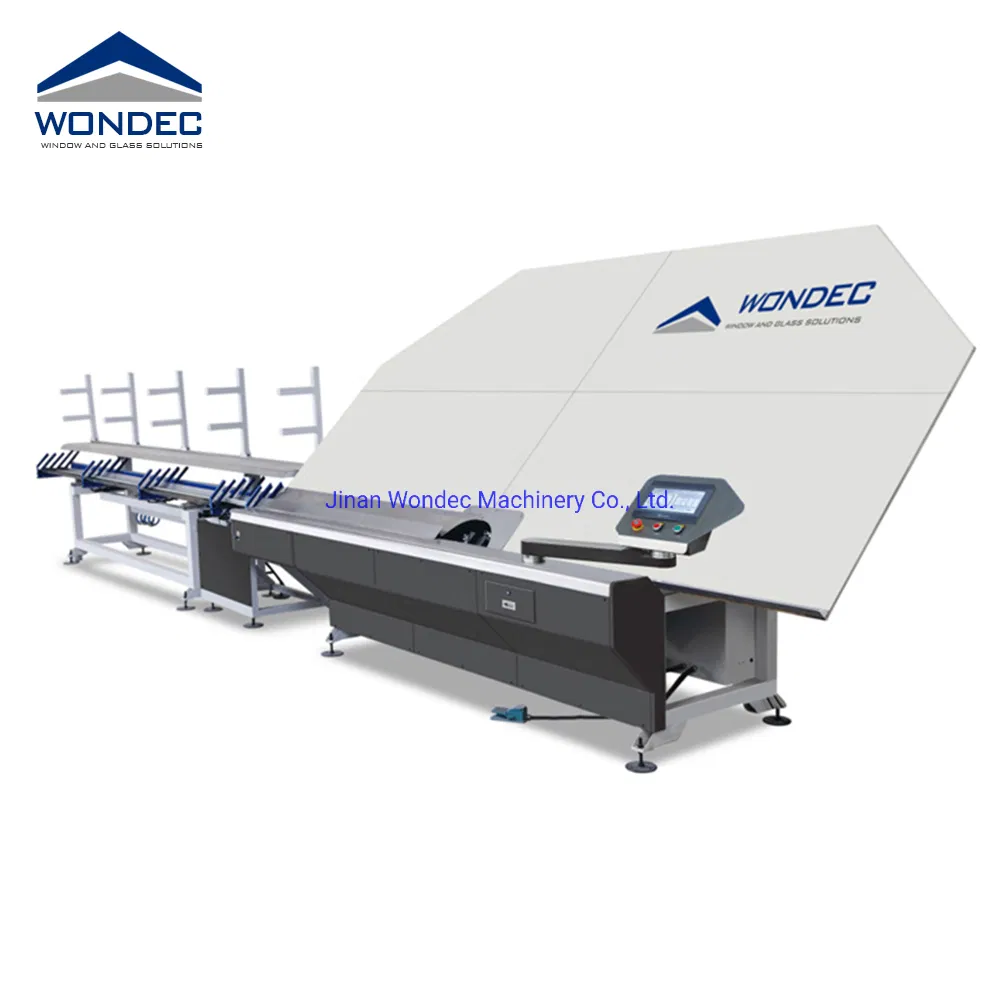

Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
1 / 5
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery
Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery

Automatic Insulated Glass Processing Aluminum Spacer Bar Bending Cutting Machinery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
ABM02
Aluminum Bar Spec
6~27mm
Bending Angle Error
0.30 Degree
Key Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Components
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Type
Glass Bending Machine
Condition
New
Warranty
1 Year
Product Description

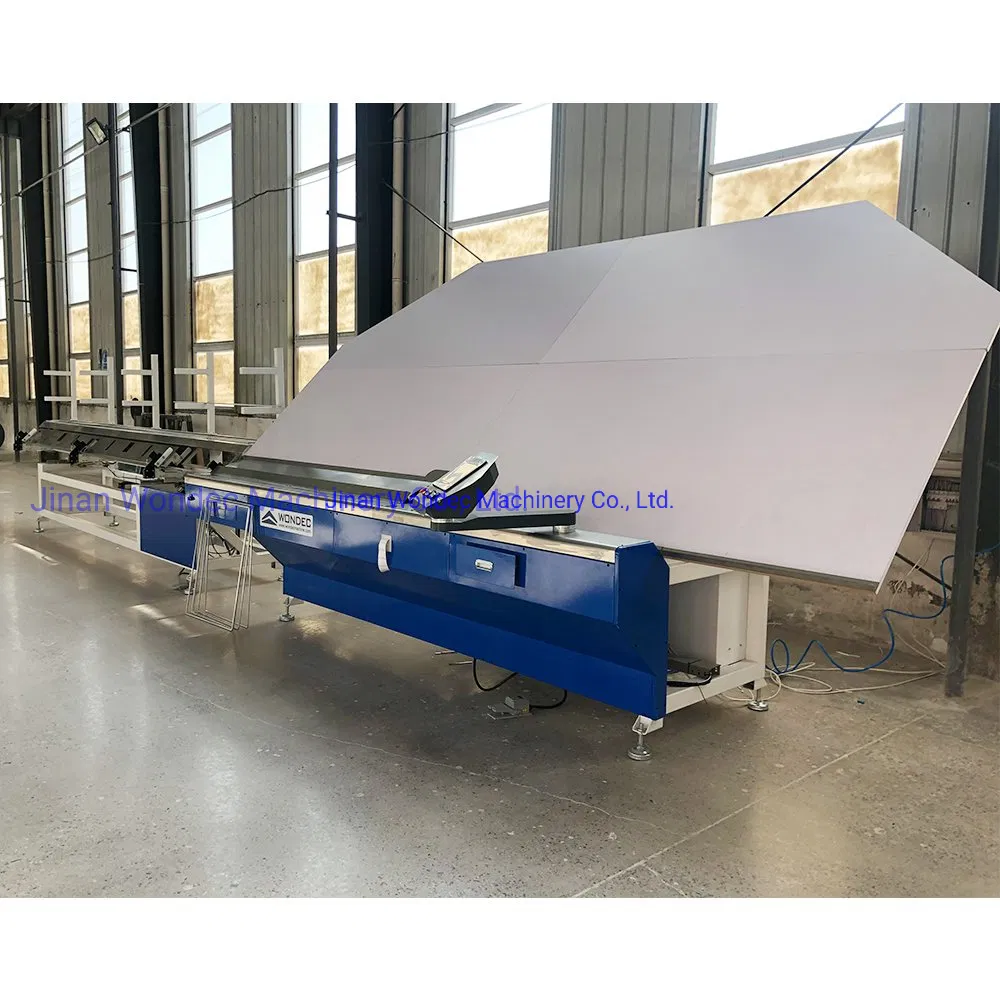

Automatic Spacer Bar Bending Machine ABM02

This machine is used for bending aluminum spacers, it can finish locating, bending and cutting aluminum spacers one time automatically.

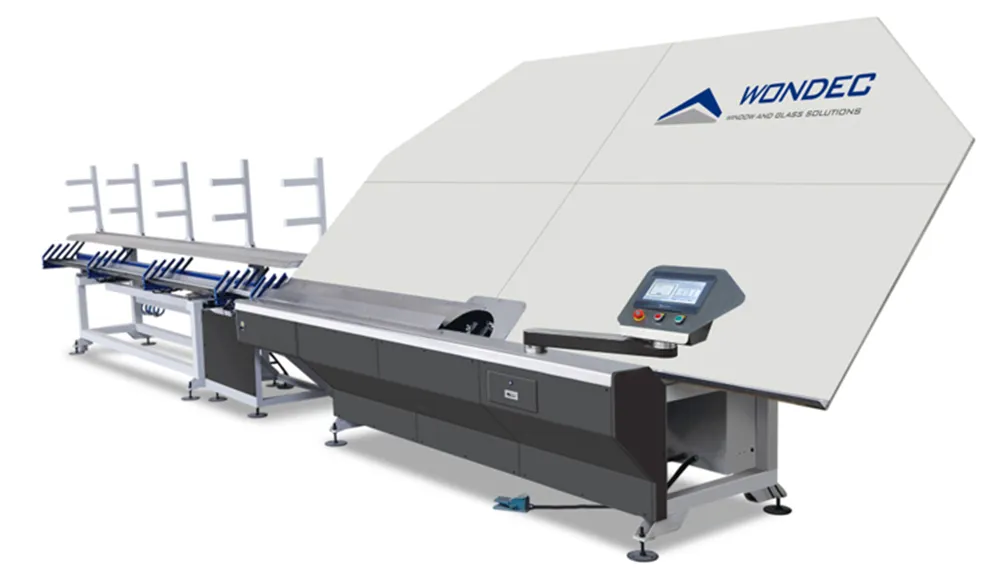

Automatic Spacer Bar Bending Machine

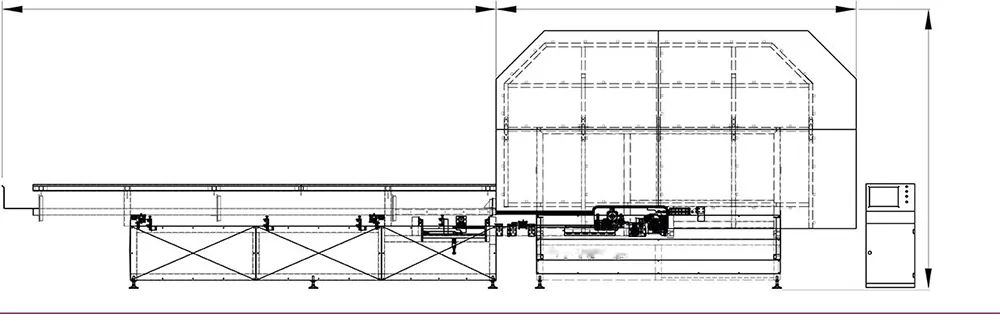

Processing Detail
⚙️
PLC control, touch screen simple operation.
⚡
Feeding system adopts CNC servo motor, bending angle uses CNC control system.
📦

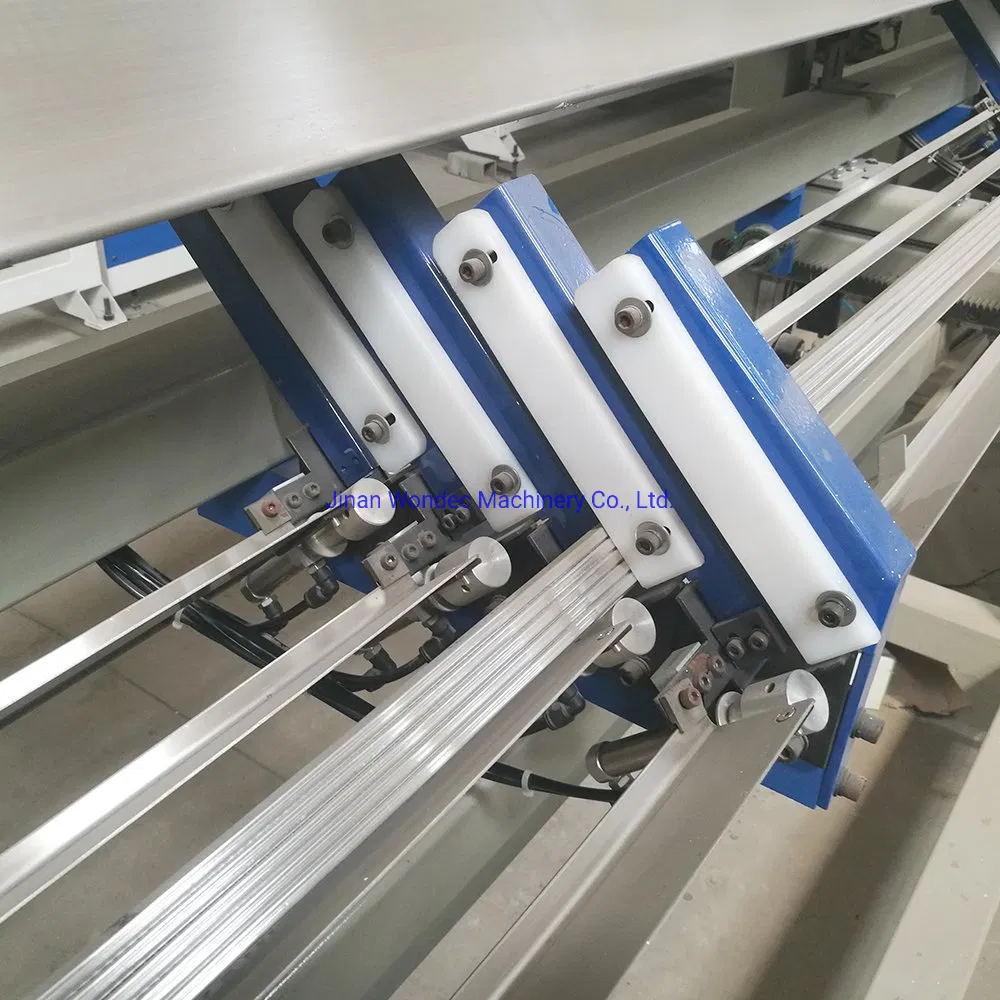

Four material storage slots for four different specifications of spacers.
📐
Bending and cutting automatically avoid the spacer connection; automatically cut after bending.
🔄

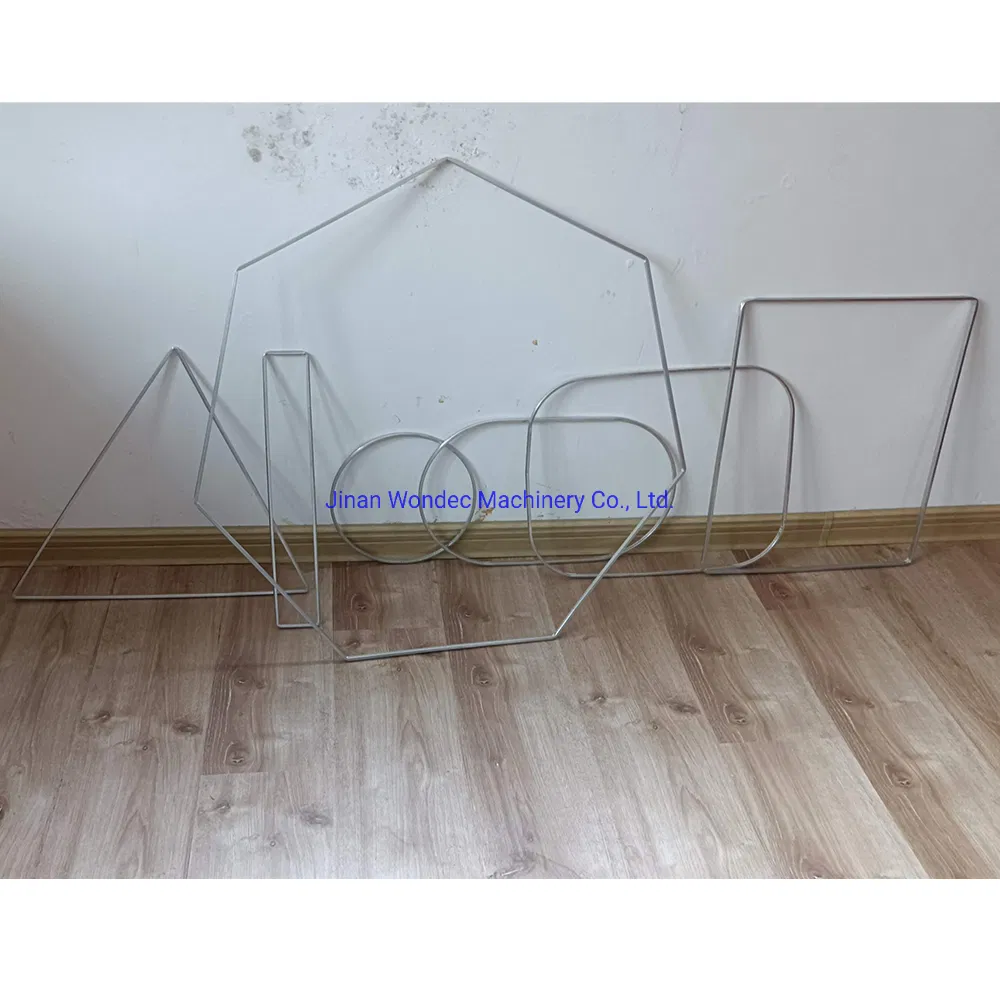

Supports multiple shapes: triangle, rectangle, regular pentagon, regular hexagon, roundness shape, etc.
Detailed Photos

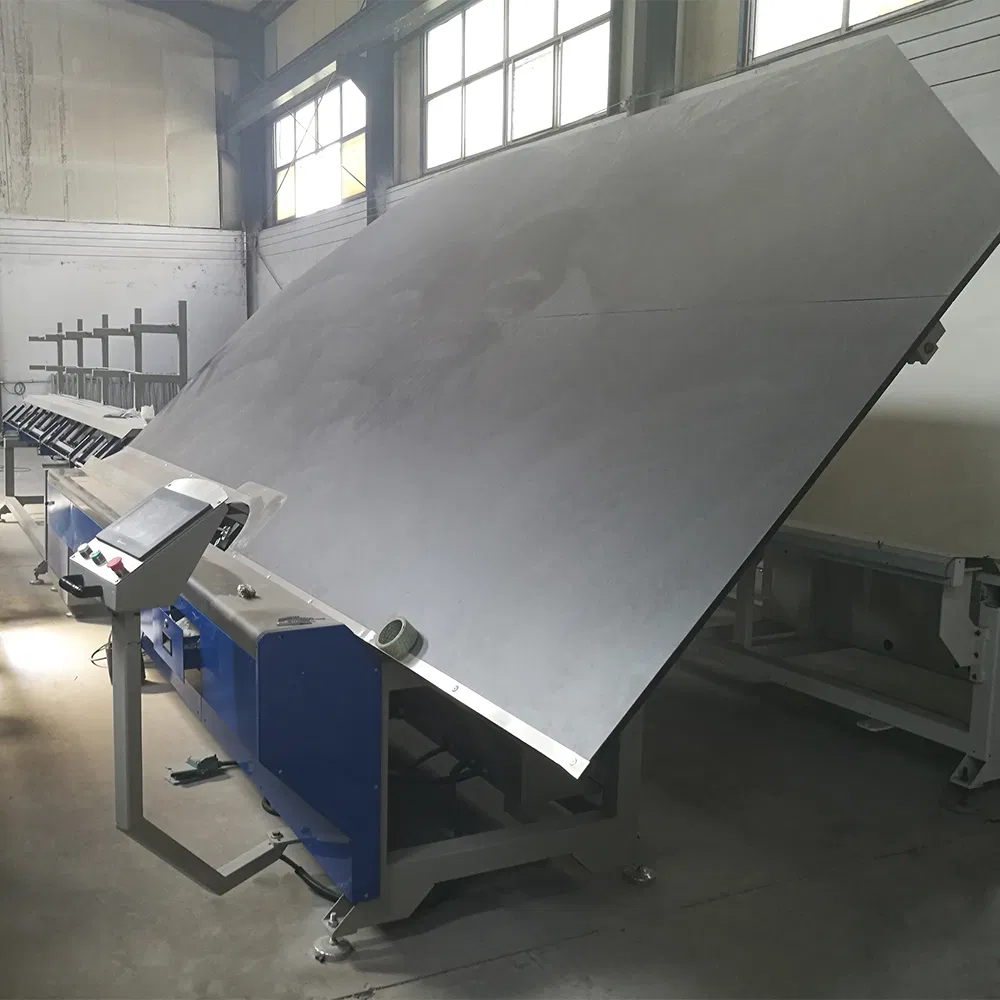

Detail 1

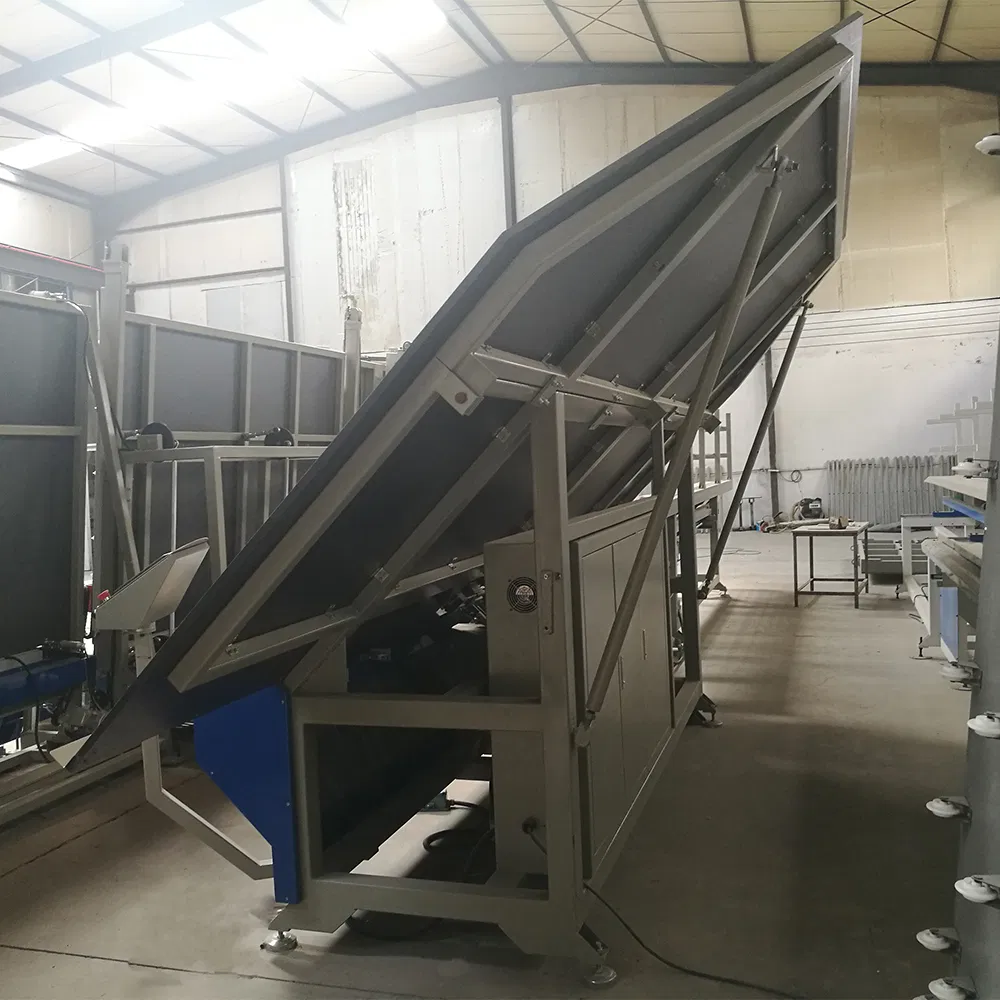

Detail 2

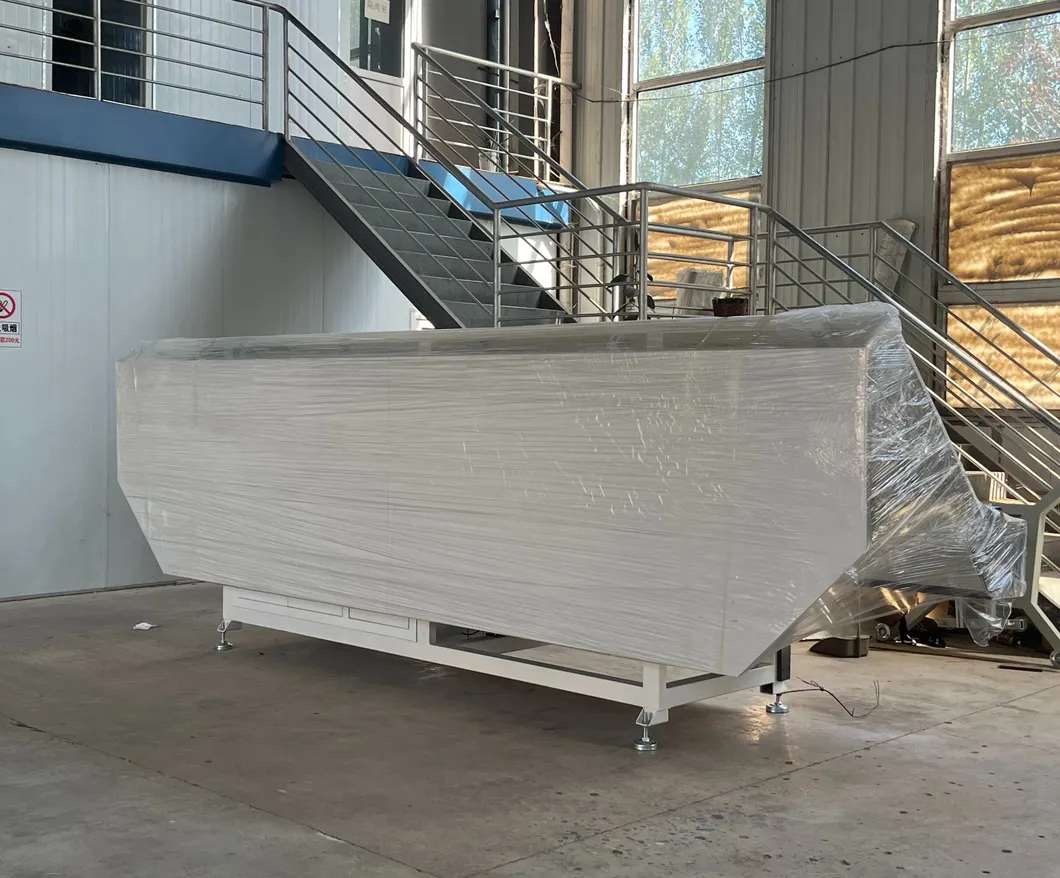

Detail 3

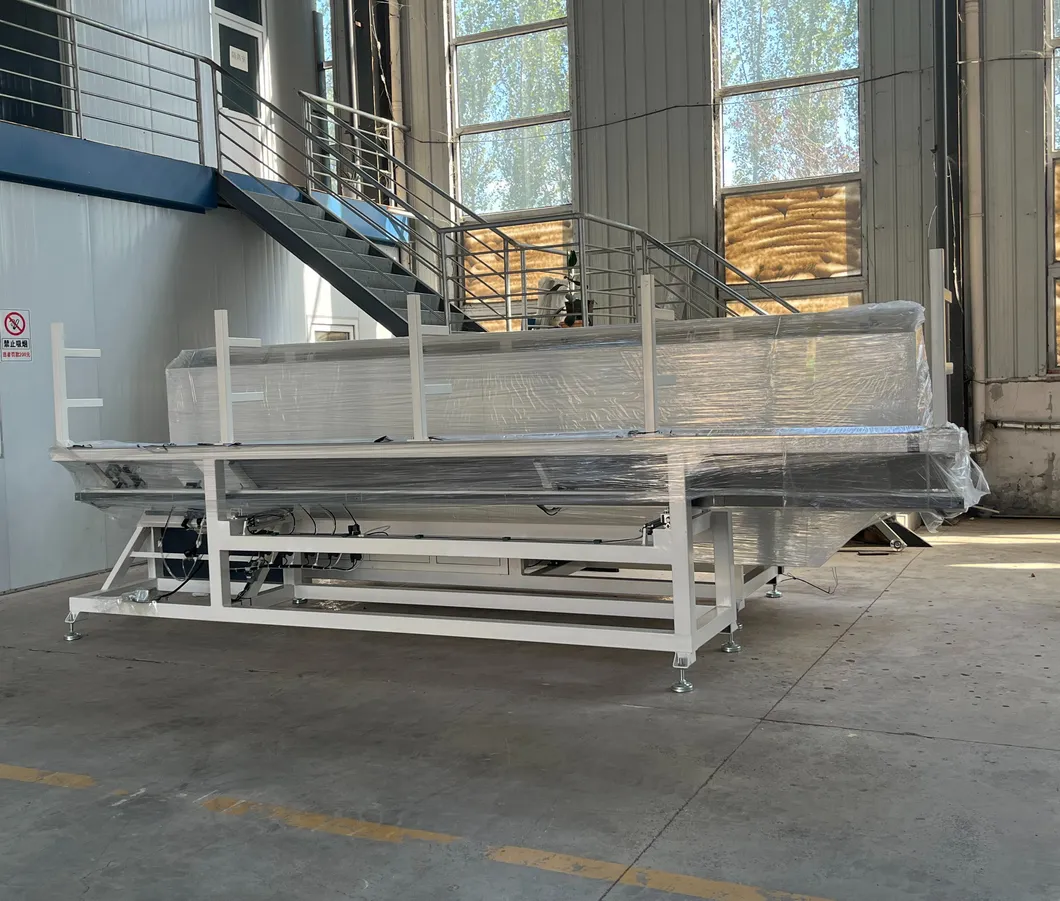

Detail 4

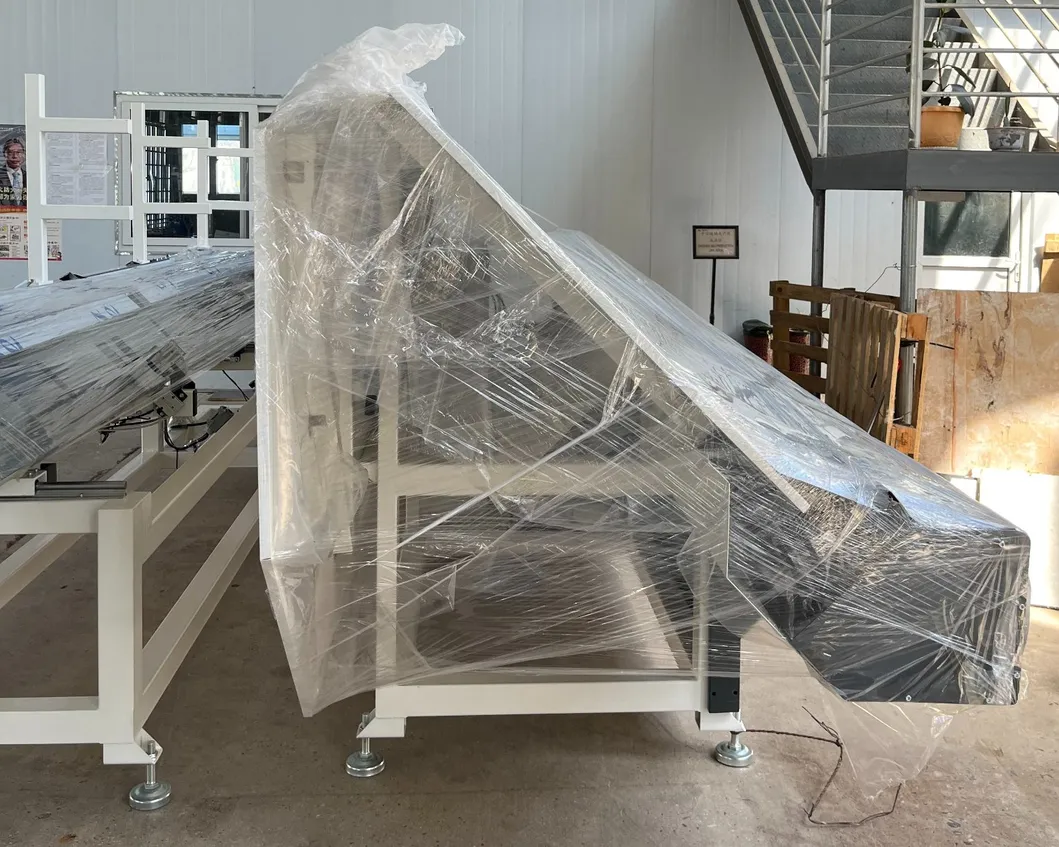

Detail 5
Product Parameters
Technical Data
Input voltage 380V/50Hz Total power 4 KW
Air pressure 0.7Mpa Spacer specification 6-27mm
Max. spacer size 2500*2500mm Min. spacer size 200*250mm
Bending angle error 0.3 degree Feeding speed 0-90m/min
Weight of Machine 1500kg Overall dimension 10000x2200x2600mm
Packaging & Shipping
Packaging Detail
Our Service

Pre-sales:

  • Layout design according to your building floor plan or sketch.
  • Professional Technical Drawings based on equipment layout.

After-sales:

  • Weekly production reports to keep you informed of progress.
  • Equipment installation, debugging, and personnel training.
  • English operation manuals provided.
  • One-year warranty (excluding wearing parts) and lifetime maintenance.
Service and Support
Why Choose Us
Exhibition
Quality Assurance
Global Reach
FAQ
Which countries are your products exported to?
Our equipment has been exported to over 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.
How do we operate the glass processing machinery?
We provide comprehensive paper instructions in English and offer training until your operators are proficient with the machine.
How do you handle quality control?
The entire production procedure is under regular inspection and strict quality control. Every component is inspected before use, and the complete machine is tested before leaving the factory.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in this field. We provide not only machines but also complete technical solutions.
What happens if the machine has a problem after ordering?
Free parts are sent during the warranty period if issues arise. We also offer 24/7 free service and support via phone, WhatsApp, and email for the lifetime of the machine.
Can you provide installation in my country?
Yes, we arrange for engineers to install the machine at your factory and provide on-site training for your staff upon arrival.
