Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
1 / 5
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off
Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off

Automatic Vertical Aluminum Windows and Doors Igu Machine with 5%off

Customization: Available
Certification: CE, CE, ISO
Condition: New
Send Inquiry

Product Description

💠 Basic Information
Model NO.
LBP2500Q
Control System
Automatic, PLC Control, Touch Screen
Glass Thickness
3 mm - 19 mm
Type
Insulating Glass Production Line
Structure
Vertical
Max. Processing
3600*2500mm
Inert Gas Type
Argon, Nitrogen, etc.
Gas Concentration
>85%
Washing Speed
3-10m/min
Running Speed
15-45m/min
Total Power
44.85kw
Capacity
800 Square Meter Per Day
📘 Product Description
IGU Machine
Brief Introduction of LBP2500Q IGU Line
Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units production. This model applies for glass processing companies and windows & doors fabricators.
  • Loading and transmission section
  • Washing and drying section
  • Light inspection and spacer frame location
  • Large stroke press & online gas filling
  • Fully automatic IGU assembly and pressing
📊 Technical Parameters
Parameter Item Specifications (LBP2500Q)
Max. processing glass size (mm)3600*2500
Min. processing glass size (mm)450*200
Single glass thickness (mm)3-15
Max. Insulating glass thickness (mm)52
Capacity (pc/h)110
Washing speed (m/min)3-10
Total power44.85KW (include heater 10KW)
Inert gas concentrationMore than 90%
Outline dimension (mm)24600*2500*3680
⭐ Main Features & Advantages
  • Energy Saving: Automatically stops running when no glass is on table, saving up to 30% power.
  • Low-E Protection: Automatic coating side detection with alarm system.
  • Durable Washing: Stainless steel structure (5mm thickness) with DuPont nylon bristles for scratch-free cleaning.
  • High Efficiency: Dual transfer motors for simultaneous handling of small glass pieces.
  • Precision Pressing: Servo-controlled plate pressure ensuring frame and glass integrity.
  • Superior Gas Filling: Concentration >92% with direct inflation structure and high retention performance.
Feature 1
Feature 2
Feature 3
Feature 4
🔌 Premium Components
Part Name Brand Origin
PLC / Touch ScreenDeltaTaiwan
Selection/Push-button SwitchesSchneiderFrance
Photoelectric SwitchBannerUSA
Optical Fiber SwitchKeyenceJapan
Vacuum SuckerYSCKorea
Bearings for brushesSKFSweden
🔍 Detailed Process Photos
Detail 1
Detail 2
Detail 3
Detail 4

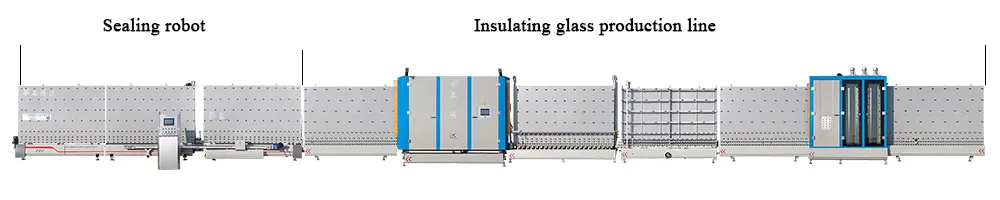

Detail 5
📜 Quality Assurance
CE Certificate

Over 20 years of focus on high-grade insulating glass processing equipment. Our products integrate production, scientific research, and development, serving thousands of clients nationwide and globally. We are dedicated to providing high-quality solutions and specialized after-sales service.

  • 20+ years of industry experience
  • Supplied more than 5000 production lines
  • Multiple patent rights and ISO9001:2008 certified
❓ Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a factory-integrated enterprise with over 21 years of focus on insulating glass processing and curtain wall equipment.
What is the typical delivery time after placing an order?
Delivery takes approximately 45 working days for a whole production line and 30 working days for a single machine.
What kind of warranty do you provide?
We offer a 12-month guarantee (excluding wearing parts) and lifelong technical service with onsite engineer support upon request.
How do you ensure product quality?
Each machine undergoes 100% quality examination and testing before shipment, meeting ISO and CE certification standards.
Do you provide overseas installation and service?
Yes, we have a dedicated service team and can provide overseas installation, training, and maintenance services.
Can the production line handle Low-E glass?
Absolutely. Our washing machines use specialized soft brushes and feature automatic Low-E coating detection to prevent scratches.
