Product Description

📋

Basic Information

Model NO.
WLBZ2030-C
Color
Customizable
Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Components
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Type
Insulating Glass Production Line
Structure
Vertical
Machine Type
Ultrasonic Glass Washing
Warranty
1 Year
Capacity
60 units/cycle
Specification
22400*2500*2900mm
⚙️

Product Description

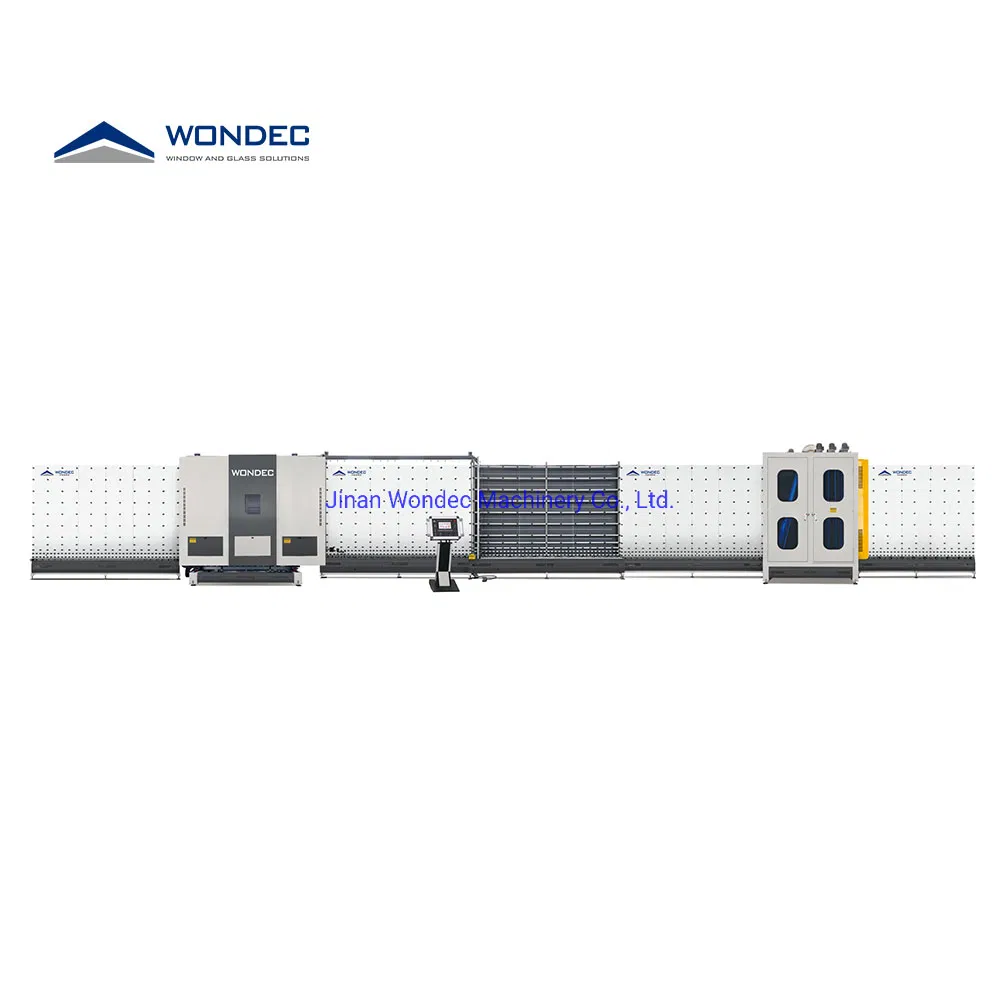

Automatic Insulating Glass Gas Filling Line WLBZ2030-C

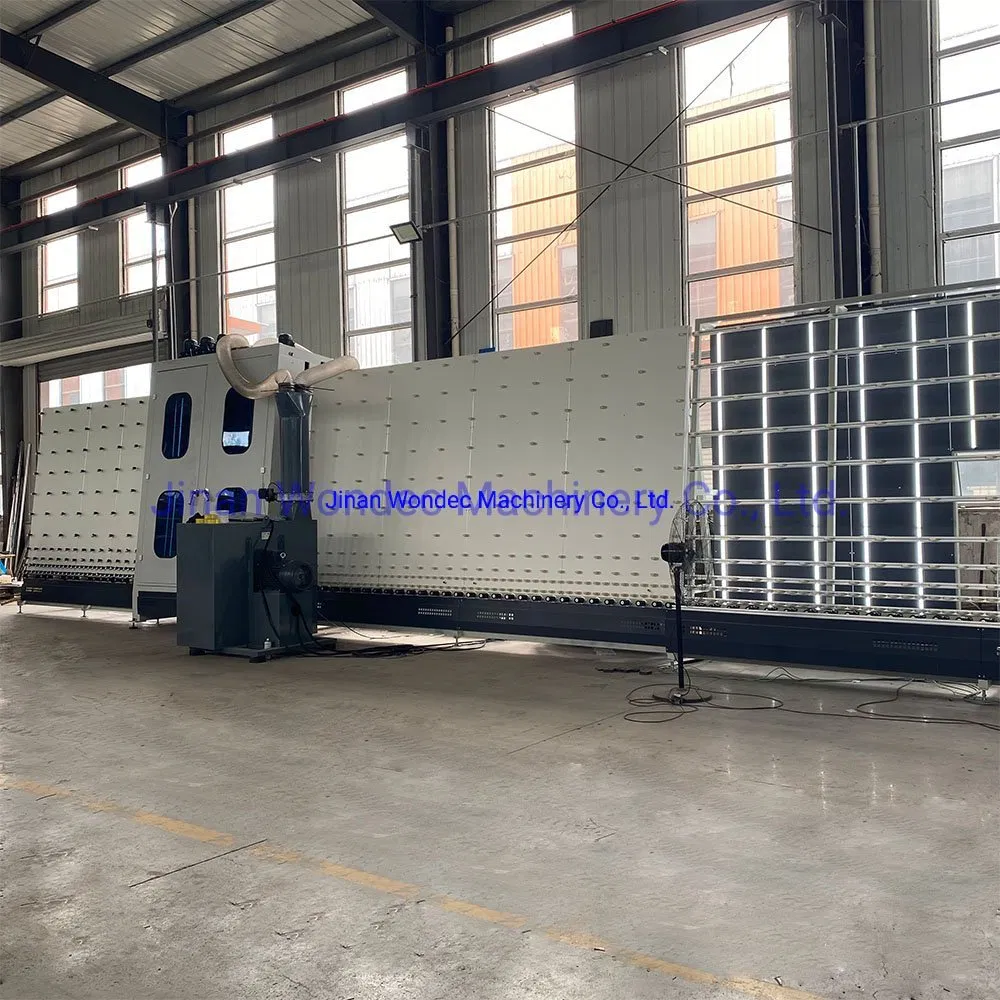

Production Line Overview

The whole insulating glass production line includes 7 key sections:

Section 01: Loading section (with Low-E checking)
Section 02: Washing and drying section (Stainless steel material)
Section 03: Conveyor section (Dual motors for efficiency)
Section 04: Light inspection and aluminum spacer locating
Section 05: Outside assembly section
Section 06: Inner assembly and panel press (Gas filling function)
Section 07: Unloading section (Storage function)
📸

Detailed Photos

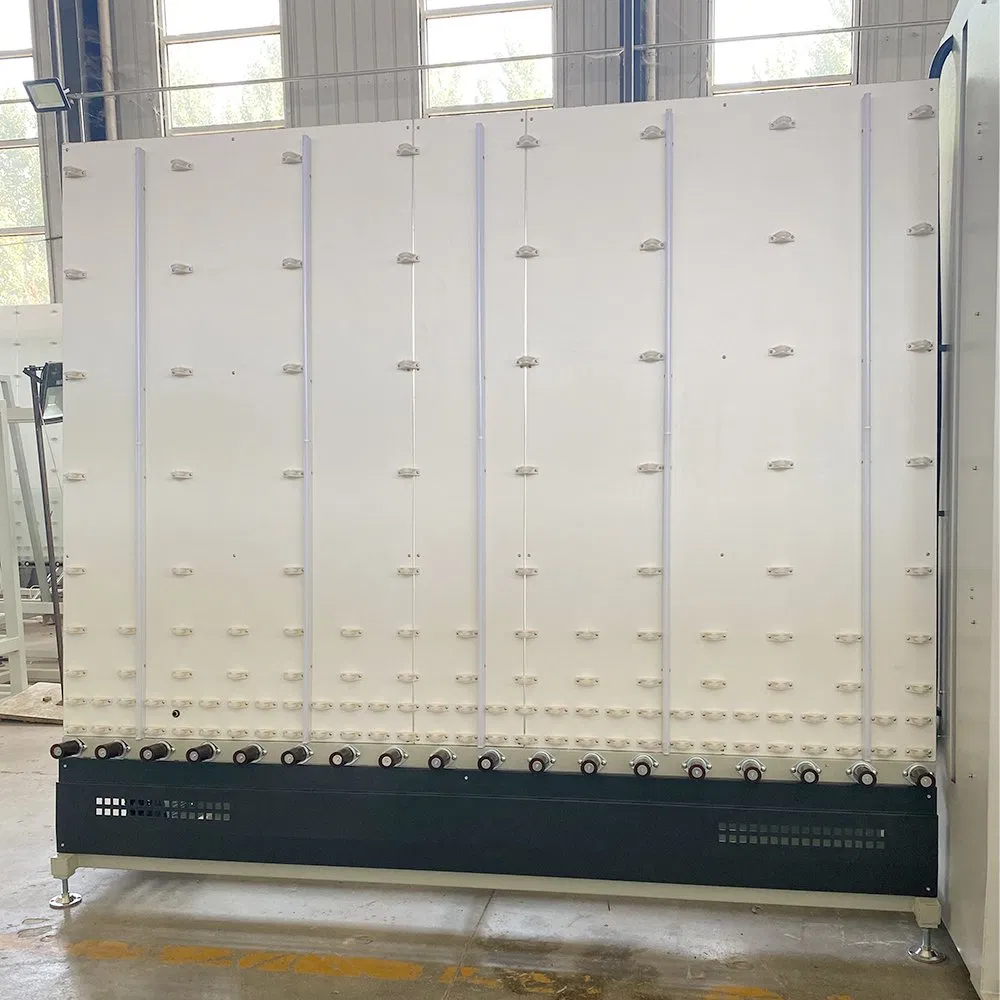

Glass Detail 1
Glass Detail 2
Glass Detail 3

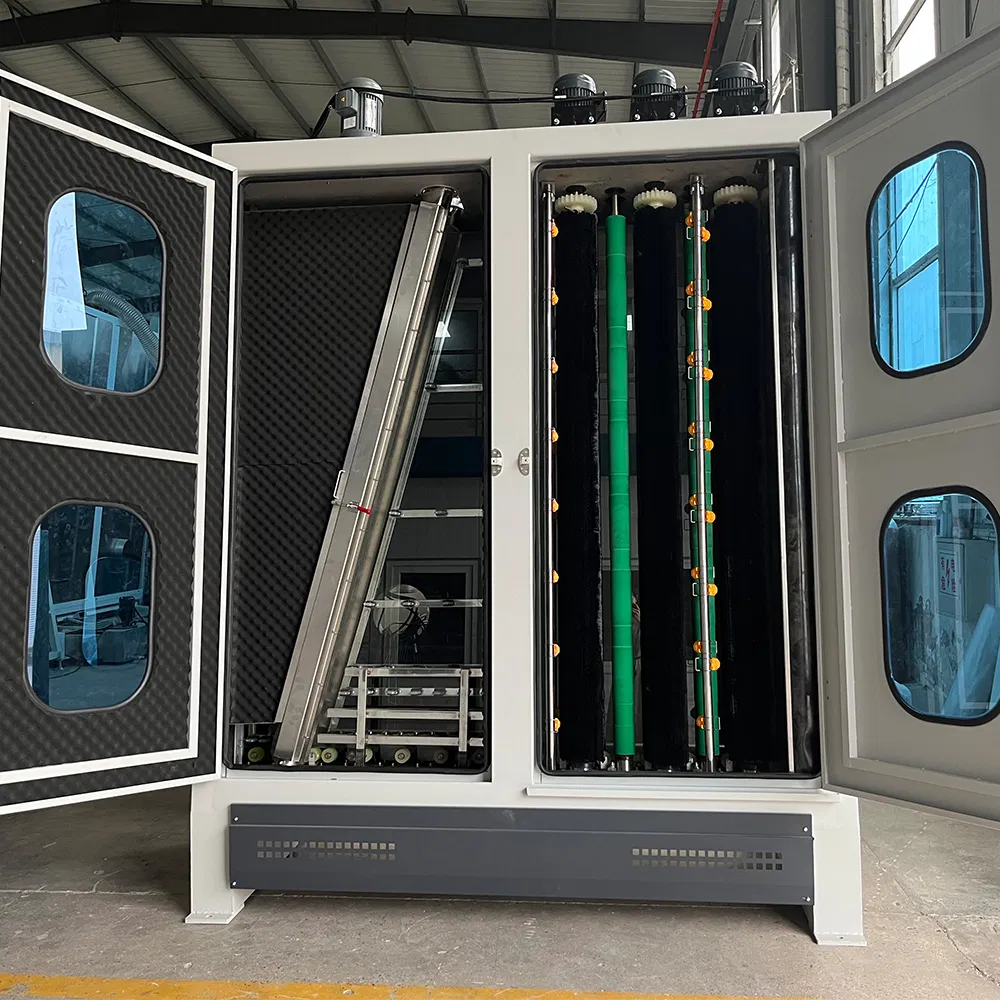

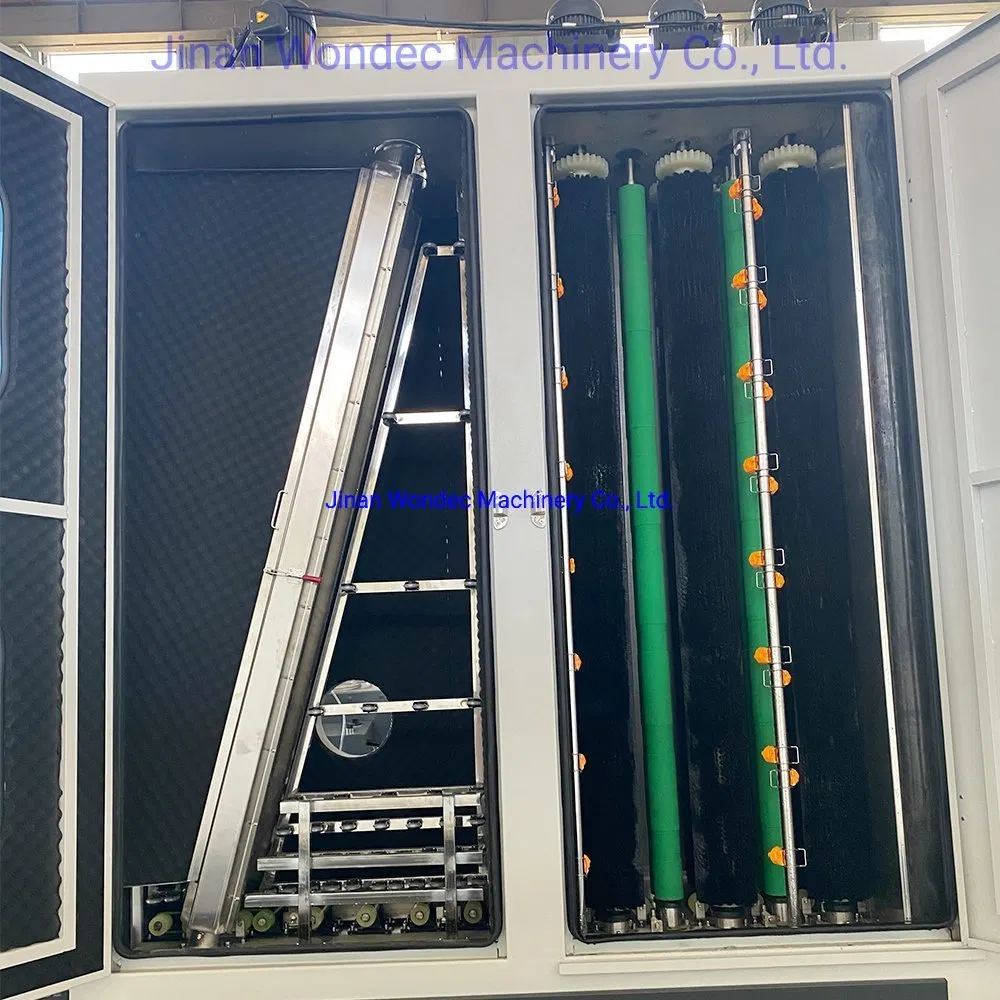

Washing Section: Features 3 pairs of brushes driven by 3 independent motors. All washing areas and water systems use corrosion-resistant stainless steel.

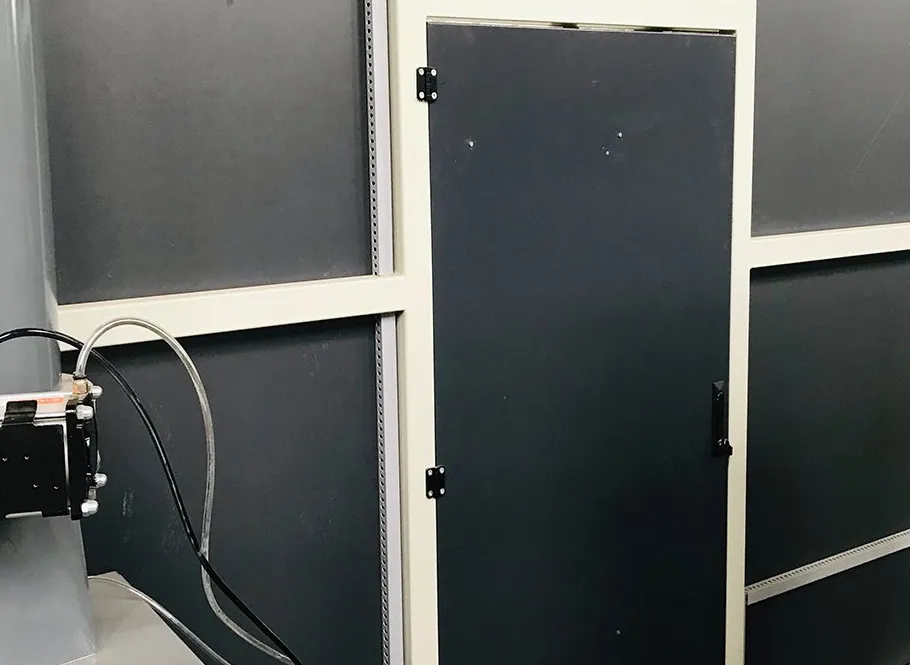

Washing Unit

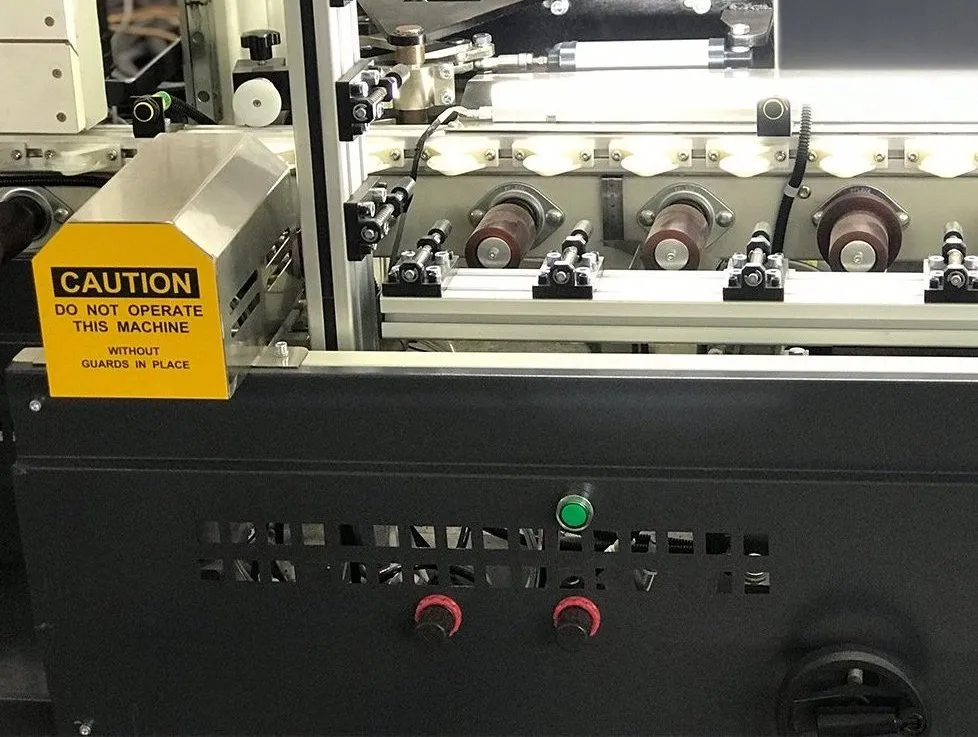

Component Detail

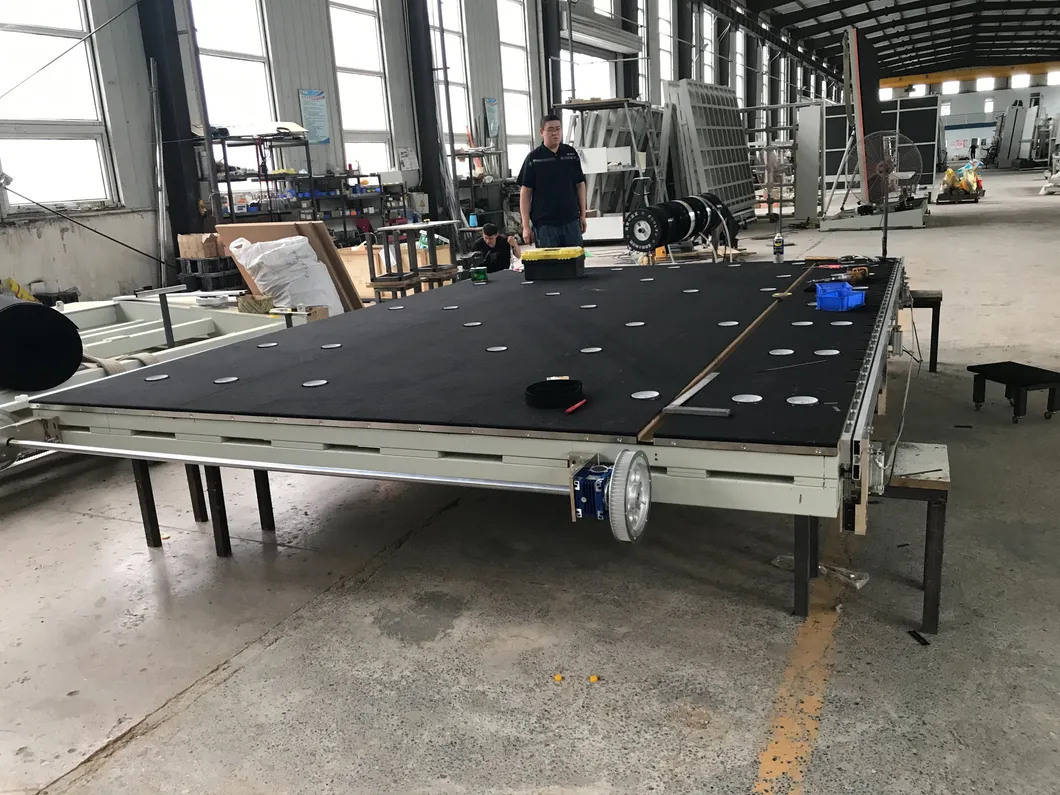

Mechanical View

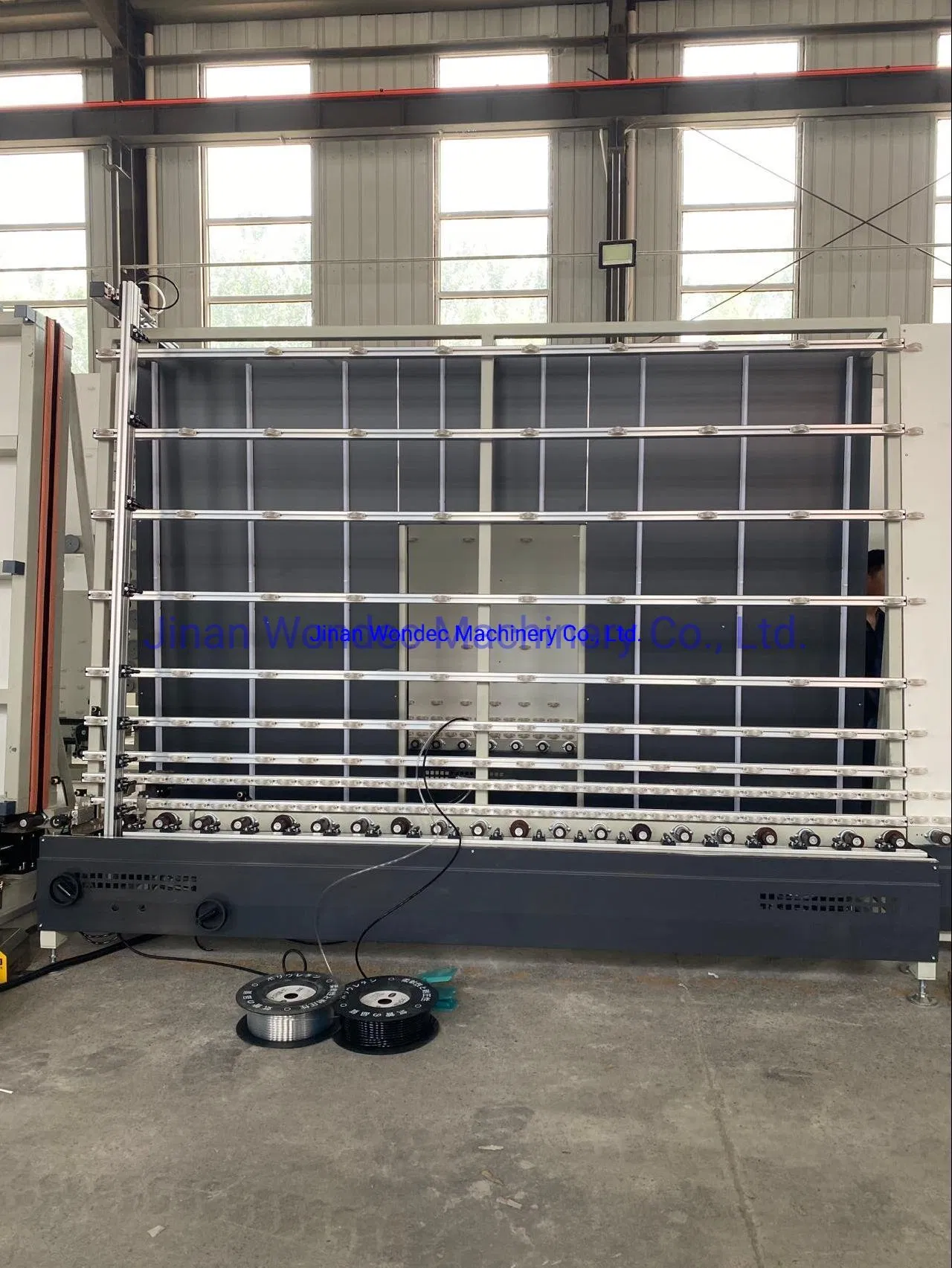

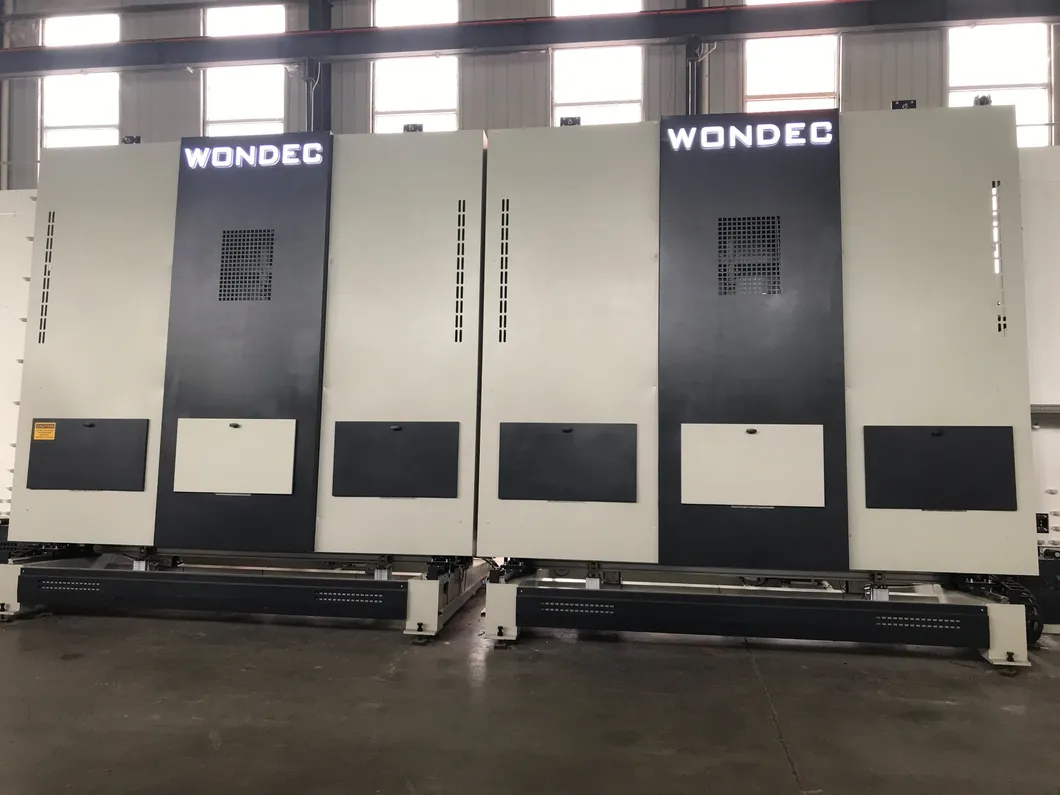

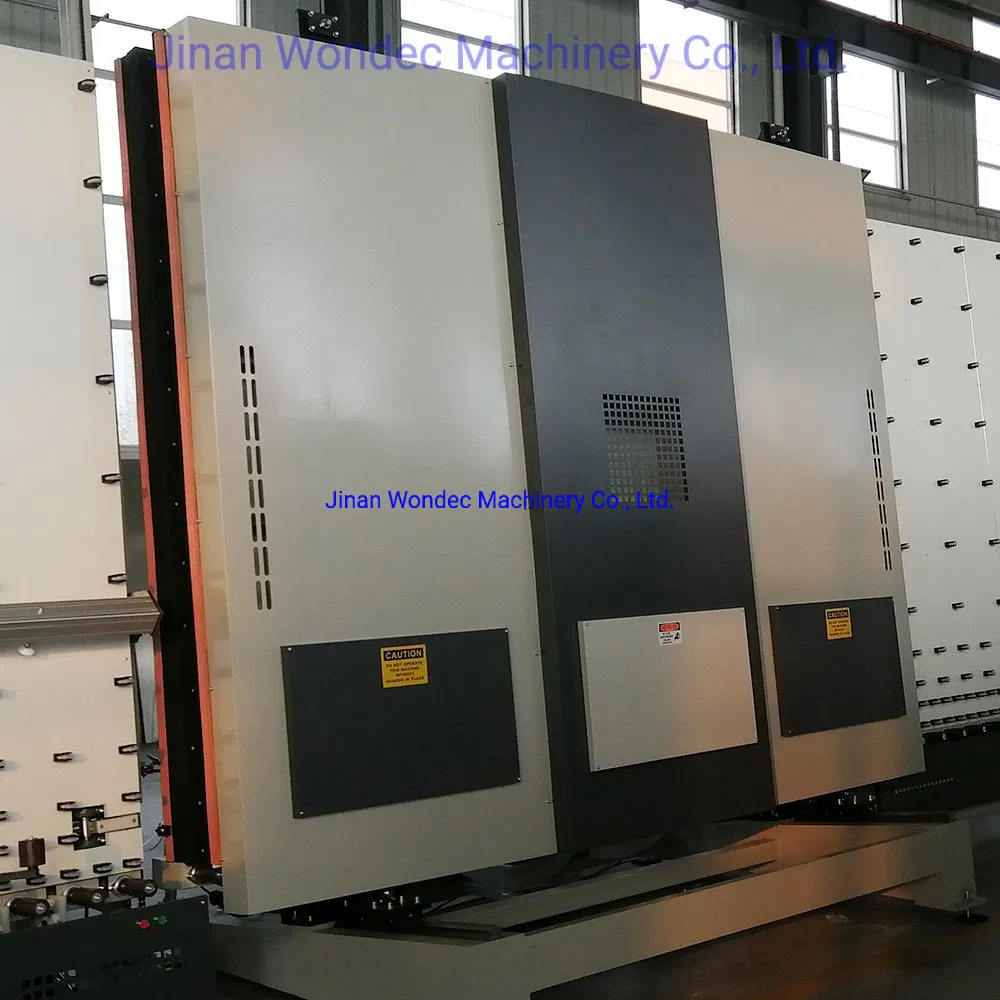

Pressing Section: Controlled by a Servo Motor for extreme precision. Includes height measuring units and encoders for automatic gas filling activation.

Press Section
WONDEC Logo indicator lights
Machining center controlled panel flatness
10 height measuring photoelectric units
Precision encoder for glass length calculation
📊

Product Parameters

Technical Parameter Value (WLBZ2030-C)
Total Power31kw
Max Glass Size2000 x 3000mm
Min Glass Size300 x 500mm
Single Glass Thickness3 ~ 12mm
Max I.G. Unit Thickness12 ~ 80mm
Washing Speed3 ~ 12m/min
Working Speed2 ~ 48m/min
Air Flow0.8m³/min
Overall Dimension22400 * 2500 * 2900mm
📦

Packaging & Shipping

Packaging Detail
🛠️

Technical Service

Pre-Sales Service:

Technical Drawings based on equipment layout
Custom building floor plan layout design

After-Sales Service:

Weekly production progress reports
Onsite installation, debugging, and training
Lifetime maintenance and 24/7 technical support
📜

Certifications

Product Certifications
❓

Frequently Asked Questions

Which countries are your products exported to?
Our equipment has been exported to over 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.
How is the quality control managed?
The entire production procedure undergoes regular inspection. Every component is inspected before use, and the complete machine is tested thoroughly before leaving the factory. Testing videos are available.
What happens if the machine has problems after purchase?
Free replacement parts are provided during the warranty period. We also offer 24/7 free support via phone, WhatsApp, and mail, along with lifetime technical service.
Do you provide installation services?
Yes, we can arrange for engineers to install the machine at your factory and provide training for your personnel once the equipment arrives.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in the glass processing machinery area, providing both machines and complete industrial solutions.
What documents are provided after shipment?
After shipment, we provide original documents via DHL, including the packing list, commercial invoice, bill of lading, and all other required certificates.
