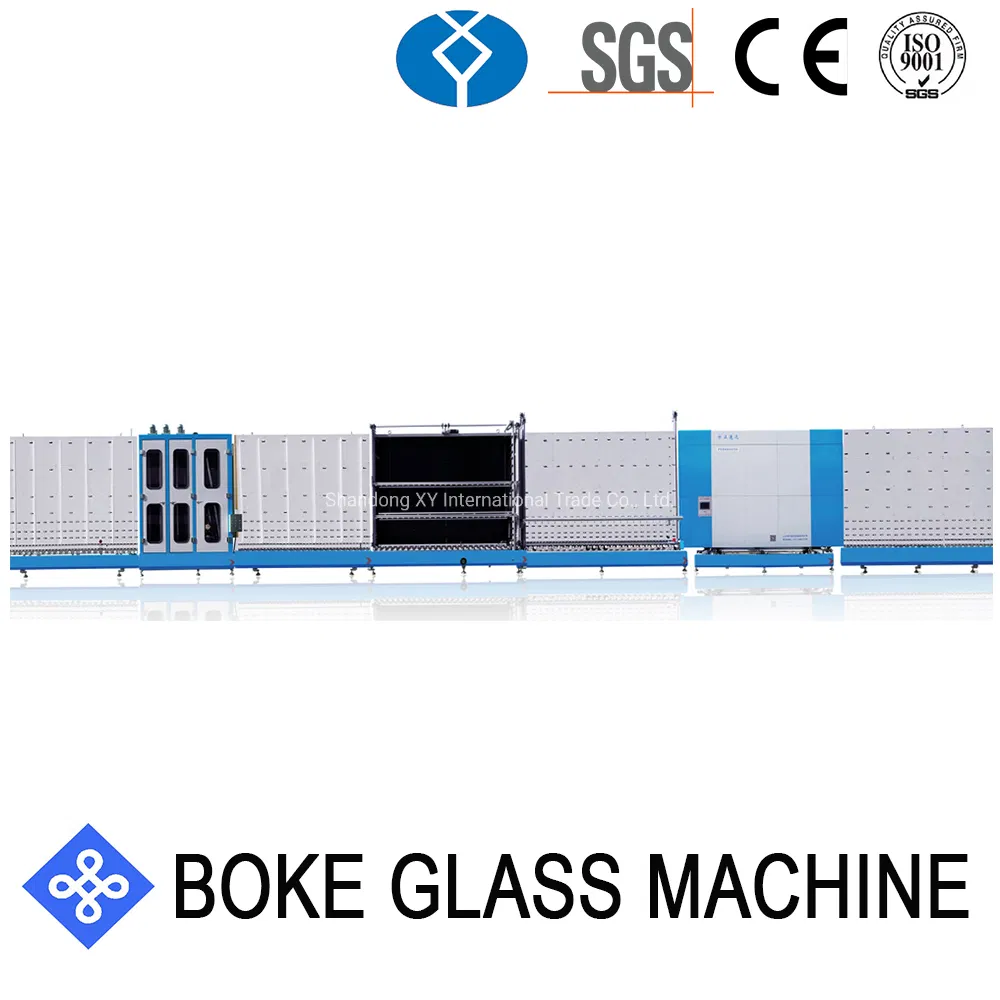

Automatic Intelligent Assembly Aluminum Insulating Double Glazing Glass Machine with Glass Washing

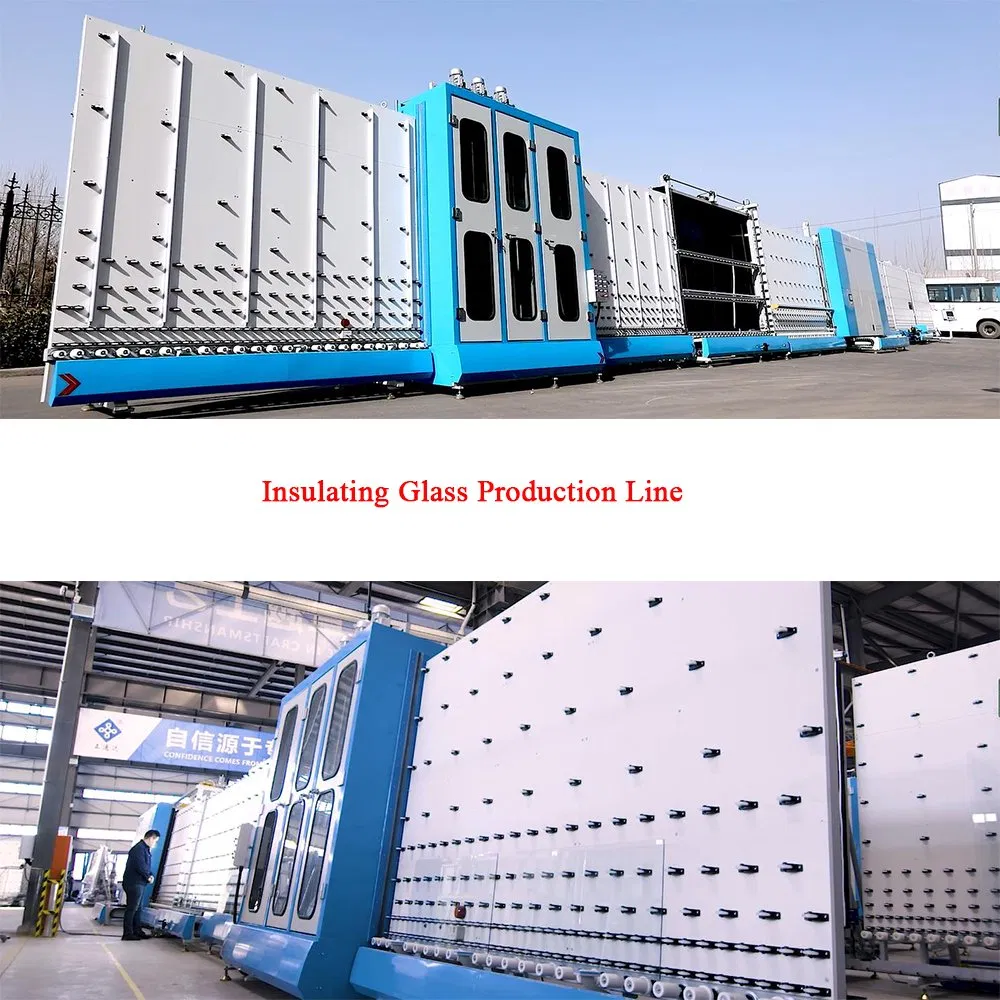

Brief Introduction of LBP2500Q IGU Line

Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units (double glazing glass) production. This model applies for glass processing companies and windows & doors fabricators.

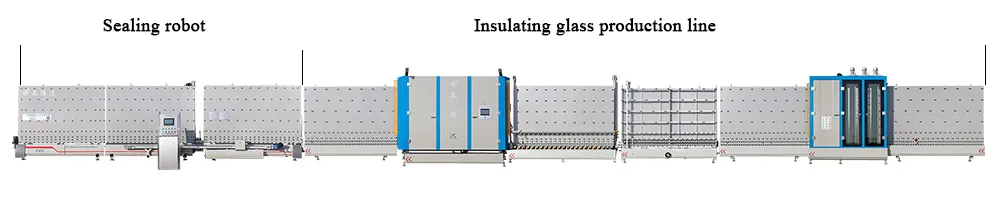

System Composition:

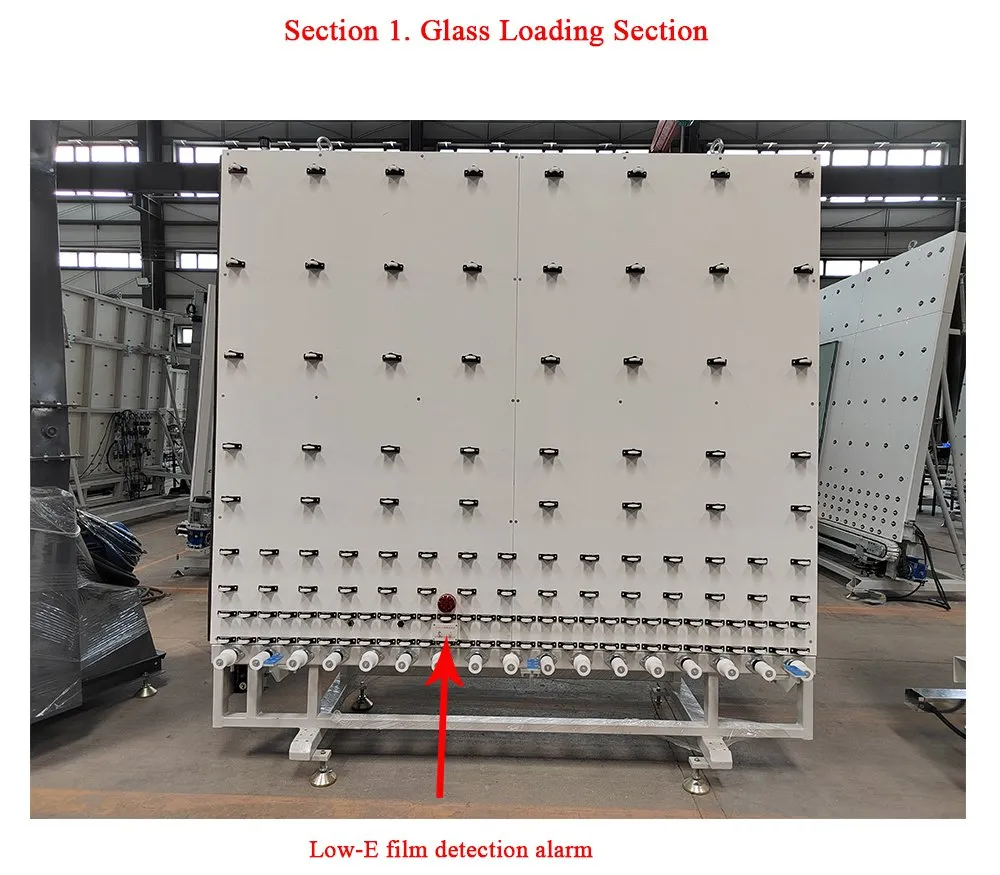

• Loading section

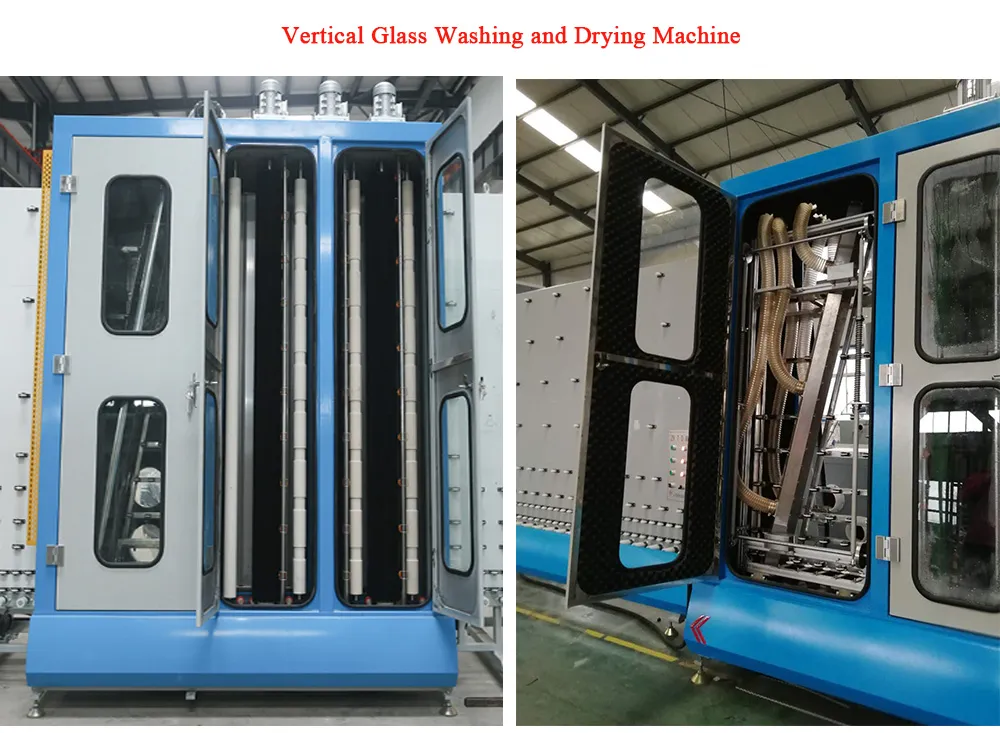

• Washing and drying section

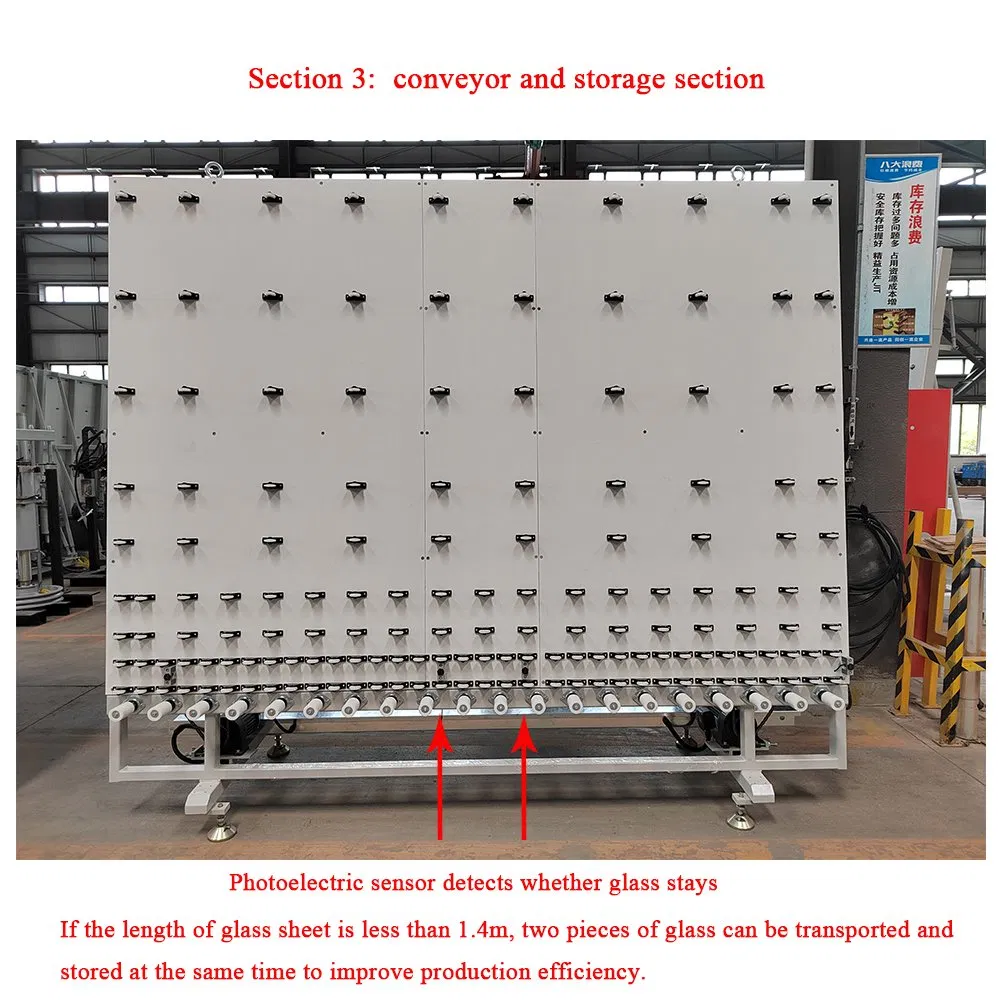

• Conveyor and storage section

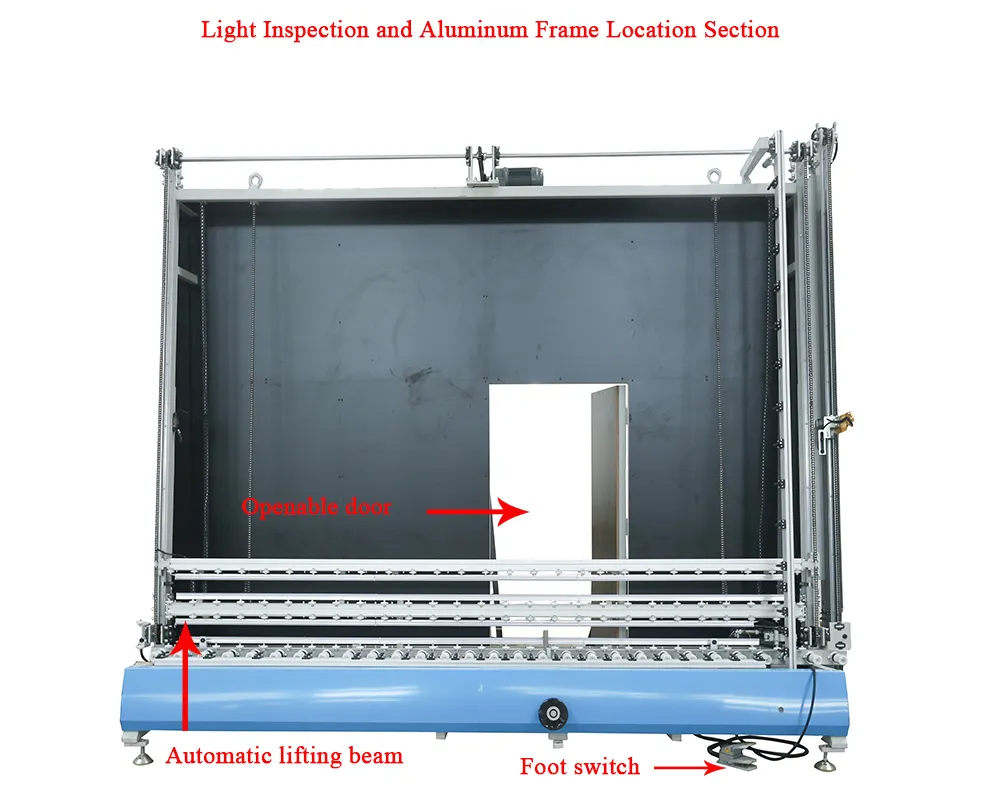

• Light inspection and spacer frame location section

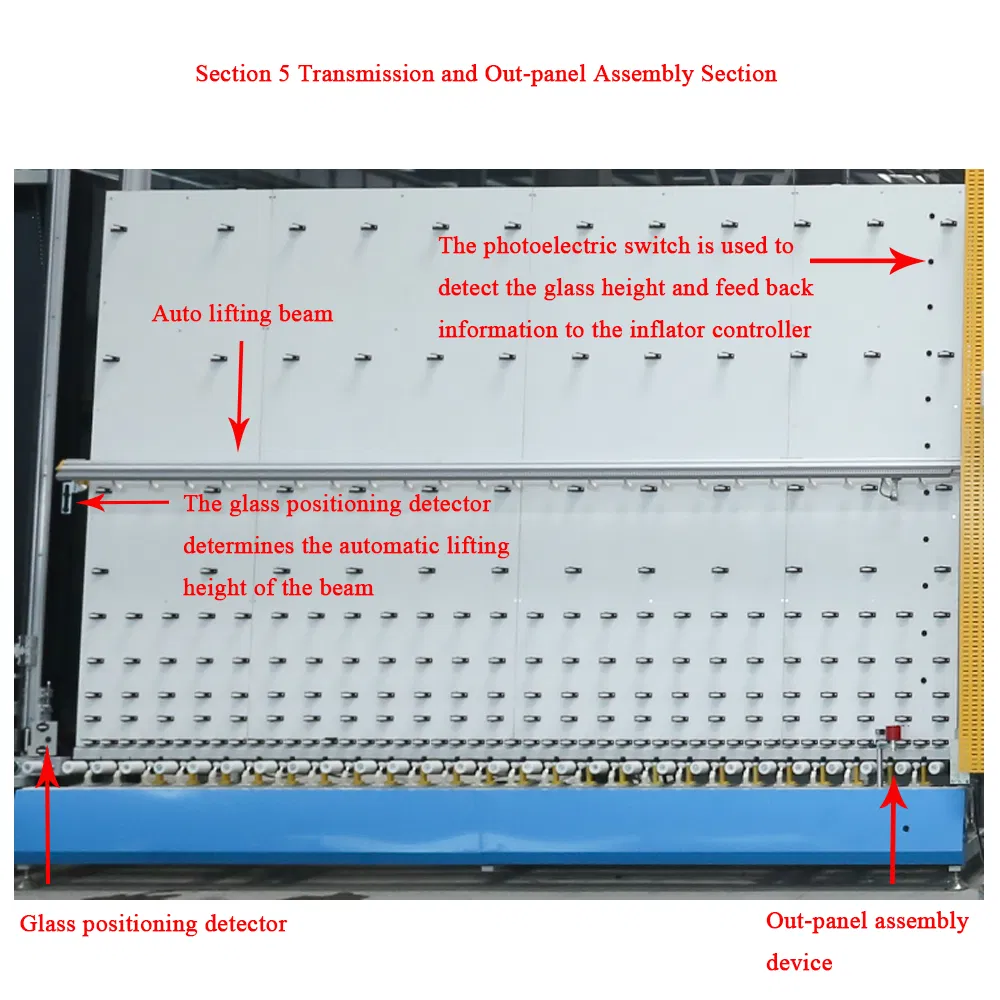

• Out-panel assembly & transmission section

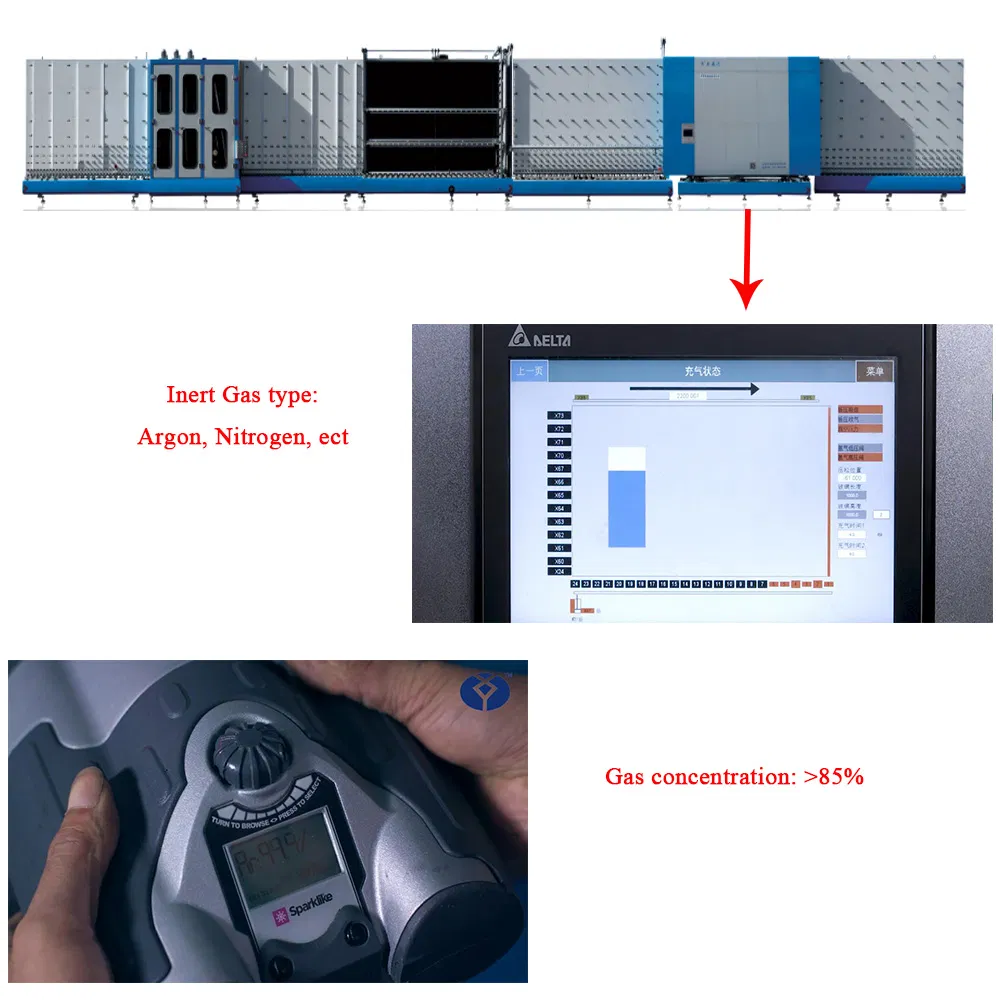

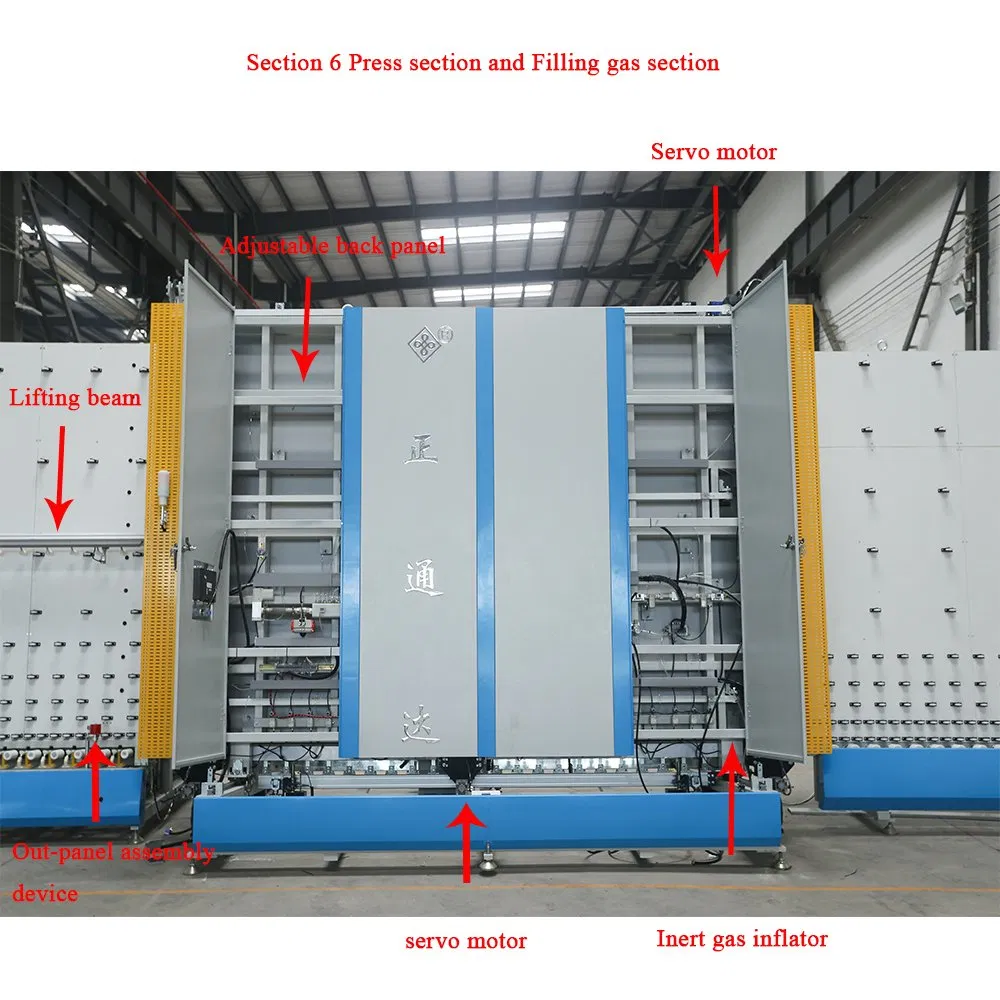

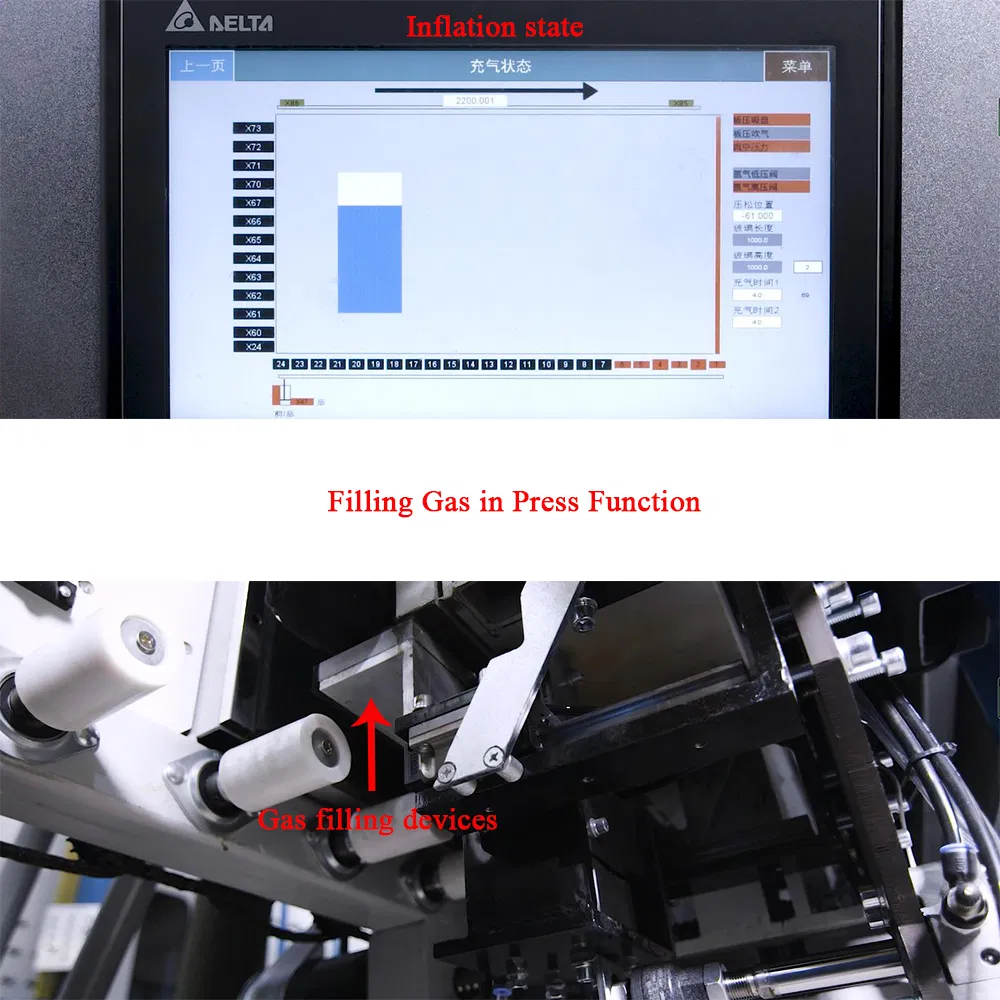

• Large stroke press & online filling gas section
• Storage and unloading section

⚙️PLC Control System

Equipped with a user-friendly touch screen interface for precise operation.

🛡️Low-E Detection

Automatic distinction of the coating side of Low-E glass with an integrated alarm system.

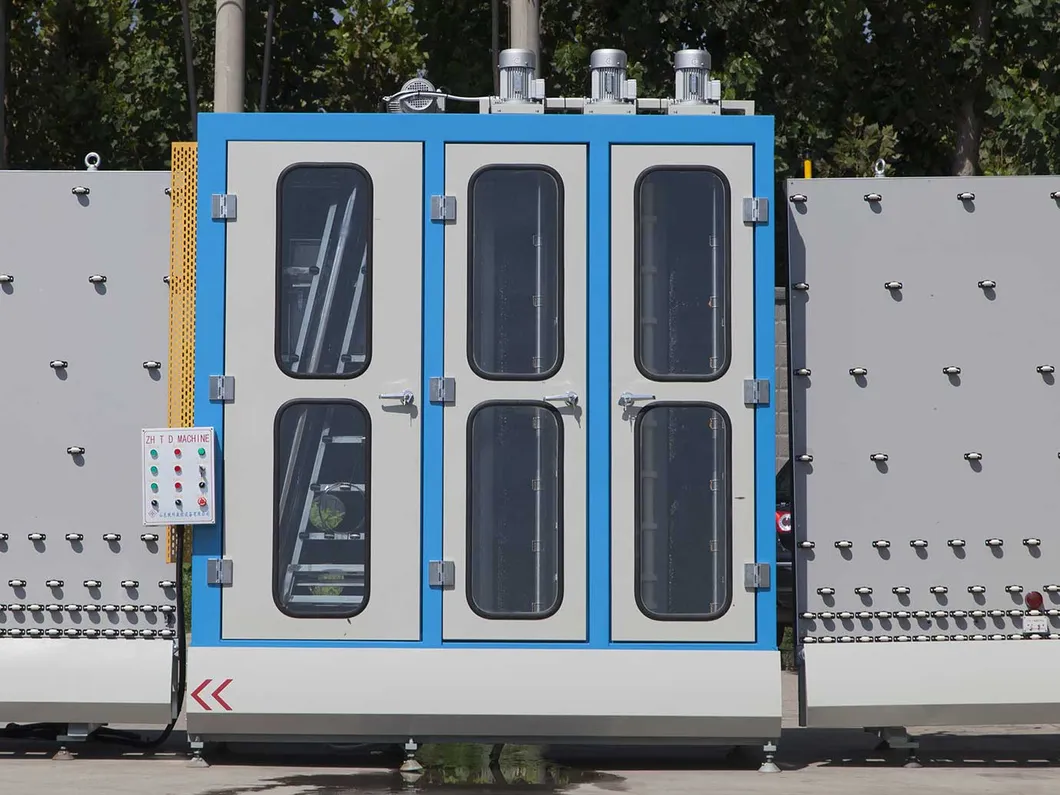

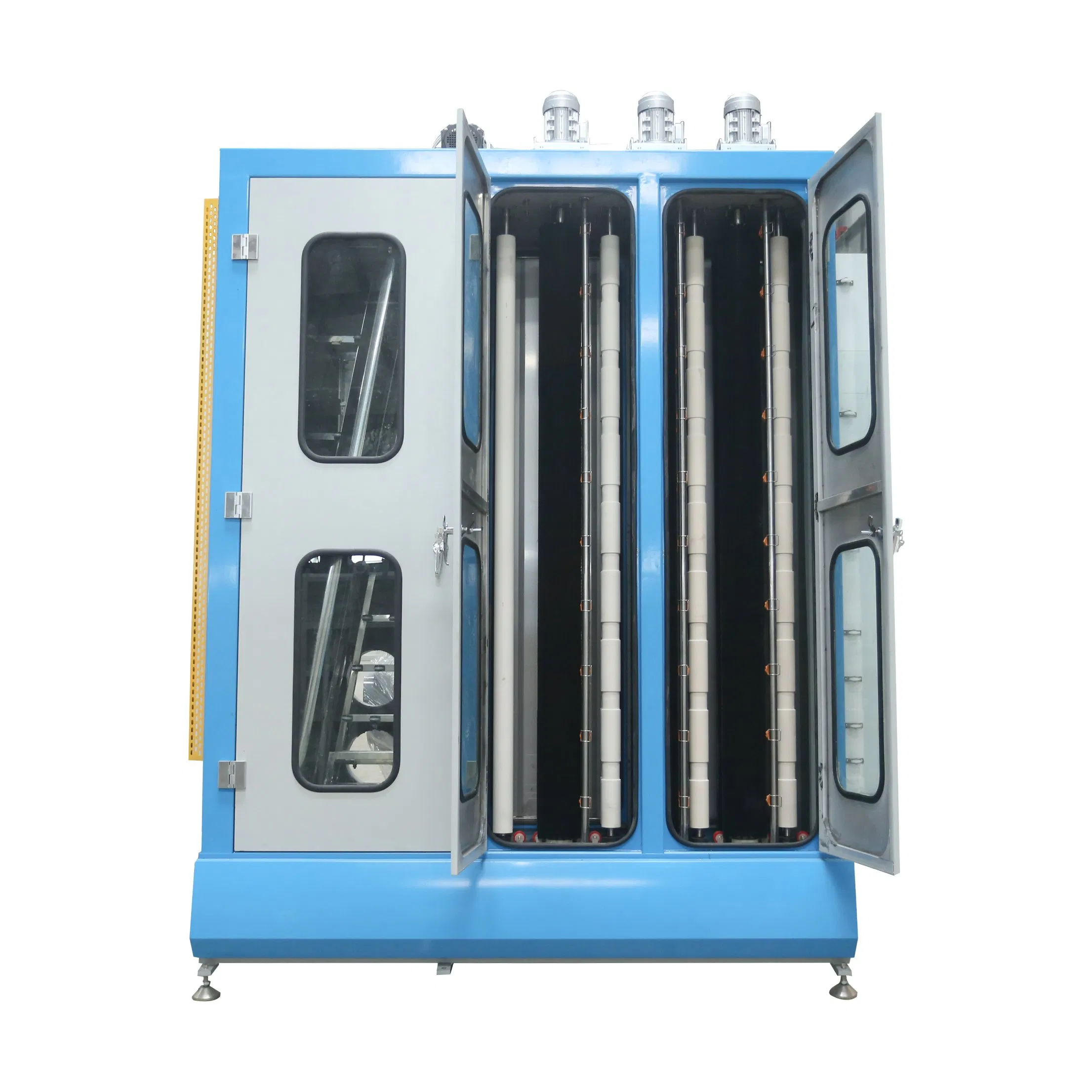

💧Stainless Steel Washing

The washing machine utilizes 5mm thick stainless steel and corrosion-resistant materials.

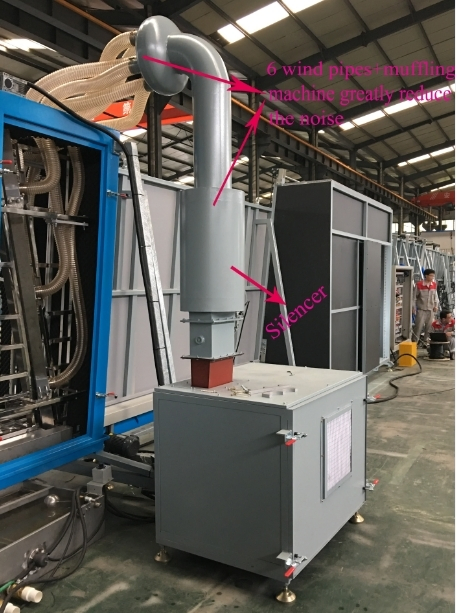

💨High Pressure Fan

18.5KW high-pressure fan ensures rapid drying with low power consumption and silence device.

• Industry Leadership: 22 years of experience in the IG production line field.
• Proven Track Record: Successfully supplied more than 5,000 production lines globally.
• Innovation: Holder of 13 independent patent rights.
• Quality Standards: Manufactured under ISO9001:2008 and CE certification.
• Support: Dedicated service team capable of providing overseas maintenance and support.
