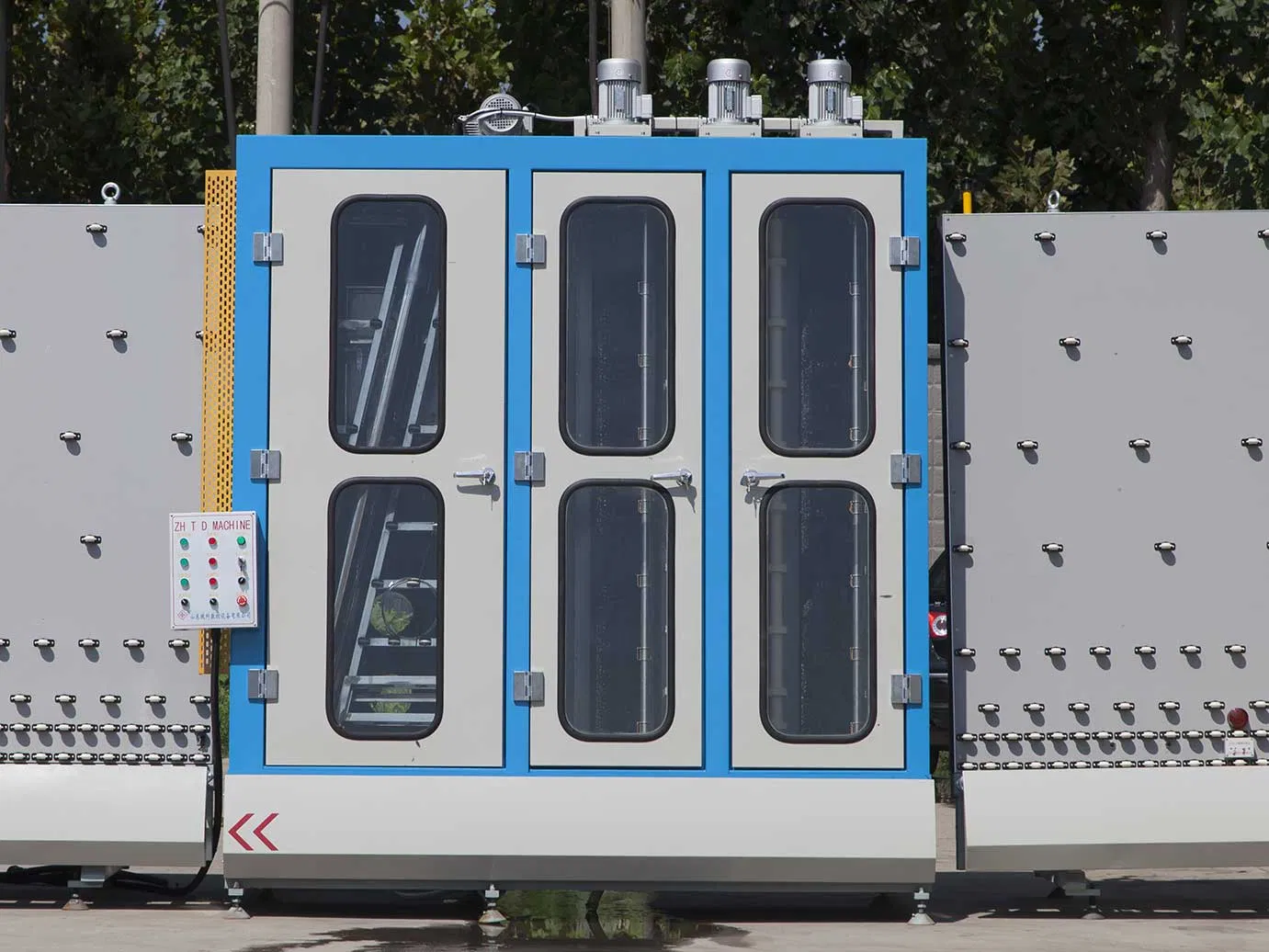

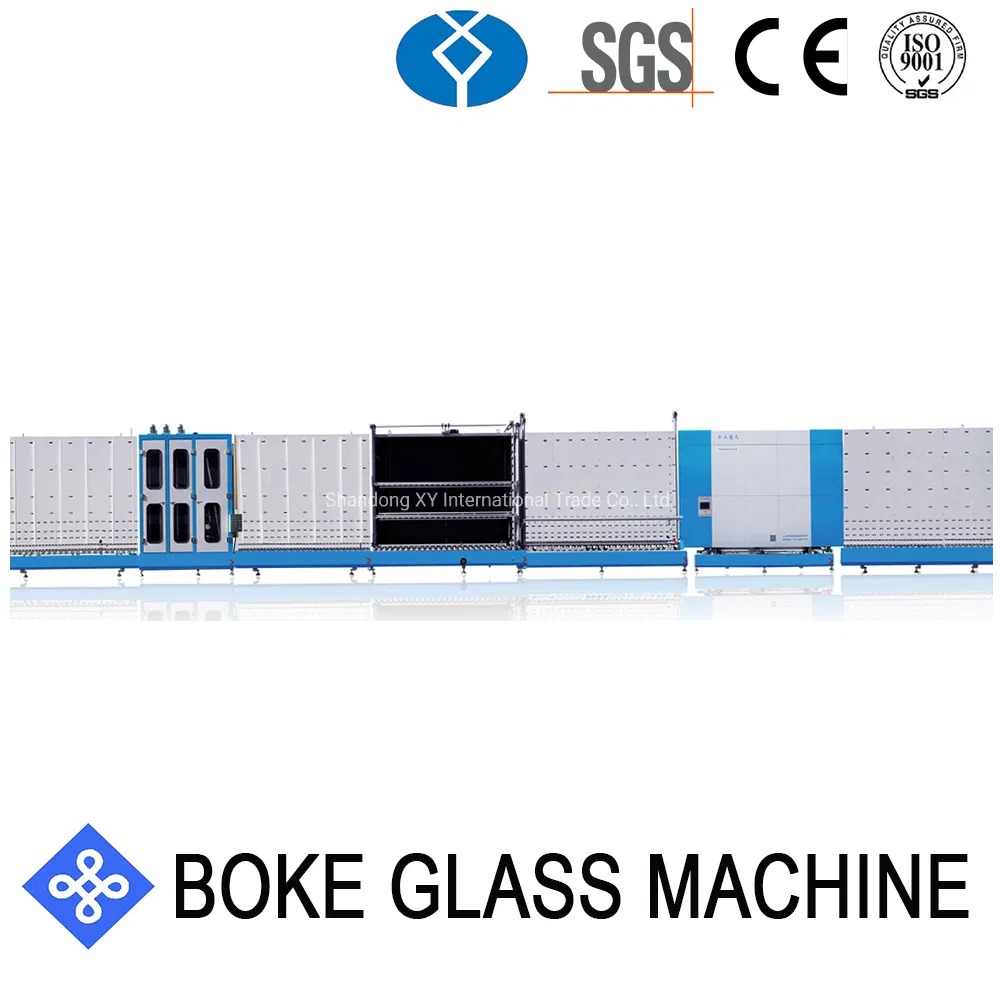

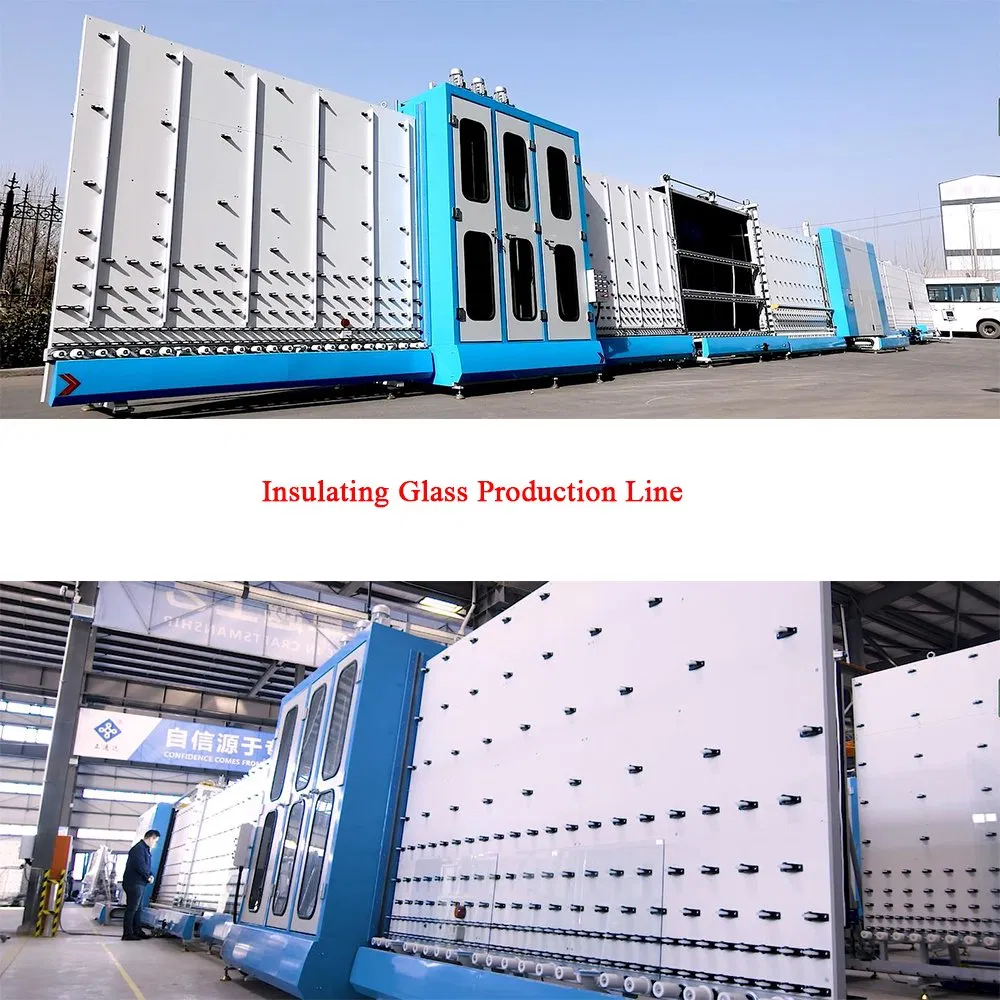

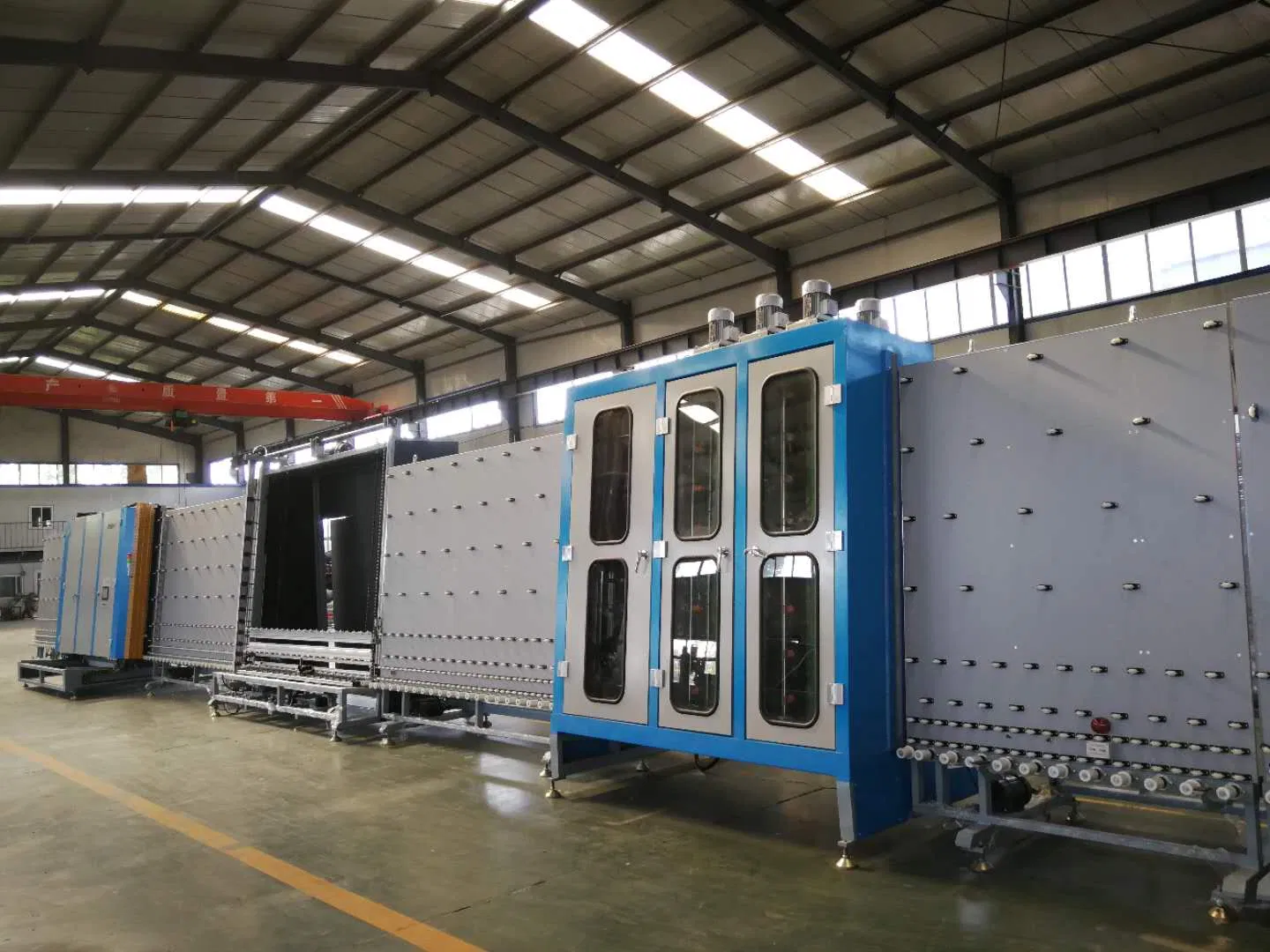

Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units (double glazing glass) production. This model applies for glass processing companies and windows & doors fabricators.
This line is composed of:
| Technical Data for LBP2500Q | |
|---|---|
| Max. processing glass size (mm) | 3600*2500 |
| Min. processing glass size (mm) | 450*200 |
| Single glass thickness (mm) | 3-15 |
| Max. Insulating glass thickness (mm) | 52 |
| Capacity (pc/h) | 110 |
| Washing speed (m/min) | 3-10 |
| Work speed (m/min) | 15-45 |
| Power supply | 3P, 380V, 50Hz | 10500 |
| Gas concentration | More than 90% |
| Outline dimension (mm) | 24600*2500*3680 |
Energy Saving: Stops automatically when no glass is on the loading table to save 30% power.
Worker Protection: Static state loading ensures production safety.

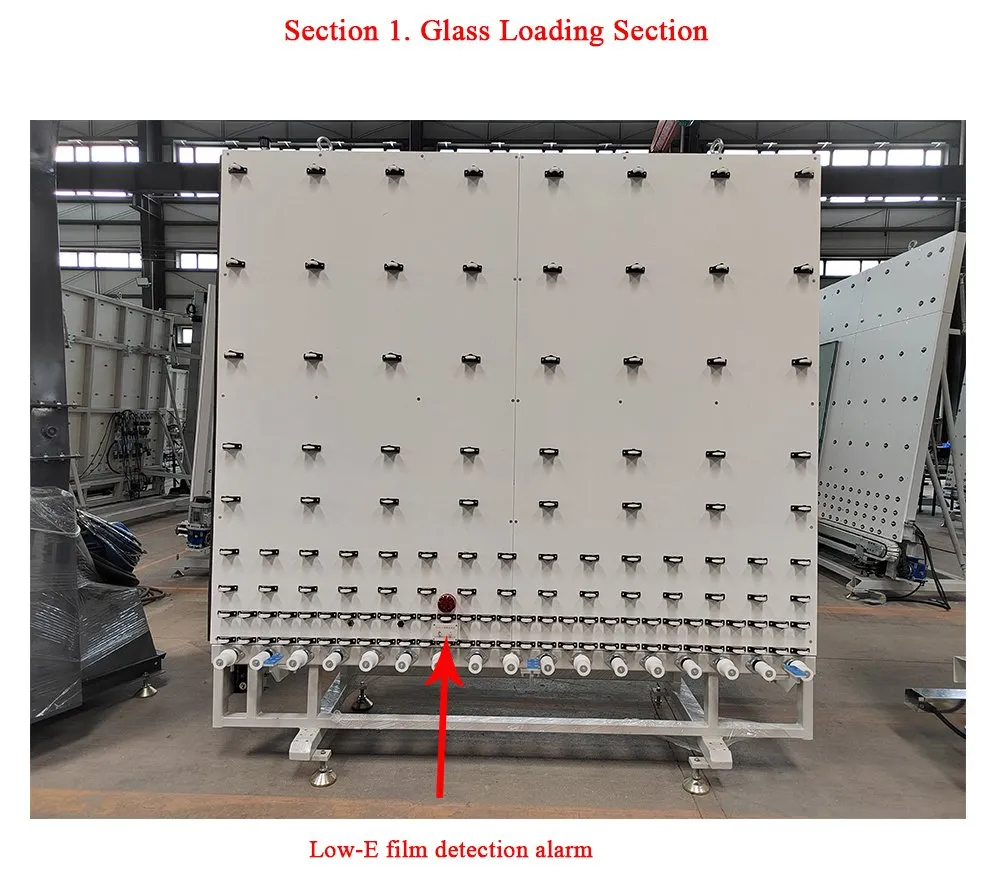

Low-E Detection: Automatically identifies the coating side of Low-E glass with an alarm.
Stainless Steel Material: 5mm thickness stainless steel ensures corrosion resistance and long life.

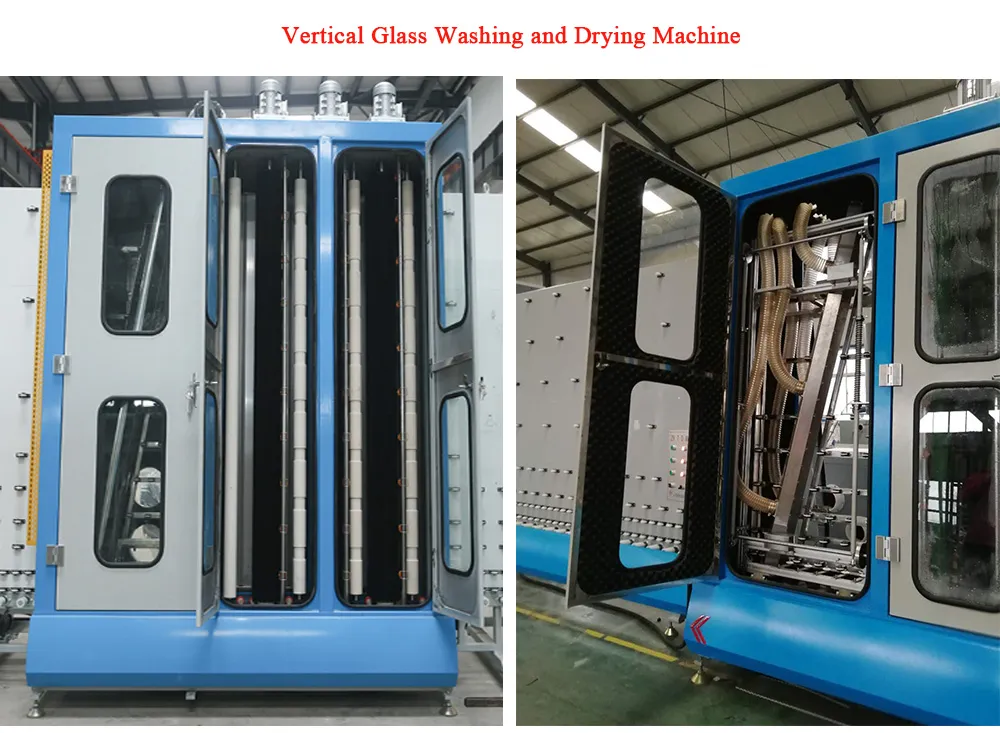

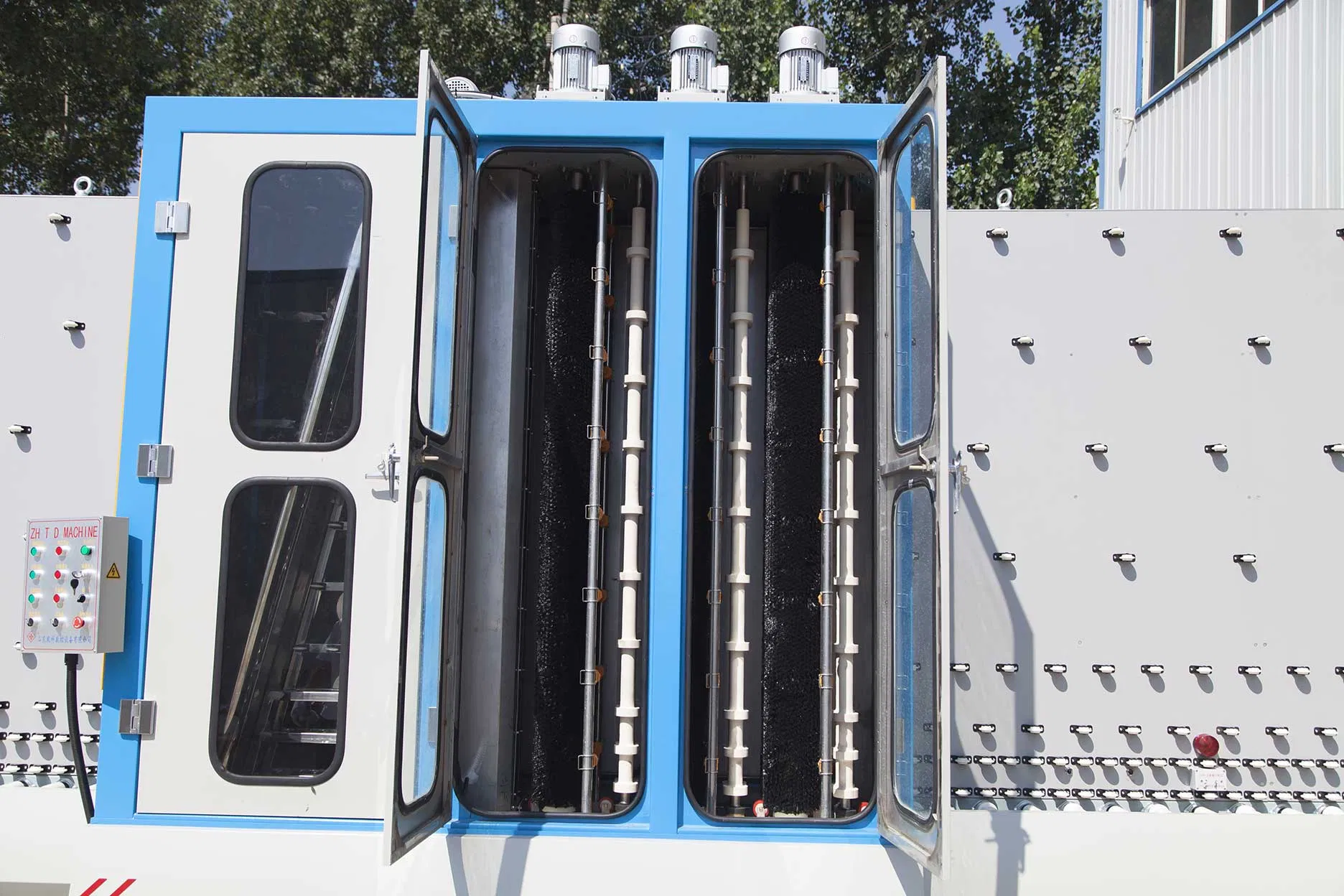

DuPont Bristles: 3 pairs of soft Nylon 610 brushes prevent scratches on Low-E film.
Small Glass Capability: Specially designed wheels allow processing of 400*200mm glass.
High Speed: Cleaning speeds reach up to 12.68 meters per minute.

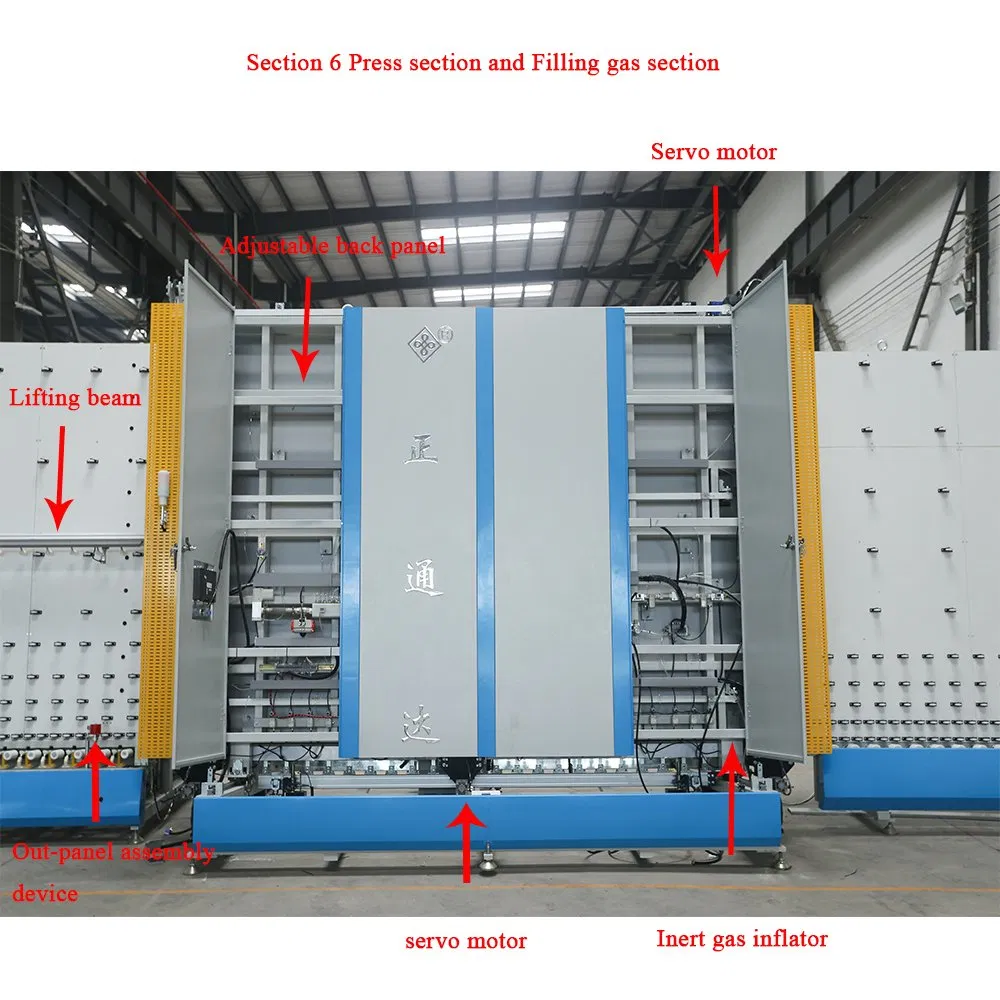

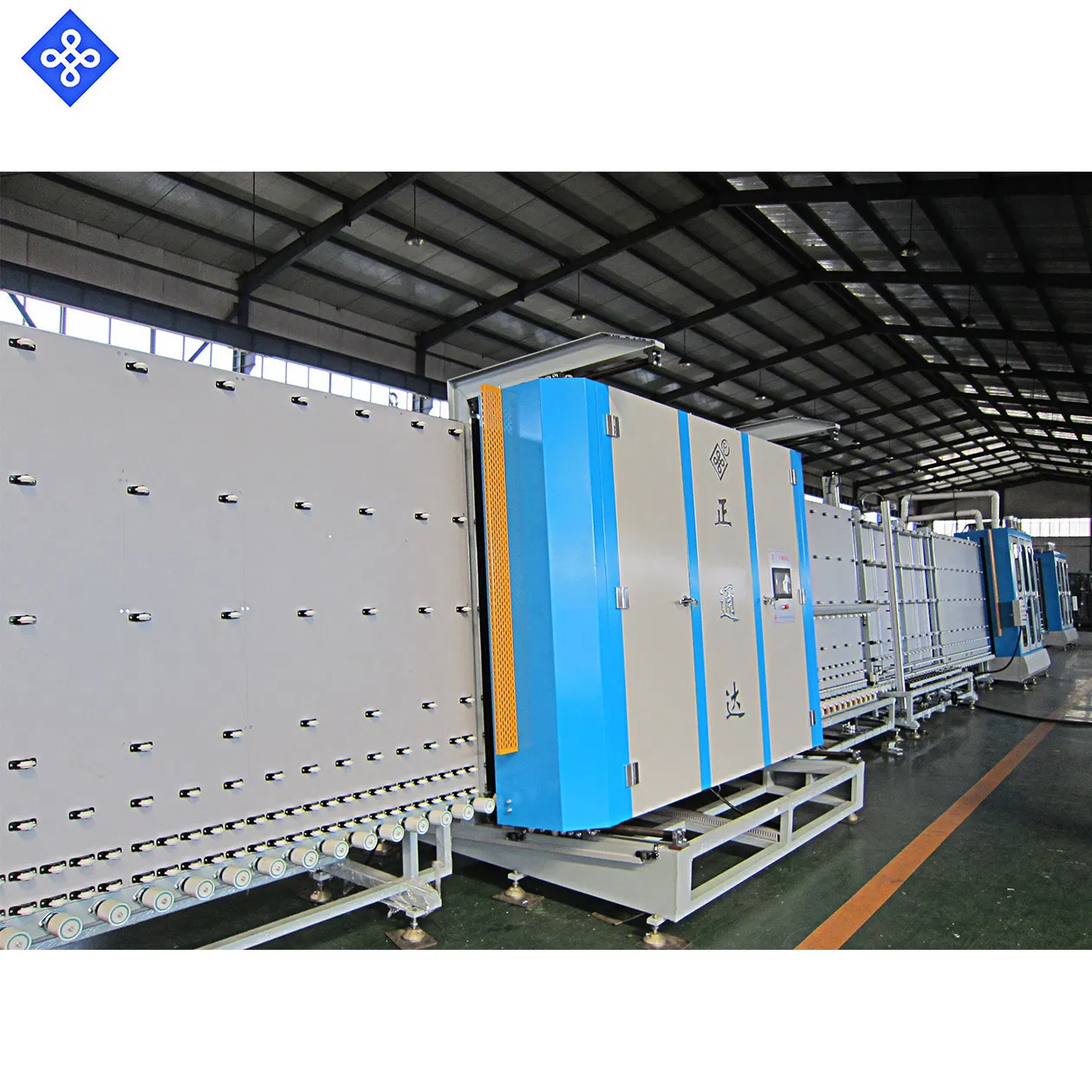

Stable Press Structure: Integrated vacuum generator with 60 suction cups for secure handling.
Servo Accuracy: Full servo control (positioning, bracket, roller) ensures no glass breakage or displacement.

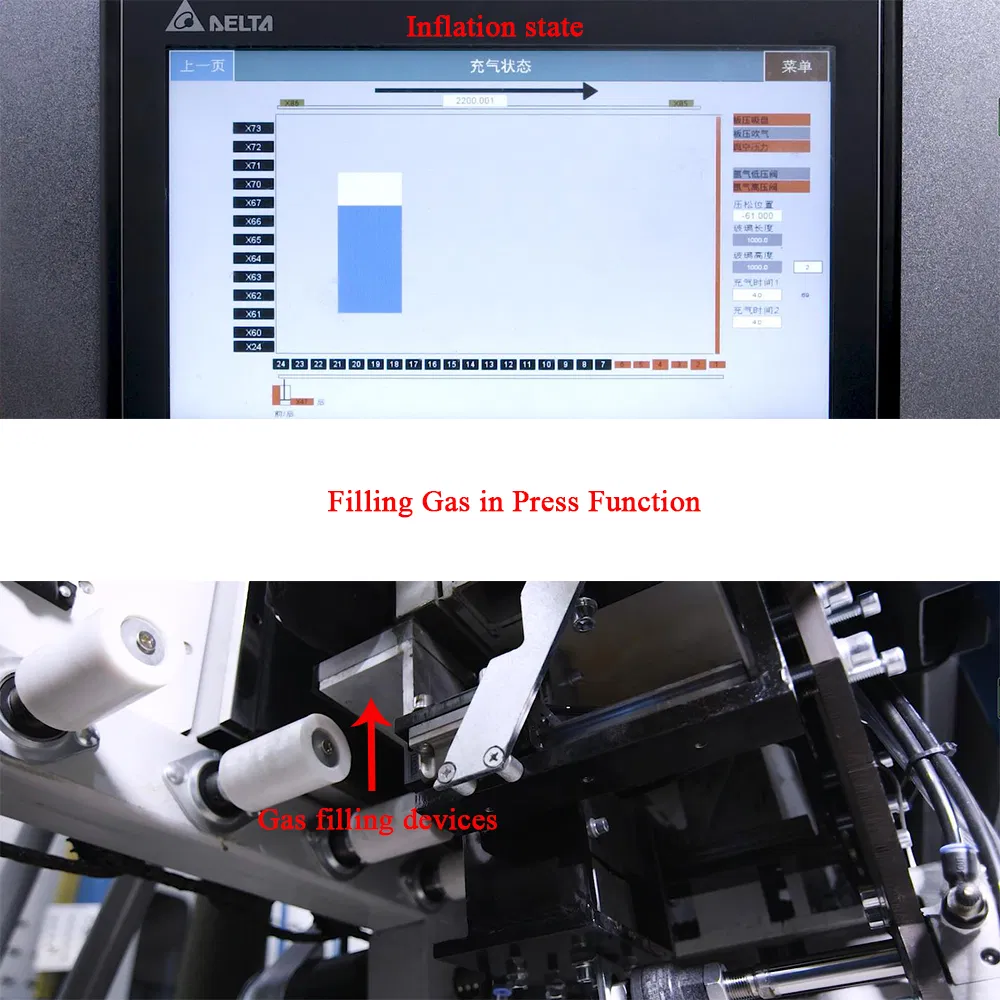

Gas Filling Efficiency: 23 gas valves allow selective inflation based on glass length, reaching concentration >92%.

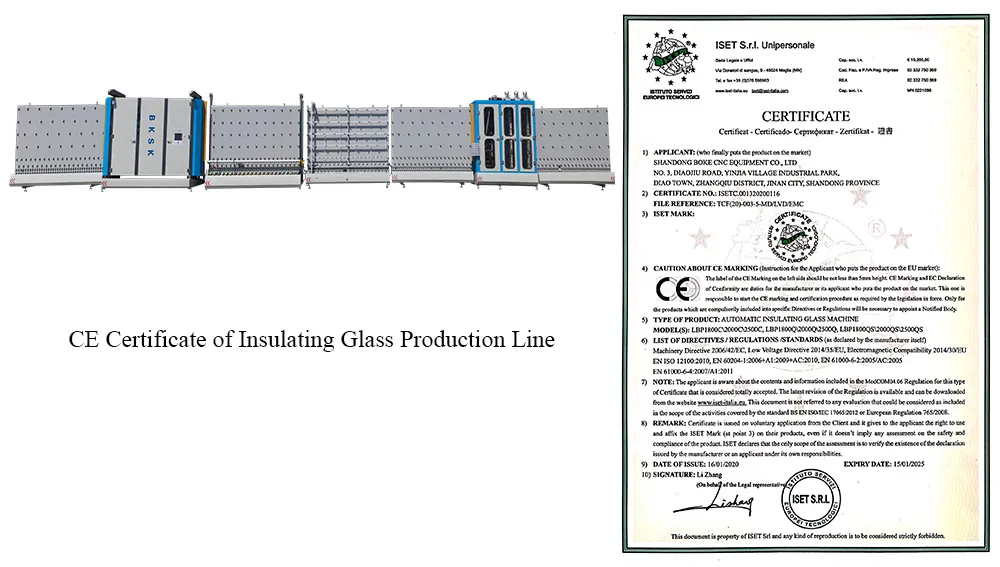

Our insulating glass production lines are fully CE certified, meeting international safety and quality standards.
