Customization: Available
Type: Volumetric Filling Machine
Automatic Grade: Automatic
Send Inquiry

Product Description

Automatic Small PET Glass Bottle Mineral Water / Soft Carbonated Beverage Drinks / Fruit Juice Hot Filling Bottling Making Equipment / Production Line Machine

Basic Specifications

Model NO.
CGF
Material Type
Liquid
Filling Valve Head
Multi-Head
Structure
Rotary
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging
Bottle (150ml-3000ml)
Material
SS304 / SS316
Capacity
2000bph to 20000bph
Electrics
Siemens, Mitsubishi, etc
Main Function
Juice/Water Machine
Production Capacity
150 machines/Year

System Flow Chart

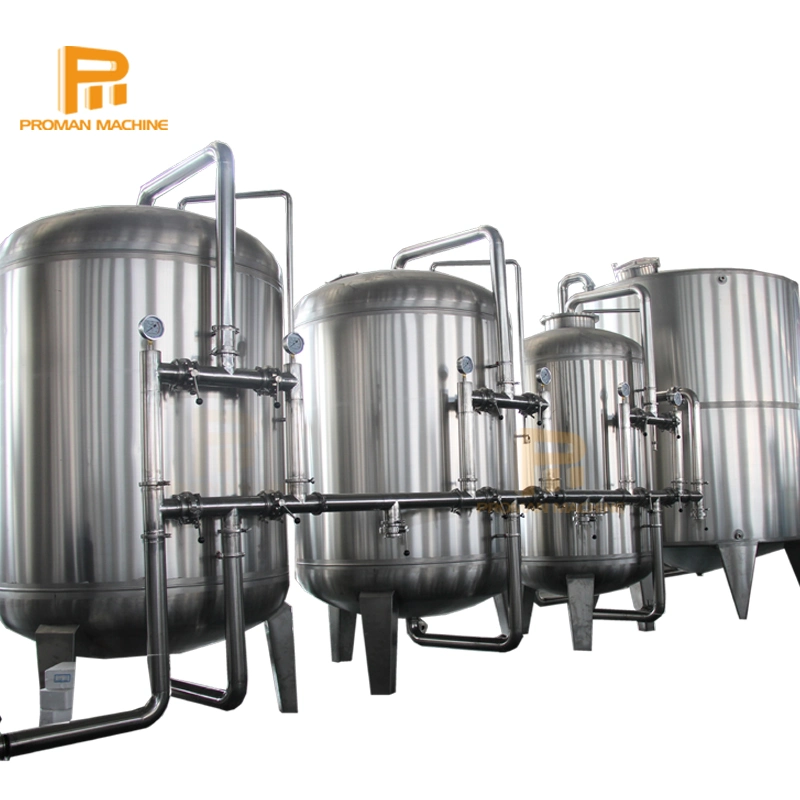

  • Water Purification: Source tank → Quartz sand filter → Active carbon filter → Ion soften → RO → Ozone sterilizer.
  • Juice/CSD Processing: High-shear emulsifying → Mixing tank → UHT sterilizer → Homogenizer → CIP cleaning.

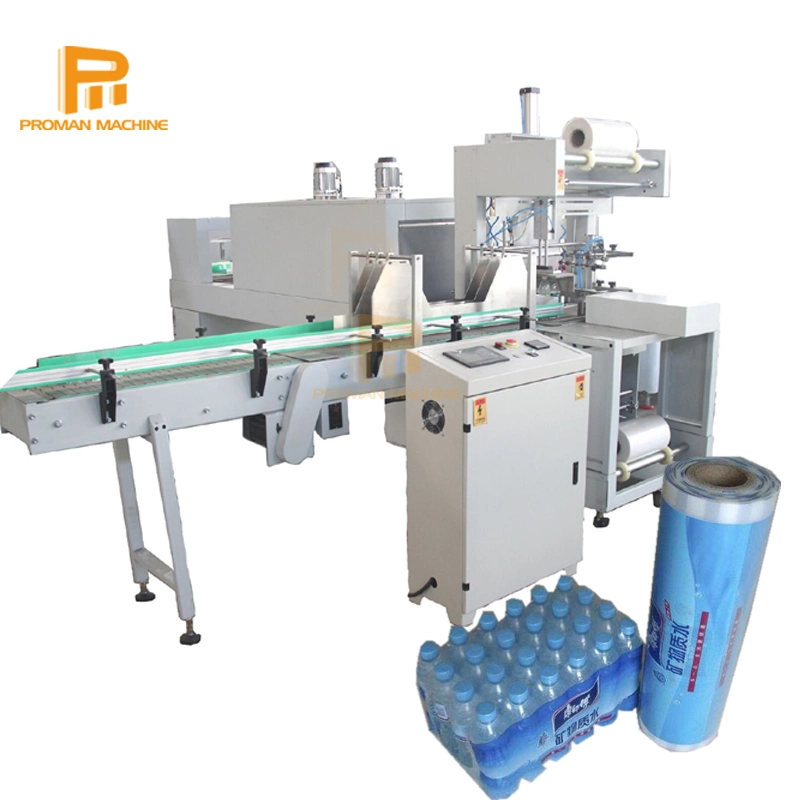

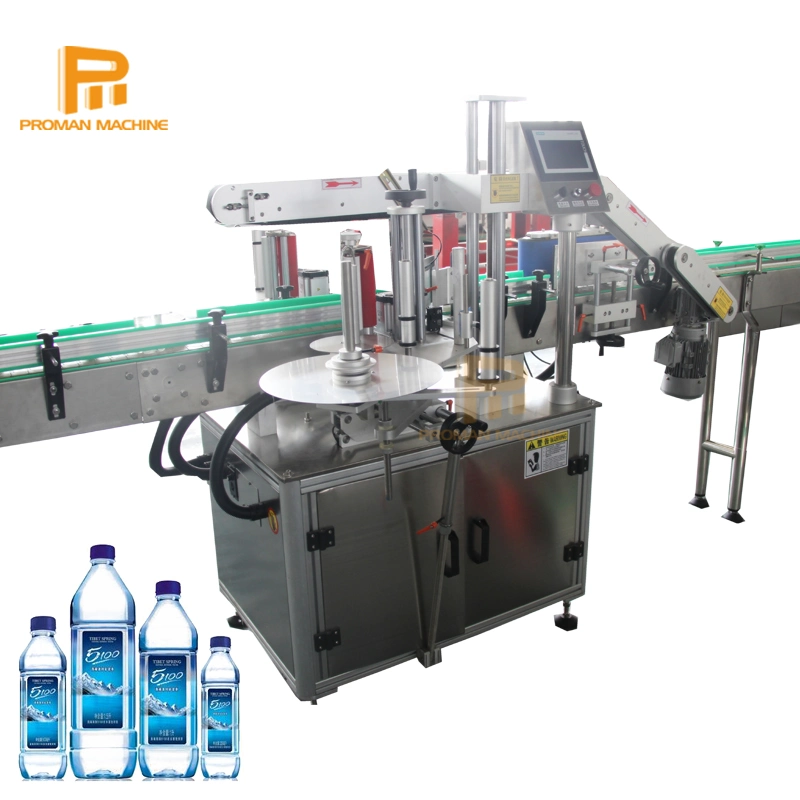

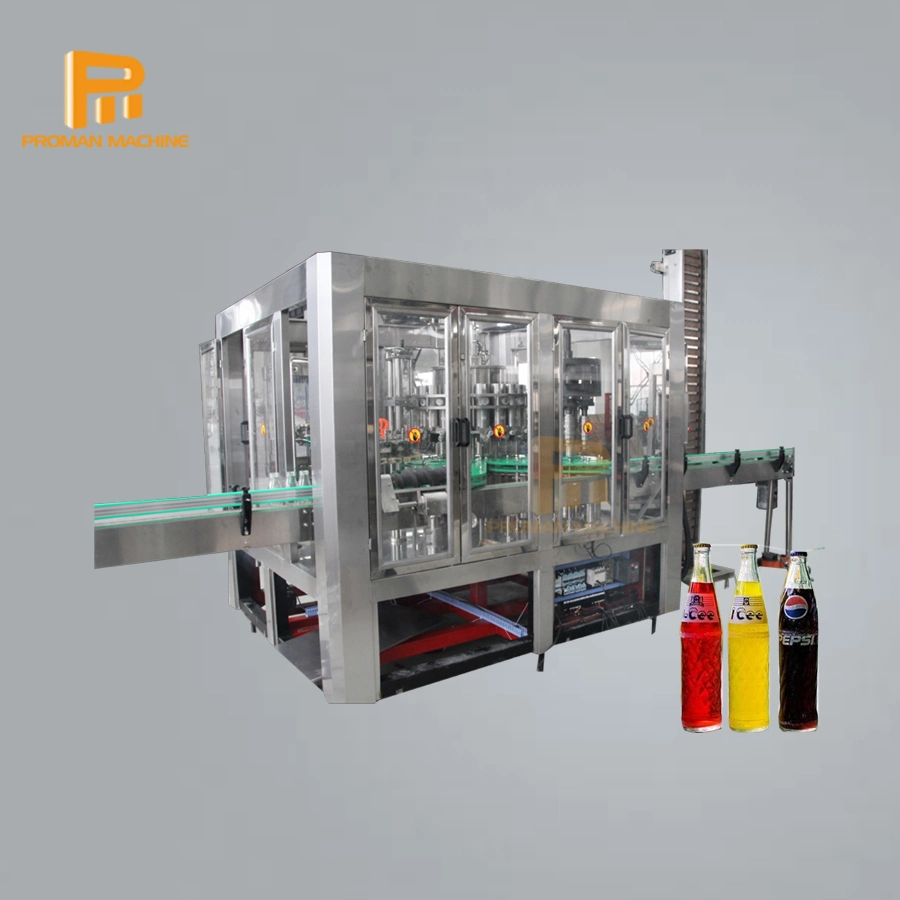

  • Filling & Packing: Bottle blower → Air conveyor → Washing/Filling/Capping 3-in-1 → Light check → Labeling → PE film packing.

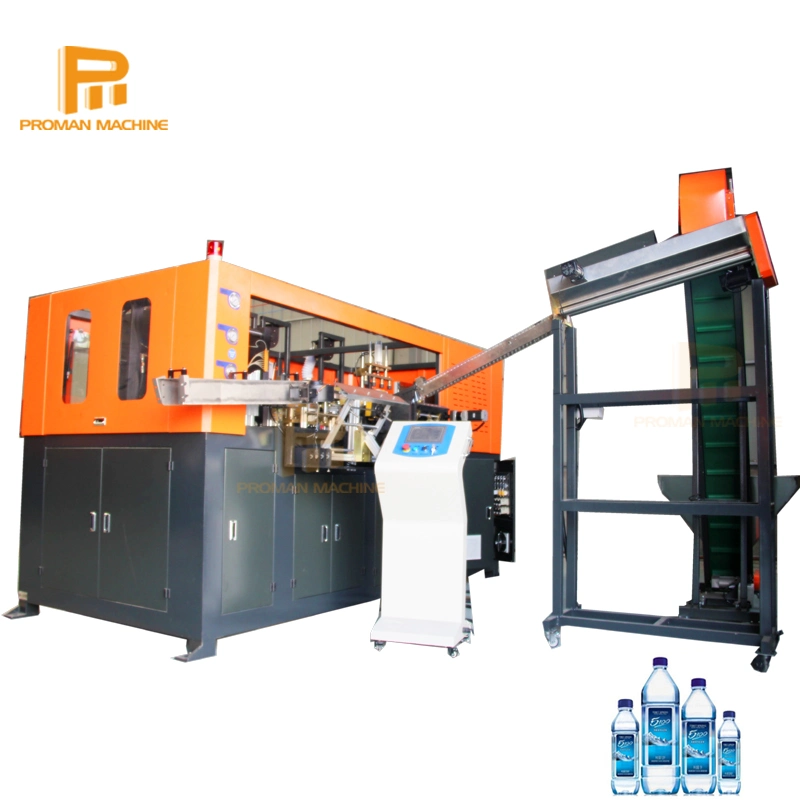

  • Bottle Making: Preform → Autoloader → Reheater → Molding.

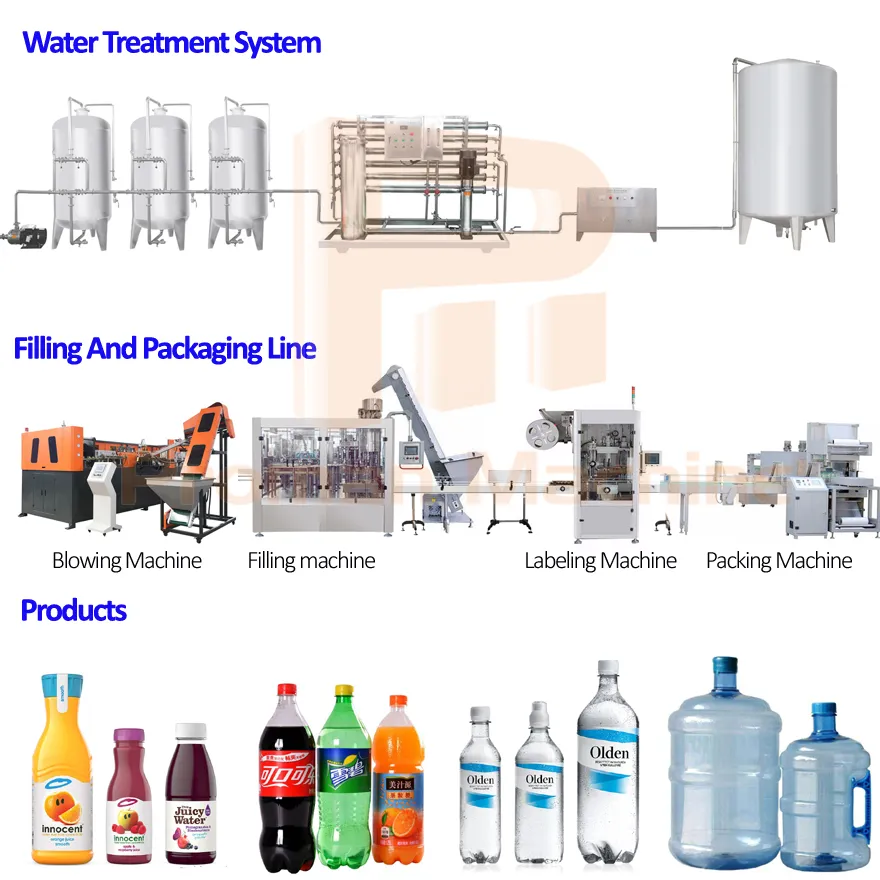

Flow Chart

Key Features

Washing System

  • 304 Stainless steel rinser heads
  • Water spray inject design saves water
  • Minimal bottle crash with plastic pad grippers

Filling System

  • High precision nozzles with PLC control
  • Adjustable filling volume, steady liquid level
  • No bottle, no filling safety mechanism

Capping System

  • Electromagnetic capping heads
  • Automatic stop when lack of bottles
  • Full 304 stainless steel construction

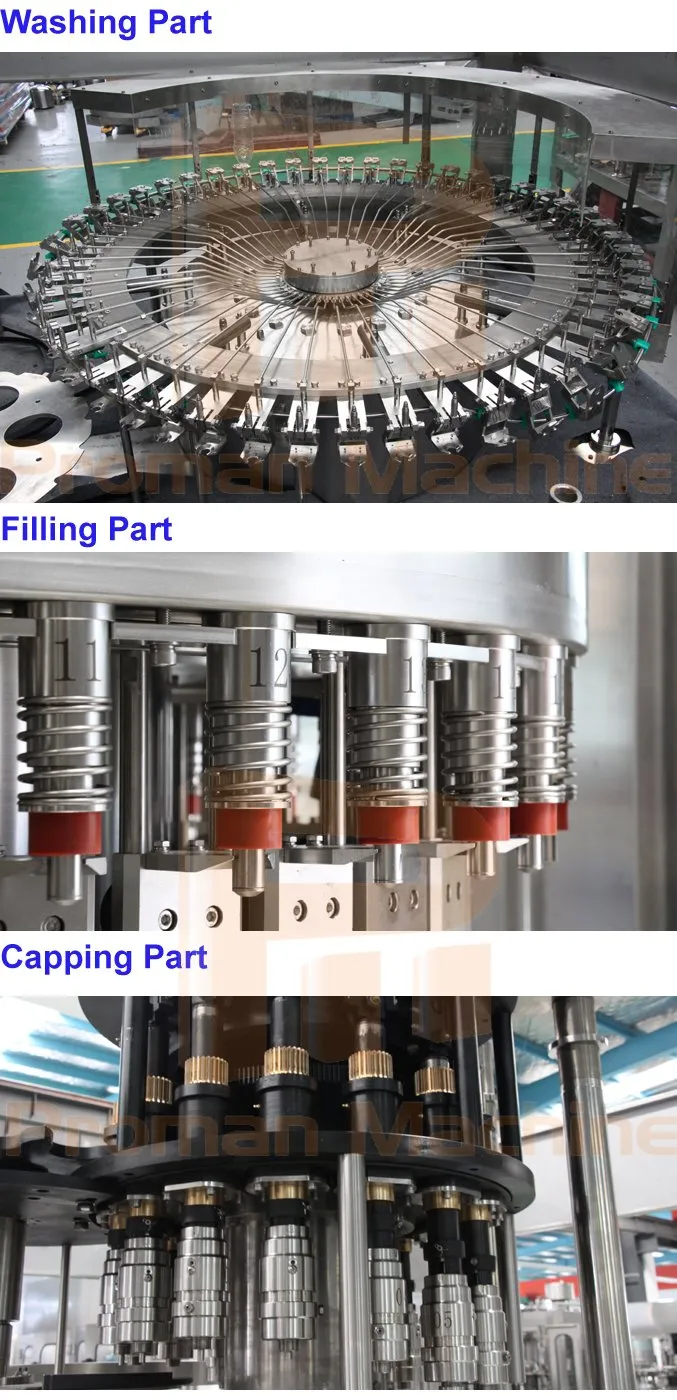

Machine Detail

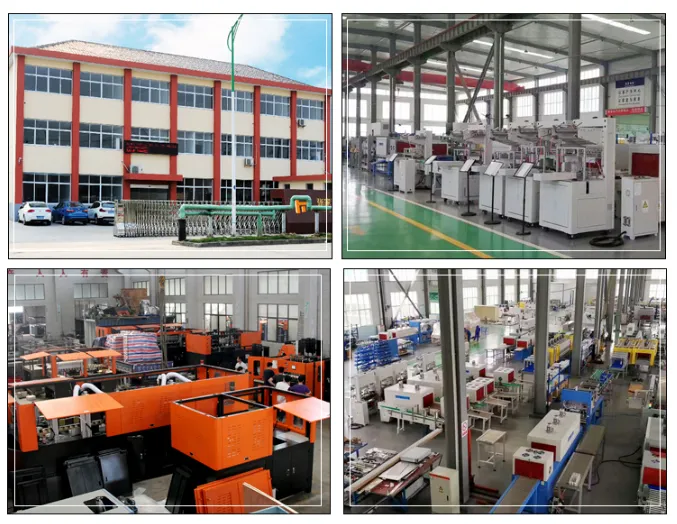

Factory Overview

Technical Parameters

Model CGF8-8-3 CGF18-18-6 CGF24-24-8 CGF40-40-12
Rinsing/Filling Heads 8/8 18/18 24/24 40/40
Capping Heads 3 6 8 12
Capacity (500ml) 1000-2000 6000-8000 8000-12000 16000-20000
Installed Power (KW) 3 4 4.8 8.3

Main Components

Part Name Specification/Brand
Touch ScreenSiemens
PLCSiemens
TransducerDelixi
Pneumatic ElementsAirtac
SensorsAutonics
Filling ValveHigh-Grade Stainless Steel
Equipment Display

Our Service Support

Installation & Training

Professional engineers provide onsite installation, operating manuals, and employee training until proficiency is achieved.

Customized Solutions

Machines designed according to material, power, filling type, and bottle requirements with professional industry suggestions.

After-Sales Guarantee

12 months guarantee and life-long technical support. 24-hour engineer response for all service inquiries.

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are an industrial manufacturer with over 18 years of experience in the beverage packaging machinery industry.
What is the production capacity of these machines?
The capacity ranges from 2,000 to 20,000 bottles per hour (BPH) depending on the specific model and bottle size (150ml-3000ml).
Do you provide technical support for international clients?
Yes, we have a professional team of engineers with extensive experience in international installation, debugging, and training.
What materials are used for the contact parts?
All liquid contact parts and tanks are made of high-quality SS304 or SS316 stainless steel with a fine polish for easy cleaning.
What is the warranty period for the machinery?
We provide a 12-month to two-year warranty with free exchange parts and life-long technical support.
Can the machine handle different bottle types?
Yes, the machine is versatile and can be customized to handle various PET and glass bottle sizes and shapes for water, juice, or carbonated drinks.
