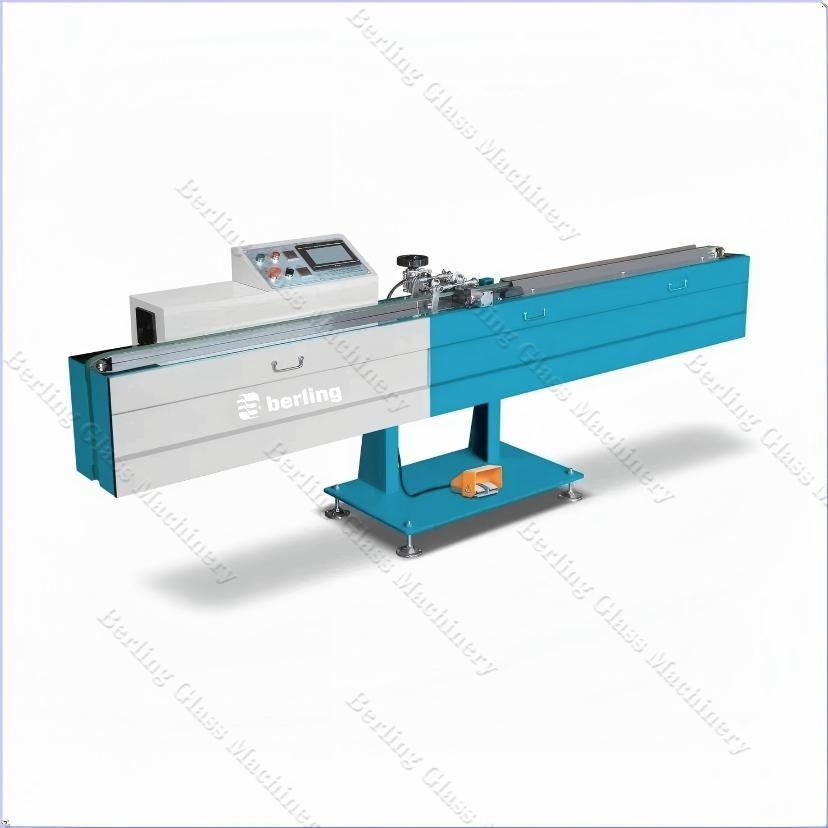

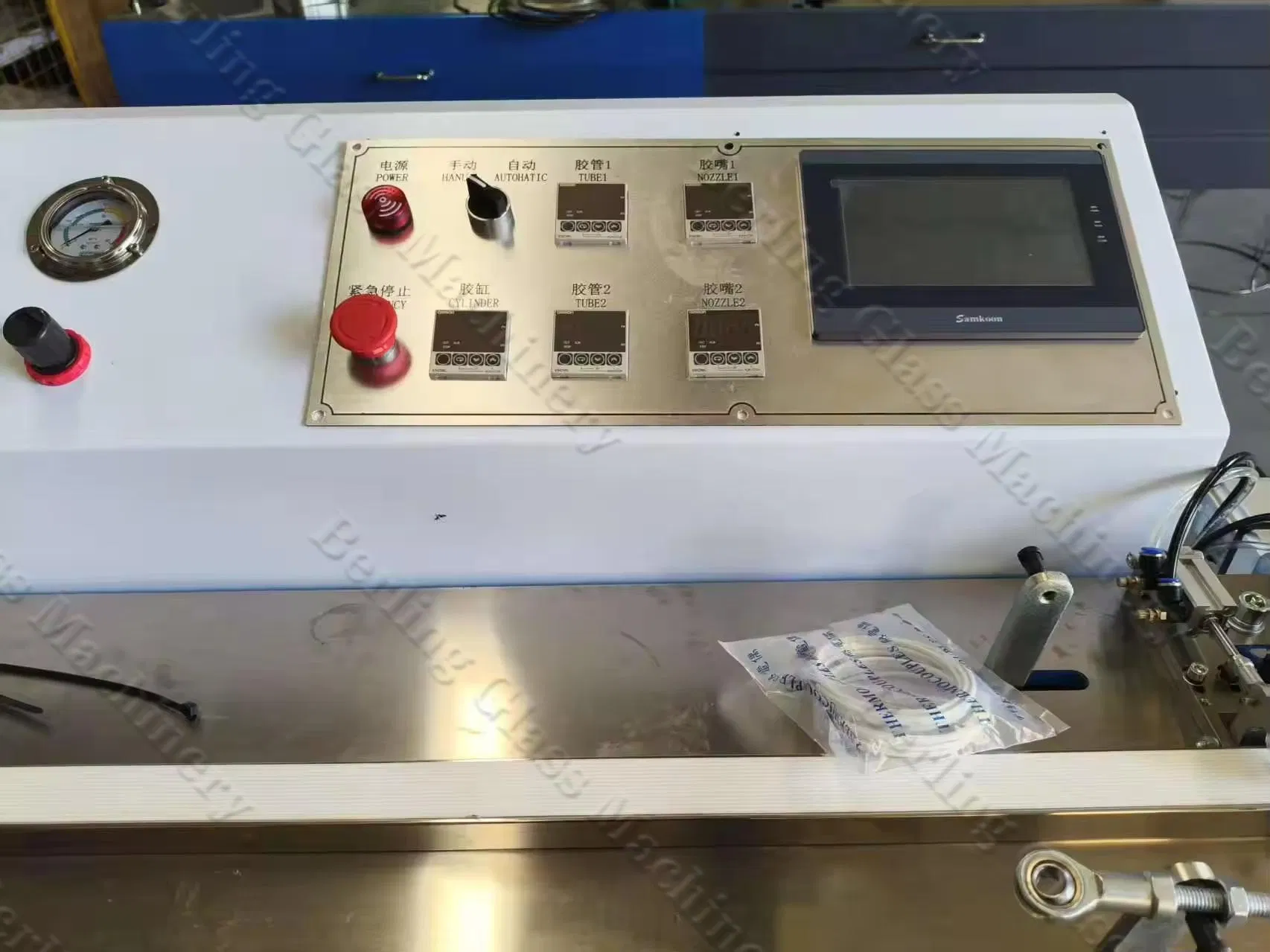

Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production
1 / 5
Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production
Automatic Butyl Extruder Machine for Insulating Glass Production

Automatic Butyl Extruder Machine for Insulating Glass Production

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

i

Basic Information

Model NO.
BLDJT-02
Glass Thickness
4-30mm
Total Power
4kw
Air Pressure
0.5~0.8MPa
Power Supply
220V/50Hz
Conveying Speed
18~40m/Min
Extruding Temperature
110~160ºC
Extruding Pressure
12~18MPa
Nozzle Adj. Range
6~27mm
Alu Strip Width
4~30mm
Bucket Capacity
14kg
Overall Dimension
3000*700*900mm
★

Product Description

Butyl Extruder Machine is specially designed for automatic application of butyl sealant on aluminum spacers in insulating glass production. With modular design and high-precision controls, it ensures uniform coating, energy efficiency, and reliable performance for large-scale IG unit manufacturing.

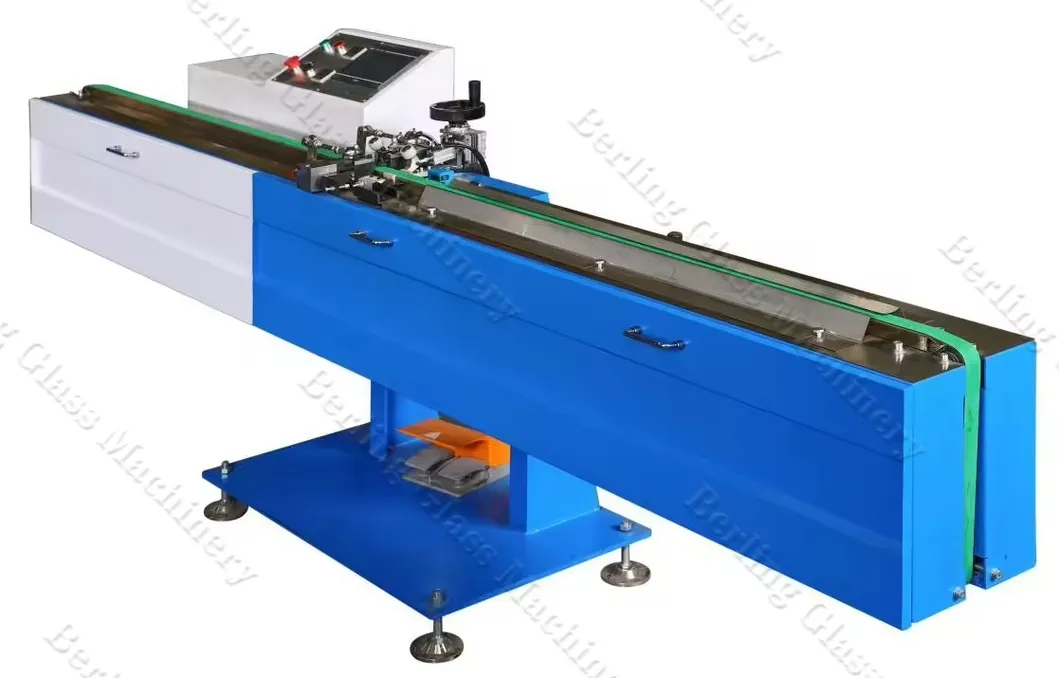

Automatic Butyl Extruder Machine
📋

Technical Specifications

Item BLDJT-02 BLDJT-03 (Semi-automatic)
Total Power4KW4KW
Air Pressure0.5~0.8Mpa0.5~0.8Mpa
Power Supply220V/50HZ220V/50HZ
Conveying Speed18~40m/min21m/min / 28m/min
Extruding Temp110~160ºC110~160ºC
Extruding Pressure12~18Mpa12~18Mpa
Nozzle Range6~27mm6~27mm
Bucket Capacity14kg14kg
⚙

Advantages & Features

Detailed View 1
  • Modular Structure - Simplifies maintenance and reduces downtime.
  • Stable Sealant Output - Uses advanced pneumatic-hydraulic pressurization for consistent glue performance.
  • Smart Temperature Control - Touchscreen operation with precise digital regulation.
  • 5-Speed Conveyor System - Adjustable transport speed for different production needs.
  • Real-Time Glue Monitoring - Integrated meter for sealant volume and early-warning alerts.
  • Auto Nozzle Adjustment - Automatically senses and adapts nozzle width for accurate positioning.
✔

Main Applications

  • Insulating Glass Unit (IGU) Manufacturing
  • Double Glazing Glass Production Lines
  • Aluminum Spacer Coating and Assembly
  • Thermal Glass Fabrication Workshops
  • Architectural and Safety Glass Processing Plants
  • Commercial Glass Curtain Wall Production

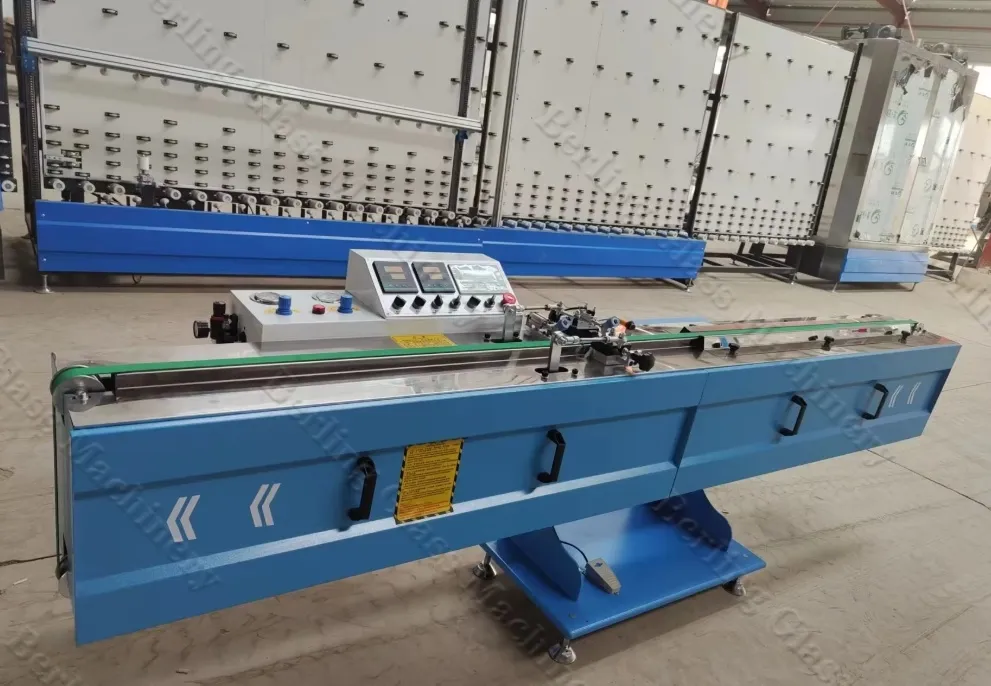

Application Image
📷

Product Gallery

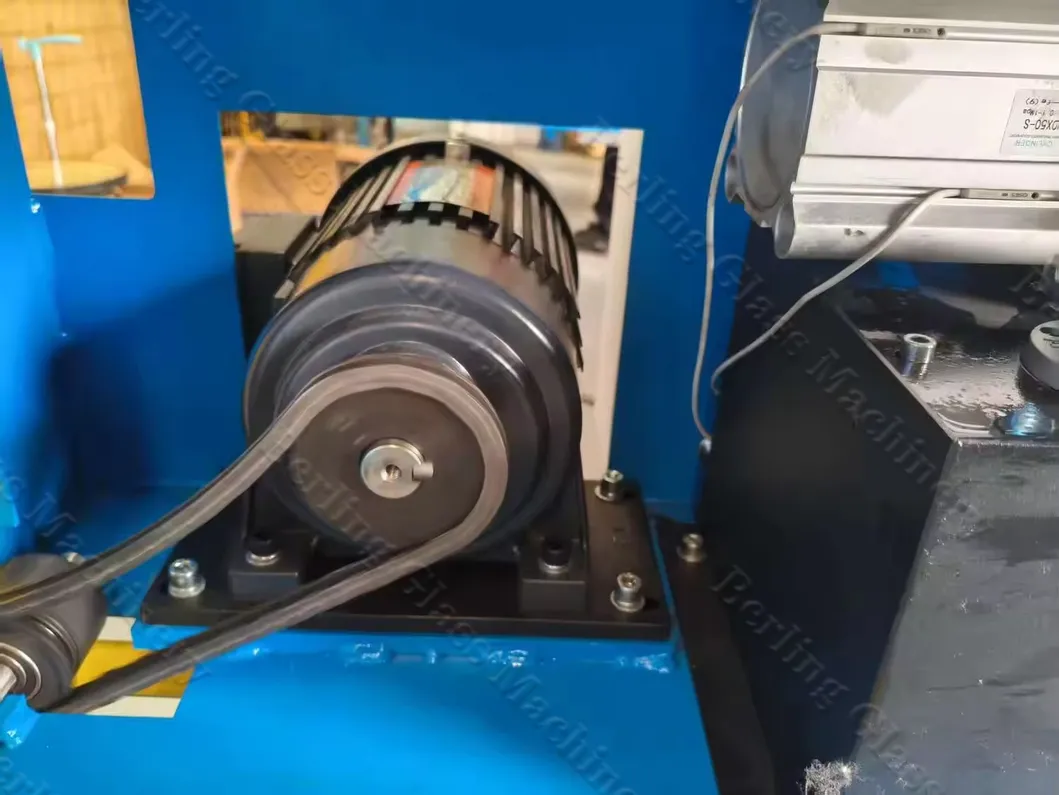

Machine Detail 1
Machine Detail 2

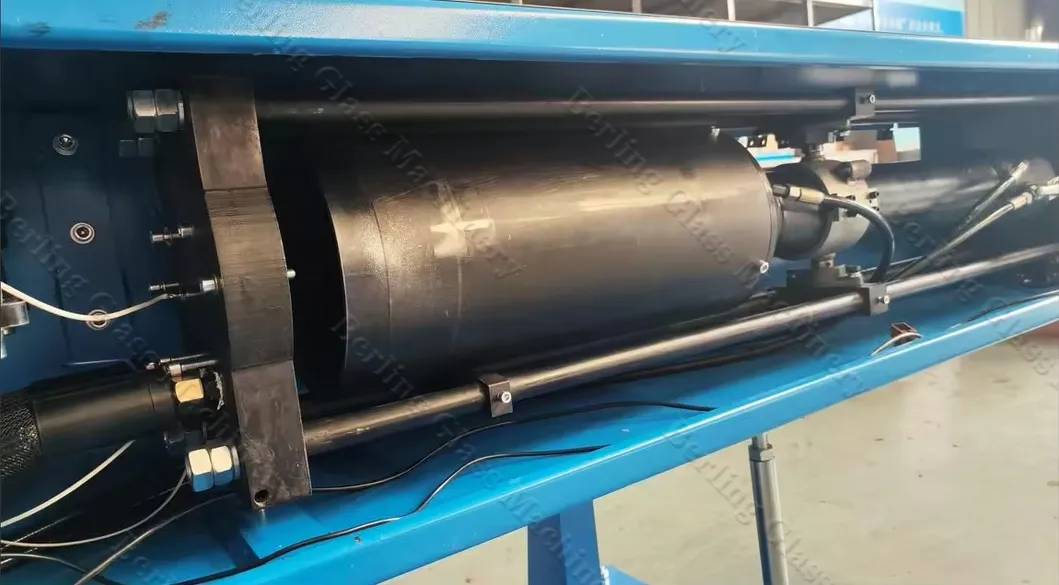

Machine Detail 3
📦

Packaging & Shipping

Packaging
📜

Certifications & Factory

Certifications
Factory 1
Factory 2
🛠

After-Sales Service

After Sales
?

Frequently Asked Questions

Q: How long is the delivery time?
A: It is 5-10 working days if the goods are in stock, and 30-45 working days if not. Delivery time is confirmed based on order quantity.
Q: Can you customize the machine?
A: Yes, we can customize machines to meet your specific requirements. Please provide your detailed technical needs.
Q: What kind of after-service do you provide?
A: We provide 24-hour online technical support and professional online training sessions.
Q: What is the warranty policy?
A: We provide a 1-year comprehensive warranty and lifetime technical service support for all our machines.
Q: How do we install the machines?
A: We provide detailed installation and debugging videos, along with circuit diagrams. Professional engineers can also be sent to your site for installation and staff training.
Q: What is the power supply requirement?
A: The standard power supply is 220V/50Hz, but this can be adjusted according to regional power standards if required.
