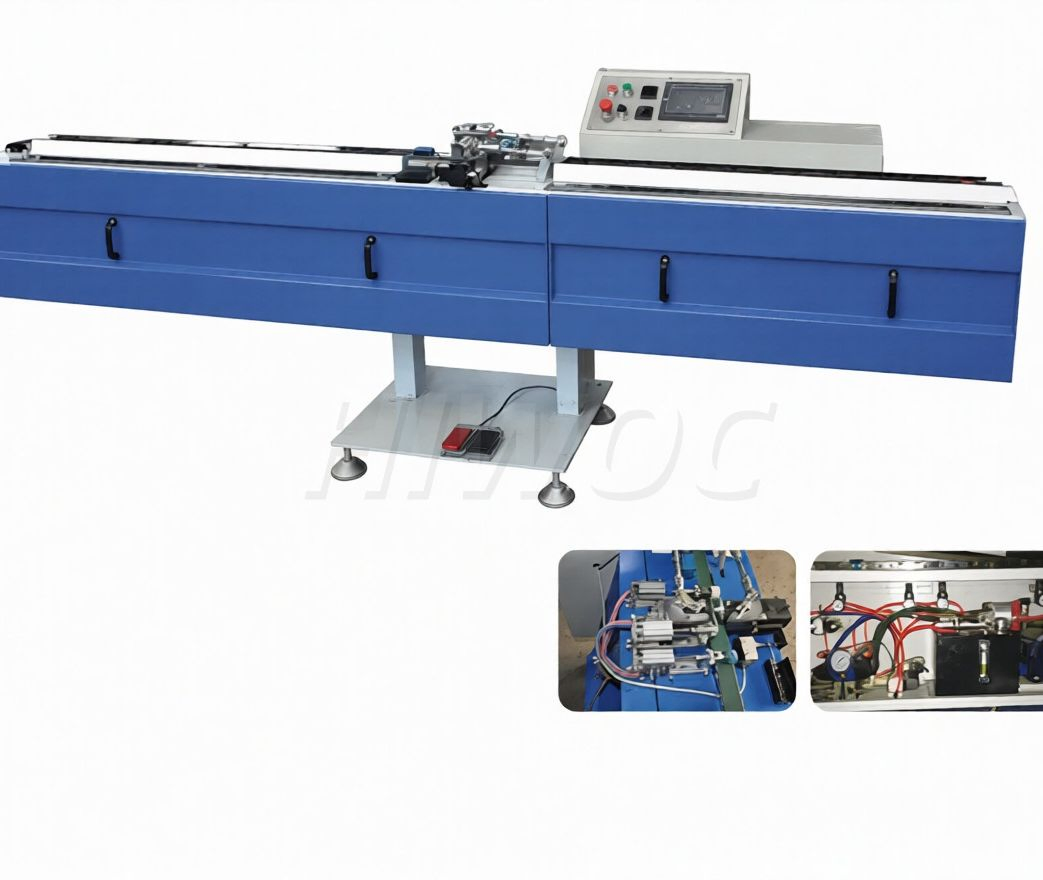

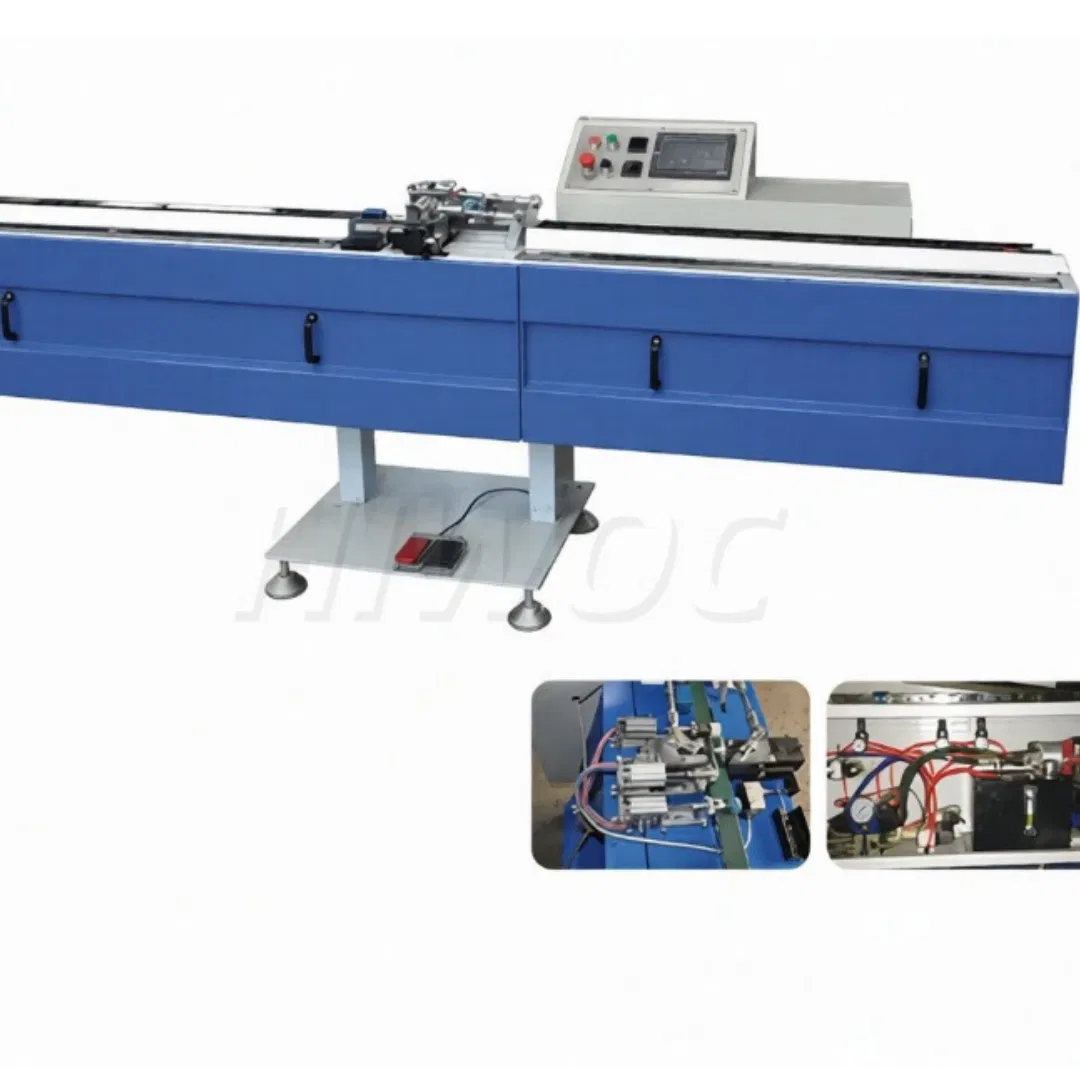

This machine is specialized for butyl sealant coating on two sides of aluminum spacer frames for insulating glass production. It supports both straight lines and arc shapes with automatic control of sealant temperature via PLC systems.
| Parameter | Value |
|---|---|
| Input Voltage | 380V 50Hz 3 Phases (Customizable) |
| Input Power | 3.75KW |
| Air Supply Pressure | 0.5-0.8Mpa |
| Air Consumption | 0.8m³/min |
| Glue Air Pressure Ratio | 60L/min |
| Extrusion Temperature | 110-160℃ |
| Glue Head Adjustable Range | 6-25mm |
| Glue Jar Capacity | 2-8kg |
| Conveyor Speed | 18m/min |
| Oversize Dimension | 3430*700*1250mm |
| Gross Weight | 880KG |
We specialize in the production of high-performance machinery including UPVC window door machines, aluminum window door machines, curtain wall making machines, and insulating glass equipment. Our operations integrate research, development, production, and maintenance services to provide a comprehensive solution for glass processing.
Since starting our dedicated export operations in 2018, our products have reached 35 countries, earning a strong reputation for high-quality standards and reliable after-sales support.
