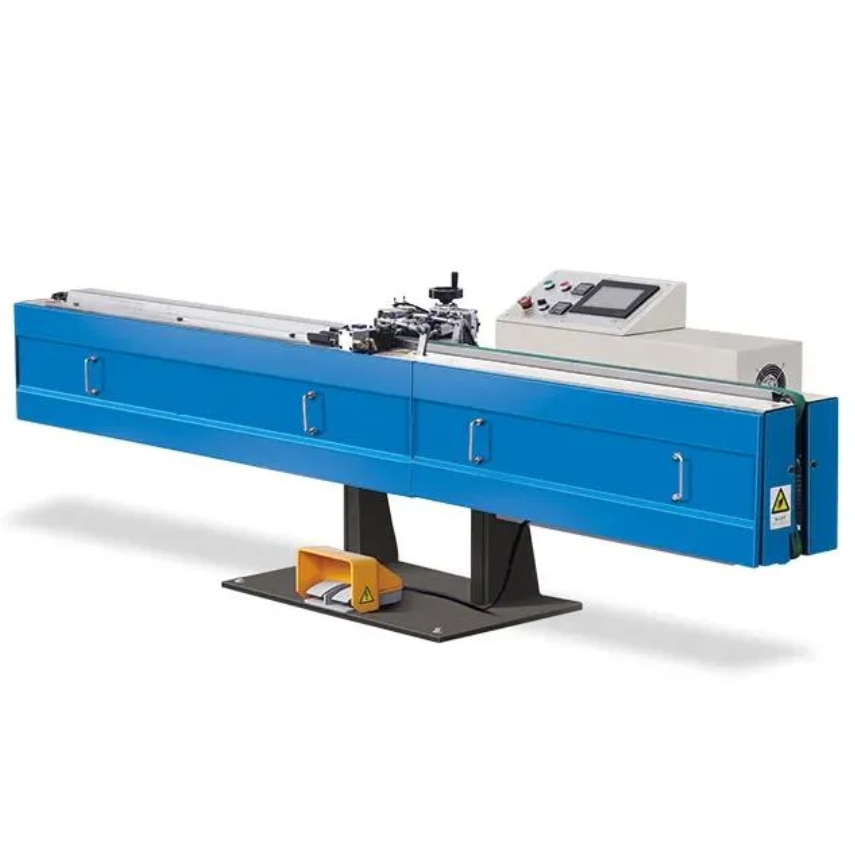

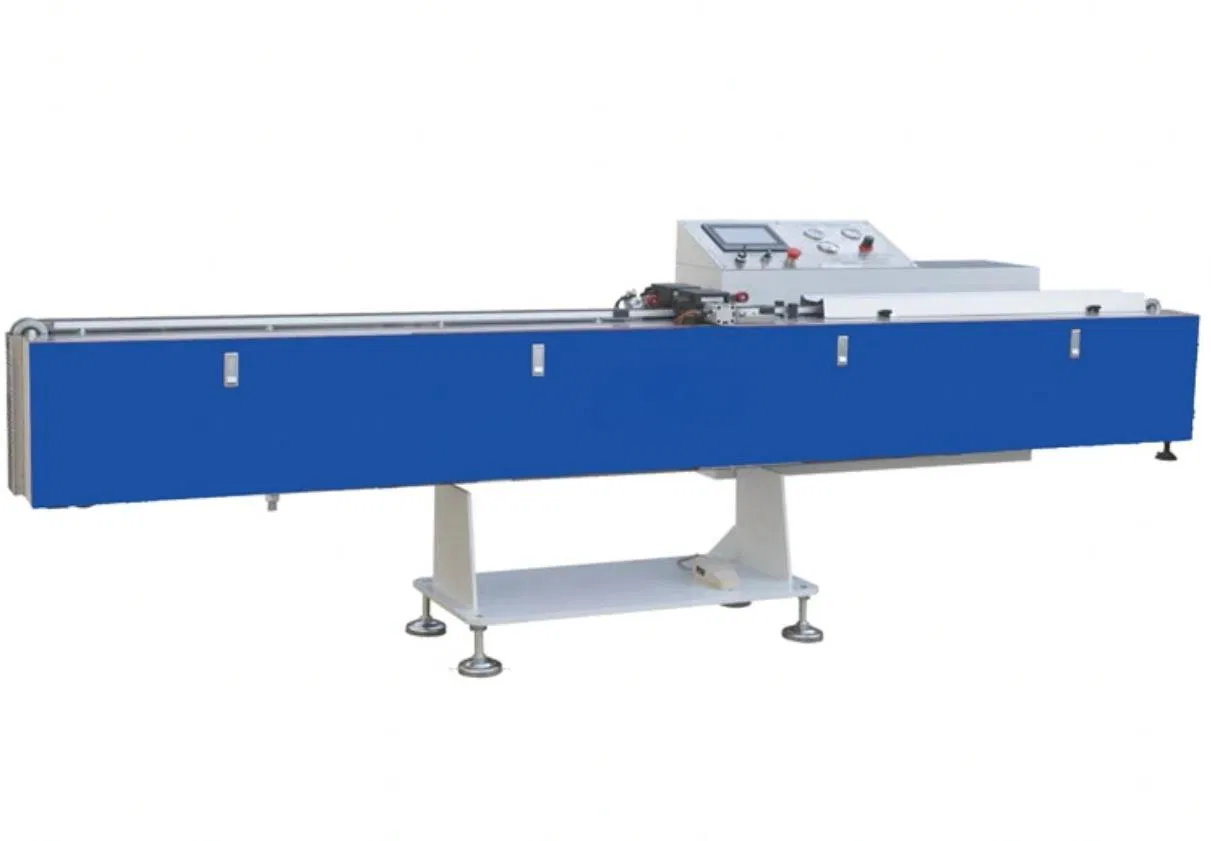

Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China
1 / 5
Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China
Automatic Butyl Extruder Machine From China

Automatic Butyl Extruder Machine From China

Customization: Available
Certification: CE, ISO
Control System: PLC
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
DJT02
Glass Thickness
8-40 mm
Type
Insulating Glass Production Line
Structure
Horizontal
Washing Machine Type
Ultrasonic Glass Washing Machine
Edging Machine Type
Glass Double Edging Machine
Grinding Head Number
20
Condition
New
Warranty
12 Months
Glue Pressure
12-18MPa
Glue Speed
18-40m/Min
Air Source
0.6MPa
Package
Plywood Box
Specification
3000× 550× 950mm
Origin
China
Capacity
5000 sets/Year
⚙️

Product Description

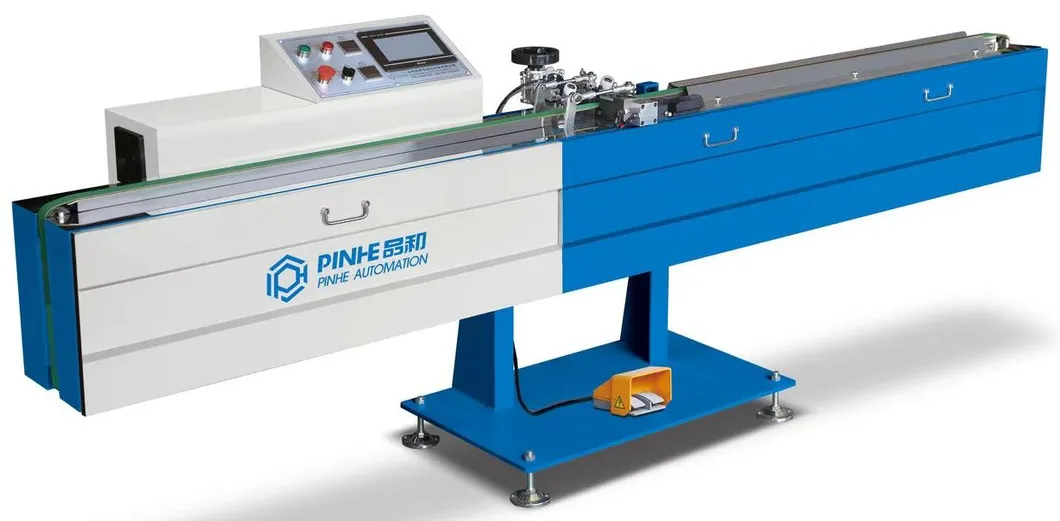

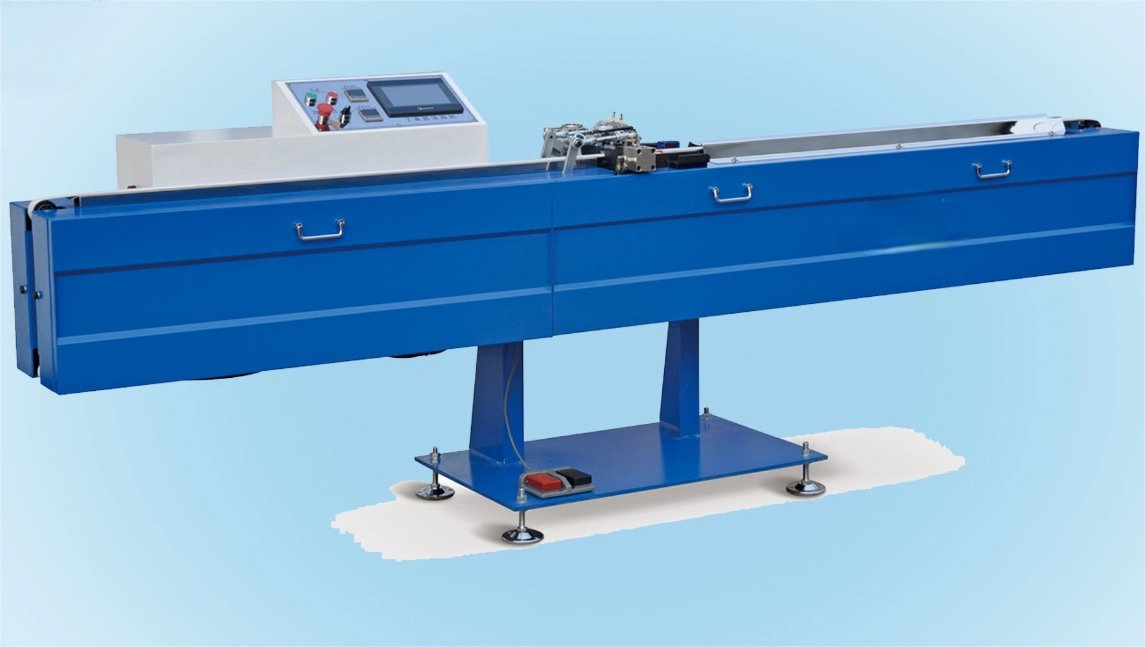

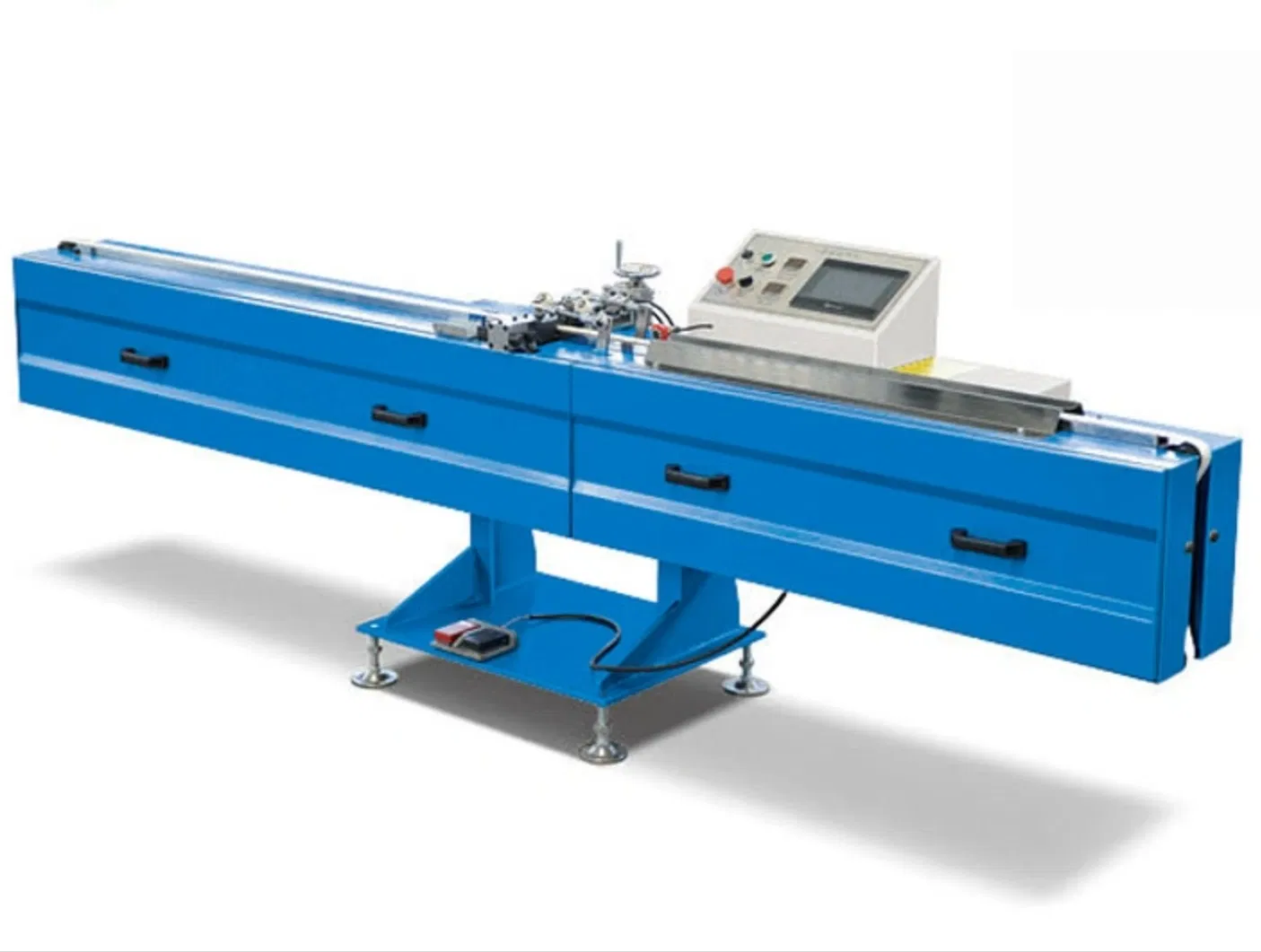

Insulating Glass Machinery Butyle Extruder Machine
Modular overall structure with low failure rate and easy maintenance.
Advanced gas-liquid pressurization technology for stable rubber output performance.
Imported temperature control module for high accuracy and uniform glue output.
Adjustable five-level variable transfer speed (5-55M / Min).
Automatic induction for mouth width and quick positioning.
Large capacity rubber bucket (Max amount of butyl glue is 14 KG).
Convenient outer pendulum type rubber bucket for fast glue filling.
Optional circular arc pressure wheel and rubber function.
Regular start heating feature to save waiting time.
Pressure regulator device in oil pump to ensure stability and continuous glue.
Hand turn valve structure for fine tuning, processing up to 32mm wide parting beads.
Stainless steel operating table for cleanliness and easy maintenance.
Five segment speed independent parameters with automatic glue matching.
Glue saving design: 6.6 grams per meter (double-sided) with leak-proof high temperature resistant sealing.
📊

Technical Parameters

ParameterSpecification
Supply source380V 50Hz
Total power3 KW
Squeeze glue pressure12-18Mpa
Transporting velocity18-40m/min
Glue pressure0.6Mpa
Outline dimension3000×550×950mm
🛠️

Main Components Configuration

No.Main UnitBrandCountry/Region
1PLCPanasonicJapan
2Touch screenBuke / NylonChina
3Frequency transformerENCChina
4Air-liquid booster pump motorAIRTACTaiwan, China
5Hydraulic solenoid valveOil researchJapan
6Air cylinderSMCJapan
7Low-voltage apparatusSchneiderFrance
8Pneumatic componentAIRTACTaiwan, China
9Switching Mode Power SupplyMing weiTaiwan, China
📷

Detailed Photos

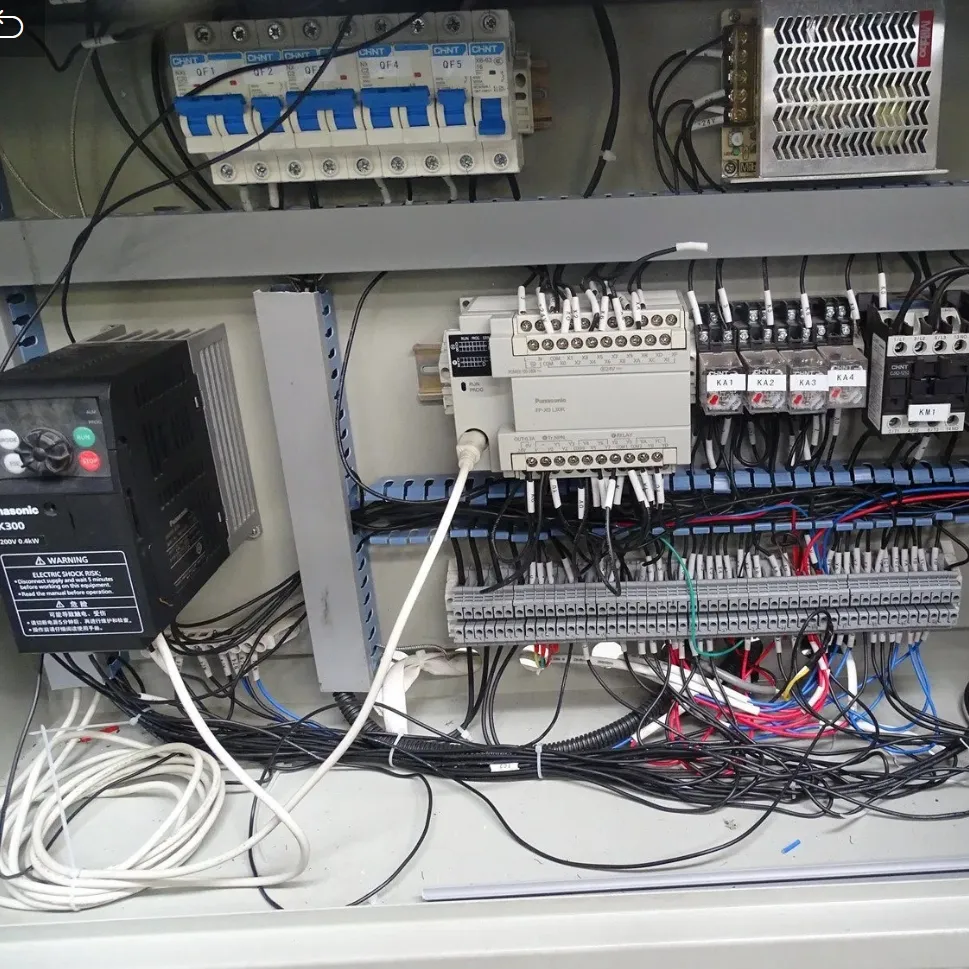

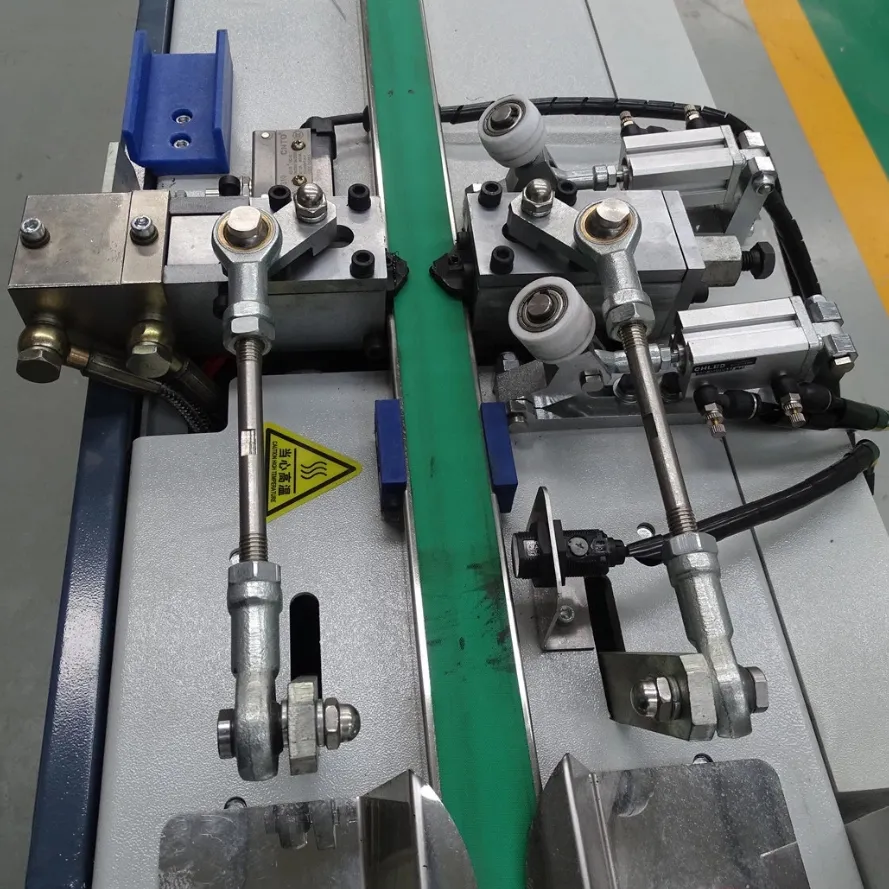

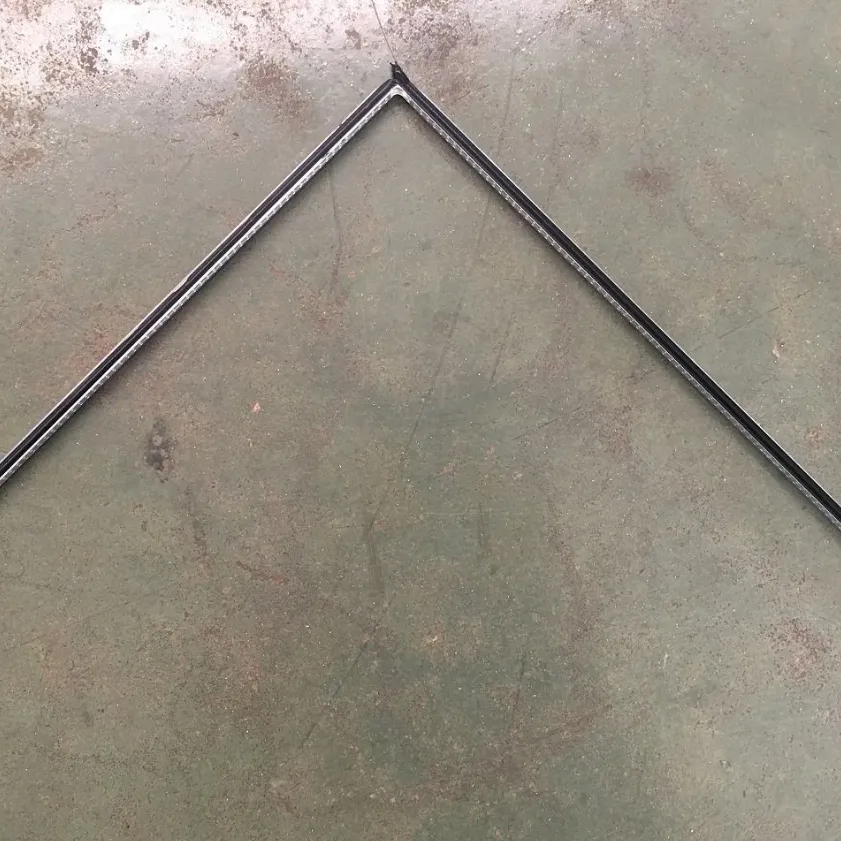

Detailed View 1 Detailed View 2 Detailed View 3
🔄

Related Products Range

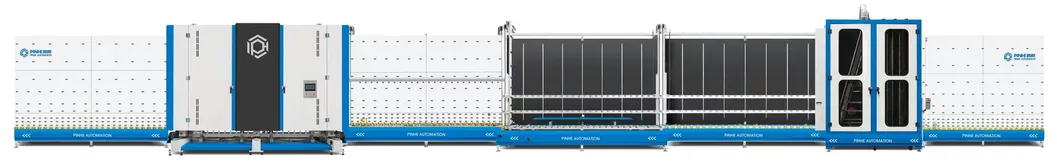

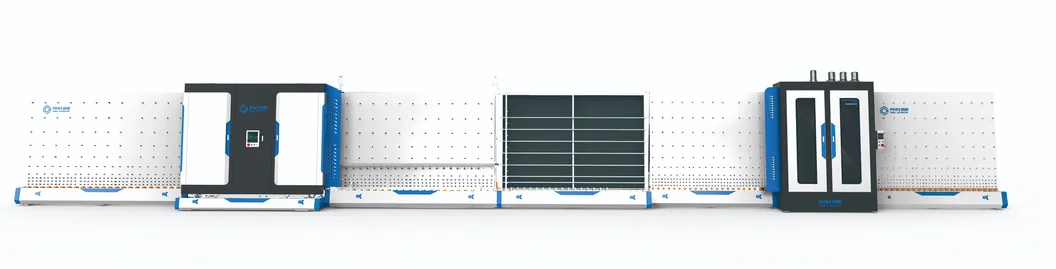

Related Range 1 Related Range 2
  • Suitable for the first seal of insulating glass aluminium spacer.
  • Real-time instrument display of glue quantity with early warning.
  • Adjustable rubber nozzle width (4-30mm aluminium strips).
  • Automatic refueling system for labor-saving operation.
🏢

Industry Profile

Production Facility

Leading single source provider of high-quality flat glass processing machinery, service, and supplies. Specializing in innovative and reliable equipment for fabricating, handling, and processing flat glass. Each machine is characterized by innovative features, long-lasting durability, and high reliability.

As a partner for glass processing solutions, we offer an extensive range of machinery for the glass industry, including integrated units for insulated glass units, window and door fabrication, and façade manufacture.

Product Categories
❓

Frequently Asked Questions (FAQ)

What glass thickness can this machine handle?
The DJT02 model is compatible with glass thicknesses ranging from 8mm to 40mm.
What is the maximum capacity for butyl glue?
The machine features a large capacity rubber bucket that can hold a maximum of 14 KG of butyl glue.
What is the processing speed of the extruder?
It offers a five-level adjustable transfer speed ranging from 5 to 55 meters per minute.
How does the machine ensure uniform glue application?
It utilizes an imported temperature control module and advanced gas-liquid pressurization technology to maintain high accuracy and stability.
Is the machine easy to maintain?
Yes, the overall structure is modular, which results in a low failure rate and makes it very easy to repair and maintain.
What are the main electrical components used?
The machine integrates high-quality parts including Panasonic PLCs, SMC air cylinders, and Schneider low-voltage apparatus.
