Basic Information
Space Width
6mm, 9mm, 12mm, 16mm, 19mm
Squeeze Pressure
12-18 MPa
Type
Insulating Glass Production Line
Production Capacity
100pieces/Year
Specification
3200(L)700(W)*1050(H)mm
Key Features

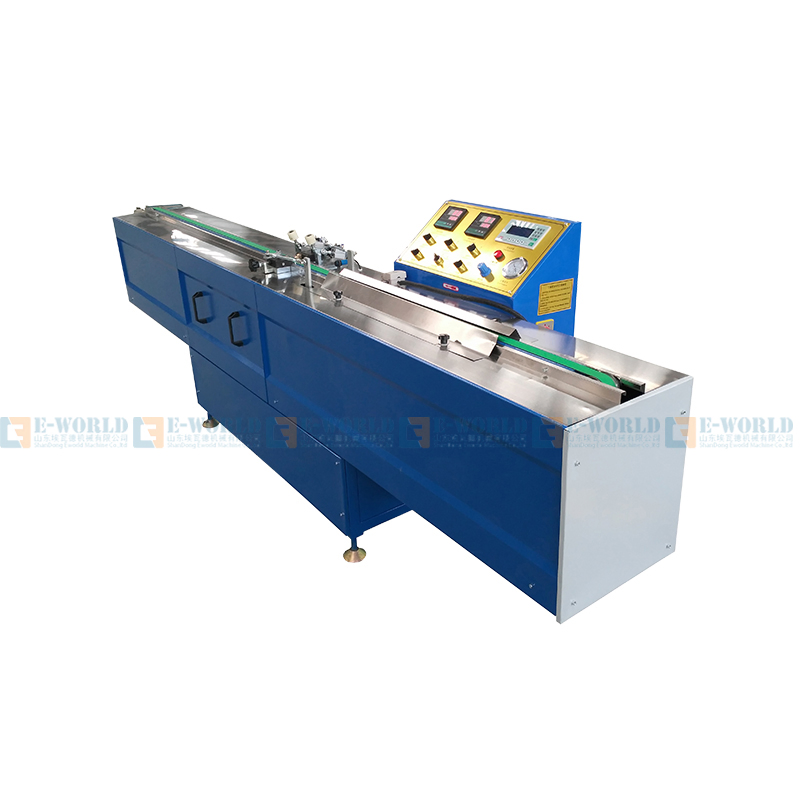

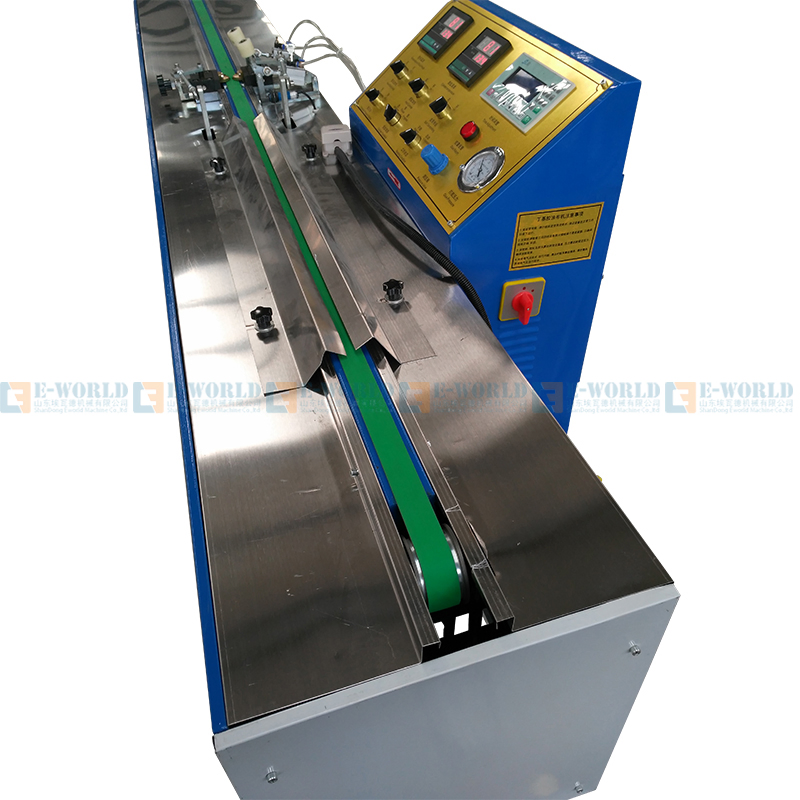

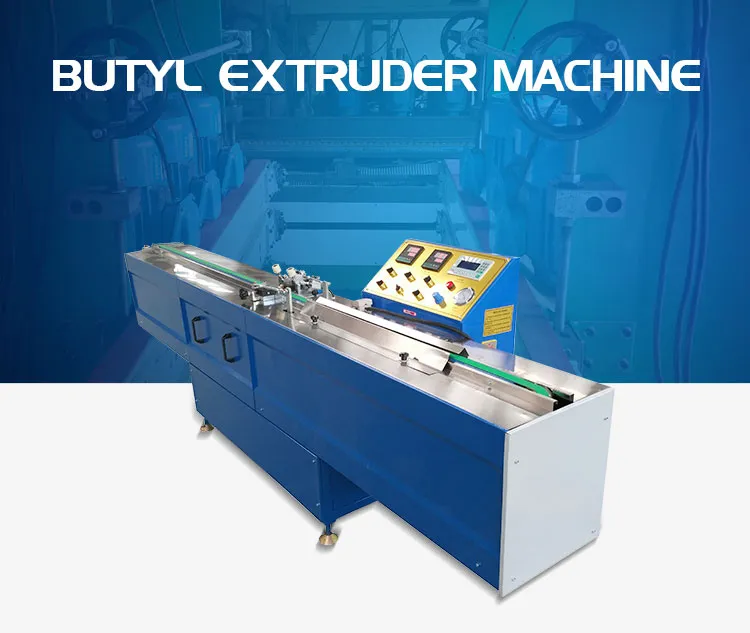

- ▶1. Butyl extruder can process frames from 6-20mm width.

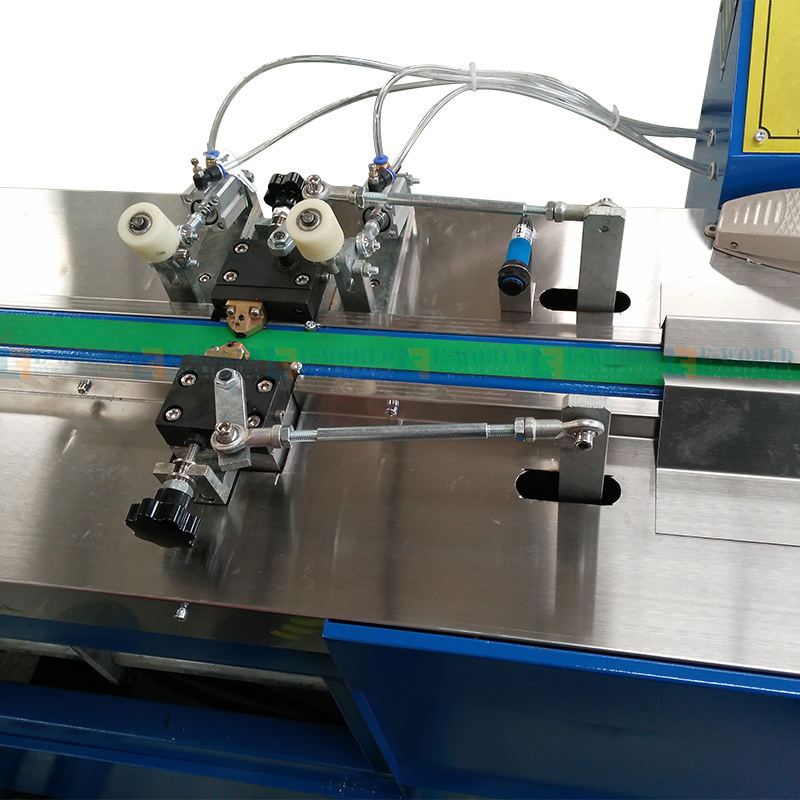

- ▶2. The feeding nozzle can be positioned to deliver uniform sealing.

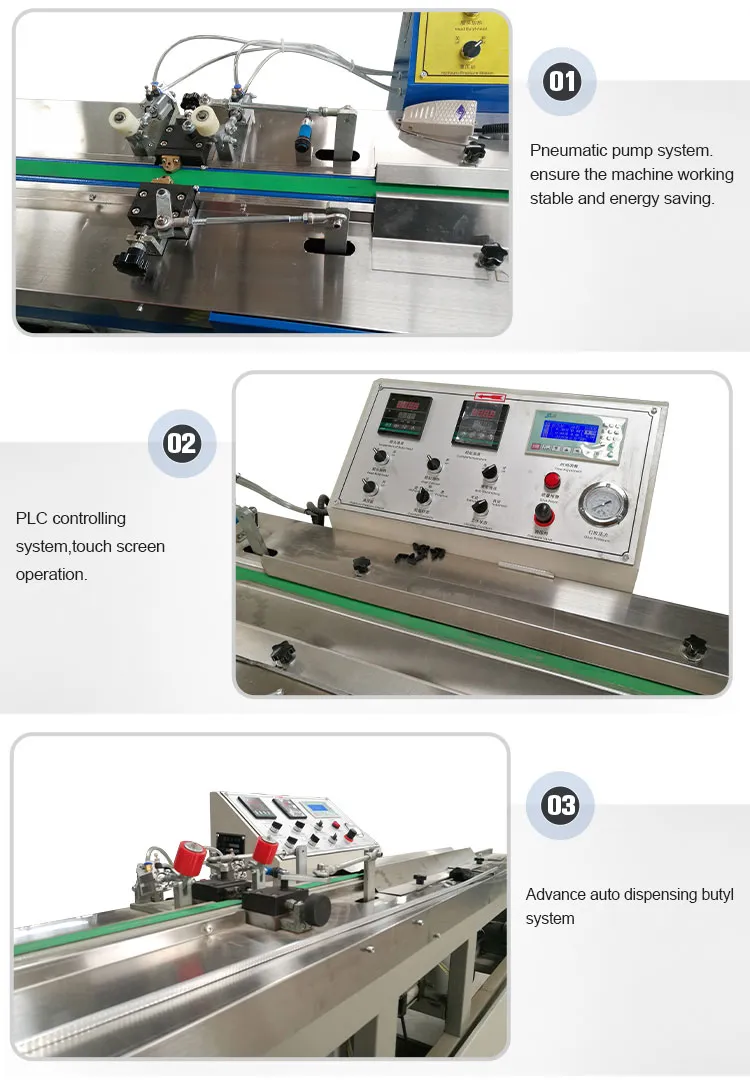

- ▶3. Pneumatic operation is controlled by a PLC that regulates temperature electrically.
- ▶4. A timer enables pre-heating of butyl ahead of operation start.
- ▶5. Height adjustment is available according to the frame size.
- ▶6. Nozzle width is controlled by pneumatic and hydraulic parallel methods.
- ▶7. Conveyor speed can be adjusted with 5 specific settings.

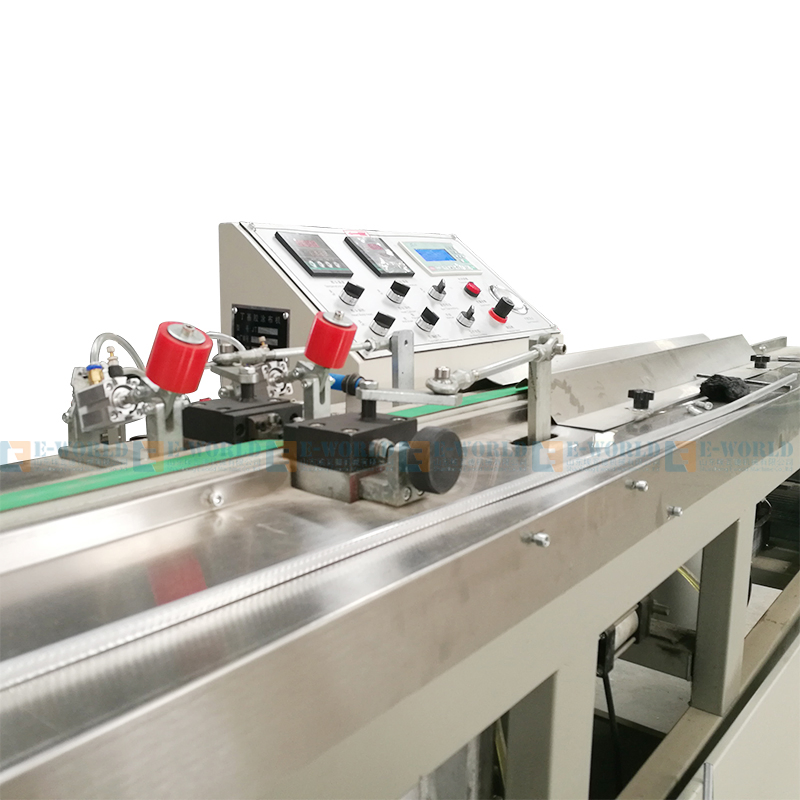

- ▶8. Monitor production quantity and application length on the touch screen.
Technical Parameters
| Machine Size | 3200(L)x700(W)x1050(H)mm |
| Space Width | 6mm, 9mm, 12mm, 16mm, 19mm |
| Speed | 10-30m/min |
| Butyl Volume | 14L |
| Power Source | 380V 3ph 50HZ / 220V 60HZ |
| Total Power | 3.2kw |
| Air Pressure | 0.4-0.7mpa |
| Squeeze Pressure | 12-18 Mpa |
Product Gallery
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional manufacturer with more than 5 specialized workshops and over 12 years of experience in this machinery field.
What is your warranty policy?
We offer an 18-month guarantee for the machine. Additionally, we provide a 2-year quality guaranty for the machine (excluding consumables) and provide replacement parts at agency prices.
Do you provide technical support and training?
Yes, we provide 24-hour technical support via email or calling. We can also send professional engineers to your site for installation, adjustment, and operation training.
How long does delivery take?
Standard machines are typically delivered within 3-15 days. For customized or non-standard machines, the delivery time ranges from 15 to 30 days.
What payment methods are supported?
We accept various payment methods to suit your needs, including T/T, L/C, D/P, and Western Union.
How do you ensure the quality of your machines?
We use reliable and world-famous brands for the machine's internal electrical components, which are the most critical parts for preventing breakdowns and ensuring long-term stability.
