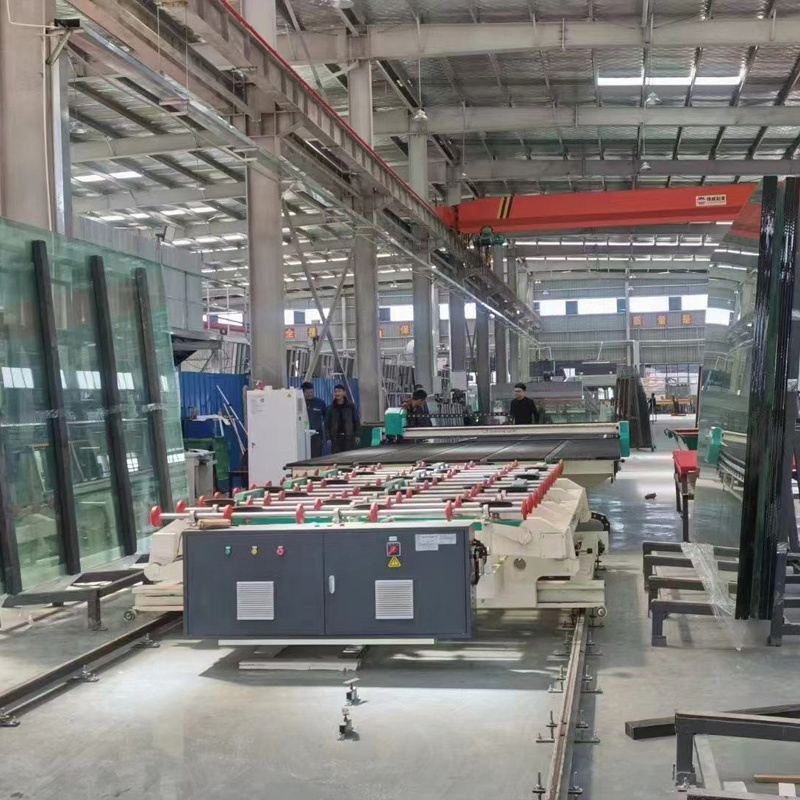

Full Automatic CNC Flat Glass Cutting Production Line for Jumbo Glass 6100mm by 3300mm

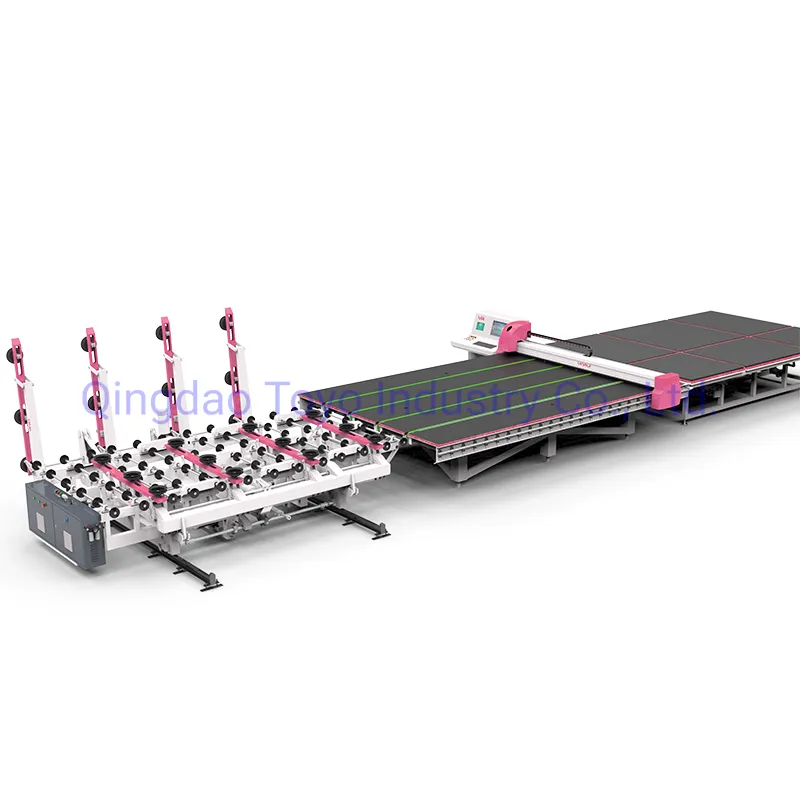

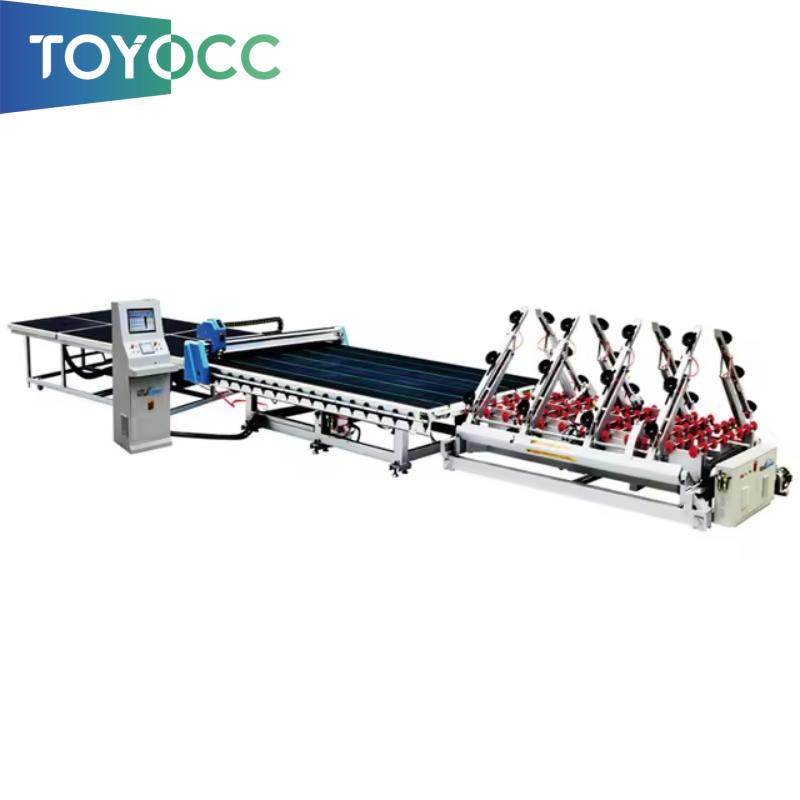

I. Full-Automatic Glass Cutting Machine Production Line

II. Machinery Configuration:

• Full-automatic Glass Loading Machine
• Full-automatic CNC Glass Cutting Machine
• Air-cushion Glass Breakout Machine

III. Machinery Specification:

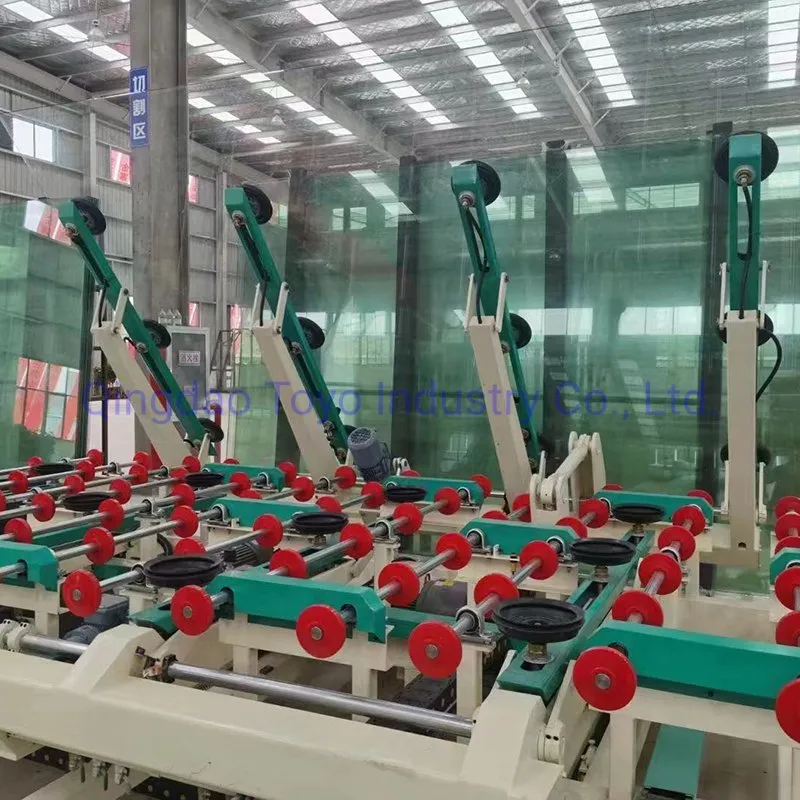

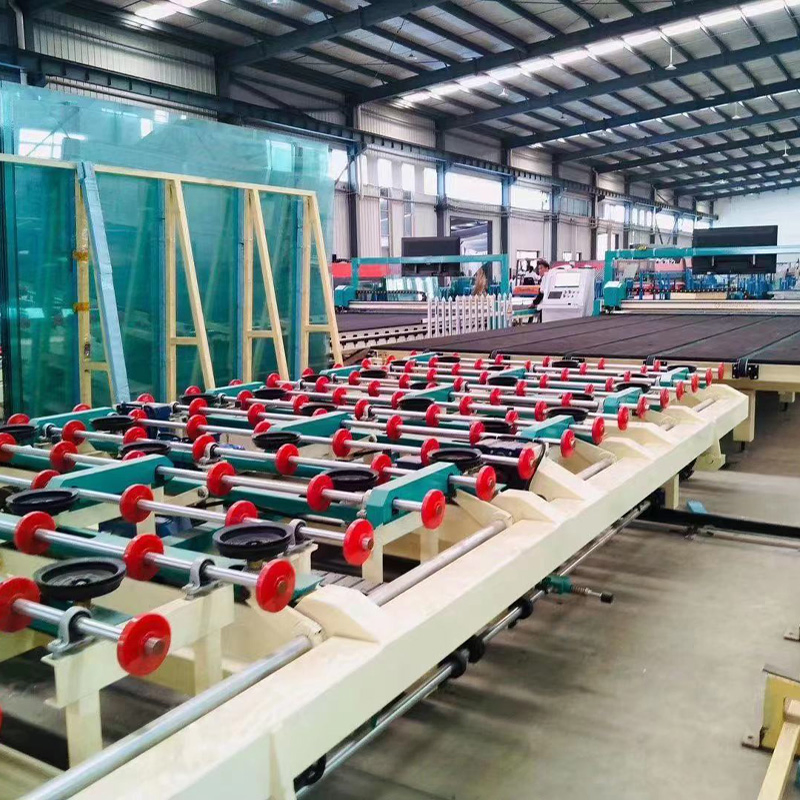

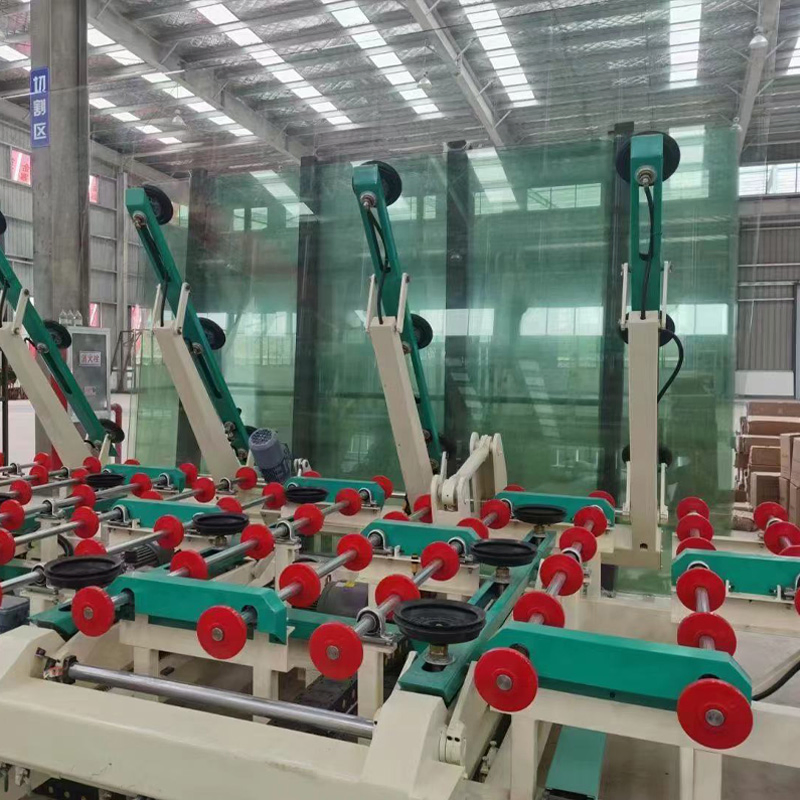

III-1. Full-automatic glass double-arm and single position loading machine

• Equipment System: Main frame, running system, transfer system, vacuum adsorption system, mechanical turning system, high and low pressure control system, program control system.
• Mechanical components: High precision reinforced turning wheel chain, PU transfer idler wheel, double absorption structure vacuum suction cup, Taiwan CPG motor.
• Electric elements: Delta PLC controller, Delta Transducer, Swiss ELCO proximity switch, High-flexible shielded control cables, Taiwan Airtac pneumatic parts.
• Technical parameter: Max glass size: 4200*2800mm | Thickness: 3-19mm | Cycle: 40-90s | Loading weight: 900KG.

III-2. Full-automatic glass cutting machine

• Technical parameter: Max size 6100*3300mm | Linear parallelism ≤±0.25mm/m | Diagonal accuracy ≤±0.30mm/m.
• Equipment performance: 360-degree rotating cutting head, imported waterproof HDF board, anti-static felt, pneumatic automatic oil input.
• Mechanical & Electrical: KHK Rack, Barbieri Transfer belt, Germany Bohle cutting wheel, Japan YASKAWA servo motor, Italy TECNOS control card with OPTIMA software.

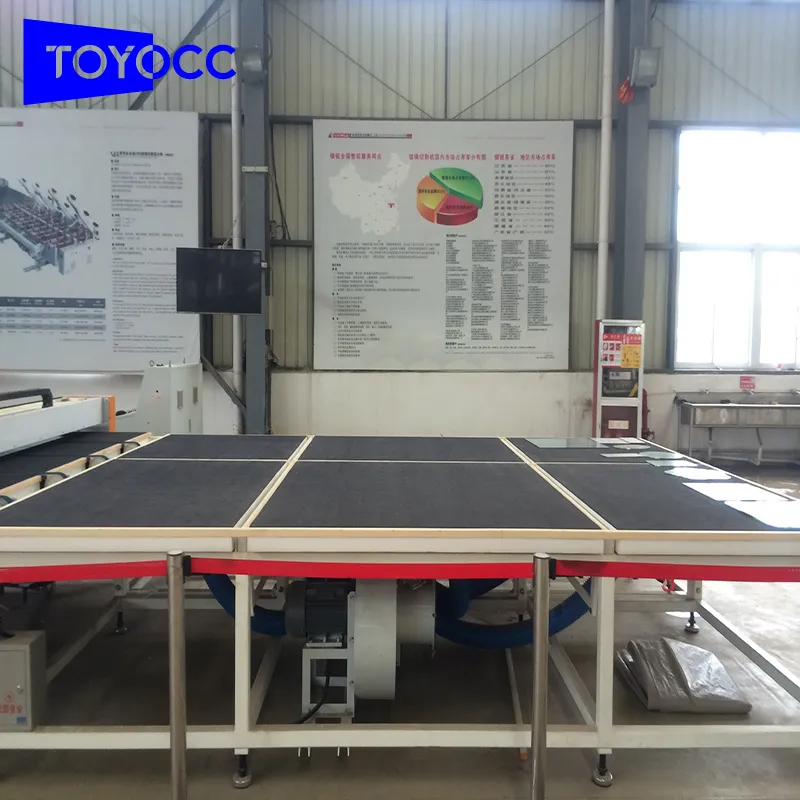

III-3. Glass breaking machine

• Table size: 6100×3300mm | Height: 900±30mm.
• Features: Fiber and woolen felt surface, HDF table top, 2 horizontal and 1 vertical breaking bars.
