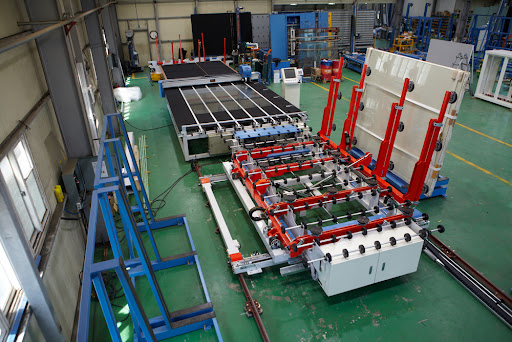

Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Cutting Table

1 / 5

Automatic CNC Glass Loading Cutting Breaking Line Windows Glass Cutting Machine for Glass Cutting Table

Customization:	Available
Certification:	CE, ISO, UR
Cutting Method:	Oil Cutter Cutting

Send Inquiry

Product Description

Basic Information

Cutting Thickness

20 mm

Power Supply

380V

Safety Features

E-Stop, Overload Protection

Dimensions

7000*3820 mm

Equipment Weight

3.5t

Workbench Height

900mm±10mm

Cutting Speed

0~200m/Min

Line Accuracy

≤±0.2mm/M

Diagonal Accuracy

≤±0.25mm/M

Max Glass Weight

1500kgs

HS Code

8464901100

Capacity

500 Sets/Year

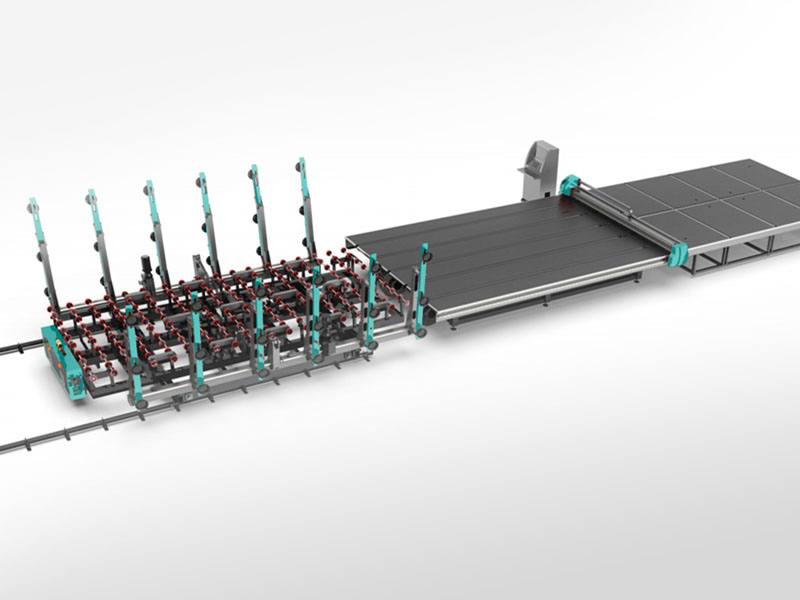

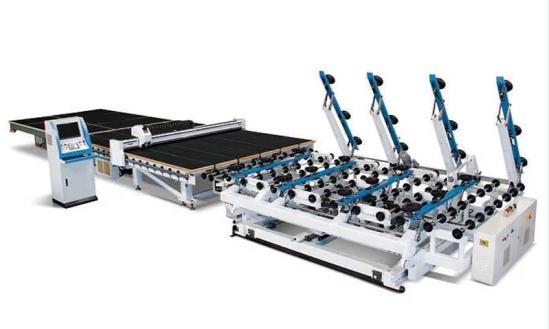

Intelligent Series CNC-4228 Automatic Glass Cutting Line

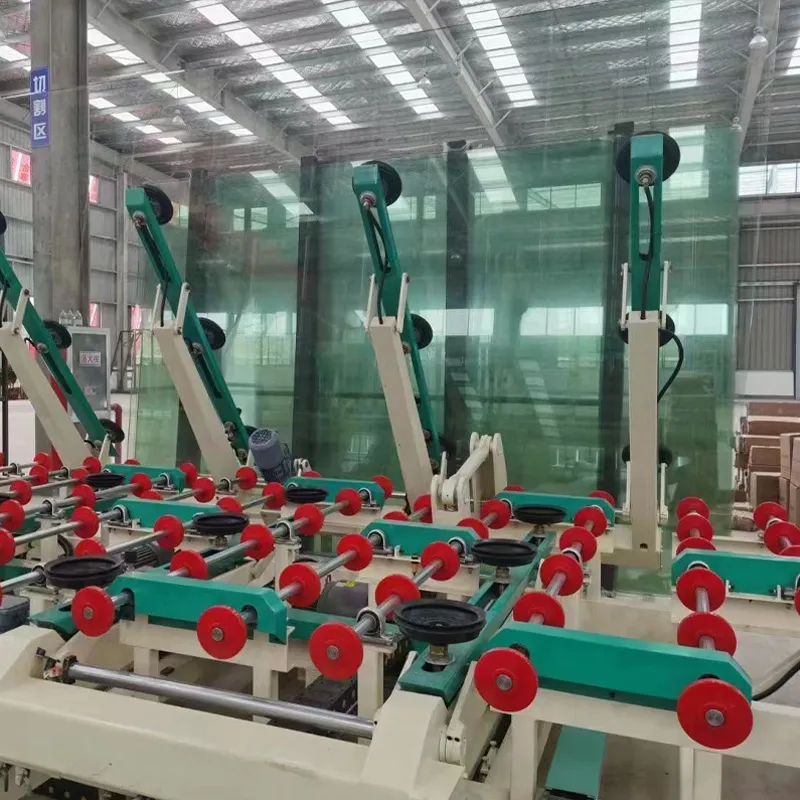

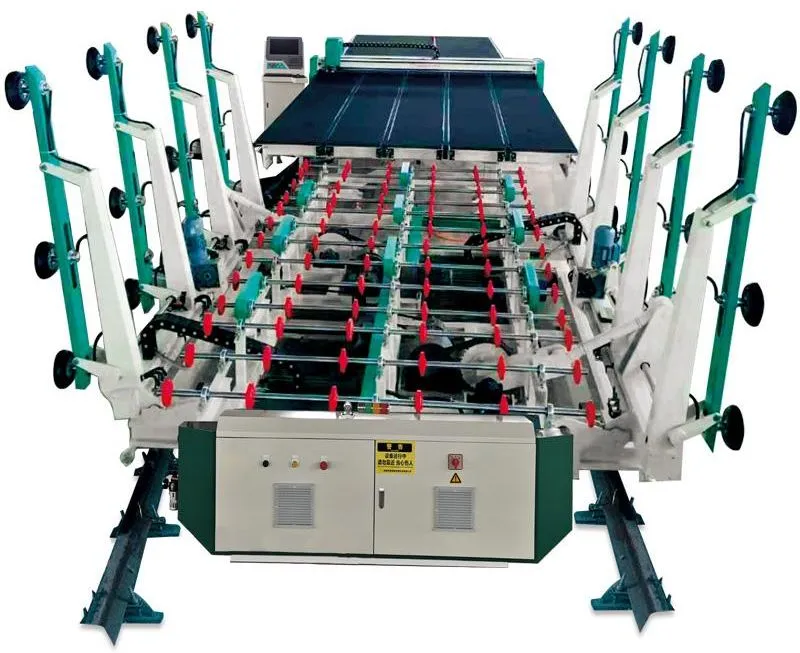

A. Intelligent Full Automatic Glass Loading Machine

Composed of frame system, transmission system, vacuum adsorption system, mechanical turn-over system, and electrical control system.

Mechanical Configuration	Electrical Components	Origin/Brand
Reverse chains / Gear	PLC Controller / Inverter	Taiwan Delta
Transfer rollers (PU)	Pressure Sensor	Japan SMC
Vacuum Cup (Nitrile Rubber)	Solenoid Valve	Taiwan Airtac
Vacuum Pump (40KW)	Contactor	Germany Schneider

B. CNC 4228 Automatic Glass Cutting Machine (Dual Driver)

Technical Parameters	Specification
Max Glass Size	4200*2800 mm
Cutting Thickness	3-19 mm
Cutting Speed	0~200m/min (Adjustable)
Straight Line Accuracy	≤±0.2mm/m
Diagonal Accuracy	≤±0.25mm/m
Servo Motor	Japan Yaskawa
Cutter Holder	360° Rotation (Germany Bohle)

Performance Features

Material: National standard manganese-containing bridge steel (Q345A) with aging treatment.
One-button reset function via high-responsivity touch screen.
Advanced vacuum system with high reliability and fast adsorption speed.
Motion Controller: America Galil for fast and stable operation.
Optimization Software (Italy): Supports XYZ mode, Low-E glass management, and 350+ graphic types.
Photoelectric positioning function for automatic adjustment based on actual glass position.

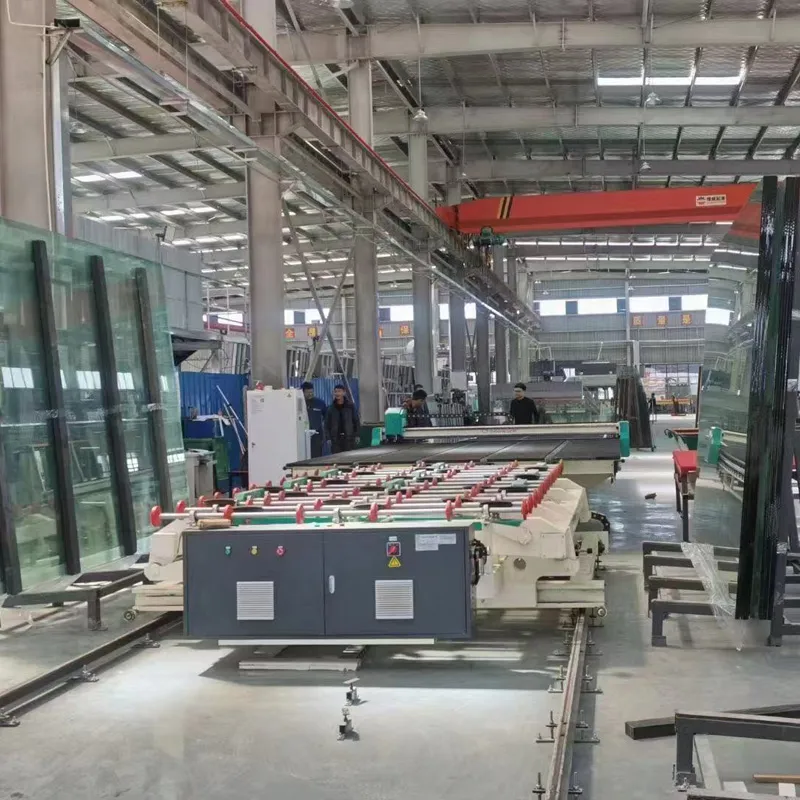

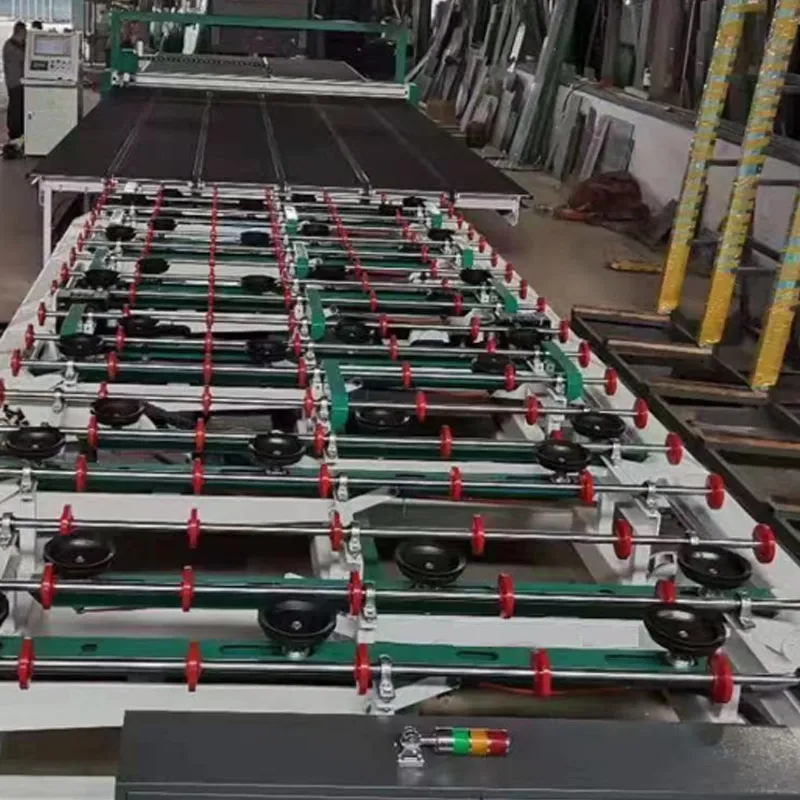

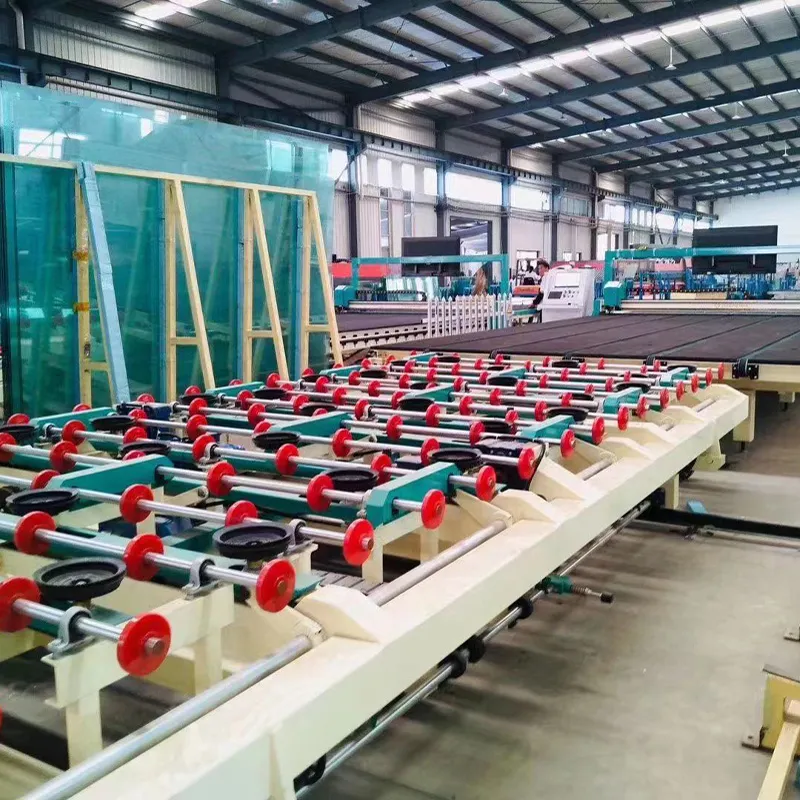

Detailed Gallery

Service & Solution

We provide a complete range of integrated machinery for processing glass units, manufacture of insulated glass units, glass window and door fabrication, and façade manufacture. Each piece of equipment is characterized by innovative features, long-lasting durability, and high reliability.

Frequently Asked Questions

Q1: What is the maximum glass thickness this machine can cut?

The Intelligent Series CNC-4228 can handle glass thicknesses ranging from 3mm up to 19mm-20mm flat glass.

Q2: What is the cutting accuracy for straight lines and diagonals?

The machine offers exceptional precision with a straight-line accuracy of ≤±0.2mm/m and a diagonal line accuracy of ≤±0.25mm/m.

Q3: Does the cutting head support shaped glass cutting?

Yes, the cutter head can rotate 360°, allowing it to accurately cut any straight lines as well as complex alien shapes.

Q4: What brands are used for the key electrical components?

We use world-class components including Taiwan Delta PLCs, Japan Yaskawa servo motors, Japan SMC pneumatic parts, and Germany Schneider contactors.

Q5: Is the software compatible with external design files?

Yes, the system is highly compatible and accepts DXF files from AUTOCAD. It also includes professional optimization software from Italy.

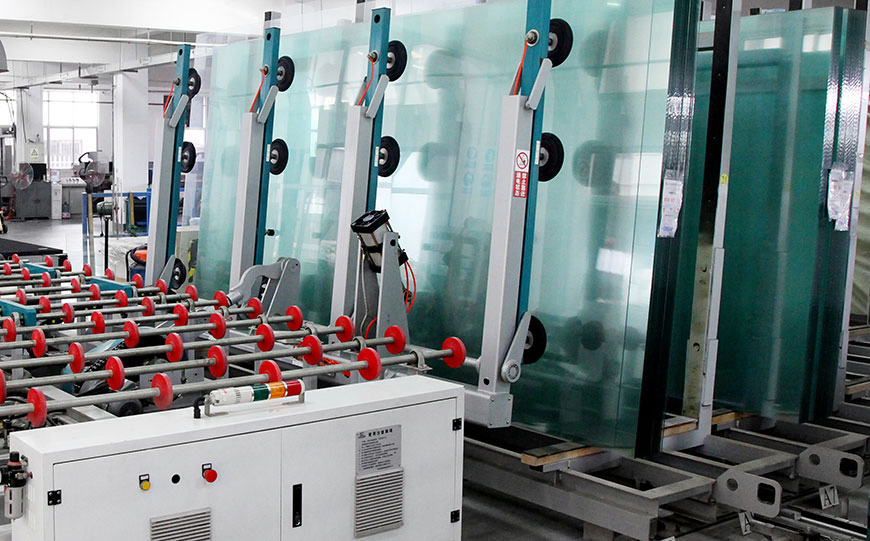

Q6: How does the glass loading mechanism ensure stability?

The glass lifting mechanism adopts a flat four-bar linkage structure, which is significantly more stable and reliable than conventional screw lifting systems.
