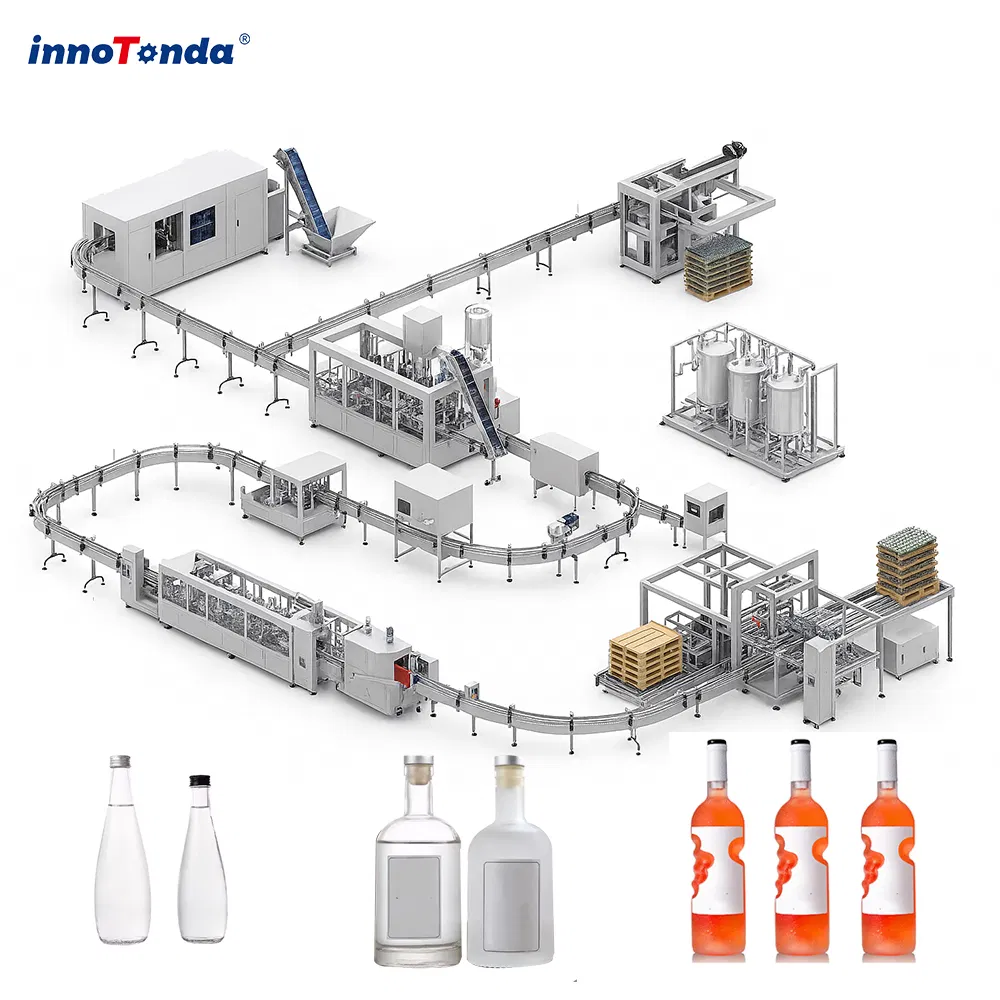

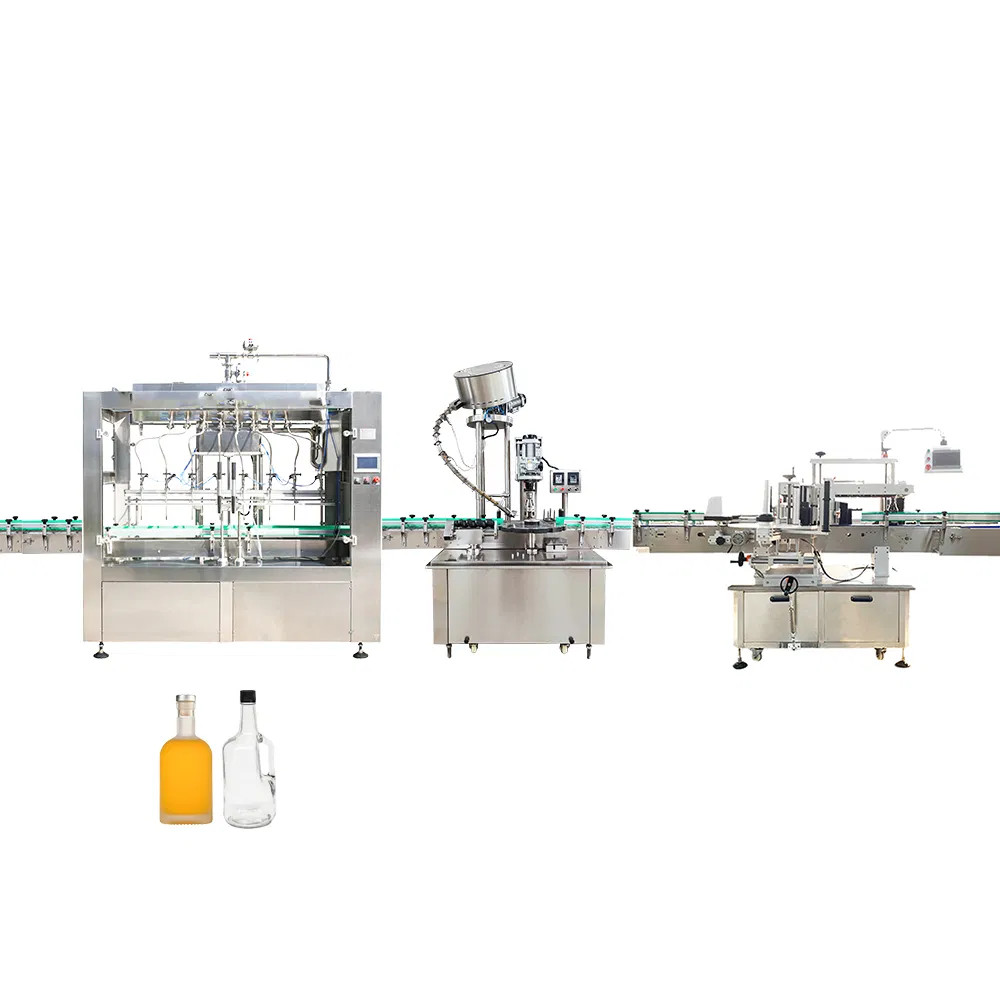

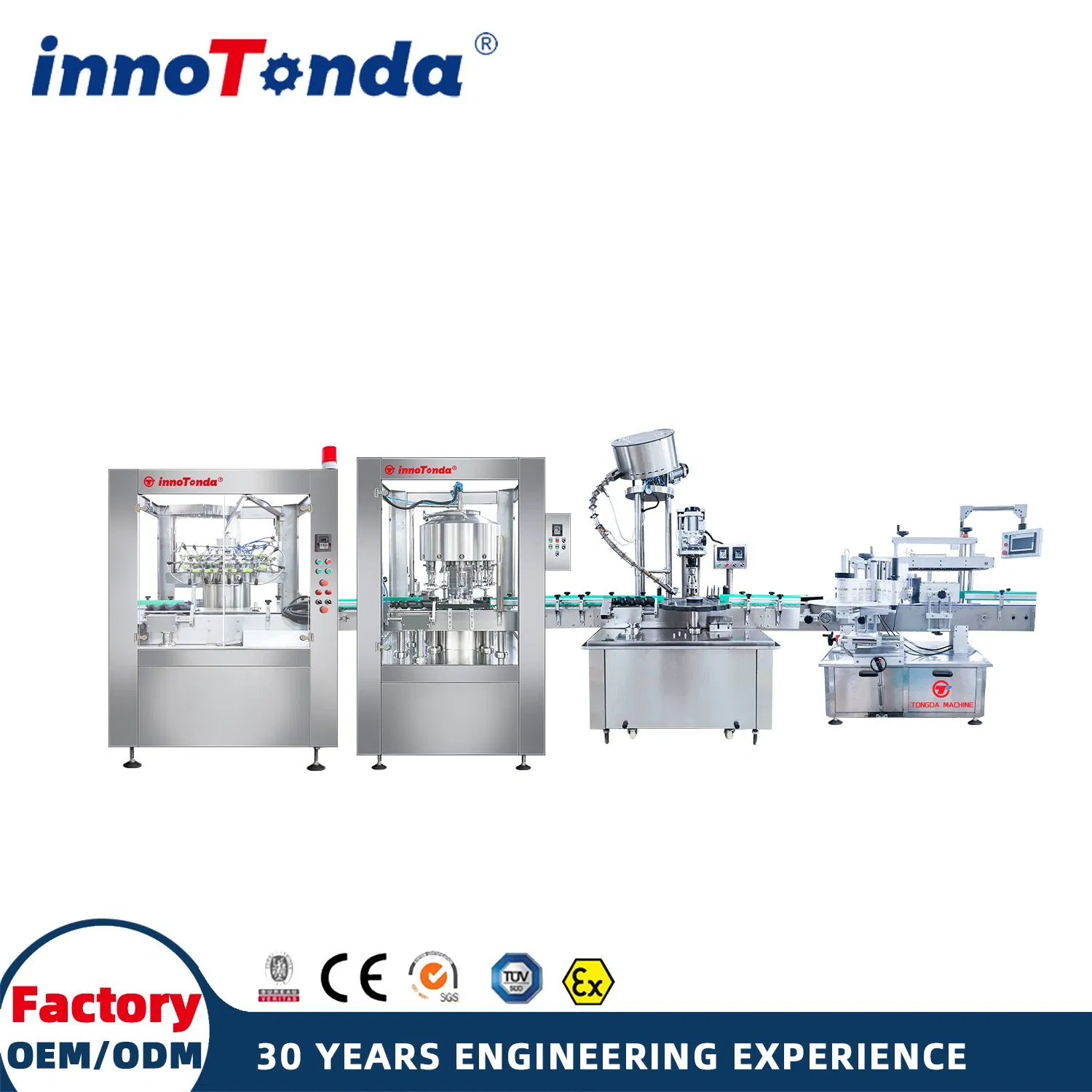

Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
1 / 5
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine
Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine

Fully Automatic Customized Glass Bottle Whisky Wine Making Production Line Filling Capping Machine

Customization: Available
After-sales Service: All Life After Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information

Model NO.:GFP-12-18-24-30-36-42-60
Type:Low Vacuum
Automatic Grade:Automatic
Material Type:Liquid
Filling Valve Head:Multi-Head
Dosing Device:Equal Filling Level
Filling Principle:Negative Pressure
Structure:Rotary
Packaging:Bottle / Jar
Filling Liquid:Wine, Spirits, Vodka, Water, Vinegar, Soy Sauce
Certificate:CE, ISO
Bottle Height:120-320mm (Customized)

Product Description

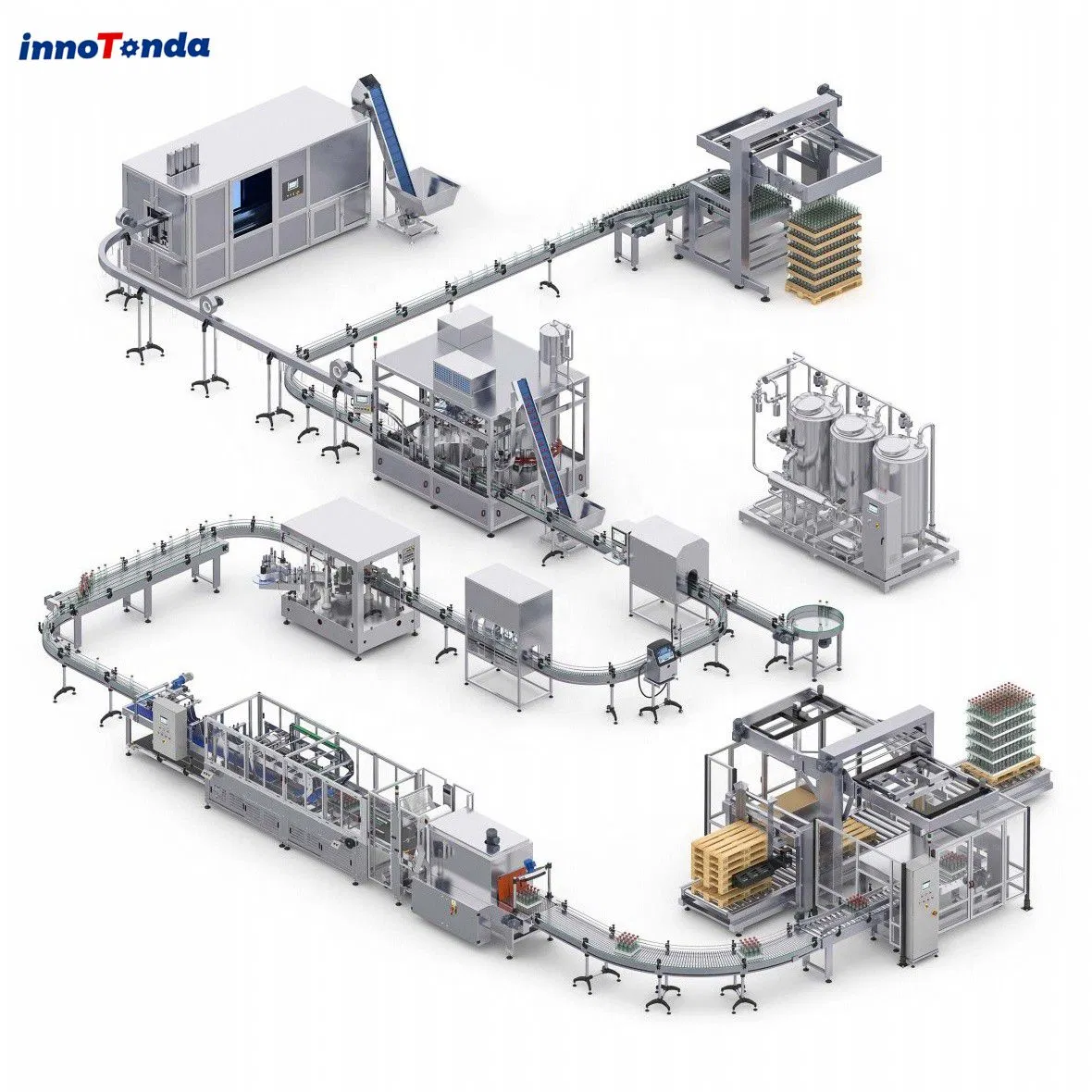

Production Line Filling Capping Machine

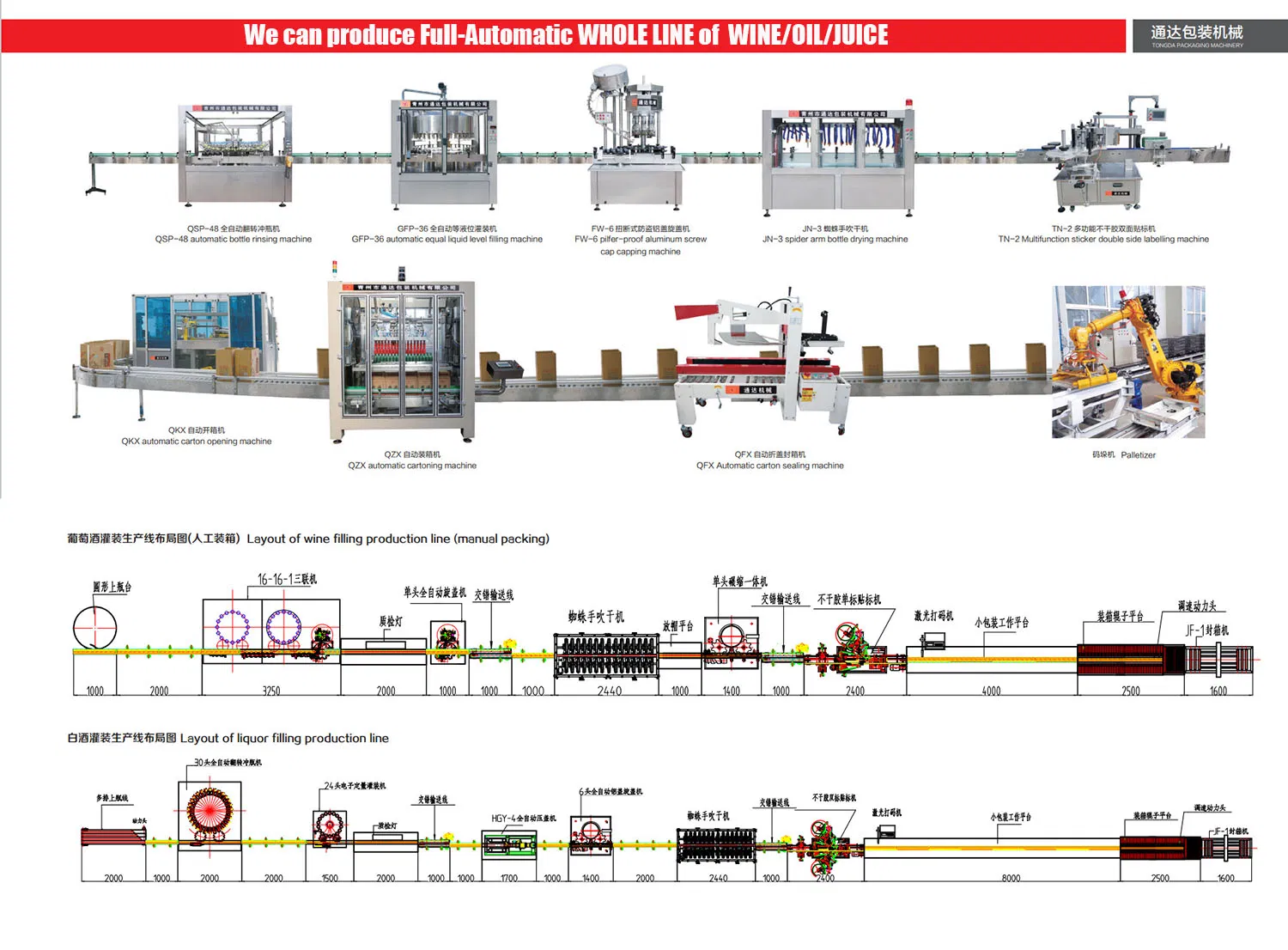

Automatic Production Line

Drawings & Dimensions

Detailed Filling and Packing Line drawings and dimensional diagrams are provided according to the customer's workshop size. Our engineering team provides tailored designs to meet specific project requirements.

Line Drawings

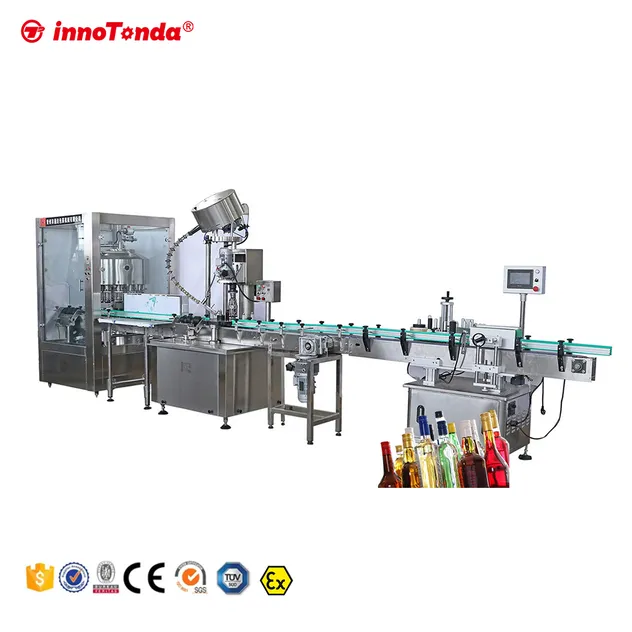

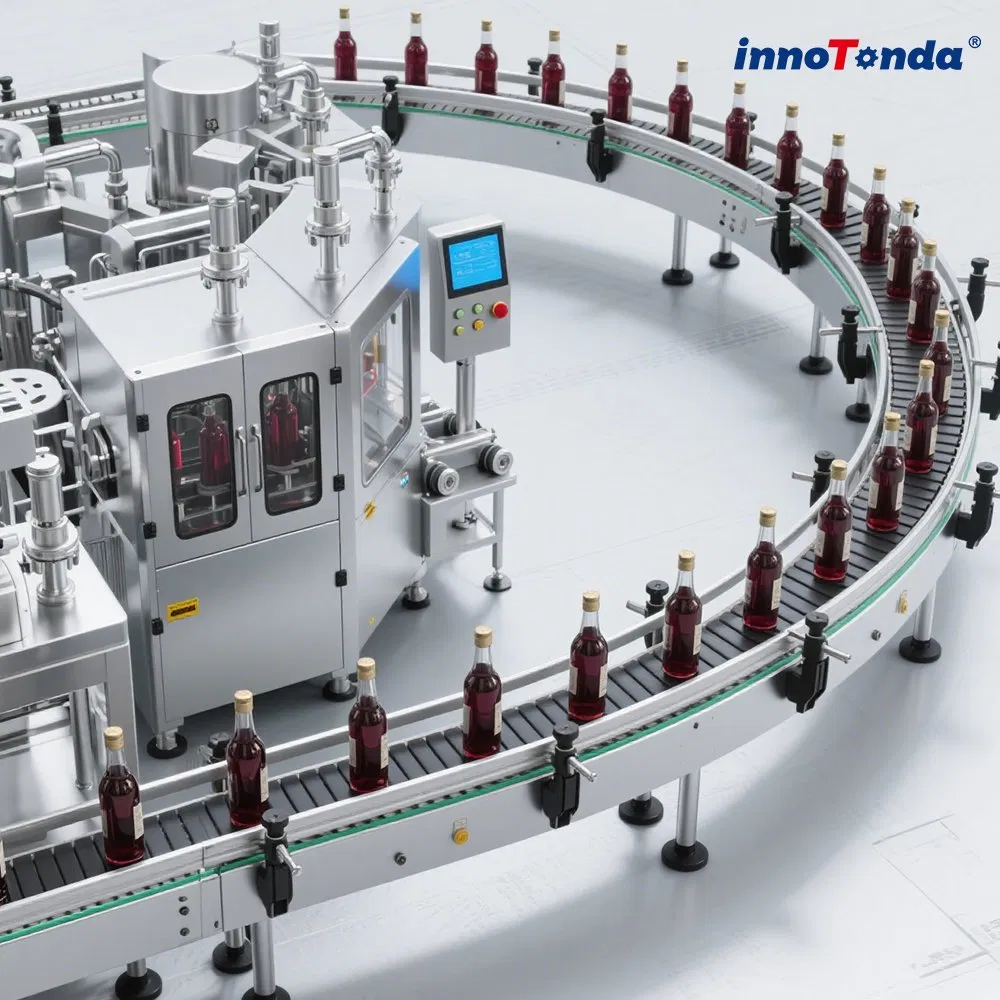

Small Rotary filling line
Small Rotary Filling Line

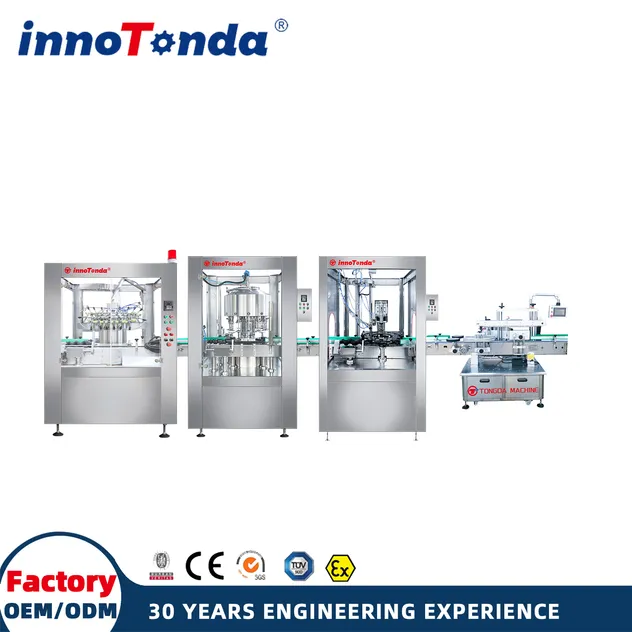

Small filling line
Small Filling Line
Small Linear type filling line
Small Linear Filling Line

Core Components

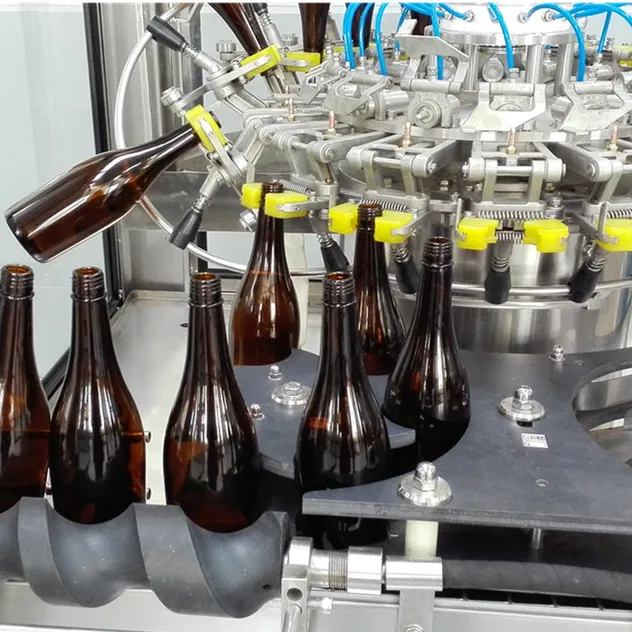

Washing Part
Washing Part

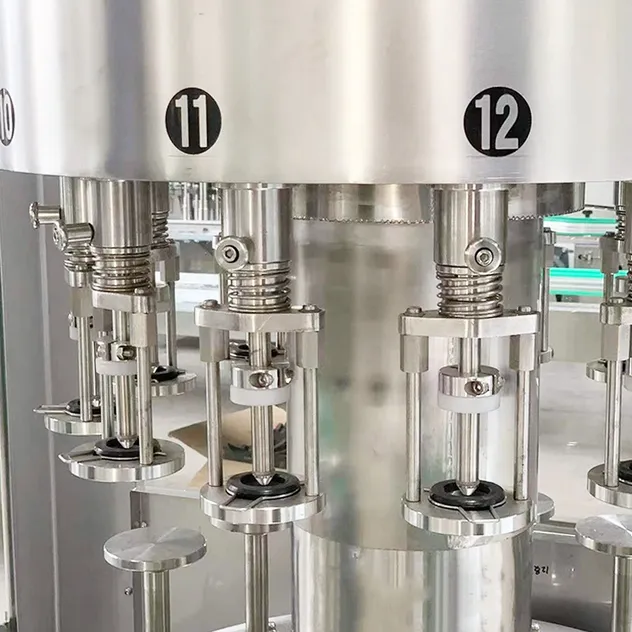

Filling Part
Filling Part

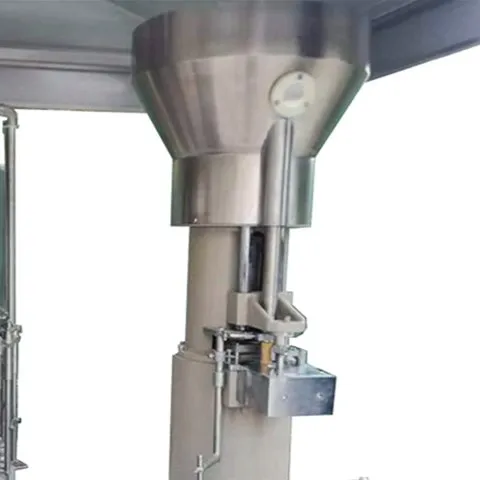

Corking Part
Corking with Nitrogen

Technical Specifications

Model GFP-12 GFP-24 GFP-36
Filling Heads12 nozzles24 nozzles36 nozzles
Power (kW)0.751.52.2
Capacity1000-2000 BPH3000-4000 BPH5000-8000 BPH
Filling Accuracy±1.5mm±1.5mm±1.5mm
Dimension1200x1000x2450mm1800x1400x2450mm2400x2150x2450mm
Weight750kg900kg1200kg

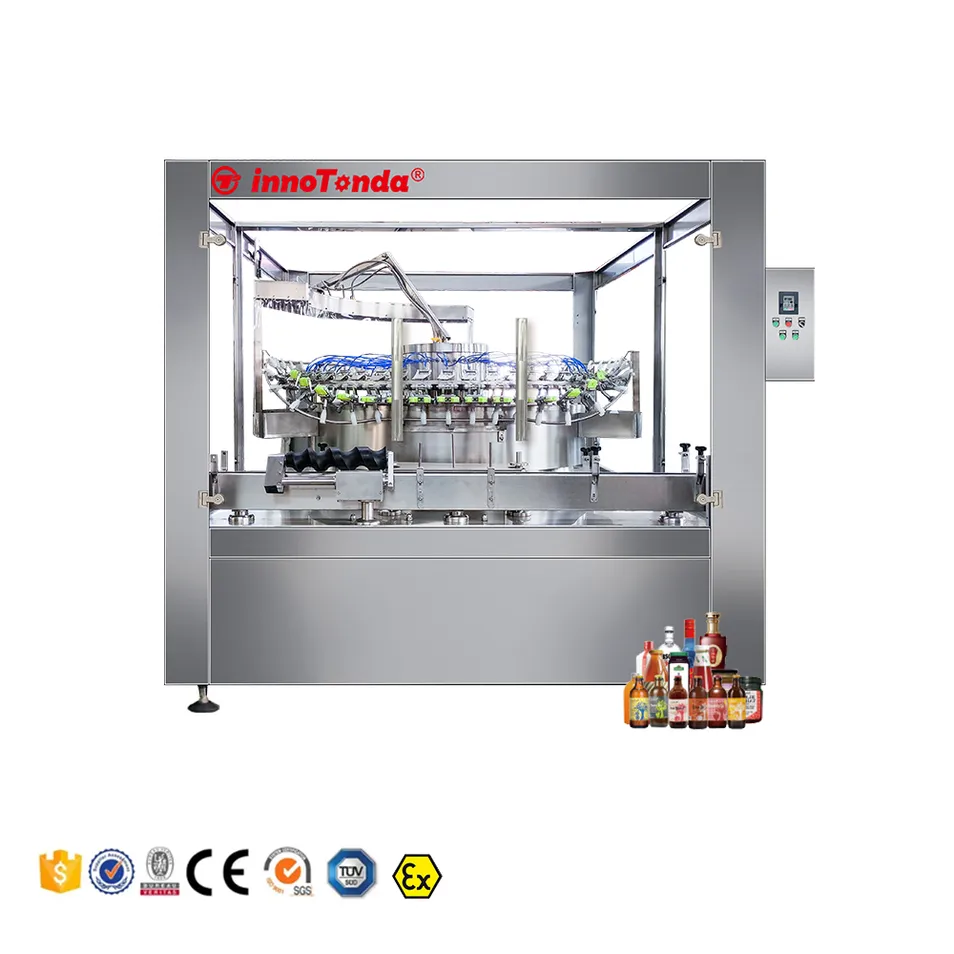

Bottle Washing Machine

Automatic Bottle Washing Machine

  • Rinse thoroughly for both outside and inside cleaning.
  • Adaptable to different bottle sizes with quick-change parts.
  • Equipped with a circulating water tank for water filtration and saving.

Filling Machine

  • High-precision filling with frequency conversion regulation.
  • Flexible bottle compatibility (120–300mm height).
  • Leak-proof operation; liquid flows smoothly to minimize foam.

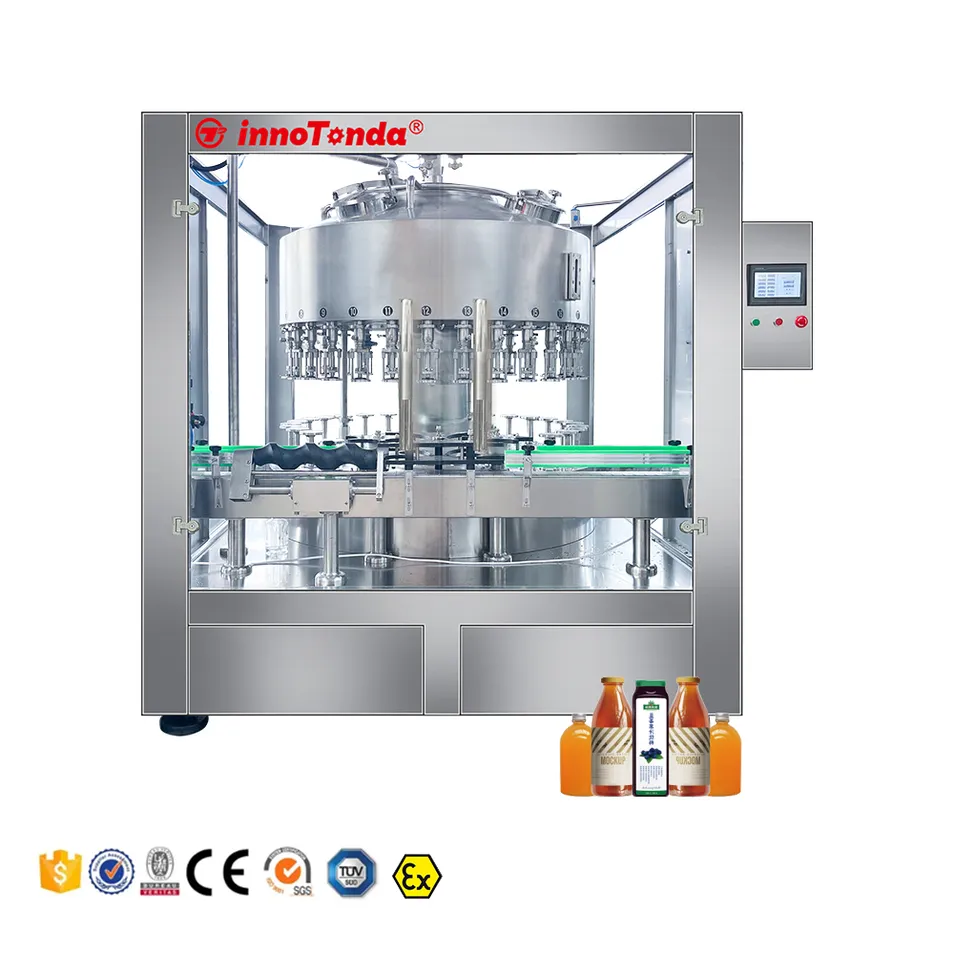

Filling Machine Detail

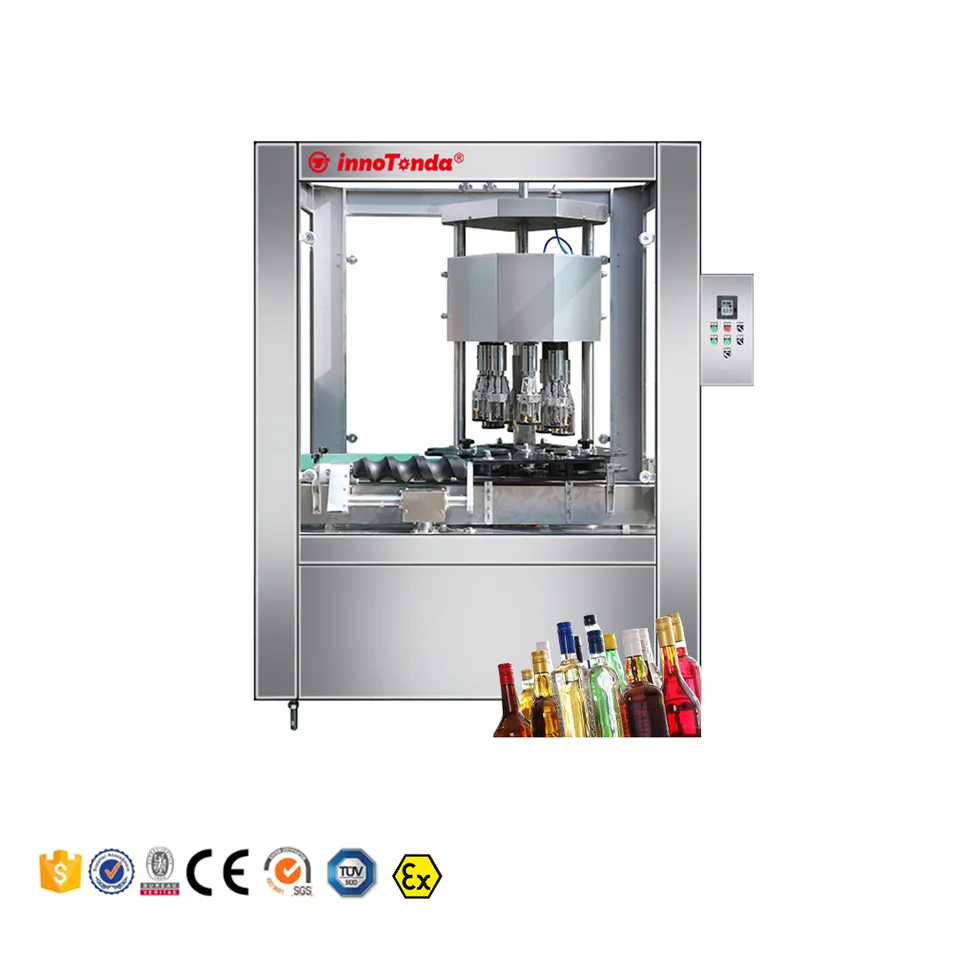

Capping Machine

Capping Machine

  • Suitable for aluminum screw caps, ROPP caps, and Stelvin caps.
  • Cap elevator included for high efficiency.
  • Glass housing for operational safety.

Labeling & Packing

High-repeat accuracy labeling with no bubbles. Suitable for one or two labels. The carton packing system offers 24/7 operation, hygiene safety, and space-saving compact designs.

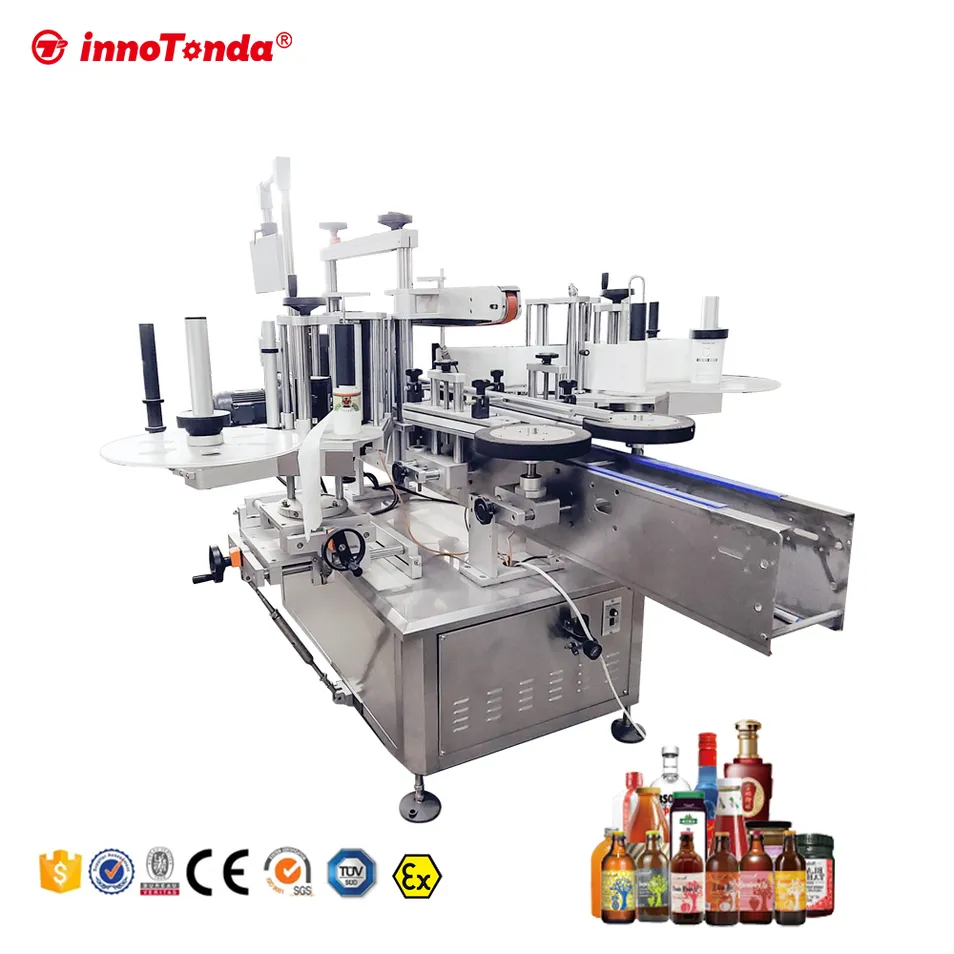

Labeling Machine

Professional Manufacturing

We are a professional manufacturer of liquid bottling line equipment with over 30 years of experience. Our solutions cover the entire process from depalletizing to robot palletizing, ensuring high quality in every detail.

Factory Workshop
Machine Assembly

Service & Support

Standard Warranty:12 months or 2,000 operating hours.
Global Support:24/7 technical assistance and spare parts supply.
Training:On-site or remote operation and maintenance training.

Frequently Asked Questions

Q: What is the lead time for orders?
A: Standard models typically ship within 30 days; customized units require 30–45 days depending on specifications.
Q: Do you provide after-sales service overseas?
A: Yes, we provide comprehensive global technical support and can dispatch engineers if required.
Q: Can I request a customized filling line according to my bottle size?
A: Absolutely. We specialize in customization to match unique bottle shapes, sizes, and production capacities.
Q: What documents are provided for export?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC certificates.
Q: How do I ensure the machine fits my workshop?
A: Our engineering team will design a layout drawing based on your provided workshop dimensions before production starts.
Q: What materials are used for the machines?
A: All liquid-contact parts are made of food-grade materials and high-quality stainless steel to ensure hygiene and durability.
