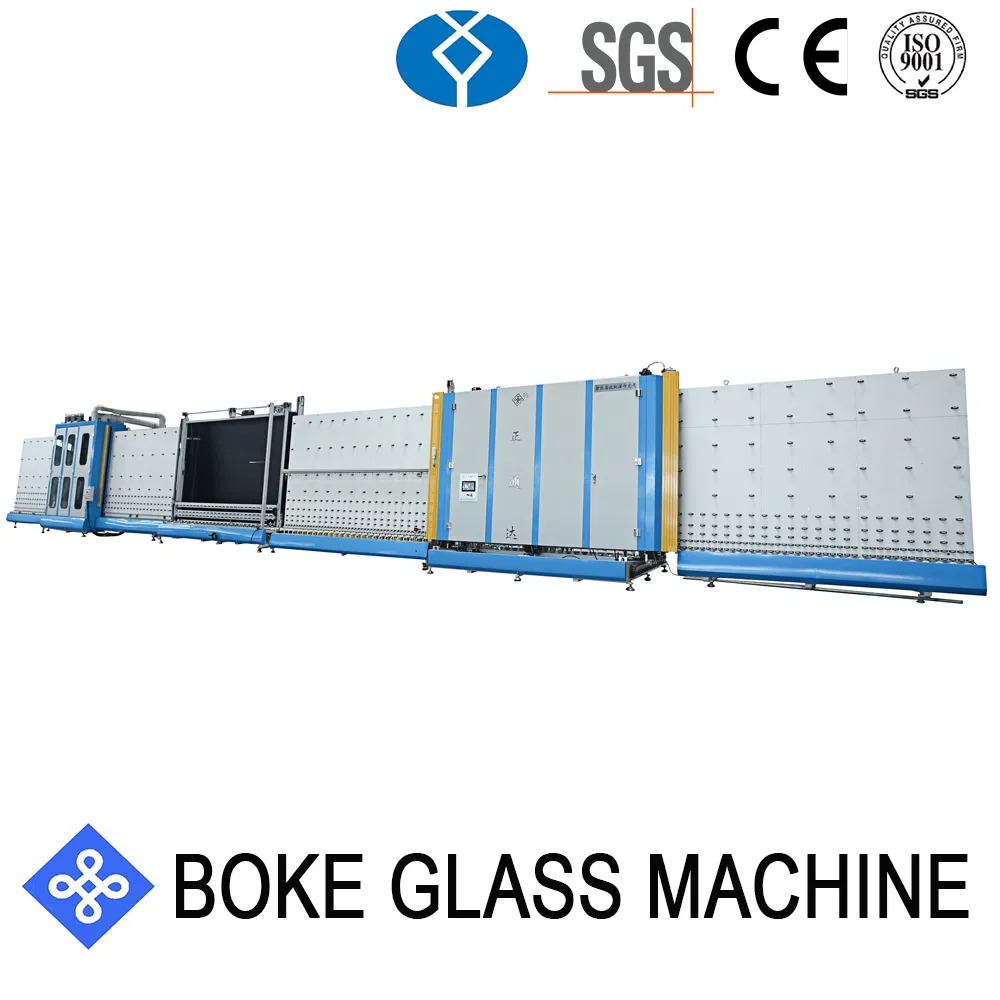

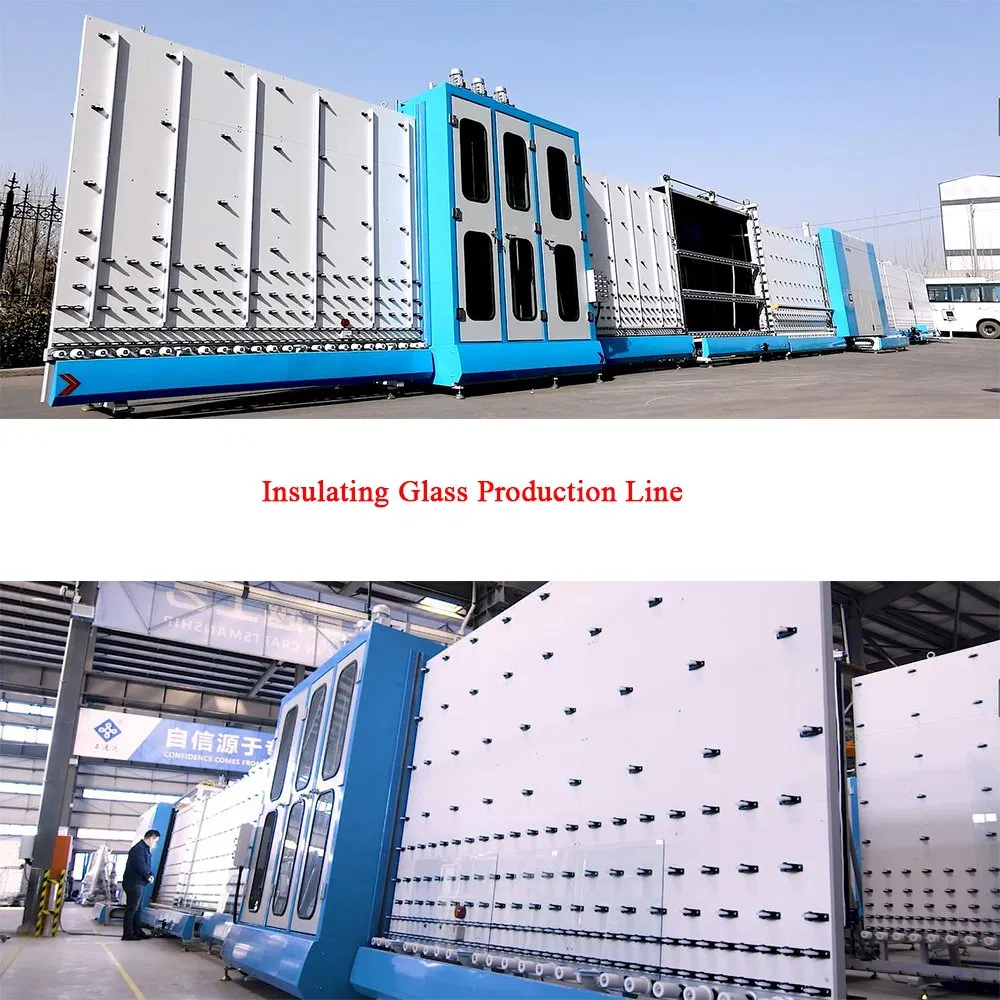

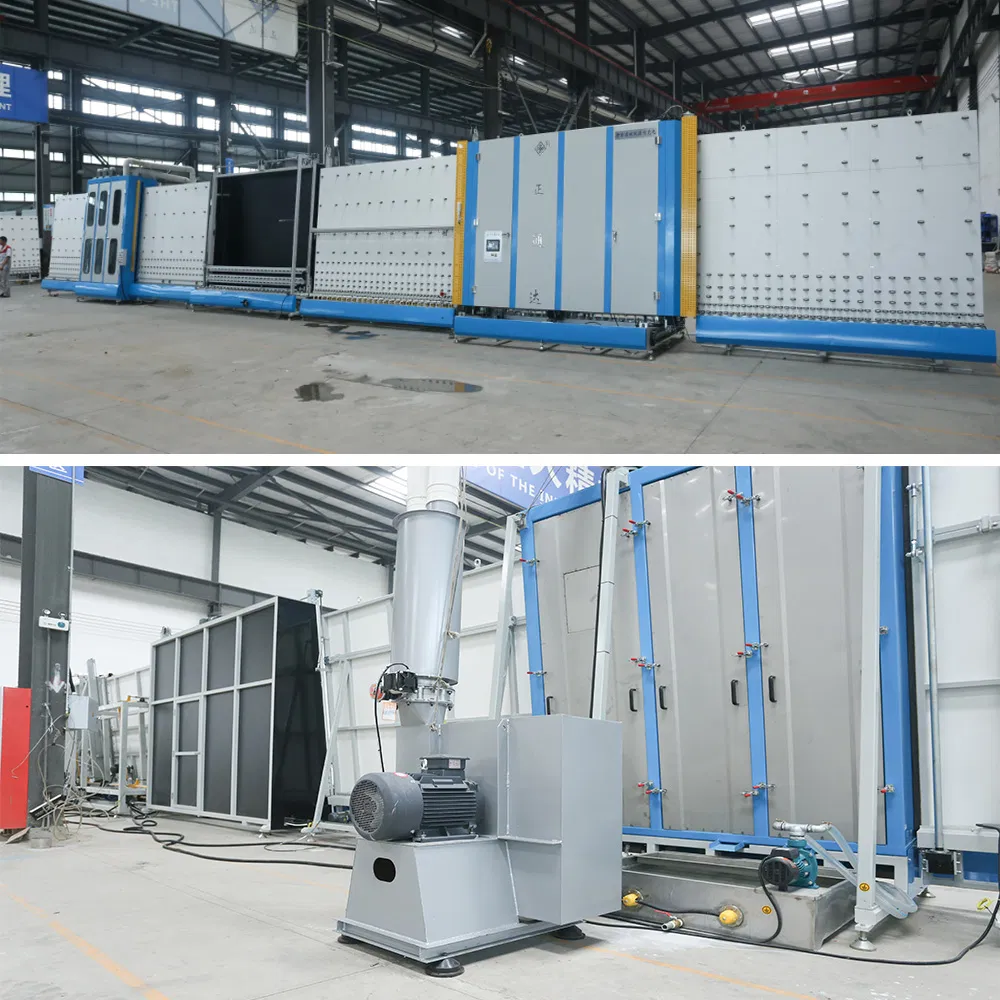

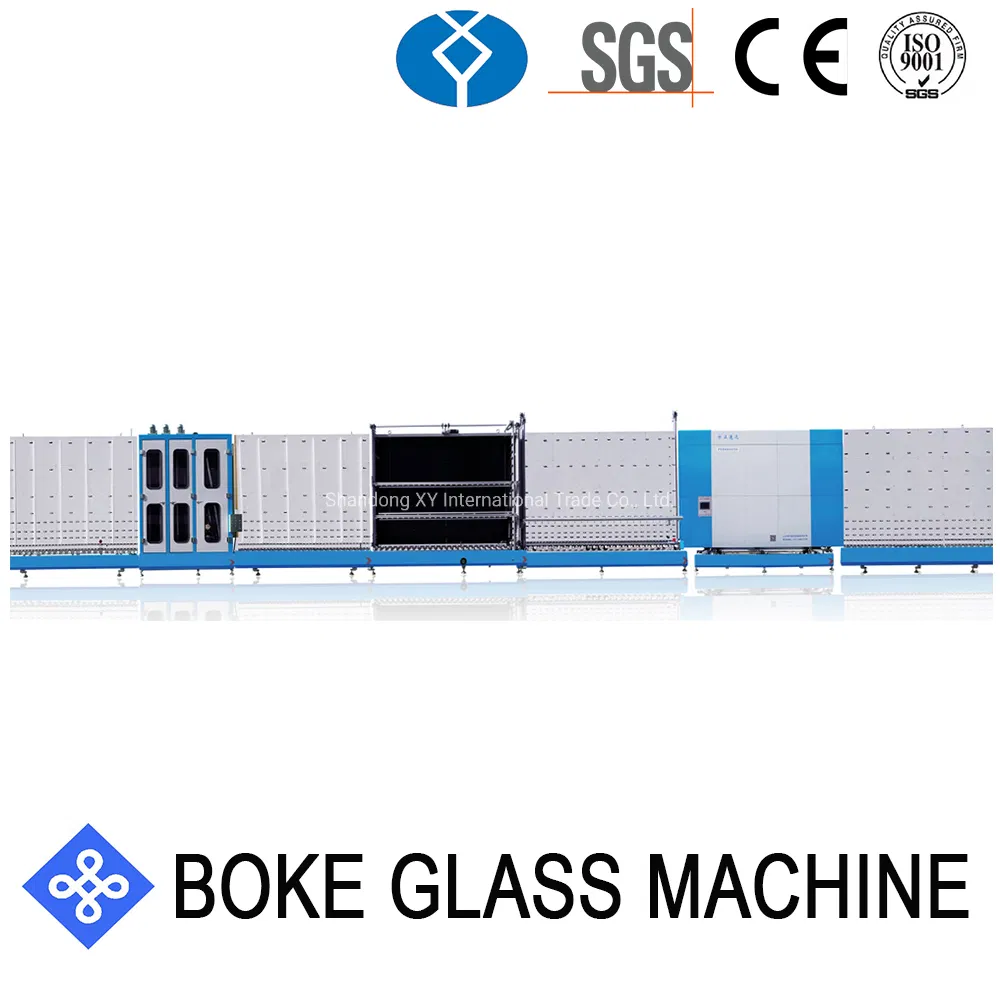

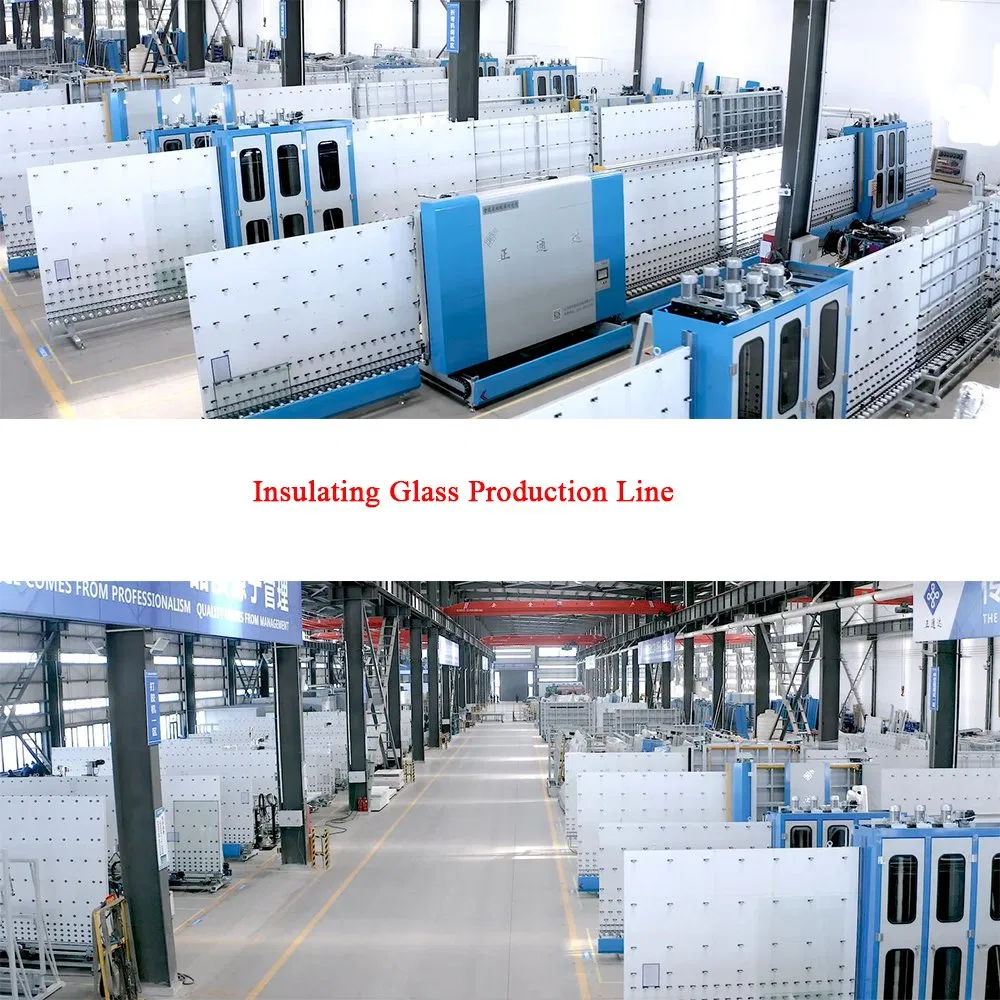

The vertical automatic insulating glass flat press production line is designed for high-efficiency Insulating Glass Units (IGU) production. It is an ideal solution for glass processing companies and window/door fabricators.
| Parameter Item | Specifications |
|---|---|
| Max. Processing Glass Size | 3600*2500 mm |
| Min. Processing Glass Size | 450*200 mm |
| Single Glass Thickness | 3-15 mm |
| Max. Insulating Glass Thickness | 52 mm |
| Capacity | 110 pc/h |
| Power Supply | 3P, 380V, 50Hz |
| Inert Gas Type | Argon, Nitrogen, etc. |
| Gas Concentration | More than 90% |
| Outline Dimension | 24600*2500*3680 mm |

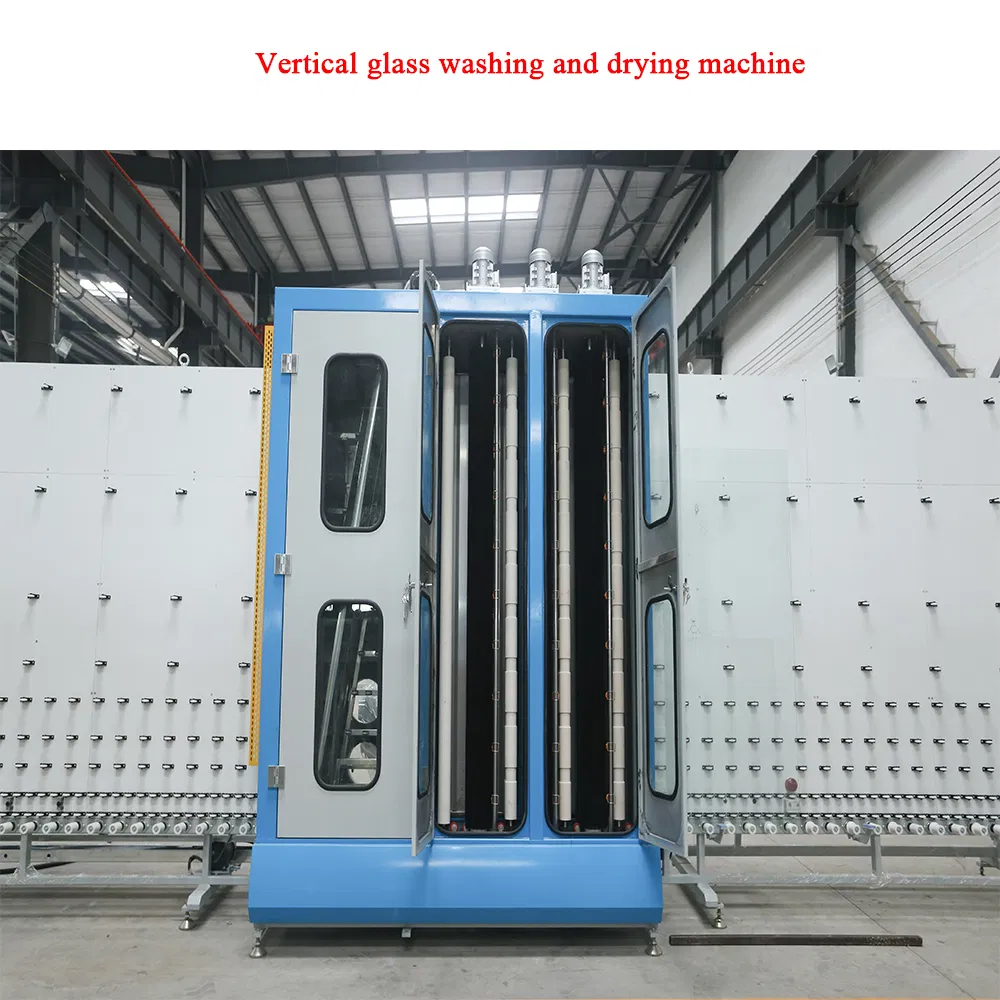

The washing machine utilizes overall stainless steel (5mm thickness) for durability. It features DuPont nylon soft brushes, allowing for effective cleaning of Low-E glass without scratching the coating. The system also includes an energy-saving mode that stops running when no glass is detected.
The LBP2500Q model can process a maximum glass size of 3600*2500mm, with a minimum size of 450*200mm.

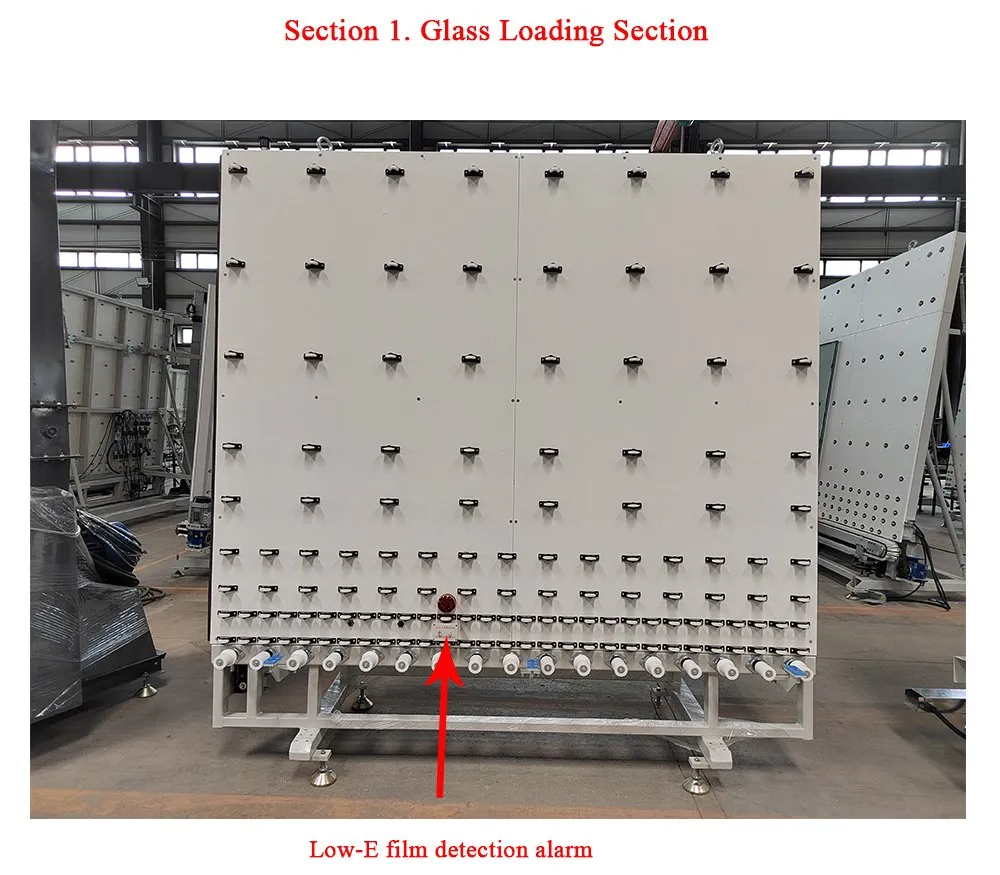

Yes, it is equipped with 3 pairs of high-quality soft brushes (DuPont brand) and an automatic coating side detection system to protect the Low-E film.

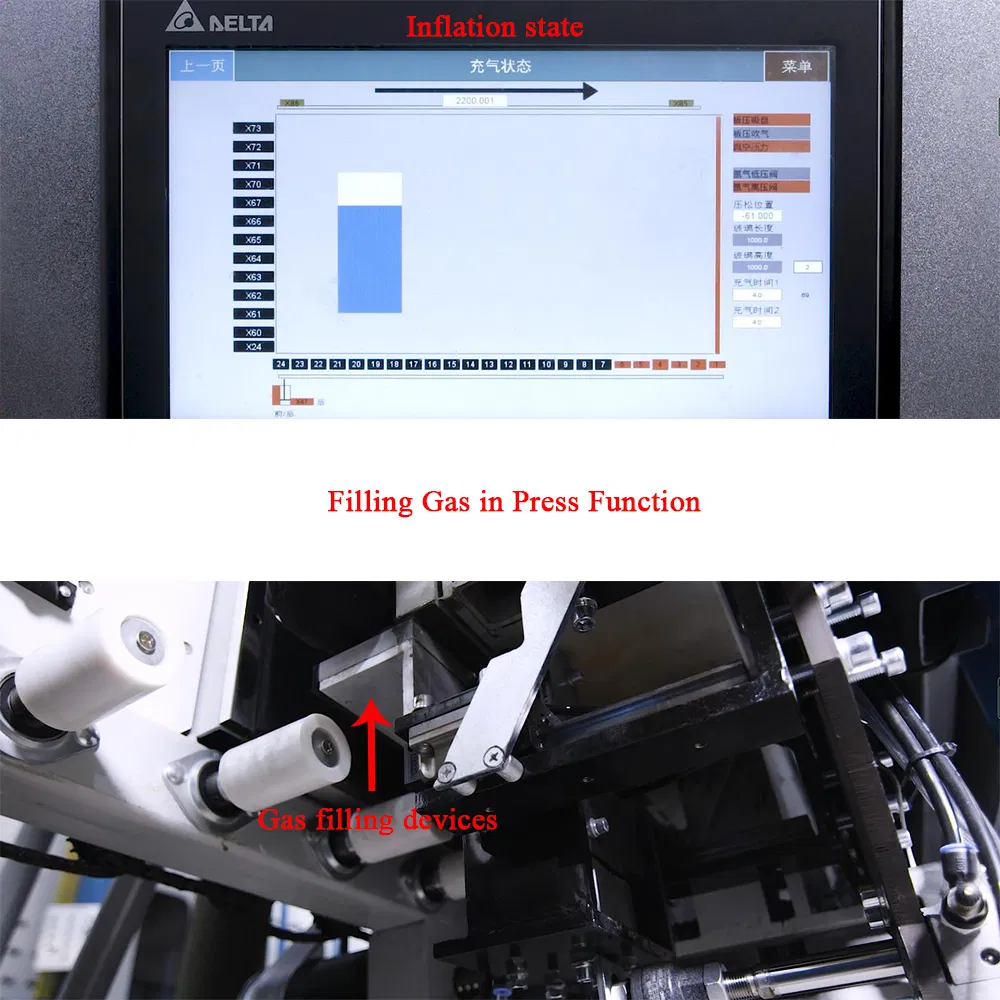

The system achieves over 92% gas concentration, exceeding international standards, with a high retention rate of over 85% after 48 hours.
Standard delivery is 45 working days for a complete production line and approximately 30 working days for single machines.
We provide a 12-month guarantee (excluding wearing parts) and lifelong technical service, including onsite engineer support upon request.

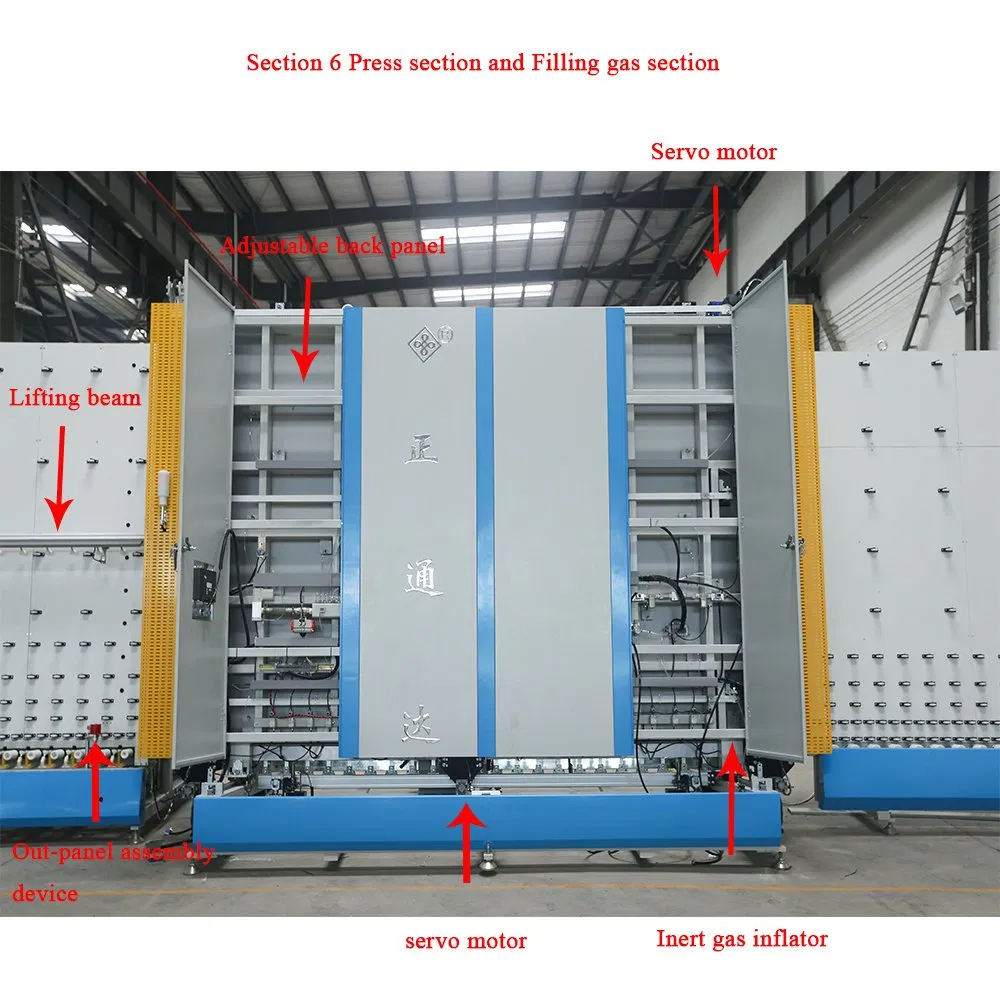

Yes, the line features a PLC control system with a touch screen interface for fully automatic glass transportation, washing, drying, assembly, and pressing.
