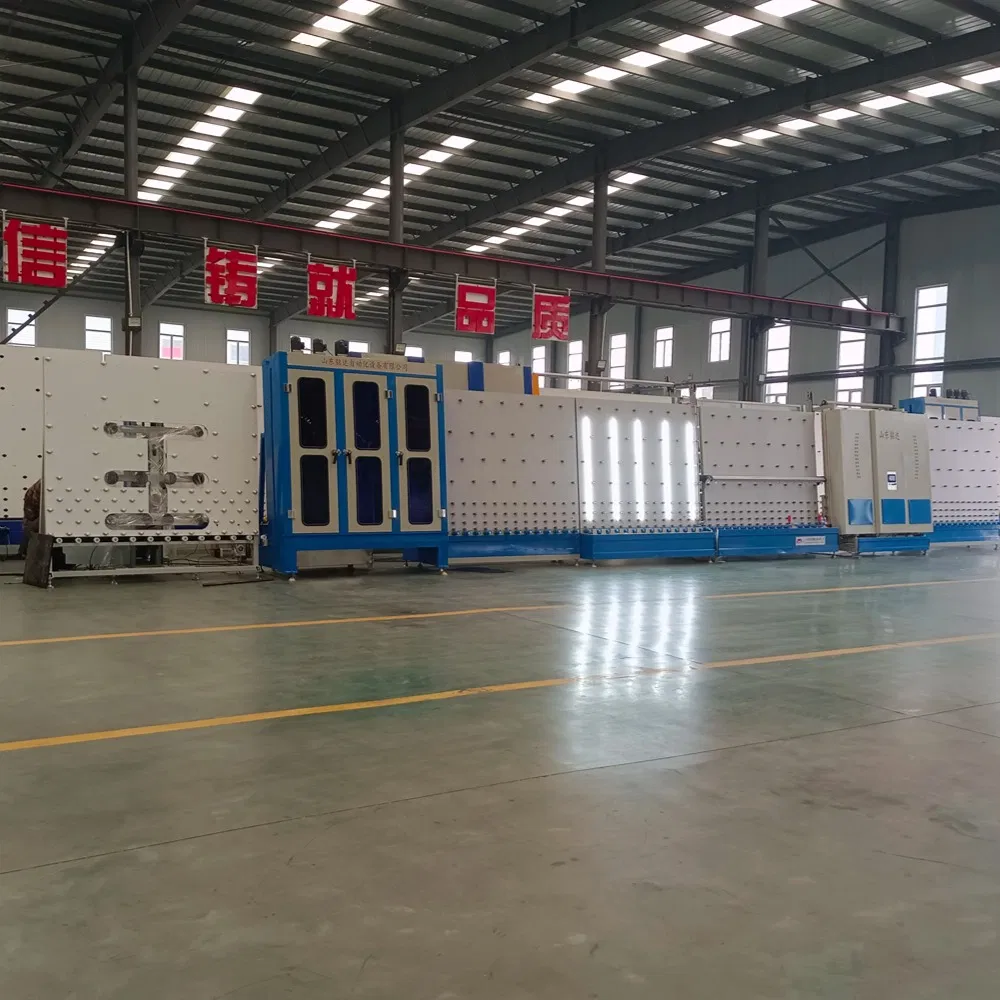

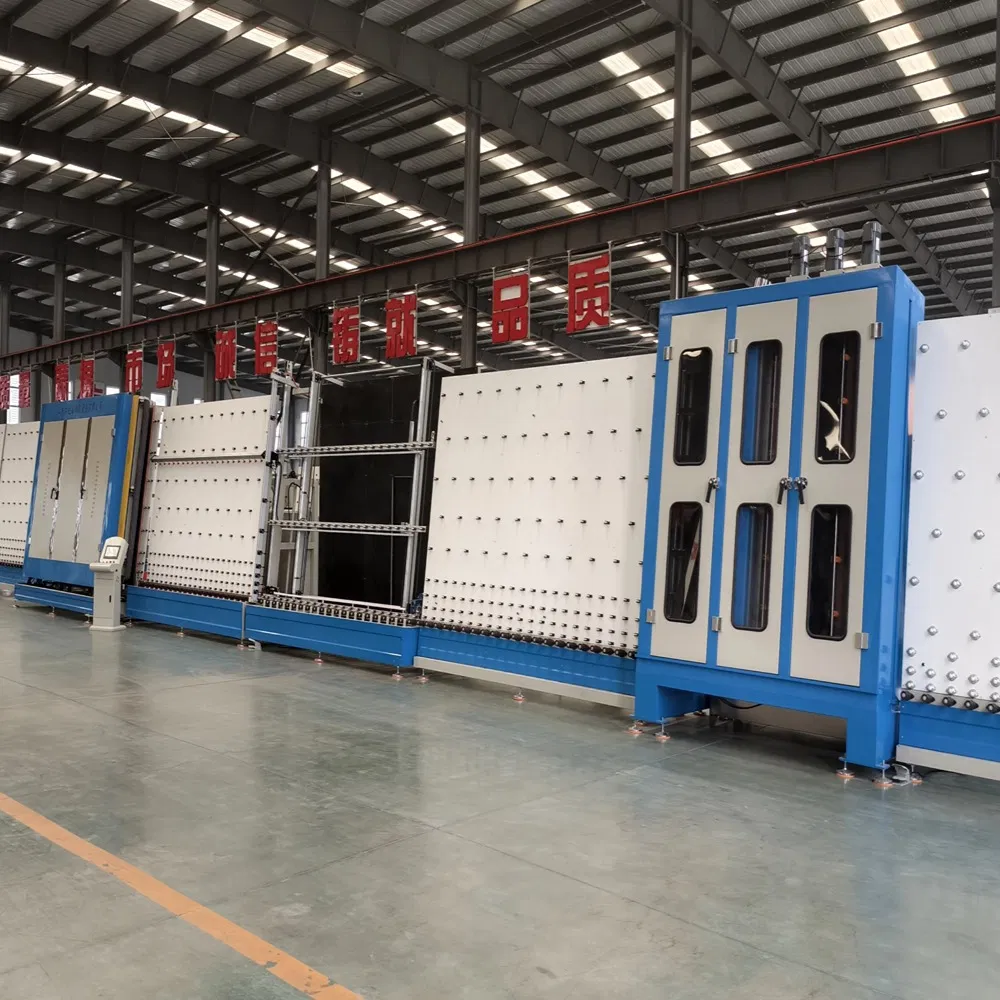

Automatic Vertical Double Glass Production Line Insulating Glass Machine

Customization: Available
Certification: CE
Control System: PLC Control

Product Description

📋 Basic Information
Model NO.
LBP2500
Glass Thickness
3-19 mm
Electric Power
42.6kw 380V 50Hz
Cleaning Speed
3-12m/Min
Air Pressure
0.7MPa
Package Size
3500cm * 4000cm * 3000cm
Technical Specifications
Electric Power 38.6kw 380v 50HZ Rinsing speed 3-12m/min
Max. glass size 3600*2500mm Working speed 15-45m/min
Min. glass size 450*450mm Outside Dimension 26600*2500*3680mm
Glass Thickness 3-12mm Air Flow 0.8m³/min
Air pressure 0.7Mpa Aeration time 3-5S

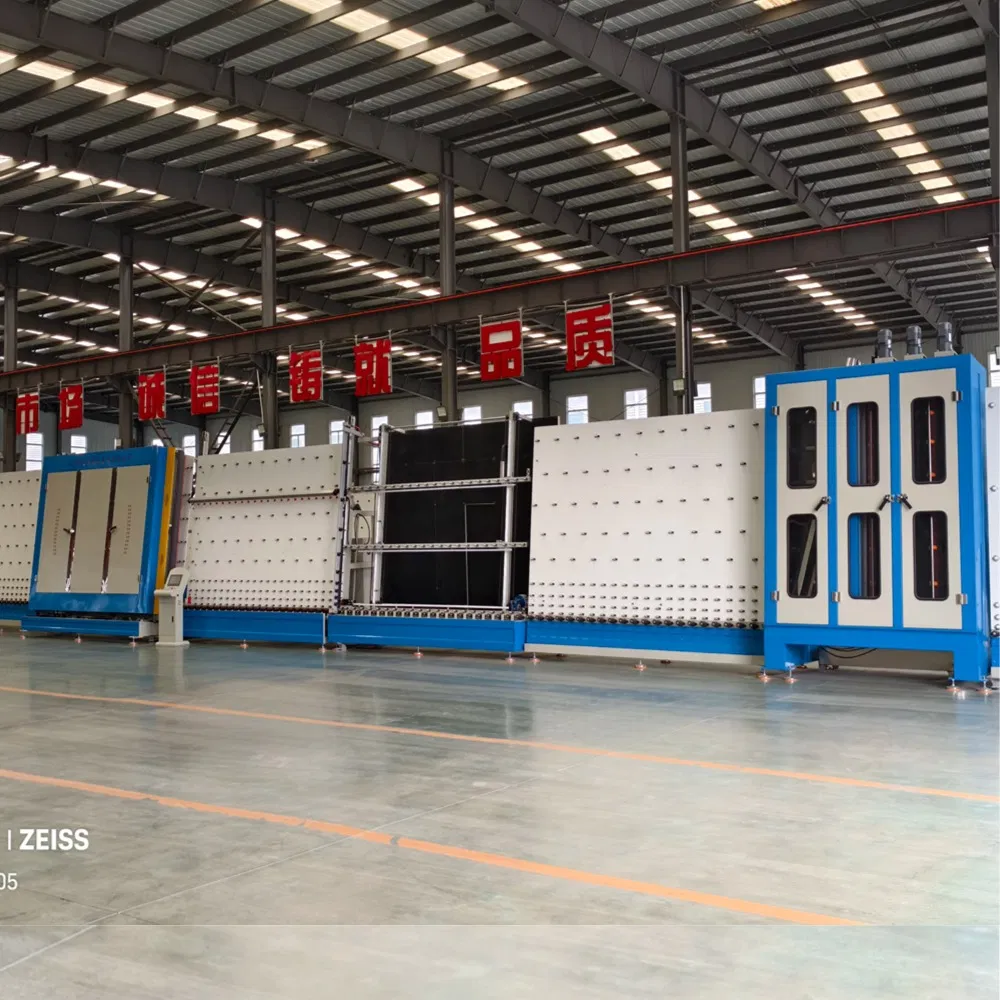

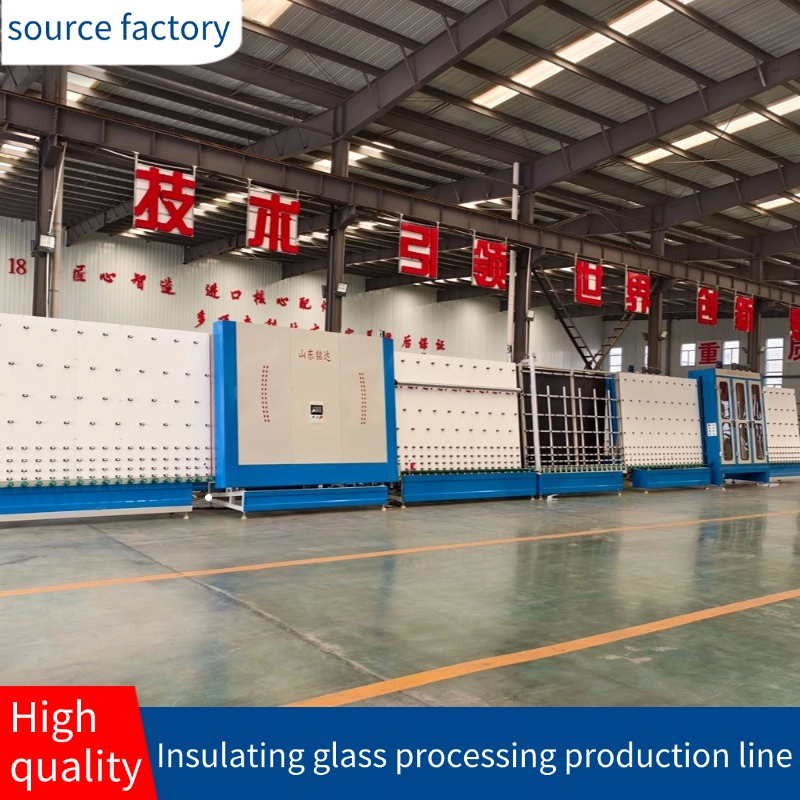

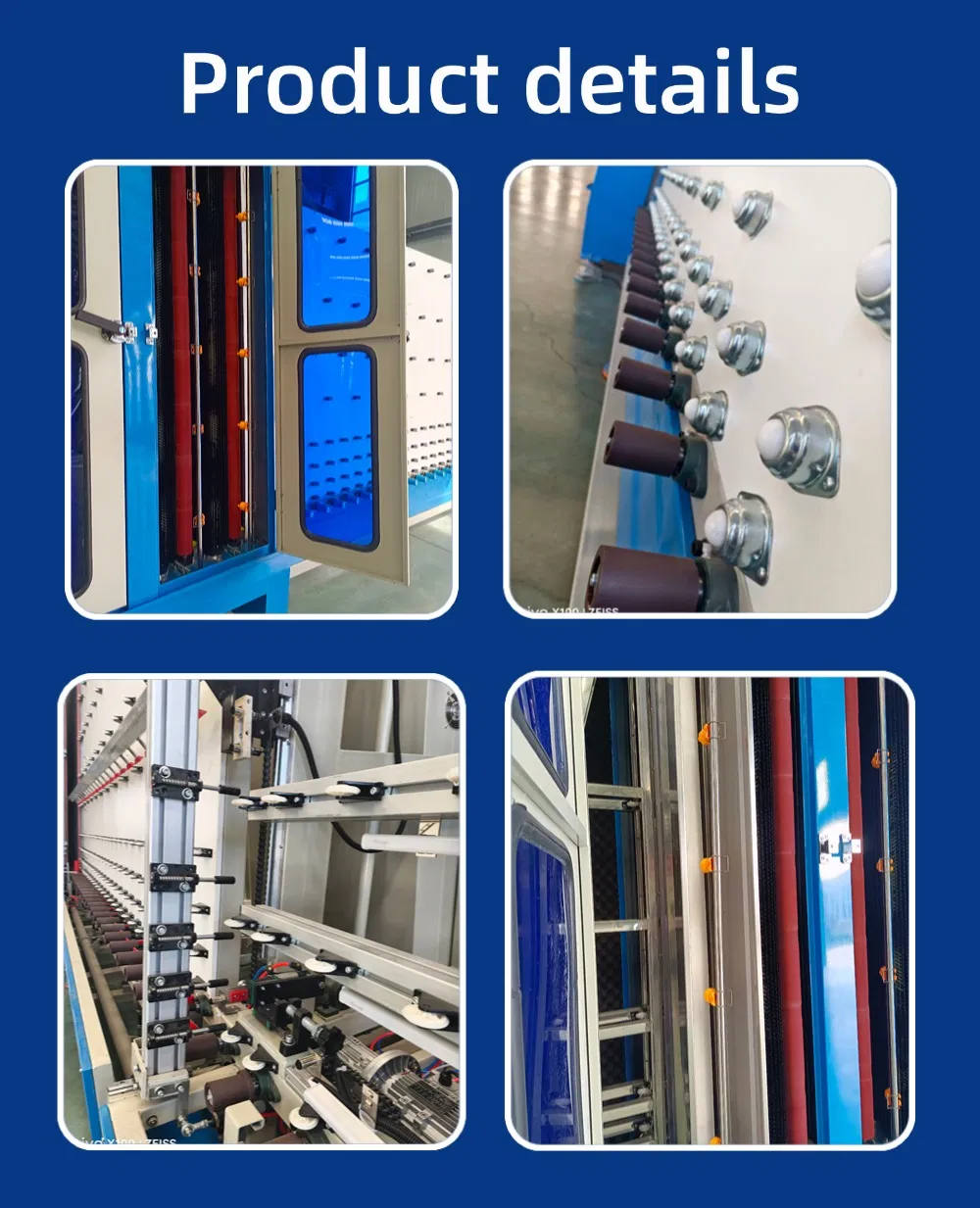

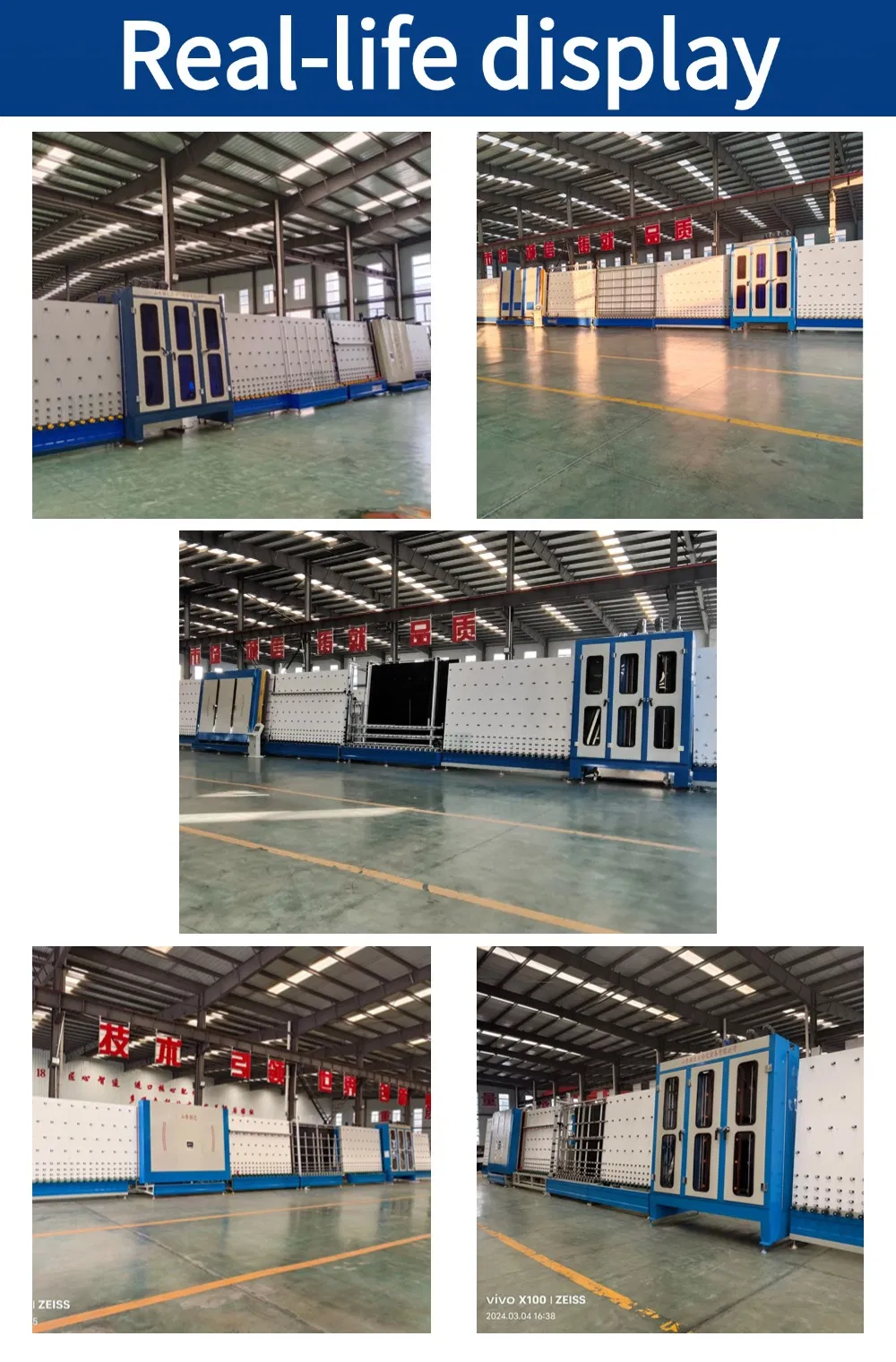

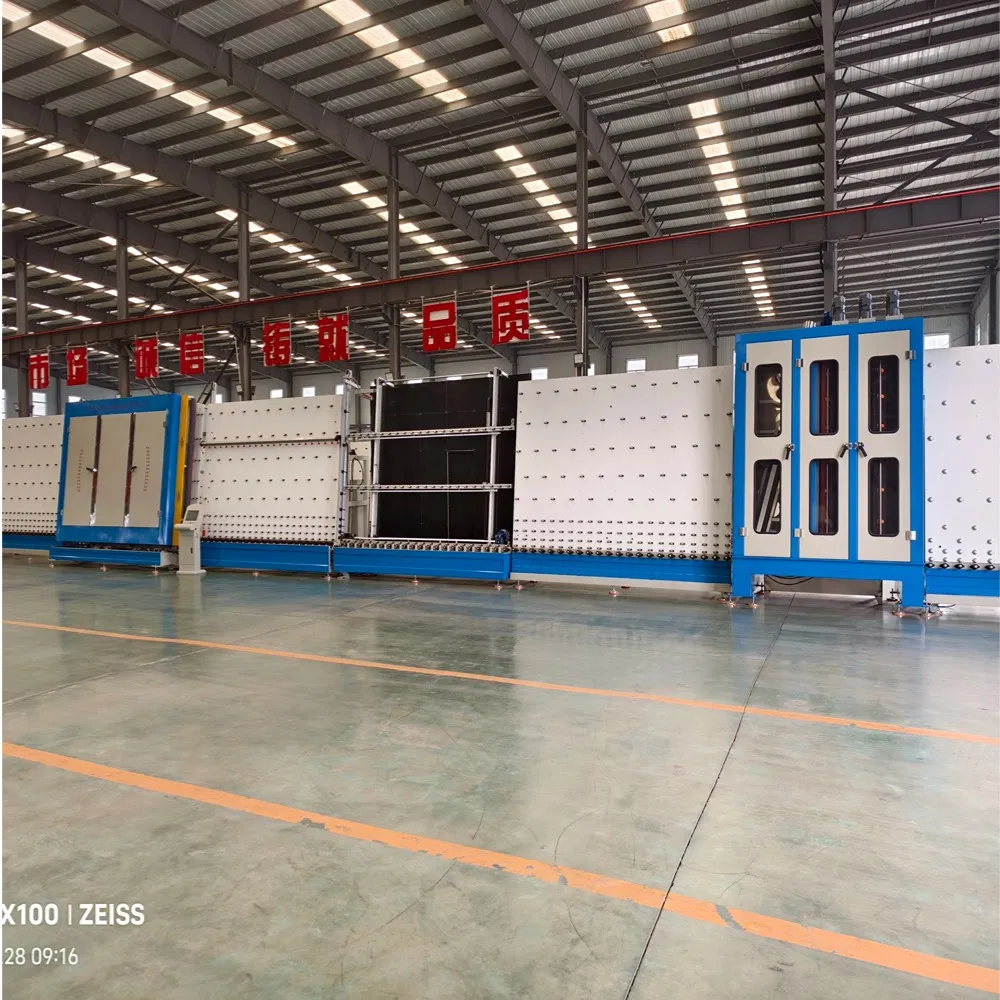

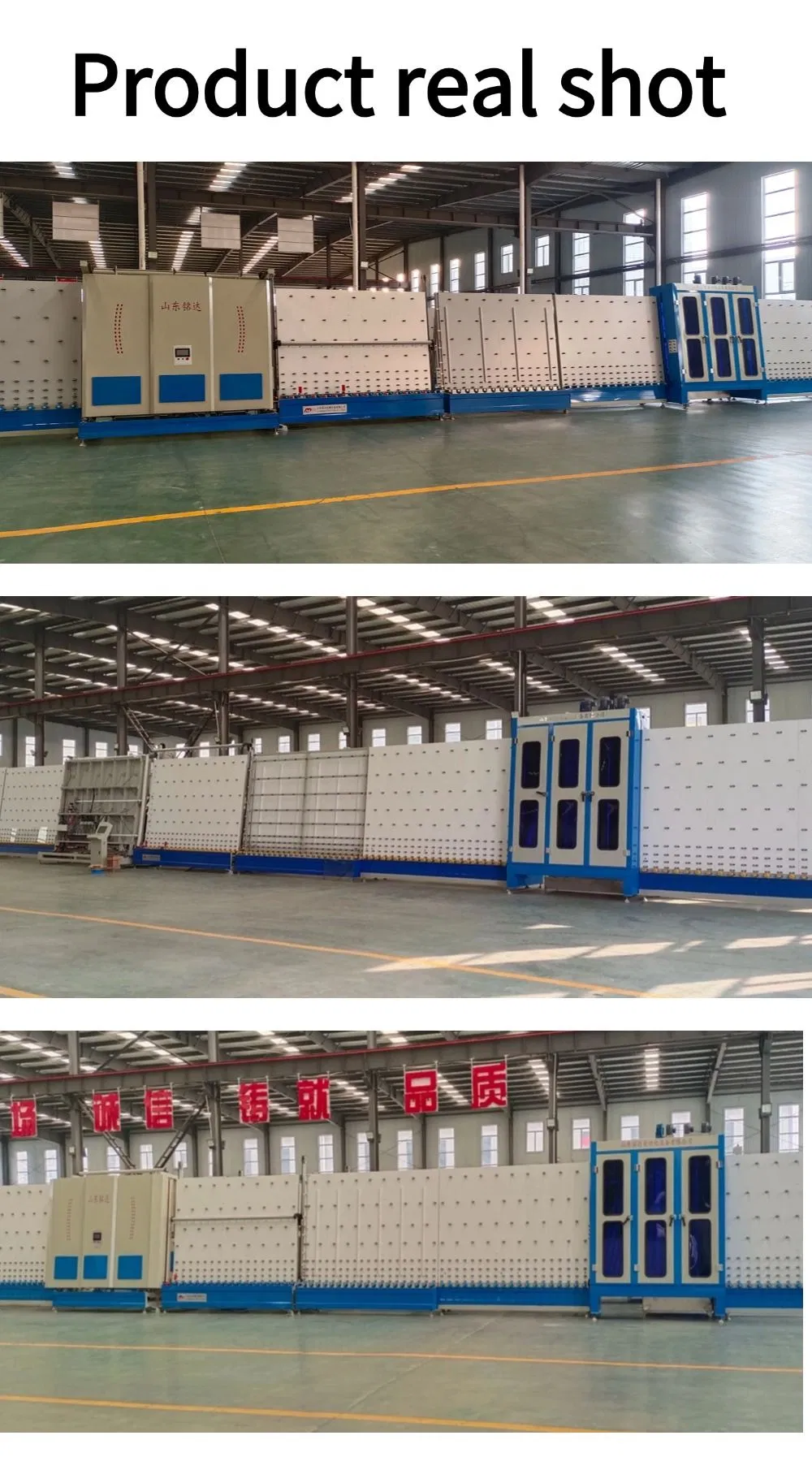

📷 Product Display

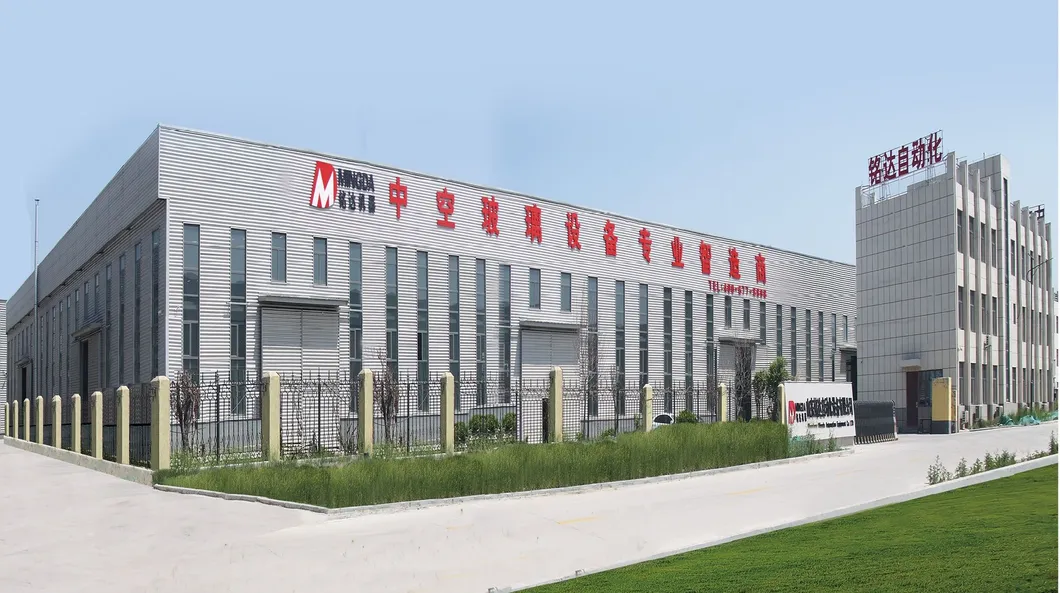

🏭 Profile

We are a private high-tech enterprise integrating production, scientific research, development and sales, specializing in the development and production of medium and high-end insulating glass processing equipment.

Since establishment, significant research and development in the field of hollow glass has been conducted, accumulating a wealth of practical experience. We have established a comprehensive sales and service system, creating world-class hollow glass processing equipment. In more than 20 years of operation, we always adhere to the credibility of supremacy and the principle of quality first.

In quality assurance, we maintain in-depth exchanges with users to listen to suggestions and pay attention to user needs. In product design and manufacturing, the needs of users remain the center, ensuring the most suitable products and establishing a customer-centric marketing service system.

Frequently Asked Questions
What is the maximum glass size this machine can process?
The LBP2500 model can handle a maximum glass size of 3600*2500mm.
What is the range of glass thickness supported?
The equipment supports glass thicknesses ranging from 3mm to 19mm.
What are the power requirements for the production line?
The machine requires an electric power of approximately 38.6kw to 42.6kw at 380V 50Hz.
How fast can the machine clean and transmit glass?
The glass cleaning speed is adjustable between 3-12m/min, while the transmission speed after cleaning can reach 15-45m/min.
What are the air pressure and flow requirements?
The system operates at an air pressure of 0.7Mpa with an air flow requirement of 0.8m³/min.
How much space is required for the full installation?
The outside dimensions of the equipment are 26600*2500*3680mm, and it comes in a package sized 3500cm * 4000cm * 3000cm.
