Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
1 / 5
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line
Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line

Window Door Automatic Double Glazed Machinery Insulated Glass Production Processing Line

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
WLBZ2030
Color
Can Be Customized
Key Selling Points
Easy to Operate, Automatic, High-Accuracy
Type
Insulating Glass Production Line
Structure
Vertical
Condition
New
Warranty
1 Year
Capacity
60 Units
⚙️

Product Description

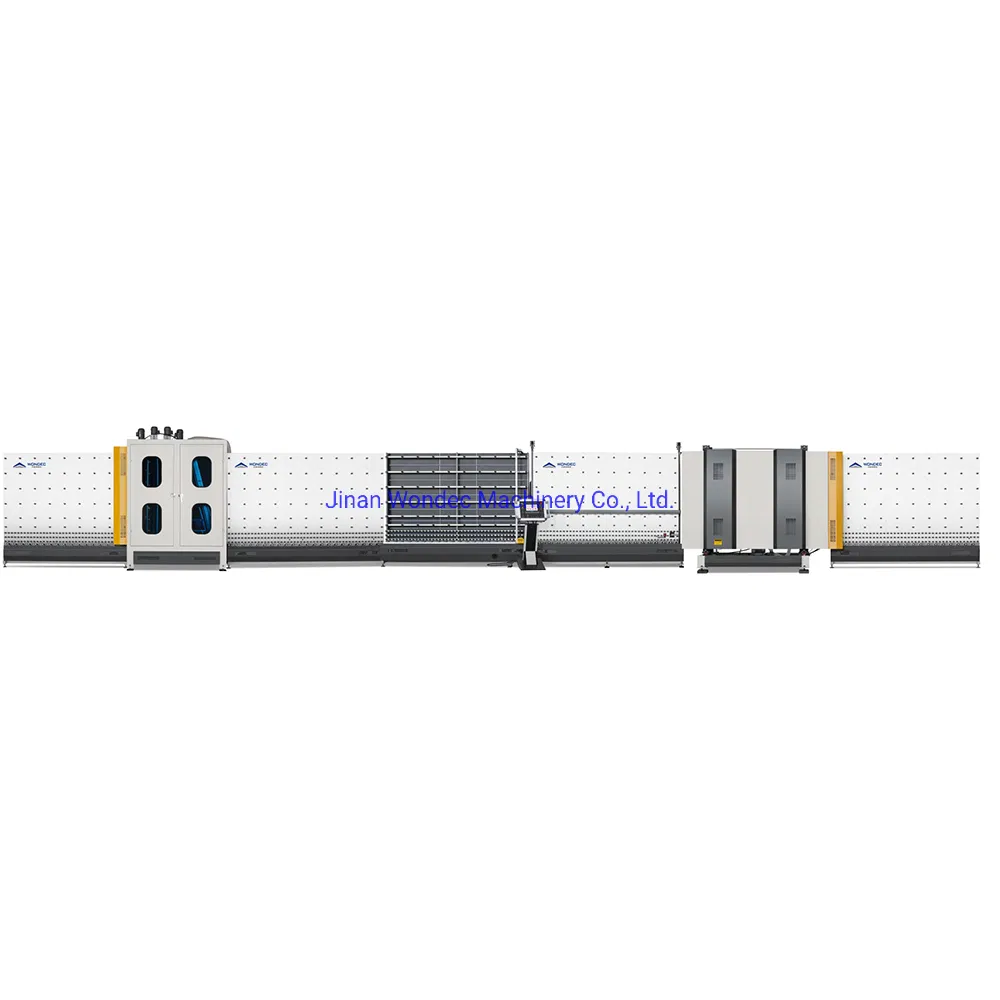

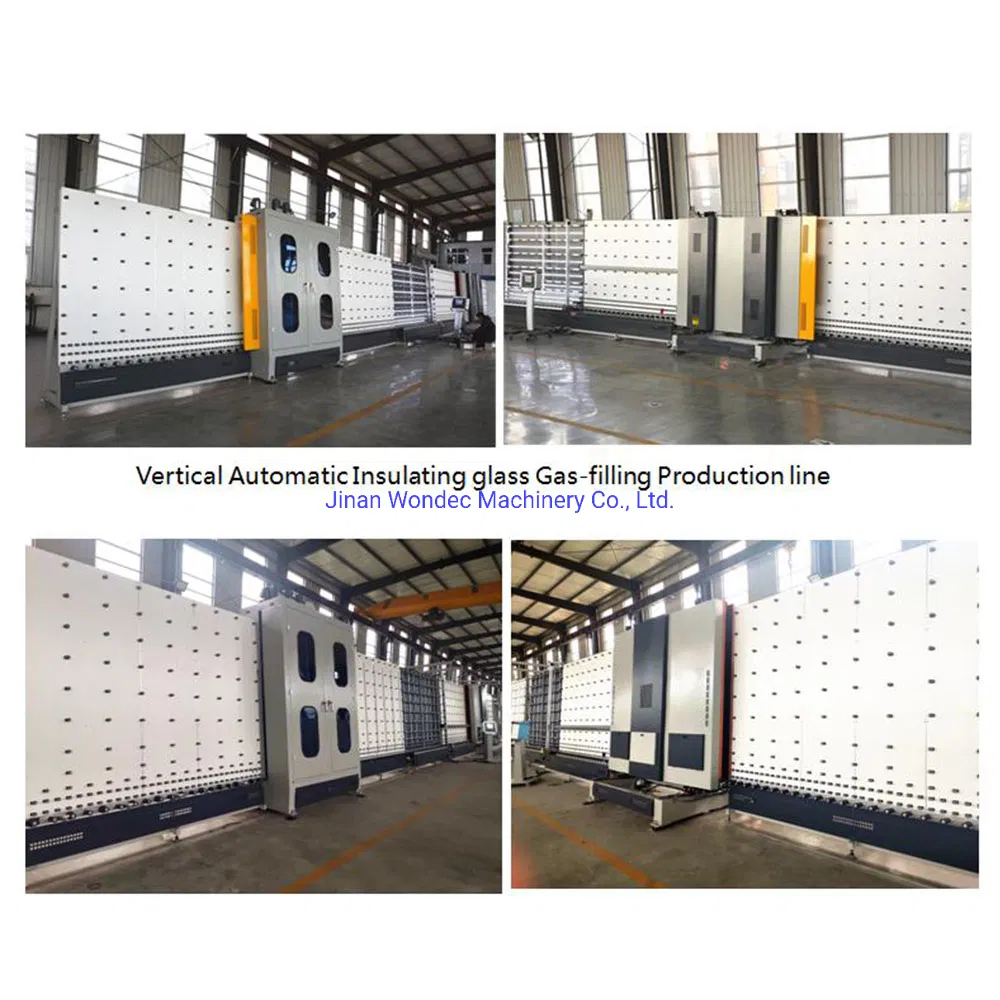

Automatic Insulating Glass Production Line WLBZ2030

Available sizes: 2500*4500MM, 2500*5000MM, 2500*6000MM, and more.

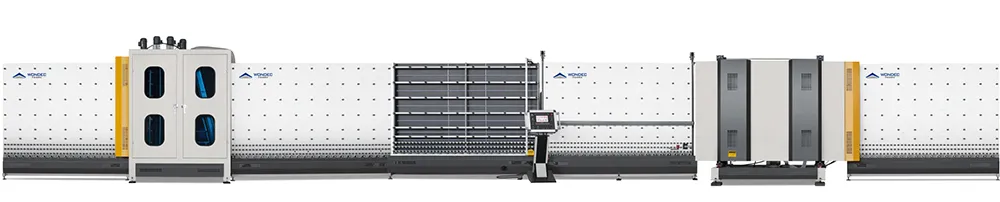

Automatic Production Line

The whole insulating glass production line includes 7 essential parts:

  • The Loading section (with Low-E checking)
  • The washing and drying section
  • The conveyor section
  • The lights inspection and aluminum spacer locating section
  • Outside assembly section
  • The inner assembly and panel press section
  • The unloading section
Process Map
📸

Detailed Photos

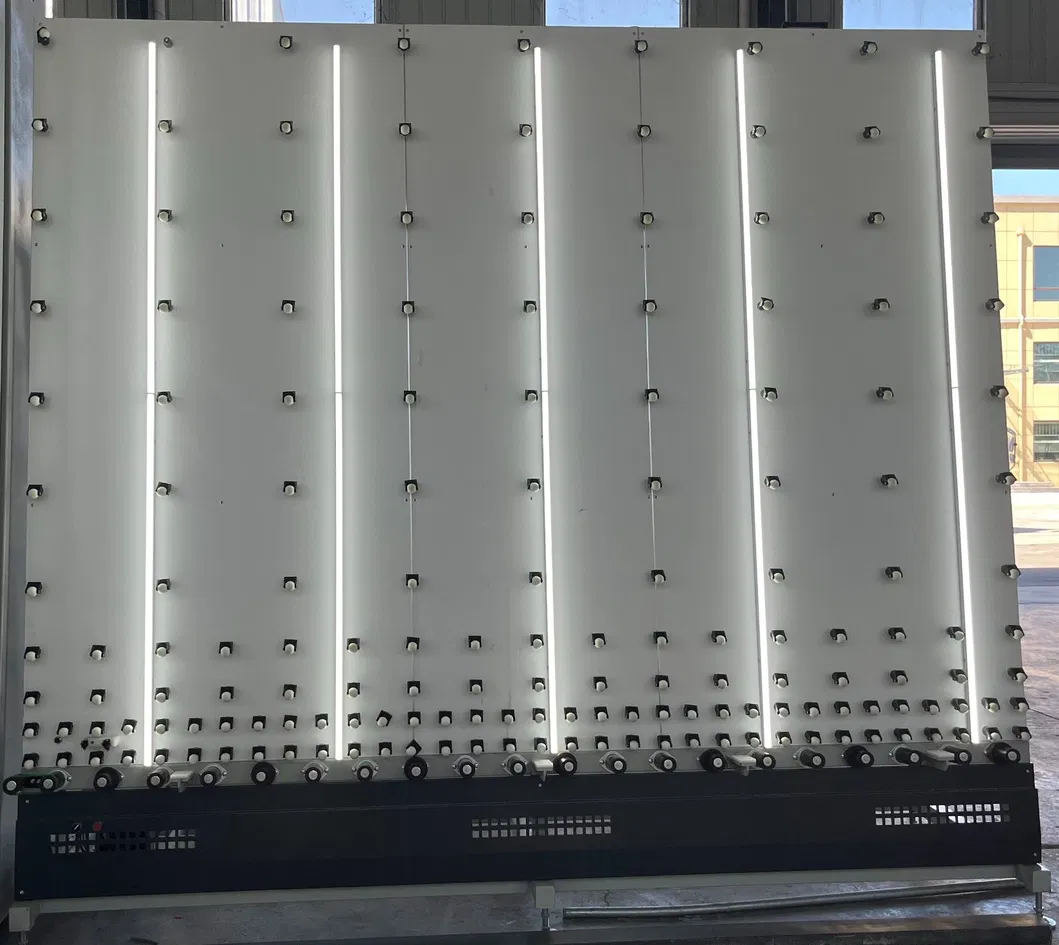

Detail 1

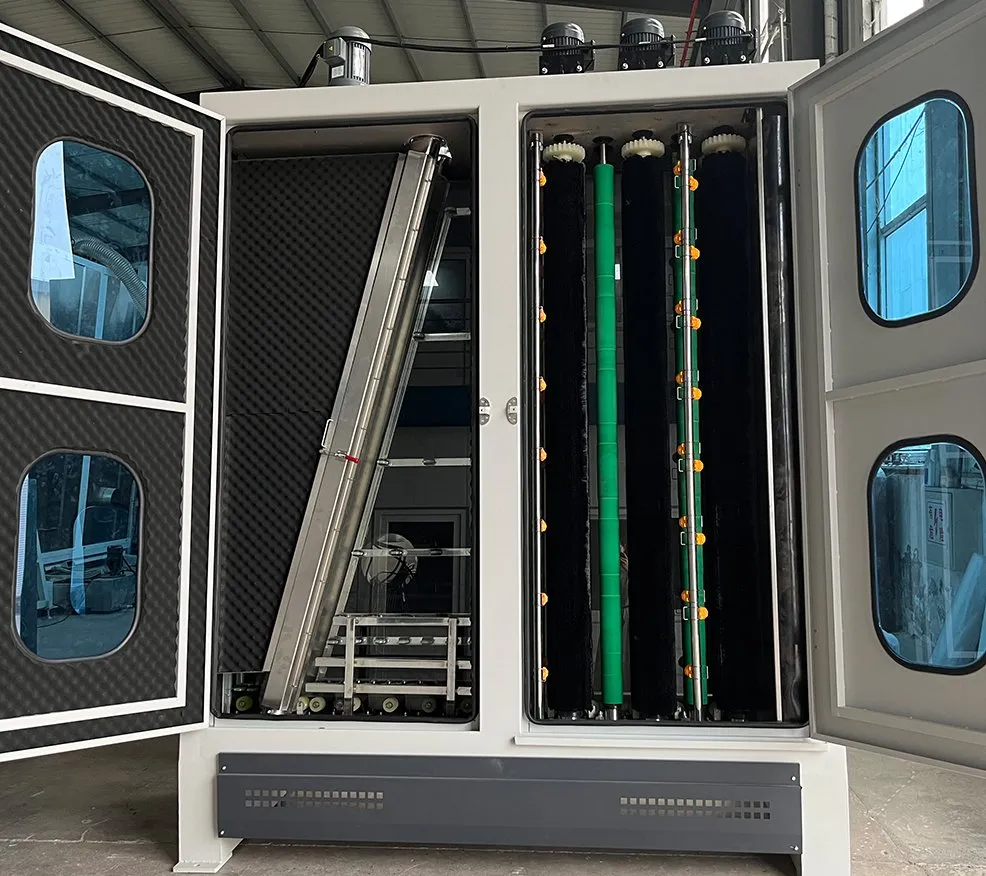

Detail 2

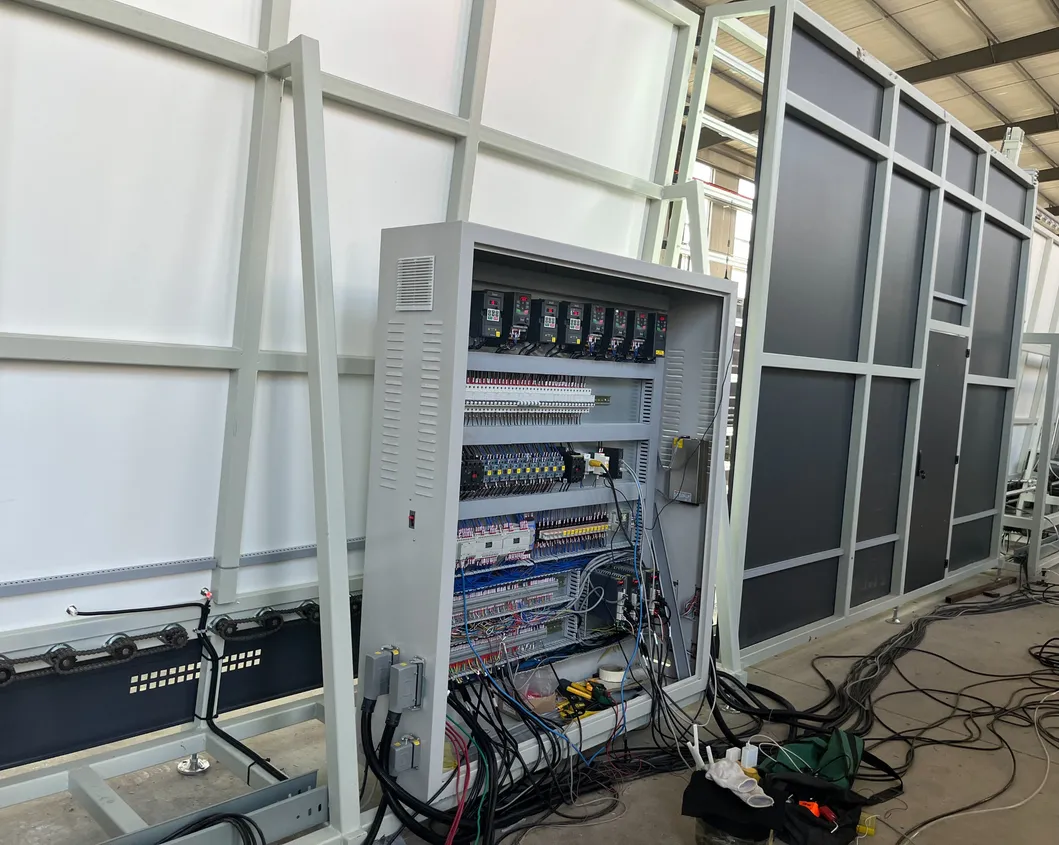

Detail 3

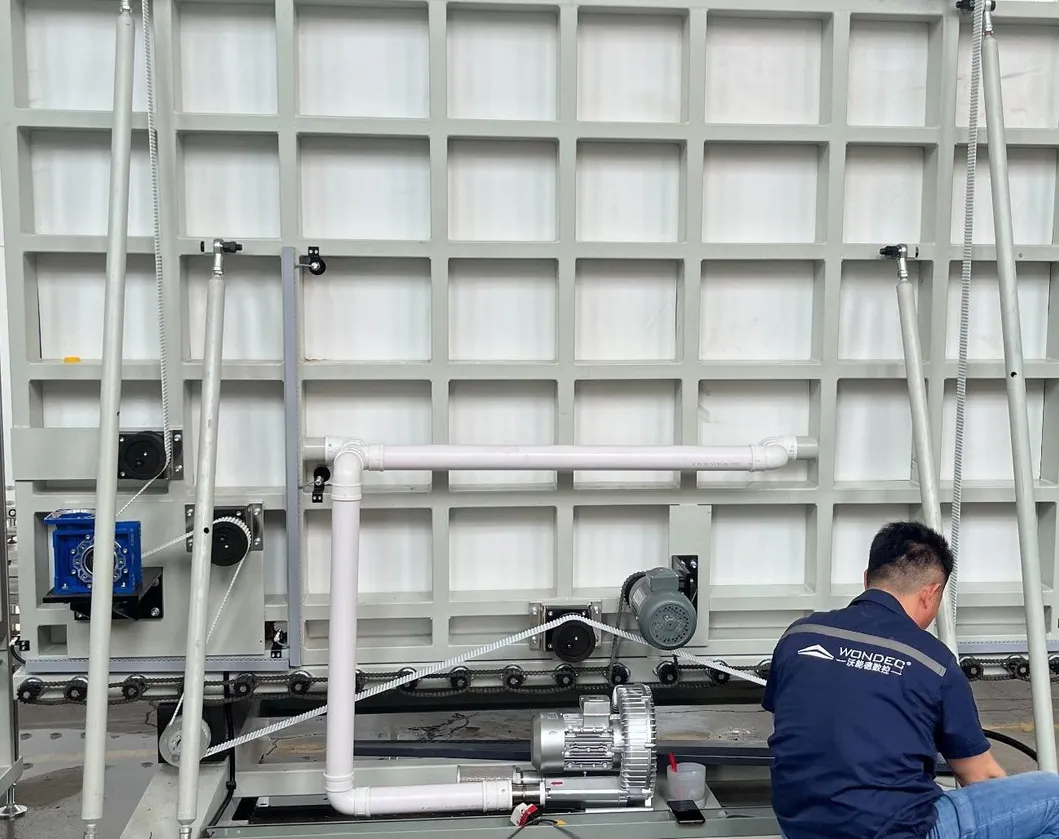

Detail 4

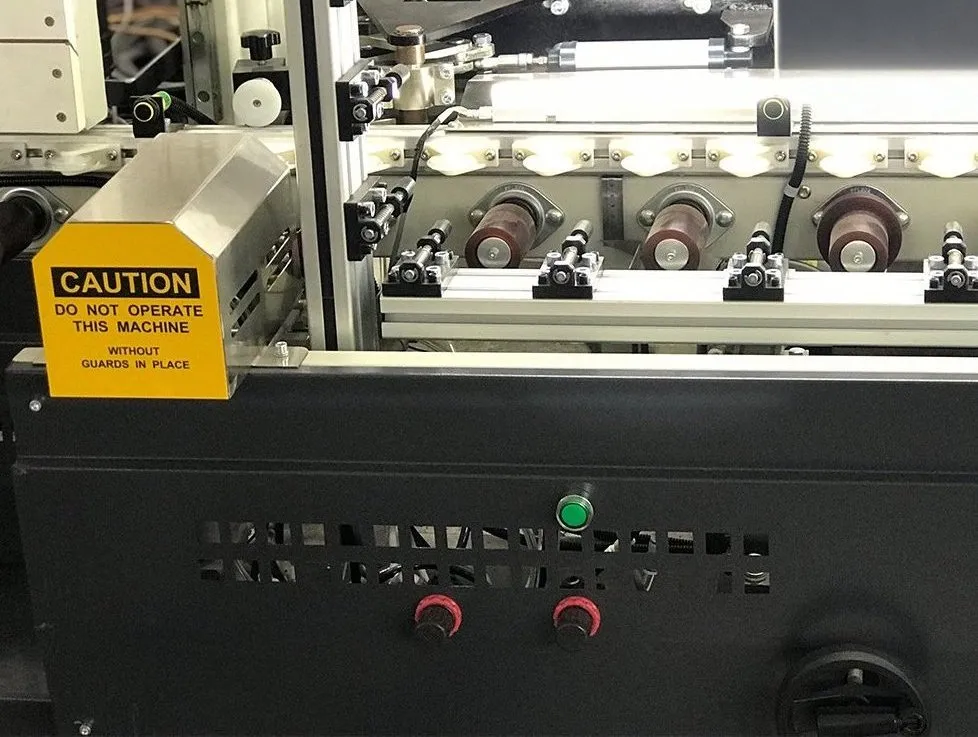

Detail 5
Detail 6

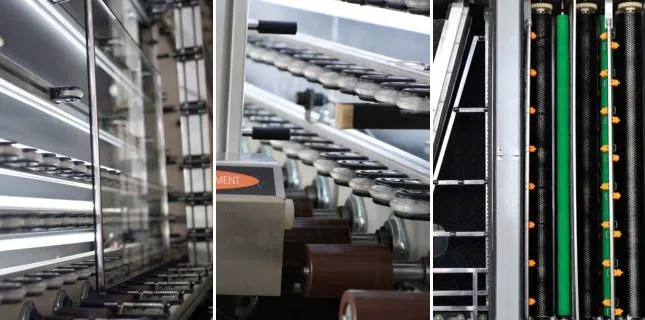

Detail 7

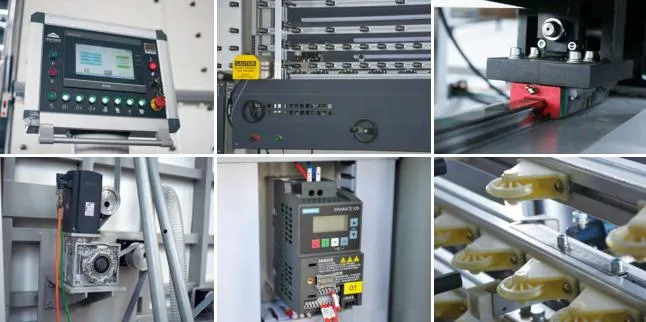

Detail 8

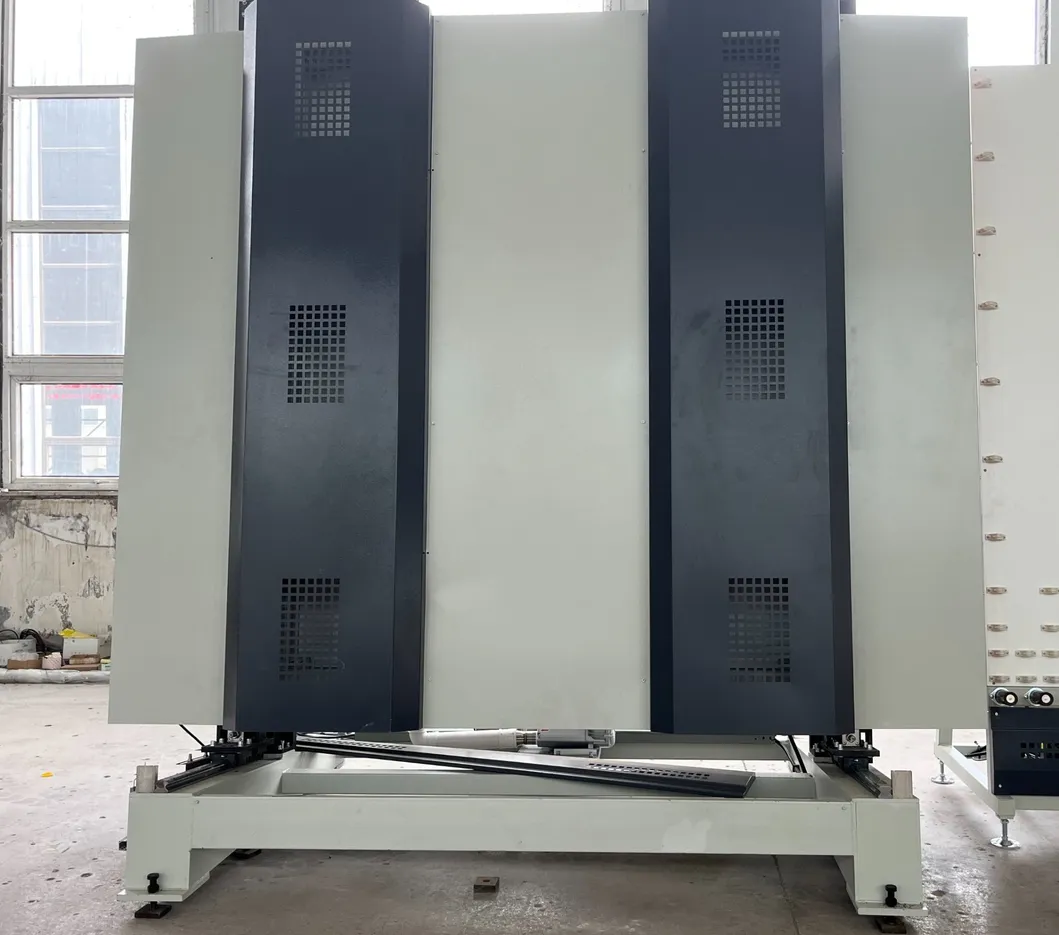

Panel Press System

1. The panel press is controlled by the machining center, ensuring extremely high flatness and pressing effects.

2. Servo motors control the pressing of insulating glass for accurate and reliable operation.

3. Capable of producing double, triple, or quadruple glass units.

4. High efficiency: Approx 800pcs can be produced in an 8-hour shift.

📊

Product Parameters

Technical Parameter WLBZ2030
Total power29kw
Max glass size2000x3000mm
Min glass size300*500mm
Single glass thickness3~12mm
Max I.G.unit thickness12~80mm
Glass washing speed3~12m/min
Working speed2~48m/min
Overall dimension21300*2500*2900mm
🔄

Production Workflow

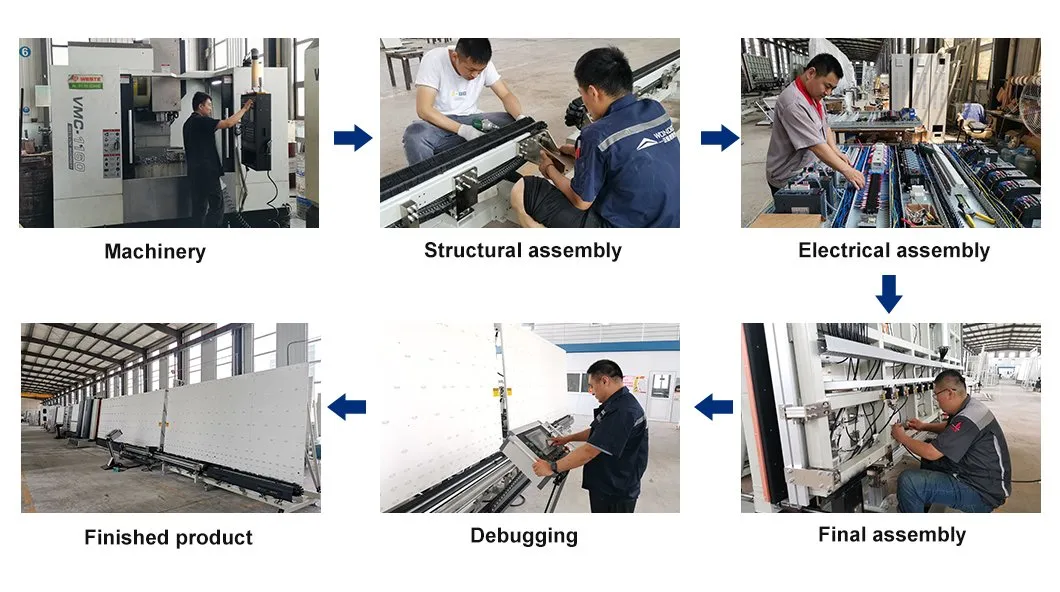

Workflow Diagram
📦

Packaging & Shipping

Shipping Details
🛠️

Service & Support

Pre-sales:

  • Technical Drawings based on equipment layout.
  • Layout optimization based on your building floor plan or dimensions.

After-sales:

  • Weekly production reports to track progress.
  • Equipment installation, debugging, and personnel training.
  • English operation manuals provided.
  • One year warranty (excluding wearing parts) and lifetime technical service.
🌟

Why Choose Us

Expertise Quality Control Factory Strength
❓

FAQ

Which countries are your products exported to?
Our equipment has been exported to 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.
How do we learn to use the glass processing machinery?
We provide comprehensive paper instructions in English and offer hands-on training until your operators are proficient.
How is the quality control managed?
The entire production procedure undergoes regular inspection. Every component is inspected before use, and the complete machine is tested before leaving the factory. Testing videos and pictures are available before delivery.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in this field, offering not just machines but complete industrial solutions.
What happens if the machine has problems after ordering?
Free parts are sent during the warranty period if issues arise. We offer 7/24 free service and support via phone and mail for the lifetime of the machine.
Do you provide installation services in my country?
Yes, we arrange for engineers to install the machine at your factory and train your personnel upon the equipment's arrival.
