9 Spindles Motors Automatic Flat Glass Straight Line Glass Edging Machine Manufacturer

1 / 5

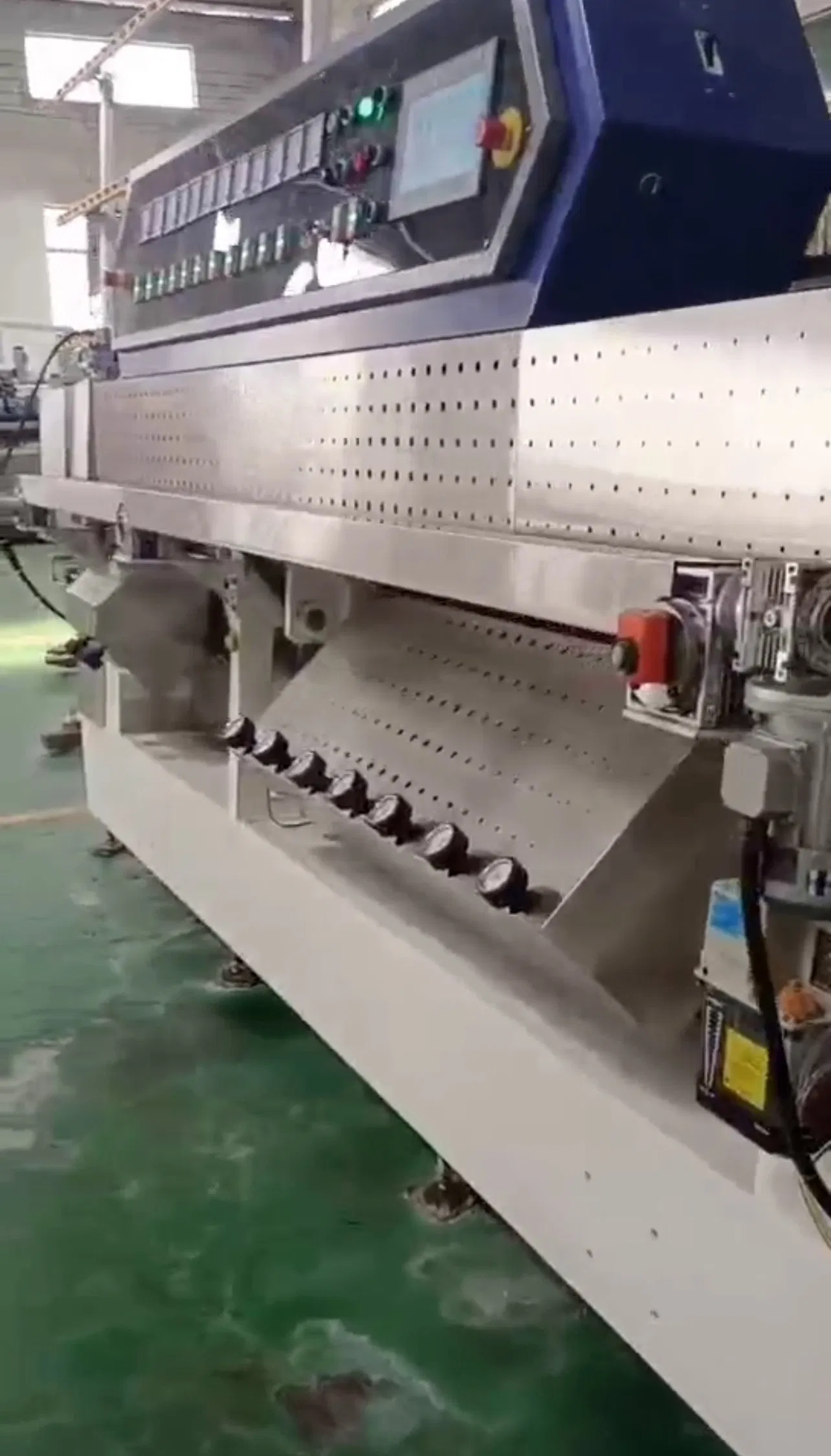

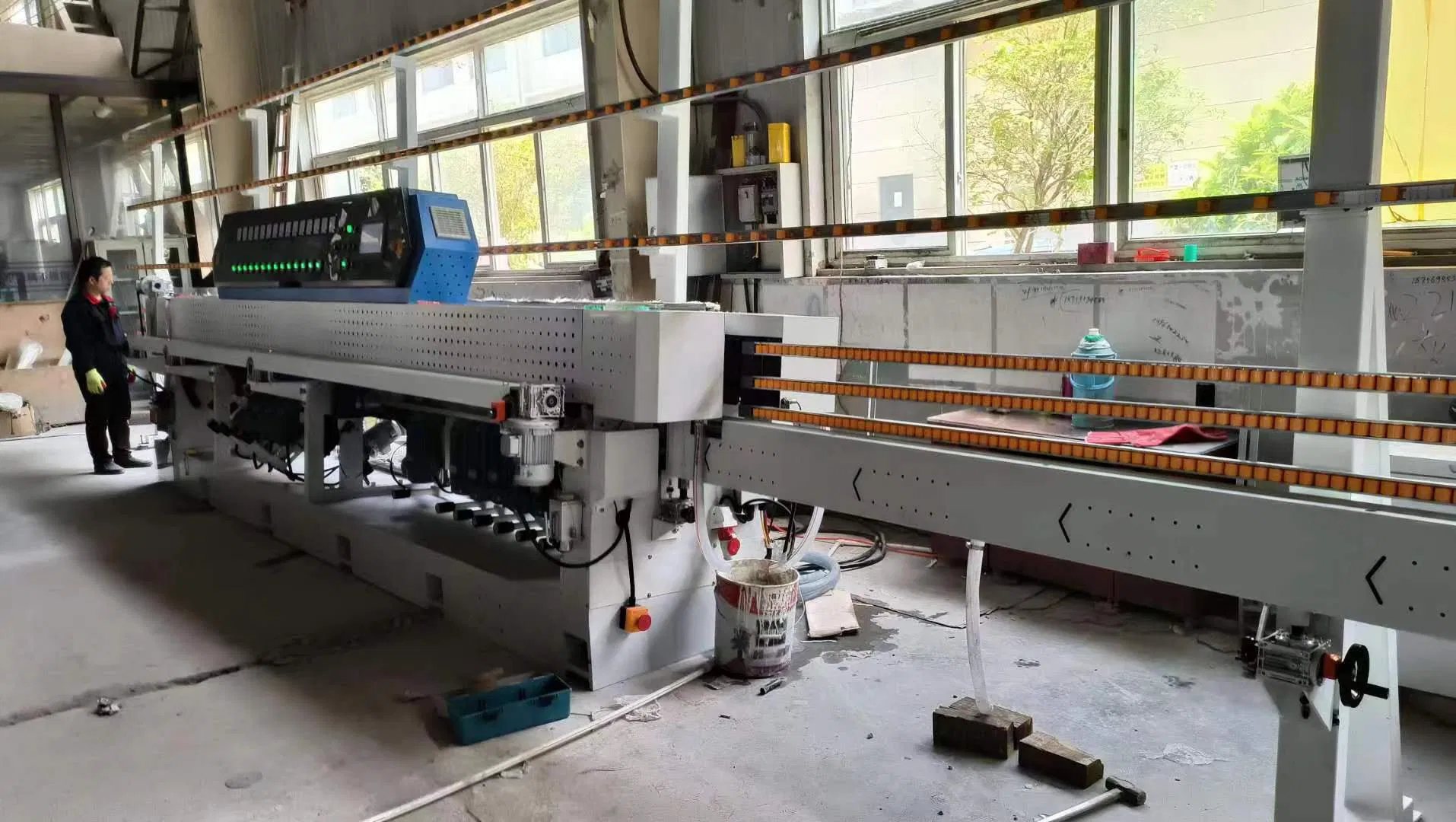

9 Spindles Motors Automatic Flat Glass Straight Line Glass Edging Machine Manufacturer

Customization:	Available
Certification:	CE
Processing Speed:	0.5-7m/Min

Send Inquiry

Product Description

⚙ Basic Information

Model NO.	DZM11P
Processing Thickness	3-50mm
Voltage	380V
Warranty	12 Months
Min. Glass Size	30×30mm
Transmission Speed	0.5-7m/Min
Max. Hemline Grinding	5mm
Arris Grinding Range	0.5-5mm
Power	28kw
Weight	6300kg
Land Occupation	8383×1200×2600mm

📝 Product Description

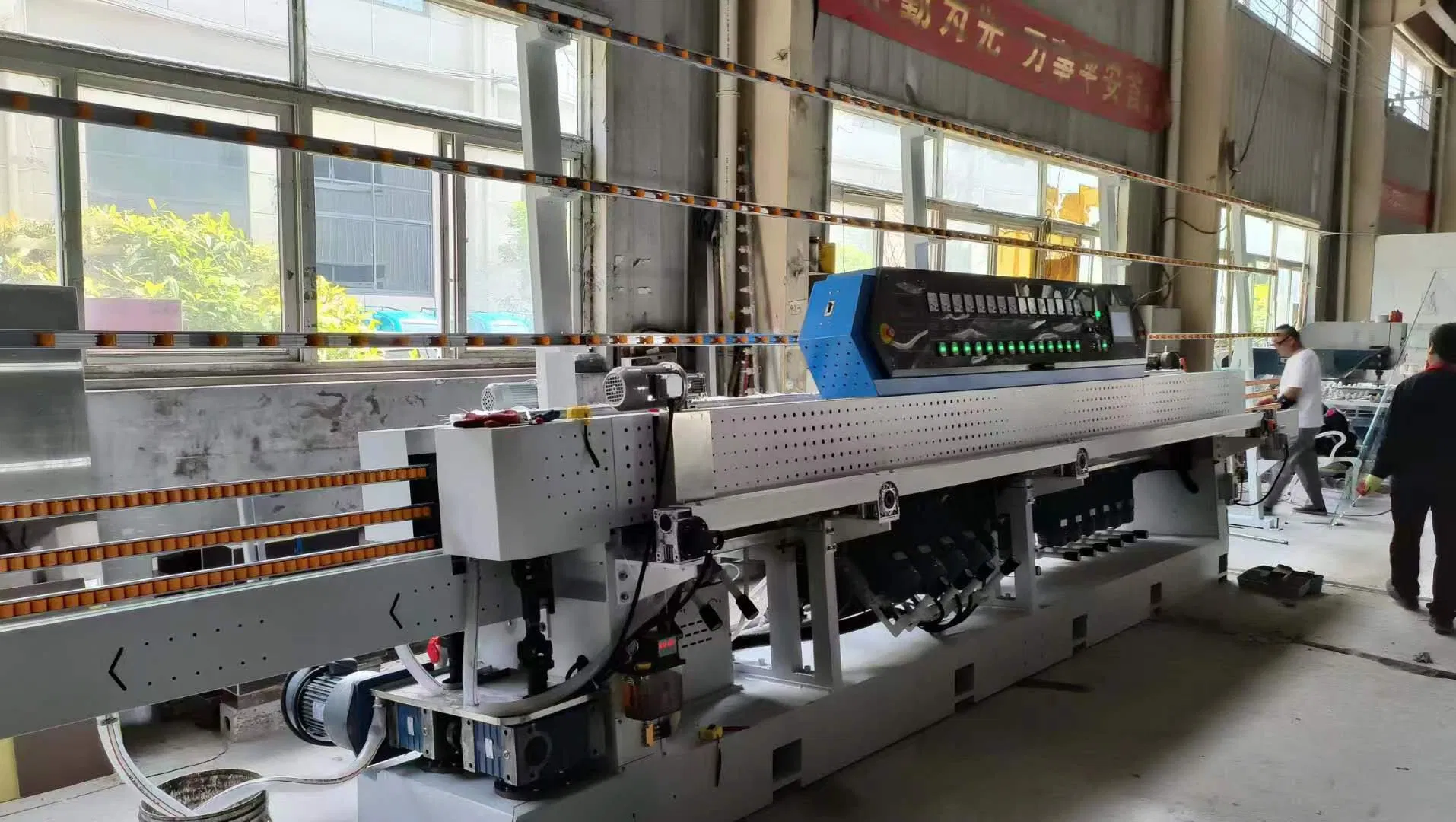

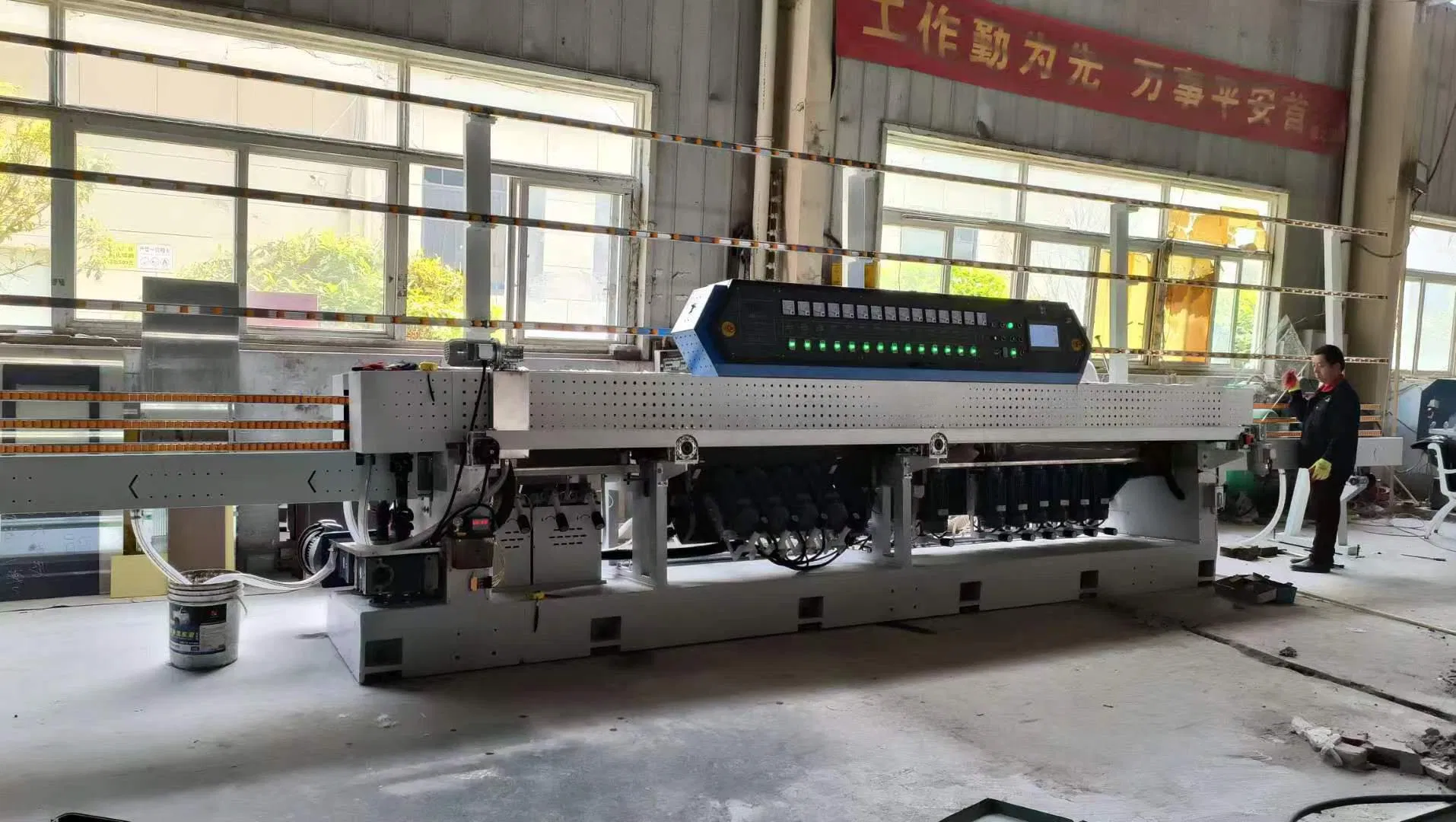

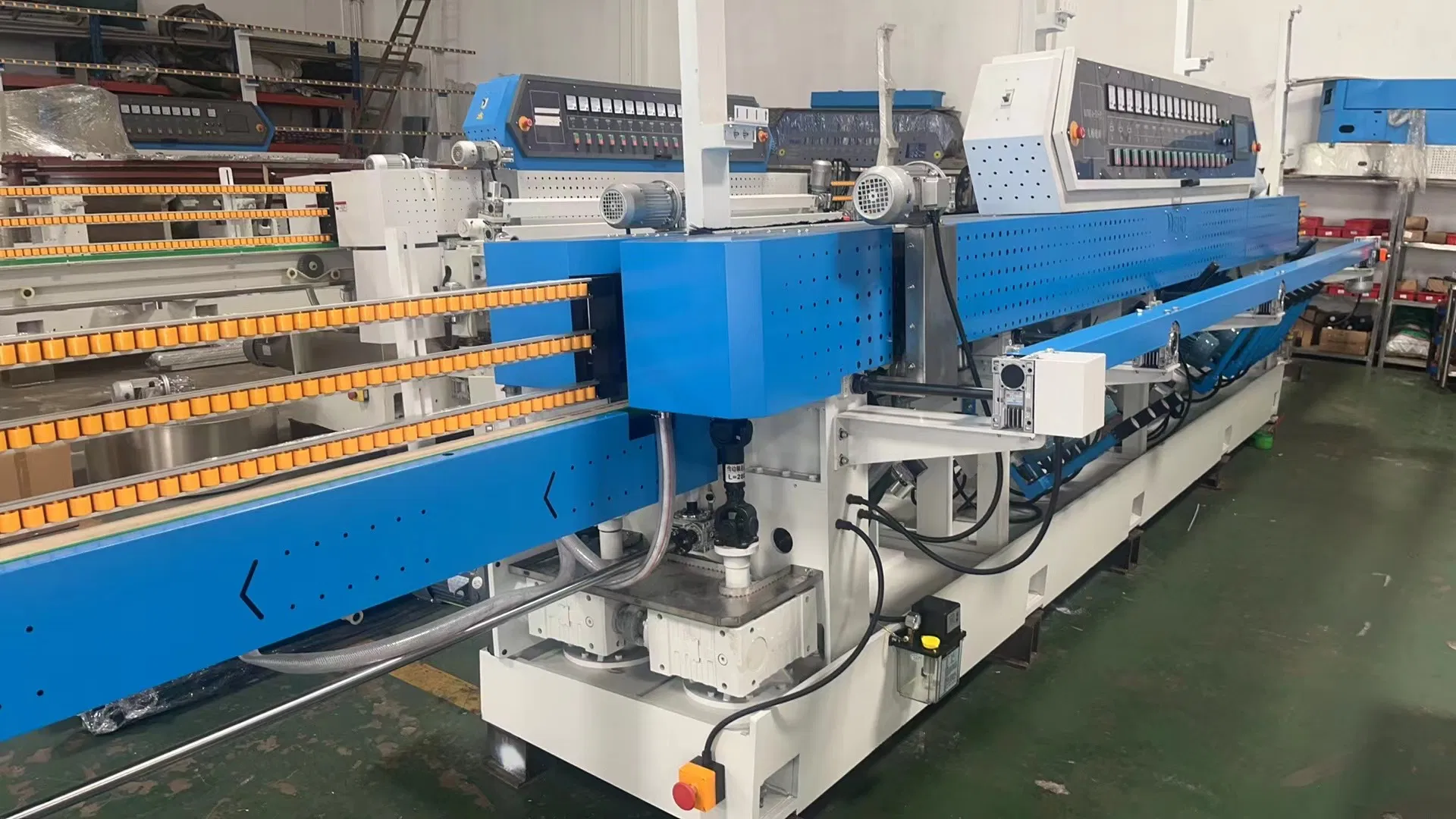

DZM11P GLASS STRAIGHT-LINE EDGING MACHINE

The front and rear beams of the machine adopt a high-strength steel box structure. The right side of the beam features a circular track. Rails on both sides and the round end of the beam are embedded with quenched super-hard steel guide rails, providing more than ten times the service cycle of ordinary rails.

The machine utilizes chainless ball bearing transmission to convert sliding contact into rolling contact, reducing tension and ensuring smooth drive operation. The main drive system combines a variable frequency speed regulation motor with a hardened gear reducer and RV Reducer for maximum efficiency and torque.

Key Application: Applicable to process 3~50mm glass straight-line. Rough/fine grinding and polishing can be finished in one single passage. The surface can reach mirror-degree quality with high precision.

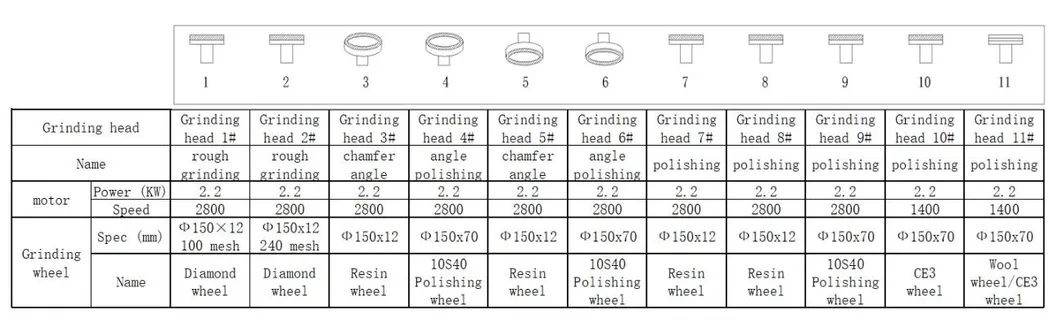

Wheels Placement:

🔍 Technical Details & Photos

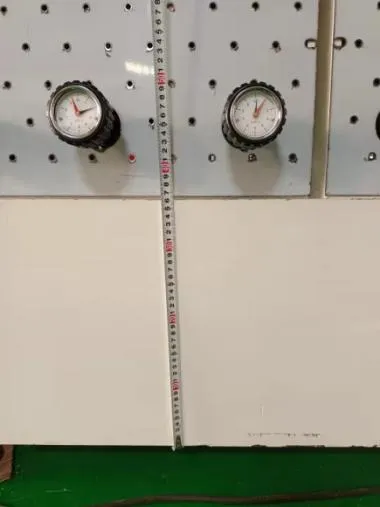

High-Stability Base: The base weighs about 1600 kg and undergoes two times annealing treatment to ensure zero deformation and high datum accuracy.

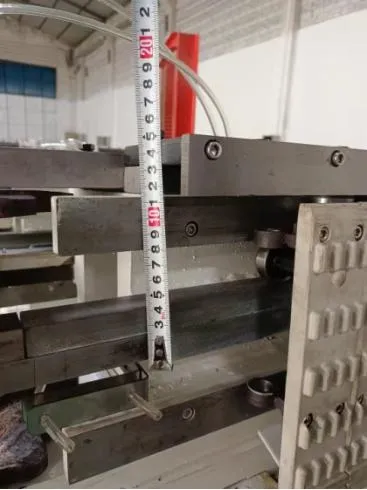

Precision Guide Rails: Quenched and heat-treated with 40 steel for high hardness and wear resistance. Support base thickness reaches 25mm.

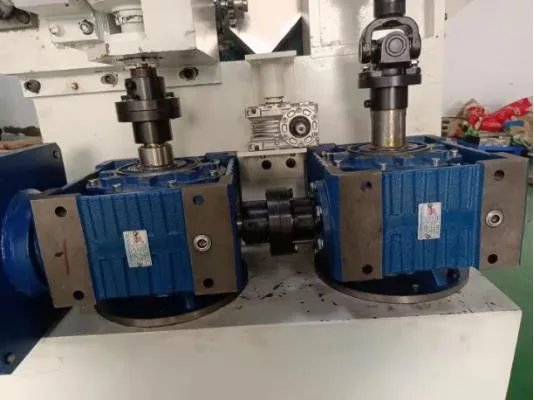

RV Gear Reducer: Utilizes two big 110 RV Gear reducers to ensure stable operation and enhanced durability under heavy loads.

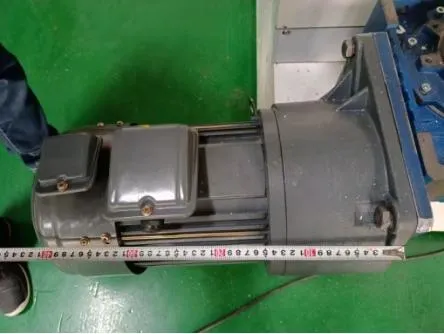

Main Motor: Frequency inverter motor and hard-tooth reducer keep the machine stable even during overload glass processing.

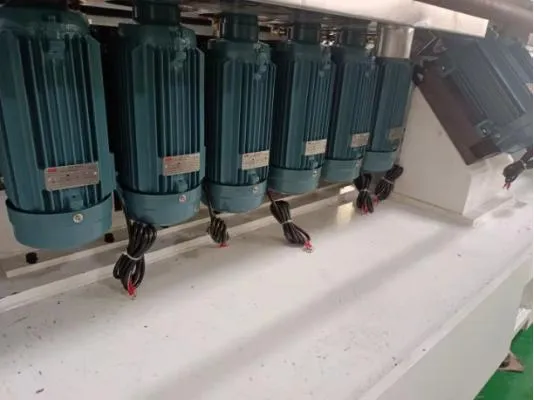

Strong Spindles: All spindles use reinforced motors for reliability. Features a special bearing base with taper adjusting bearings.

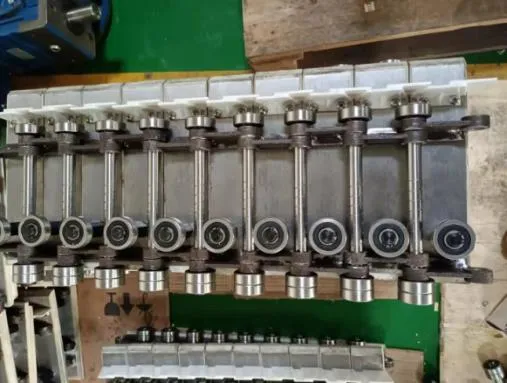

Linkage System: Link shaft and buckle made of 40 CR material. Cross positioning of bearings ensures high accuracy.

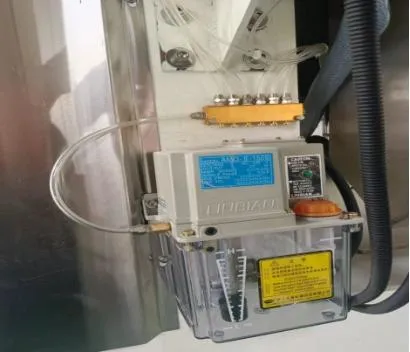

Lubrication System: Automatic lubrication pump for pad bearings and manual pumps for motor sliders.

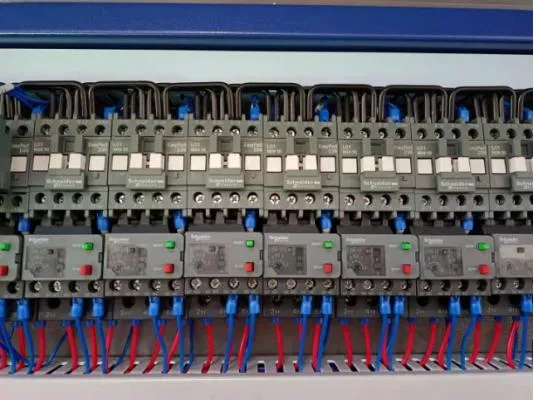

Schneider Electrics: Neat line layout for safety and smooth running, following international electrical standards.

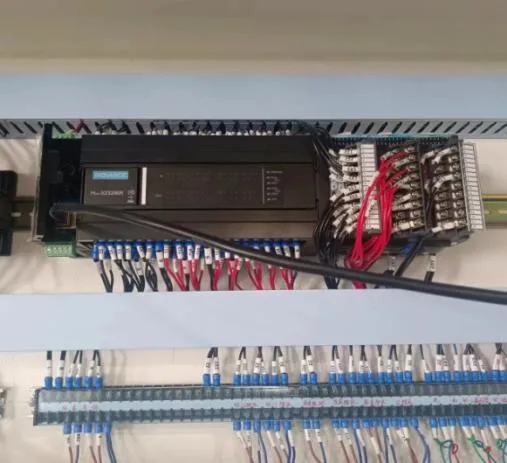

Control System: Inovance PLC and CMGC touch screen display glass thickness and speed for easy operation.

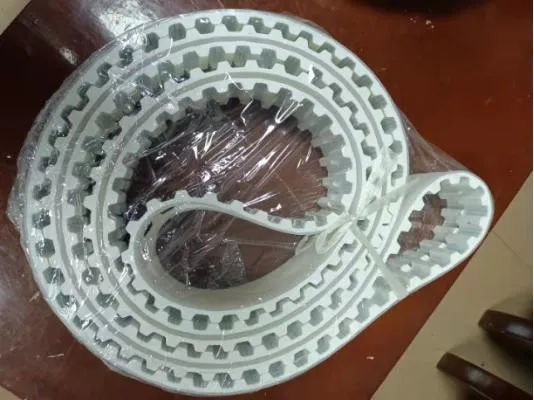

Conveying System: High-quality timing belt with 2PU for accurate glass conveyance and long service life.

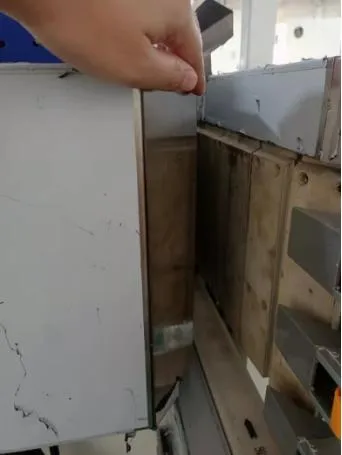

Safety Features: Anti-pinch hand clamping device at entry and exit ends automatically stops the machine upon contact.

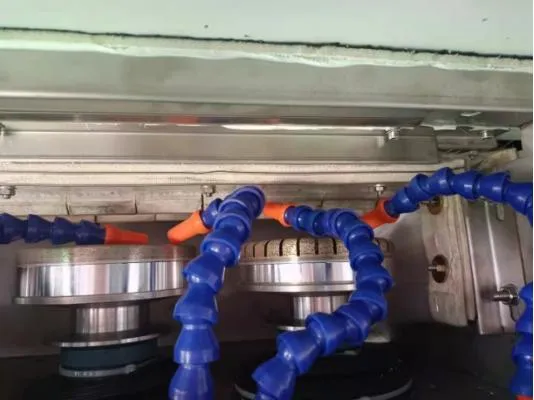

Water Management: Stainless steel recycling water tank (1500*800*300mm) and perfect waterproof system with multi-layer brushes.

? Frequently Asked Questions

What is the range of glass thickness the DZM11P can process?

The machine is designed to handle glass thickness ranging from 3mm to 50mm, making it suitable for a wide variety of industrial applications.

What is the minimum glass size for this edging machine?

The DZM11P can process glass as small as 30×30mm with high precision.

How does the machine ensure smooth transmission?

It utilizes a chainless ball bearing transmission system and dual RV gear reducers to ensure rolling contact, which reduces friction and ensures a smooth, stable drive.

Is the machine structure resistant to deformation?

Yes, the base weighs approximately 1600kg and undergoes two annealing treatments to eliminate internal stress and ensure long-term stability and accuracy.

What kind of control system does the DZM11P use?

The machine is equipped with an Inovance PLC and a CMGC touch screen, which allows operators to easily monitor and adjust thickness, speed, and processed meters.

What safety mechanisms are built into the machine?

The machine features an anti-pinch hand clamping device at the loading and unloading ends. If the safety plate is touched, the machine automatically stops to protect the operator.
