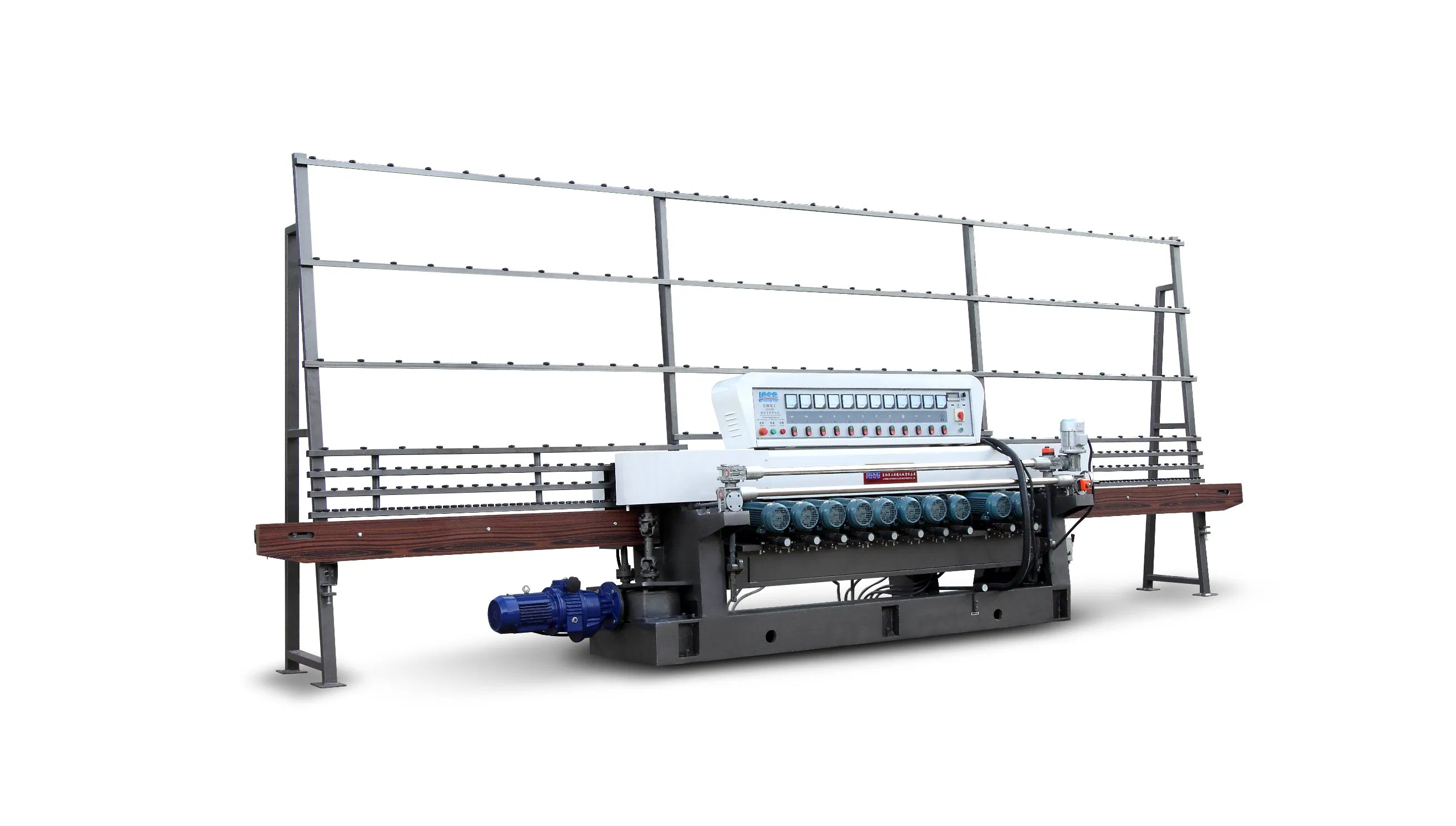

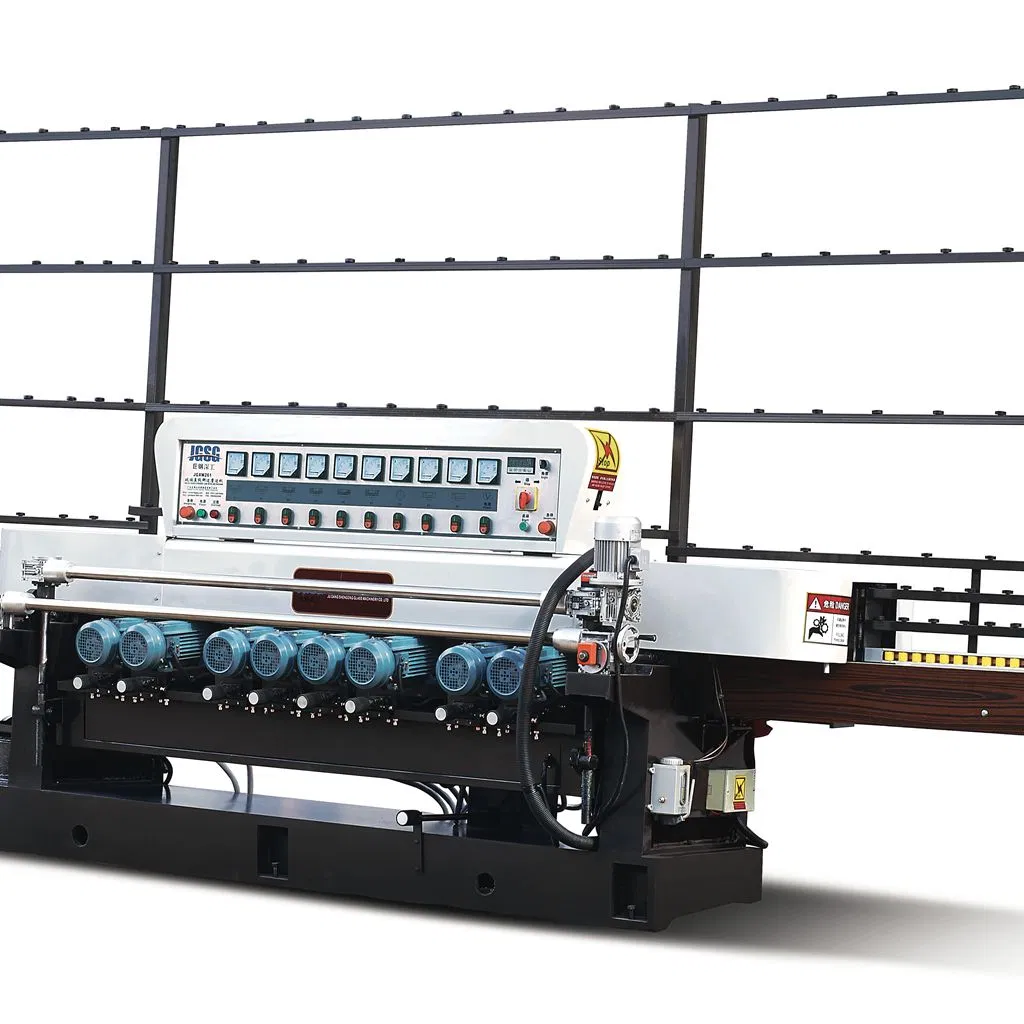

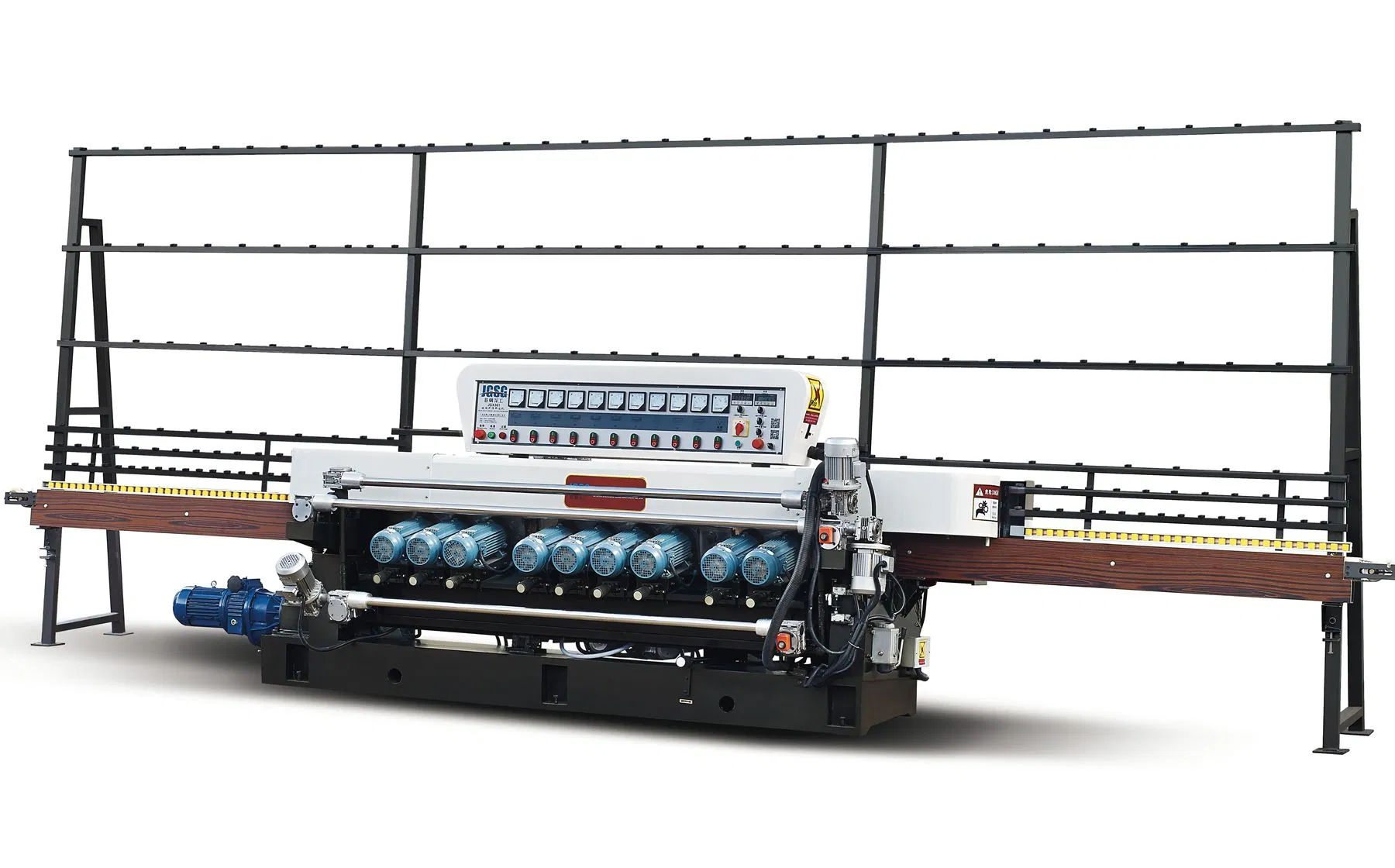

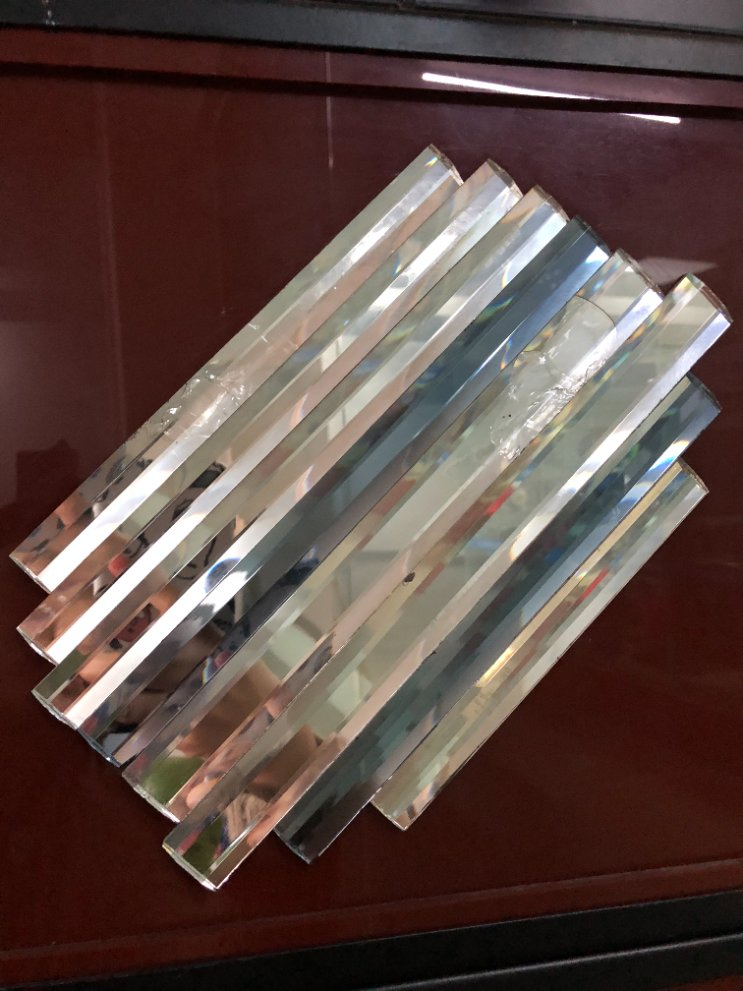

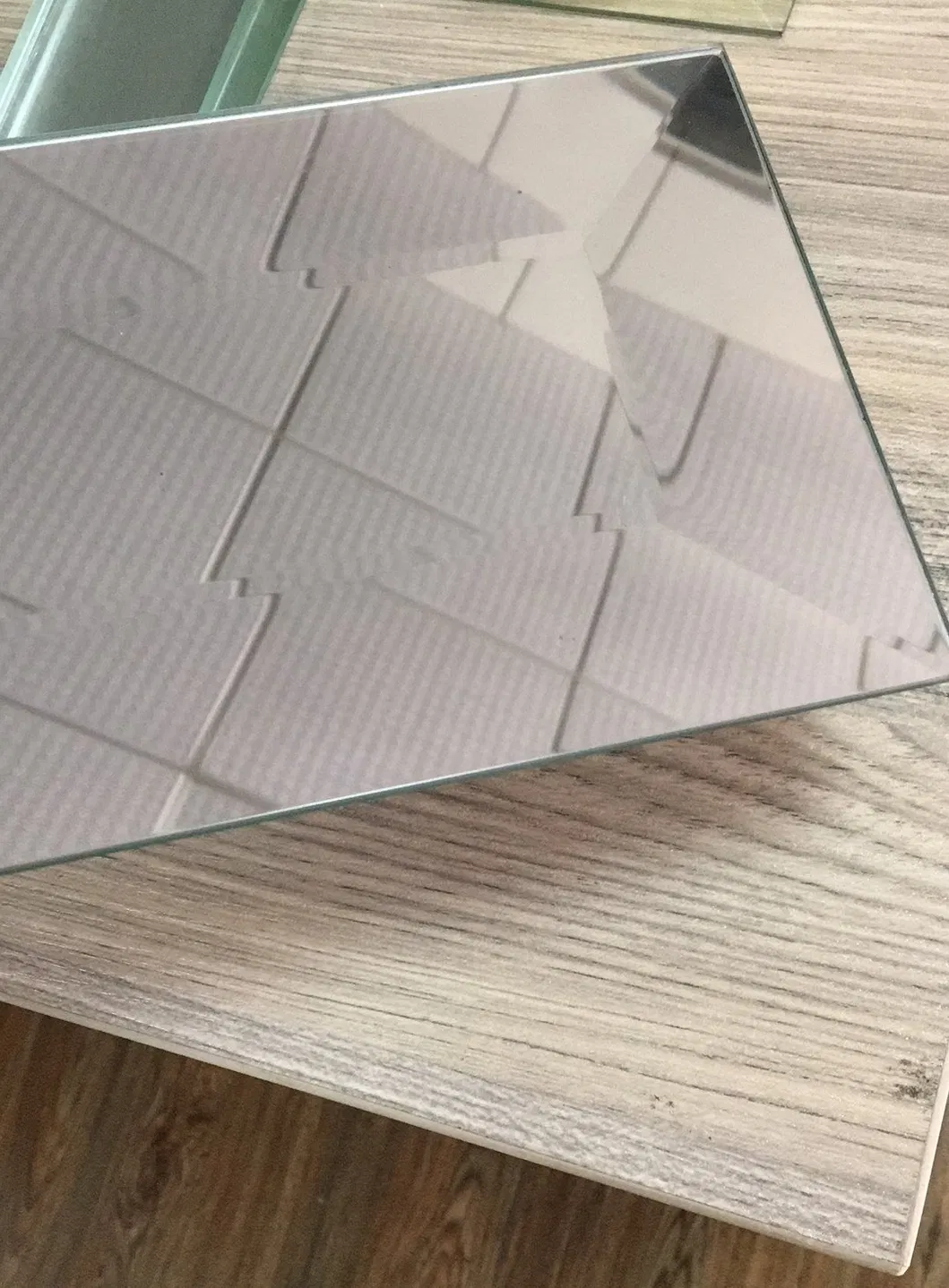

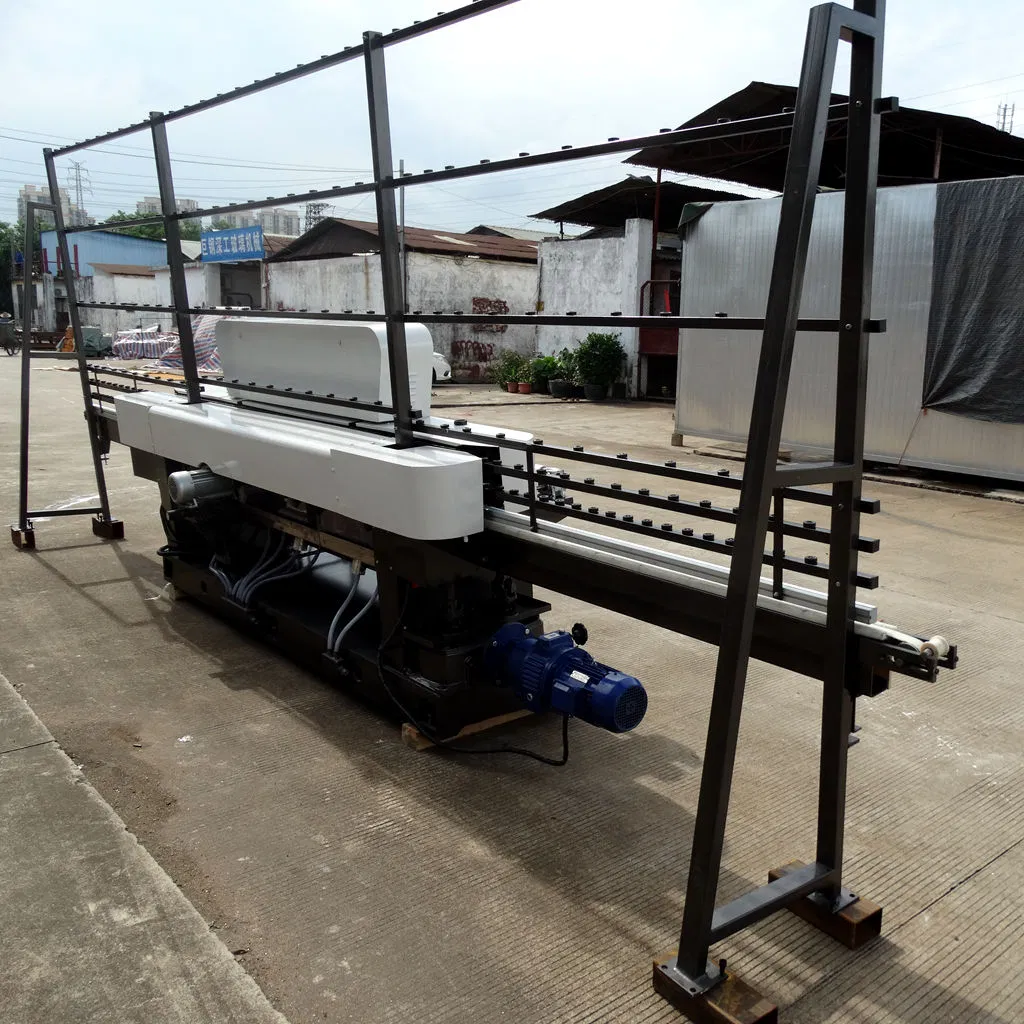

9 Spindles Motors Automatic Flat Glass Straight Line Polishing Edging Machine

Basic Specifications

Model NO.: HHXM361

Processing Thickness: 3-19 mm

Voltage: 380V

Warranty: 12 Months

Transport Package: Container

Specification: 2.1kw

Origin: China

HS Code: 8475299000

Production Capacity: 5000sets/Year

Working Principle

This machine is suitable for edging and polishing of flat glass's bevel and bottom edge in bulk, combining bevel edge's coarse grinding, fine grinding and polishing with bottom edge's grinding at one time. The clamp plate using the forging parts, middle splint are refined with 40cr materials, so their wear ability can reach an incalculable limitation. In addition, the motors adopts international famous brands. Overall, this is a practical beveling machine made up of good-quality components.

Grinding Wheel Configuration

Motor No.	1	2	3	4	5	6	7	8	9	10
Spec	φ150	φ150	φ175	φ150	φ150	φ150	φ150	φ150	φ150	Φ150
Type	Diamond	Diamond	Round	Resin	Resin	Resin	Polishing	Felt	Felt	Felt

Main Component Materials

Main Parts	Supplier/Brand	Specification
Electric Machine	DeQuChi	380V/50Hz (1.5kw~2.2kw)
Motor	ChaoRui	-
Conveyor Drive	GuangDong JinJiang	2.2KW Variable Frequency
Main Bearing	TaiWan ShangYin / NSK	-
Pressing Plate	GuangDong LongJiang	-
Reduction Gears	MengKaTe	-
Electric Appliance	ZhengTai / ShiNaiDe	AC Contactor EV1000
Motor Tank	Stainless Steel	-
Base & Motor Seat	Cast Iron	Annealing Treatment
Electric Wire	ZhuJiang	-

Machine Key Details

⚙️ Angle Adjustment: The swing drive motor angle is electrically adjusted. Processing thickness can be adjusted manually or automatically with reference to the electronic display.
📊 Intuitive Operation: Angle adjustment electronic display makes the operation more convenient and intuitive for the operator.
🛡️ Safety First: Features an overload protection circuit. If overloaded, the machine stops automatically to protect motors and operators.
🔓 Pneumatic Electric Box: Utilizes pneumatic opening/closing with a safety lock, improving efficiency over traditional screw disassembly.
⚡ Stepless Speed: Equipped with a stepless speed regulating motor for precise control of processing speed and high performance stability.

Consumables Reference

No.	Product Name	Remark
1	Conveyor pressure back (front & back)	Regular check
2	Grinding wheel	Diamond/Resin/Felt
3	Water string & Brush	Replacement part
4	Chain & Universal conduit	Maintenance part
5	Emergency stop switch	Safety part

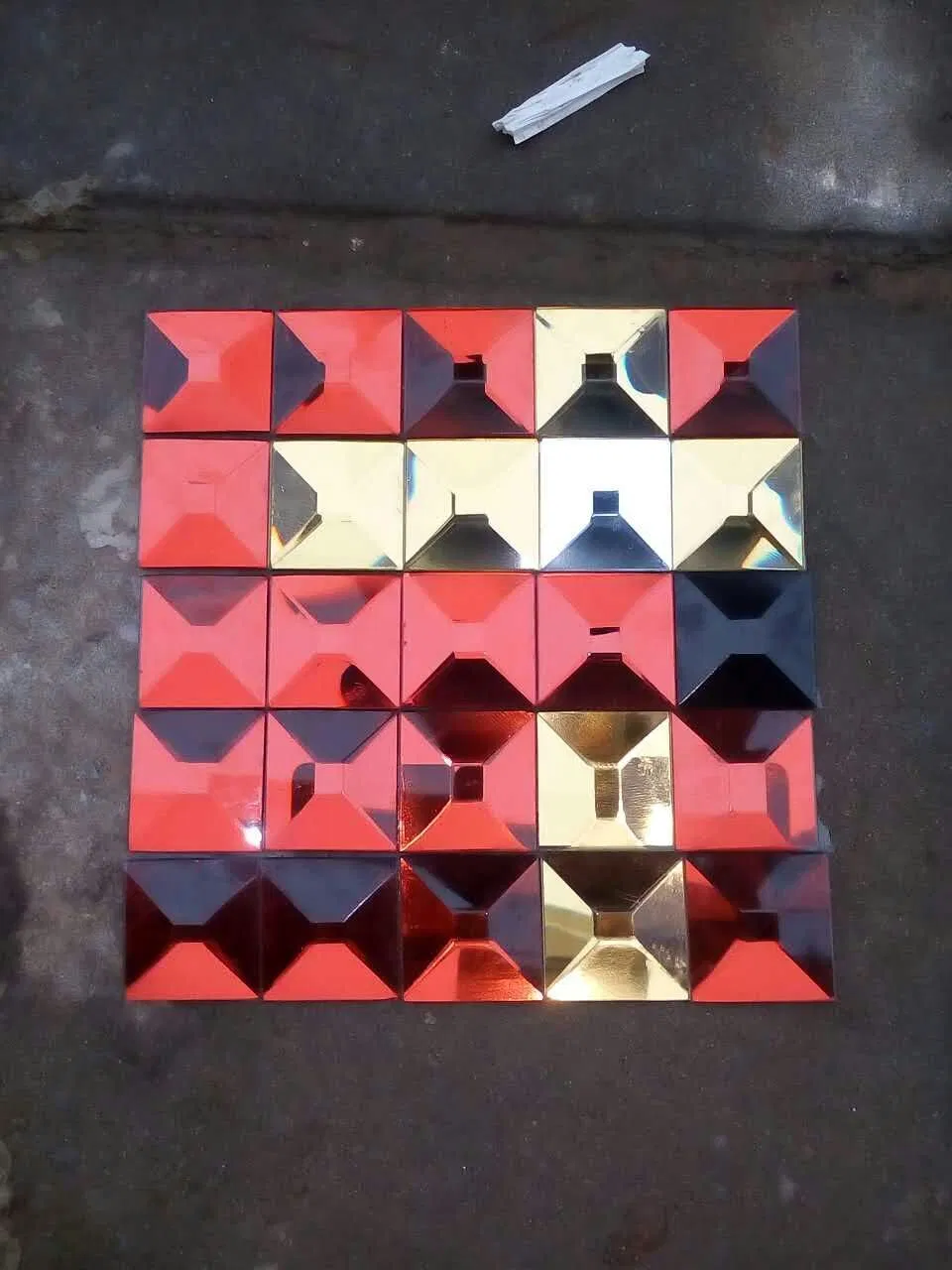

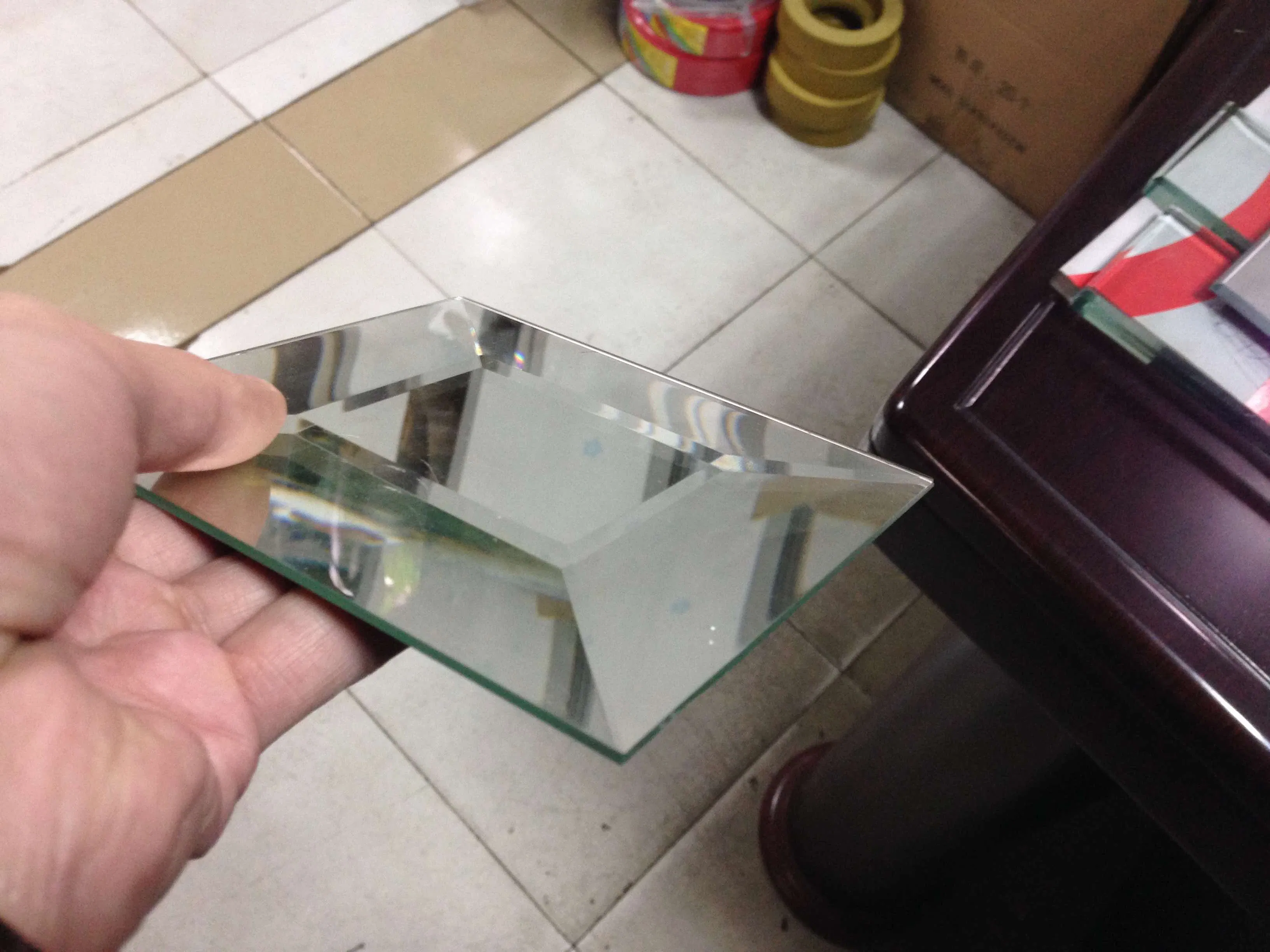

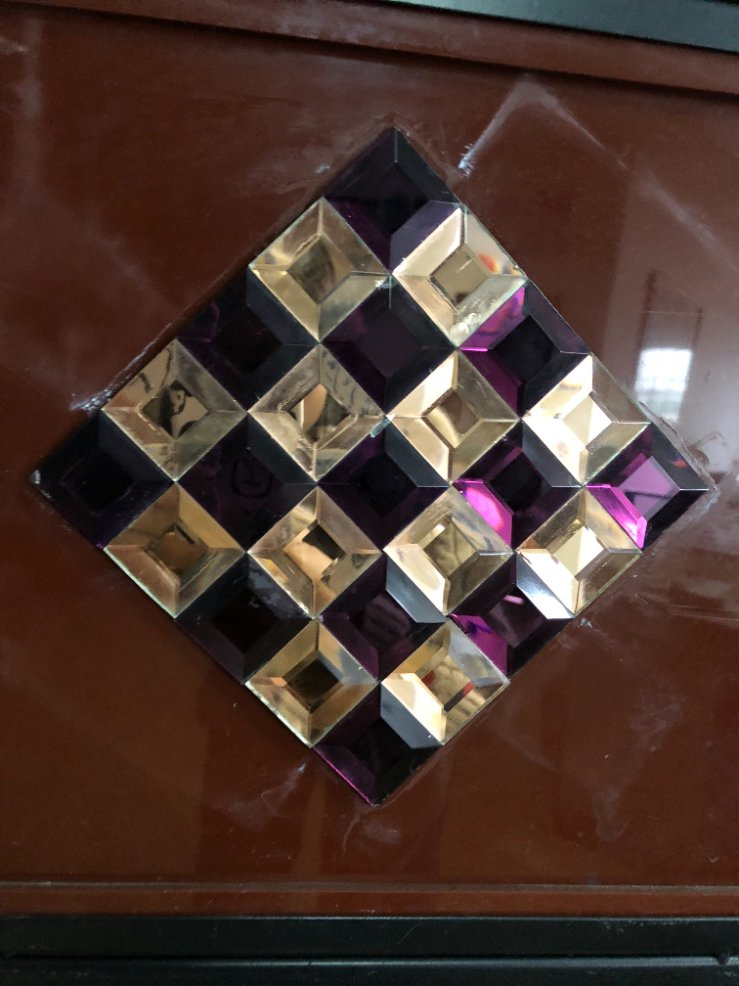

Product Gallery

Professional Service

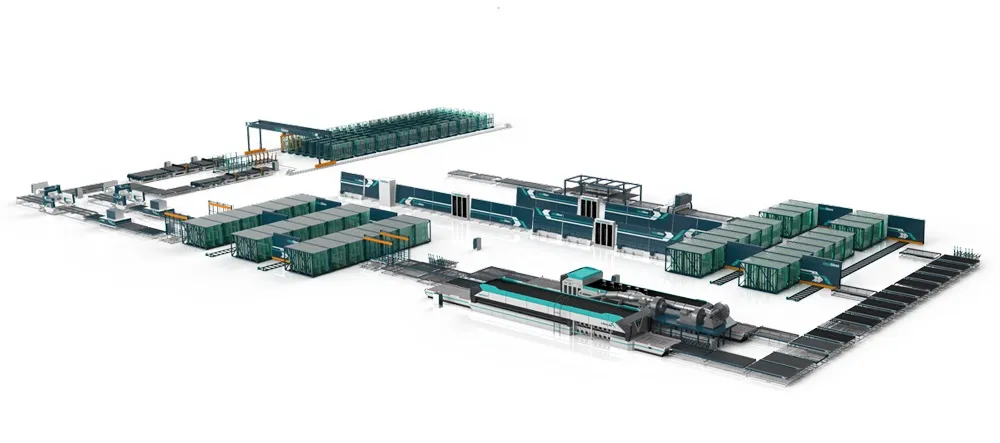

Providing complete turnkey solutions for both new and existing glass processing facilities. Technical support includes production line planning tailored to specific needs, assistance with technical drawings, and recommendations for optimized factory layout.

Frequently Asked Questions (FAQ)

Q1: What is the glass thickness range for this machine? A: The machine can process flat glass with a thickness ranging from 3mm to 19mm.

Q2: How many spindles are integrated into the polishing process? A: This model features a 9-spindle motor configuration for efficient grinding and polishing.

Q3: What are the main materials used for machine durability? A: The machine uses forging parts for clamp plates and refined 40cr materials for the middle splint to ensure maximum wear resistance.

Q4: Does the machine include safety features for the operator? A: Yes, it includes an overload protection circuit that stops the machine automatically and a pneumatic electric box with safety locks.

Q5: Can the processing speed be adjusted? A: Yes, the machine utilizes a stepless speed regulating motor, allowing operators to control processing speed and efficiency easily.

Q6: What is the power requirement for the HHXM361 model? A: The standard voltage is 380V, and the motor configuration typically ranges from 1.5kw to 2.2kw depending on specific requirements.
