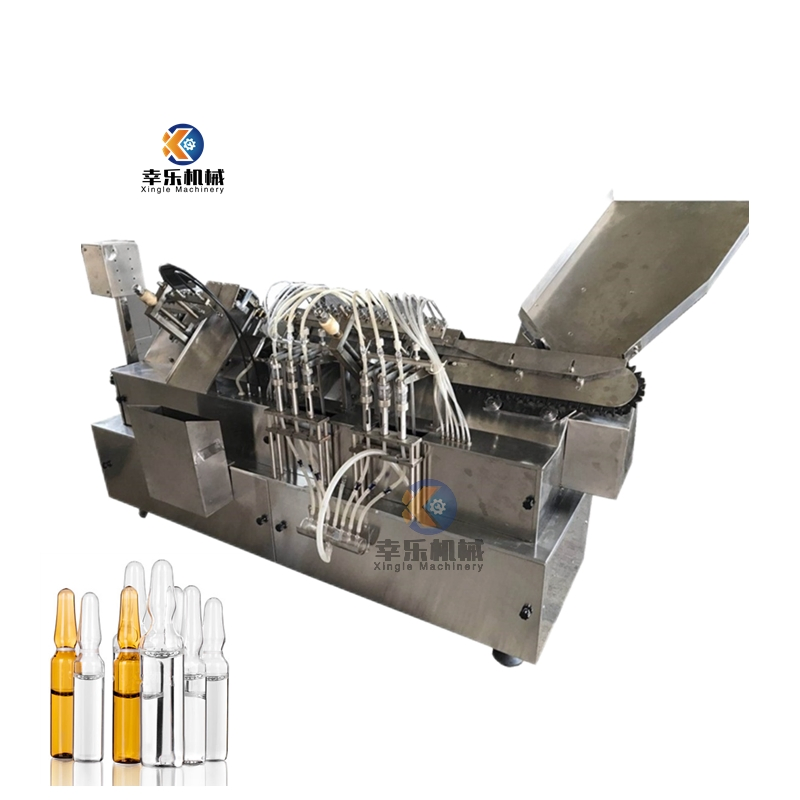

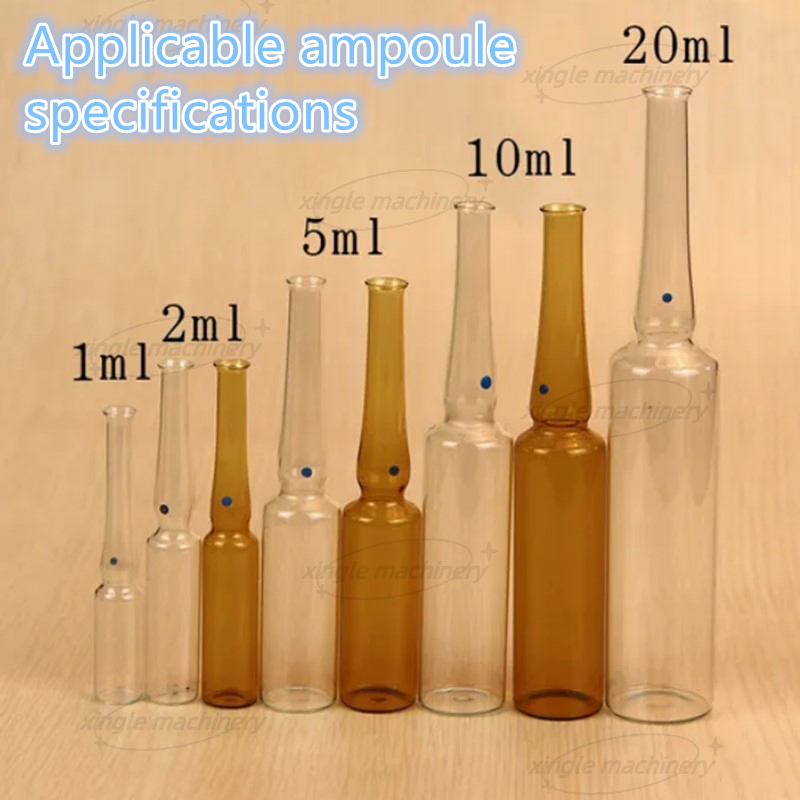

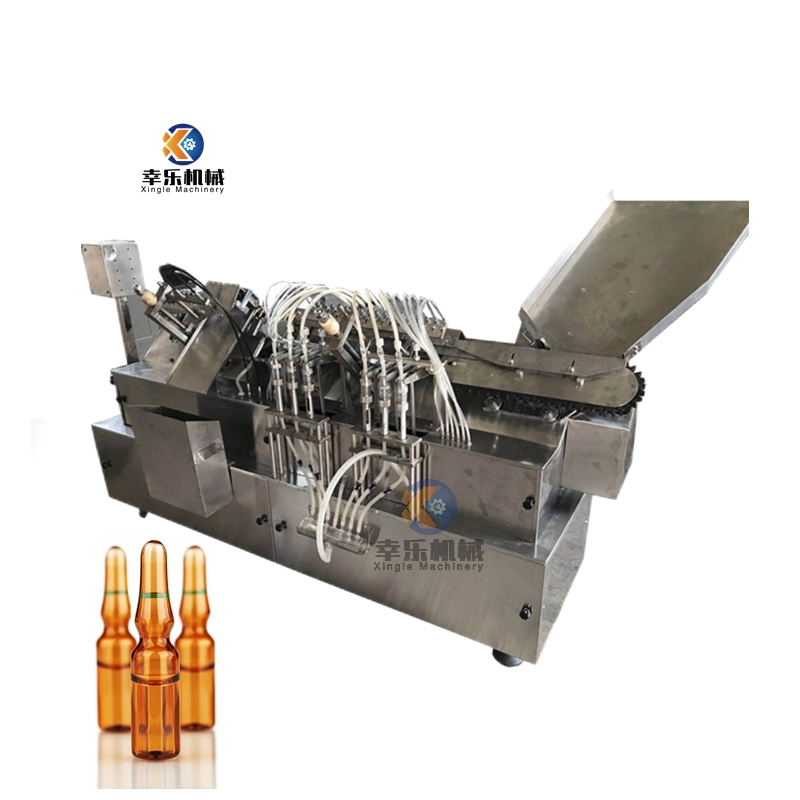

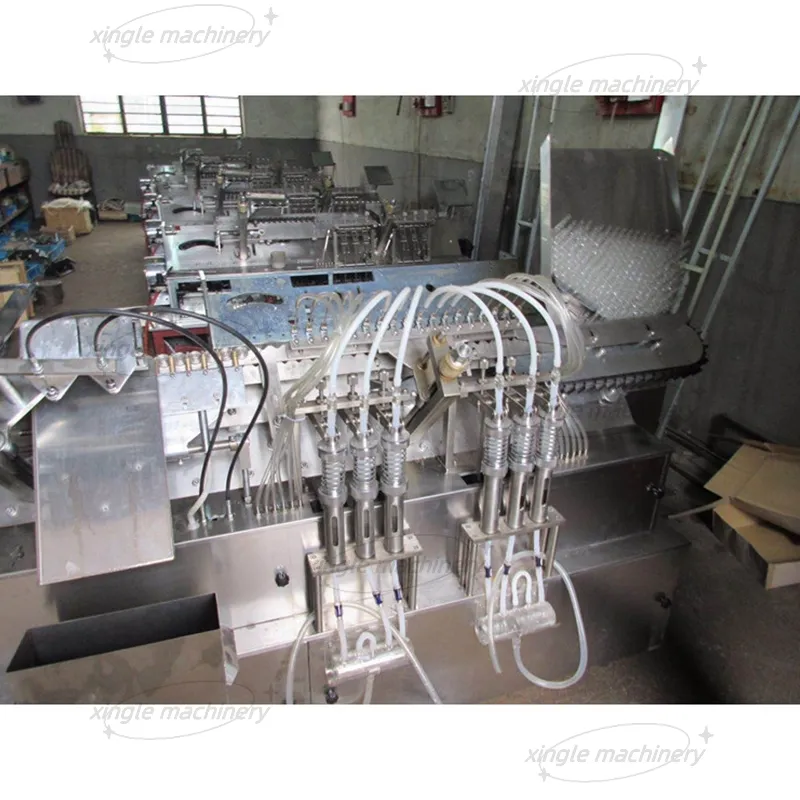

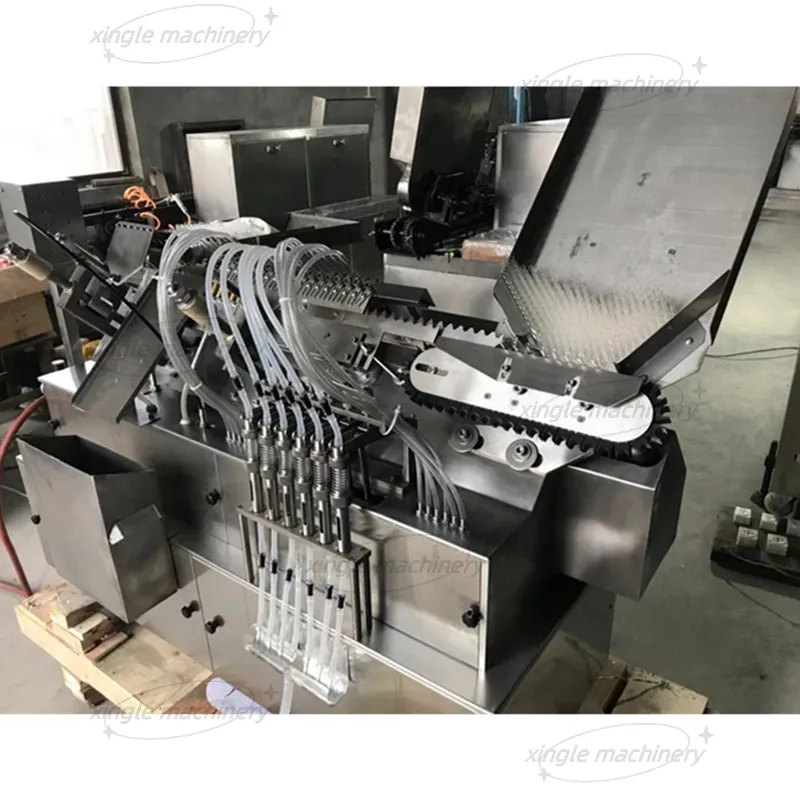

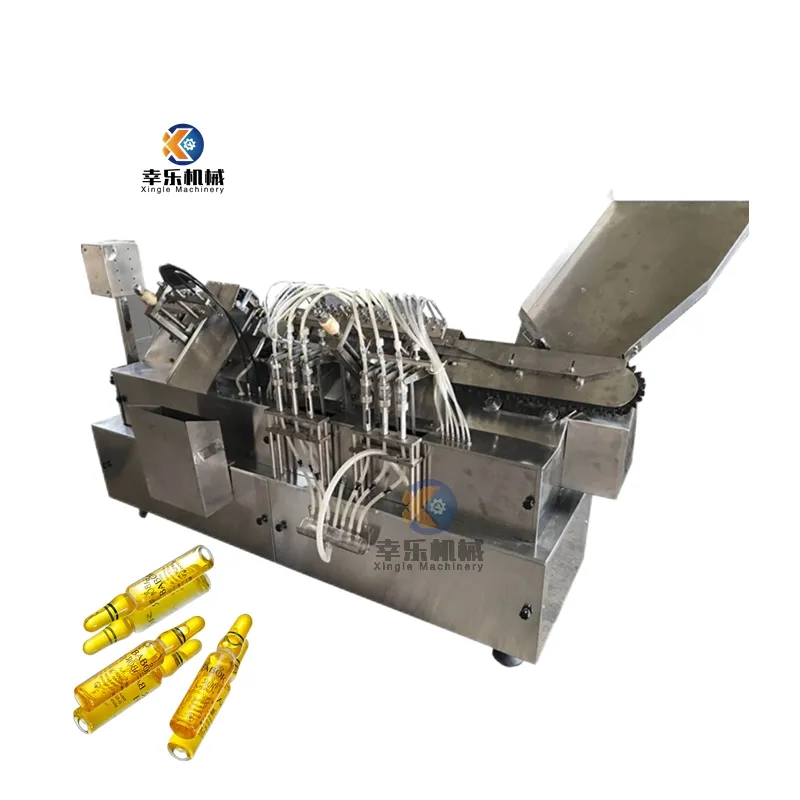

6 Heads Ampoule Filling and Sealing Machine (ALG- 5ml with 1-3ml Capability)
Introduction

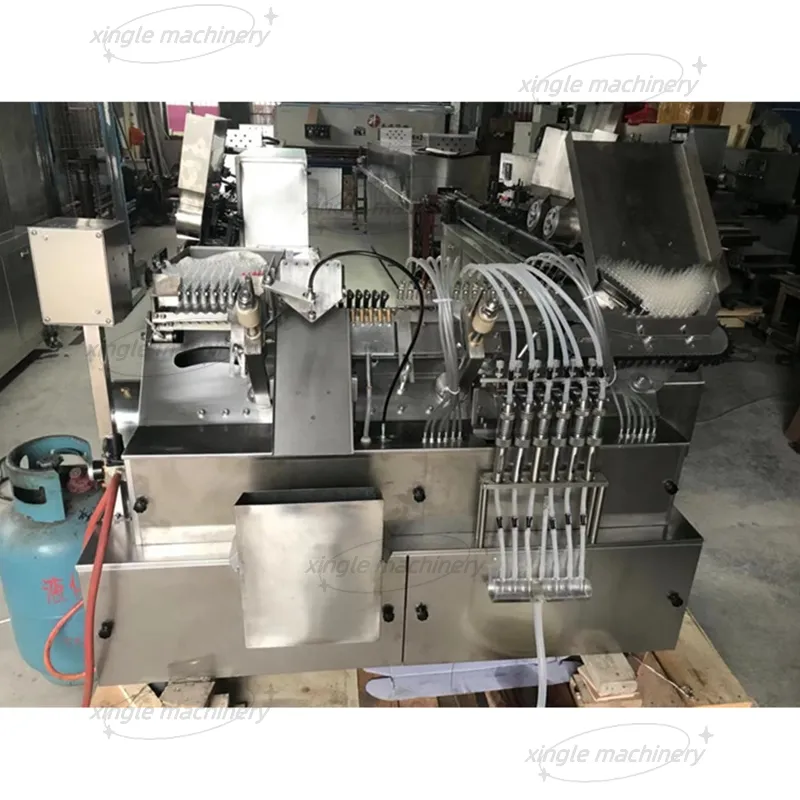

This machine is specifically designed for the drawing, filling, and sealing of ampoules in pharmaceutical production environments. Utilizing a 6-station stepping transmission system, it processes bottles in groups of six. The automated workflow includes bottle feeding, nitrogen flushing (pre-filling), medicinal liquid filling, post-filling nitrogen flushing, preheating, and wire drawing sealing.

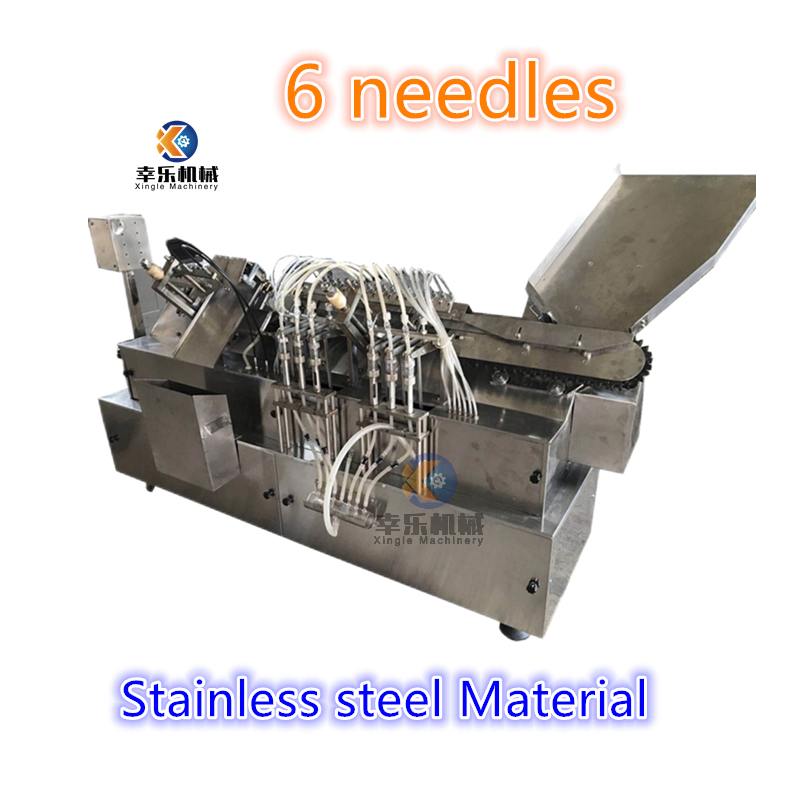

Equipped with an oxyhydrogen generator for perfect interface matching, the machine features a robust stainless steel drive rack and a precision-fit pressure bottle plug. The transmission cam is constructed from high-quality steel casting to minimize wear, with a 2-year guarantee on the rotating cam.
| Model | AGL6/1-2 | AGL6/5-10 | AGL6/5-20 |
|---|---|---|---|
| Specifications (ml) | 1-2 | 5-10 | 5-20 |
| Capacity (pcs/h) | 10000-11000 | 9000 | 6000-9000 |
| Qualification Rate | 98% | ||
| Power (kW) | 0.55 | 0.75 | 0.75 |
| Fuel Consumption | Pipeline gas 3-3.5M3/h; LPG 0.1-0.15Mpa | ||
| Dimensions (mm) | 1500*950*1300 | 1950*950*1300 | 1950*980*1300 |
| Power Supply | 380V/220V 50HZ | 220V 50HZ | |
| Weight (kg) | 360 | 450 | 460 |
*Remark: Customized machines are designed for specific production needs.
