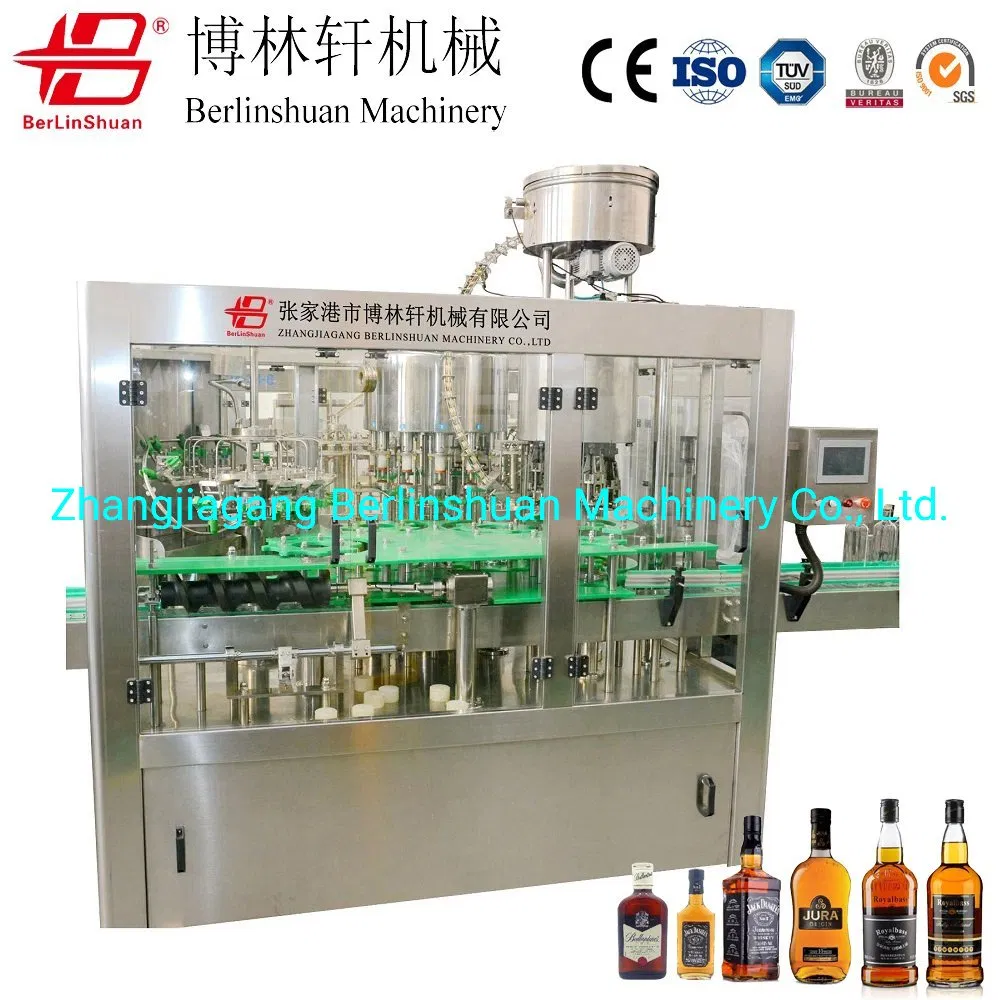

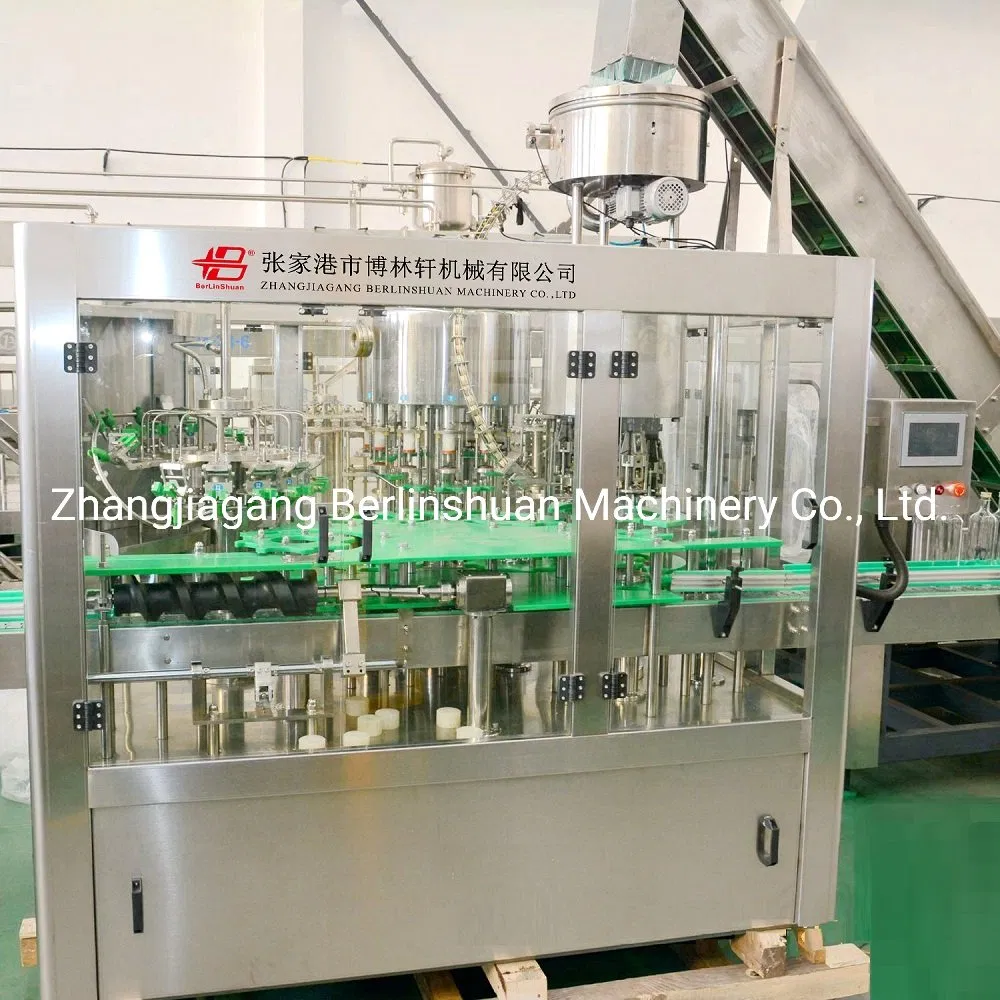

3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
1 / 5
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine
3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine

3-in 1 Automatic Glass Bottle Wine Alcoholic Beverage Processing Plant Equipment Liquor Drink Whisky Vodka Beer Production Line Filling Making Filling Machine

Customization: Available
Condition: New
Customized: Customized
Send Inquiry

Product Description

Basic Specifications

Model NO.BCGF18186
Voltage380V
CompositionFilling Machine
Processing MaterialWine
ProcessFilling
Capacity2000-3000bph@500ml
Bottle Volume330ml, 350ml, 500ml, 640ml, 750ml
Bottle TypeGlass Bottle and Aluminum Caps
Touch ScreenMitsubishi(Japan)/Willen(Taiwan)/Siemens(Germany)
PLCMitsubishi(Japan)
TransducerMitsubishi(Japan)/Siemens(Germany)
Solenoid ValveFesto (Germany)
ContactorSchneider (France)/Siemens(Germany)
Electronic Control KeysMitsubishi(Japan)/Siemens(Germany)
CylinderAirtac (Taiwan)
HS Code8422301090

Product Description

Glass bottle/ Aluminum Bottle Aluminum Cap Automatic Filling Machine (Rinsing Filling and Sealing 3 in 1)

The Whisky/Wine/Vodka Automatic Rinsing Filling and Sealing Machine system is based on advanced overseas technology and designed according to the filling processing demands of wine, vodka, whisky, and similar spirits.

Working Process:

Adopting the bottle bottom holding type to send bottles into the filling machine through the bottle inlet screw via the bottle star wheel. Bottles are held by a lifting device that moves up and down via lifting and pressure cams. The precision filling model starts once the bottle mouth contacts and opens the valve. After completion, the bottle mouth lowers, leaves the valve, and is conveyed out to the chain via the star wheel.

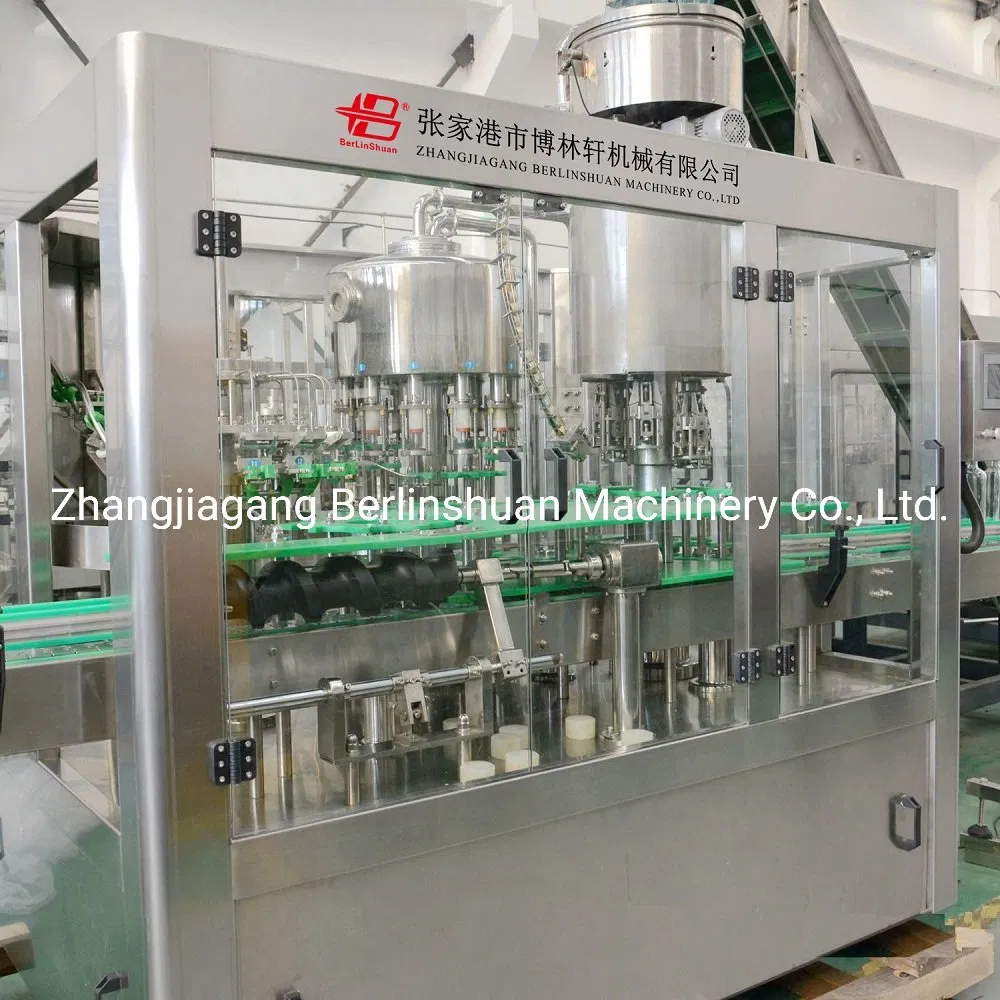

Automatic Glass Bottle Filling Machine

Application:

This series equipment is a 3-in-1 unit (rinsing/filling/sealing) designed for glass and aluminum bottles containing wine and alcohol. The capping part can be customized for crown caps or screw caps. It integrates washing, filling, and capping into a scientific and reasonable design with high automation.

Project Details

Parameter Details
Liquid MaterialHard liquor / Juice / Whisky / Vodka
Bottle Volume250ml, 350ml, 500ml, 640ml, 750ml, 1500ml
Bottle ShapeRound, Square, and Flat Oval
Filling Capacity2000-10000BPH @ 500ml
Filling Temperature15-55ºC
Machine MaterialSUS304/316 Stainless Steel
Electrical Supply380V, 50/60Hz, 3Phase (Others available)

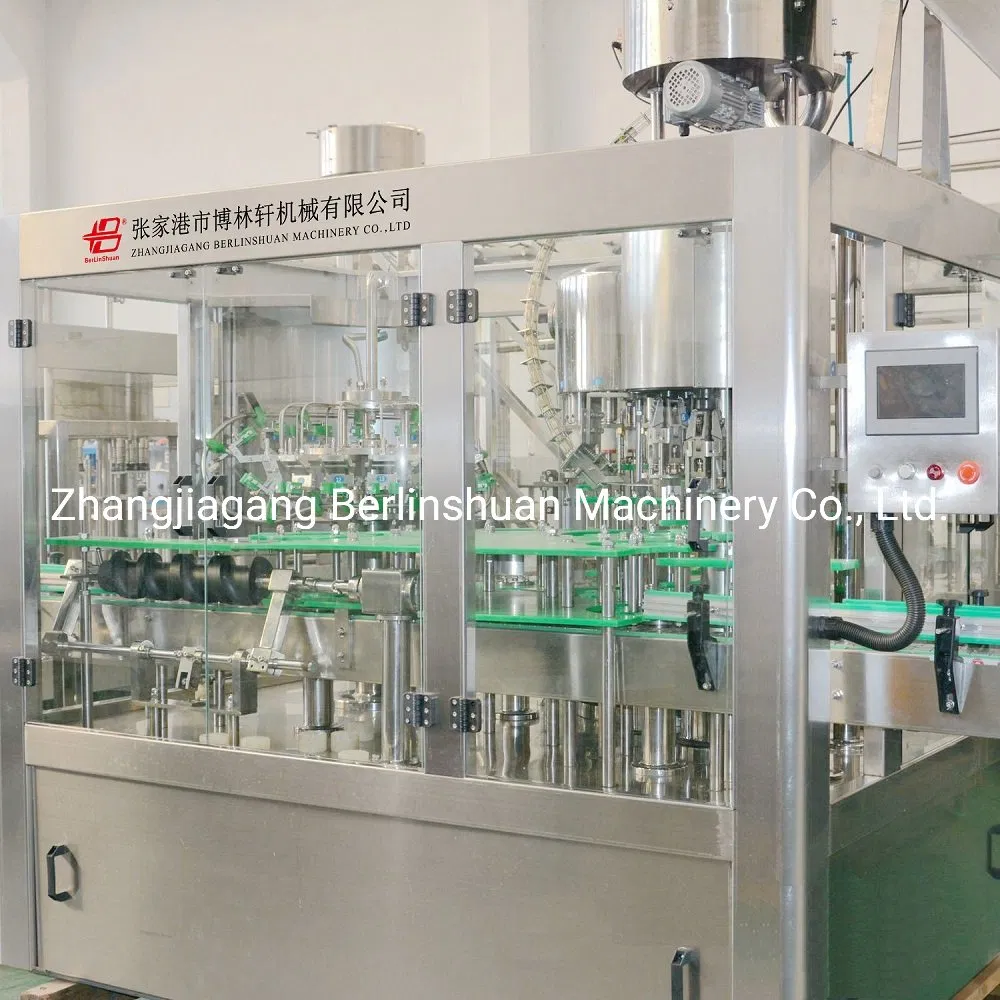

Main Technical Parameters

Technical Parameters
Model BCGF12126 BCGF18186 BCGF24248 BCGF323210
Heads (W-F-S)12-12-618-18-624-24-832-32-10
Capacity (500ml)2000-3000 BPH4000-6000 BPH8000-10000 BPH12000-15000 BPH
Main Motor3.5kw4.5kw5.5kw7.5kw
Dimensions (mm)2200x1800x22002400x2000x22002800x2200x22003200x2400x2200
Weight (kg)2500350045006500

Component Gallery

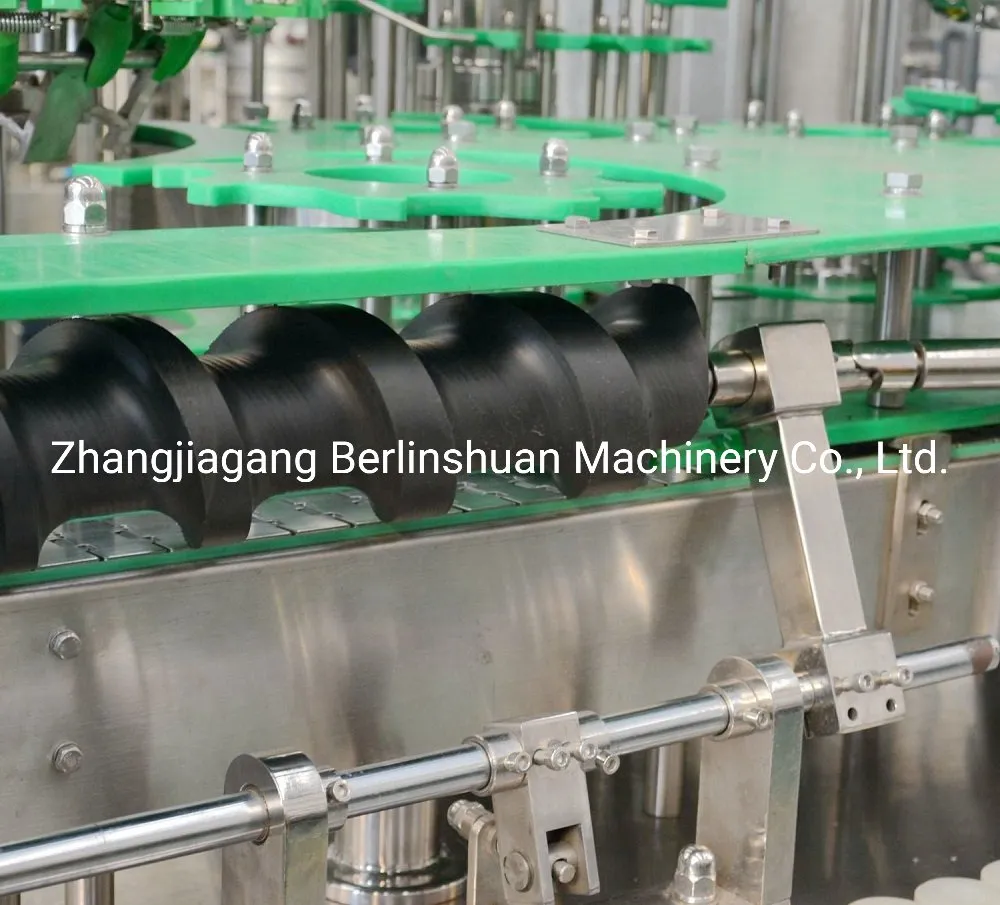

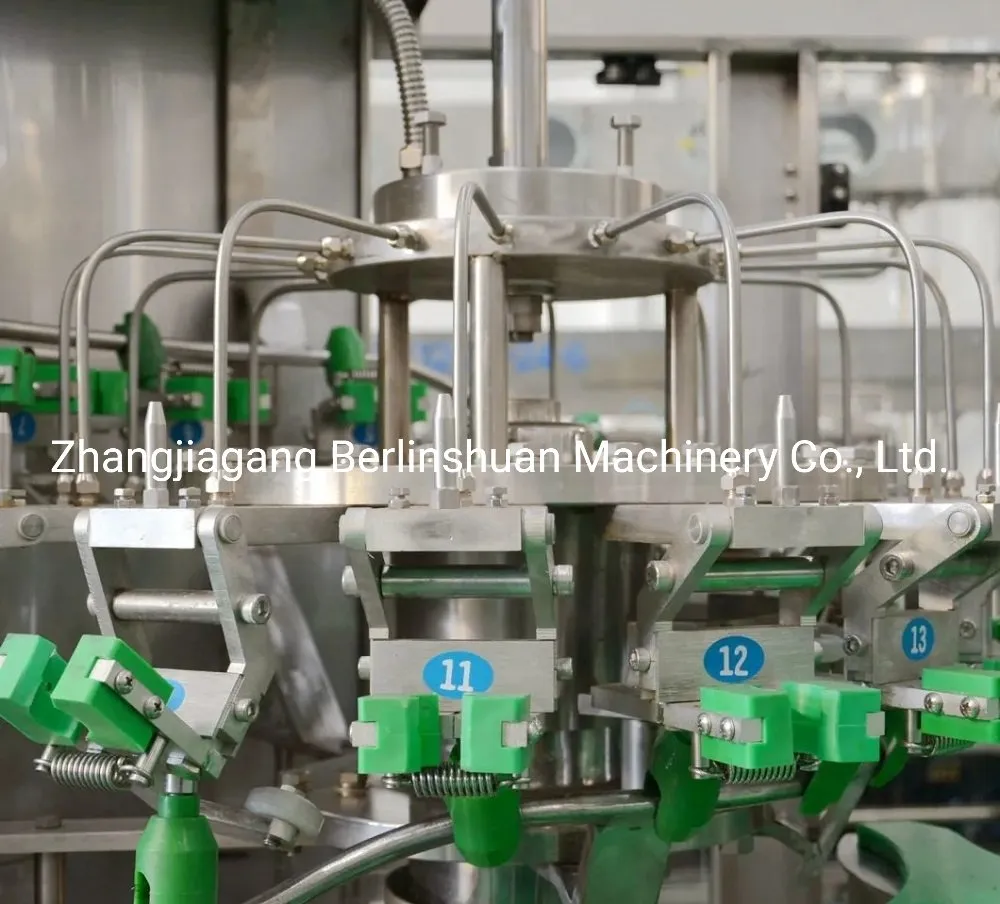

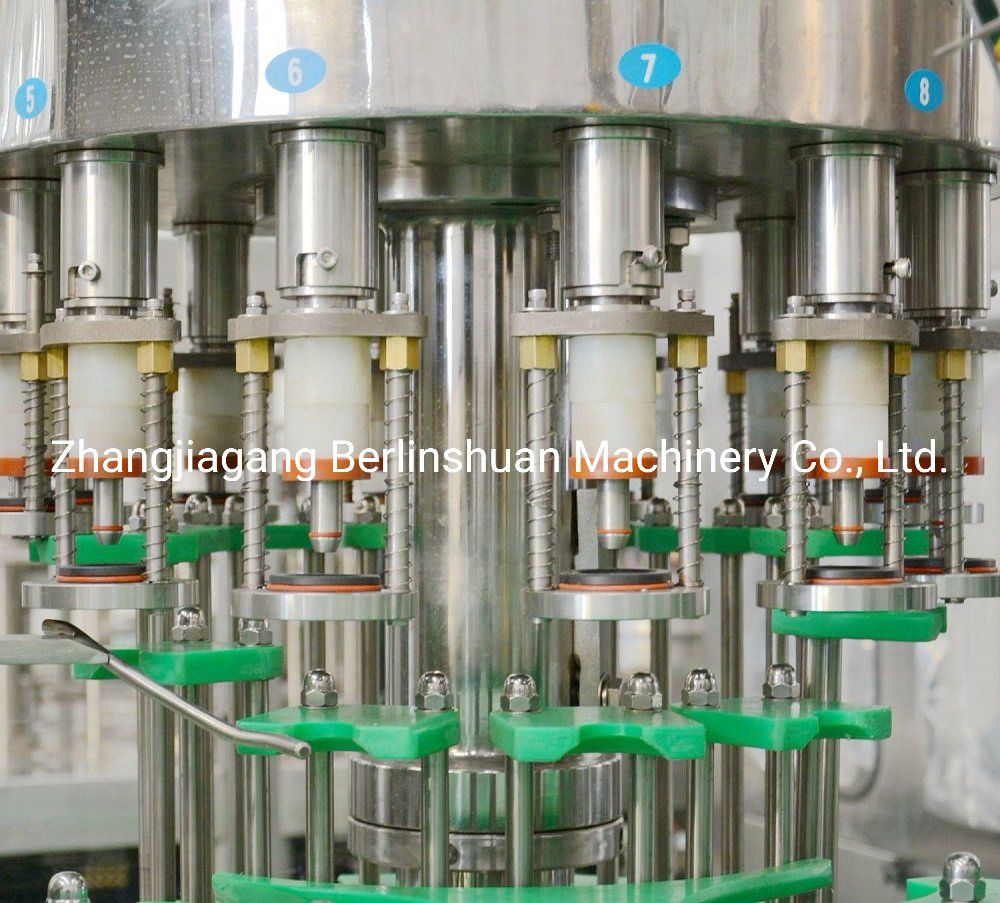

Rinsing Part Filling Part

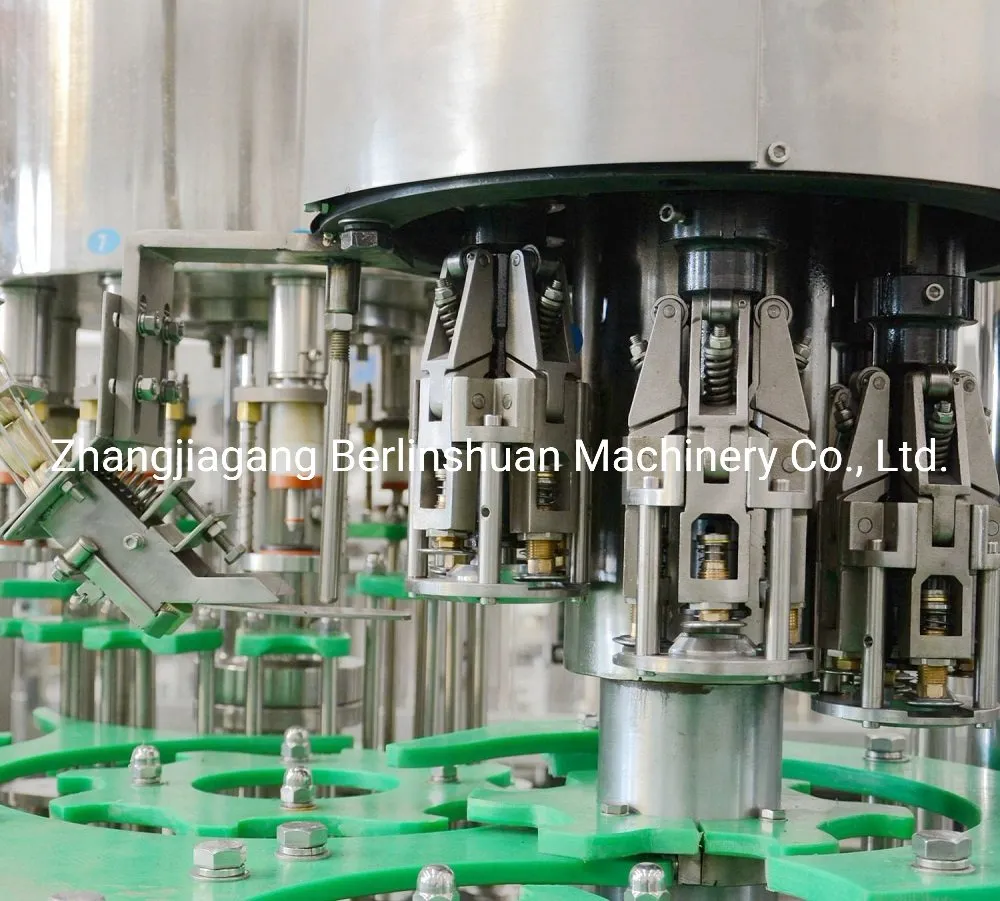

Sealing Part Capping System
Bottle Flow Detail View Machine Structure

Key Features

  • Compact structure with a complete control system and high degree of automation.
  • Adjustable handle for versatile processing of various bottle types.
  • Media-contact parts made of 304L stainless steel with no blind angles for easy cleaning.
  • High-speed filling valve ensures precise liquid levels without waste.
  • Constant magnetic torque capping head prevents damage to caps while securing quality.
  • Integrated cap shortage detection, bottle block auto-stop, and production counting.
  • Advanced PLC control and human-machine communication via touch-screen.
  • Equipped with complete overload protection for equipment and operator safety.

Frequently Asked Questions

Q1: What types of beverages is this filling machine suitable for? It is designed for glass and aluminum bottles containing alcoholic drinks such as whisky, vodka, wine, and hard liquor, as well as juice.
Q2: Can the machine handle different bottle sizes on one line? Yes, it is compatible with a wide range of bottle volumes including 330ml, 500ml, 750ml, and up to 1500ml with simple adjustments.
Q3: What is the maximum production capacity of the BCGF series? Depending on the model, capacity ranges from 2,000 to 15,000 bottles per hour (BPH) based on a 500ml bottle standard.
Q4: What material is used for the parts that touch the liquid? All parts that come into contact with the material are made of high-quality SUS304 or 316 stainless steel to ensure hygiene and durability.
Q5: Does the machine include safety protection features? Yes, the machine is equipped with a complete overload protection device, bottle block auto-stop, and sensors for cap shortages.
Q6: Which control systems are integrated into the machine? The machine utilizes world-famous brands including Mitsubishi PLC, Siemens transducers, and Schneider electronic components.
