Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line
1 / 5
Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line
Complete Automatic Glass Bottle Beverage Making Filling Production Line

Complete Automatic Glass Bottle Beverage Making Filling Production Line

Customization: Available
After-sales Service: 24hours Eigneer Online Technology Support
Warranty: 18 Months
Send Inquiry

Product Description

Basic Information
Model NO.
BDCGF24-24-8
Type
Isobaric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Principle
Pressure
Structure
Rotary
Packaging Material
Glass
Capacity
2000-24000bph
Material
Stainless Steel 304/316
Control System
PLC (Siemens)
Suitable for
Carbonated Soft Water Filling
Bottle Volume
200ml-2L
Product Description
Glass Bottle Filling Line

This series of three-in-one glass bottle filling machine is specially used for glass-filled beer and carbonated beverage isobaric filling. It utilizes advanced filling technology with one or two times vacuum technology, featuring automatic valve closing and broken glass washing functions. Before capping, the system employs hot water bubbling and other precision functions to ensure product quality.

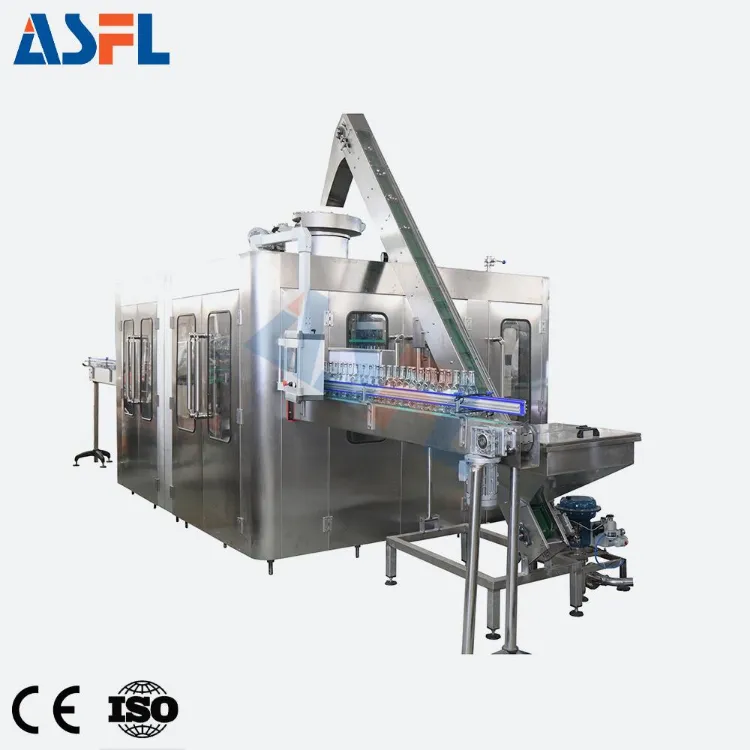

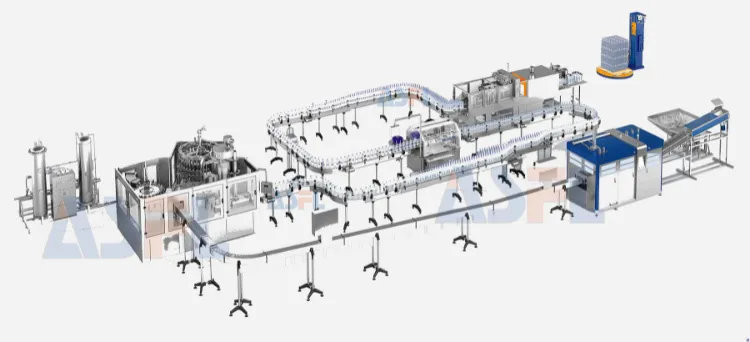

Machine Detail 1 Factory Layout
Product Parameters
Model BDCGF16-12-6 BDCGF24-24-8 BDCGF32-32-10 BDCGF50-50-12
Capacity (500ml) 2000-3000 6000-8000 8000-10000 14000-18000
Bottle Height 160-320mm
Air Pressure 0.2-0.4Mpa
Total Power (KW) 4.24kw 6.57kw 8.63kw 12.5kw
Weight (kg) 2500kg 4500kg 6000kg 10500kg
Detailed Parts

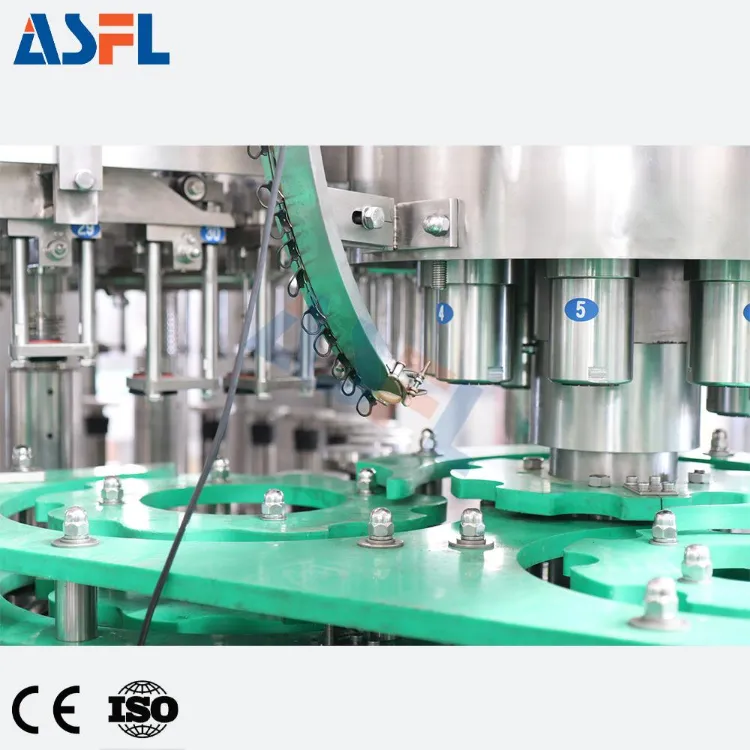

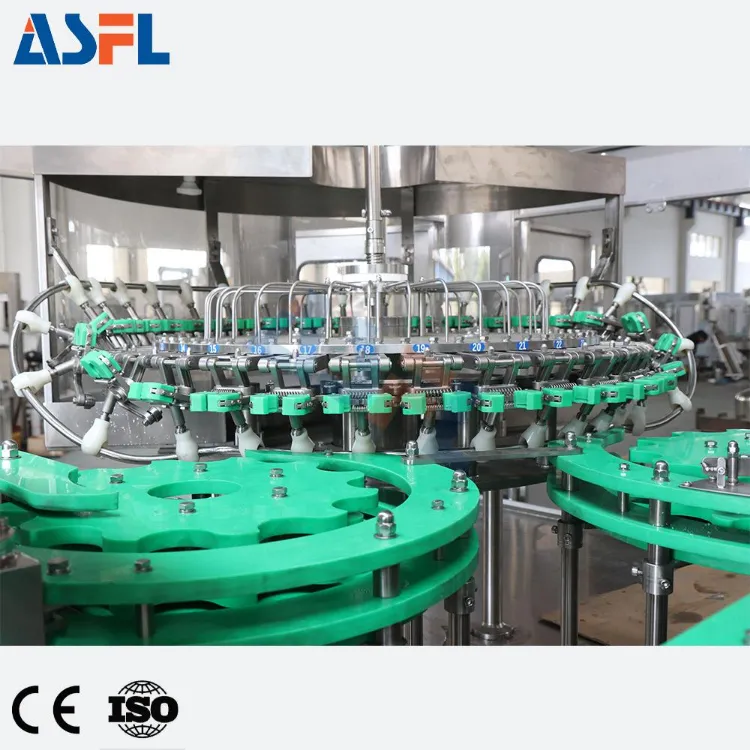

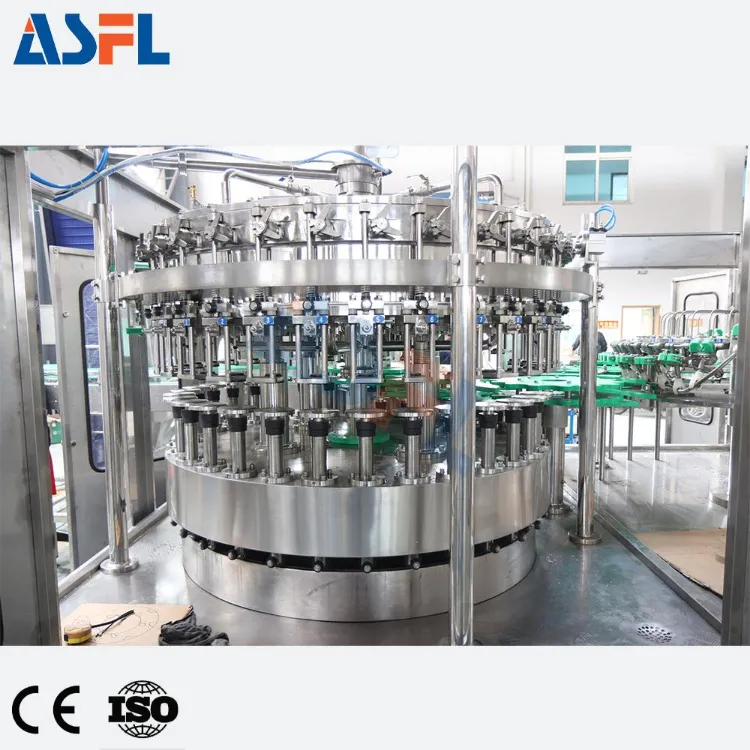

Washing Part Filling Part Capping Part

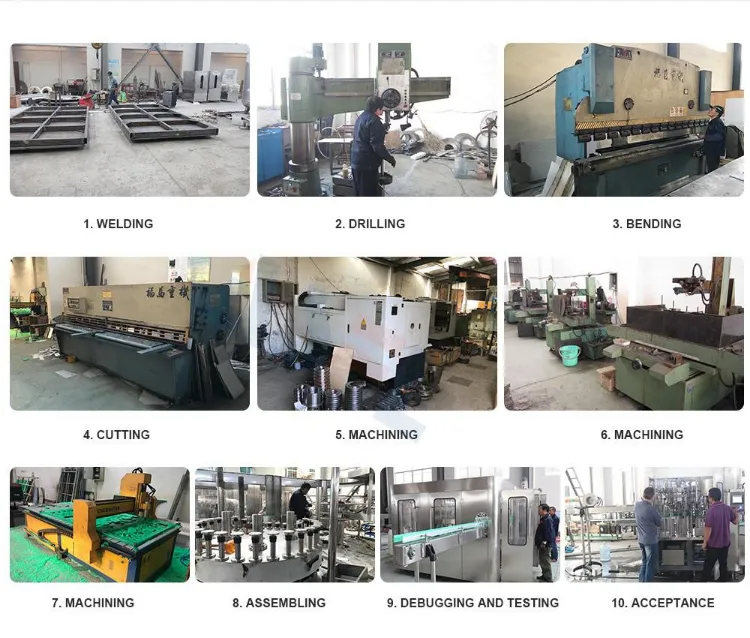

Production Process
Process

Our production process involves strict quality control across ten stages, including welding, drilling, bending, machining, assembling, debugging, and rigorous acceptance testing. Each machine is tested repeatedly to ensure stability and efficiency in operation.

Frequently Asked Questions
Q: What types of beverages can this machine fill?
A: This machine is ideal for beer, carbonated soft drinks, sparkling water, and other isobaric filling requirements in glass or PET bottles.
Q: What is the production capacity?
A: The capacity ranges from 2,000 to 24,000 bottles per hour for 500ml containers, depending on the specific model selected.
Q: Does the machine support different bottle sizes?
A: Yes, the machine can handle bottle volumes from 200ml to 2L with adjustable heights between 160mm and 320mm.
Q: What is the warranty period?
A: We provide a 24-month warranty. Technical support is available via video call, email, and on-site engineer services for installation and training.
Q: What information is needed for a quote?
A: Please provide the beverage type, bottle and cap specifications, desired production speed (BPH), and your local power supply details.
Q: What certifications do your machines have?
A: All our filling lines are certified by CE, ISO, and SGS standards.
