Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine
1 / 5
Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine
Automatic Glass Bottle Juice Making Production Line Machine

Automatic Glass Bottle Juice Making Production Line Machine

Customization: Available
Type: Volumetric Filling Machine
Automatic Grade: Fully Automatic
Send Inquiry

Product Description

i

Basic Specifications

Model NO.24-24-8
Material TypeLiquid
Filling ValveMulti-Head
Dosing DeviceRotor
Filling PrinciplePressure
StructureRotary
PackagingPET Bottle
WarrantyOne Year
Delivery Time40-60 Days
Capacity10 sets / Month
★

Product Description

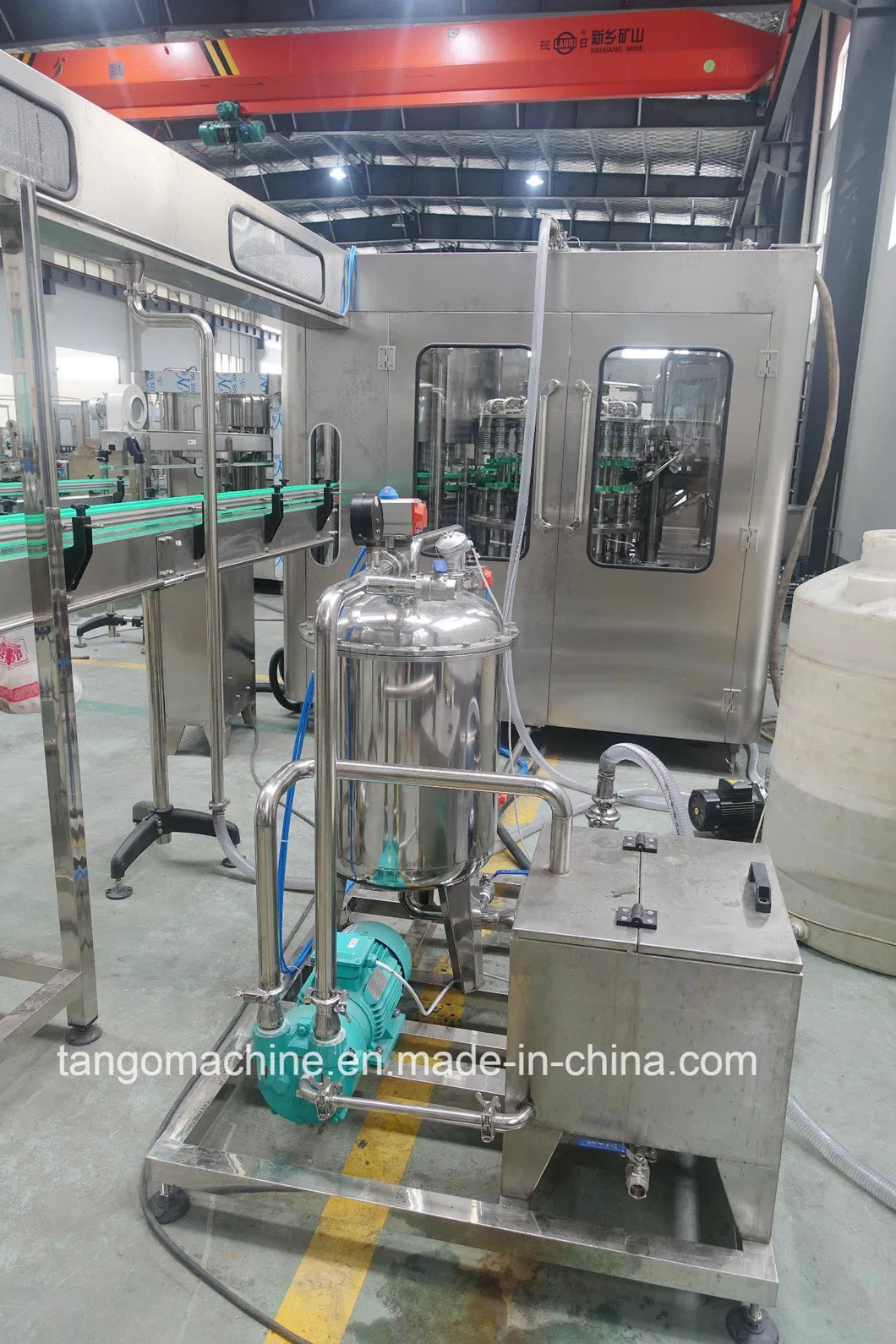

Automatic Production Line
Automatic PET Bottle Liquid Juice Beverage Filling Capping Bottling Plant

Usage: This washing, filling, and capping 3-in-1 monoblock is designed for full automation. It efficiently handles water, juice, and carbonated beverages into PET bottles, completing three essential processes in a single integrated machine.

⚙

Filling Machine Inner Fracture

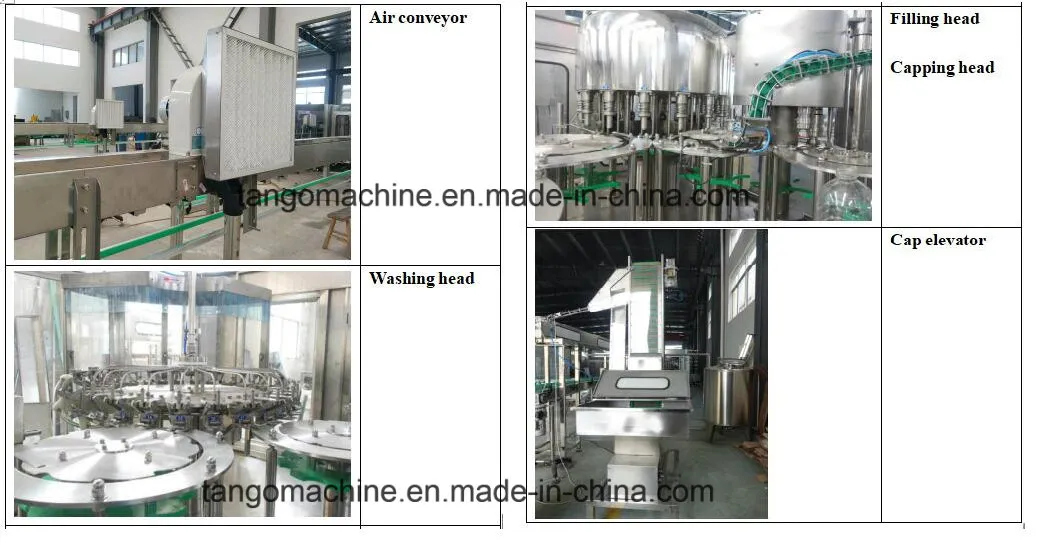

Inner Structure 1

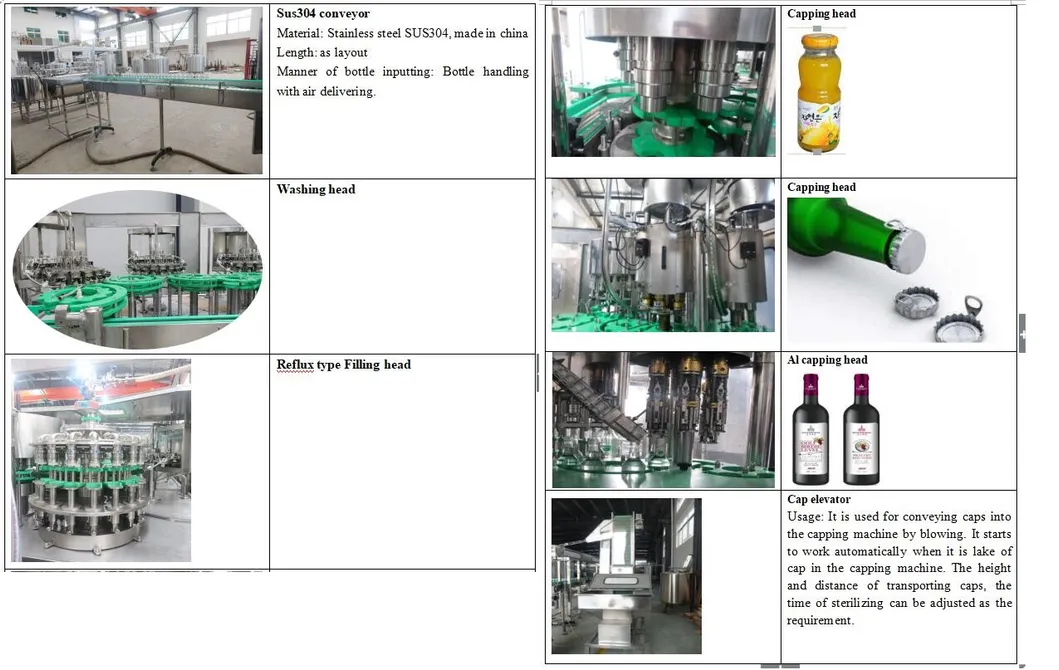

Inner Structure 2
📋

Technical Parameters

Model (CGFB) 16-12-6 18-18-6 24-24-8 32-32-10 40-40-12 50-50-15
Washing head 16 18 24 32 40 50
Filling head 12 18 24 32 40 50
Capping head 6 6 8 10 12 15
Capacity (500ml) 4000BPH 6000BPH 10000BPH 12000BPH 16000BPH 24000BPH
Power 3.8kw 4.3kw 6.5kw 8.7kw 9.5kw 12kw
Size (L*W*H) mm 3050*2000*2400 3170*2070*2400 4070*2350*2400 5100*2600*2400 6250*3050*2400 7500*3900*2400
🏢

Layout & Workshop

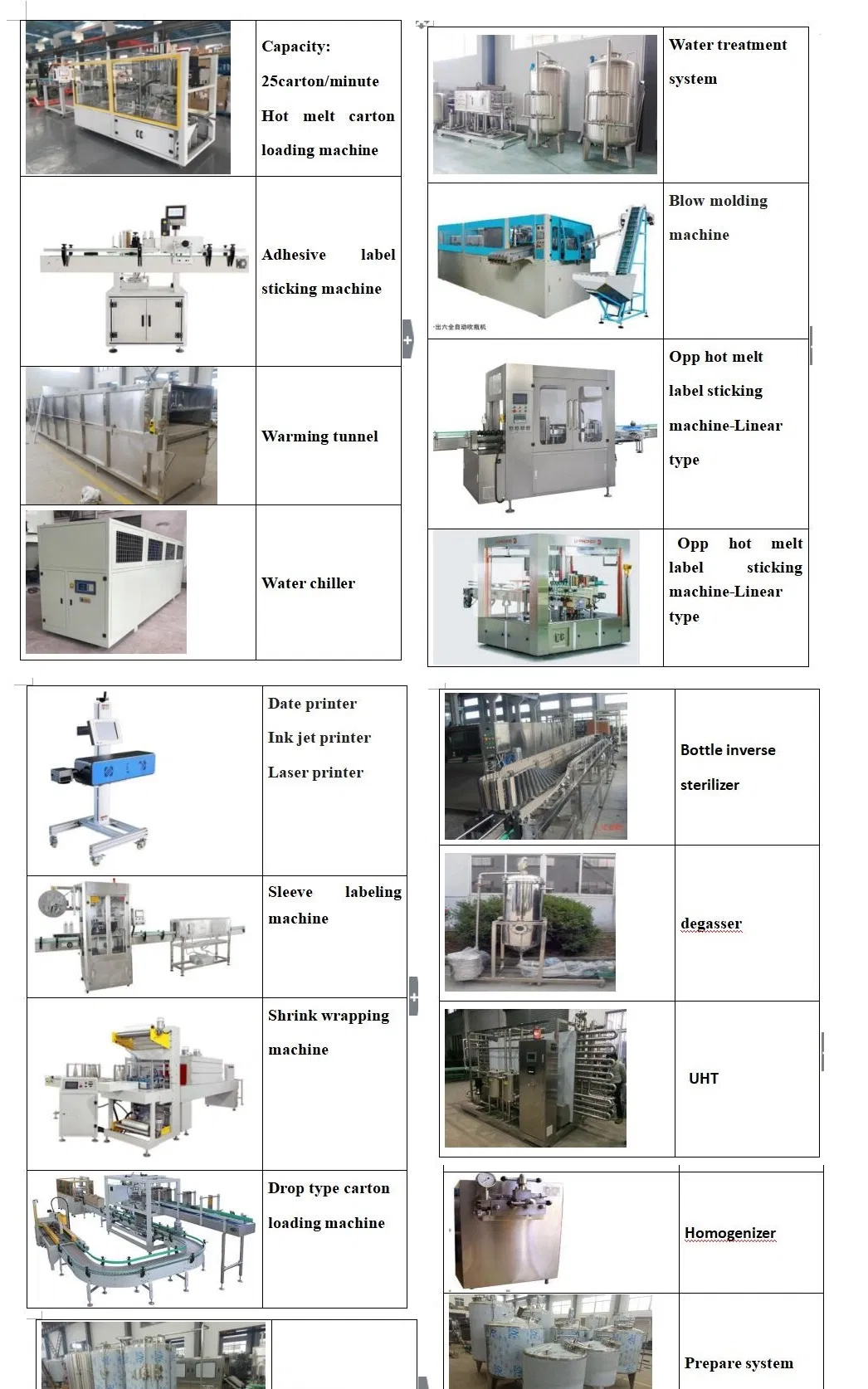

Machine Overview

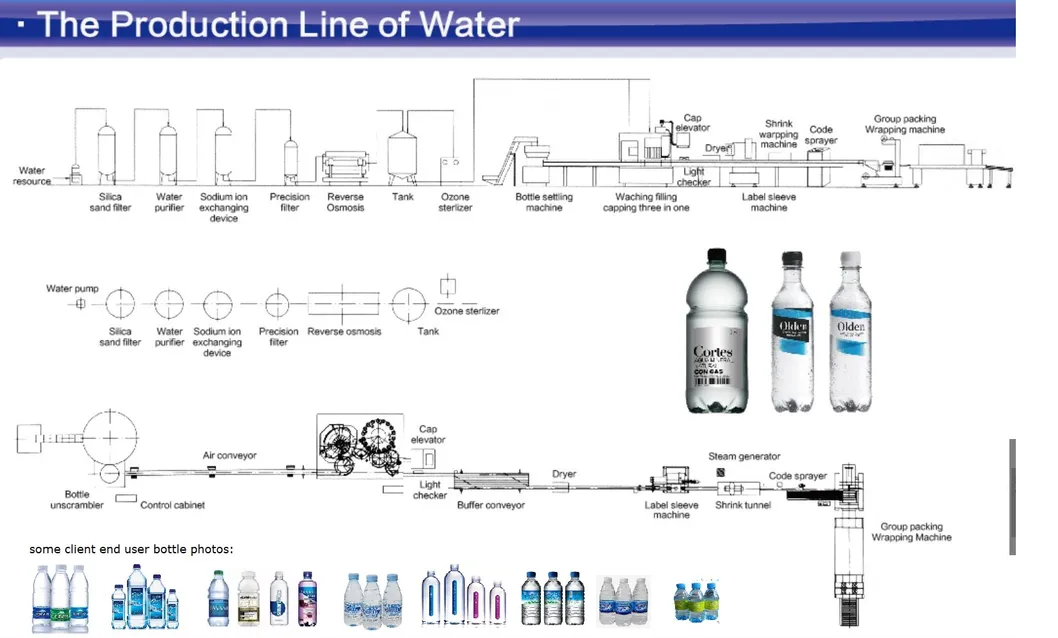

Flow Drawing Layout

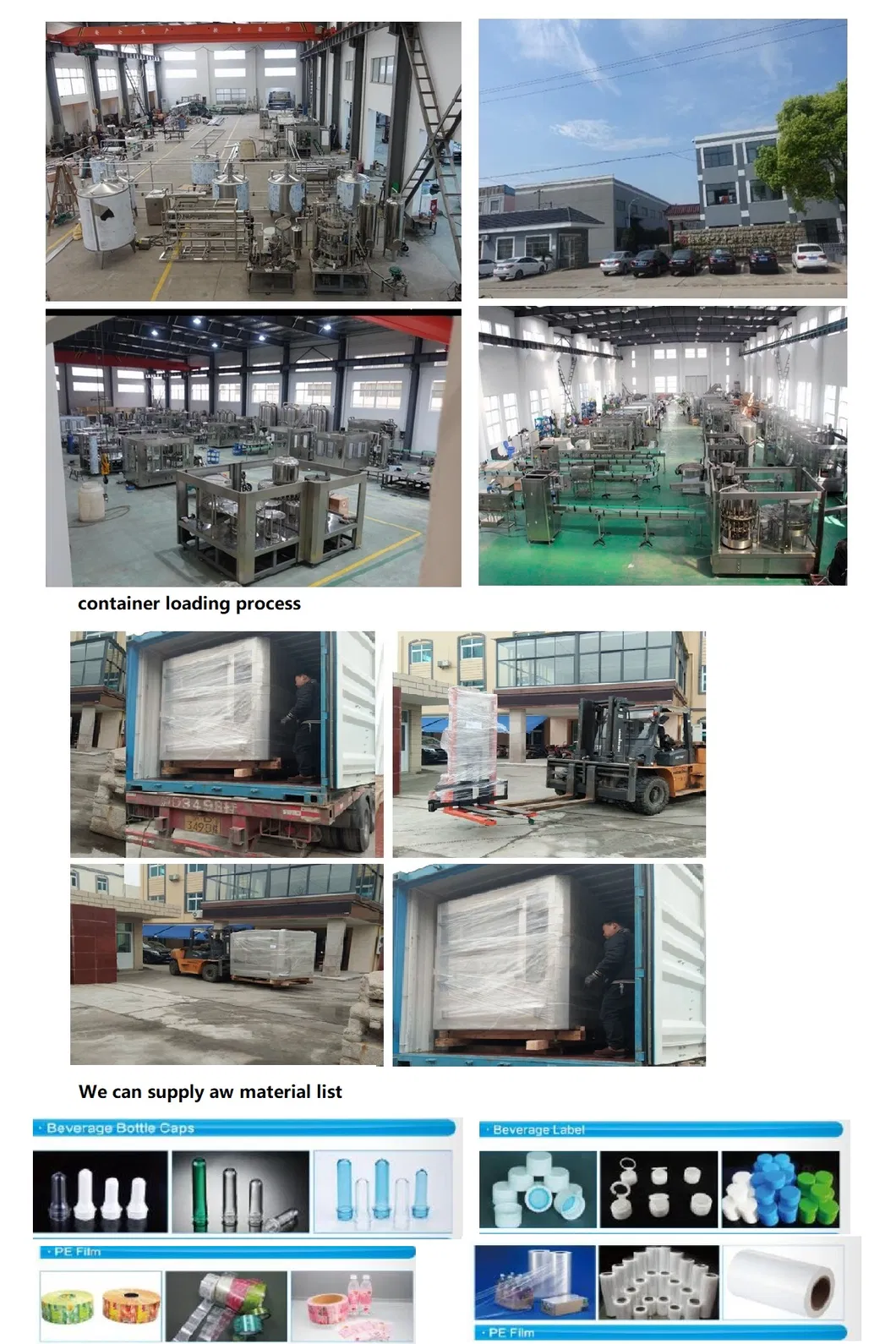

Workshop Photo
✔

Competitive Advantages

  • ◈High Quality Control & Long-term testing
  • ◈Latest Fracture Filling Technology
  • ◈New Cap Elevator (Prevents Cap Inversion)
  • ◈Earth-friendly & ODM/OEM Accepted
  • ◈MITSUBISHI PLC & OMRON Switches
  • ◈SCHNEIDER Electrical Components
?

Frequently Asked Questions

What types of beverages can this machine handle?
This 3-in-1 monoblock machine is versatile and can handle water, fruit juice, and carbonated beverages into PET bottles.
What is the production capacity of the 24-24-8 model?
The 24-24-8 model has a production capacity of approximately 10,000 bottles per hour (BPH) for 500ml containers.
Do you provide international brand electrical components?
Yes, we use world-famous brands including Mitsubishi (PLC), Omron (Optical Switch), Schneider (Electrical components), and LG (Air switches).
What are the terms for installation and adjustment?
Our technicians can be dispatched to the buyer's factory for installation, adjustment, and staff training upon request.
What is the warranty period for this bottling plant?
The machine comes with a standard one-year warranty covering all main components.
What is the lead time for a standard order?
The typical delivery time is approximately 40 to 60 days after receiving the initial down payment.
