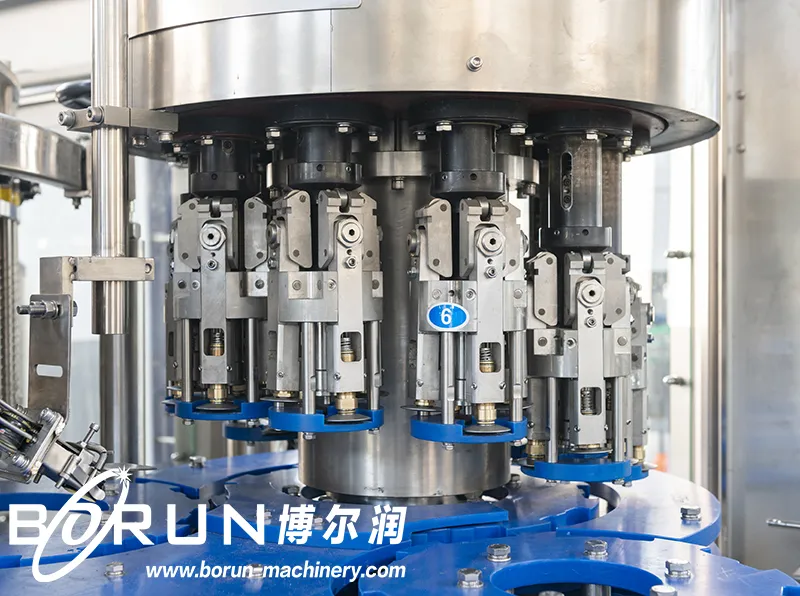

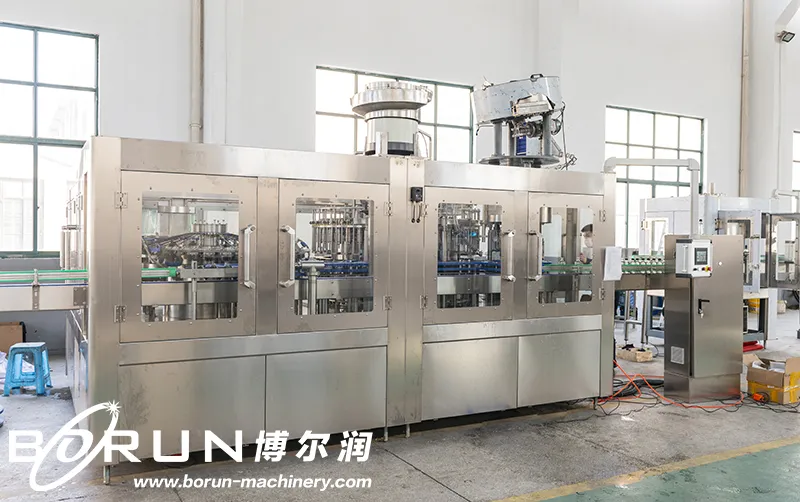

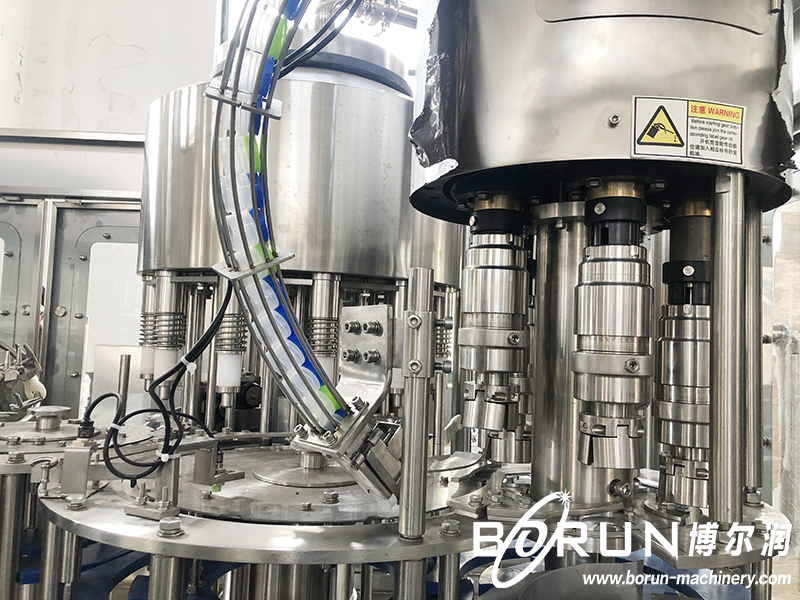

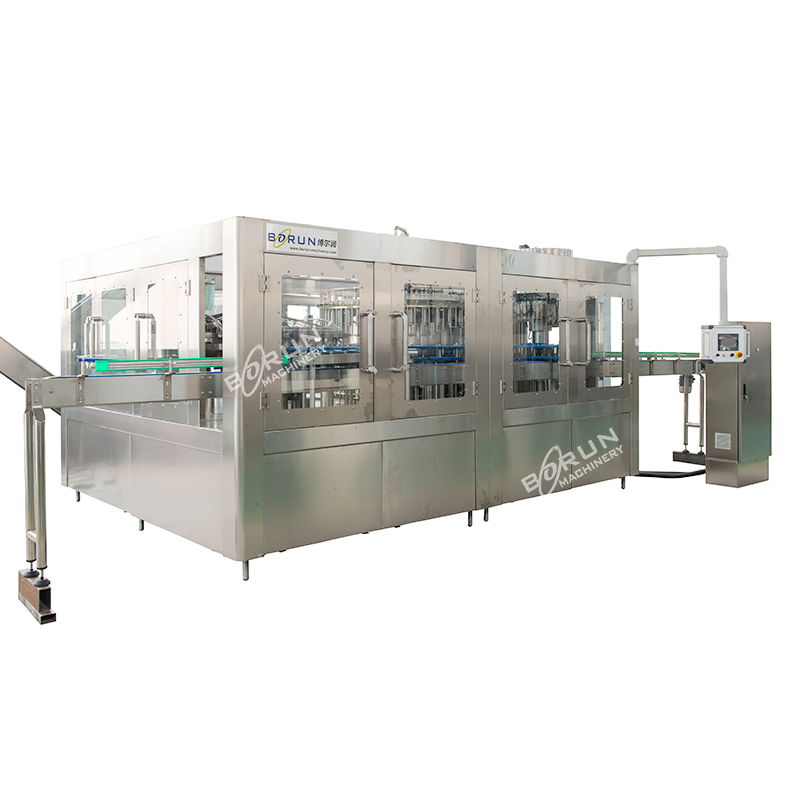

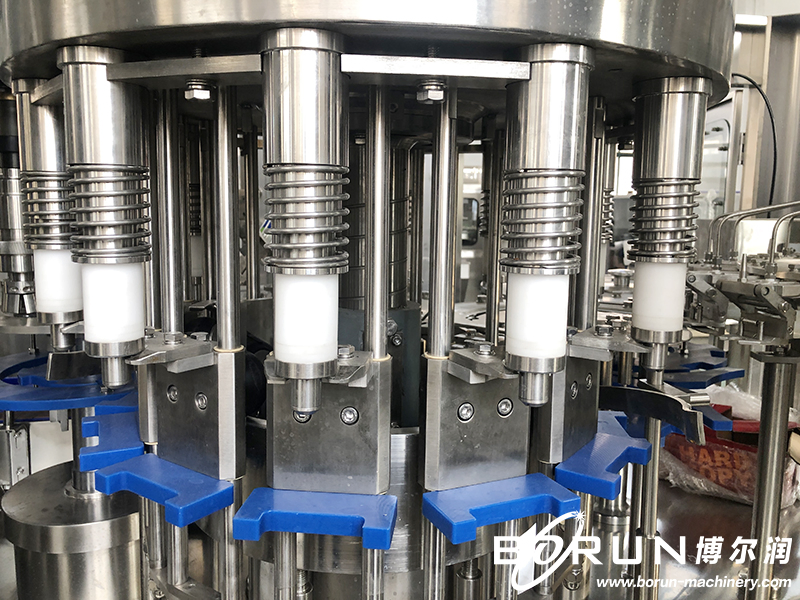

This machine is mainly used for glass bottle aluminum caps of wine, vodka, whisky filling and sealing. It is a 3-in-1 machine, composed of alcohol bottle washing, filling and capping system. The machine adopts international advanced technology, easy operation and maintenance, and high performance.
| Model | BCGF14-12-5 | BCGF18-18-6 | BCGF24-24-8 | BCGF32-32-10 | BCGF40-40-12 |
|---|---|---|---|---|---|

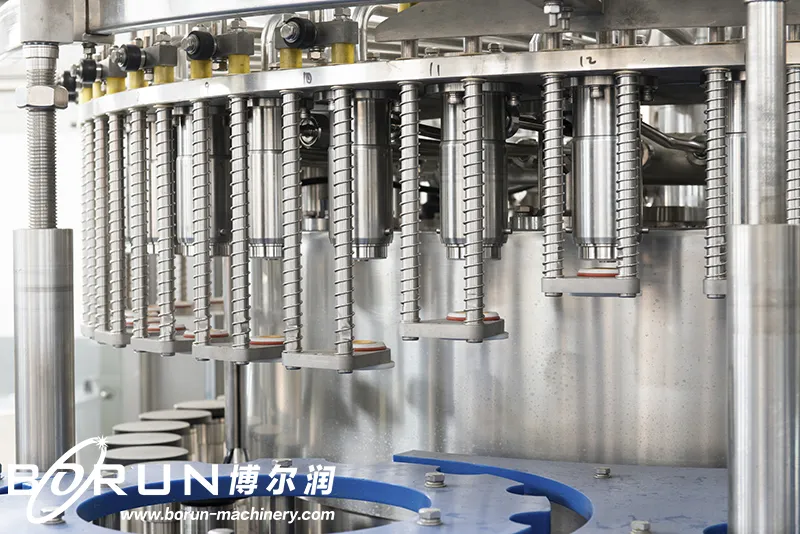

| Rising Heads | 14 | 18 | 24 | 32 | 40 |
| Filling Heads | 12 | 18 | 24 | 32 | 40 |

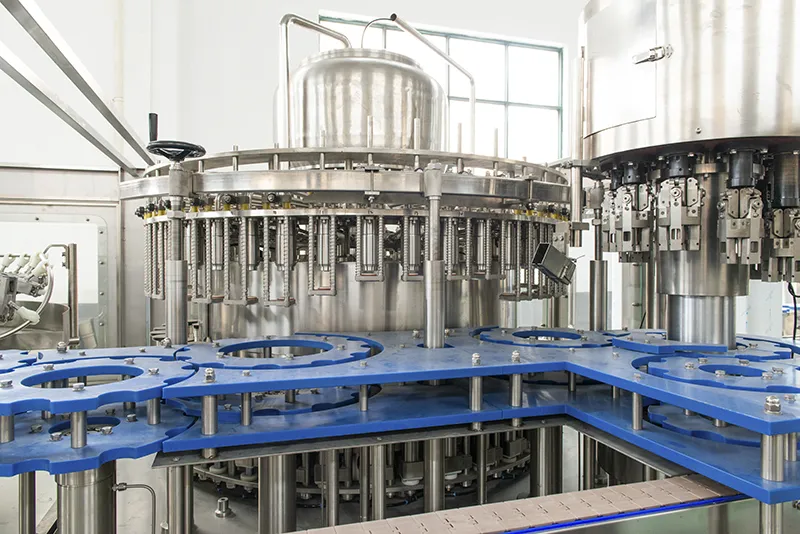

| Capping Heads | 5 | 6 | 8 | 10 | 12 |
| Capacity (500ml) | 3000BPH | 5000BPH | 7000BPH | 10000BPH | 15000BPH |
| Bottle Shape | Glass Bottles | ||||
| Diameter (mm) | Φ50-115 | ||||
| Height (mm) | 160-320 | ||||
| Motor Power (KW) | 2.2 | 3.5 | 4.5 | 6.0 | 7.5 |

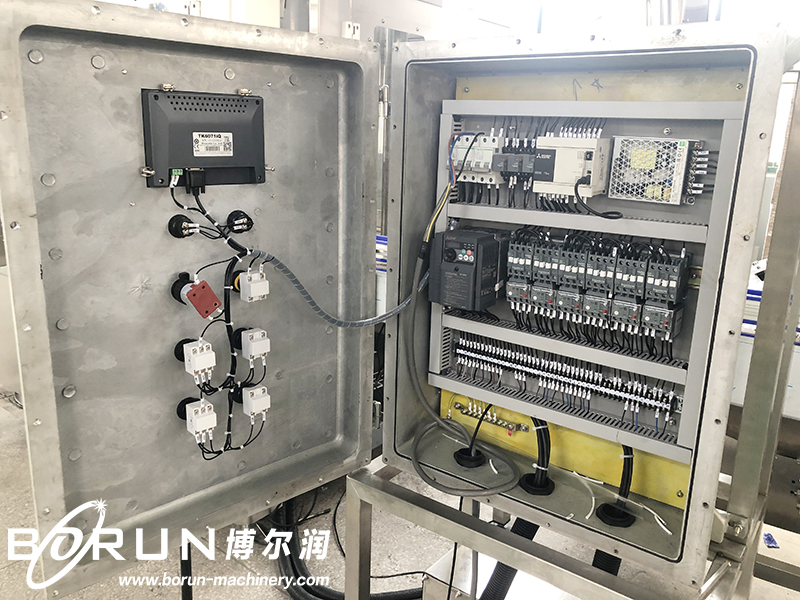

| Item | Parts Name | Brand |
|---|---|---|
| 1 | PLC | SIEMENS |
| 2 | Inverter | SIEMENS |
| 3 | Touch Screen | SIEMENS |
| 4 | Solenoid Valve | AIRTAC |
| 5 | Water Pump | SOUTHERN |
| 6 | Sensor | AUTONICS |
