- The base, beams, uprights and motor carriages are made of enhanced high-quality cast iron for rigid and reliable processing.

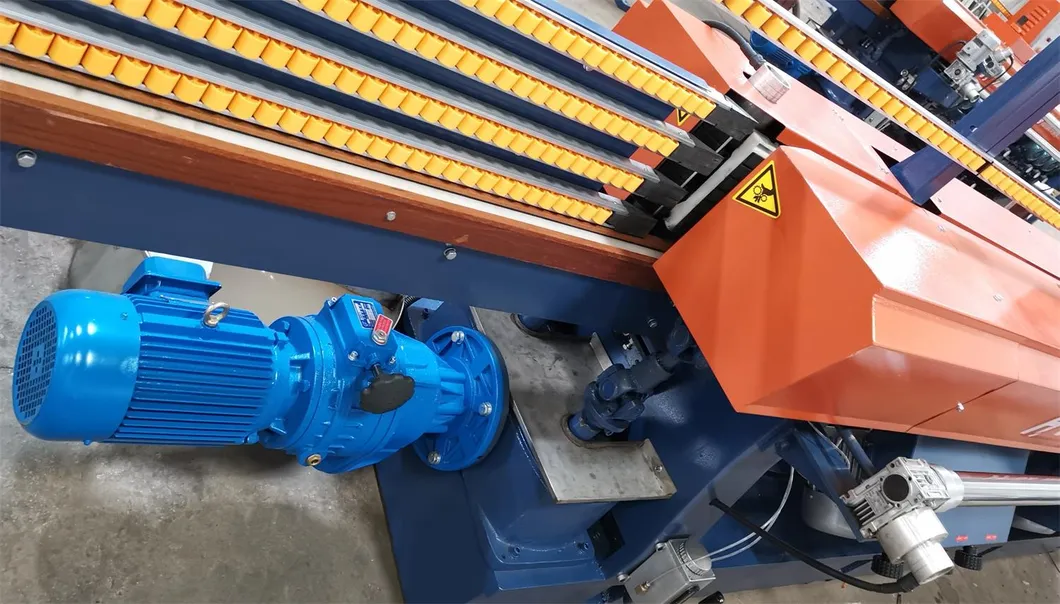

- The transmission system utilizes a mechanical stepless reducer, double spiral speed reducer, and sleeve-type chain of automatic gear.
- Movement of front beam and grinding spindles are driven by lead screws, with sliders for precise supporting and positioning.
- Front and rear pressure pads are adopted from high-intensity plastic material.
- Rack is constructed with aluminum spacers.

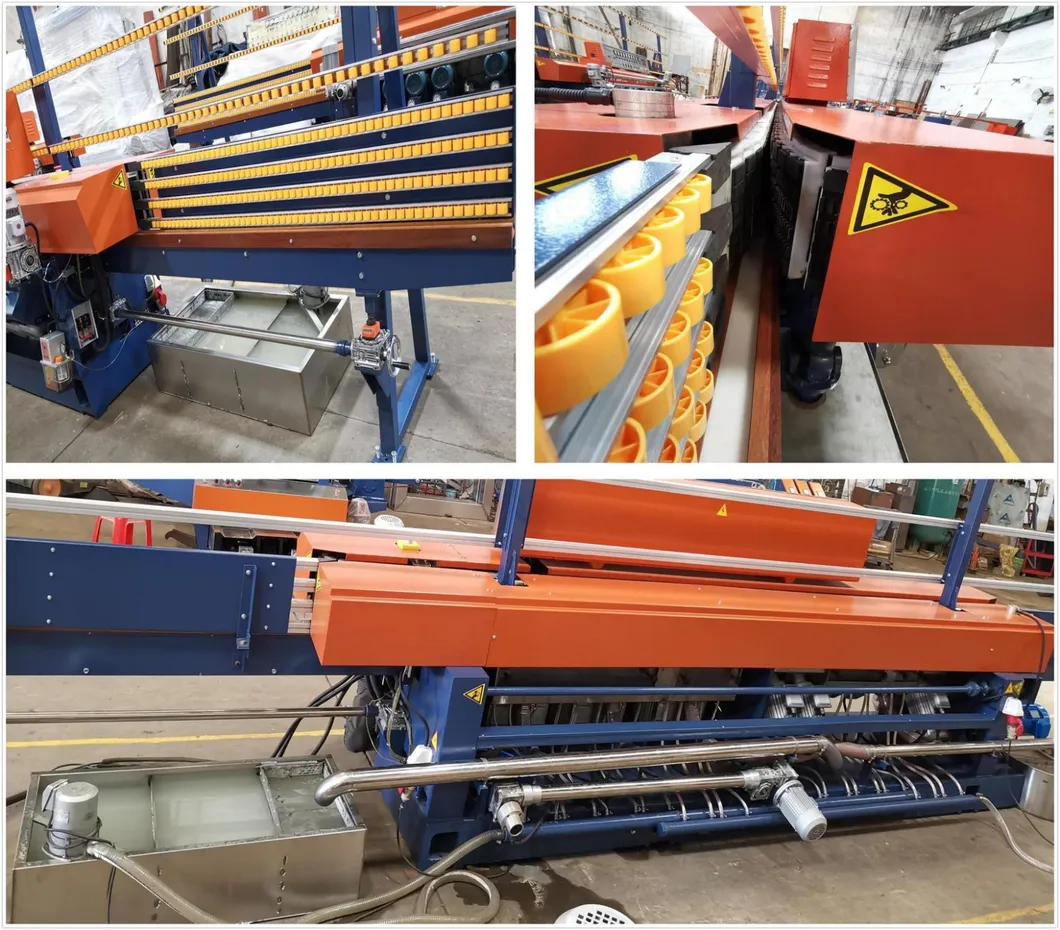

- Inlet conveyor equipped with an adjustable device for conveyor height.
- Input and output conveyors adopt timing belts to improve transmission precision.
- Stainless steel water tank and stainless steel polishing tank with electrical agitator included.
- Automatic lubricating oil pump ensures all parts in beams and sliders remain lubricated.
Technical Specifications:
| Maximum Grinding |
3mm |
| Grinding Speeding |
500~2500m/min |
| Chamfer Angle |
0° ~ 45° |
| Thickness of Processed Glass |
3 ~25mm |
| Size of Processed Glass |
Max: 3000 x 3000mm | Min: 100 x 100mm |
| Total Power |
26KW |
| Weight |
4000 KG |
| Machine Dimension |
7700(L) x 1200(W) x 2500(H)mm |

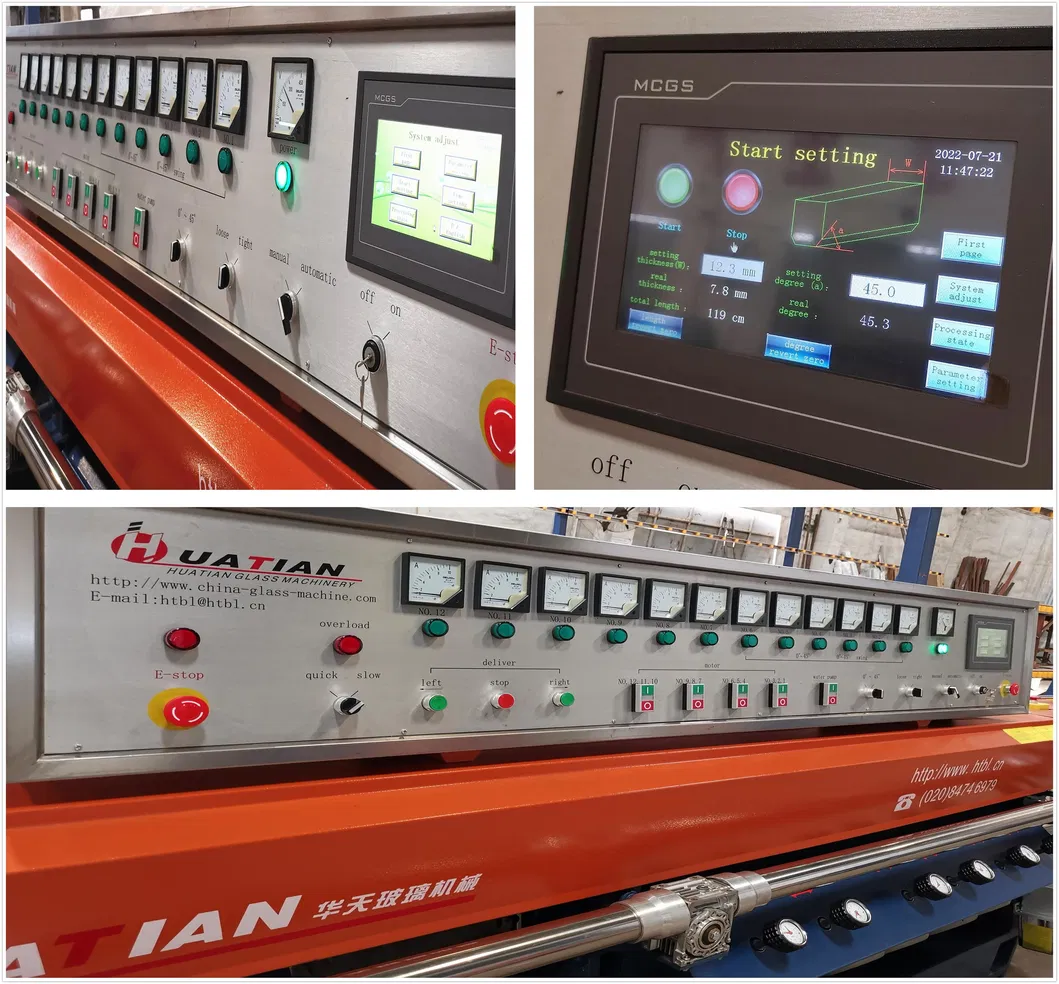

Delta PLC with touch screen control system. The screen displays glass thickness, length, angle, and other parameters, supporting both manual and automatic modes.

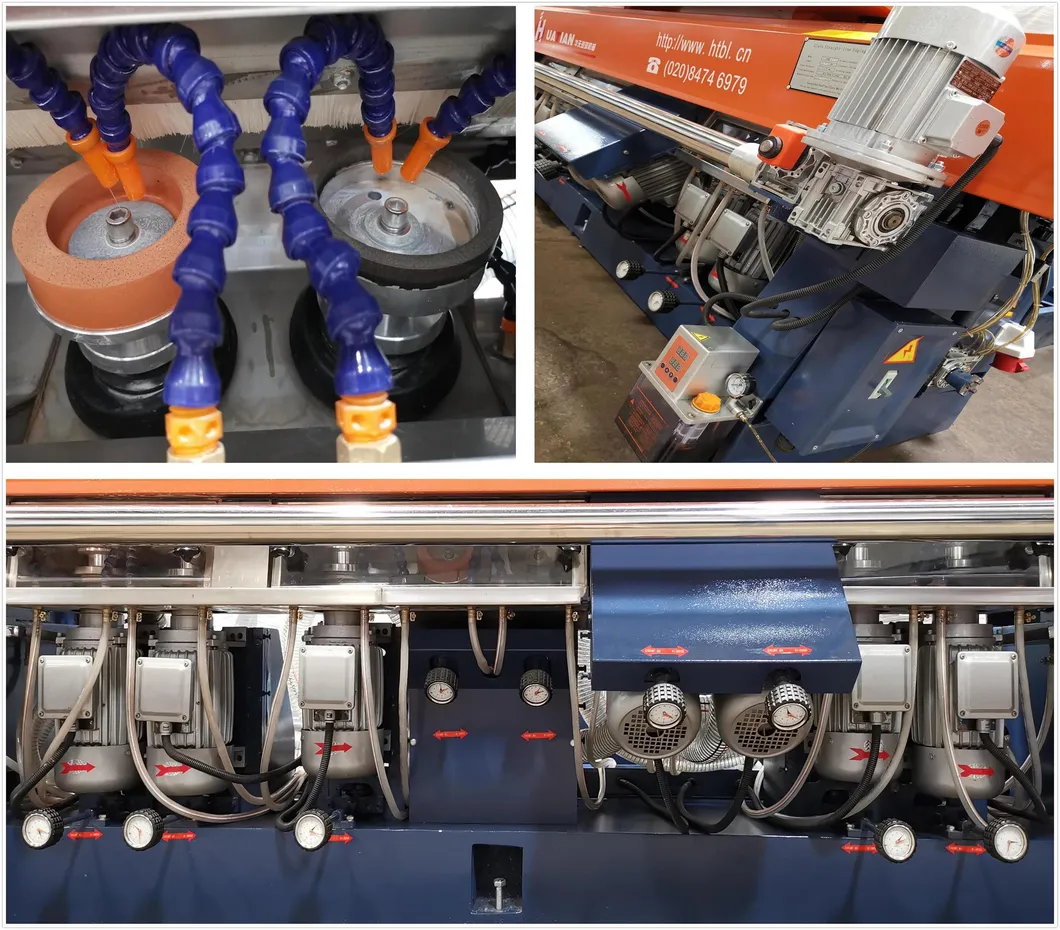

Features high-precision low-vibration motors and Italian-made grinding wheels. The machine is equipped with automatic lubrication pumps for the conveyor system.
✓

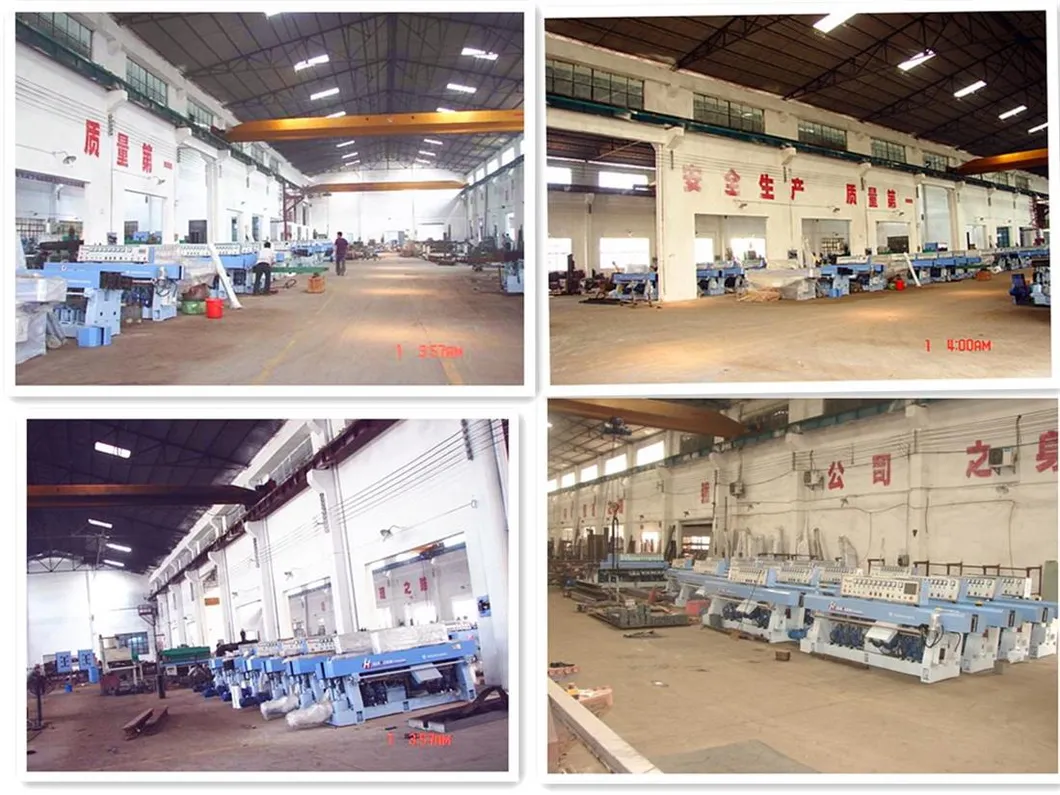

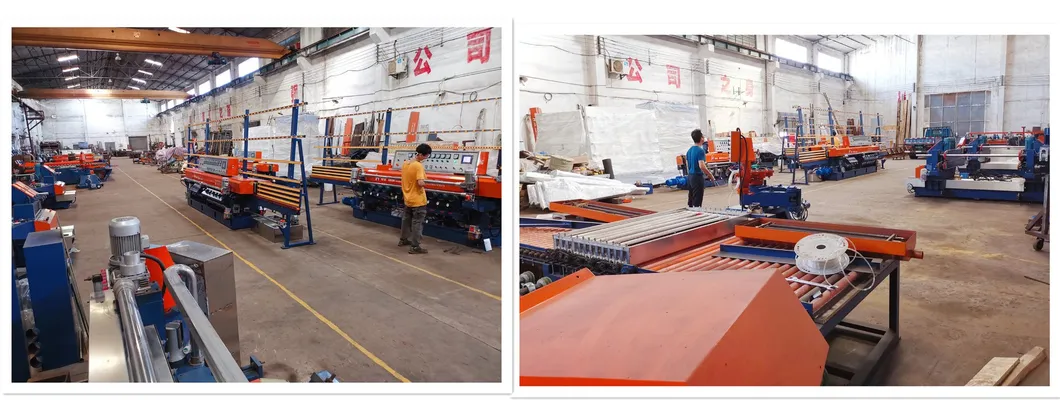

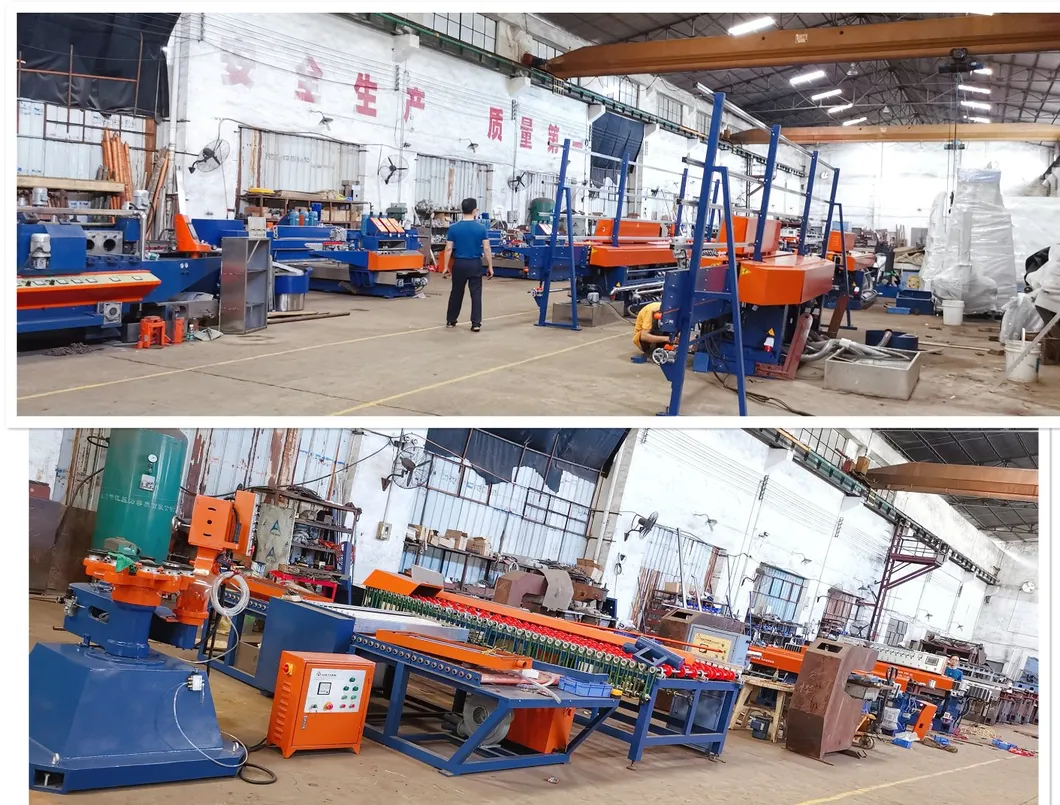

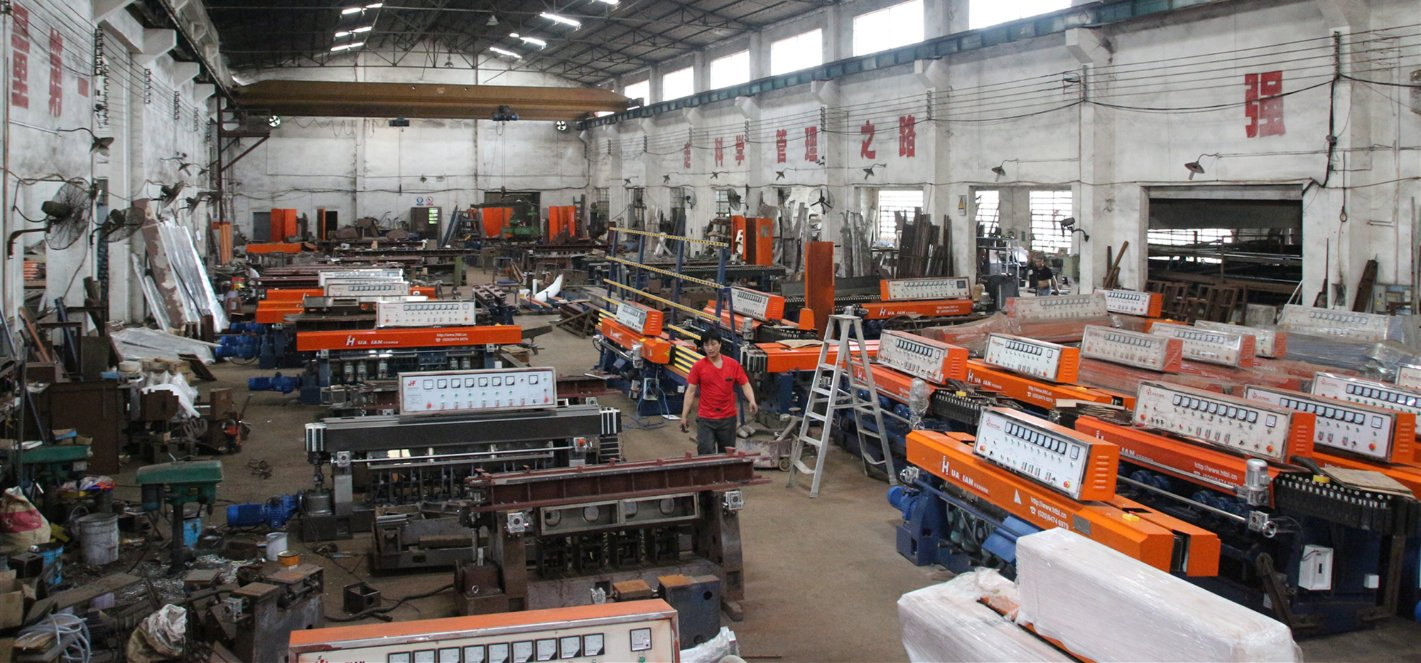

Certifications & Workplace
?
Frequently Asked Questions
What is the range of glass thickness this machine can process?
The machine is capable of processing glass with a thickness ranging from 3mm to 25mm.

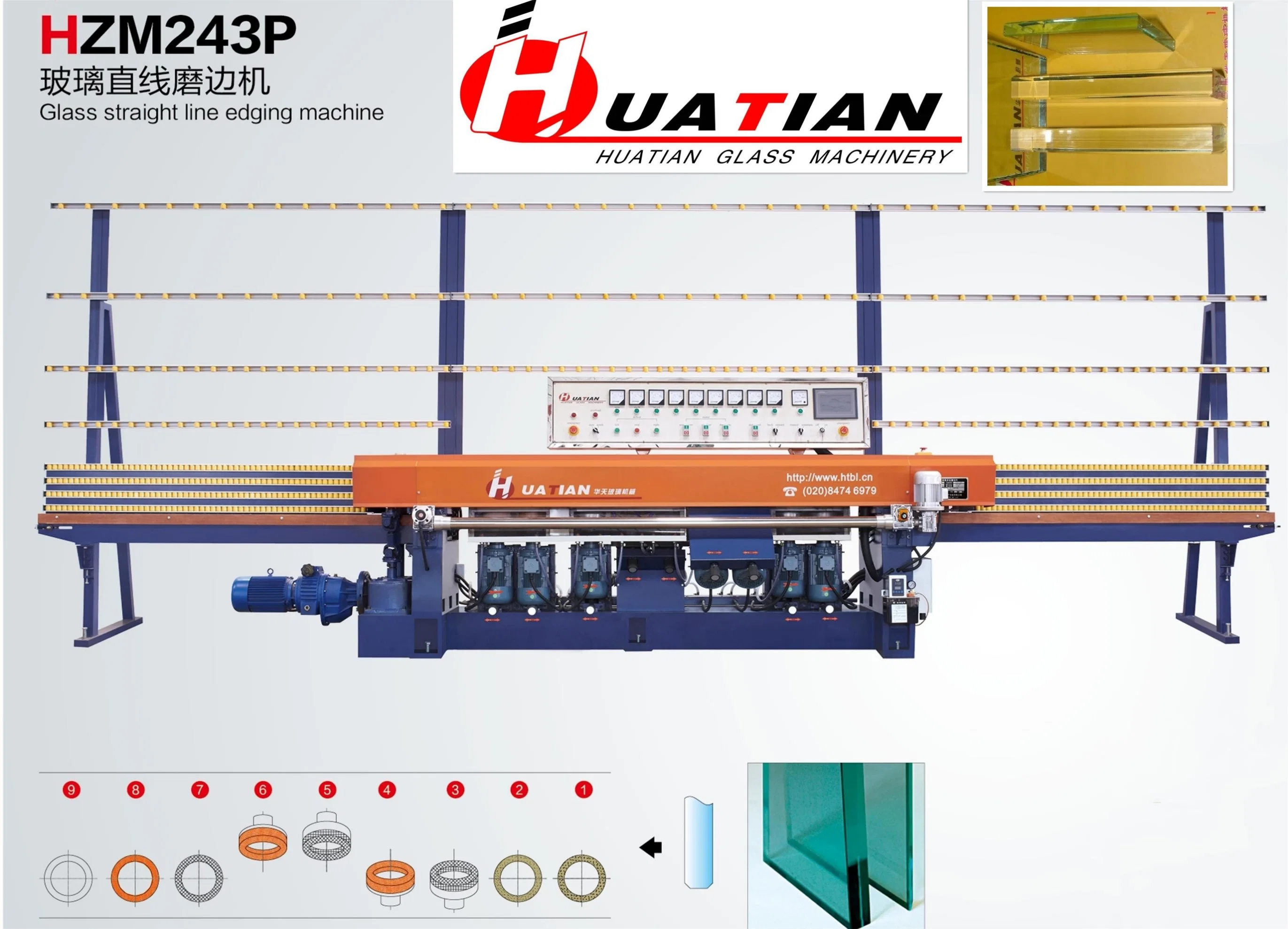

What kind of control system is used for the HZM243P?
It uses a Delta PLC system with a touch screen, allowing for both manual and automatic operation modes and displaying real-time parameters.
Are the grinding wheels high quality?
Yes, the machine uses high-quality grinding wheels, including specific components made in Italy for precision and durability.
Does the machine require manual lubrication?
No, the machine is equipped with an automatic lubricating oil pump that services all critical parts in the beams and sliders.
What materials are used for the machine's main structure?
The base, beams, and uprights are made of enhanced high-quality cast iron to ensure rigidity and reliability during heavy processing.
What is the maximum glass size for this edging machine?
The maximum size for processed glass is 3000 x 3000mm, while the minimum size is 100 x 100mm.
