| Model NO. | LBP2500Q | Control System | PLC, Touch Screen Control |
| Glass Thickness Range | 3 mm - 19 mm | Type | Insulating Glass Production Line |
| Max. Processing Size | 3600*2500mm | Min. Processing Size | 450*200mm |
| Inert Gas Type | Argon, Nitrogen, Ect | Gas Concentration | >85% |
| Washing Speed | 3-10m/Min | Running Speed | 15-45m/Min |
| Power Supply | 380V/50Hz | Total Power | 44.85kw |
| Glass Type | Flat Glass, Low-E Glass, Tempered Glass | Origin | China |

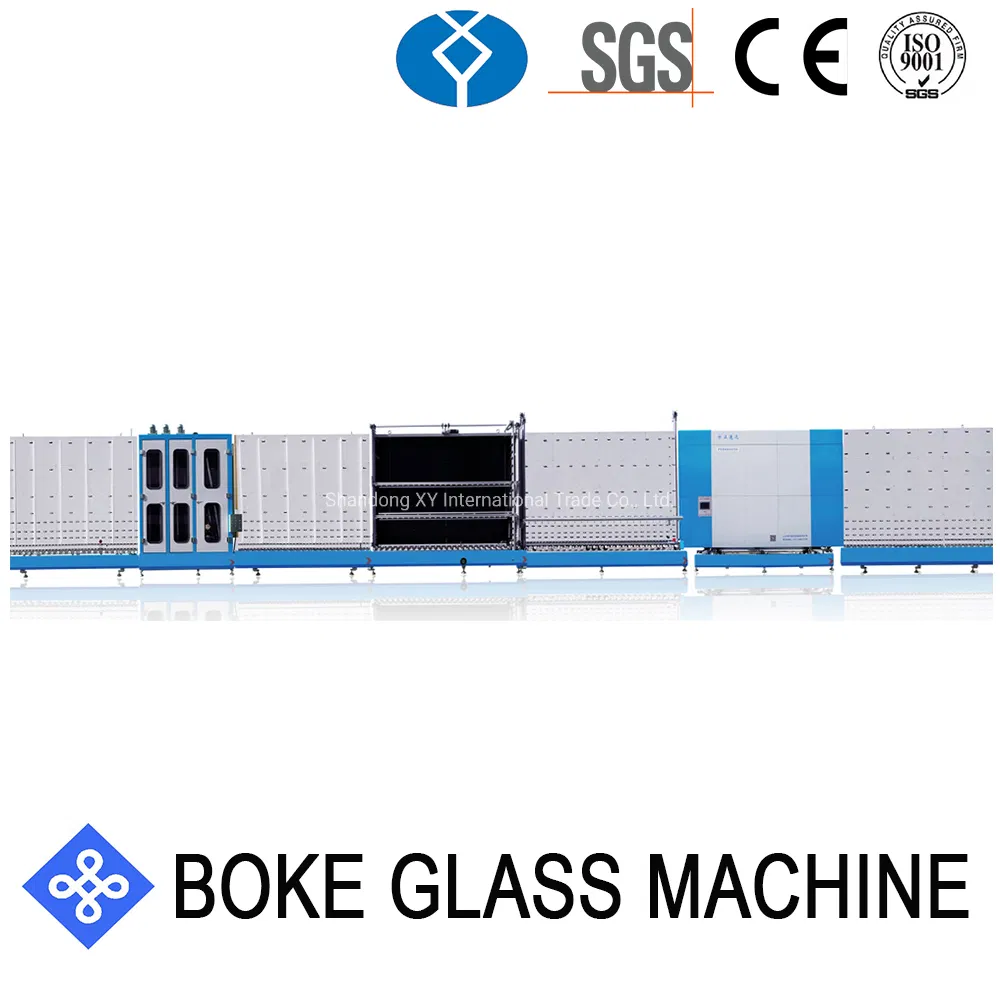

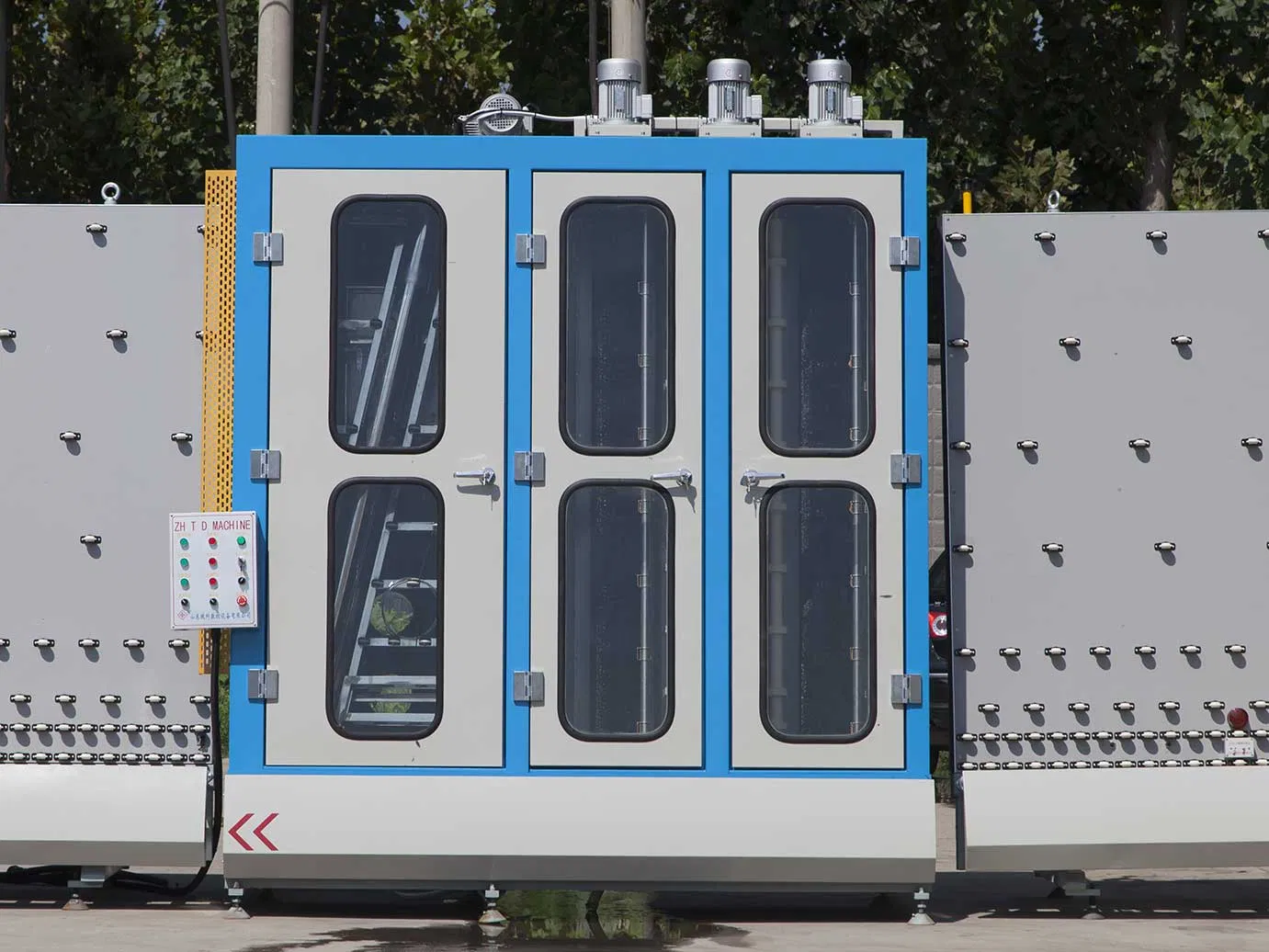

Brief Introduction of LBP2500Q IGU Line

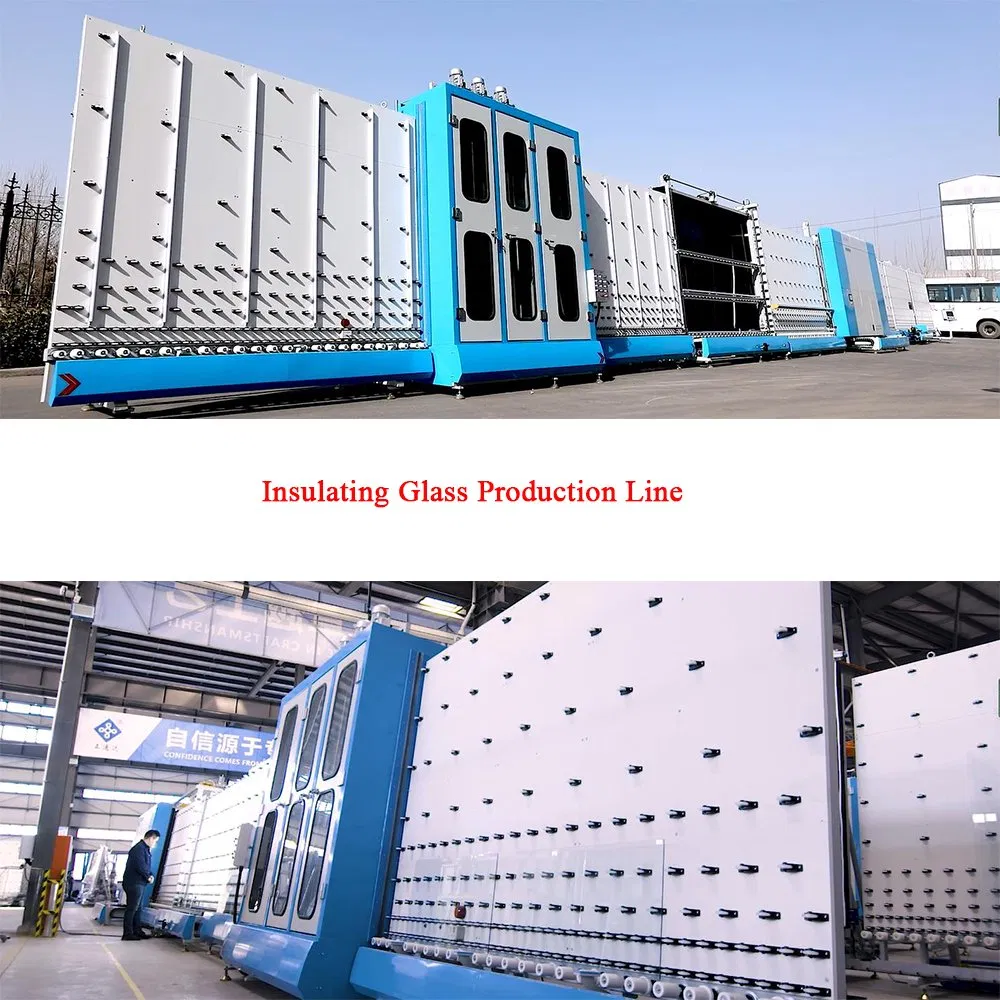

Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units production. This model applies for glass processing companies and window & door fabricators.
| Parameter | Value |
|---|---|
| Max. processing glass size (mm) | 3600*2500 |
| Min. processing glass size (mm) | 450*200 |
| Signal glass thickness(mm) | 3-15 |
| Max. Insulating glass thickness(mm) | 52 |
| Capacity(pc/h) | 110 |
| Gas concentration | More than 90% |
| Outline dimension (mm) | 24600*2500*3680 |
Energy Saving: Automatic stop function when no glass is detected, saving 30% power.

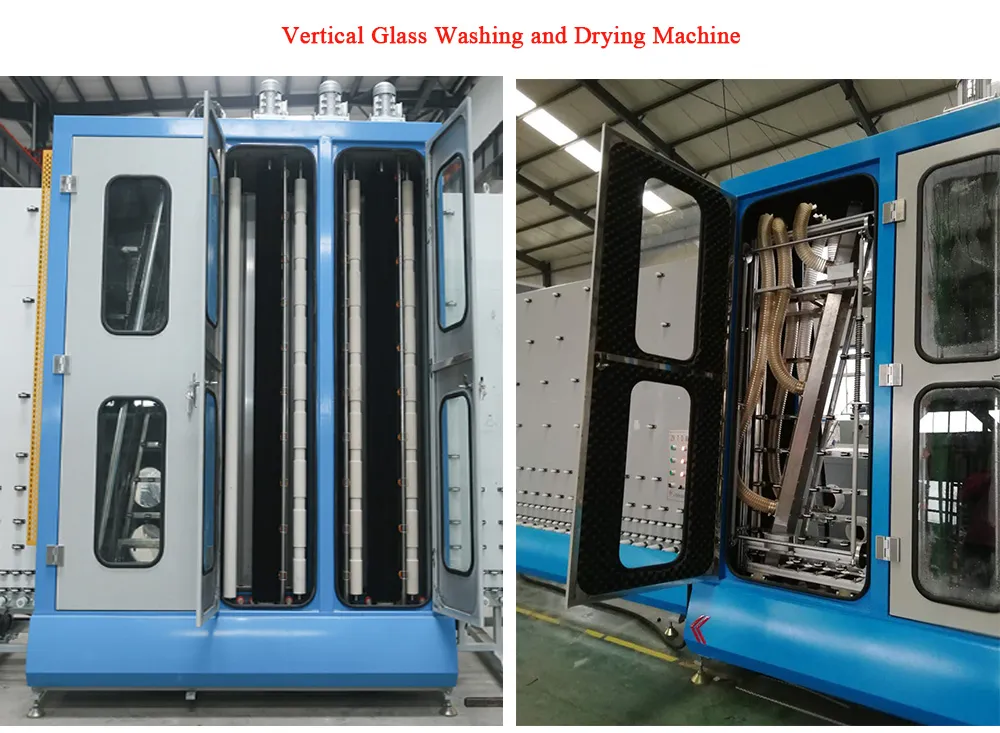

Stainless Steel Washing: Uses corrosion-resistant materials and DuPont nylon brushes for Low-E glass.
High Pressure Fan: 18.5KW fan ensures dry glass without residue or water stains.

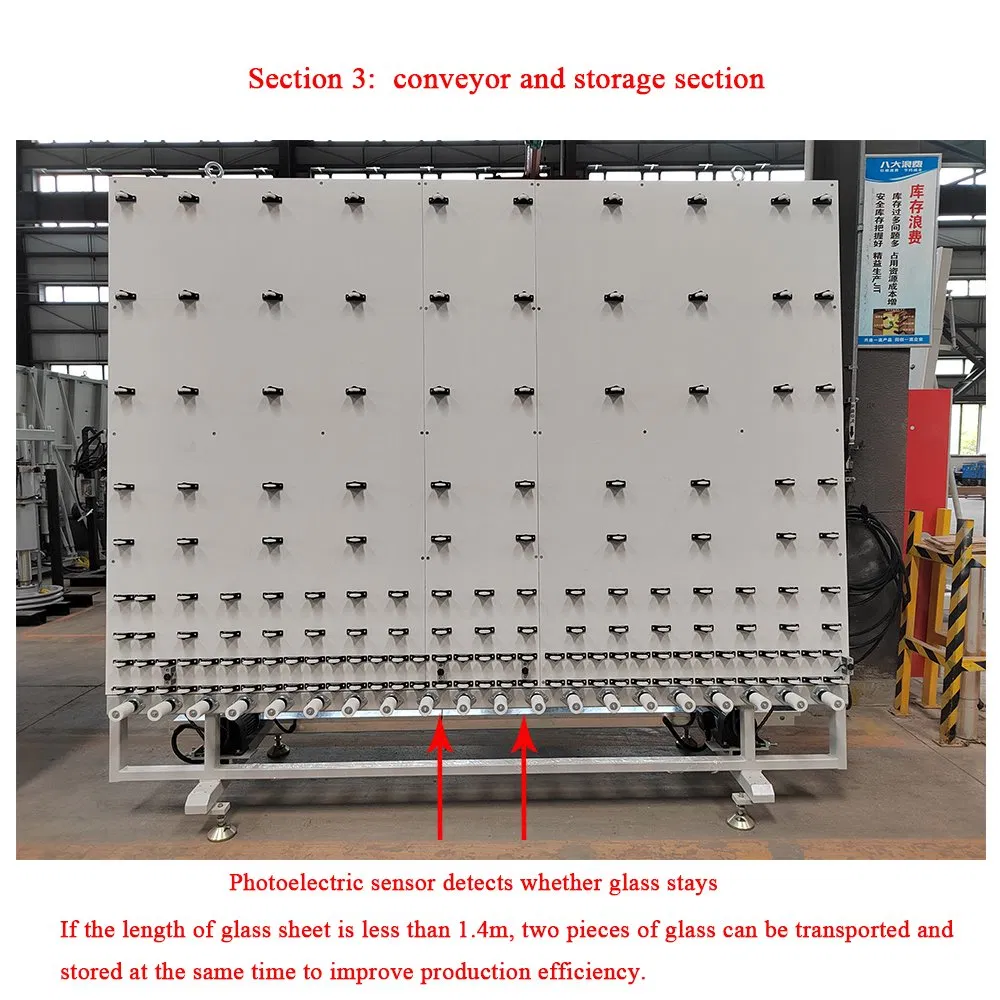

Storage Section: Dual transfer motors for simultaneous handling of small glass pieces.

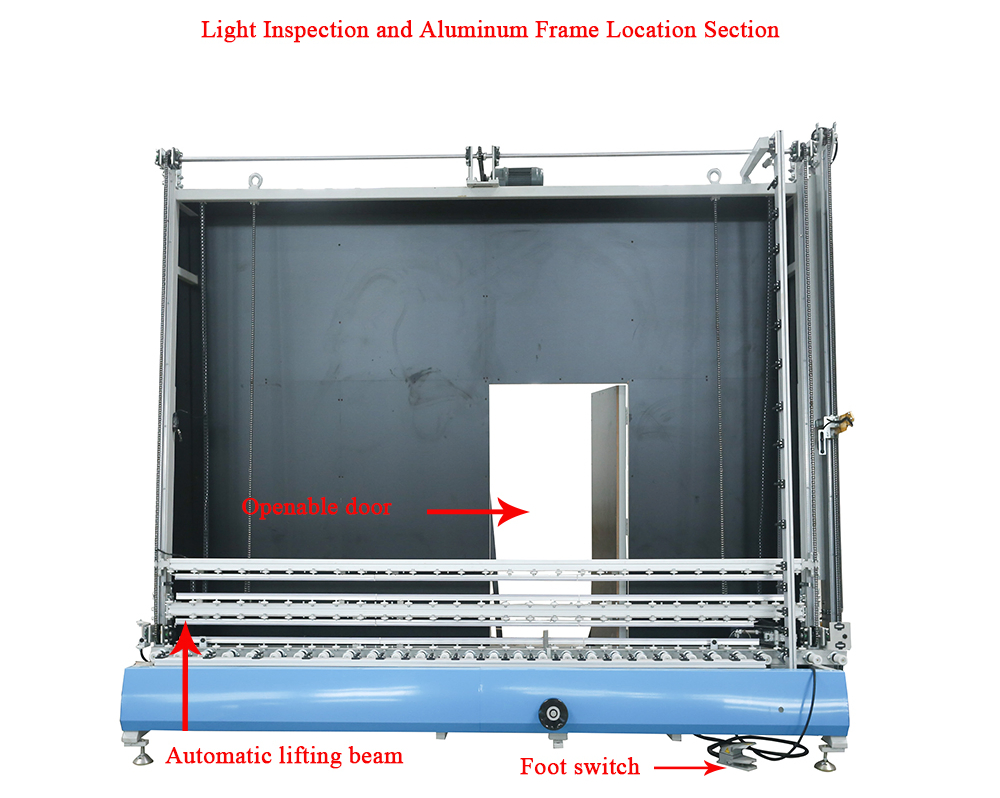

Light Inspection: Black background highlights unwashed stains; automatic thickness measurement.

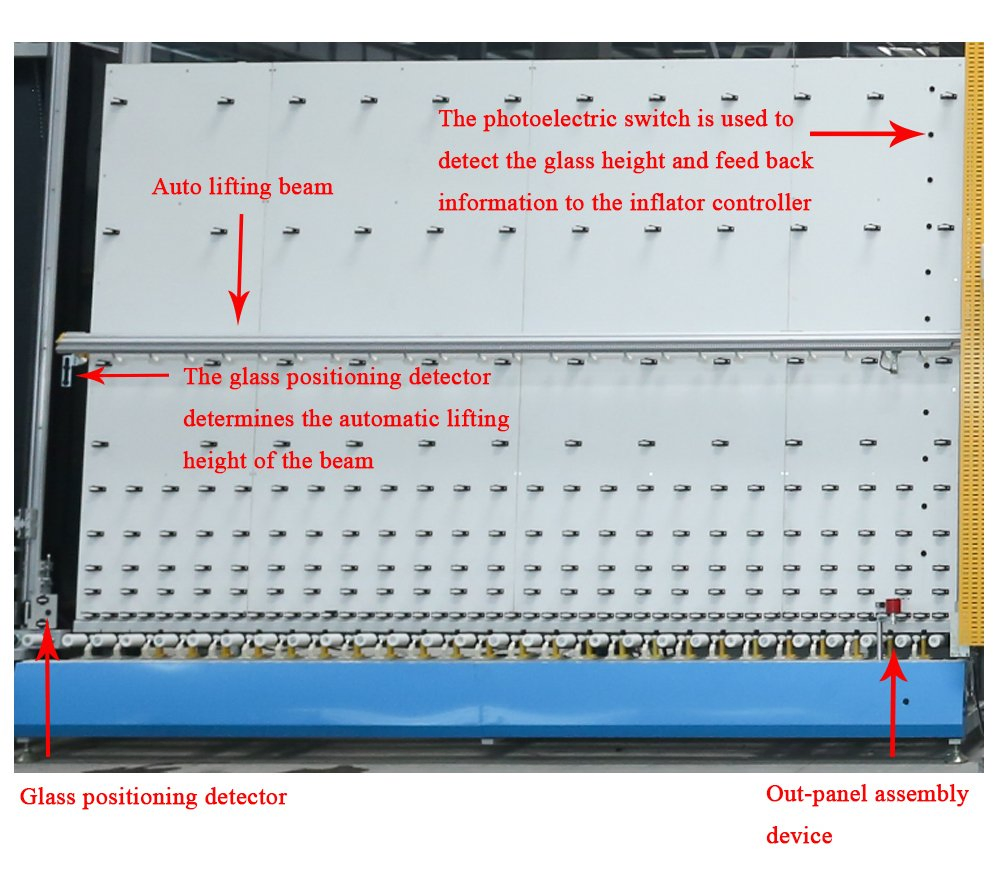

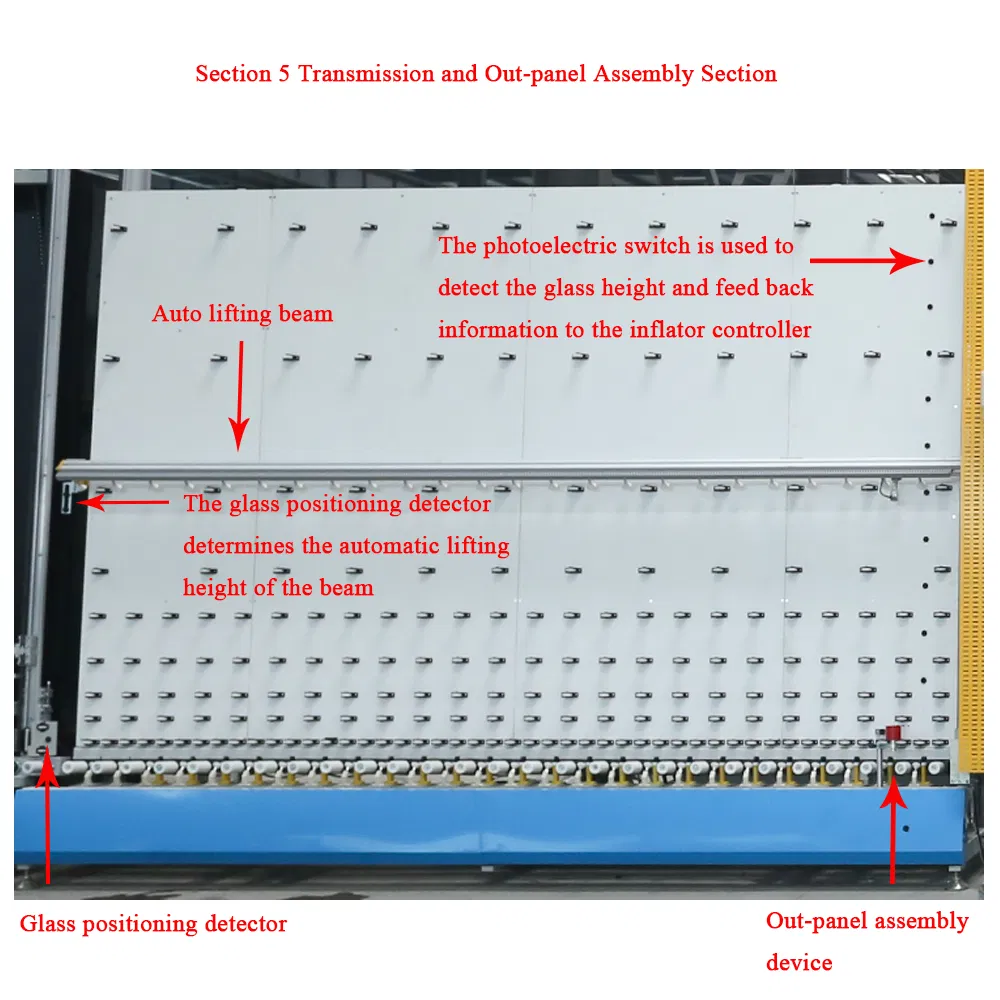

Servo Control: High-precision out-panel assembly for double and triple layers.

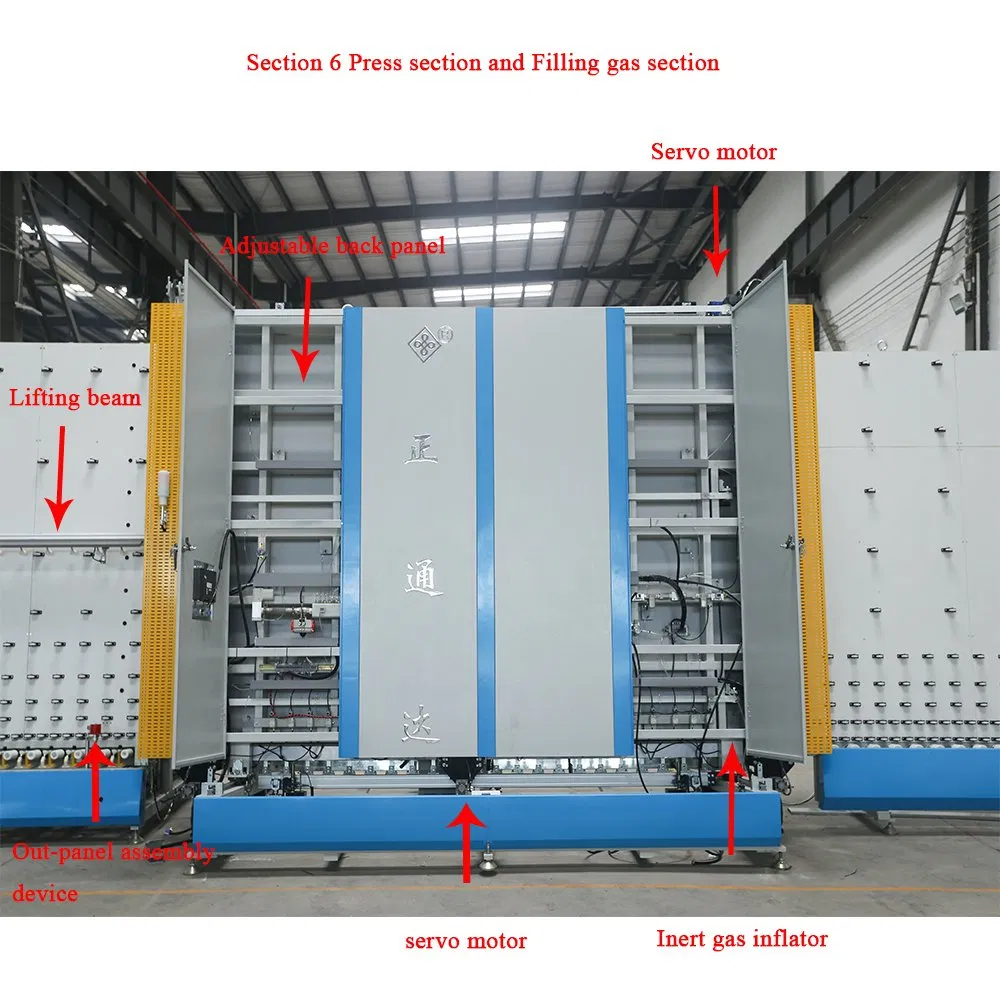

Stable Pressing: Integrated vacuum generator with 60 suction cups for uniform pressure.

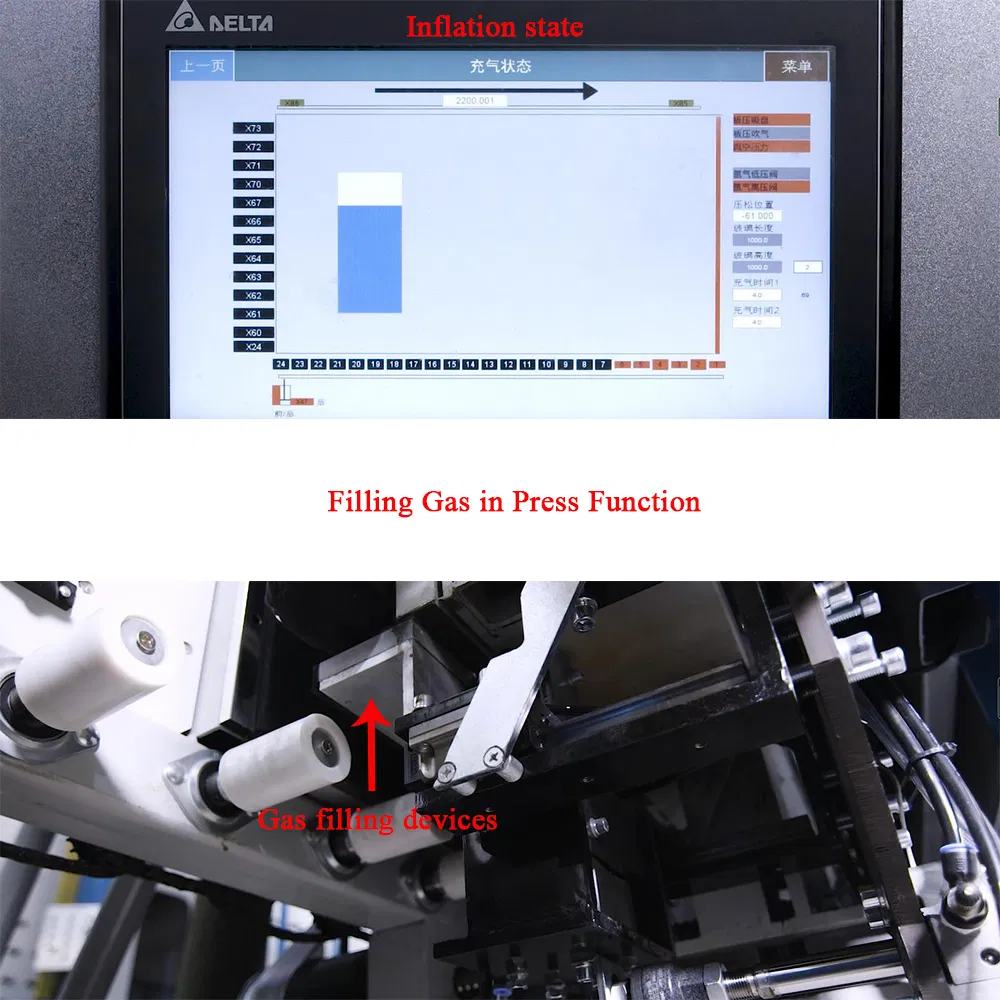

Fast Gas Filling: Direct inflation structure with >92% concentration.
Founded in July 2000, we are a high-tech enterprise specializing in the development and production of high-grade insulating glass processing equipment. With over two decades of experience, we provide a complete set of solutions for the global market.
