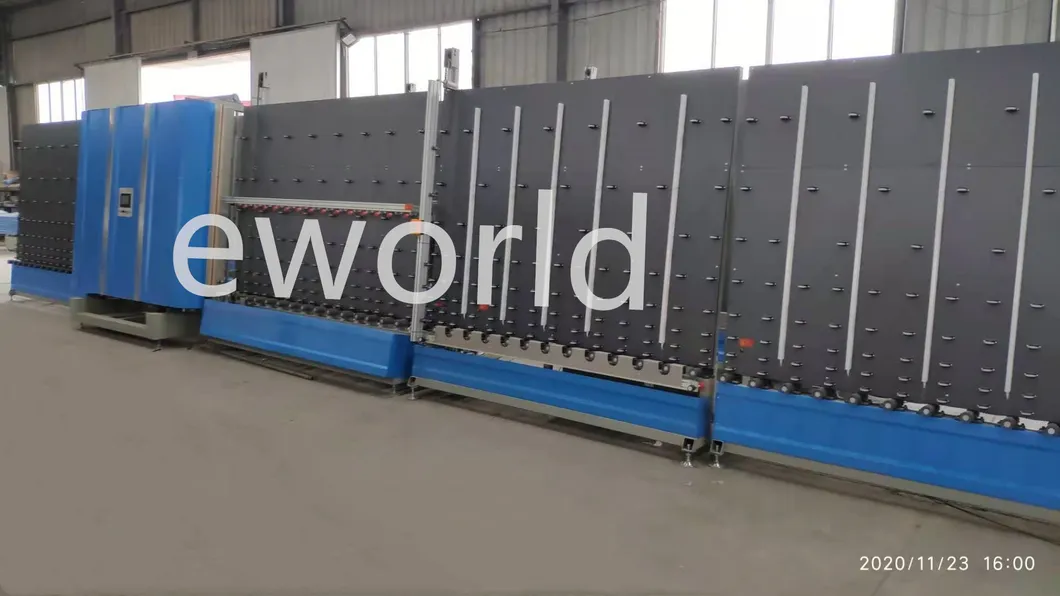

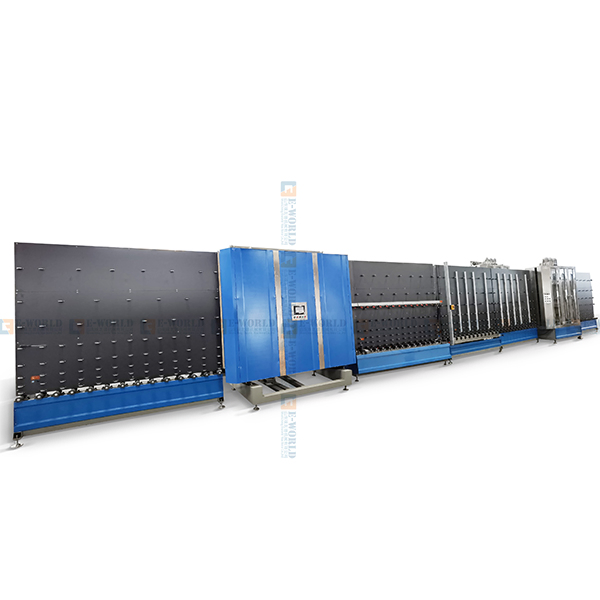

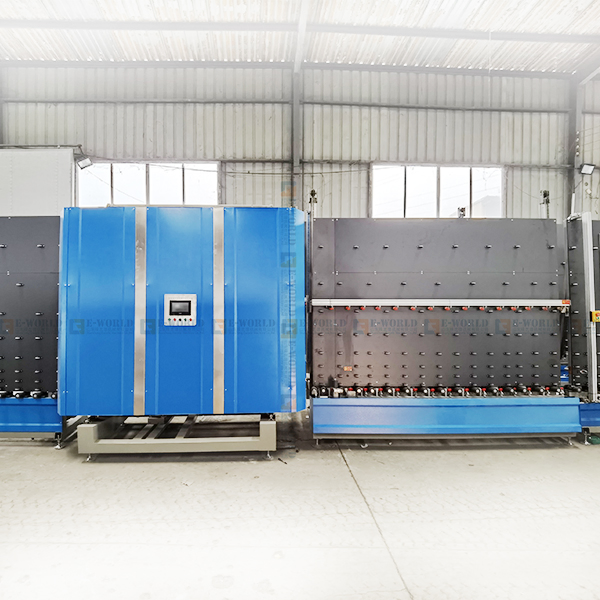

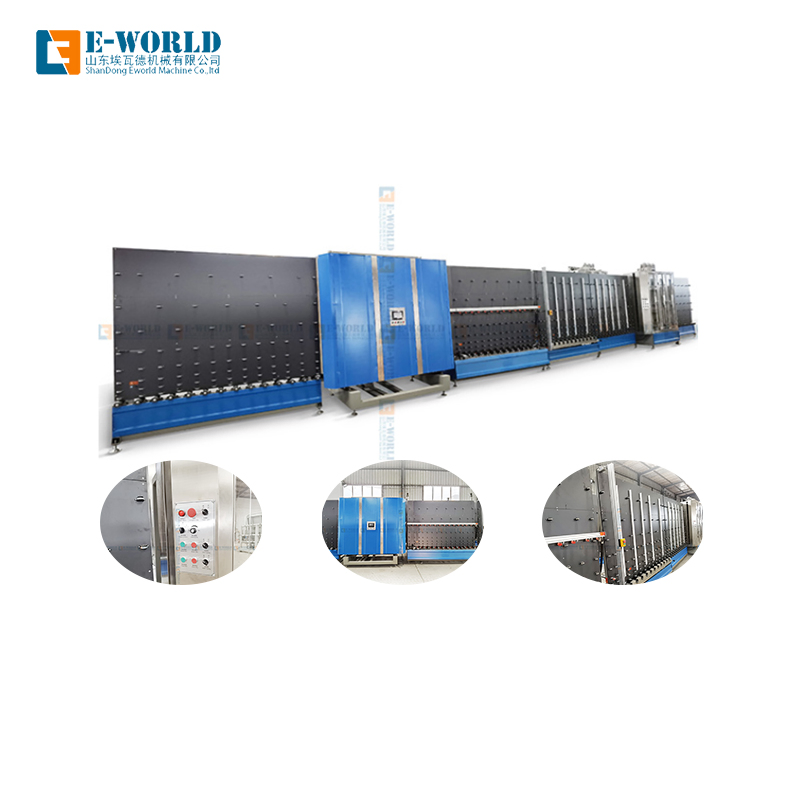

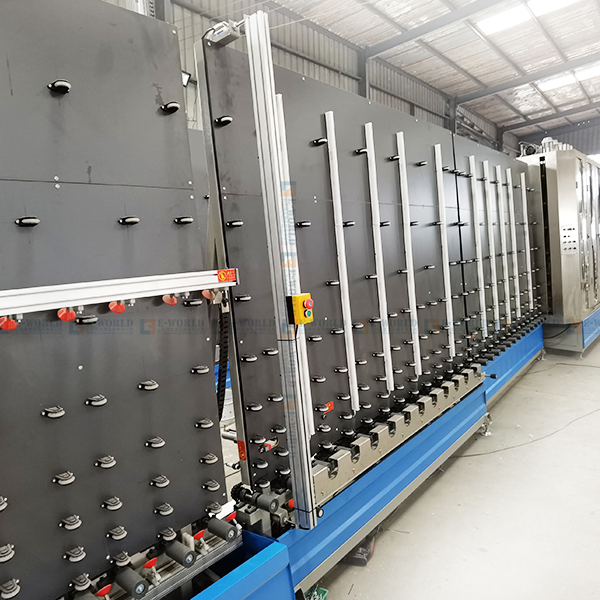

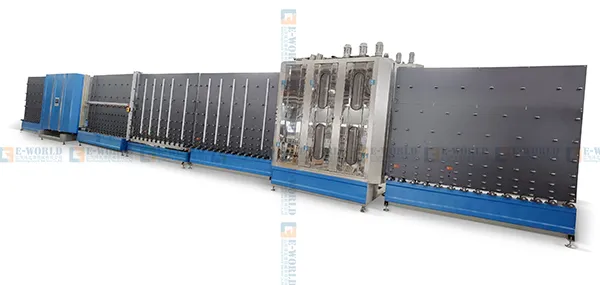

LBZ 2000 Insulating Glass Production Line
Insulating glass production line is the essential machine of insulating glass production line, it can make stepped glass, shaped glass, double layers and three layers.
This Insulating Glass Machine is special equipment for aluminum groove type insulating glass, it can make two-layer and three layer insulating glasses with equal and unequal glass sheets.
1. Lead-in conveyer: 3000*800*3200mm
2. Washing and Drying section: 2200*1500*3600mm
3. Inspecting section: 3000*800*3200mm
4. Frame mounting section: 3000*800*3200mm
5. Plate press section: 3200*1500*3500mm
6. Tilting Table: 3000*1100*3200mm
| Max working size | 2000*3000mm |
| Min working size | 400*300mm |
| Single Glass Thickness | 3-15mm |
| Max IGU thickness | 50mm |
| Washing speed | 0-8m/min |
| Conveyor speed | 45m/min |
| Cycle | 30-40 seconds (900*1200mm) |
| Brusher | 6 pairs (two pairs for LOW-E) |
| Brusher Diameter | Rough: 0.1mm, Fine: 0.06mm |
| Electricity power | 3P 380V/50HZ or 3P 220V/60HZ |
| Water Consumption | 0.5 ton per day |
| Air pressure | 0.7Mpa |
