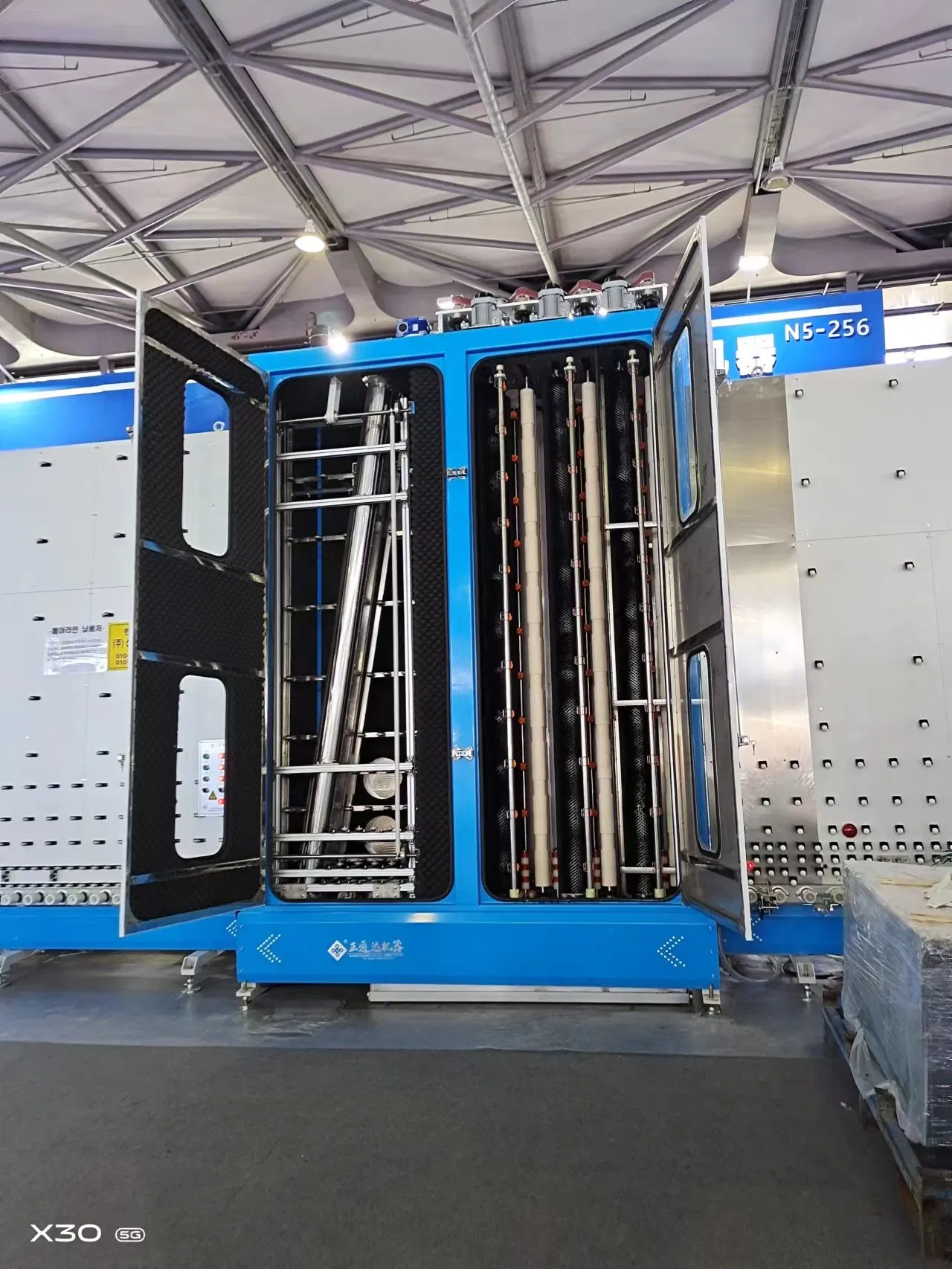

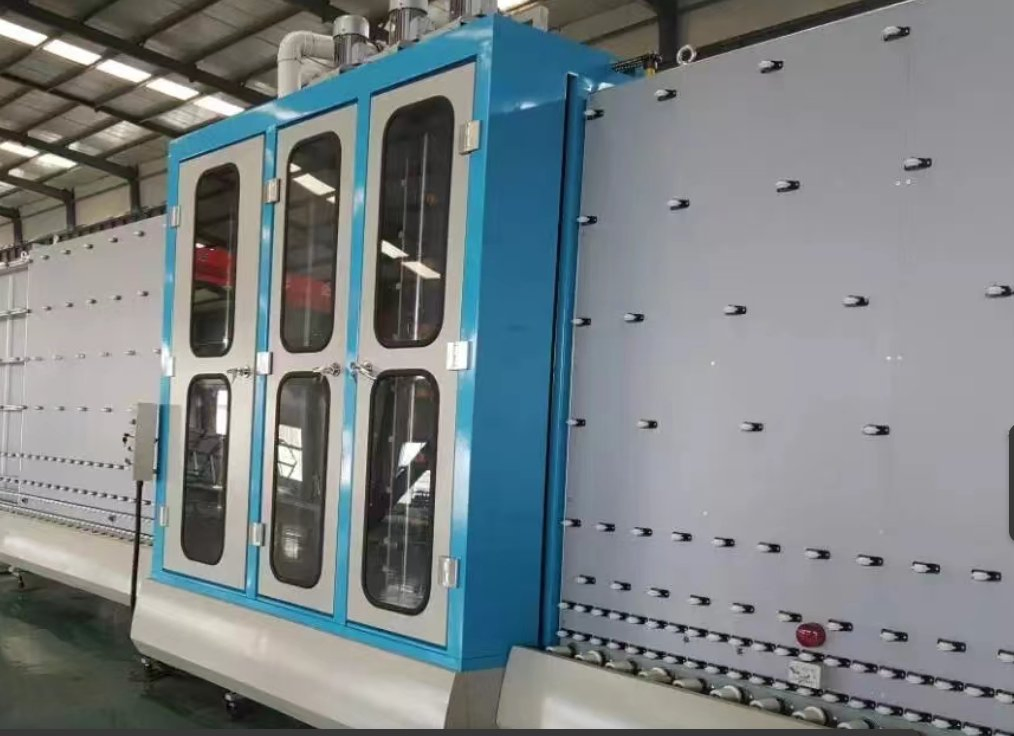

Automatic Glass Washing Machine for Insulating Glass

Customization: Available
Certification: CE, ISO
Glass conveyor speed: 10-15m/min

Product Description

Basic Information
Model NO.
BXLP2000
Glass Thickness
3-19 mm
Power Supply
380V/50Hz
Total Power
18.5kw
Max Glass Size
2000*3000
Min Glass Size
450*200
Work Speed
3-45m/Min
Type
Insulating Glass Production Line
Structure
Vertical
Control System
PLC
Condition
New
Warranty
1 Year
Washing Machine Type
Vertical Glass Washing Machine
After-Sales Service
Lifetime Service
Transport Package
Standard Packing
HS Code
84649019
Production Capacity
500set Per Year

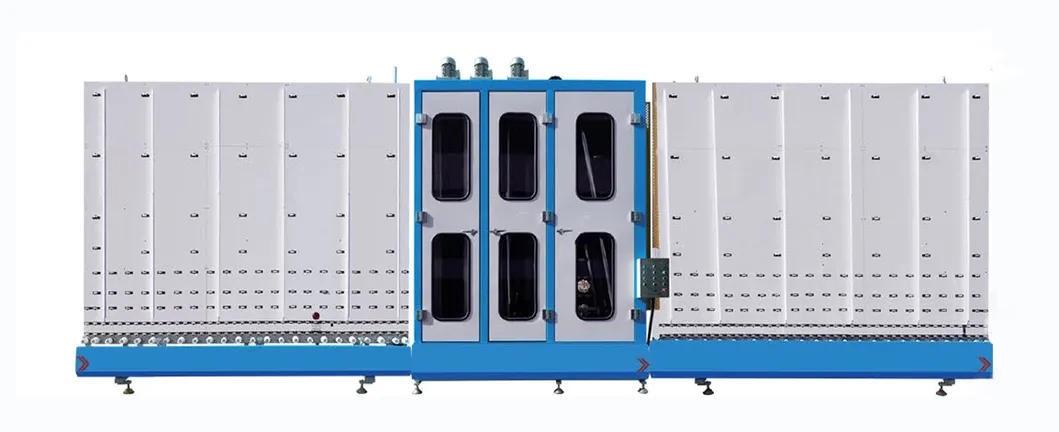

Automatic Glass Washing Machine
Product Highlights & Features
1
Purified water is recommended for the washing tank to ensure optimal glass cleanliness.
2
Mechanical Wind Knife Adjustment: Fully automatic detection and adjustment based on glass thickness, eliminating manual operation.
3
High-Efficiency Drying: Equipped with an 18.5kw fan and muffled wind knives for quiet, uniform, and rapid drying.
4
Leak-Proof Design: The washing section features a complete stainless steel bottom board without joint points or drilling holes.
5
Adjustable Brushes: Brush positions can be adjusted via strip-shaped screw holes to extend brush life as they wear over time.
6
Convenient brush wiper design that requires no pre-soaking and provides superior water scraping performance.

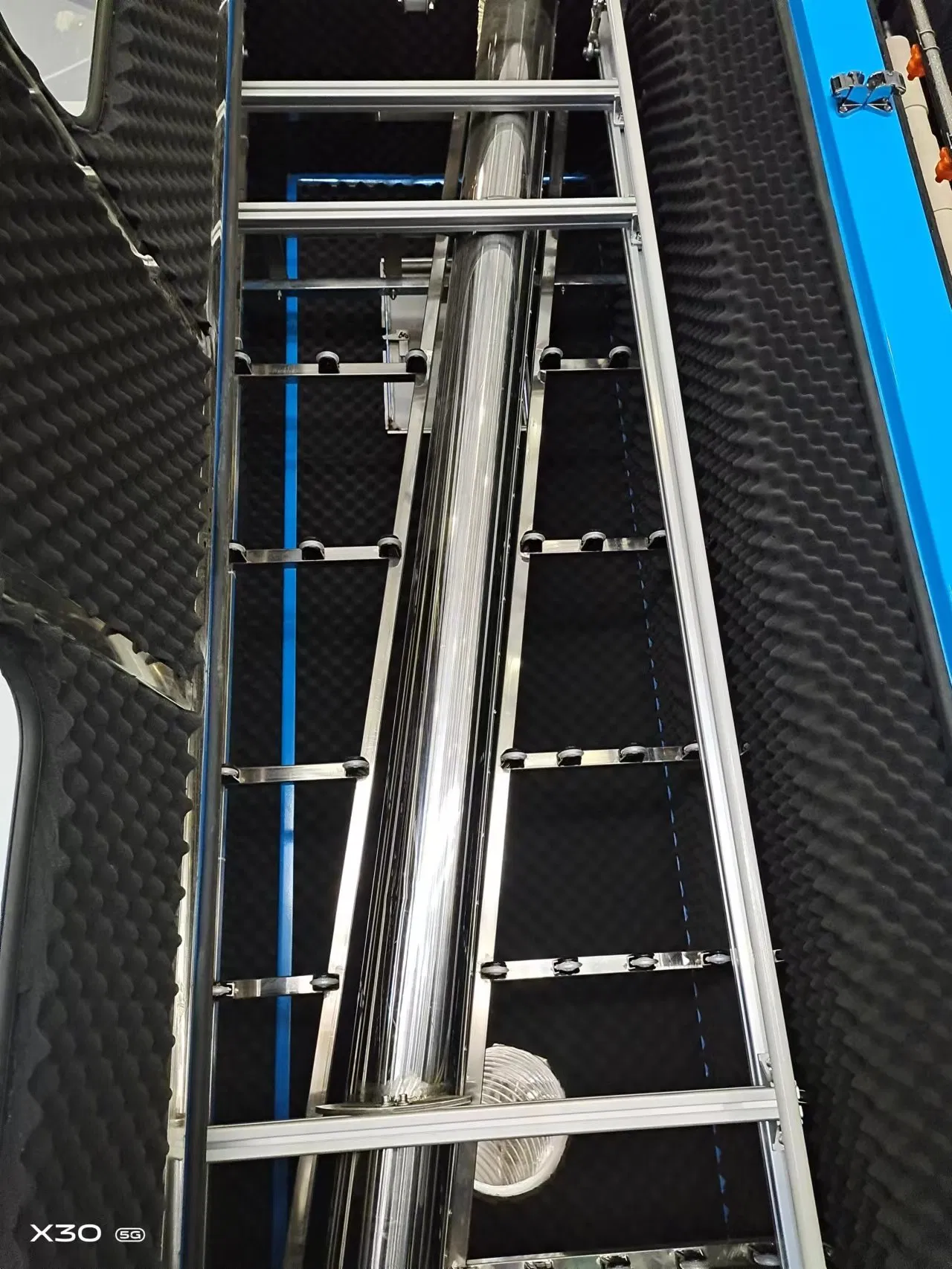

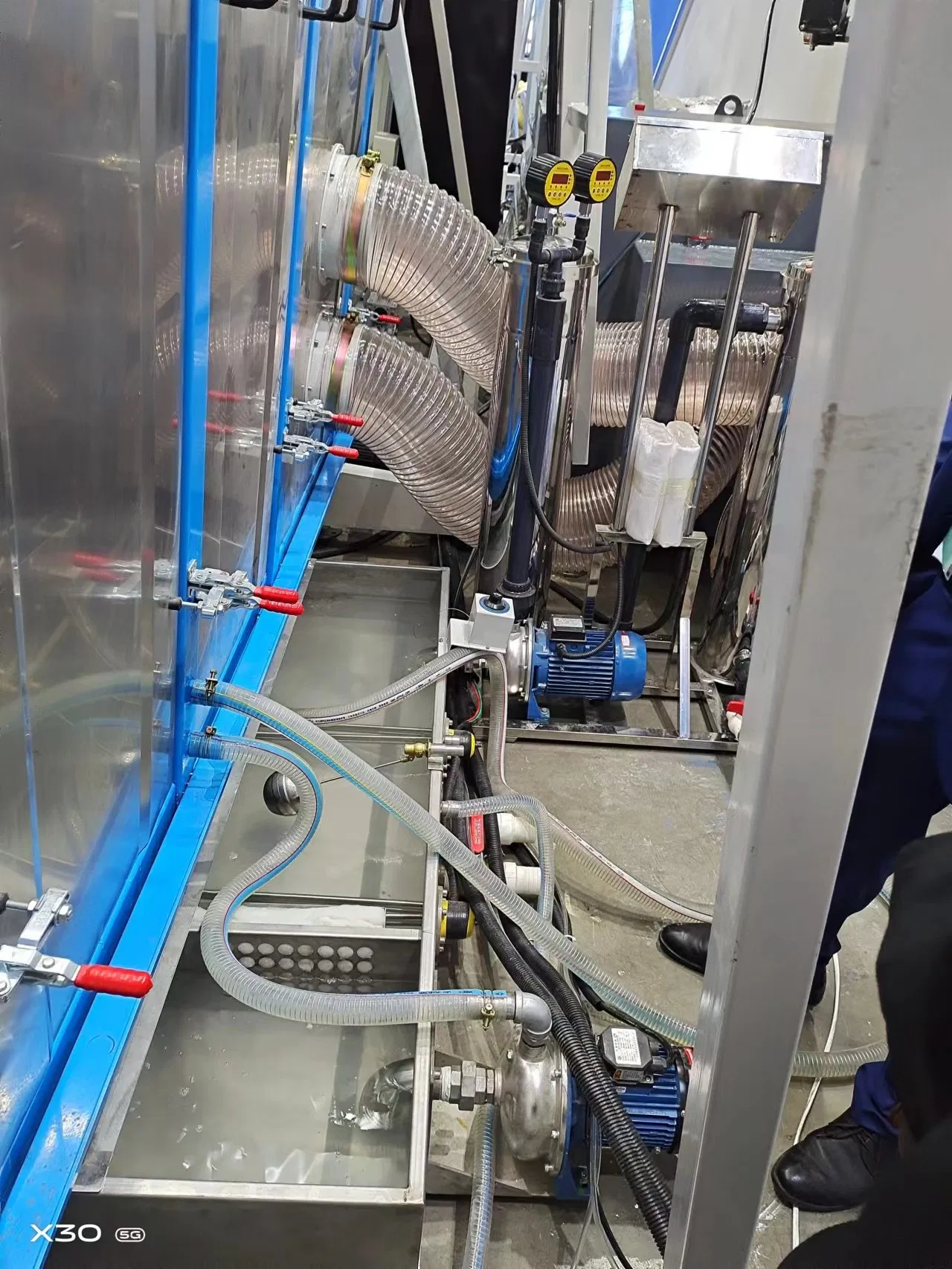

Washing Section Detail
Frequently Asked Questions
What is the maximum glass size this machine can process?
The BXLP2000 model can handle glass sizes up to 2000mm * 3000mm.
What range of glass thickness is compatible with this equipment?
The machine is designed to wash glass with a thickness range of 3mm to 19mm.
How does the machine adjust for different glass thicknesses?
It utilizes a mechanical wind knife adjustment system that automatically detects and adjusts based on the glass thickness without manual intervention.
Is the washing section prone to water leakage?
No, the bottom board is constructed from a single piece of stainless steel without joint points or drilling holes, ensuring a leak-proof operation.
What kind of maintenance do the brushes require?
The brushes are adjustable via strip-shaped screw holes. As they shorten with use, the distance between them can be adjusted to extend their service life.
Does the machine produce high noise during the drying process?
The 18.5kw fan system is equipped with muffling equipment and efficient wind piping to significantly lower noise while maintaining rapid drying speeds.
