Fully Automatic Hollow Glass Sealing Production Line Insulating Glass Coating Spreading Sealant Robot

Customization:	Available
Certification:	CE, ISO, FDA, PCI, PDA, SGS
Control System:	Industrial Computer

Send Inquiry

Product Description

Basic Info.

Model NO.ZDJ2500B

Production NameAuto Insulating Glass Processing Sealing Robot

Glass Thickness3-12mm

Min. Glass Size280X400mm

Max. Glass Size2500*3500mm

Feeding Speeds5-50m/Min

Power380V 50Hz 13kw

Air Pressure0.6~0.8MPa

Overall Dimension11500×4000×3400mm

Max Dispensing Pressure≤30MPa

Weight3500 Kg

WarrantyOne Year / Lifetime Warranty

Product Description

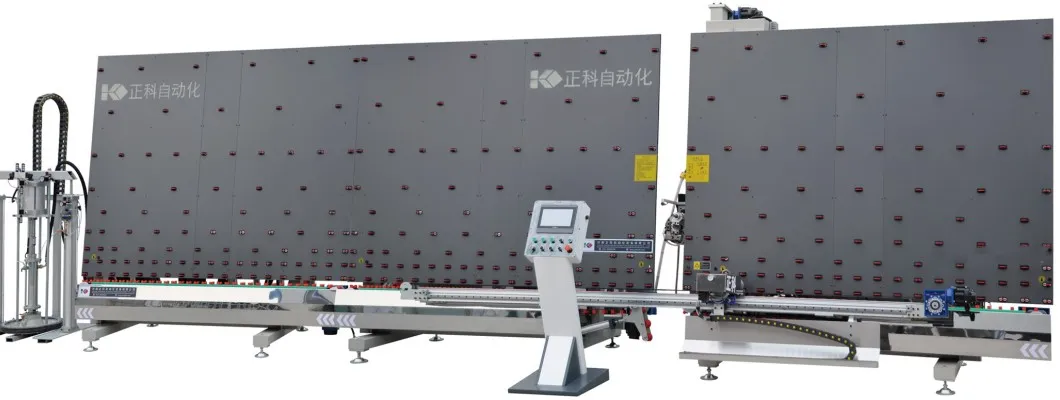

Fully Automatic Hollow Glass Sealing Production Line

ZDJ2500B CNC Insulating Glass Sealant Coating Line

Equipment Features

High adhesive efficiency and stable quality for various sizes of rectangular insulating glass.
Two independent glue supply systems allow arbitrary switching between sealants (optional).
Pre-storage function in the third section improves production continuity and efficiency.
User-friendly Panelmaster interface for simple and convenient operation.
Bubble-free side coating and full corners without the need for manual trimming.

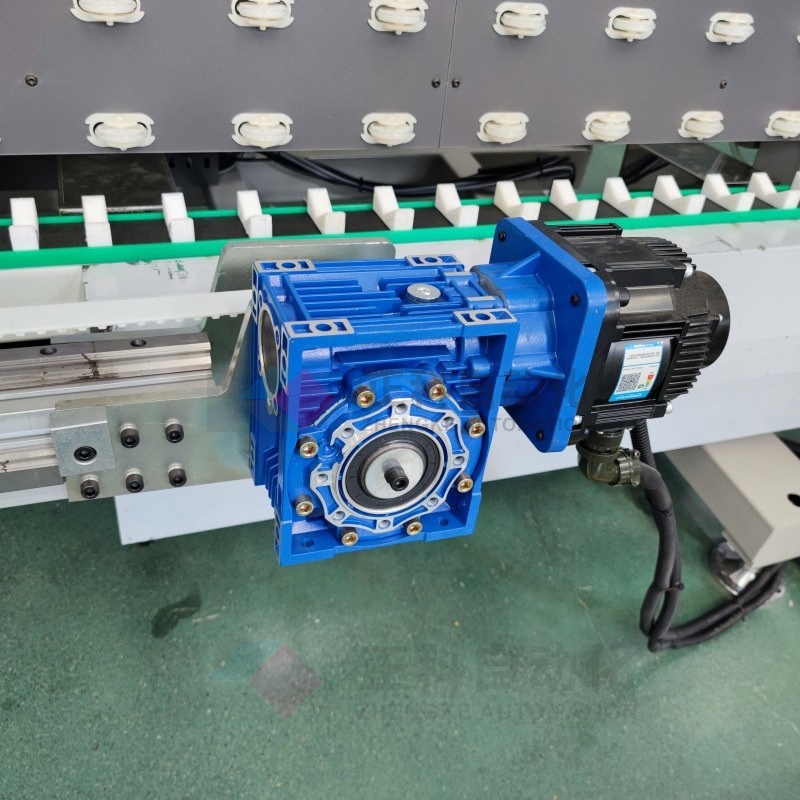

World-renowned Yaskawa motion control and servo systems for stable performance.

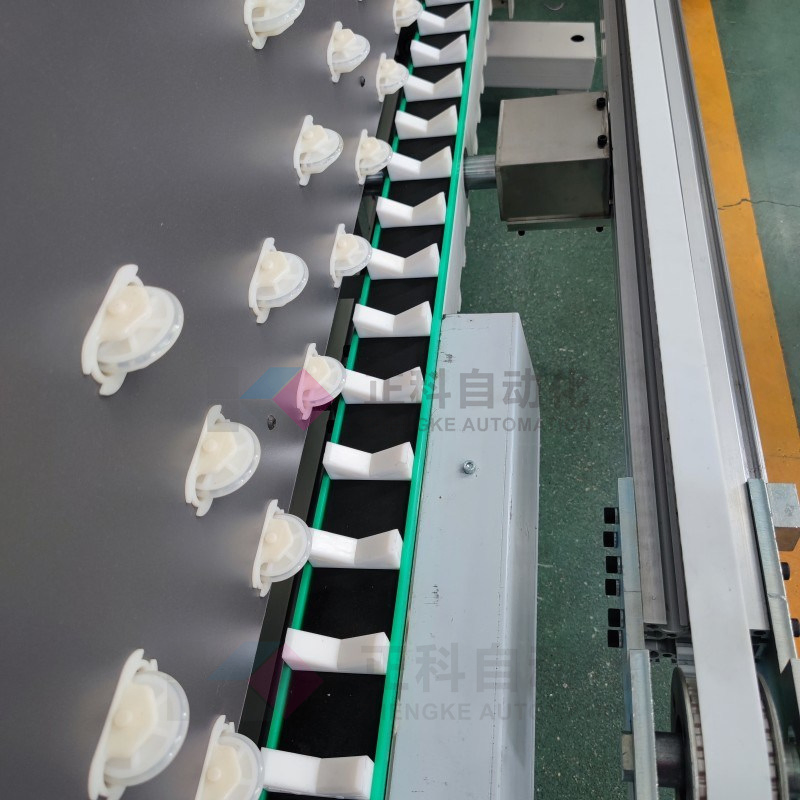

Accurate synchronous belt transmission ensures pollution-free glass operation.
Automatic alarm device for glue quantity monitoring.
Panasonic CNC output for precise glue coating pressure adjustment.
Supports special-shaped coating for graphics, high-speed iron glass, arcs, etc. (optional).

Technical Specifications

Voltage Power	380V 50Hz 13KW
Air Pressure	0.5~0.7Mpa
Max Glass Size	2500×3500mm
Min Glass Size	280×400mm
Glass Thickness	3~12mm
Insulating Glass Thickness	≤60mm
Working Speed	5~50m/min
Max Dispensing Pressure	≤30Mpa

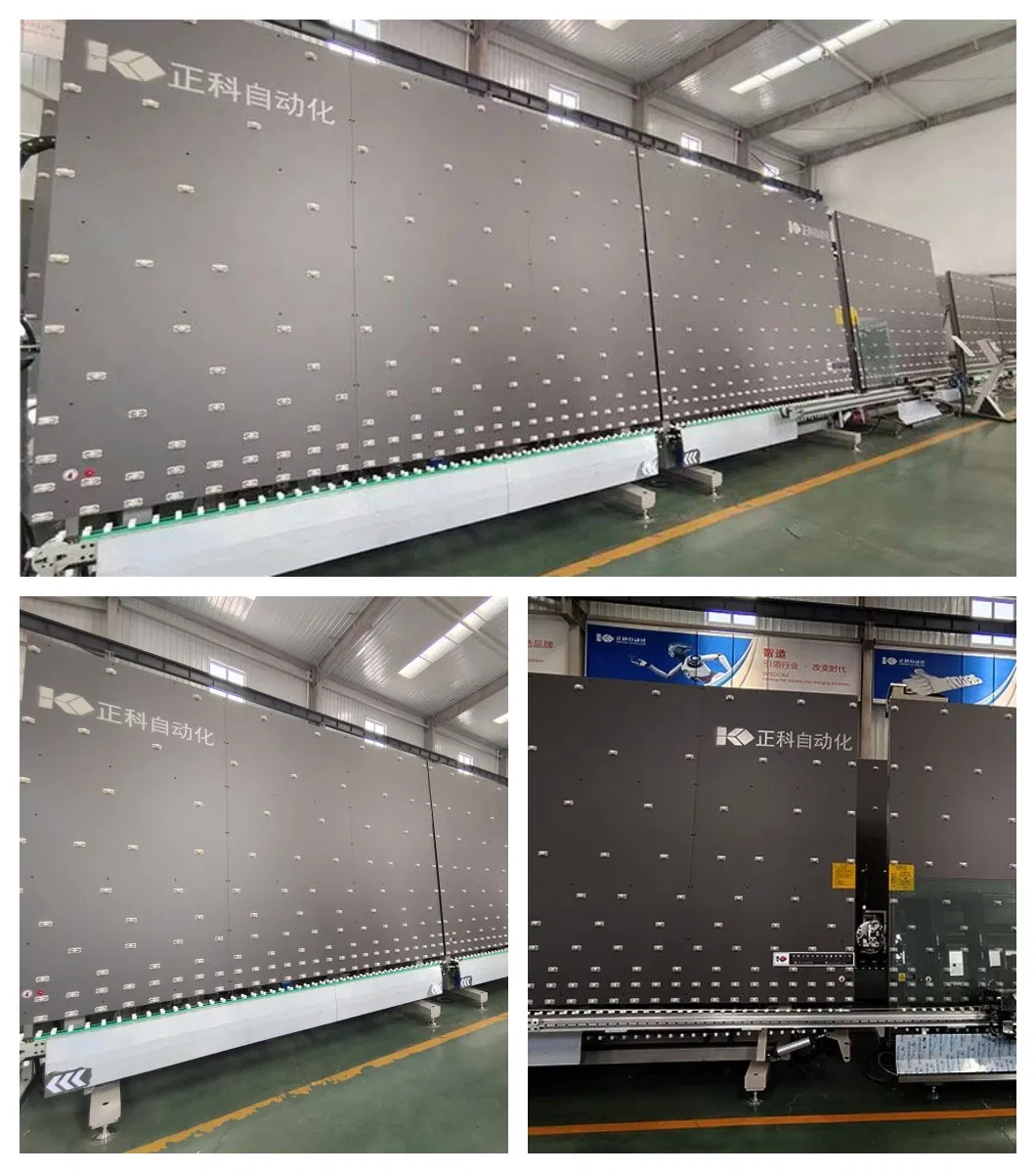

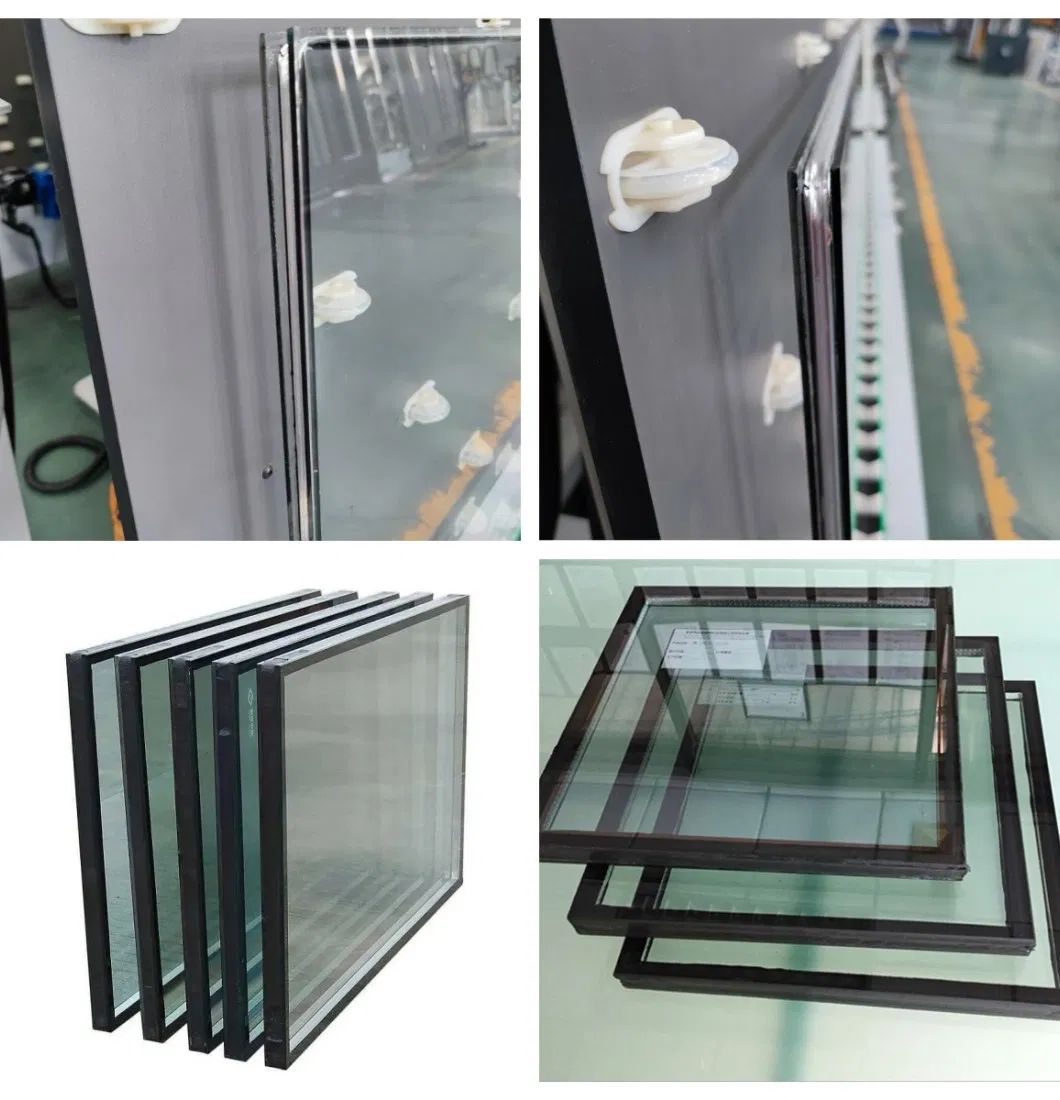

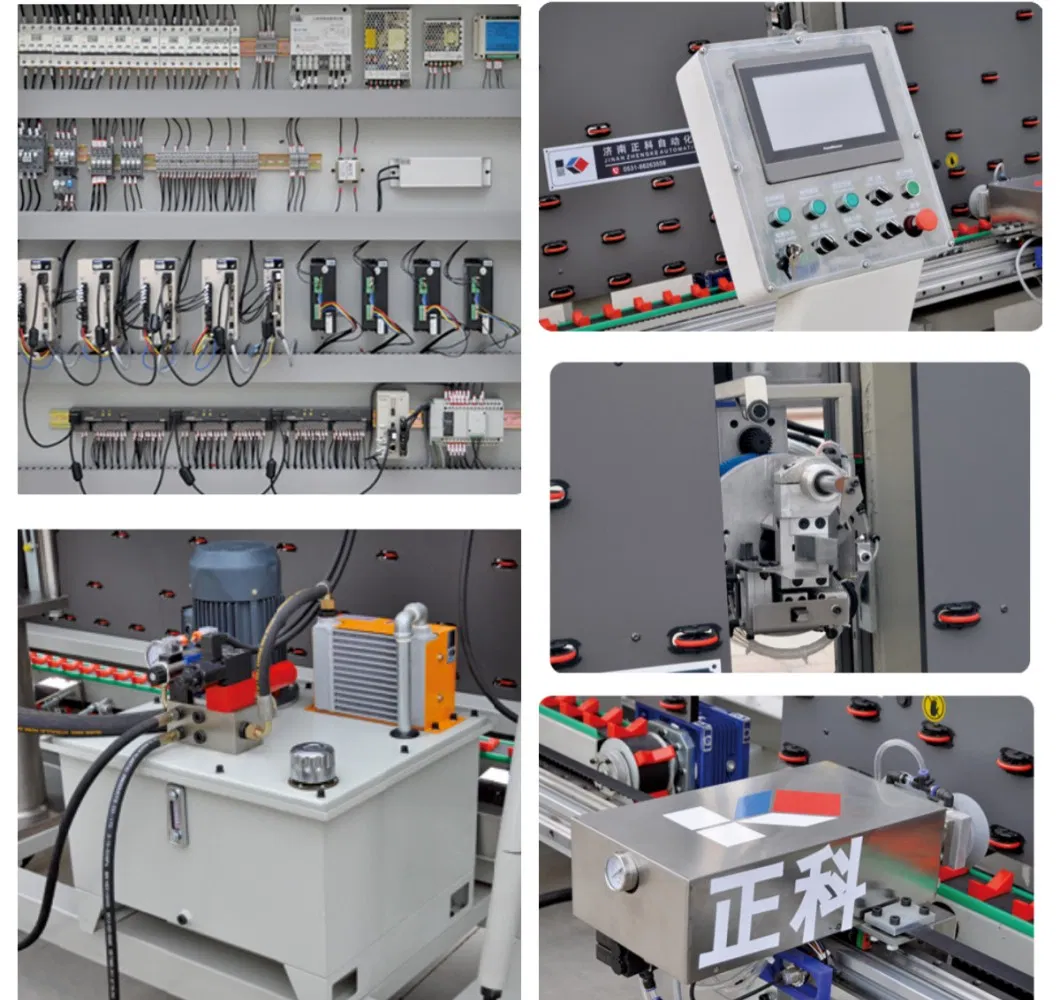

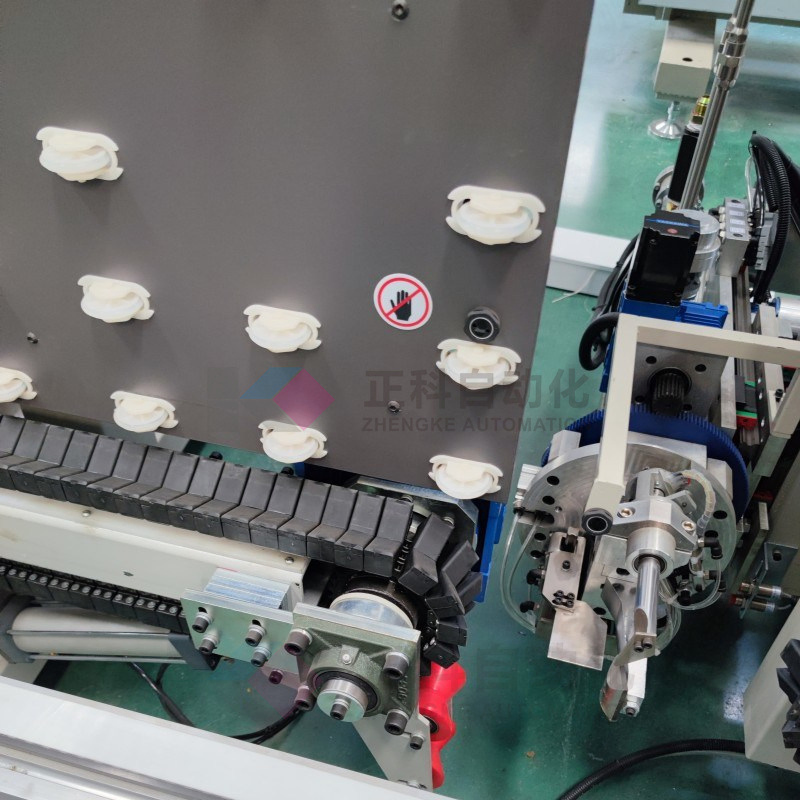

Detail & Sample Photos

Package & Transport

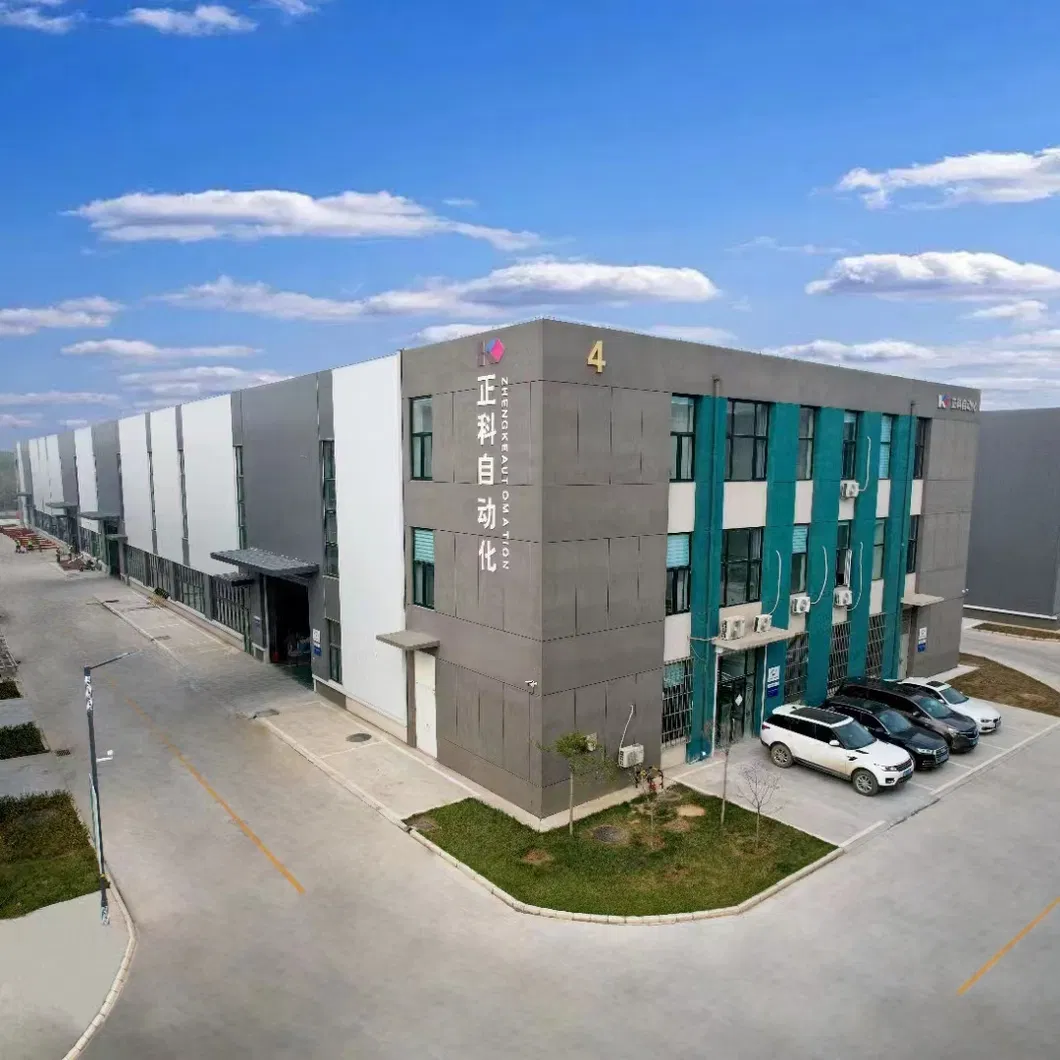

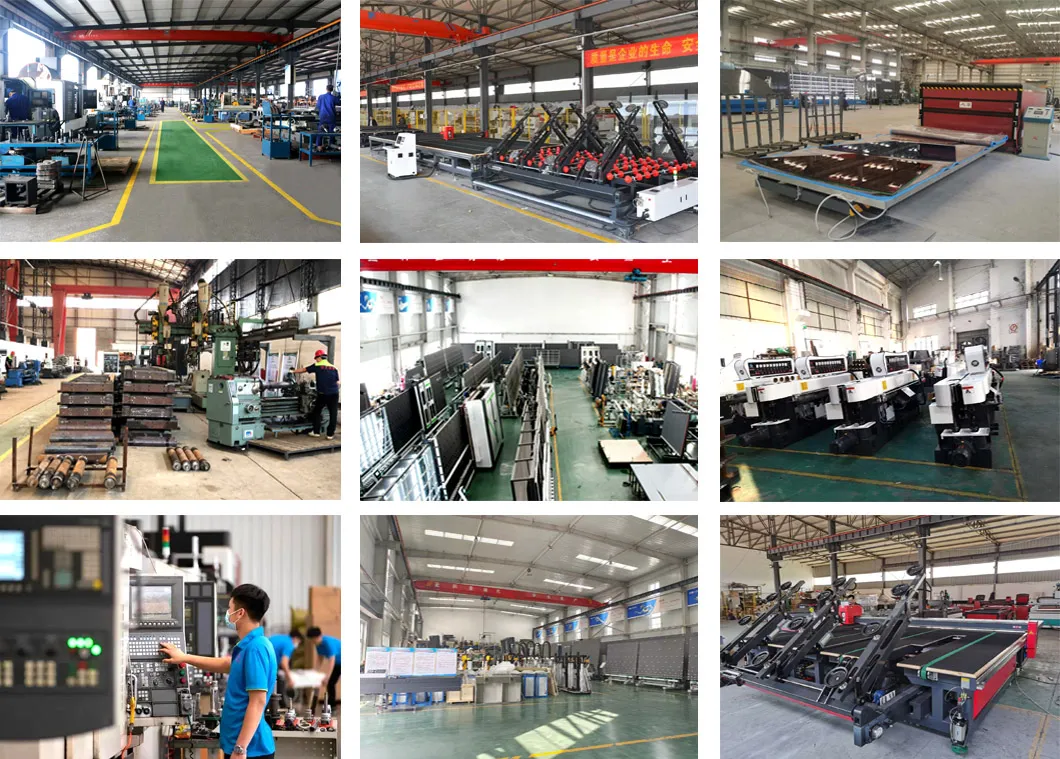

Factory Overview

We are a professional glass machinery high-tech enterprise with independent technology design and R&D teams. Our focus spans glass cutting, edging, washing, tempering, and insulating glass machinery. With over 1500 terminal customers, we have earned recognition through high production efficiency, automation, and stable technology.

Our Advantages

★ Professional glass production solutions and 24-hour online service.

★ Customer-centric approach with a strong technical support team.

★ OEM & ODM acceptable; customized design, logos, and packaging.

★ Advanced production equipment and strict quality control systems.

★ Competitive manufacturer pricing with no middleman profit.

★ Fast delivery times ensured by our own professional manufacturing facility.

Frequently Asked Questions

Q1: What is the maximum glass size this robot can process? A1: The ZDJ2500B model can handle a maximum glass size of 2500 x 3500 mm.

Q2: What control systems are integrated into the machine? A2: The machine utilizes a world-renowned Yaskawa motion control system and servo control system, along with Panasonic CNC output for pressure adjustment.

Q3: Does it support different types of sealants? A3: Yes, it features two completely independent glue supply systems, allowing for two types of sealants to be switched easily.

Q4: Can this machine handle special-shaped glass? A4: Yes, the machine supports optional special-shaped glue coating for various graphics, arcs, and high-speed iron glass.

Q5: What is the working thickness range for the glass? A5: It supports single glass thicknesses from 3mm to 12mm and total insulating glass thickness up to 60mm.

Q6: What is the production capacity of this equipment? A6: Our production capacity for these units is approximately 1000 sets per year.
