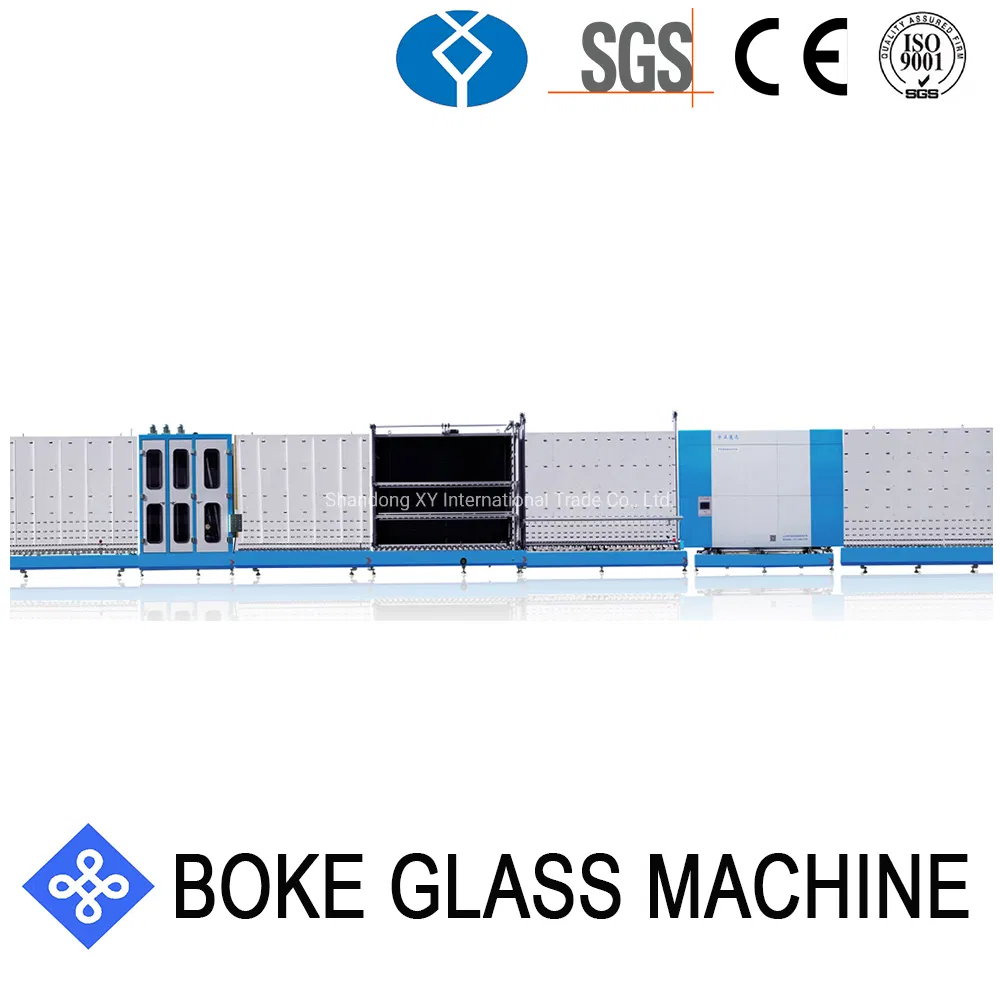

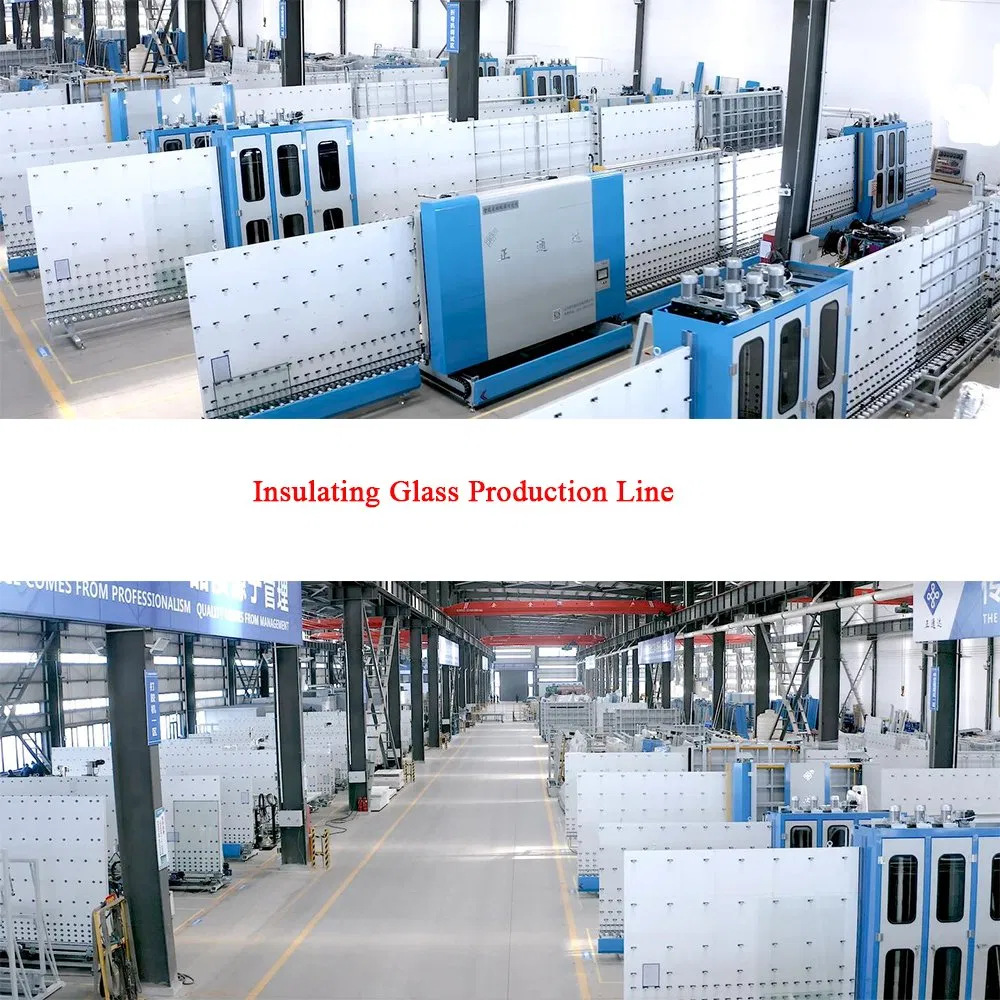

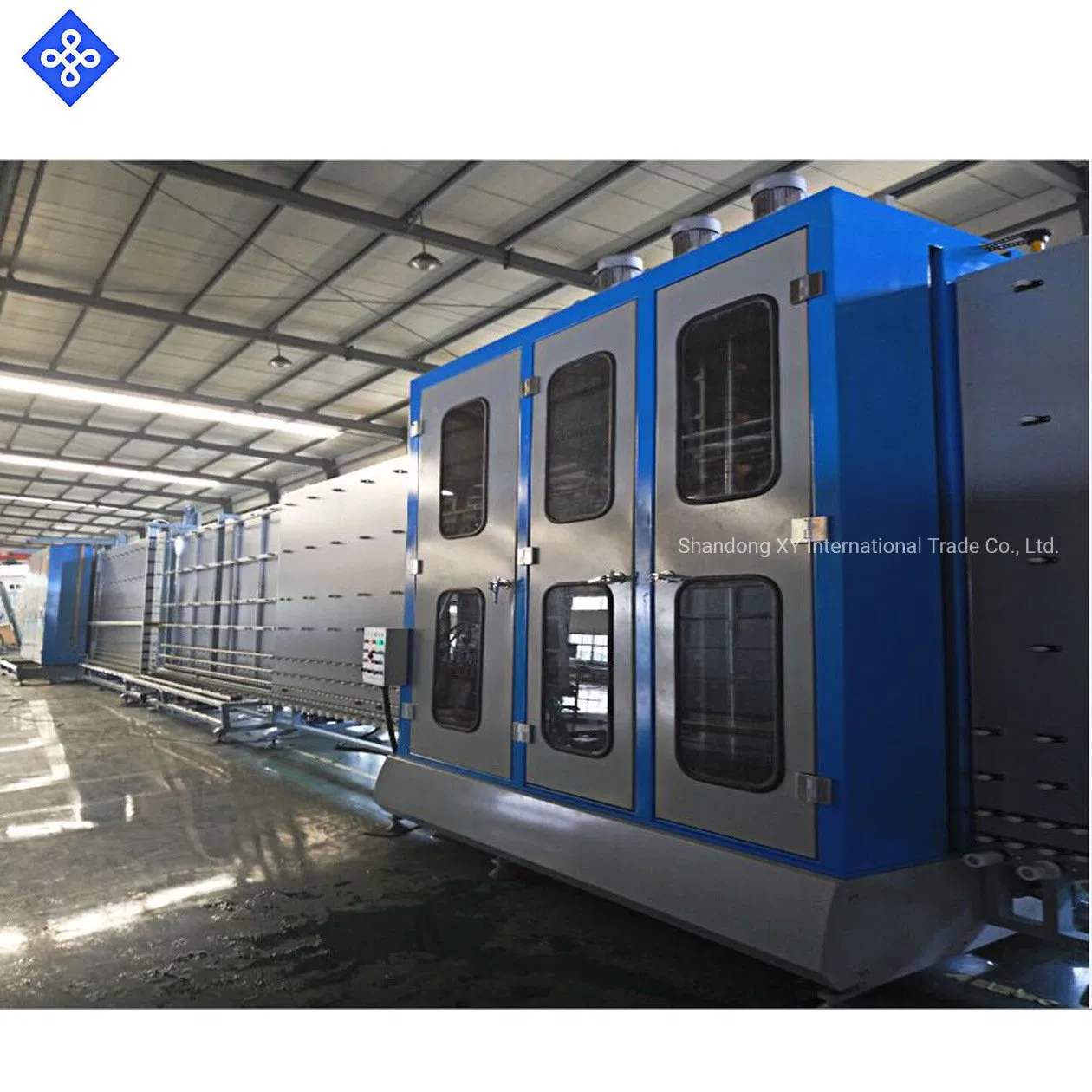

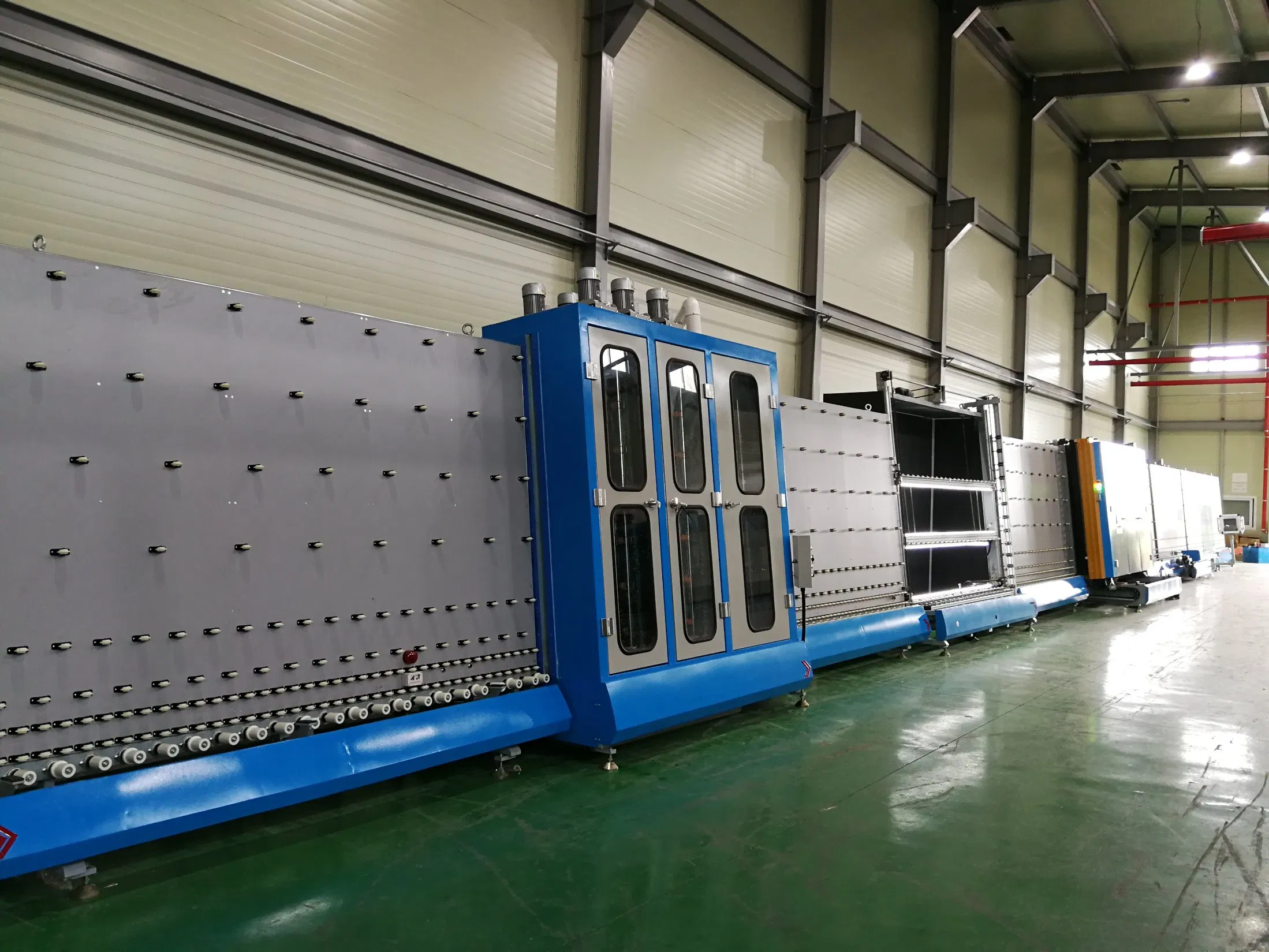

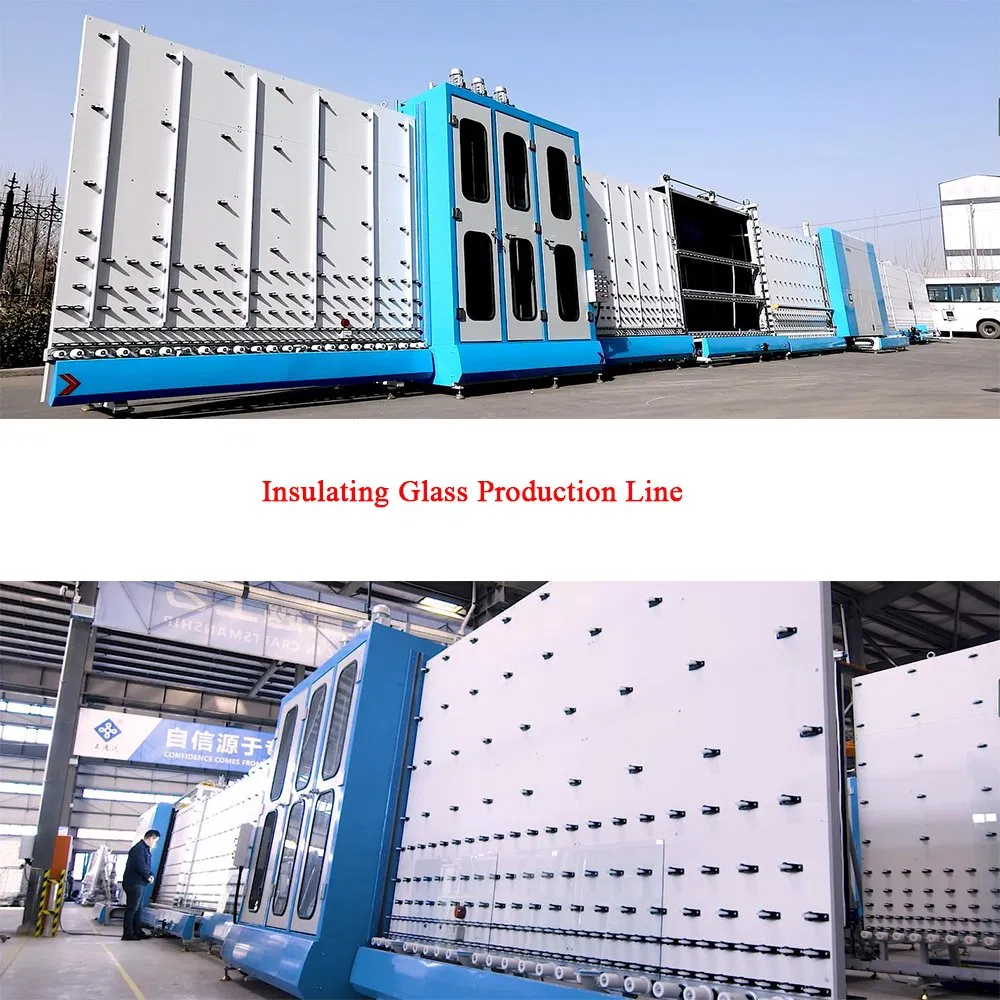

The Vertical automatic insulating glass flat press production line is specifically designed for high-efficiency Insulating Glass Units (double glazing) production. This model is ideal for glass processing companies and window/door fabricators seeking precision and automation.
| Parameter Item | Specification (LBP2500Q) |
| Max. processing glass size (mm) | 3600 * 2500 |
| Min. processing glass size (mm) | 450 * 200 |
| Single glass thickness (mm) | 3 - 15 |
| Max. IG thickness (mm) | 52 |
| Production Capacity (pc/h) | 110 |
| Washing speed (m/min) | 3 - 10 |
| Power Supply | 3P, 380V, 50Hz |
| Inert gas type | Argon, Nitrogen, etc |
| Gas concentration | More than 90% |
| Outline dimension (mm) | 24600 * 2500 * 3680 |

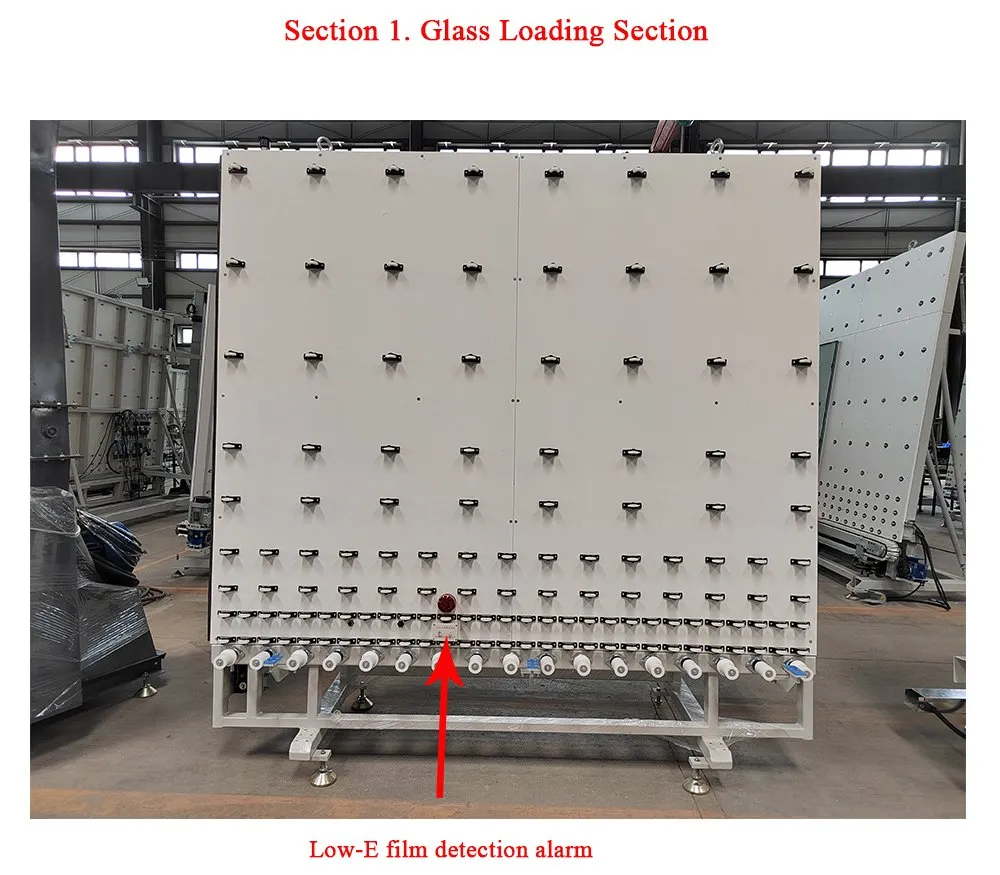

Energy Saving: Stops automatically when no glass is detected. Includes Low-E film detection with alarm.

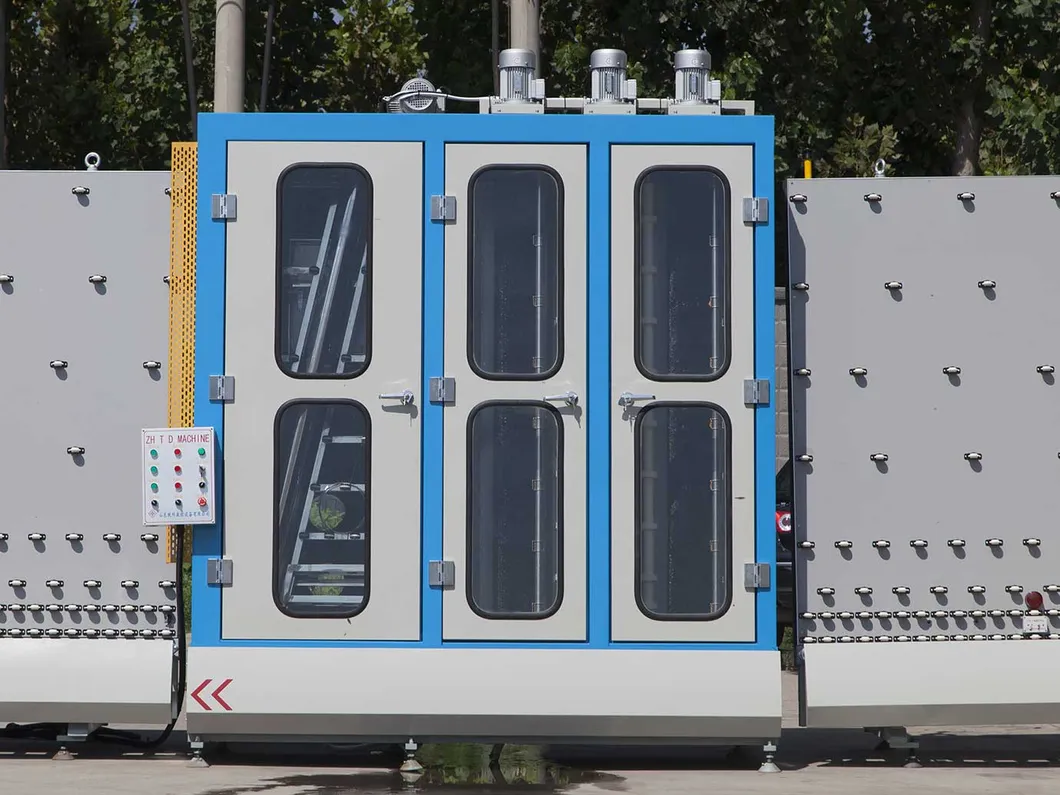

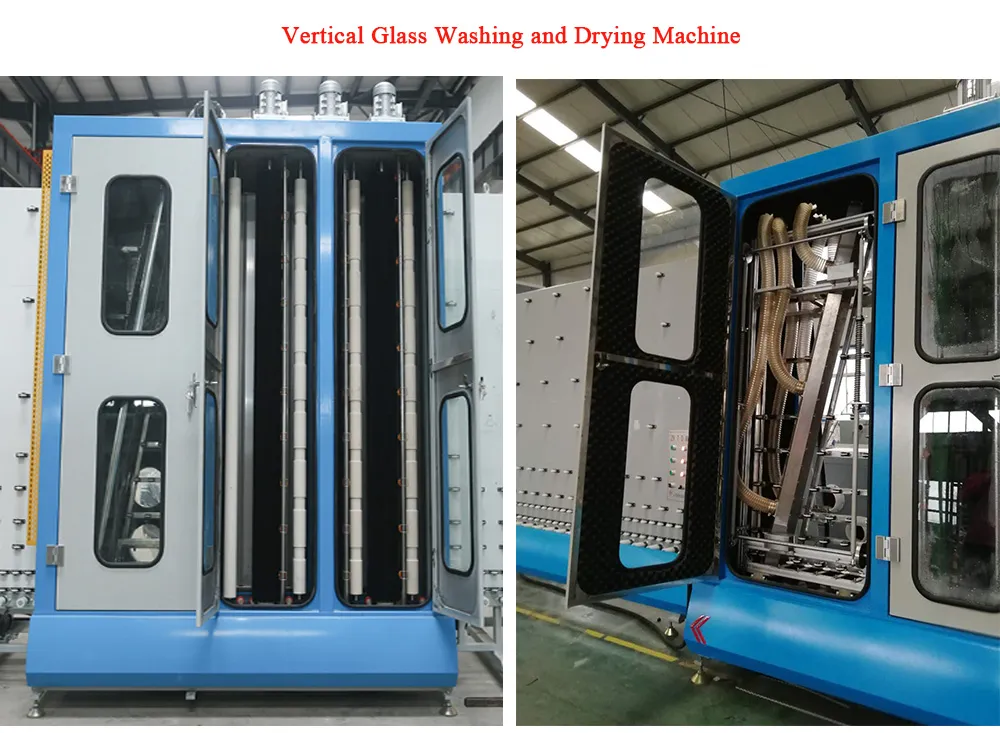

Stainless Steel Washing: Uses 5mm thick stainless steel and DuPont soft brushes to protect Low-E coatings.
High Pressure Drying: 18.5KW fan with hot air circulation ensures zero water stains and low noise.

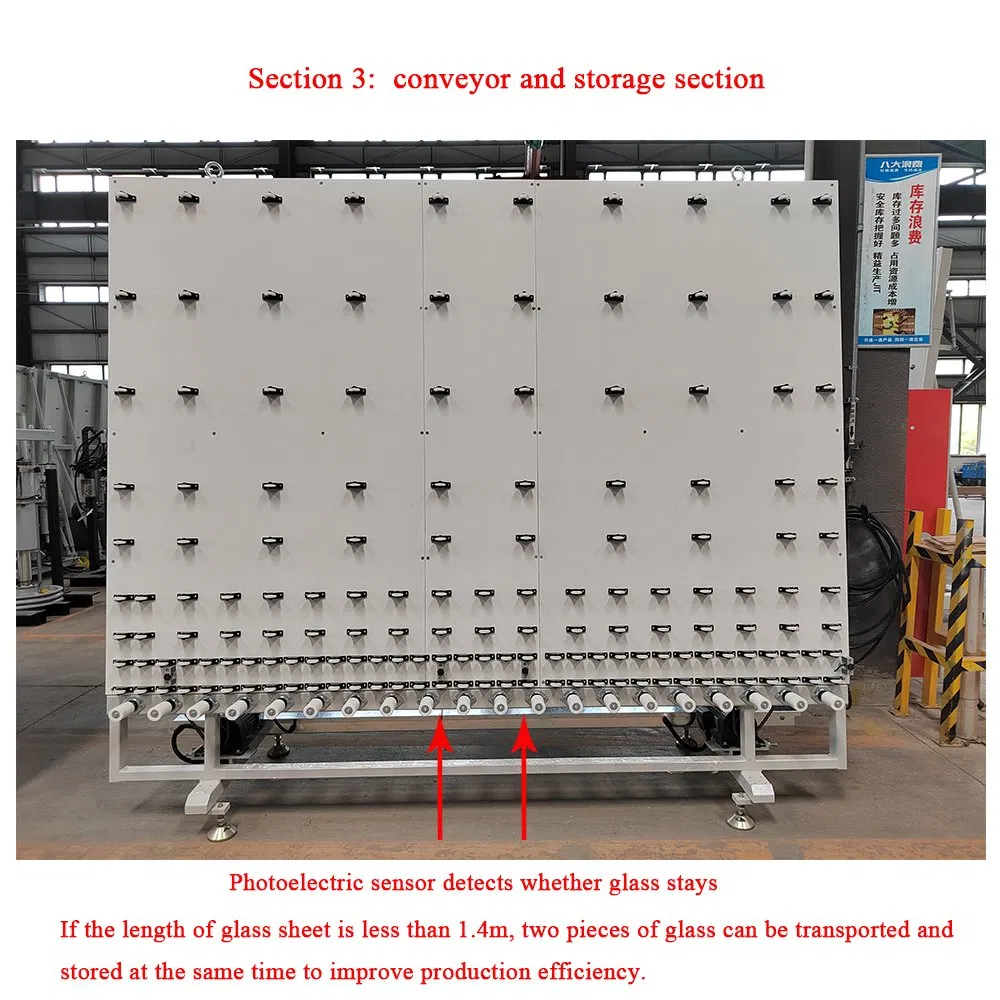

Efficient Transfer: Dual transfer motors allow simultaneous storage of two small glass pieces.

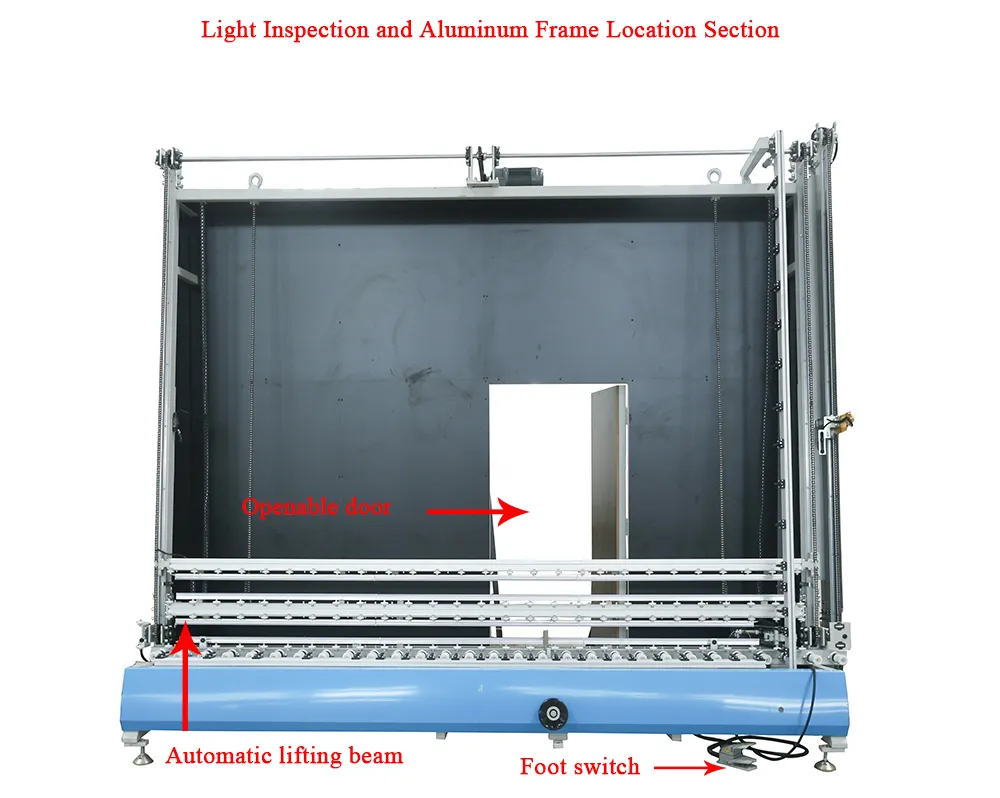

Auto Positioning: Automatic thickness measurement and high-accuracy aluminum frame mounting.

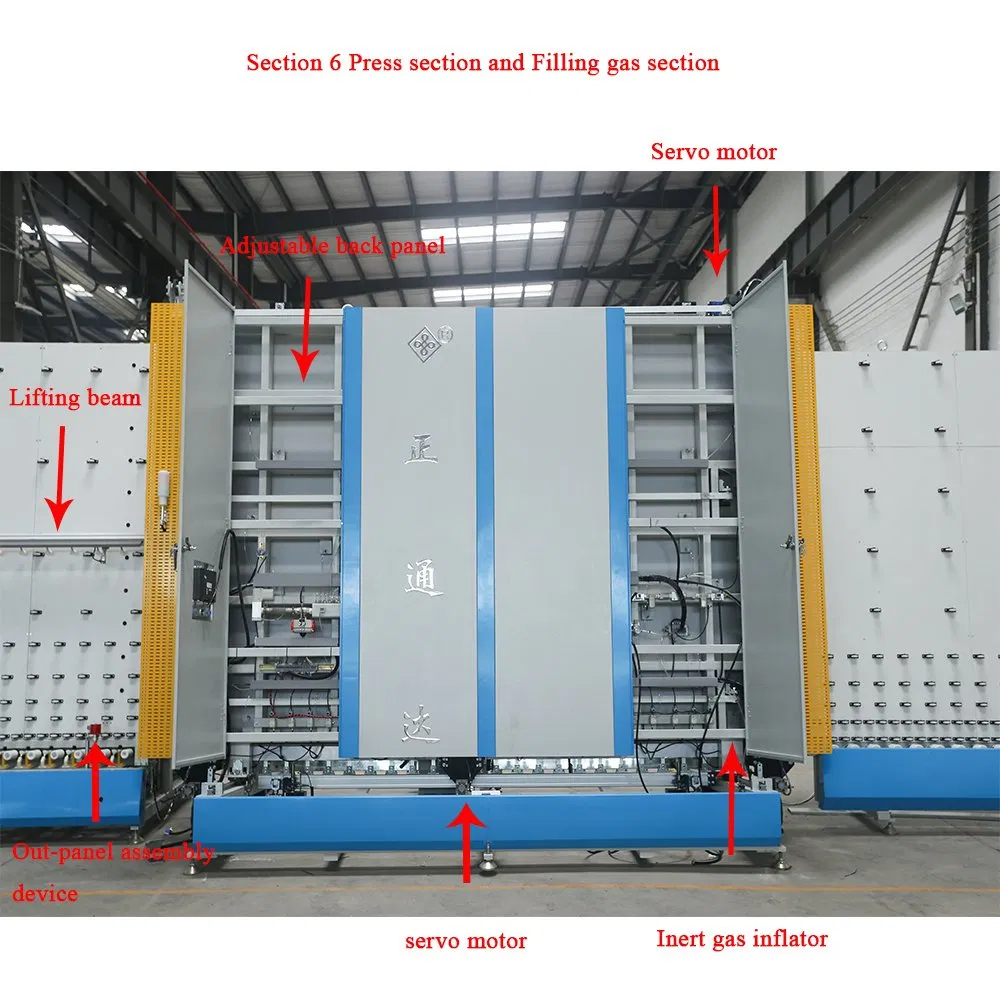

Servo Pressing: Servo-controlled plate pressure prevents glass deformation or breakage.

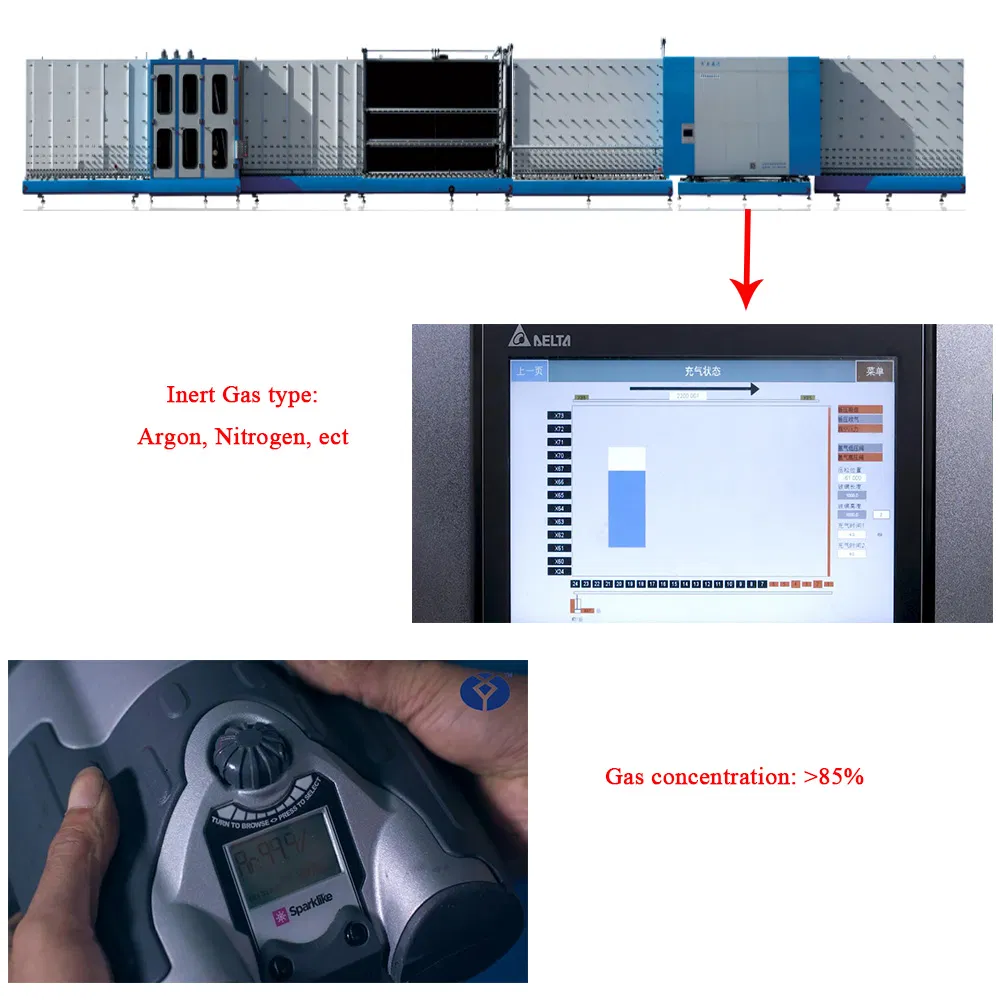

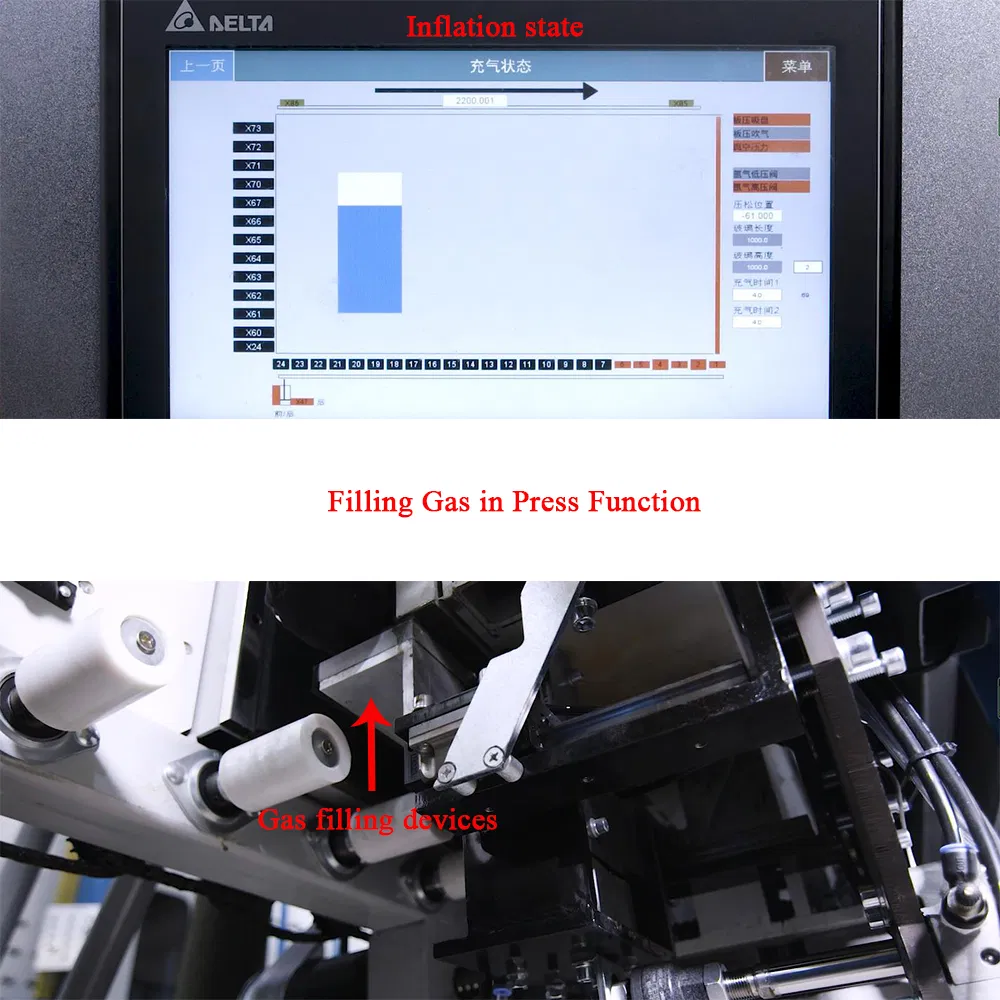

Online Gas Filling: Direct inflation structure achieving >92% concentration with high retention rates.

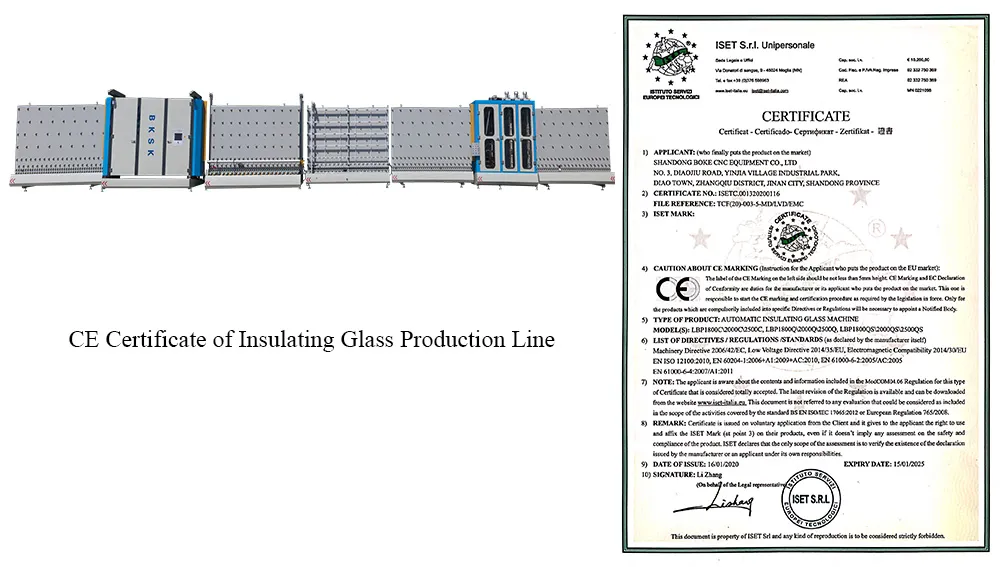

Our production lines are fully CE certified, meeting international safety and quality standards.
