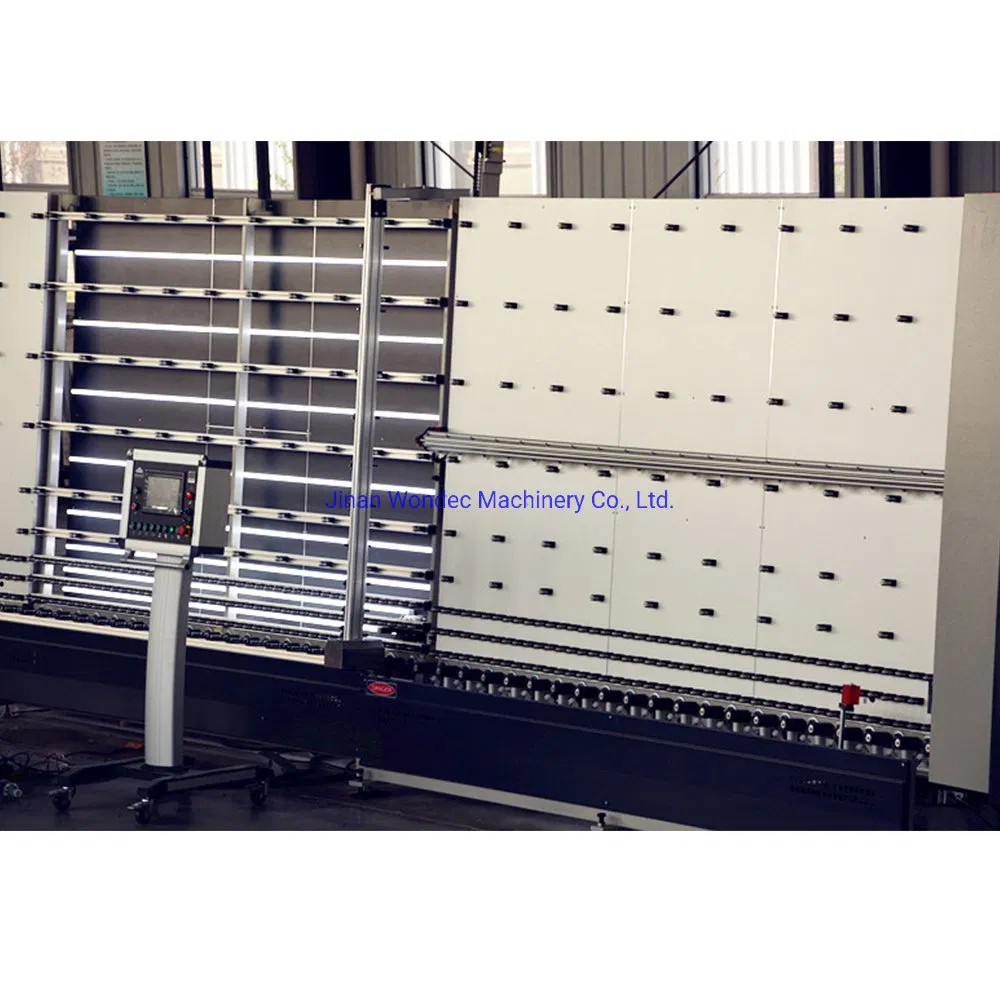

Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
1 / 5
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)
Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)

Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line (WLBZ2540-C)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
WLBZ-2540C
Color
Can Be Customized
Key Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Components
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Type
Insulating Glass Production Line
Structure
Vertical
Washing Type
Ultrasonic Glass Washing Machine
Specification
27600*2500*3400MM
Product Description

Model: WLBZ2540-C

Automatic Insulating Glass Machine Double Glazing Gas Filling Production Line

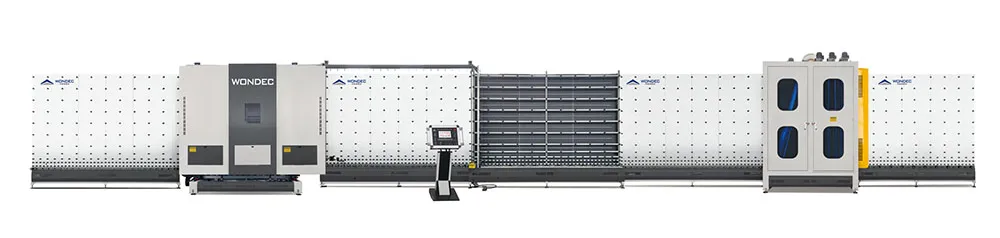

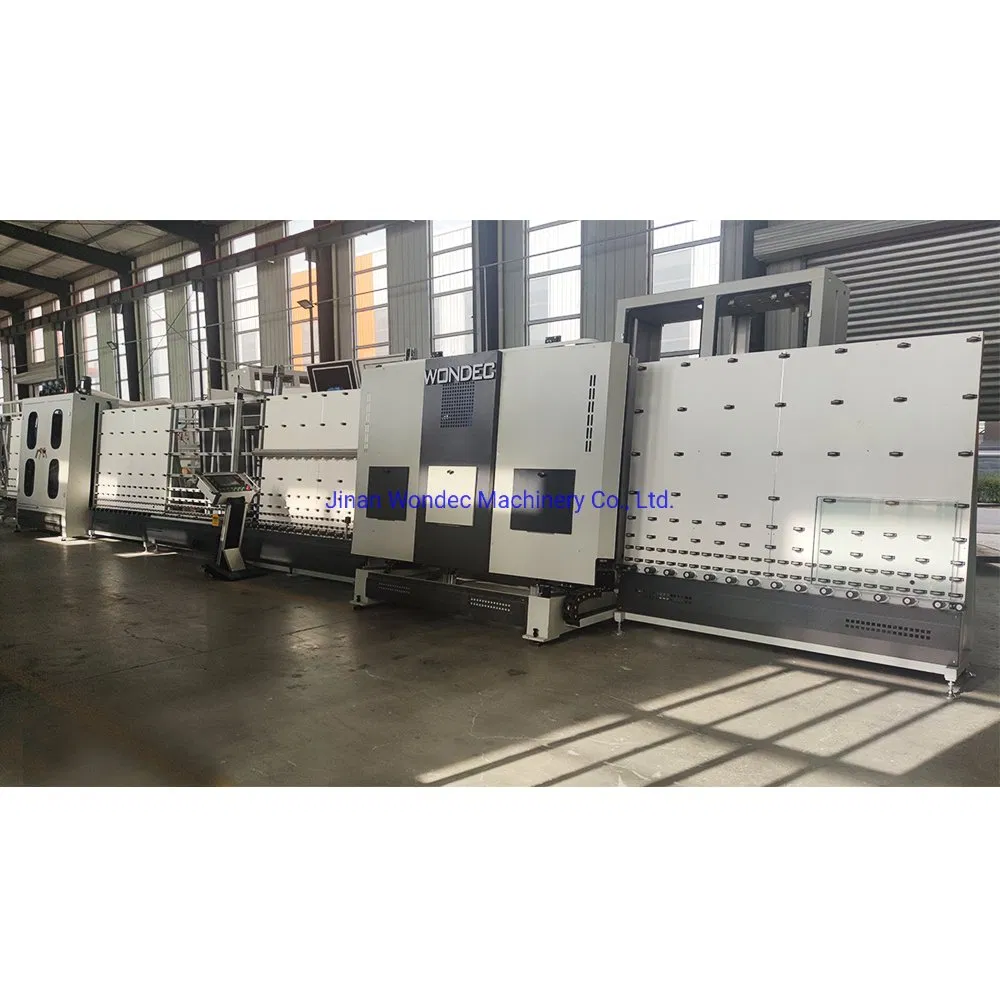

Production Line Overview 1

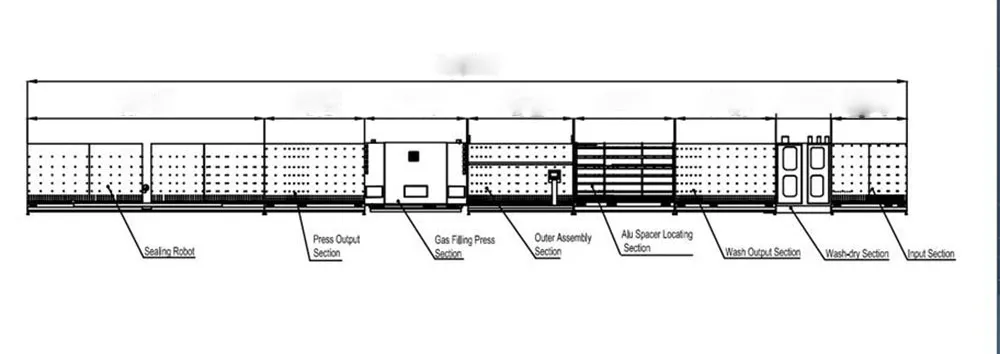

Production Line Overview 2

The whole production line includes 7 functional sections:

1
Loading section with Low-E checking.
2
Washing and drying section (Stainless steel material).
3
Conveyor section with dual motor drive for efficiency.
4
Lights inspection and aluminum spacer locating section.
5
Outside assembly section.
6
Inner assembly and panel press section (Servo motor controlled with gas filling).
7
Unloading section for storage and transmission.
Detailed Photos

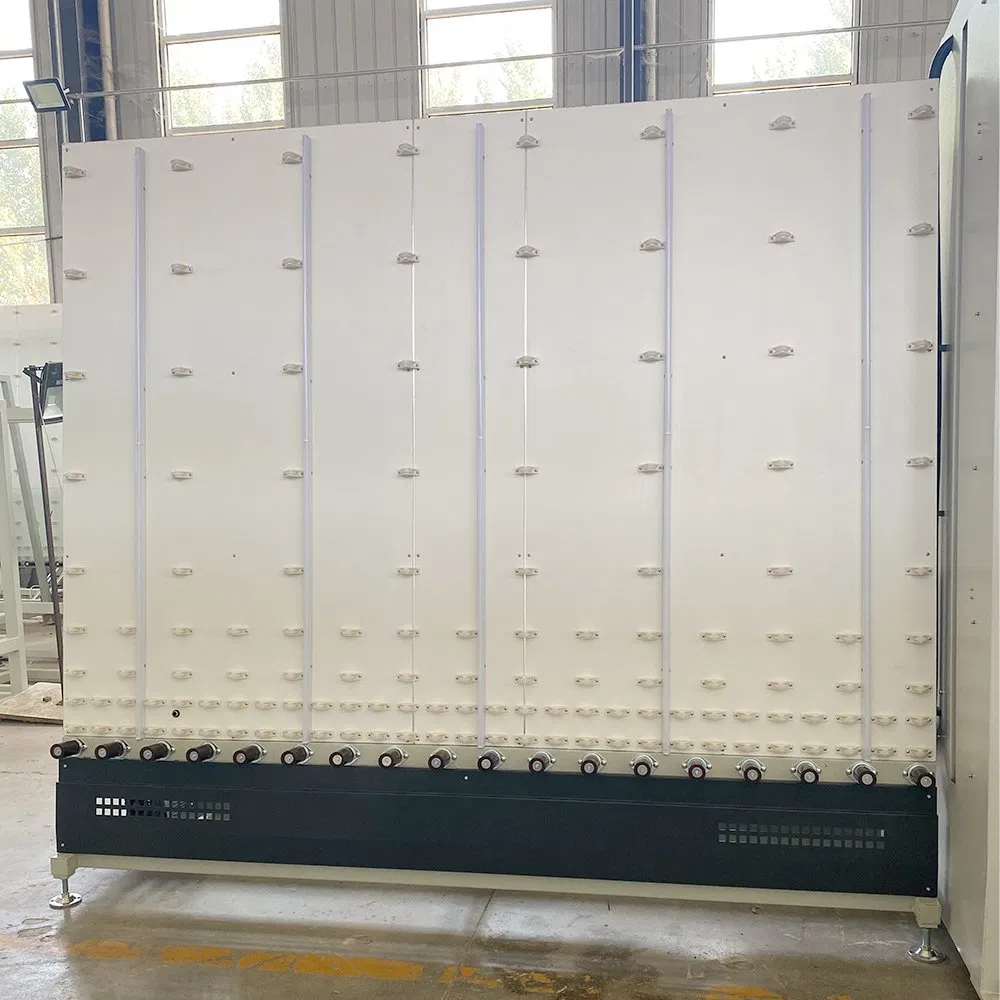

Detail 1

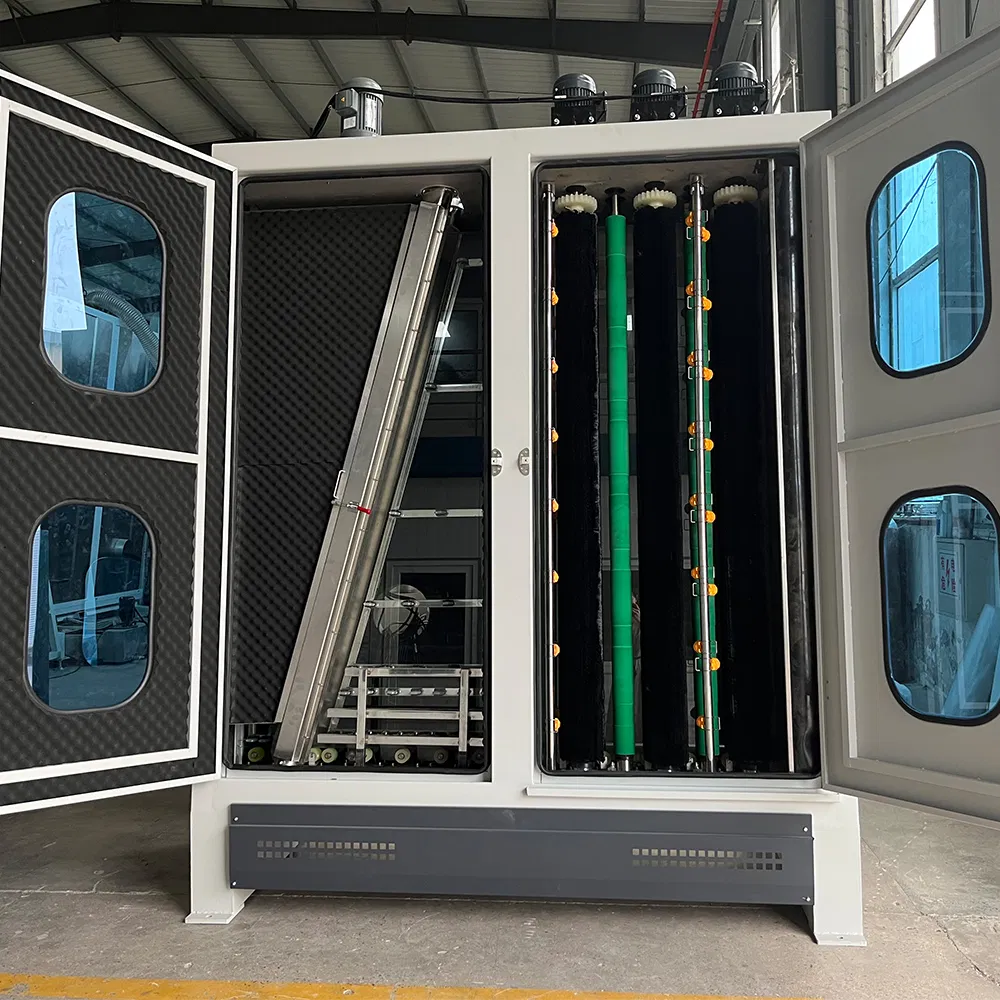

Detail 2

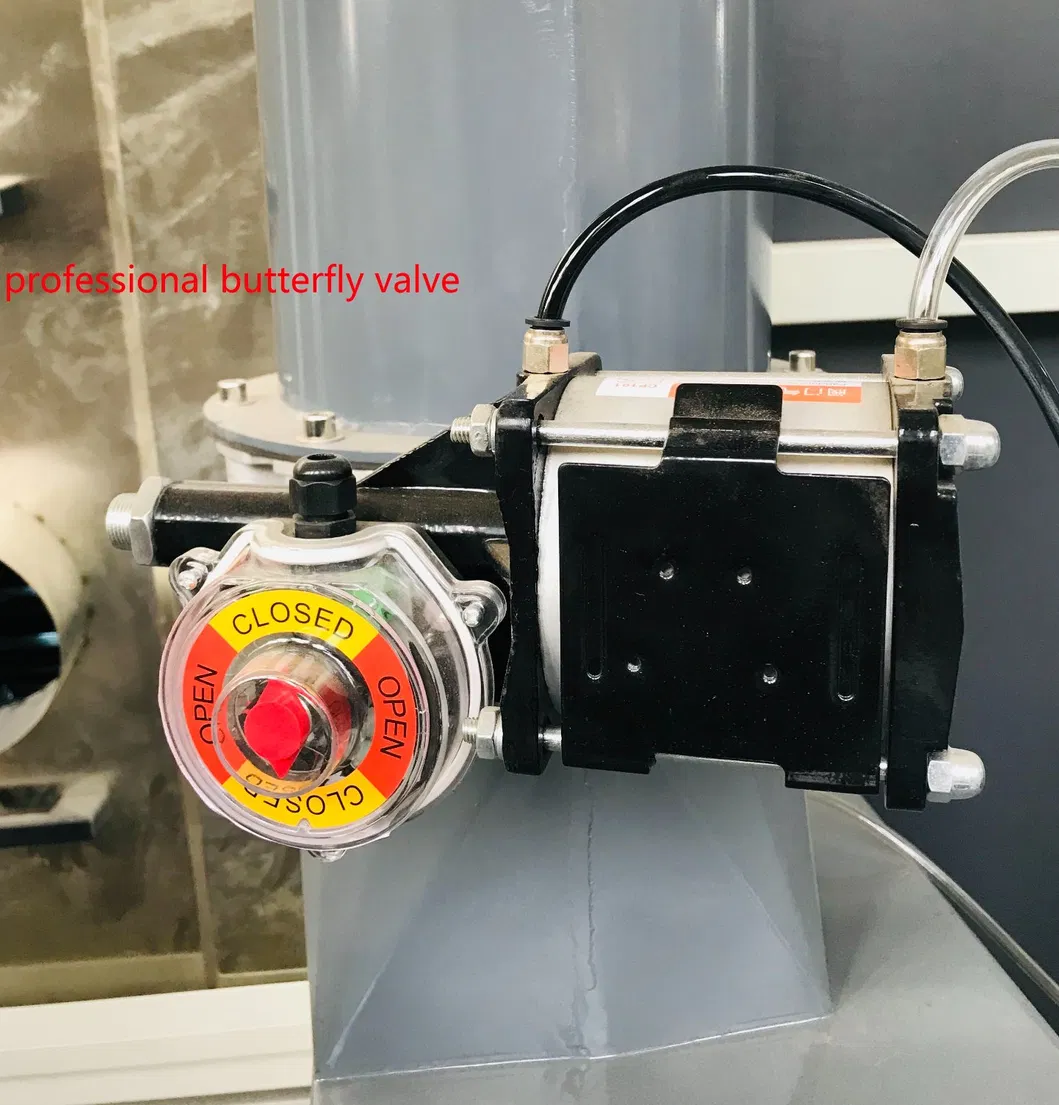

Detail 3

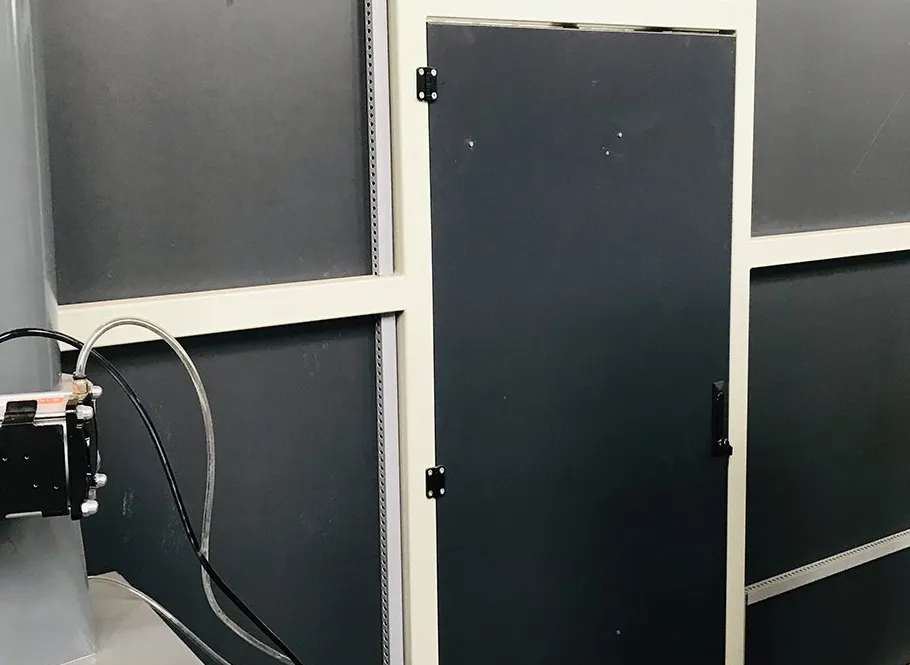

Detail 4

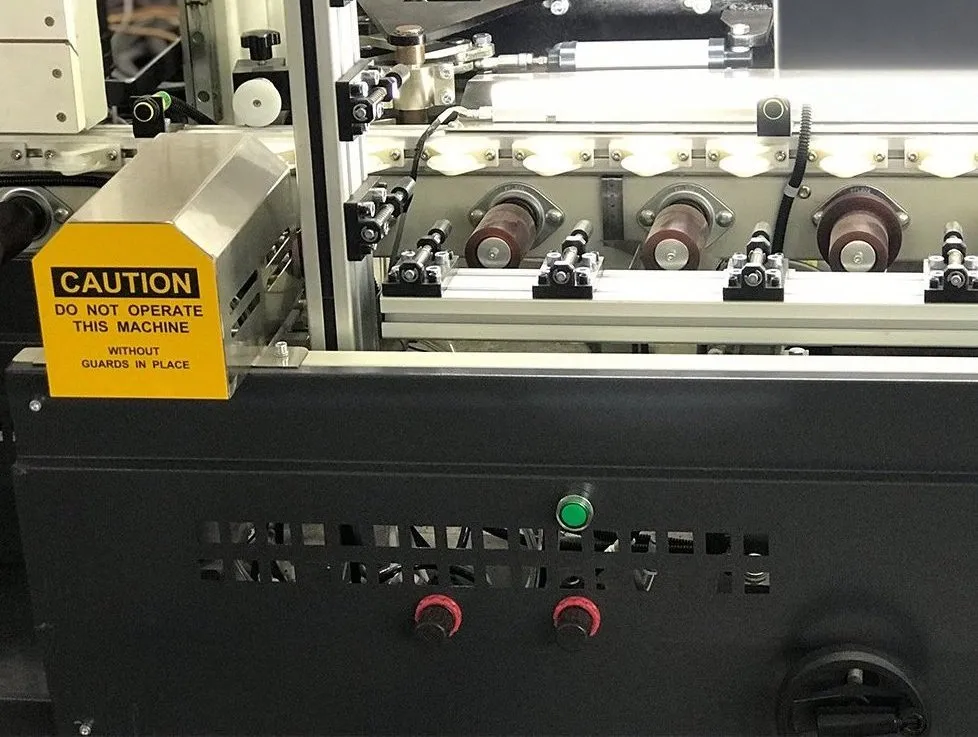

Detail 5

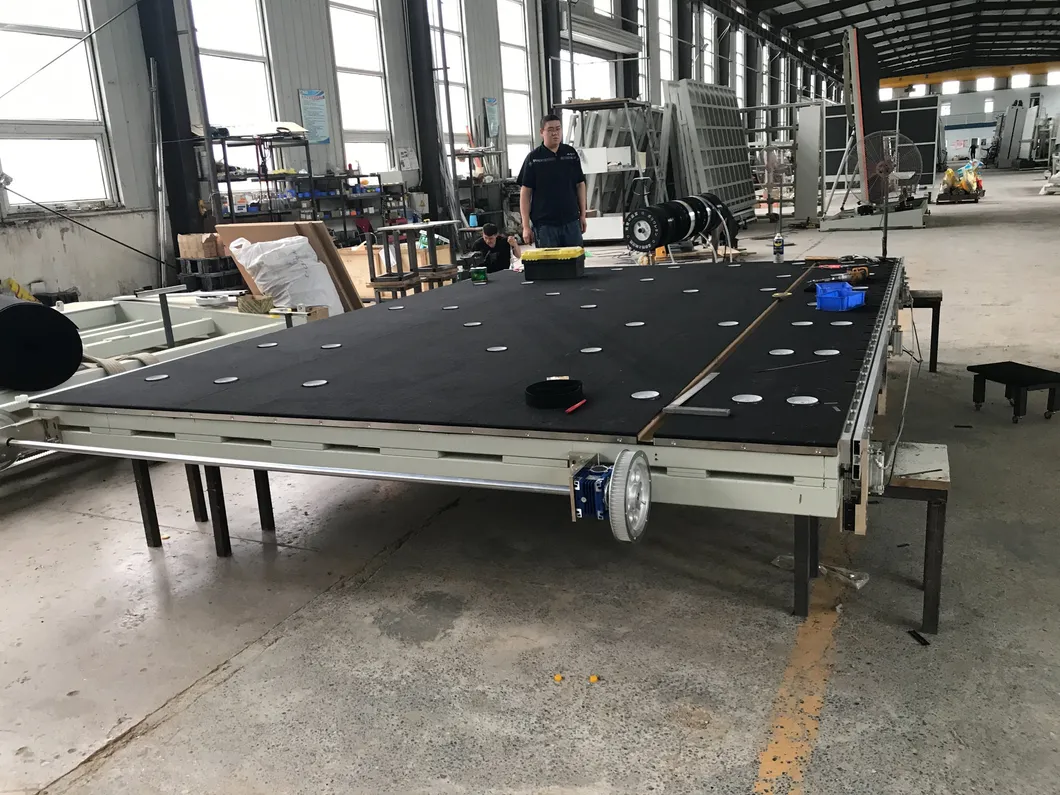

Detail 6
Technical Parameters
Technical Parameter Specification (WLBZ2540-C)
Total Power45kw
Max Glass Size2500x4000mm
Min Glass Size300*500mm
Single Glass Thickness3~12mm
Max I.G. Unit Thickness12~80mm
Glass Washing Speed3~12m/min
Working Speed2~48m/min
Air Flow0.8m³/min
Water Electrical Conductivity≤40μs/cm
Overall Dimension27600*2500*3400mm
Packaging, Shipping & Service
Packaging

Pre-sales Service:

  • Customized equipment footprint layout based on your building plan.
  • Technical drawings provided for infrastructure preparation.

After-sales Service:

  • Weekly production reports and progress details.
  • Installation, debugging, and personnel training.
  • One-year warranty and lifetime technical support.
Exhibitions
Exhibition
Frequently Asked Questions
1. Which countries are your products exported to?
Our equipment has been exported to over 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.
2. How do we operate the glass processing machinery?
We provide comprehensive paper instructions in English and offer hands-on training until your operators are proficient in using the machine.
3. How do you ensure quality control?
The entire production procedure undergoes regular inspection. Every component is inspected before use, and the complete machine is tested thoroughly before leaving the factory. Testing videos and pictures are available before delivery.
4. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in the glass processing field, providing both machinery and integrated solutions.
5. What support is available if the machine encounters problems?
Free replacement parts are provided during the warranty period. We offer 7/24 free service and technical support via phone, WhatsApp, and email for the lifetime of the machine.
6. Is overseas installation available?
Yes, we can arrange for engineers to visit your factory to install the machinery and provide professional training for your staff upon arrival.
