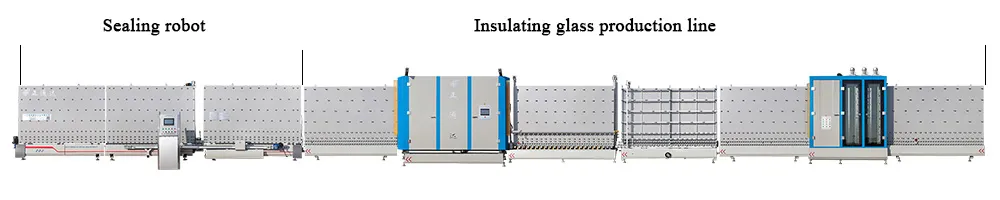

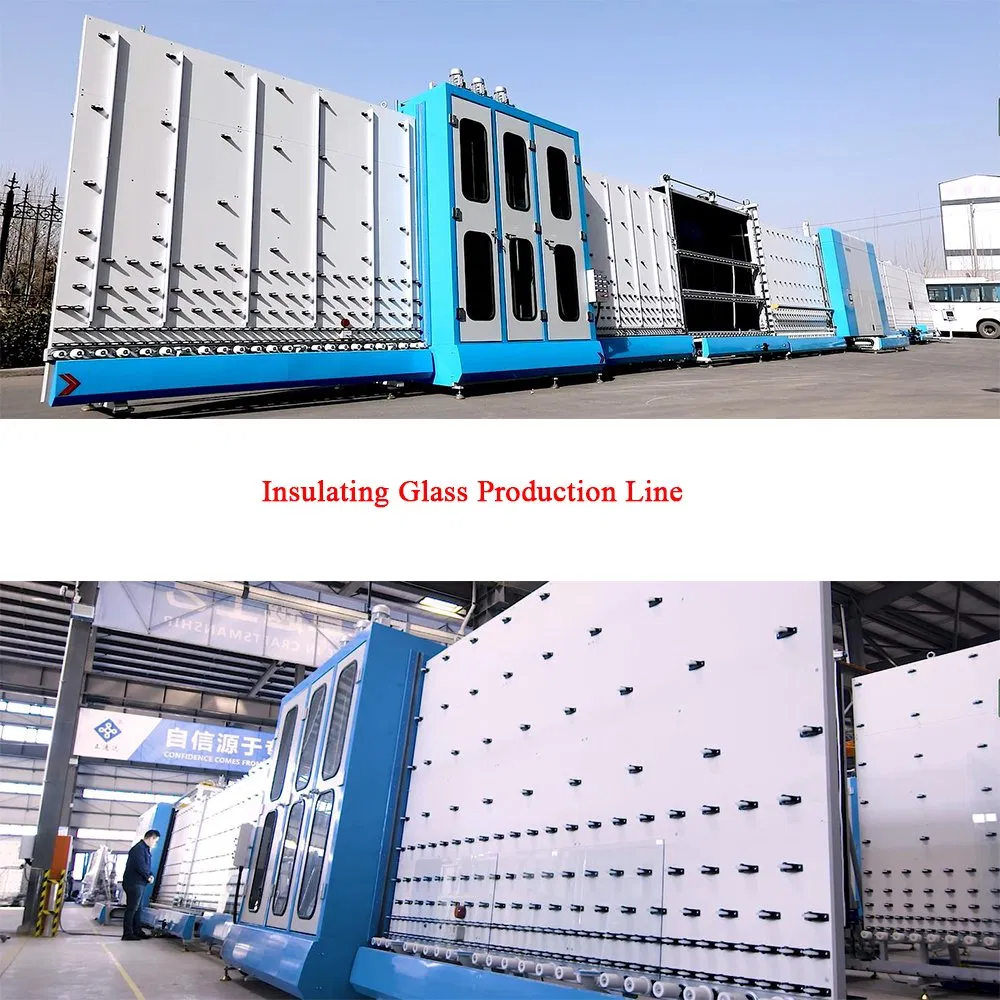

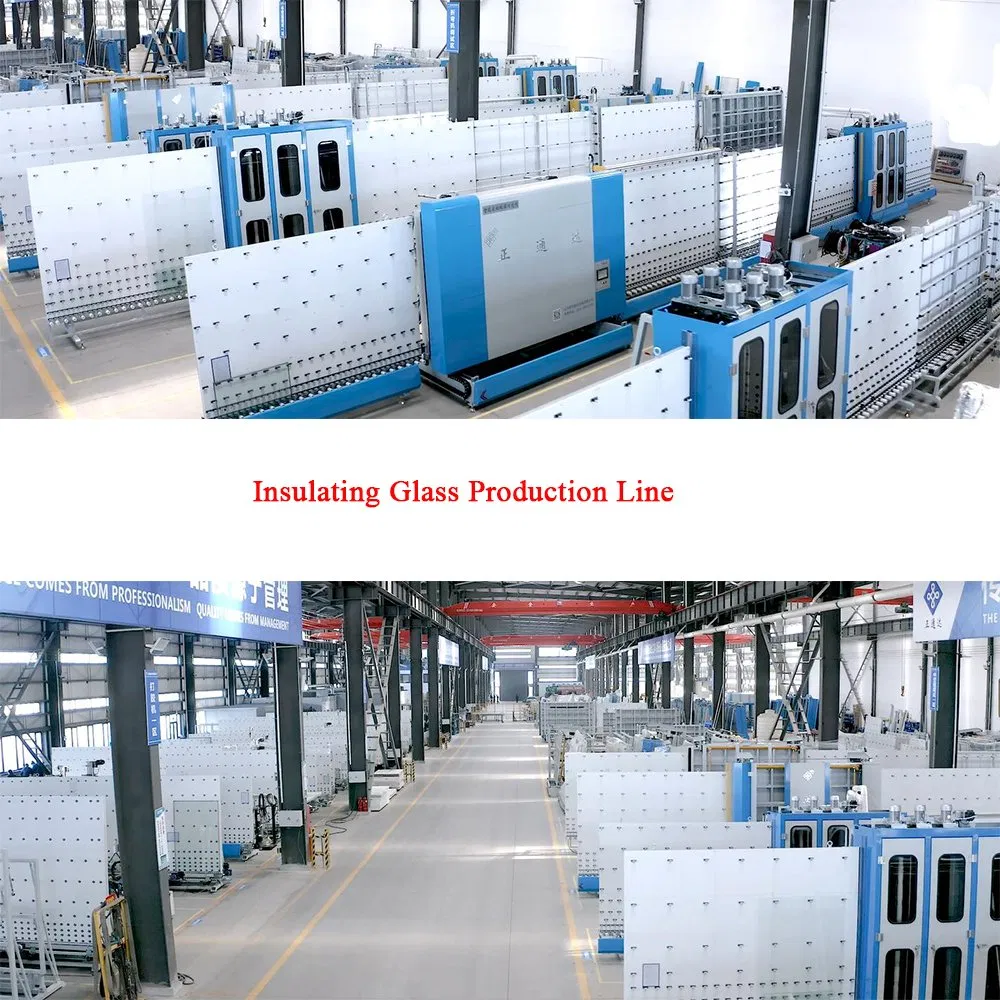

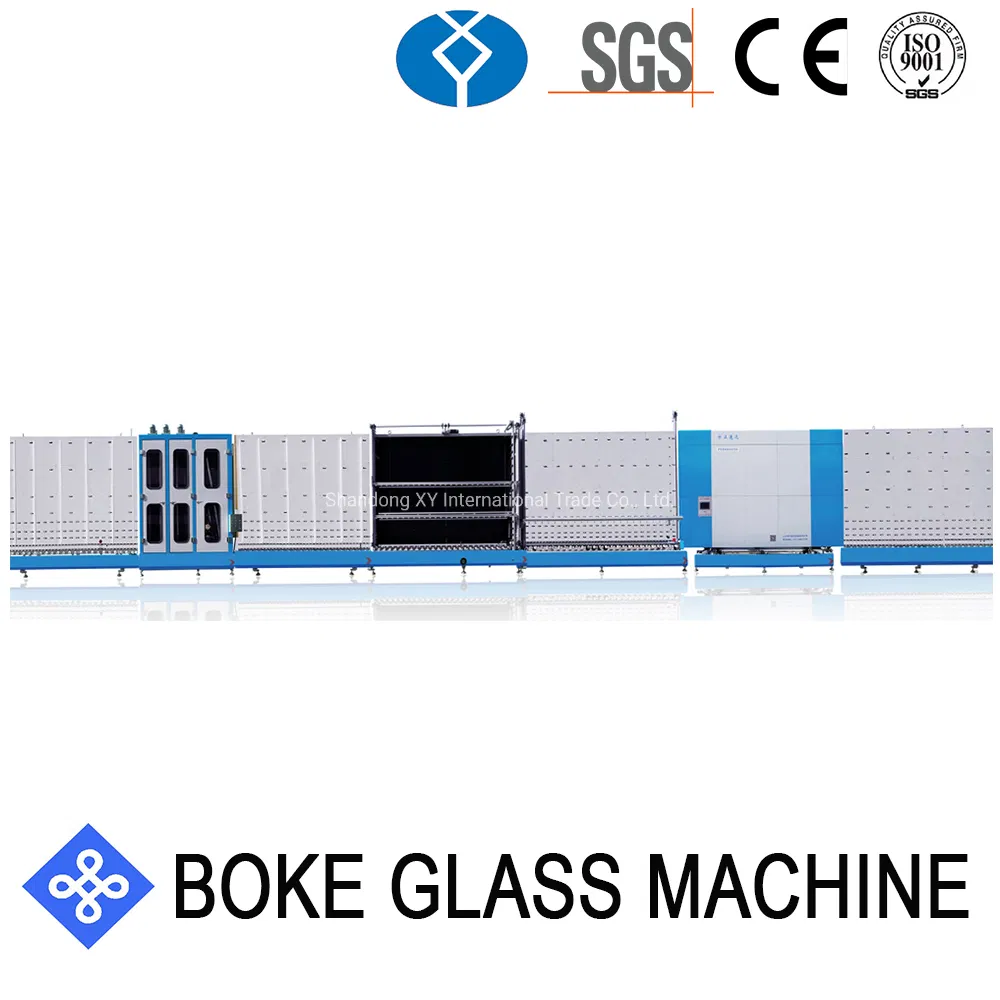

Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units (double glazing glass) production. It is designed for high-efficiency glass processing and window/door fabrication.
| Parameter Item | Specifications (LBP2500Q) |
| Max. processing glass size (mm) | 3600*2500 |
| Min. processing glass size (mm) | 450*200 |
| Single glass thickness(mm) | 3-15 |
| Max. Insulating glass thickness(mm) | 52 |
| Capacity(pc/h) | 110 |
| Washing speed (m/min) | 3-10 |
| Total power | 44.85KW (include heater 10KW) |
| Inert gas type | Argon, Nitrogen, etc |
| Gas concentration | More than 90% |
| Outline dimension (mm) | 24600*2500*3680 |
1 Energy Saving: Stops automatically when no glass is detected, saving up to 30% energy.

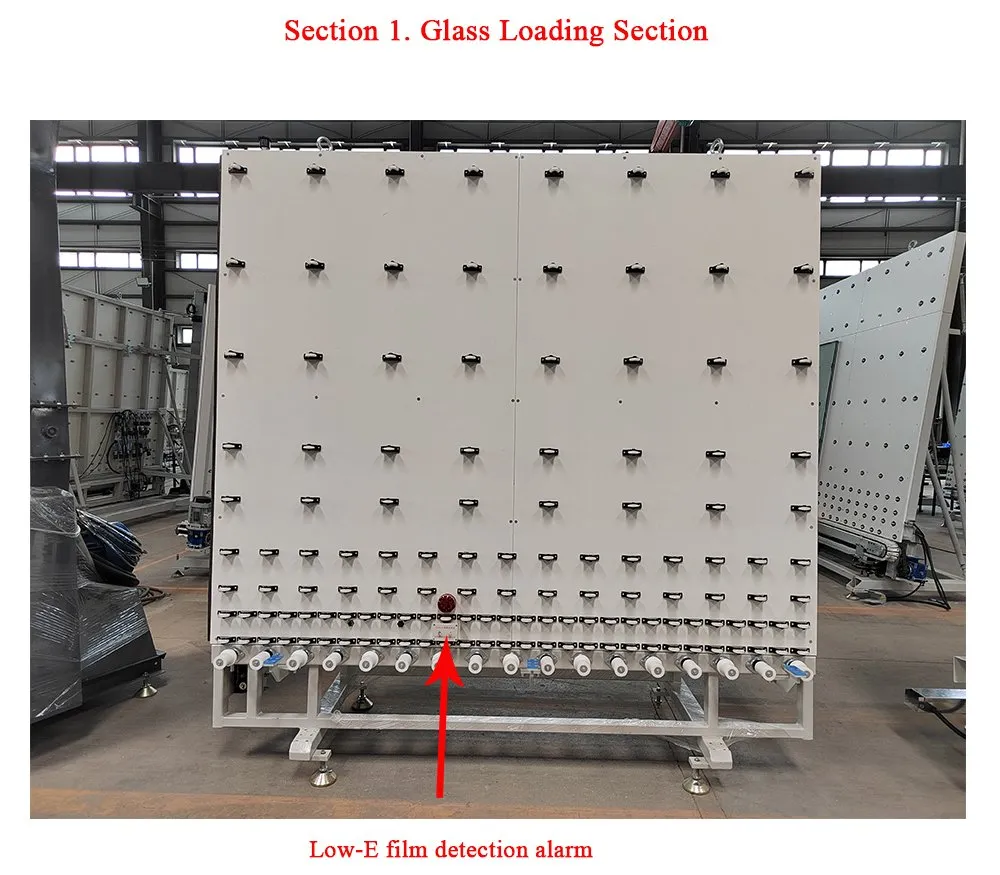

2 Low-E Detection: Automatically distinguishes coating side to ensure correct processing.

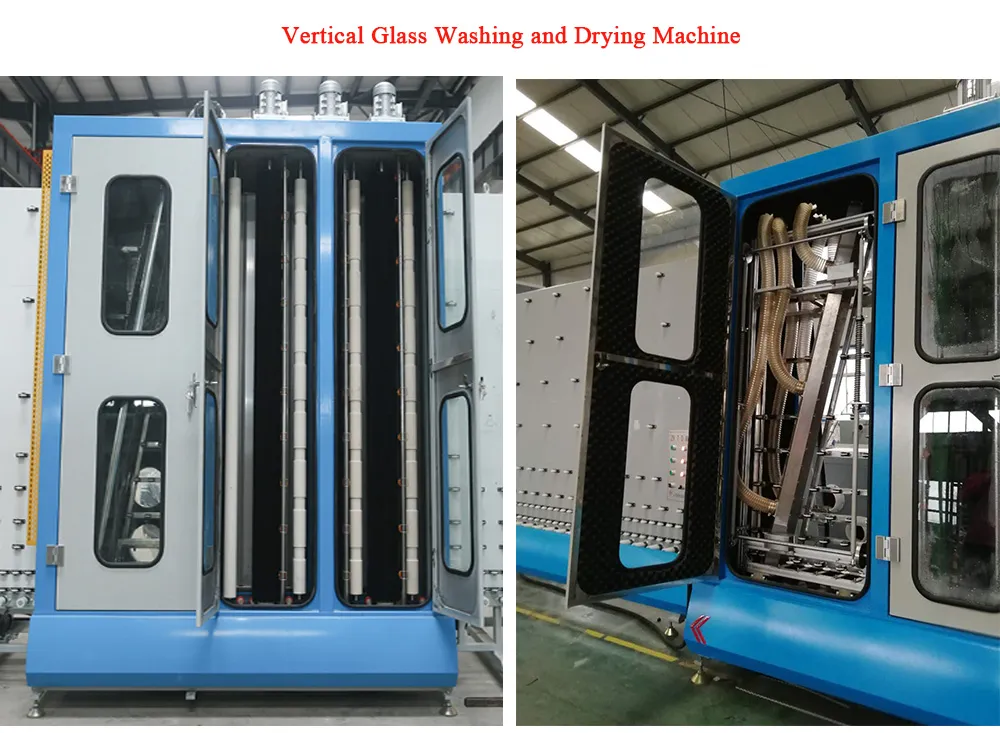

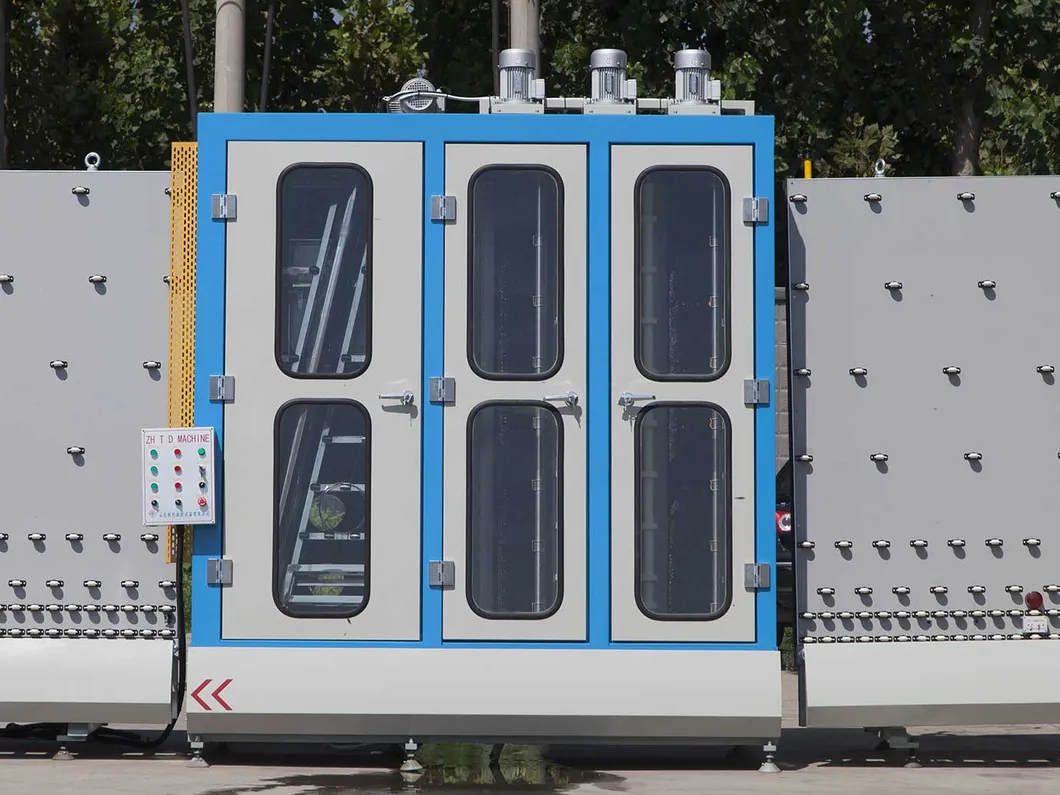

A Stainless Steel Construction: 5mm thickness for waterproof security and long life.
B DuPont Brushes: 3 pairs of soft brushes (Nylon 610) specifically for Low-E glass.
C Small Glass Processing: Capable of washing glass as small as 400*200mm.
Utilizes hot air circulation with a 18.5KW high-pressure fan. The system is fully closed and equipped with a silencer to keep noise levels below 75 dB, ensuring zero residue water stains.

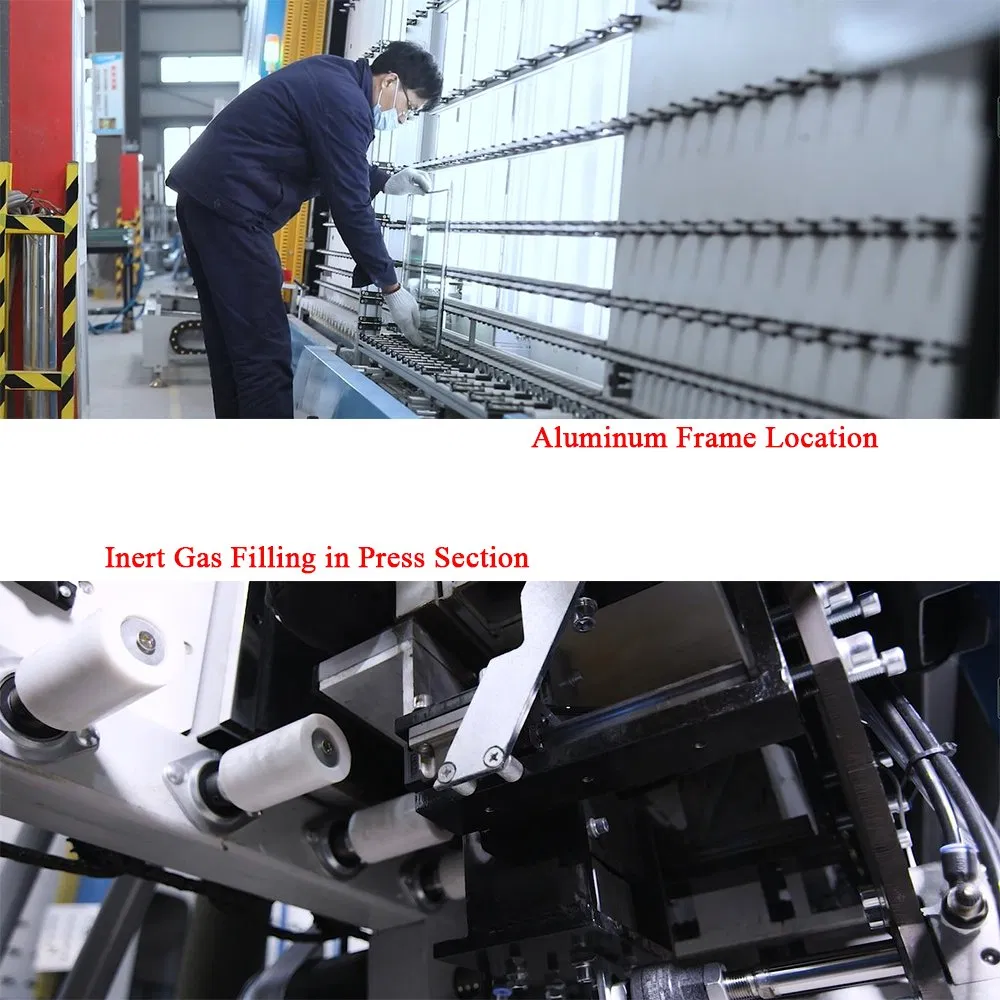

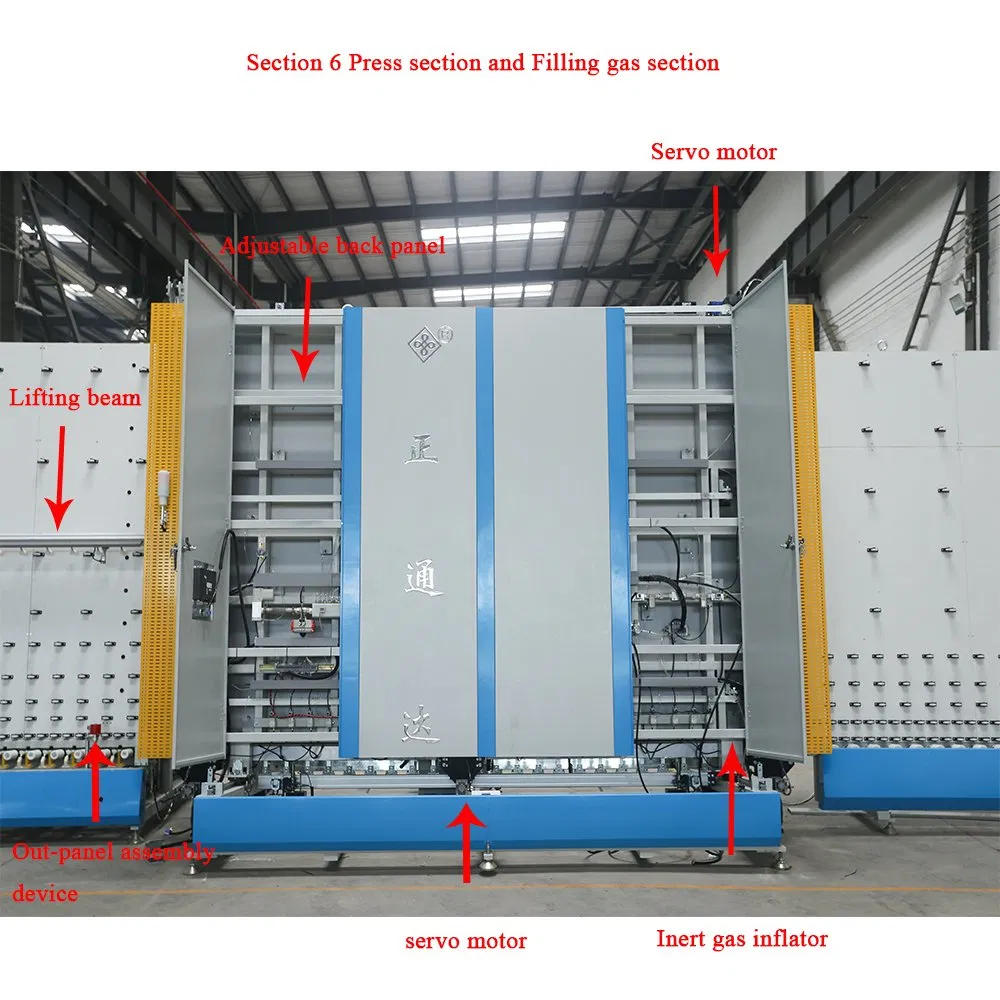

Equipped with 60 adjustable suction cups and a Swiss-imported vacuum generator. Servo motors control moving distance and plate pressure, ensuring glass and frames are not deformed or broken during assembly.

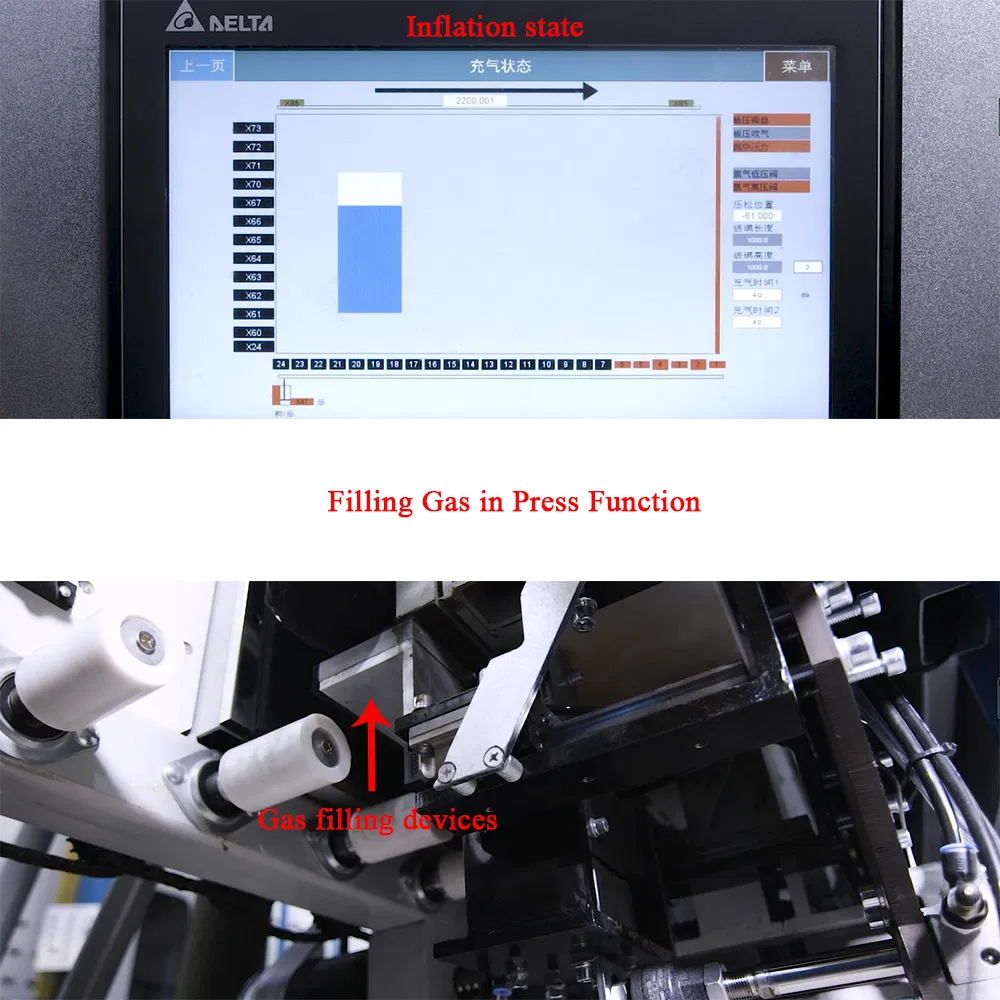

Direct inflation structure with 23 independent valves. Achieves gas concentrations higher than 92% with excellent retention rates (85%+ after 48 hours).
