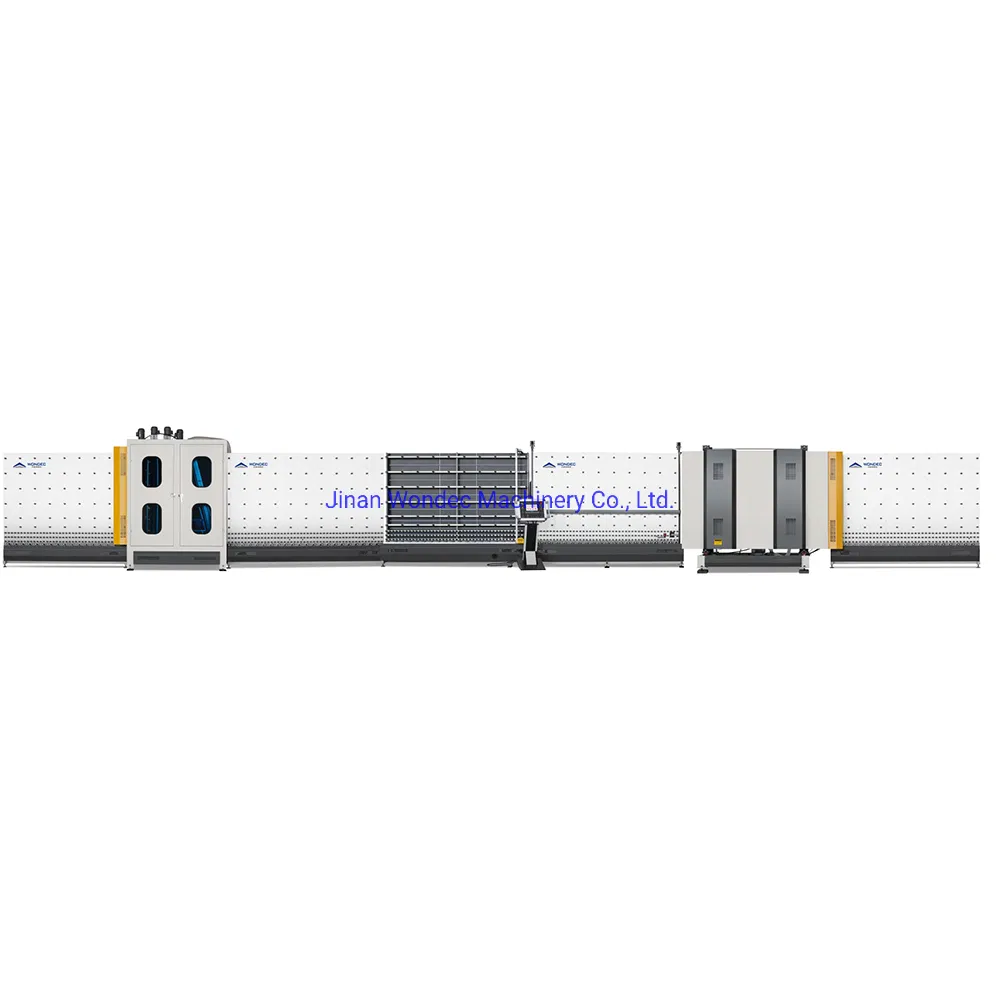

Automatic Insulating Glass Panel Press Manufacturing Machine Vertical CNC Double Glazing Processing Line

Basic Specifications

Model NO.WLBZ2025

ColorCan Be Customized

Key Selling PointsEasy to Operate, Automatic, High-Accuracy

Core ComponentsPressure Vessel, Motor, Gear, PLC, Pump, Engine

TypeInsulating Glass Production Line

StructureVertical

Washing Machine TypeUltrasonic Glass Washing

ConditionNew

Warranty1 Year

Production Capacity60 Units/Period

Product Description

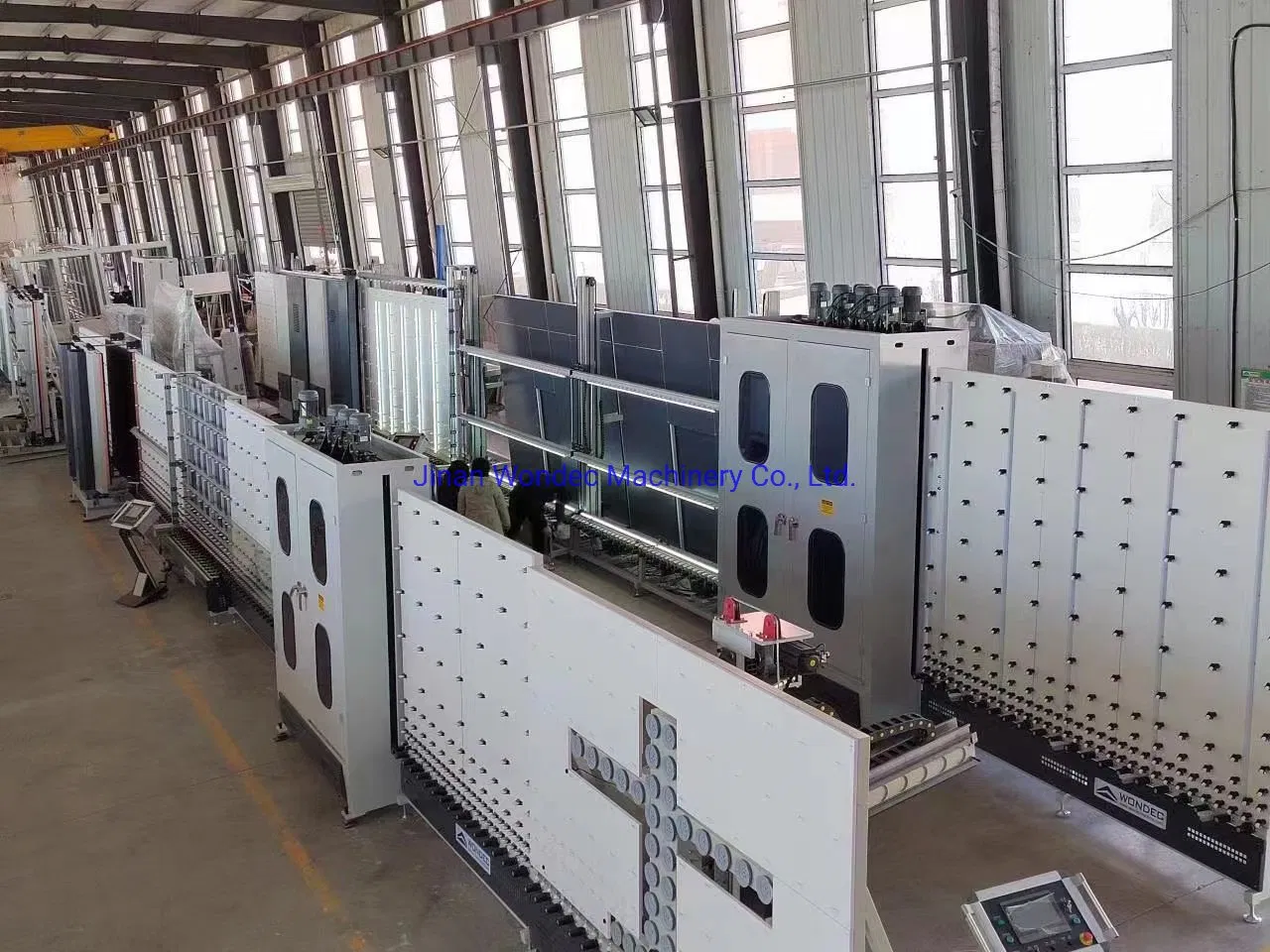

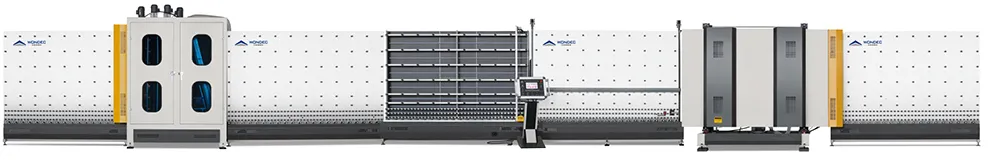

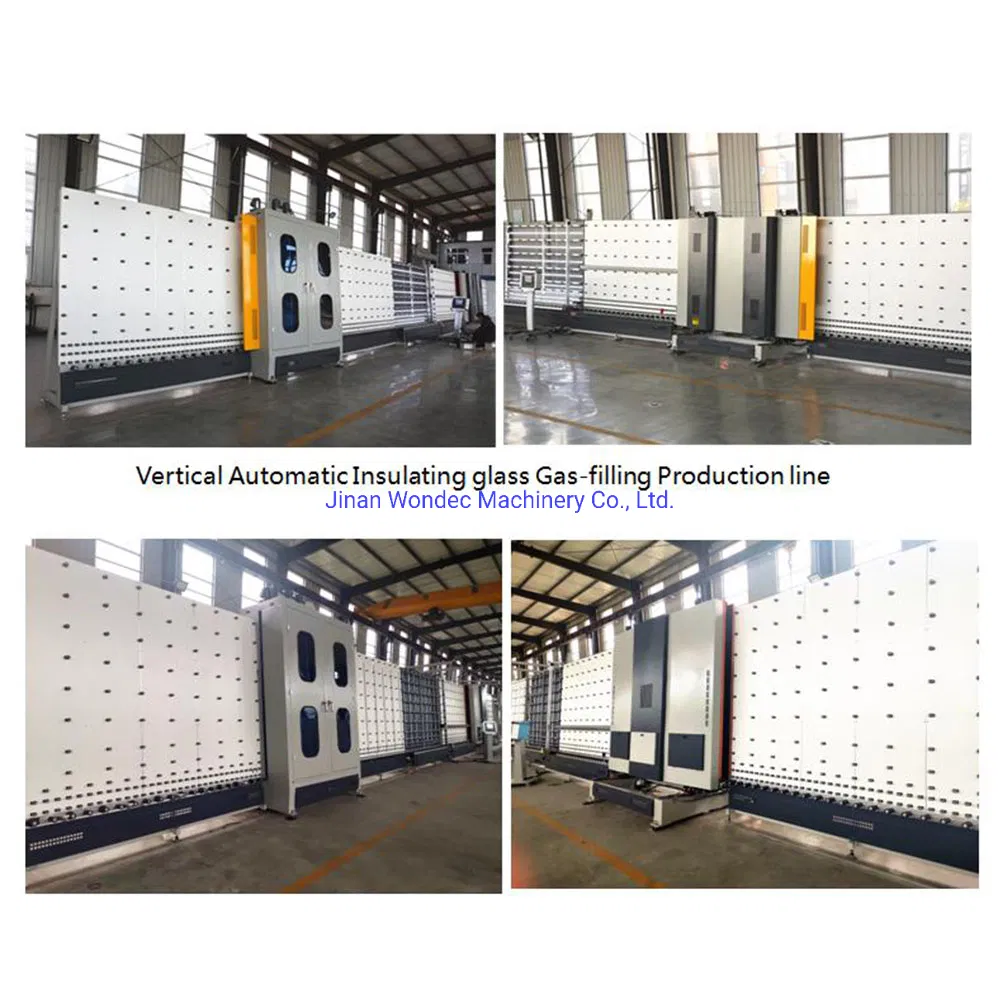

Automatic Insulating Glass Production Line WLBZ2025

This machine is a conventional type; the specific configuration and negotiation determine the final details. It is designed for high-efficiency double glazing processing.

The whole insulating glass production line typically includes 7 parts:

1. The Loading section (with Low-E checking)
2. The washing and drying section

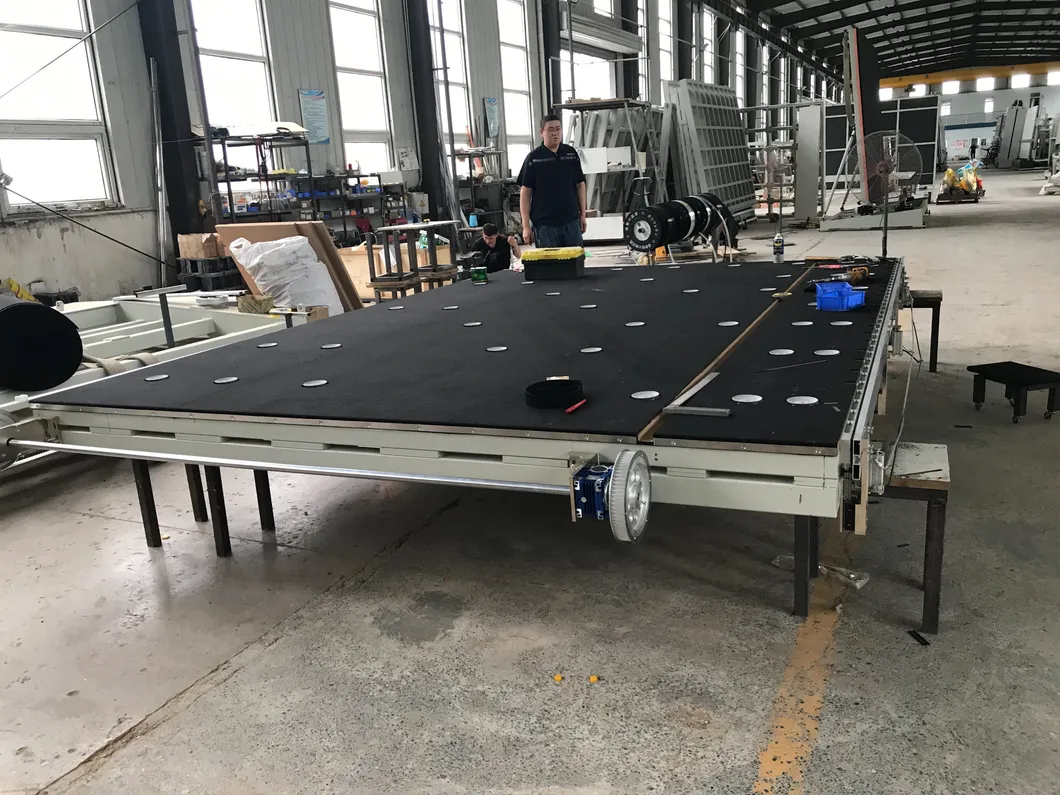

3. The conveyor section

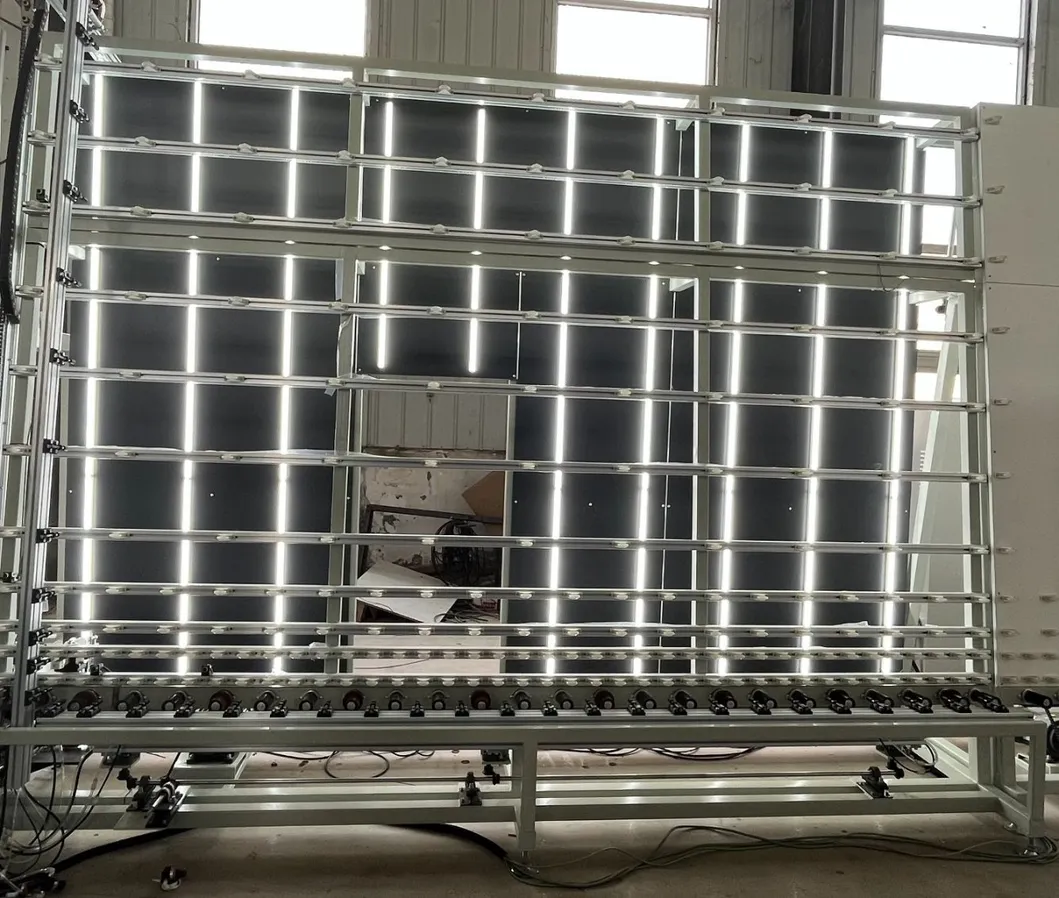

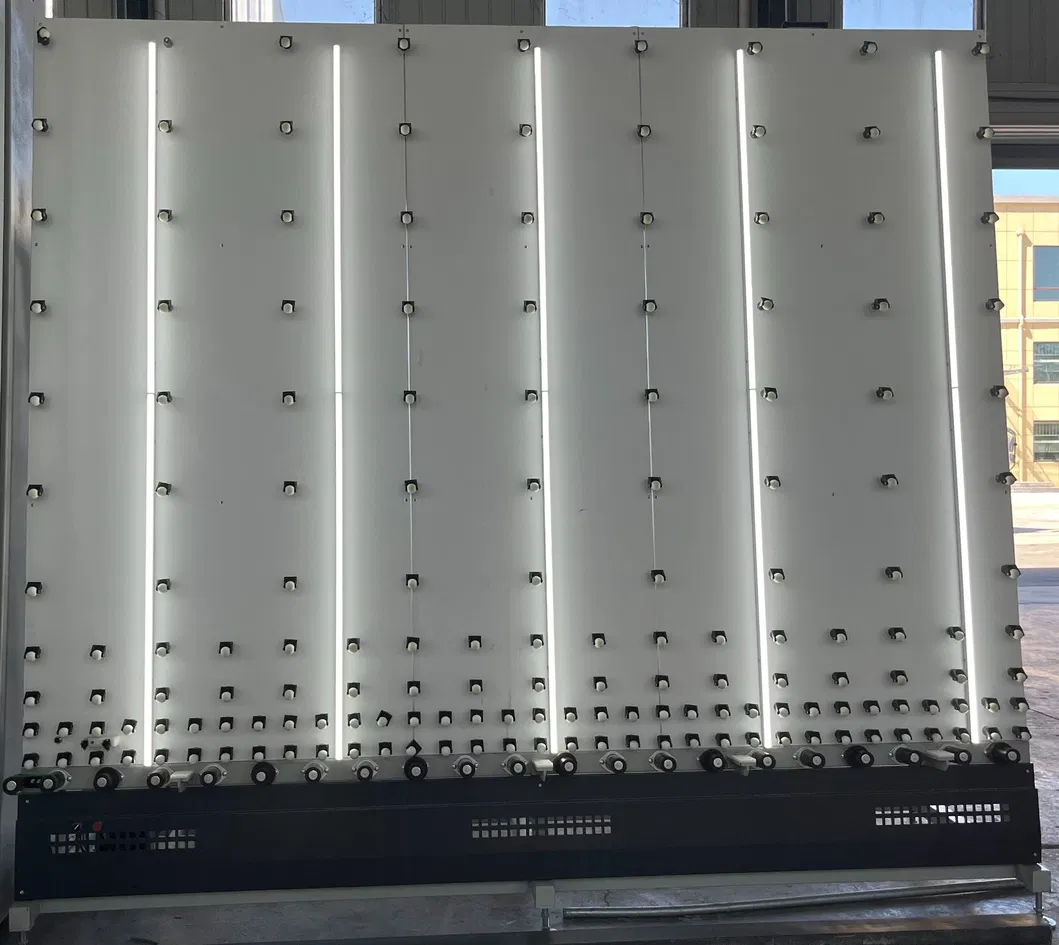

4. The lights inspection and aluminum spacer locating section
5. The outside assembly section

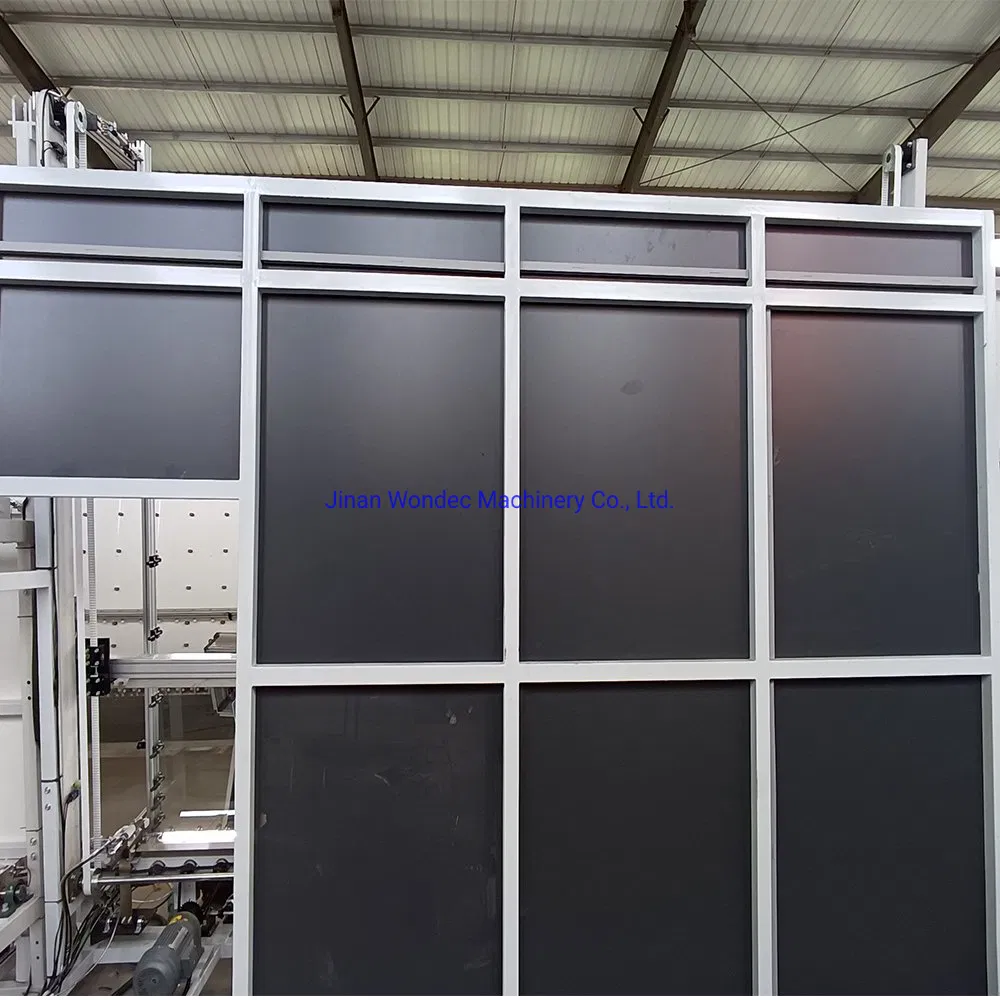

6. The panel press section (Servo motor controlled)
7. The unloading section

Detailed Component Photos

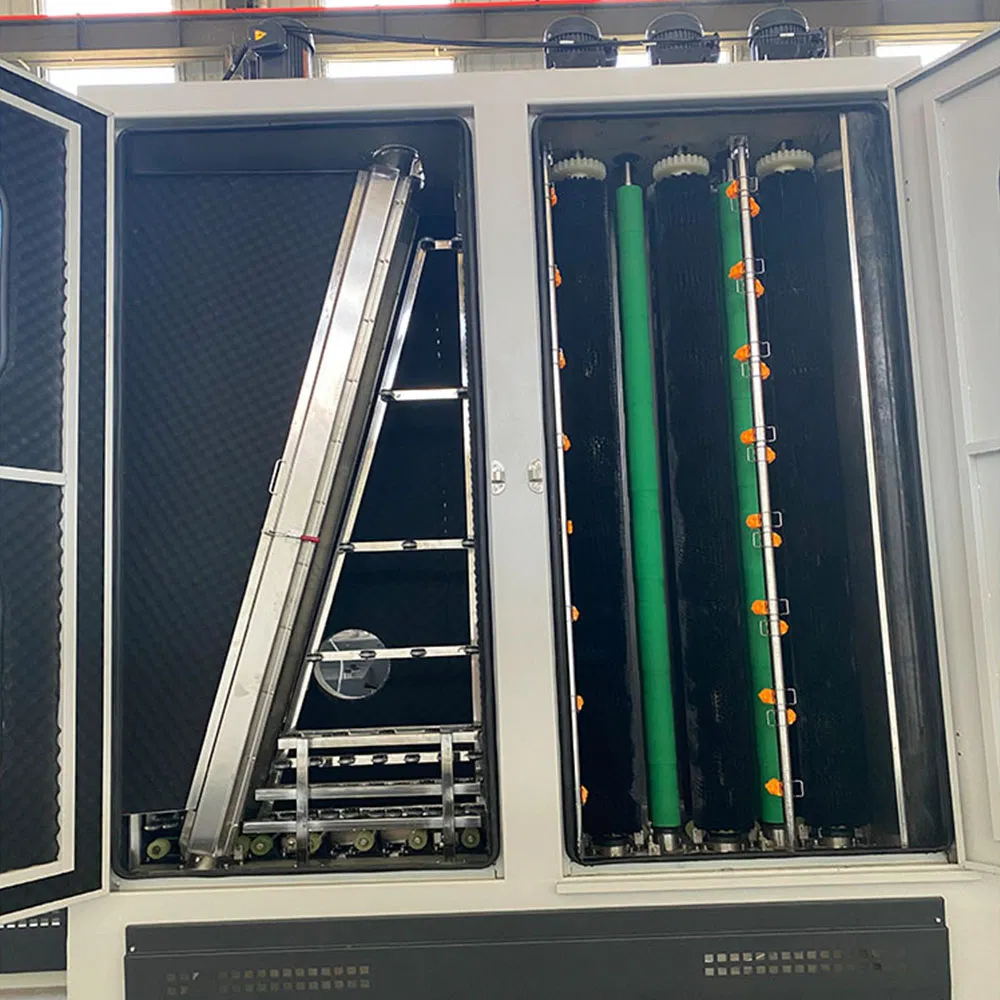

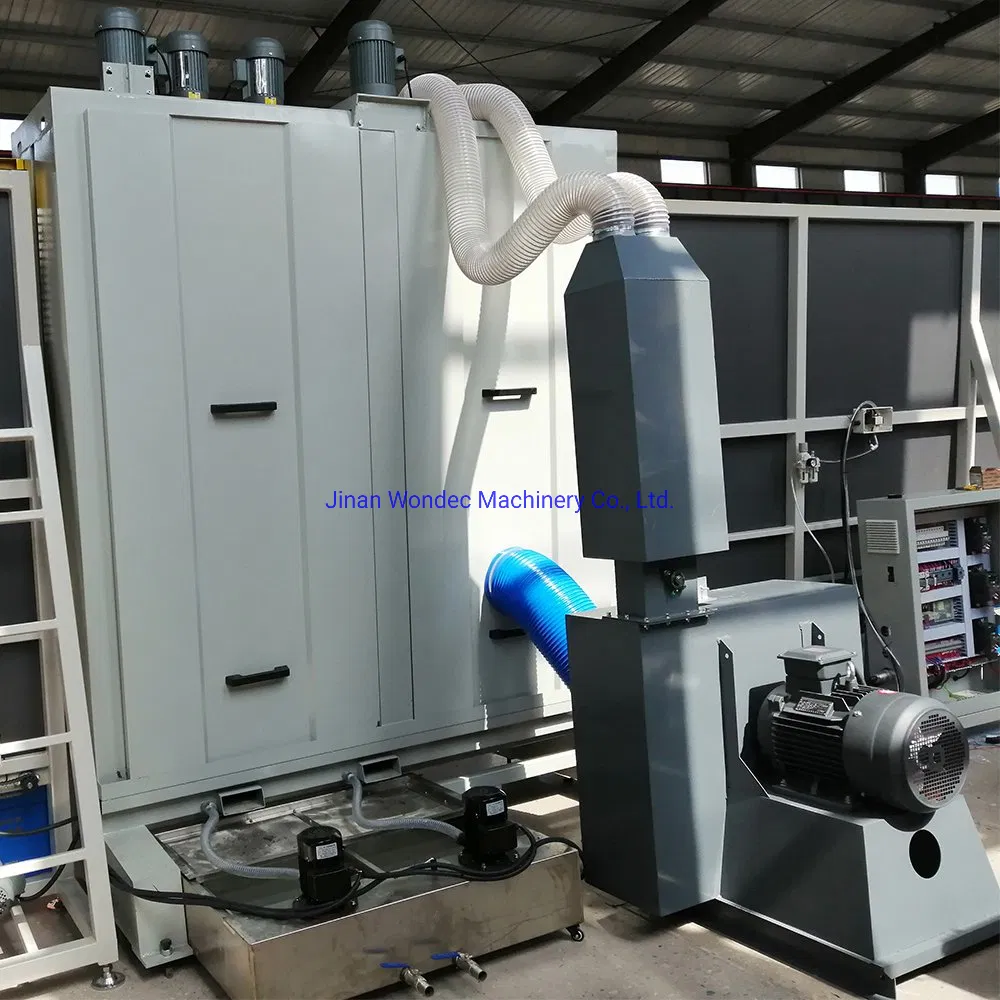

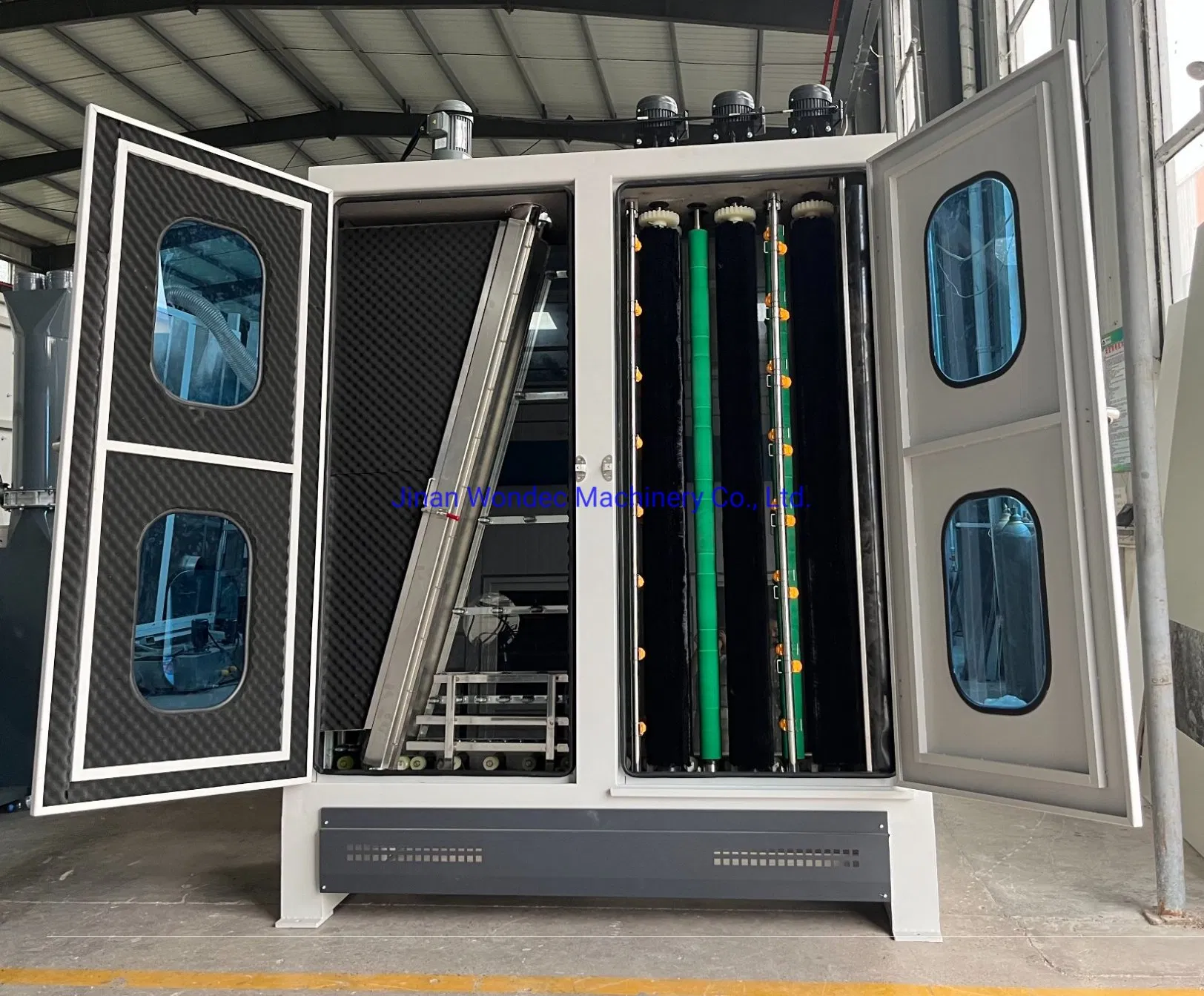

Section 01-03: Washing & Drying

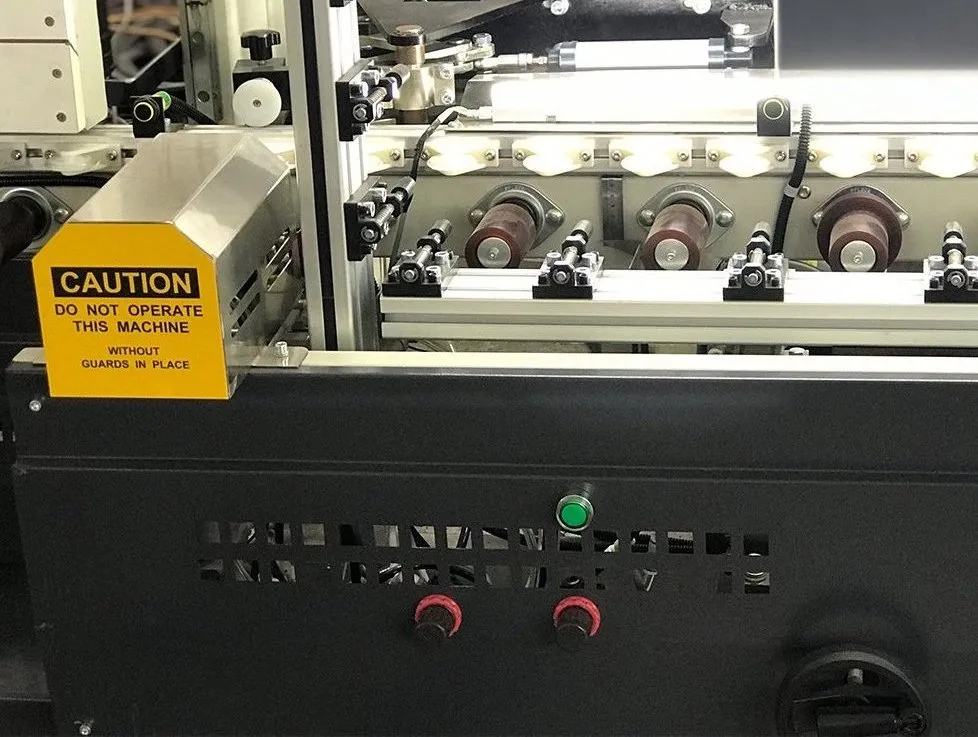

Stainless steel material and corrosion-resistant systems are used. Three pairs of brushes are driven by independent motors. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.

Technical Parameters

Parameter Item	Specifications (WLBZ2025)
Total Power	29kw
Max Glass Size	2000x2500mm
Min Glass Size	300*500mm
Single Glass Thickness	3~12mm
Max I.G. Unit Thickness	12~80mm
Glass Washing Speed	3~12m/min
Working Speed	2~48m/min
Air Flow	0.8m³/min
Overall Dimension	2000025002900mm

Packaging & Shipping

Professional Services

Pre-sales Service

Equipment layout planning based on floor plans.
Detailed technical drawings for installation.

After-sales Support

Weekly production progress reports.
On-site installation and personnel training.
One-year warranty and lifetime technical service.

Why Choose Our Solutions

Frequently Asked Questions

How is the quality control managed for this production line?

The entire production procedure undergoes regular inspection and strict quality control. Every component is inspected before use, and the complete machine is tested before leaving the factory. Testing videos and pictures are available before delivery.

Are English instructions and training provided?

Yes, we provide comprehensive paper instructions in English and offer training until your team is proficient in operating the machinery.

What happens if the machine encounters problems after purchase?

Free replacement parts are provided during the warranty period. We also offer 7/24 free support via phone, messaging apps, and email for the lifetime of the machine.

Can you arrange for equipment installation in my country?

Yes, we can arrange engineers to visit your factory to install the machine and train your personnel once the equipment arrives at your location.

What documents are provided after the shipment is dispatched?

After shipment, we send all original documents via courier (DHL), including the packing list, commercial invoice, bill of lading, and any other required certificates.

Are your machines suitable for processing Low-E glass?

Yes, the production line includes a specialized washing and drying section with carbon fiber conductive brushes specifically designed for high-accuracy Low-E glass detection and cleaning.
