Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
1 / 5
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine
Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine

Automatic out-Panel Assembly Insulating Glass Press Machine with Glass Washing Machine

Customization: Available
Certification: CE, CE, CE, ISO
Condition: New, New
Send Inquiry

Product Description

ℹ

Basic Information Overview

Model NO.LBP2500Q
Control SystemAutomatic PLC & Touch Screen
Glass Thickness Range3 mm - 19 mm
Warranty12 Months
Production TypeInsulating Glass Production Line
Max. Processing Size3600*2500mm
Inert Gas FillingArgon, Nitrogen (>85% Concentration)
Washing Speed3-10m/Min
Running Speed15-45m/Min
Total Power44.85kw
⚙

Product Description

Insulating Glass Press Machine

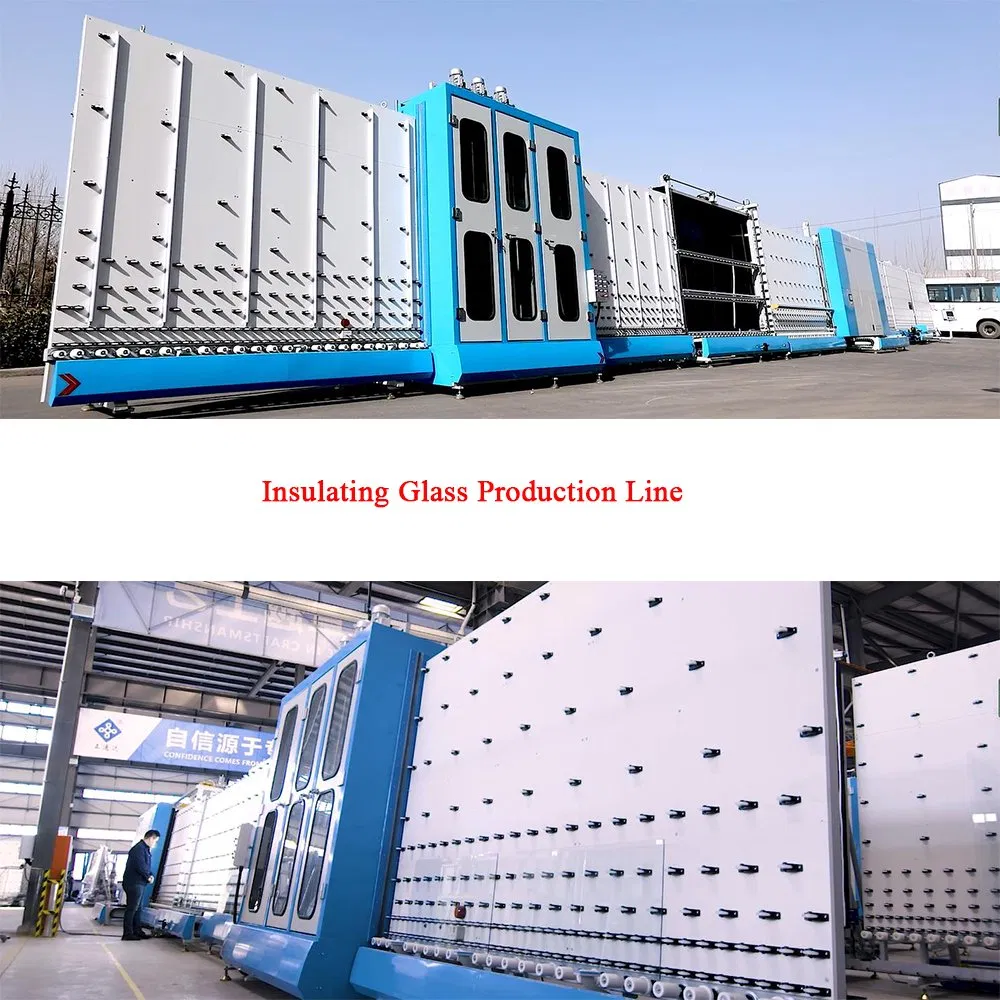

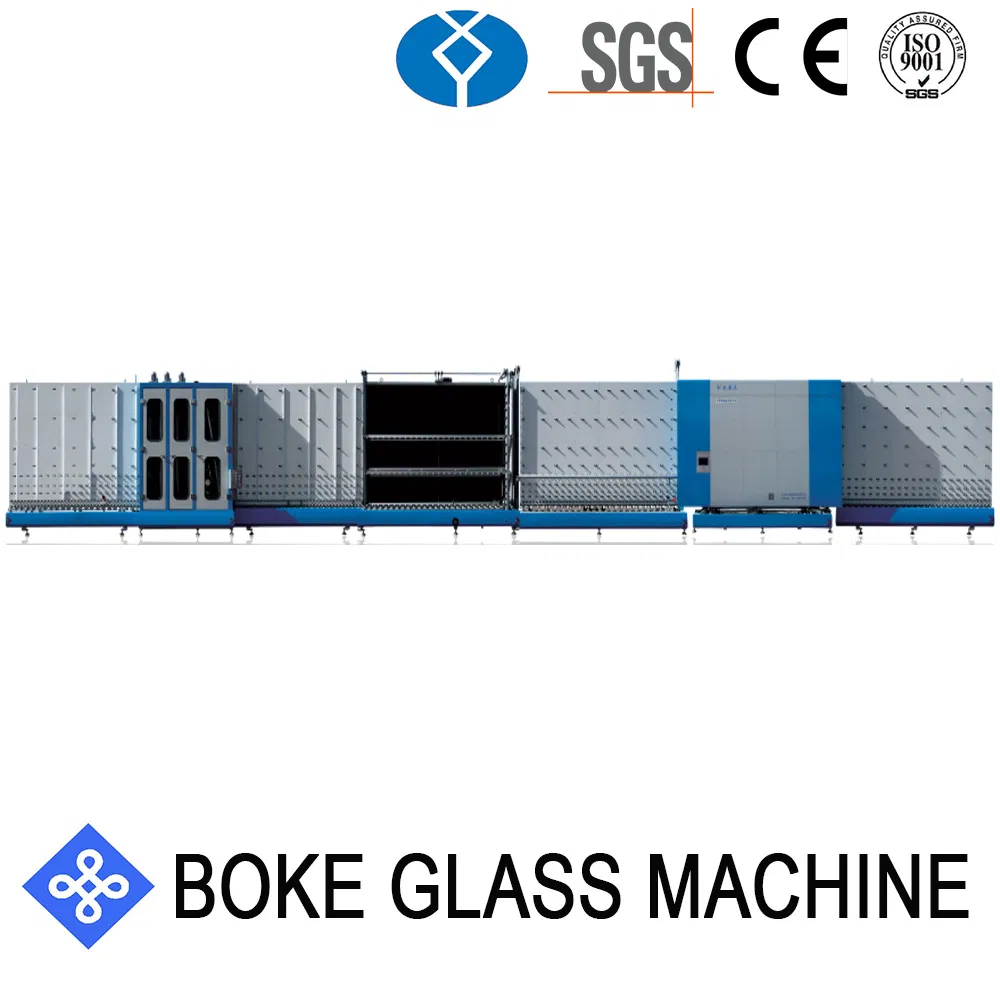

LBP2500Q IGU Line Brief Introduction:

The Vertical automatic insulating glass flat press production line is primary equipment for Insulating Glass Units (double glazing or triple glaze). It is designed for glass processing companies and windows & doors fabricators requiring high efficiency and precision.

Line Components:

  • Loading and conveyor sections
  • Automatic washing and drying section

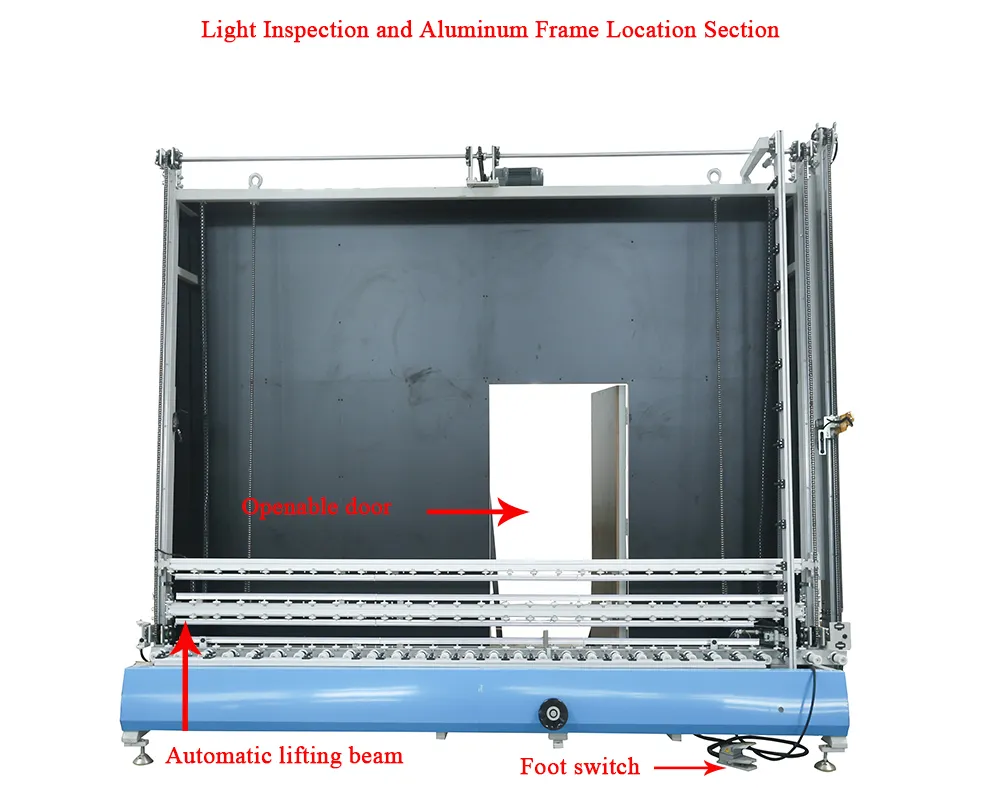

  • Light inspection and spacer frame location
  • Out-panel assembly & transmission
  • Large stroke press & online gas filling
📊

Technical Parameters

FeatureSpecification
ModelLBP2500Q
Max. Processing Size3600*2500 mm
Min. Processing Size450*200 mm
Single Glass Thickness3-15 mm
Max. IG Thickness52 mm
Production Capacity110 pc/h
Gas Concentration> 90%
Total Weight10,500 Kg
Dimensions24600*2500*3680 mm
🔍

Core Advantages & Detailed Photos

Energy Efficiency & Protection:

  • Save 30% Energy: Auto-stop function when no glass is detected.
  • Safety Focus: Static state loading to protect workers.

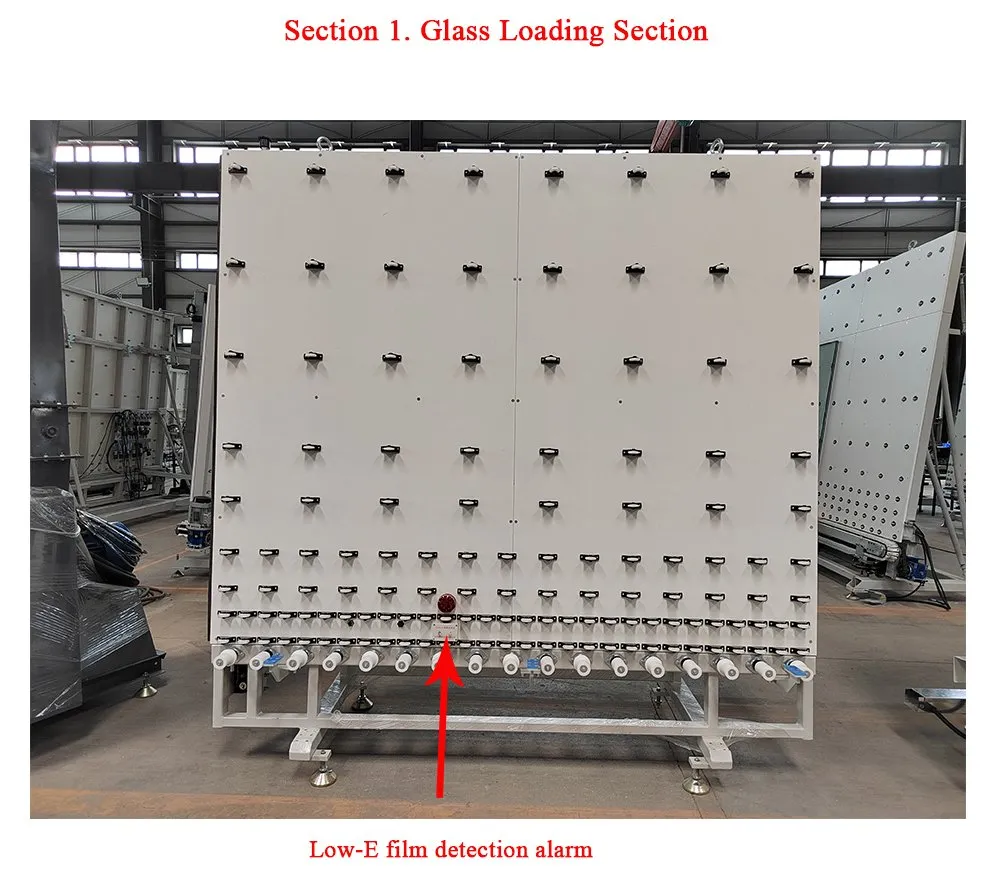

  • Low-E Detection: Automatic identification of coating side with alarm.
Washing Section

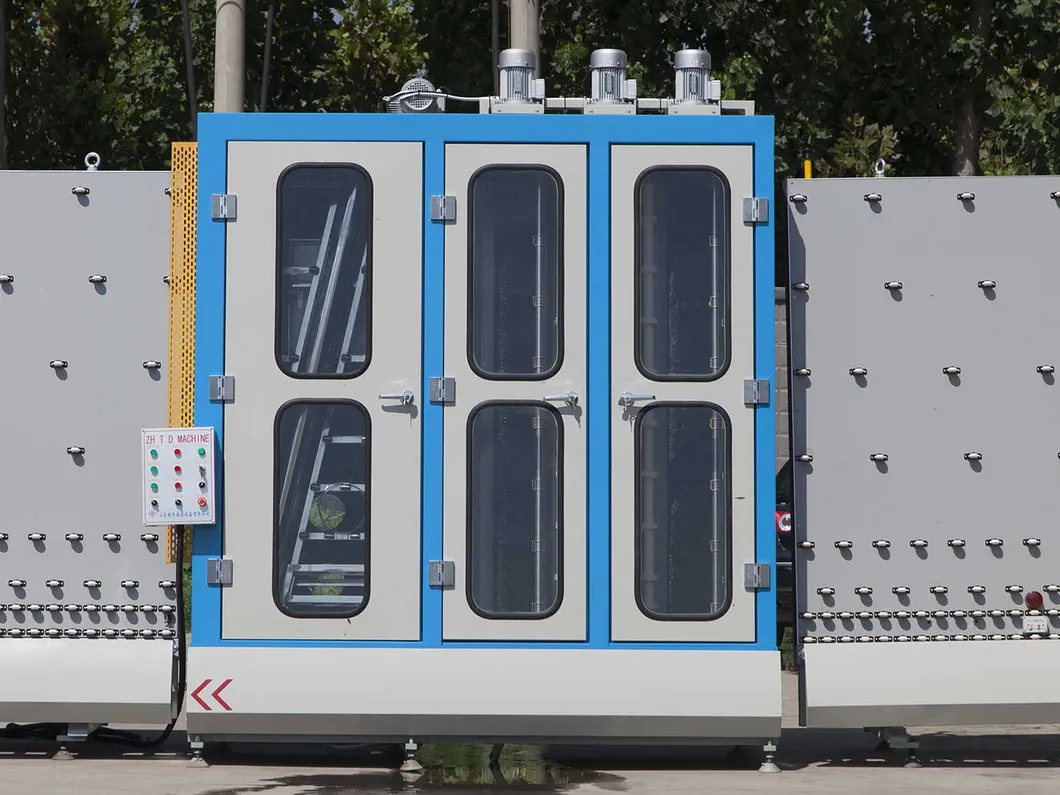

Stainless Steel Washer

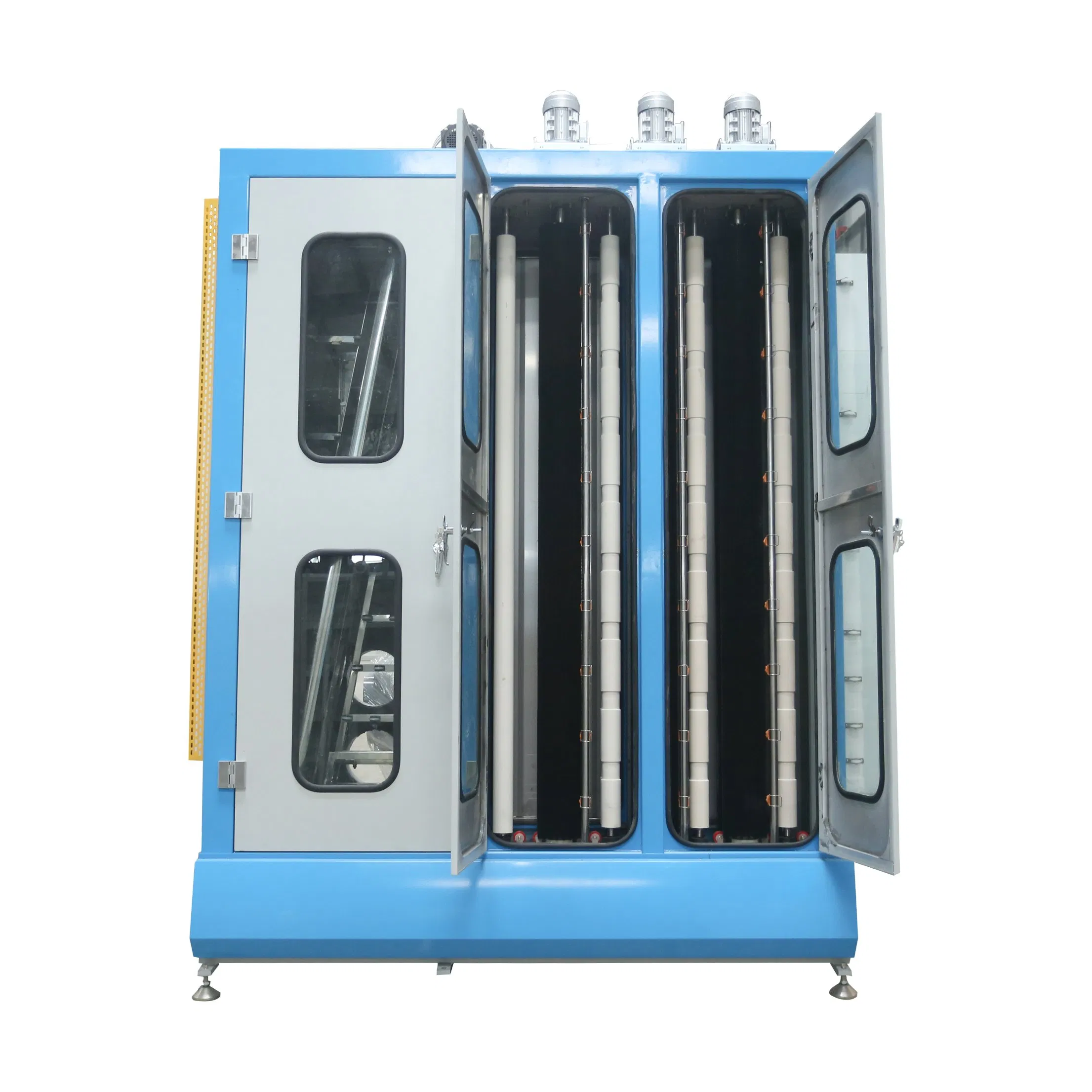

Advanced Washing System:

  • Full stainless steel (5mm) for long service life.
  • Nylon 610 bristles (DuPont) for Low-E glass cleaning.
  • High-speed performance: up to 12.68 meters per minute.

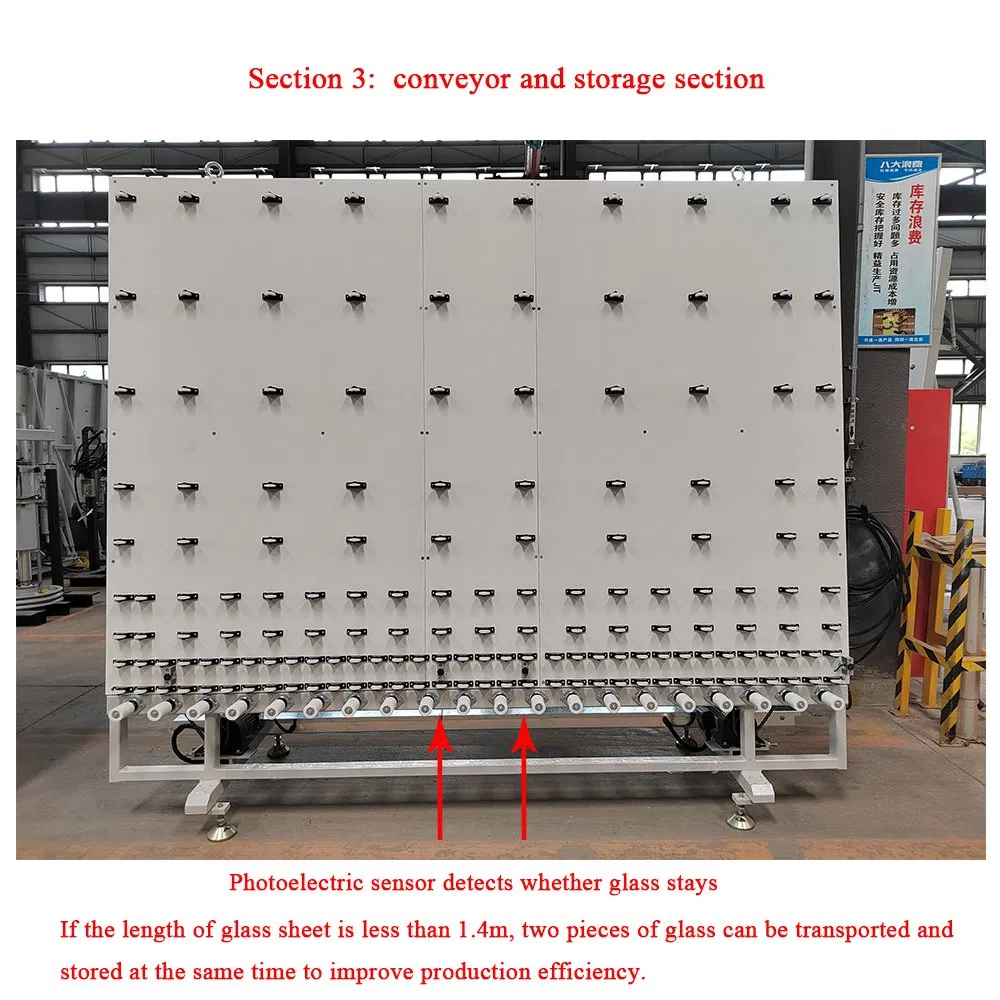

Drying System Conveyor Positioning

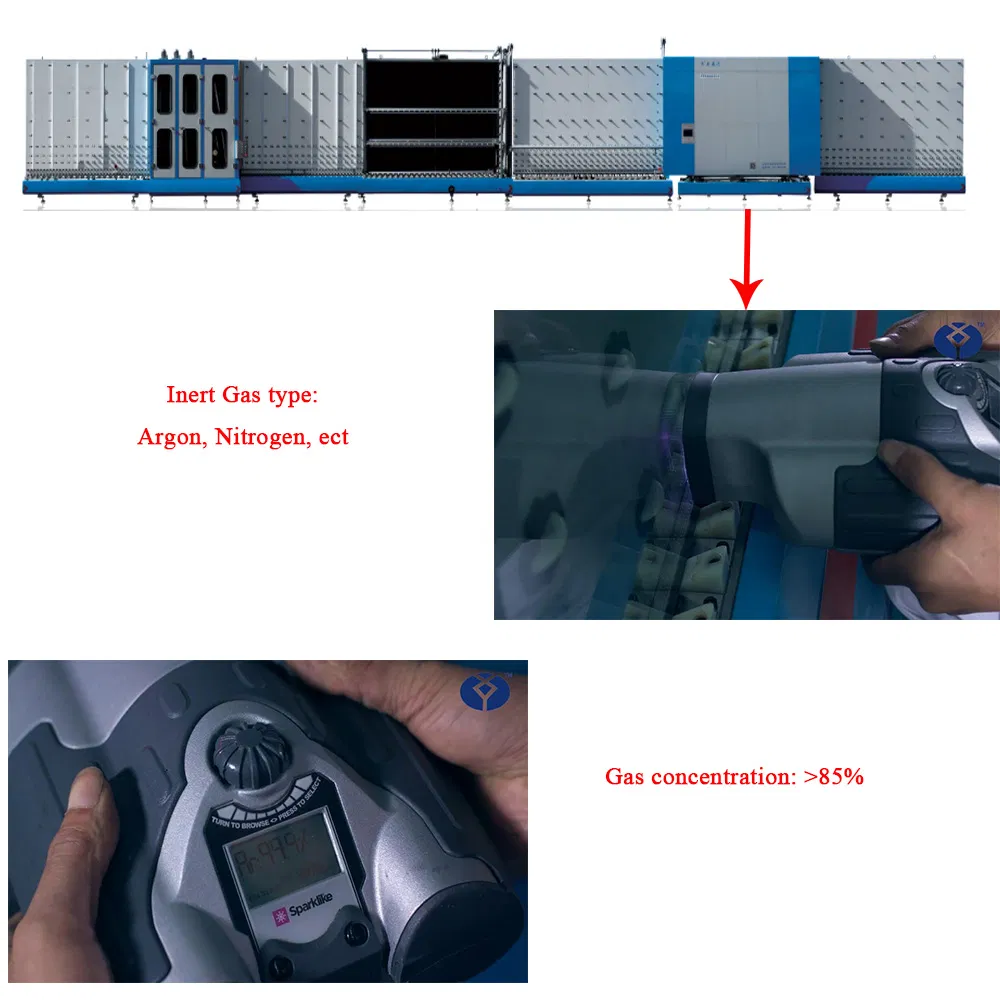

High Precision Pressing & Gas Filling:

  • Servo Control: Precise plate pressure ensures no deformation or glass breakage.
  • Inert Gas Optimization: Direct inflation structure with 23 valves to save gas.
  • High Retention: Gas concentration remains >85% after 48 hours.

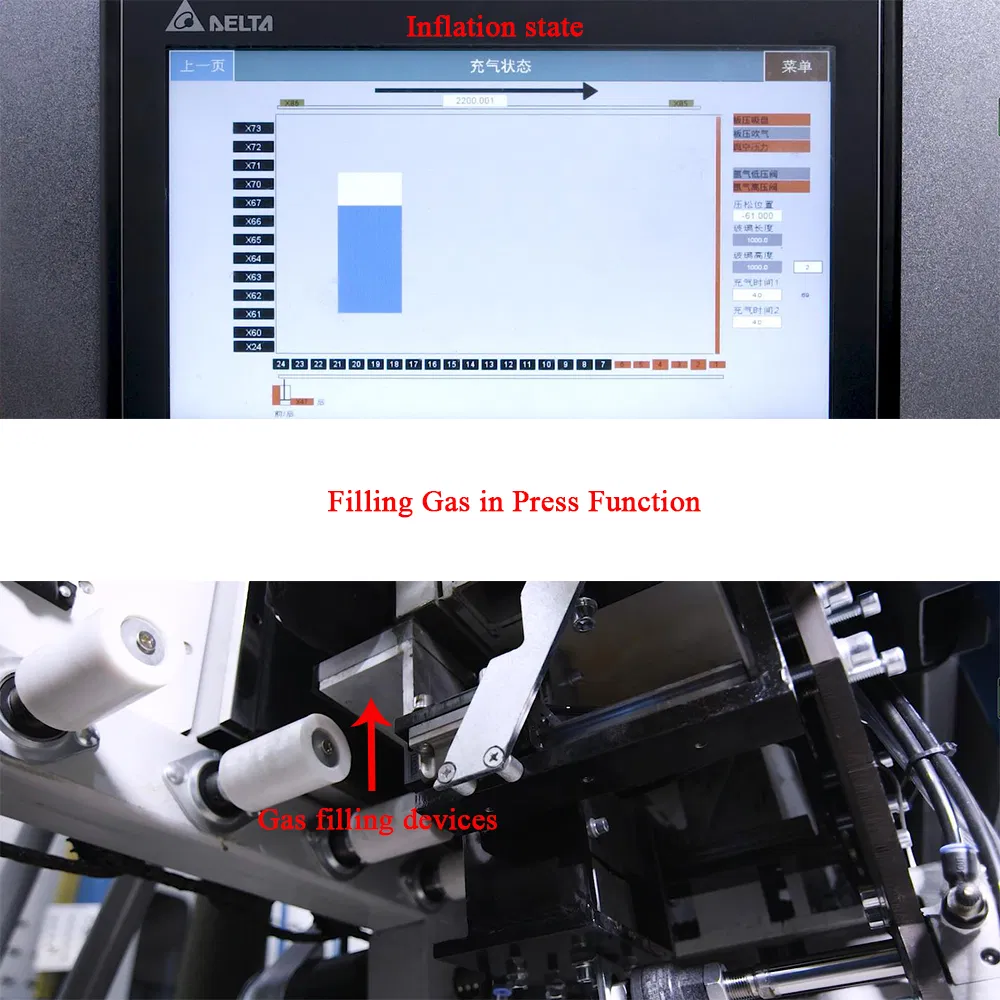

Gas Filling Section
📜

Quality Certifications

The entire production line meets international safety and quality standards, including full CE certification for insulating glass lines.

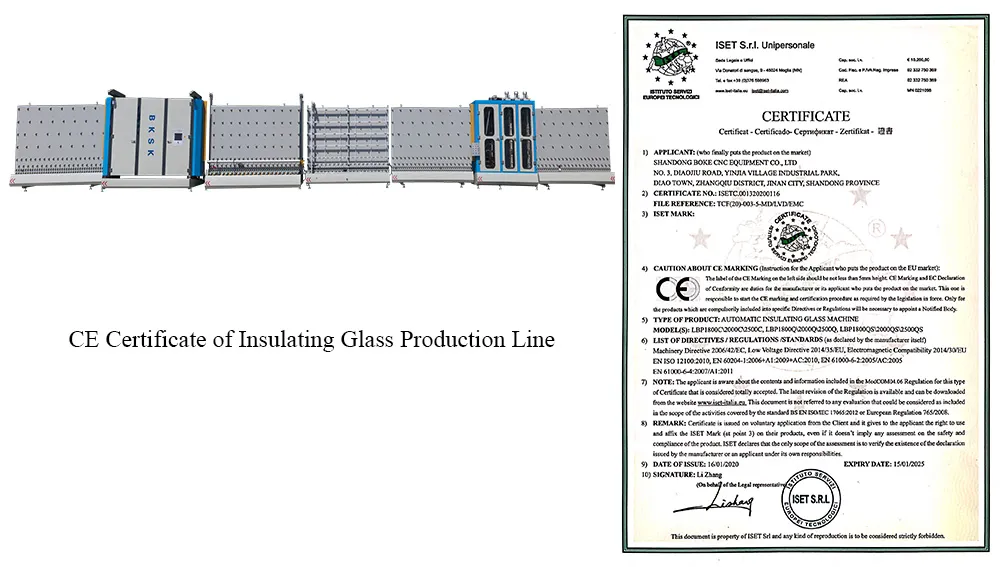

CE Certificate
⭐

Our Key Advantages

ExperienceOver 22 years of professional expertise in the IG production field.
Track RecordMore than 5,000 successful production lines supplied worldwide.
InnovationHold 13 independent patent rights for glass machinery.
Quality ControlISO9001:2008 certified manufacturing and 100% pre-shipment inspection.

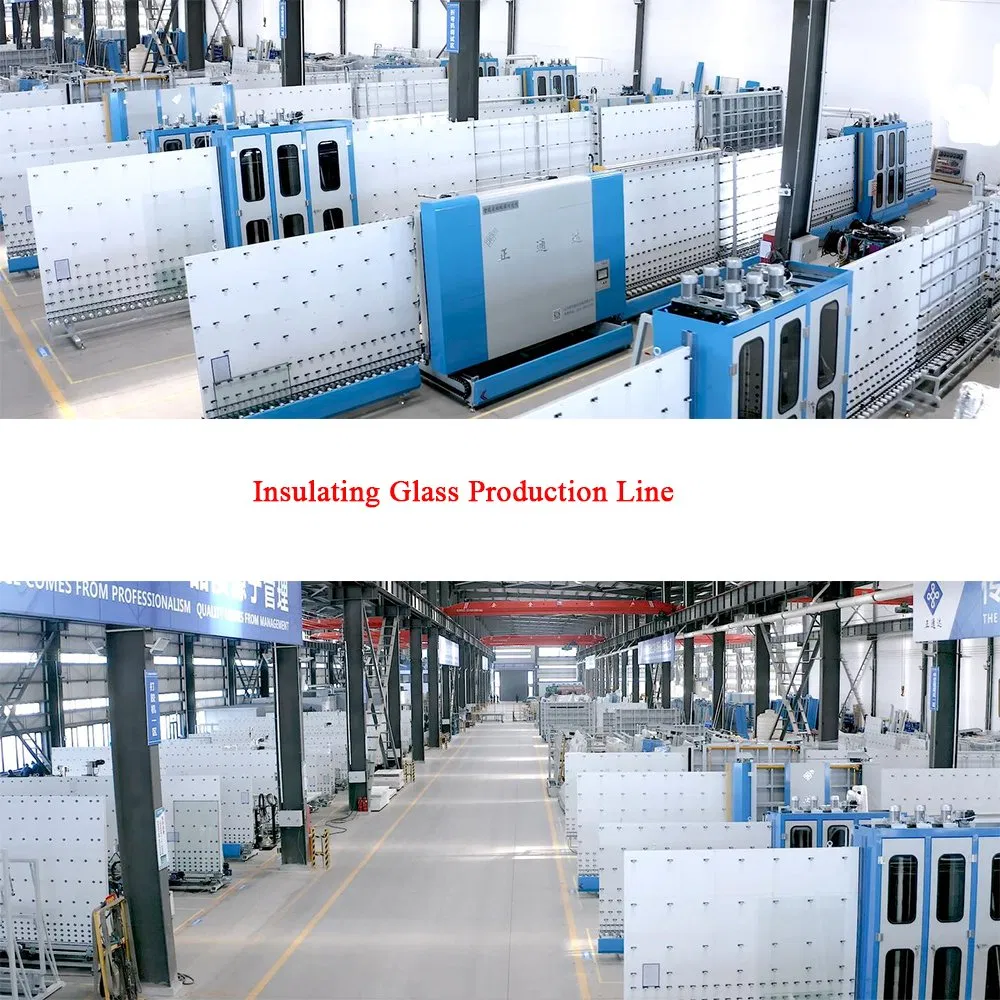

Factory Capability
❓

Frequently Asked Questions

1. Is this equipment suitable for Low-E glass?
Yes, the washing machine features 3 pairs of soft brushes (DuPont brand) and an automatic detection system to identify and safely clean the coating side of Low-E glass.
2. What is the typical lead time for delivery?
Standard lead time is 45 working days for a full production line and 30 working days for single machines. Special requirements can be discussed with our sales team.
3. What kind of after-sales support and warranty do you provide?
We offer a 12-month warranty (excluding wearing parts) and lifetime technical support. Engineers are available for onsite installation and service upon request.
4. Can this machine produce triple-glazed units?
Yes, the line is designed to handle double IG units, triple IG units, and even shaped or stepped units with the optional configuration.
5. What is the gas filling efficiency of the press section?
The system achieves over 90% gas concentration. Due to precise servo positioning and excellent sealing, gas retention remains above 85% after 48 hours.
6. Are the machines quality certified?
Yes, all machines undergo a 100% quality examination before shipment and meet both ISO and CE international certification standards.
