Overview
*This machine is conventional type, the specific price is subject to the actual configuration and negotiation.

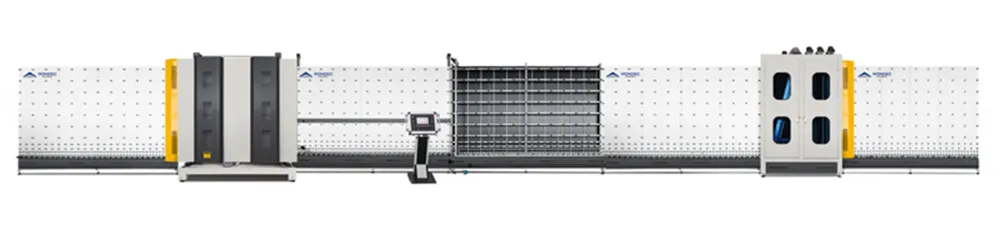

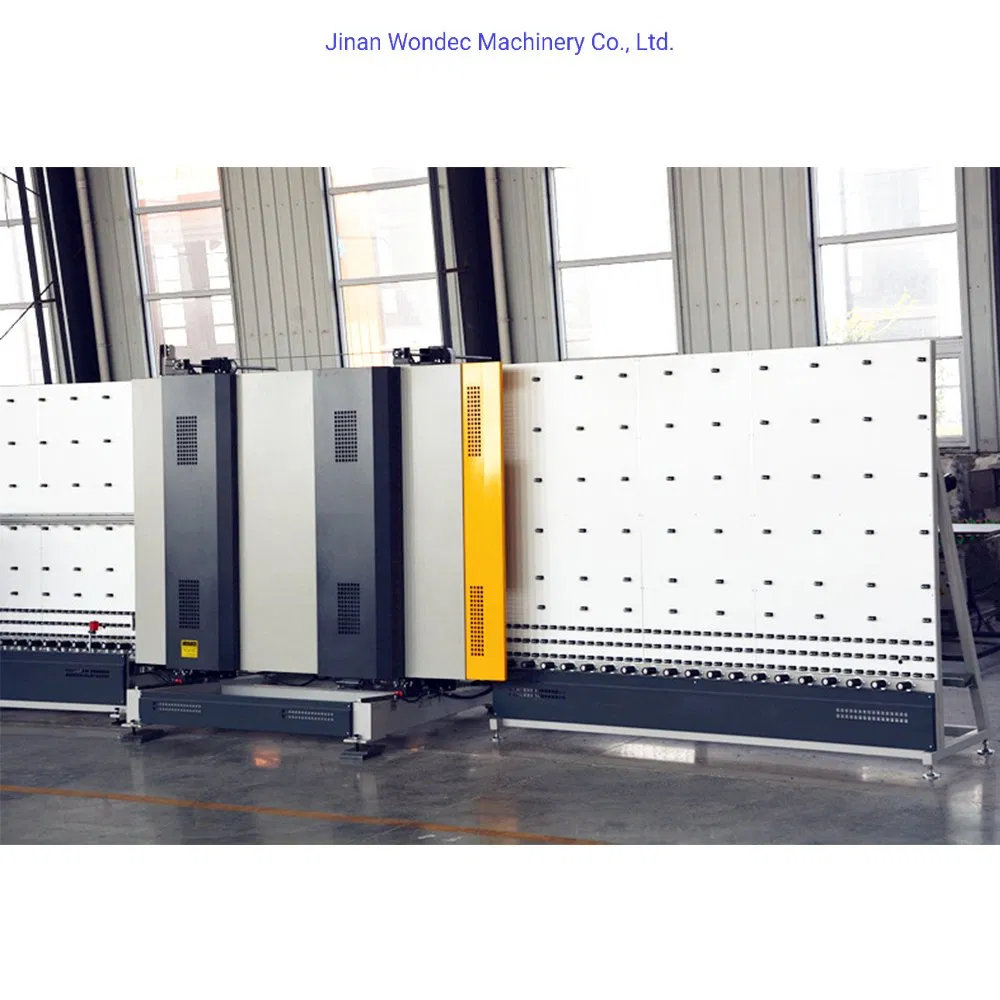

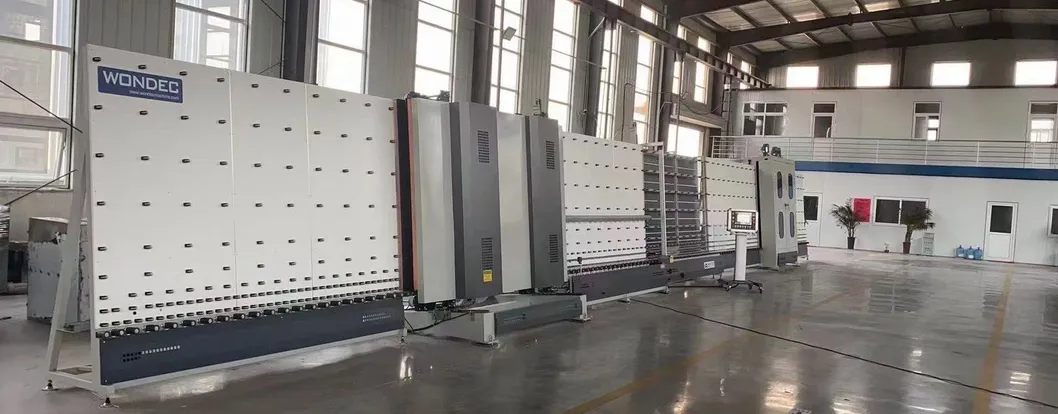

Automatic Insulating Glass Gas Filling Line WLBZ2545
Basic Specifications
Type
Insulating Glass Production Line
Key Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Components
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Washing Machine
Ultrasonic Glass Washing
Specification
28500*2500*3400mm

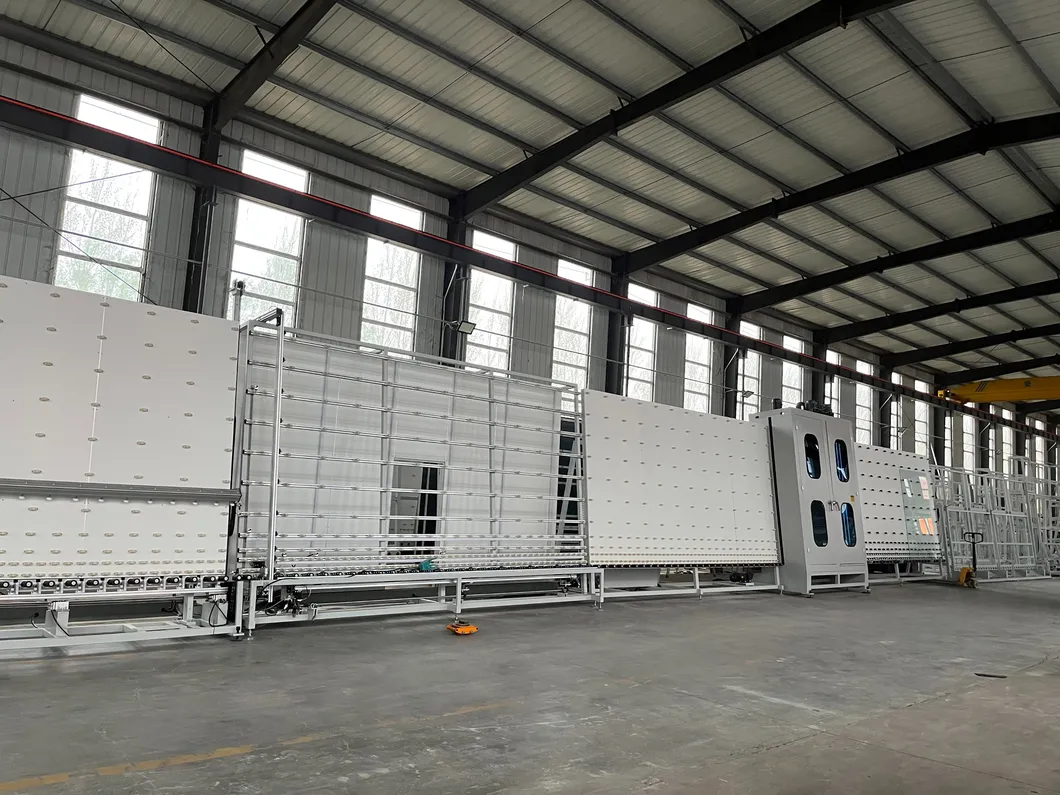

Detailed Photos

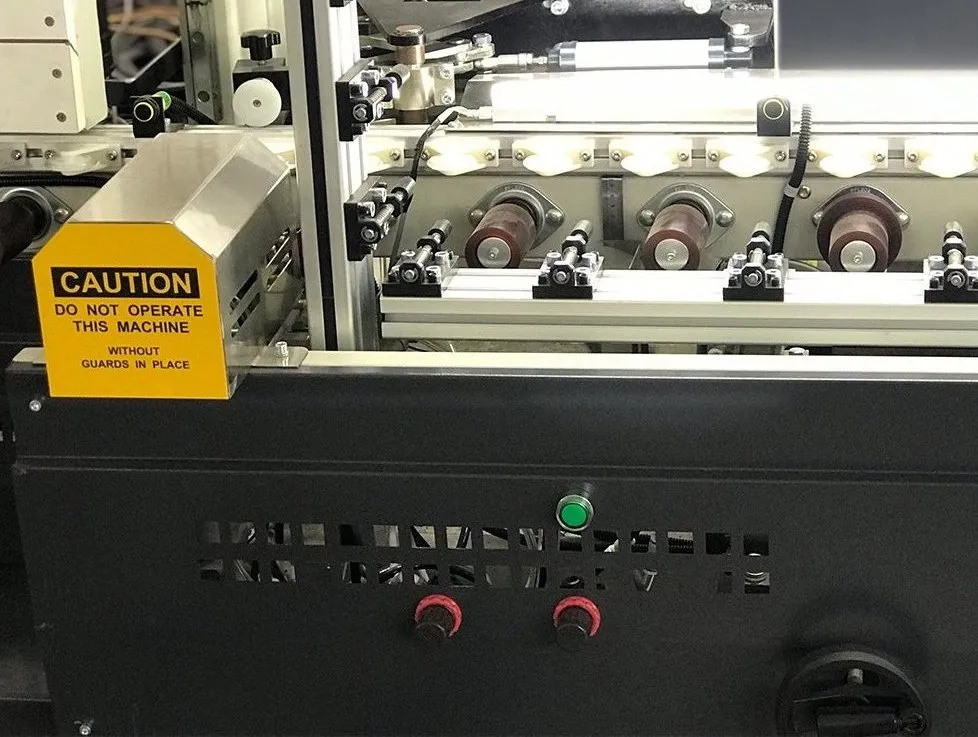

Section 01: Input section for transmitting glass into washing and drying. Features carbon fiber conductive brushes for Low-E glass detection.

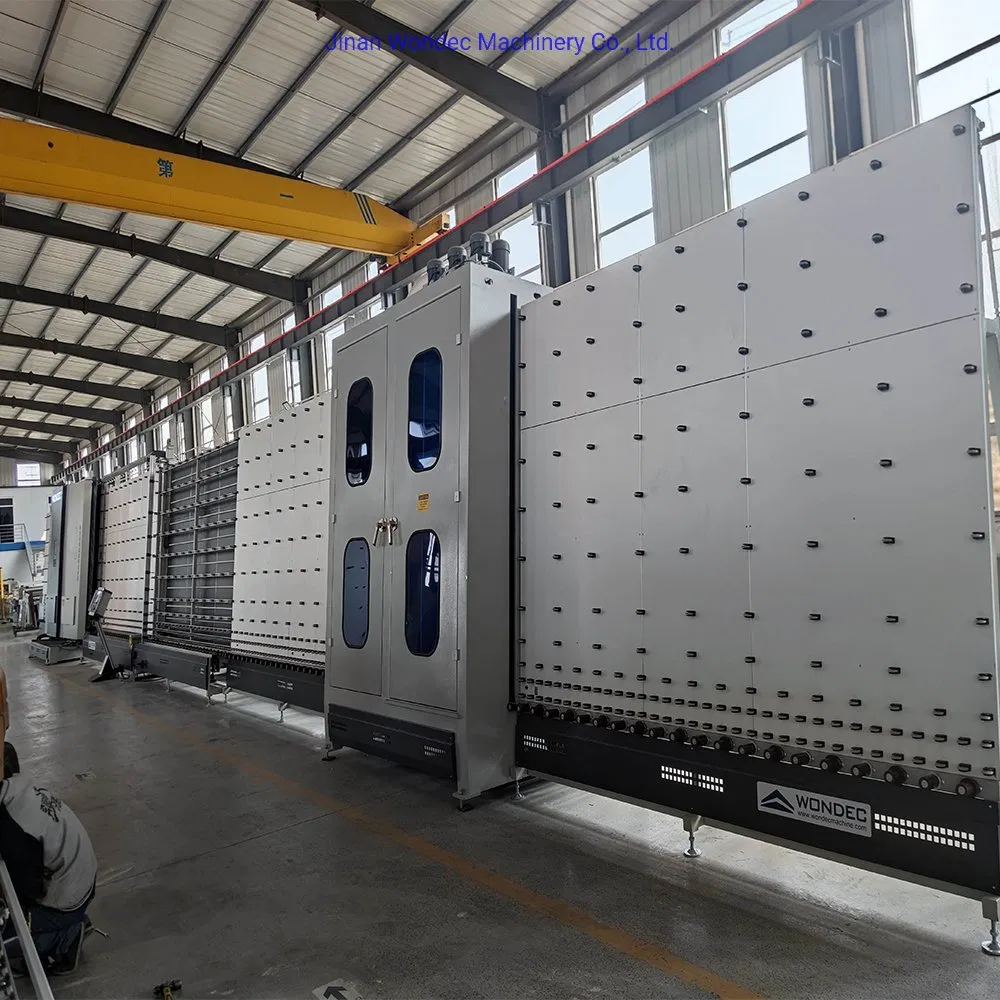

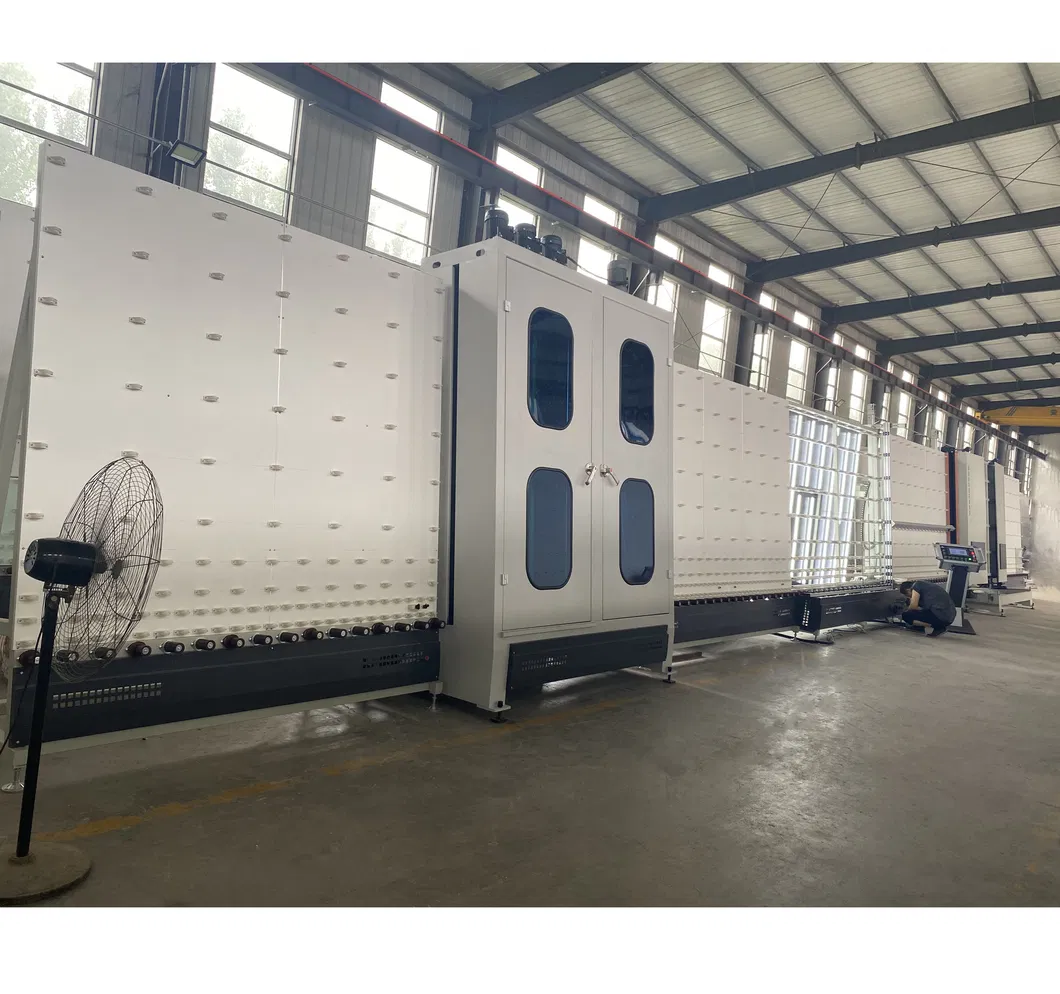

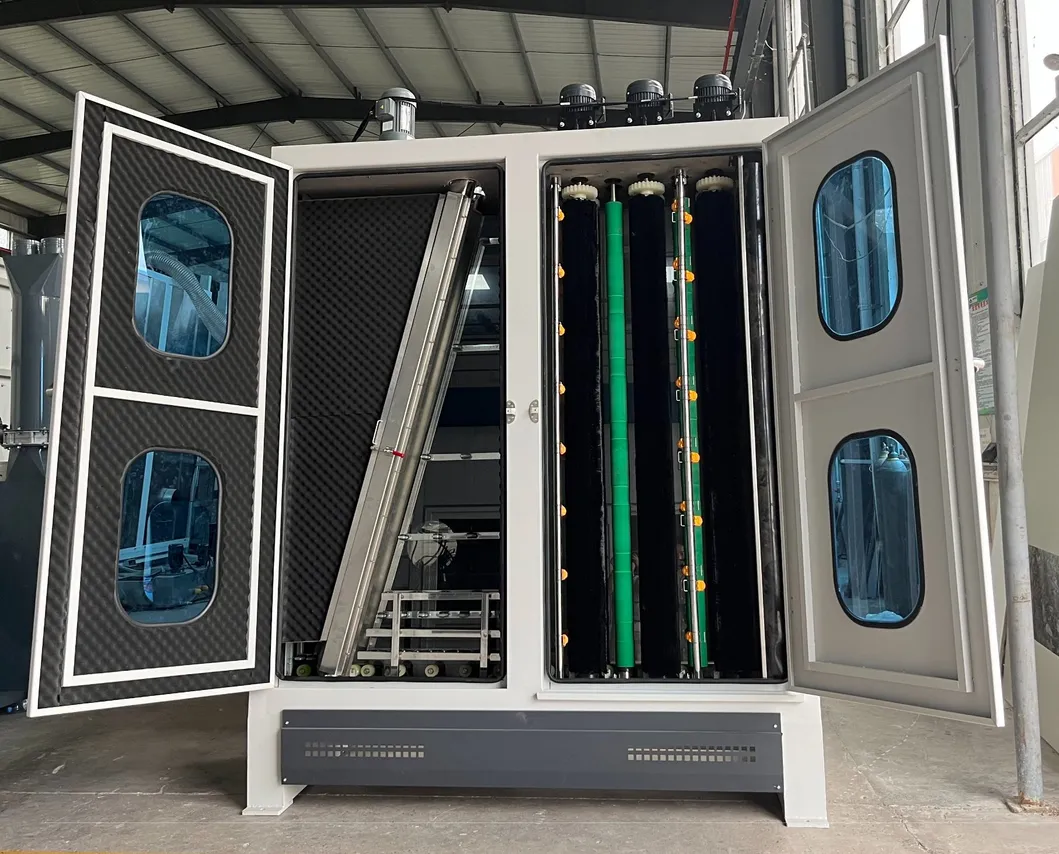

Section 02: Washing and Drying section. Stainless steel and corrosion-resistant materials are used for the entire water system. 3 pairs of brushes are driven independently by 3 motors.

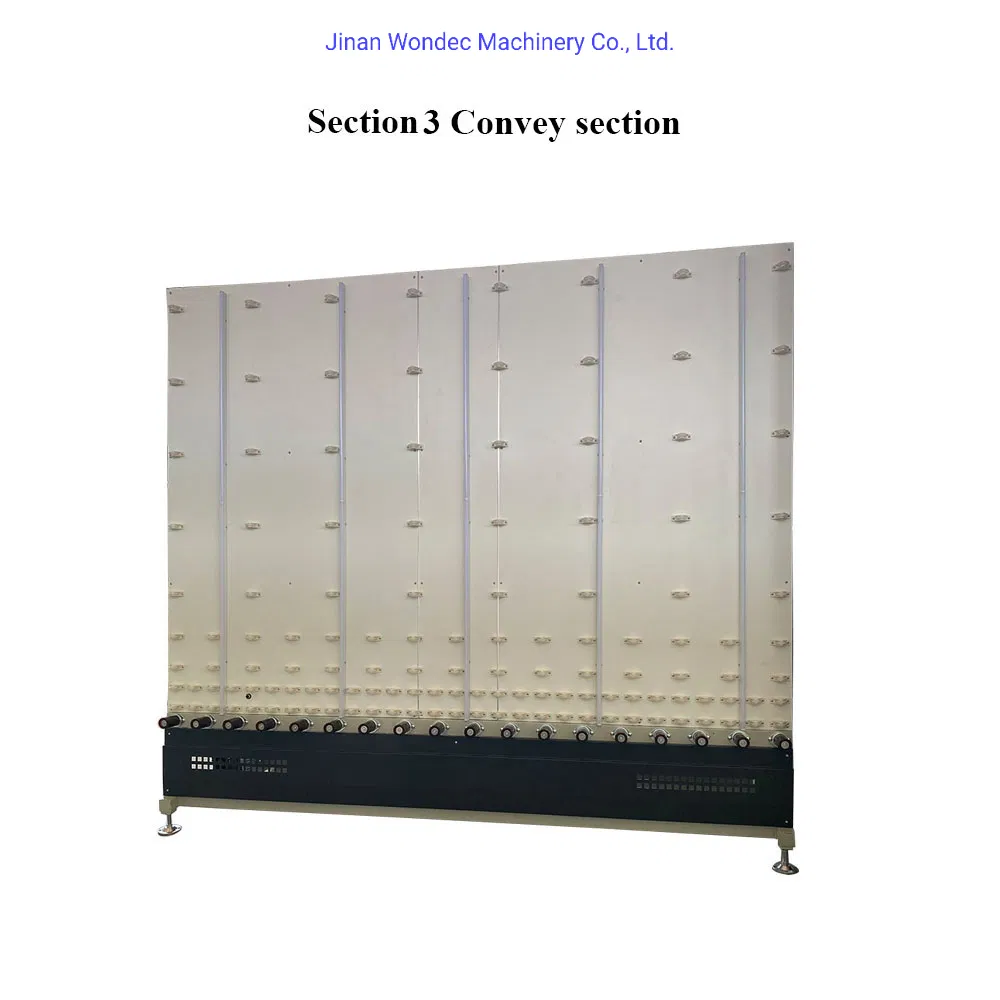

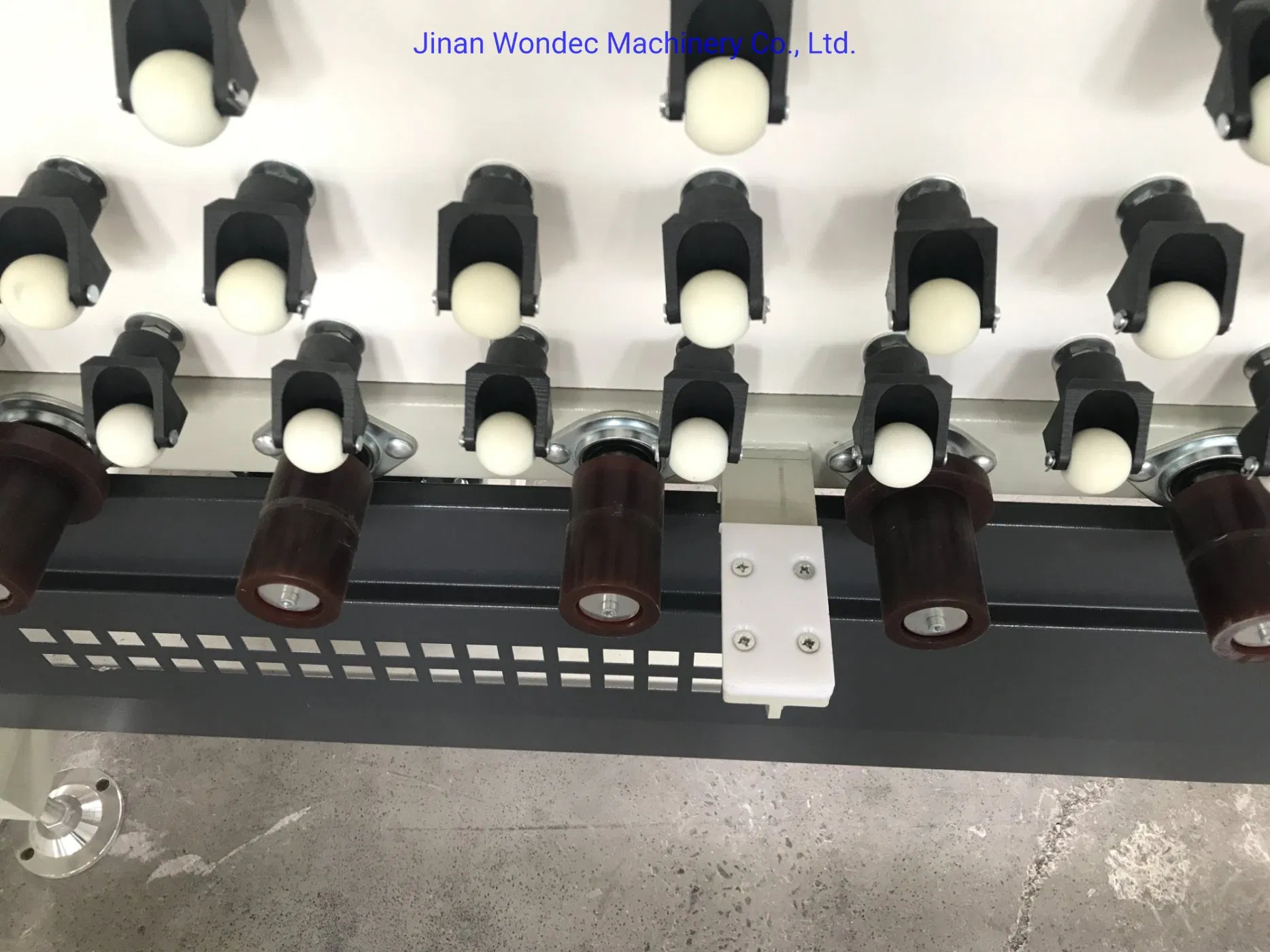

Section 03: Conveyor section. Utilizes 2 motors to drive transmission, allowing two small glasses to be parked simultaneously for efficiency.
Section 04: Light inspection and aluminum spacer locating section. Made of aluminum-alloy profiles with high-quality LED lamps for energy-saving inspection.
Section 05: Outside assembly for higher efficiency compared to inside assembly.

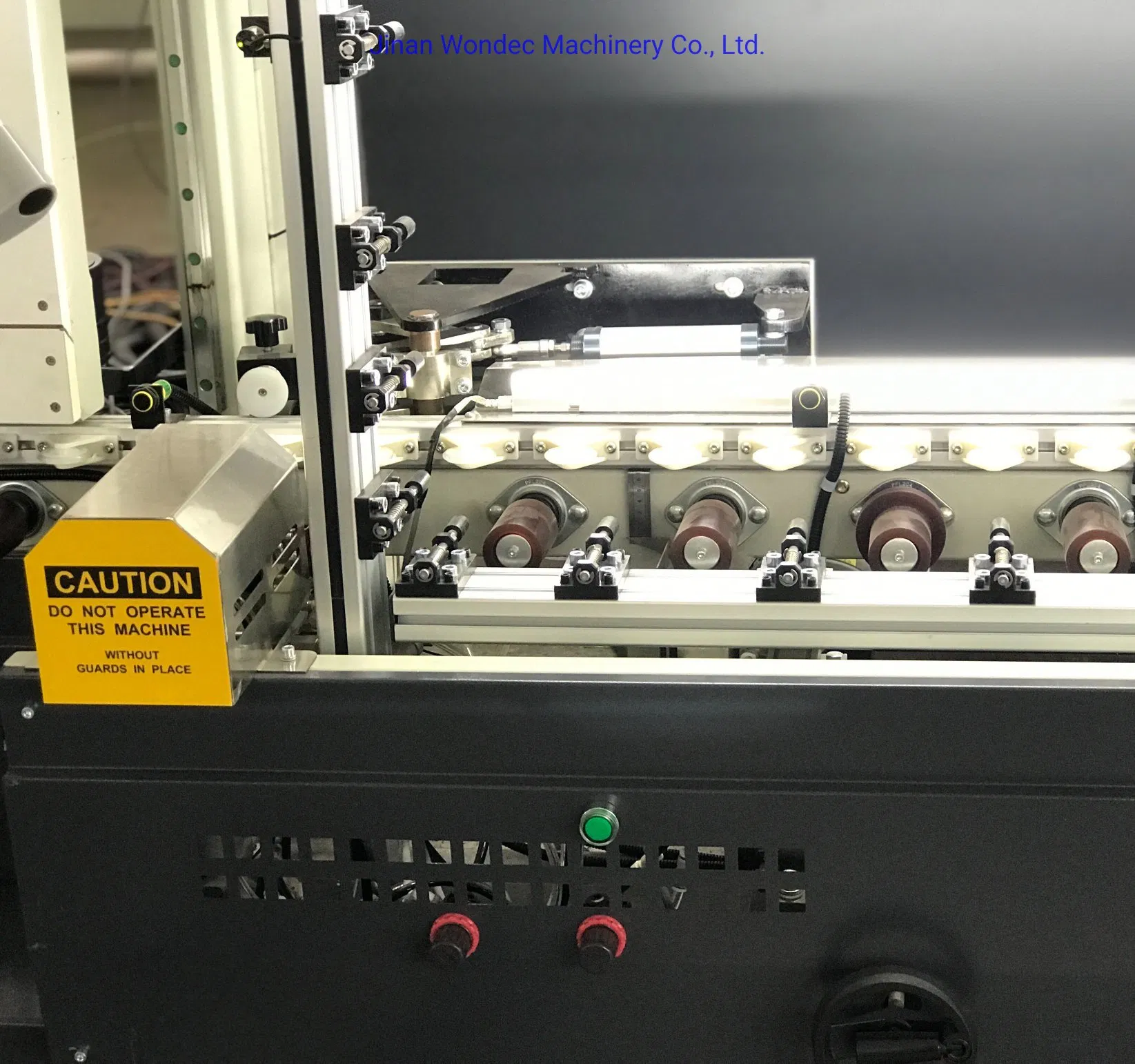

Section 06: Inside assembly & panel press. Controlled by a high-precision Servo motor with a reinforced steel frame.
Section 07: Unloading section for storage and transmission, improving overall workflow.
Product Parameters
| Parameter Item |
Technical Data |
| Input power | 42KW (Heating with wind) |
| Max. glass size | 2500*4500mm |
| Min. glass size | 500*300mm |
| Pane glass thickness | 3-18mm |
| Max. Insulating glass thickness | 12-80mm |
| Glass washing speed | 3-12m/min |
| Working speed | 2-48m/min |
| Air pressure | 0.8m³/min |
| Water electrical conductivity | ≤40µS/cm |
| Weight | About 9000kgs |
Packaging & Shipping
Package Size
2850.00cm * 250.00cm * 340.00cm
Protection
Plastic Cloth Covering, Stretch Film Wrapping
Service & Support
Pre-sales Service
- Layout Design: Equipment footprint planning based on your building floor plan (length, width, height).
- Technical Drawings: Professional technical drawings based on the finalized layout.
After-sales Service
- Weekly production reports to keep you updated on progress and details.
- Equipment installation, debugging, personnel training, and English operation manuals.
- Lifetime maintenance and technical support. One-year warranty excluding wearing parts.
Frequently Asked Questions
How is the quality control for this glass production line?
The entire production procedure undergoes regular inspection and strict quality control. Every component is inspected before use, and the complete machine is tested thoroughly before leaving the factory. Testing videos and pictures are provided before delivery.
Can you provide installation services in my country?
Yes, we arrange for engineers to install the machine at your factory and provide hands-on training for your personnel once the equipment arrives.
What documents are provided after shipment?
After shipment, we provide all original documents via DHL, including the packing list, commercial invoice, bill of lading, and any other certificates required for your local customs.
How do we operate the machinery if we are new to it?
We provide comprehensive paper instructions in English and offer full training sessions until your operators are proficient in using the glass processing machinery.
What happens if the machine has problems after purchase?
During the warranty period, free replacement parts are sent for any issues. We provide 7/24 free technical support via phone and mail to ensure your production line stays operational.
Are these machines customizable?
Yes, while we offer conventional models, we specialize in providing tailored solutions. Prices and configurations can be adjusted based on specific negotiation and requirements.
